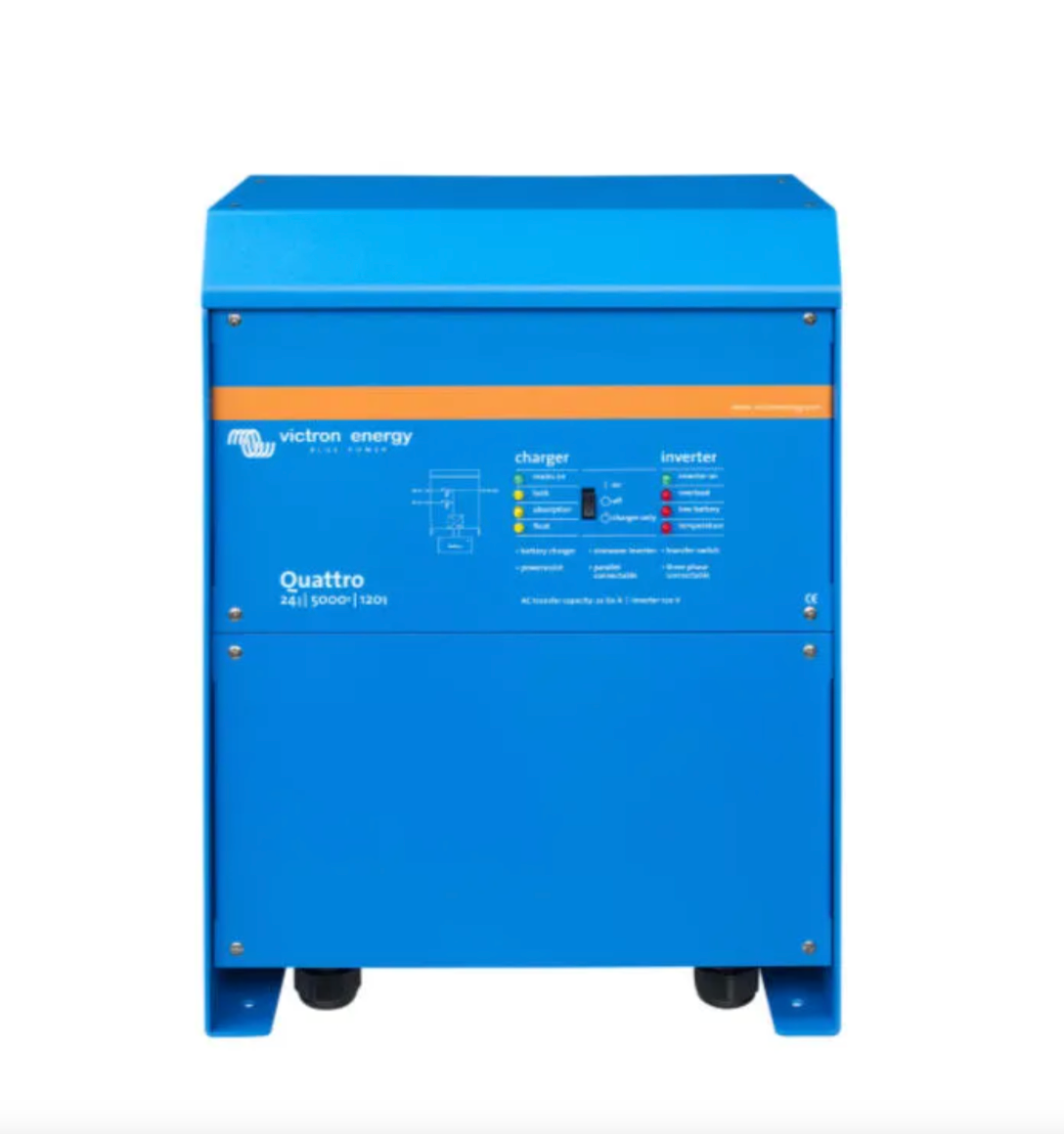

Victron Energy Quattro - 24/5000/120 230V Inverter/Charger (24-Volt) (Clearance)

This is a brand new, overstock clearance unit. All clearance items are final sale.

Note: This Product Is 230 VAC Output, European Voltage, Not For Use In The USA

Similar to the MultiPlus, the Quattro is also a combined inverter and charger. Additionally it can accept two AC inputs and automatically connect to the active source. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology plus multiple system integration features such as three or split phase operation and parallel operation.

Two AC Inputs & two AC Outputs

The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators. The Quattro will automatically connect to the active source. The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, such as air-conditioning or a water heater can be connected to this output.

Unique PowerAssist feature

The Quattro will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.

Virtually unlimited power thanks to parallel operation

Up to 6 Quattros can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible.

• 24 volt DC input
• Pure Sine Wave 230 volt 60 Hz AC output
• 5 KVA output 230 volts
• 2 x 100 Amp transfer switch
• 120 Amp charger for main battery
• 4 Amp charger for start battery
• Battery temperature sensor included

• Multiple units can be configured together to provide three phase or other configurations up to a maximum of 50 kVA output
• 17.5" x 12.9" x 9.5" dimensions (H x W x D) approx
• 66 Lbs
• Victron part number QUA245021010
