EcoFlow 10kWh Power Kit

$9,999.00 – $10,639.00

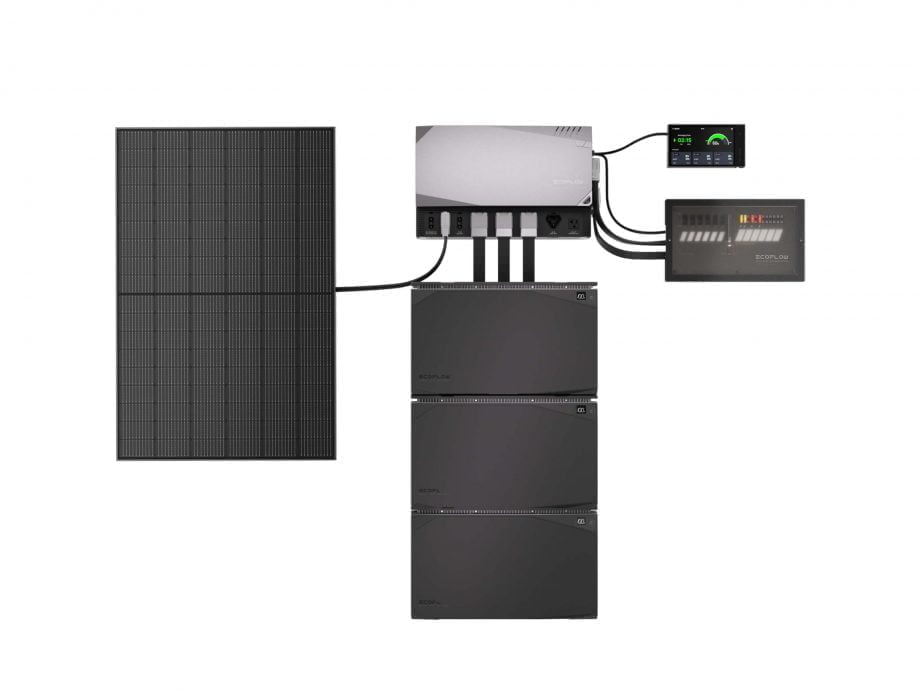

The absolute easiest way to add a powerful and reliable electrical system to your adventure vehicle! EcoFlow has done the hard work for you. Simply connect the various components together, wire up your 120-volt AC and 12-volt DC branch circuits, add a shore power inlet, any solar panels, and a connection to your vehicle alternator and you're ready to charge when driving, through shore power and through solar panels.

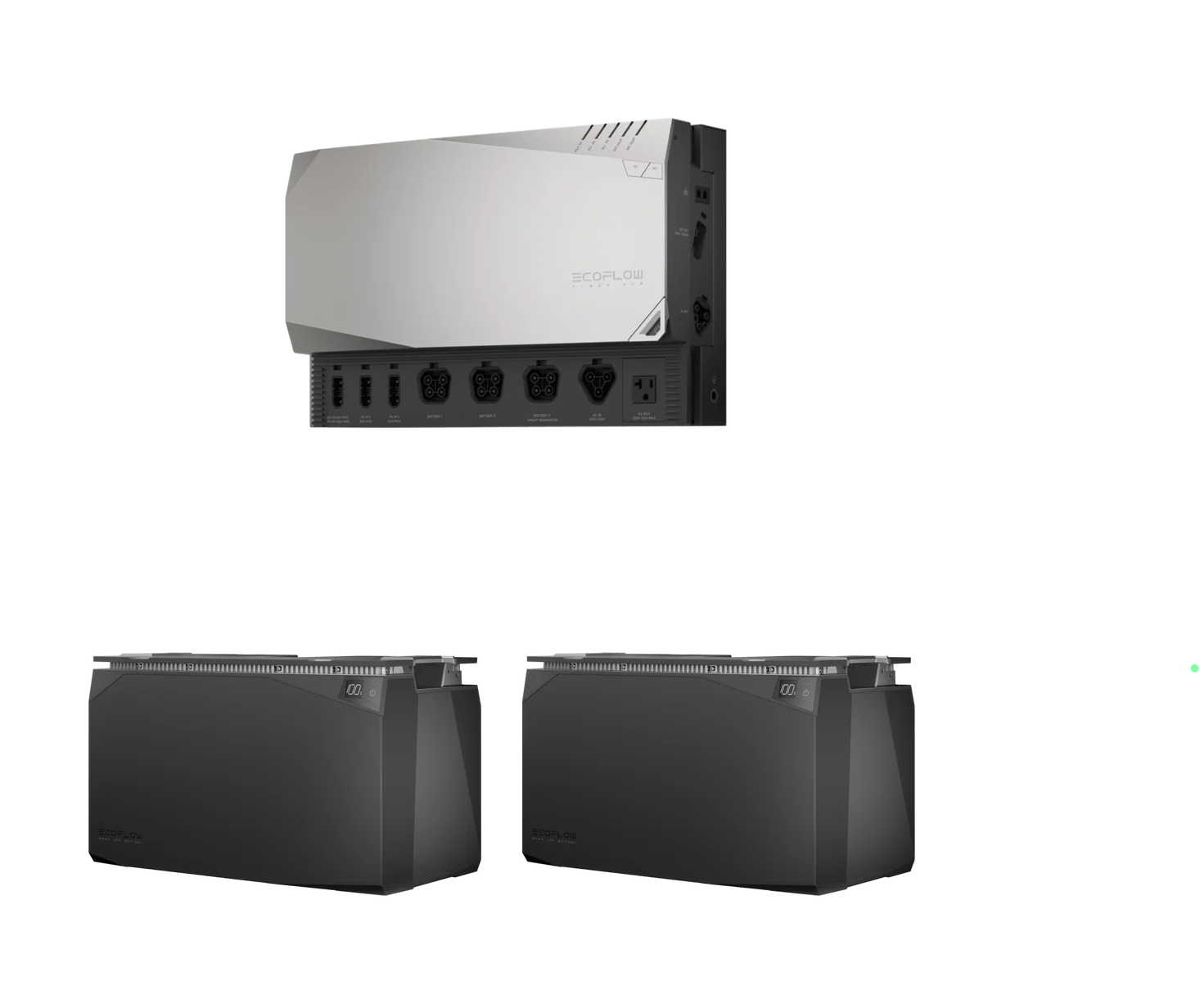

  • This 10 kilowatt-hour kit includes 2x, 5120 kilowatt-hour battery packs which are approximately 400 amp hours each (800 amp hours total) at a nominal 12.8 volts.
  • You can add an additional battery pack (up to 3x total for up to 15kWh) to scale up your storage capacity or these kits are available in 5kWh, 10kWh and 15kWh versions with discounted battery pricing.

Free Installation Kit Offer!
For a limited time, we're including the following installation/accessories with EcoFlow power kits! The installation kit will ship separately.

Check out our comparison of the EcoFlow power kits vs. a Victron Energy system with our popular Discounted Internal BMS Bundle with SOK Batteries.

  • Available in 3x configurations: Get Set, Prepared, and Independence. See the comparison image below in the description to see what's included with each kit. For most camper vans we recommend the Independence configuration which is also the most popular option.
  • Can support up to 6000 watts of charging through a combination of 4x methods: up to 4800W solar, 1600W alternator, 3000W shore power, and 1800W EcoFlow Smart Generator input.
  • Integrated inverter rated for 3,600 watts.
  • Native 48-volt system allows for smaller components and less heat and resistance than more traditional, 12-volt systems. The DC output can be selected between 12 or 24 volts at up to 1,000 watts (about 70 amps at 13.6 volts). It also allows you to run 48-volt loads (such as a 48-volt air conditioner) in addition to 12-volt loads.
  • Real-time and remote smart controls
  • Made in USA with a 5-year system warranty with an optional, 10-year upgrade (please contact us for information on extended warranty options)
  • Check out our photo gallery unboxing and setup of an EcoFlow 5kWh "Independence" power kit

Scroll down to the full description for more information and details!

Free ground shipping to the continental USA!

Add to wishlist
SKU: N/A Categories: ,
buy with confidence, secure checkout, world-class support, free shipping


Description

About Each Component

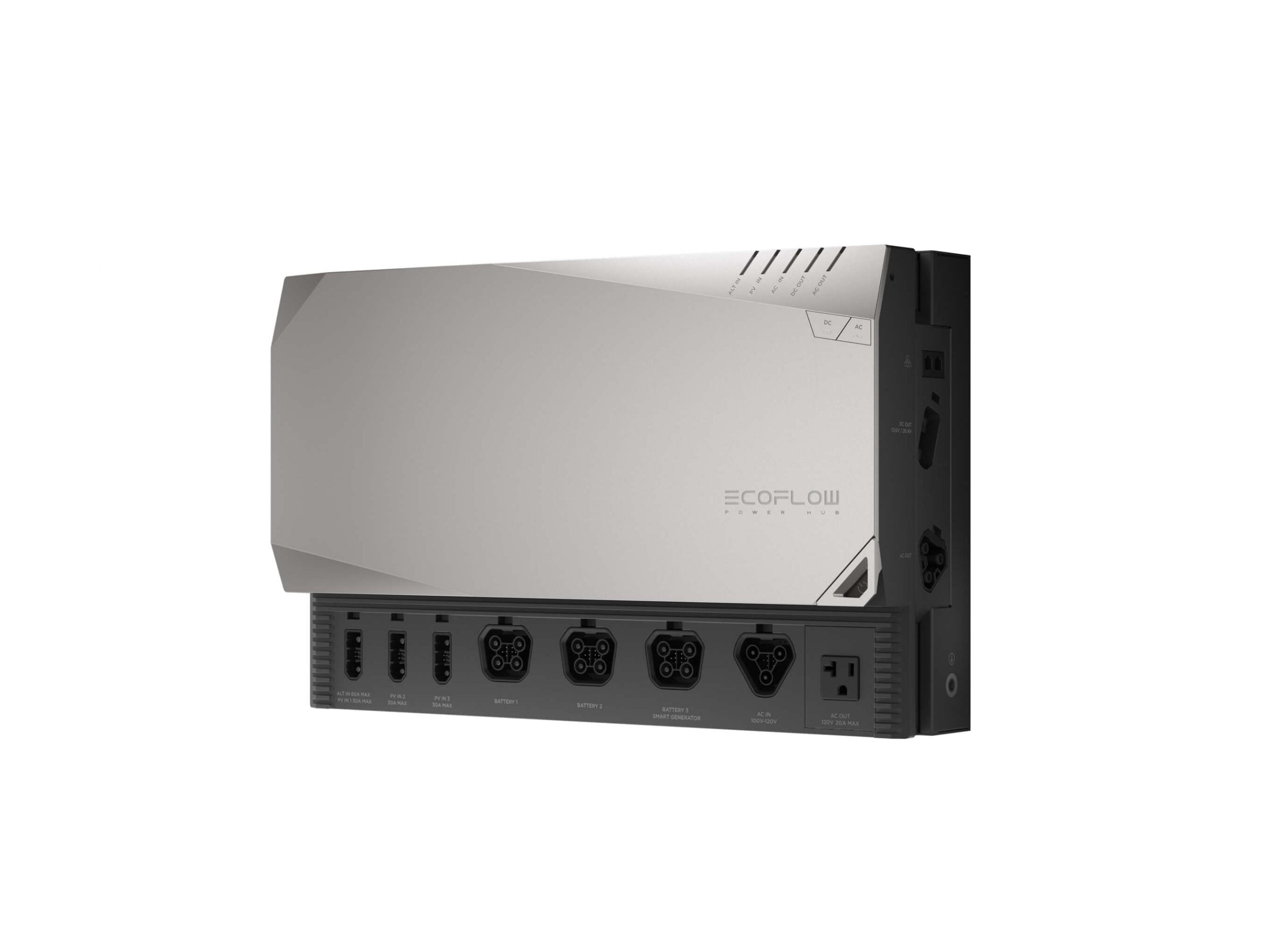

  • Power Hub - including a 3600W pure sine inverter-charger with max AC output of a whopping 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, and plug-in input/output ports for solar, alternator, battery and generator charging.

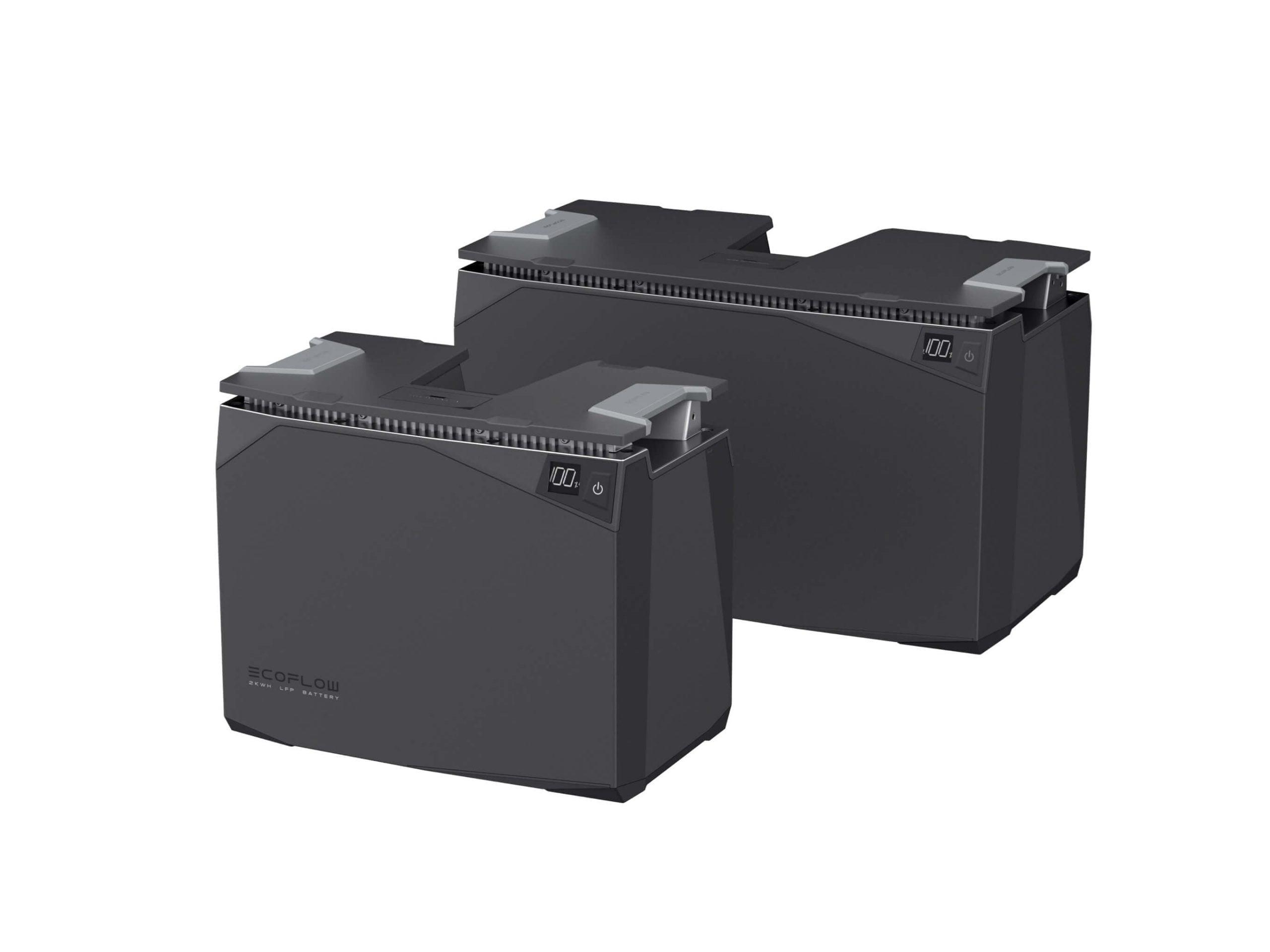

  • Battery(s) - The 48-volt lithium EcoFlow batteries are available in 2 kWh or 5 kWh sizes. Each kit has one or more batteries determining its kilowatt-hour storage capacity. These are long-life lithium iron phosphate (LiFePO4) batteries, which have an operating temperature from -4 F to 122 F because of their built-in auto heating. Note that you can use either one to three 2 kWh or 5 kWh batteries in your power system, but you cannot mix and match the two sizes.

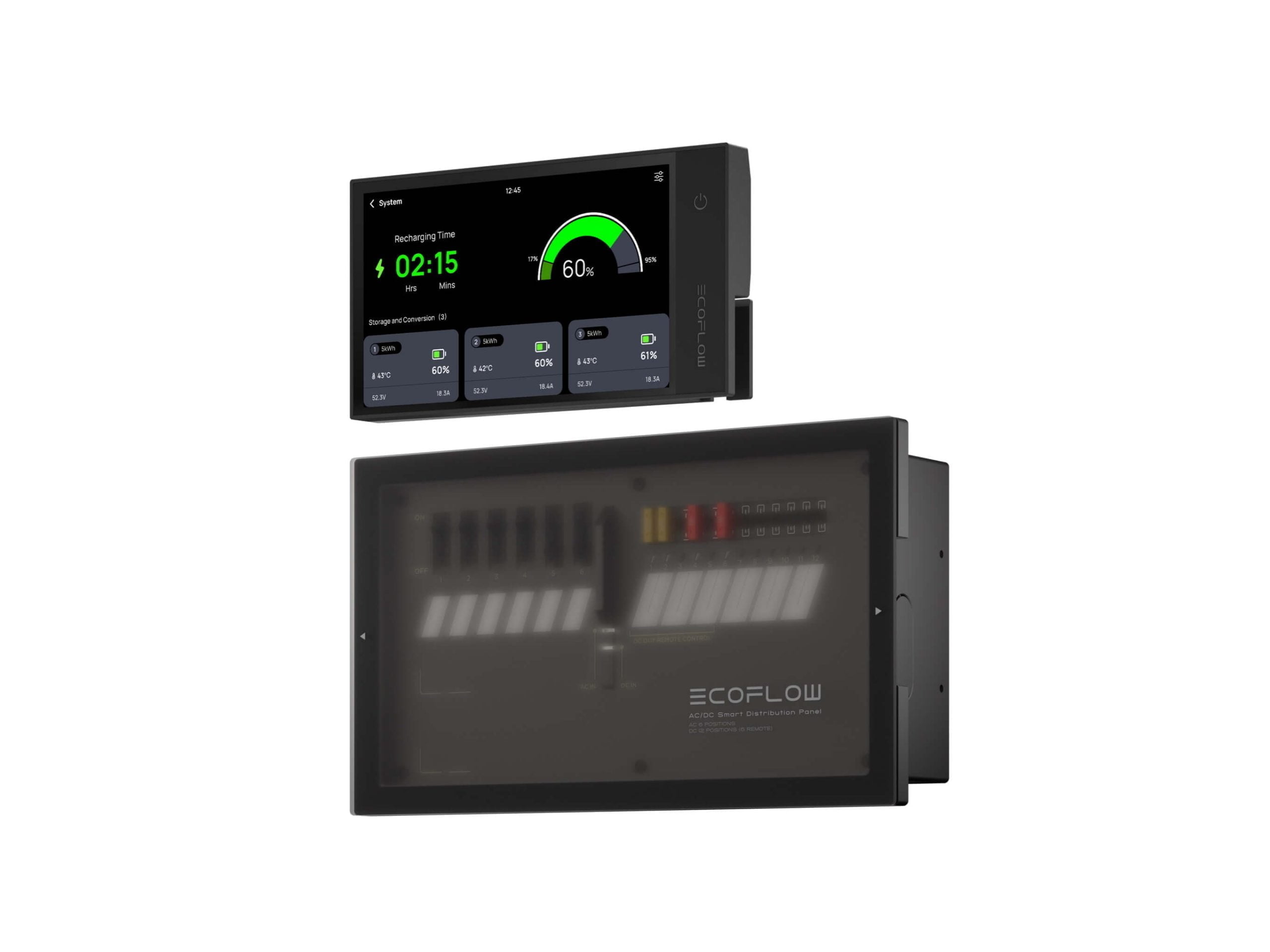

  • AC/DC Distribution Panel - The 3-component panel is designed for 6 AC circuits and 12 DC circuits. It has a transparent exterior faceplate, removable interior face panel, and a deep connection box with knockouts and WAGO-style circuit connectors.
  • Console - a 7" full-color LCD touchscreen for control and monitoring of all electrical system inputs and outputs. You can turn DC and AC inputs on and off, monitor the remaining battery capacity
EcoFlow vs. Victron Energy Power System Comparison

Manuals & Guides

Simple Installation - Overview

Monitoring & Control

Pro Builder Review

Battery Capacity - Per 5kWh Battery Pack 5120 Wh (100 Ah @ 51.2 volts or 400 Ah at 12.8 volts)
Battery Type Lithium iron phosphate
Nominal Voltage 51.2V
Configuration 16S1P
Charging Cut-off Voltage 57.6V
Discharging Cut-off Voltage 40V
Max Continued Charging Current 80A
Max Continued Discharge current 100A
Battery Cycle Life 3,500 cycles to 80% capacity
Battery Dimensions 19.7 x 10.2 x 11.8 in
Weight Approx. 89.5 lbs

Additional information

Weight 1120 oz
Dimensions 40 × 40 × 40 in
Power Kit Type (scroll down to description for details)

Gen Set Kit, Independence Kit, Prepared Kit
