About Each Component

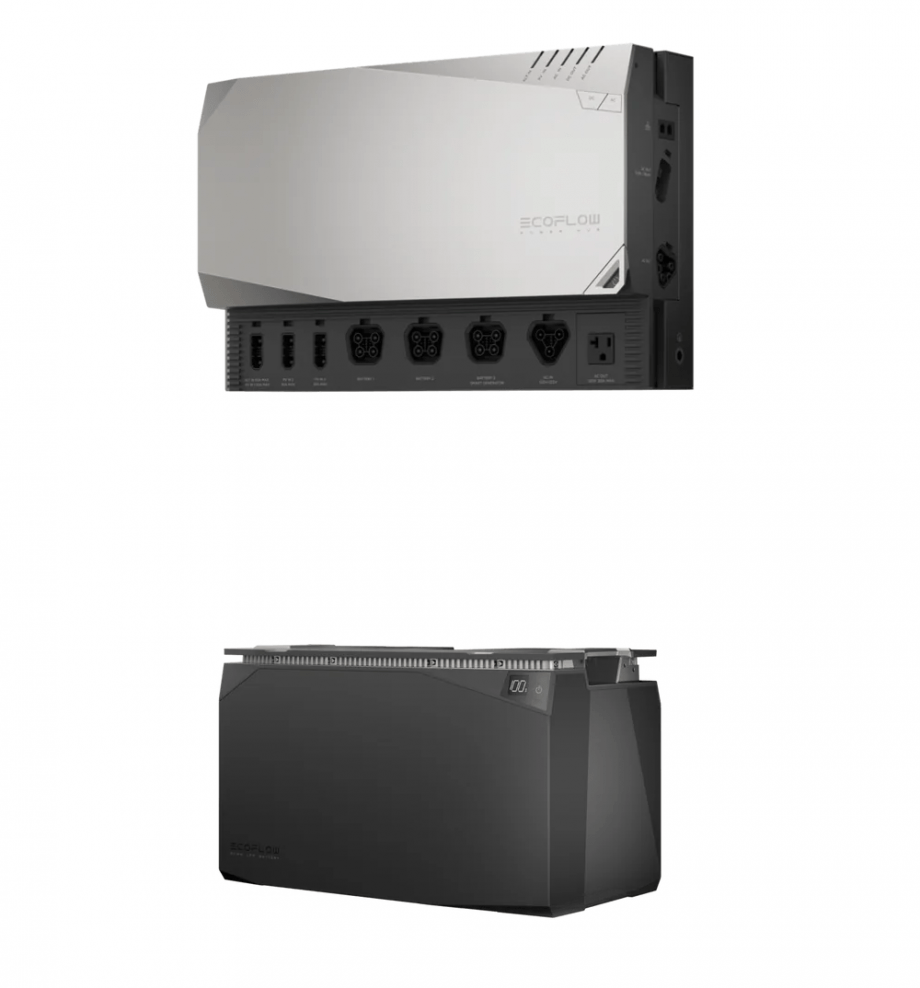

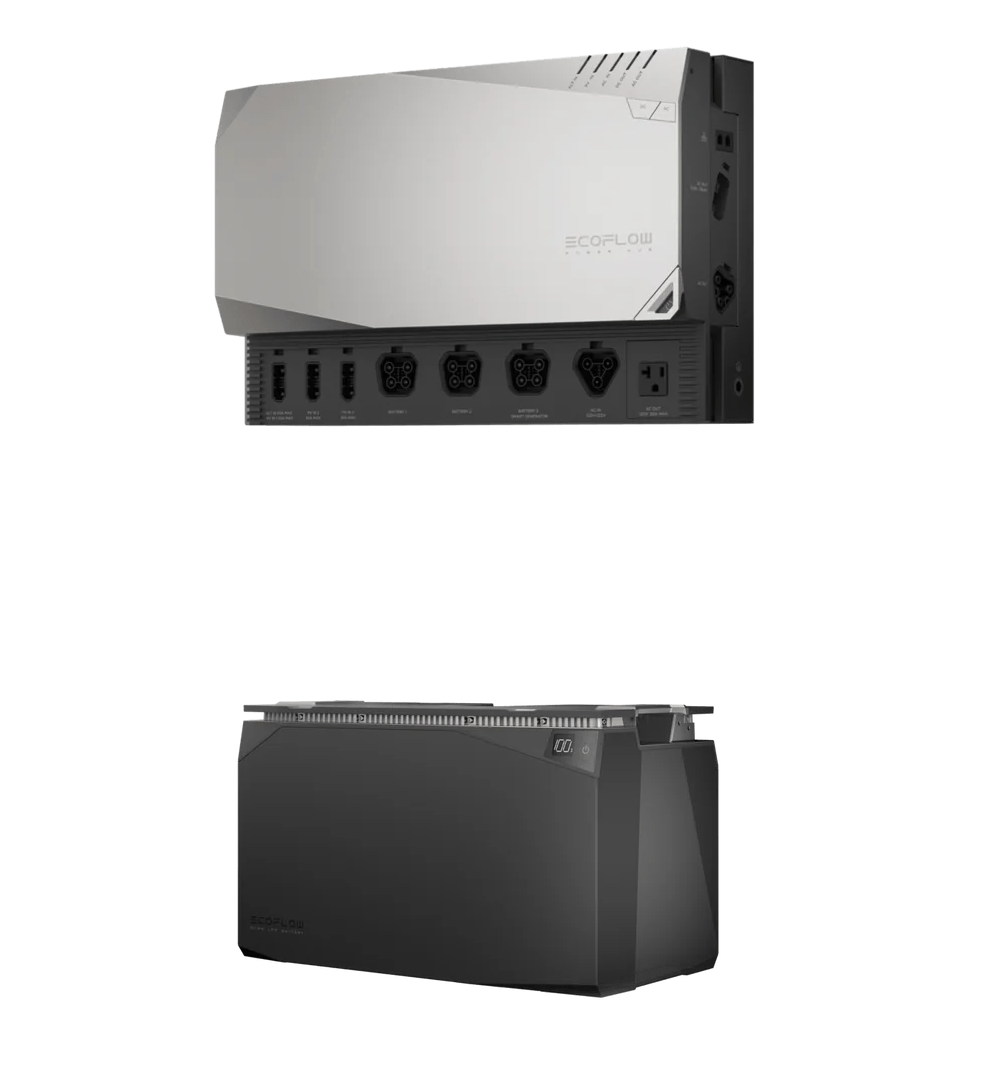

- Power Hub - including a 3600W pure sine inverter-charger with max AC output of a whopping 7200W, dual MPPT solar charge controllers, a DC/DC converter, DC/DC battery charger, and plug-in input/output ports for solar, alternator, battery and generator charging.
- Battery(s) - The 48-volt lithium EcoFlow batteries are available in 2 kWh or 5 kWh sizes. Each kit has one or more batteries determining its kilowatt-hour storage capacity. These are long-life lithium iron phosphate (LiFePO4) batteries, which have an operating temperature from -4 F to 122 F because of their built-in auto heating. Note that you can use either one to three 2 kWh or 5 kWh batteries in your power system, but you cannot mix and match the two sizes.
- AC/DC Distribution Panel - The 3-component panel is designed for 6 AC circuits and 12 DC circuits. It has a transparent exterior faceplate, removable interior face panel, and a deep connection box with knockouts and WAGO-style circuit connectors.
- Console - a 7" full-color LCD touchscreen for control and monitoring of all electrical system inputs and outputs. You can turn DC and AC inputs on and off, monitor the remaining battery capacity
Simple Installation - Overview
Monitoring & Control
Pro Builder Review
|Battery Capacity - Per 5kWh Battery Pack||5120 Wh (100 Ah @ 51.2 volts or 400 Ah at 12.8 volts)|
|Battery Type||Lithium iron phosphate|
|Charging Cut-off Voltage||57.6V|
|Discharging Cut-off Voltage||40V|
|Max Continued Charging Current||80A|
|Max Continued Discharge current||100A|
|Battery Cycle Life||3,500 cycles to 80% capacity|
|Battery Dimensions||19.7 x 10.2 x 11.8 in|
|Weight||Approx. 89.5 lbs|
