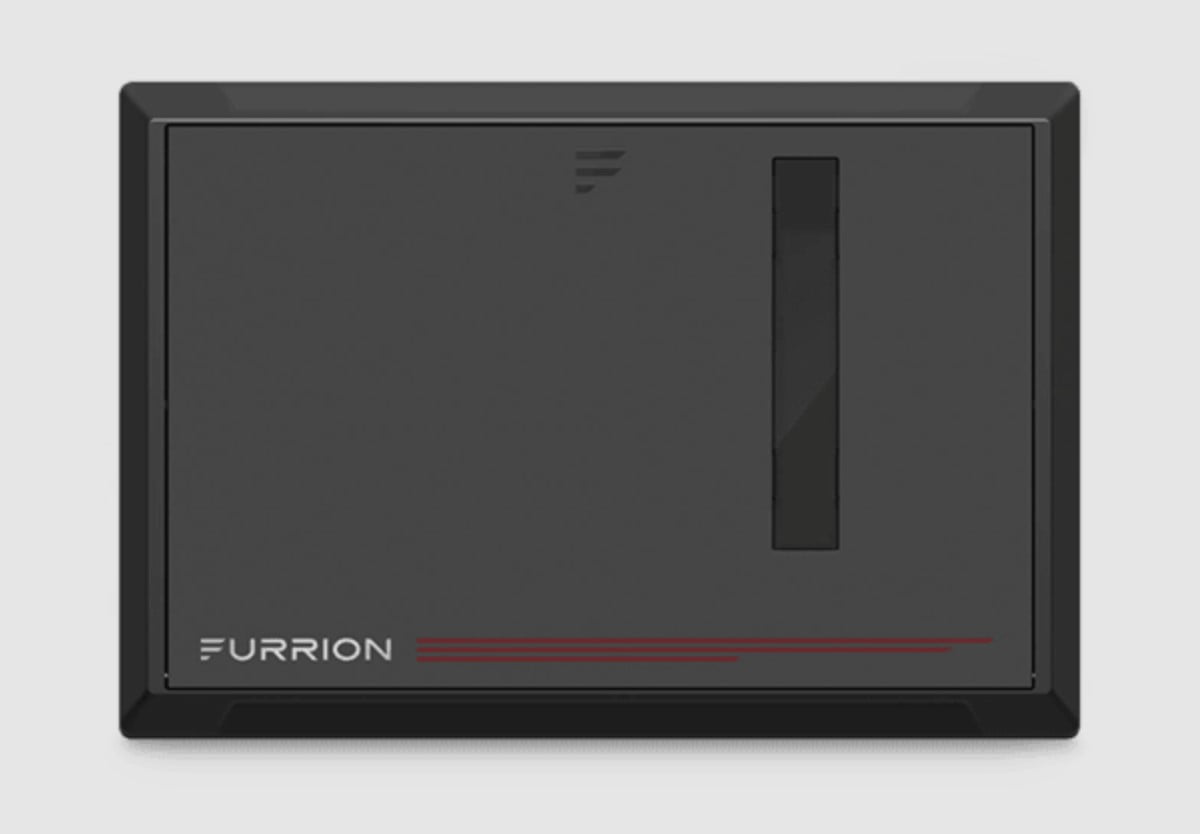

Furrion Combo AC/DC Load Center


  • We like the Furrion combination 12 volt DC and 120 volt AC load center because of how it combines all your branch circuit protection into one elegant, panel-mounted box with a cover.

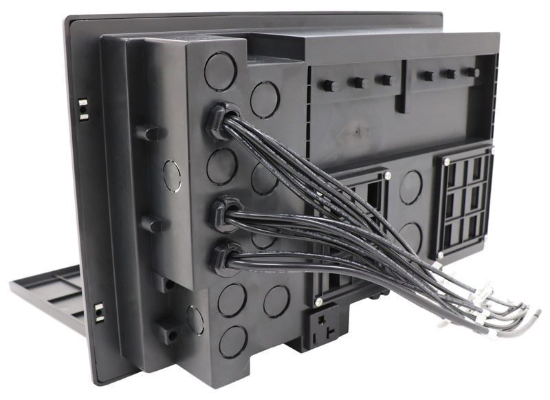

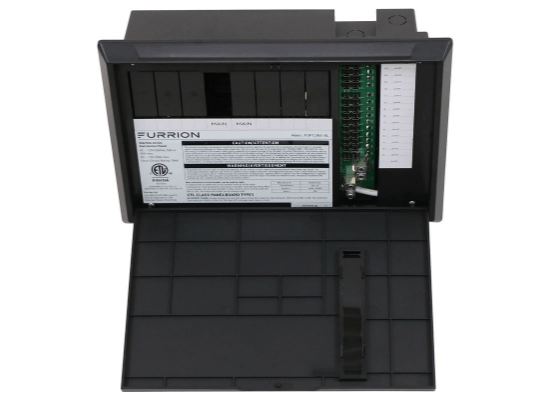

  • Up to 15x 12 volt DC circuits are wired up to the right side and use standard, automotive, ATC fuses.
  • Up to 6x 120 volt AC circuits are wired up to the left side (using tandem breakers). Uses HOM style breakers available in 50 amp, 30 amp, tandem 20 amp, or tandem 15 amp.
  • Fuse status indicator light for each 12 volt DC circuit lights up red when a fuse is blown.
  • Overall dimensions: 14″ long x 9-9/16″ tall x 4″ deep
  • Rough opening dimensions: 12-3/16″ long x 8-3/16″ tall x 3″ deep
  • Installation Manual PDF
  • Specifications PDF
  • $10 flat-rate shipping to the continental USA.

18 in stock (can be backordered)

buy with confidence, secure checkout, world-class support, free shipping

Additional information

Weight 64 oz
Dimensions 20 × 20 × 10 in
