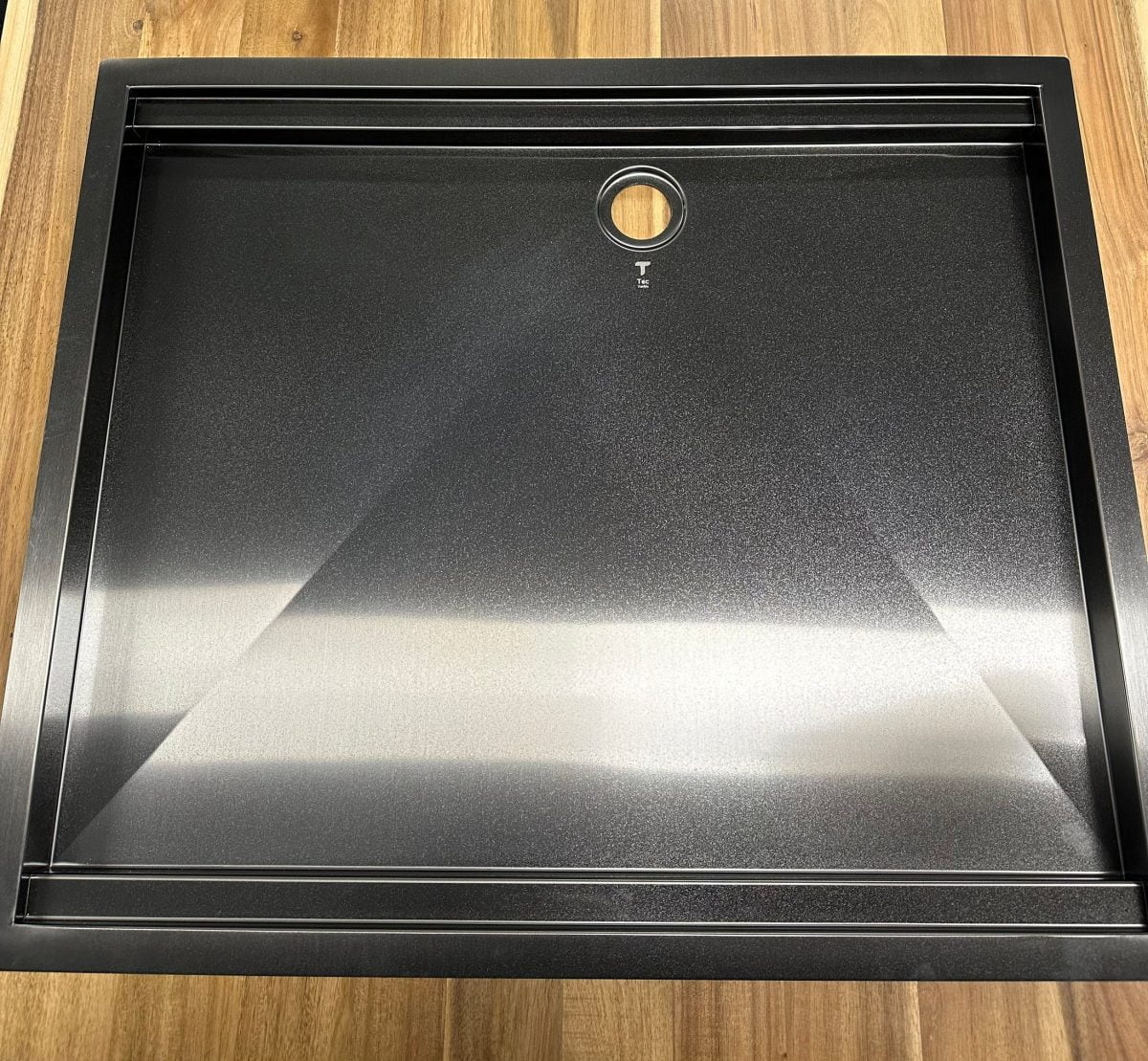

The Tec Vanlife Ultra Low Profile Shower Pan is designed to be installed into the cavity of your van’s floor. With a depth of 1.5” below the floor surface, this pan is a great option for taller van dwellers or those that want a seamless look for their shower. Crafted through a unique, high-precision manufacturing process, each shower pan is 100% handmade, ensuring unparalleled quality and functionality.

The unique (recessed) design allows you to place it directly into your existing floor /subfloor. The 7/8” overlay on each side supports the shower pan in this orientation.

The shower pan features an off-center drain, intentionally crafted to align with popular installation spots on Sprinter, Transit, and Promaster vans. Whether you envision it beside the sliding door, ahead of the driver-side wheel well, or adjacent to the rear door, this design eliminates any need for cumbersome adjustments to the van frame during installation.

Tech Specs:
Outside Dimensions: 28″ x 23.6″
Overall thickness: 1.5″
Drain size: 1.25″

Kit Options
The standard shower pan comes with a sleek bamboo cover with drain holes built right in so it can be used also be used as a shower mat. Or choose the complete set option which includes a shower curtain and a bamboo cover/mat with an integrated metal flange. The curtain has magnets sewn into the bottom, which will stick to the metal flange around the outside edge of the bamboo mat to help hold in place while using the shower. The top of the curtain has grommet holes built in for hanging. (Mounting brackets not included).
