What kind of solar/electrical system do you need in your camper van? Some tips below!



If you get stuck or have questions, our team is here to help! Email us a service@vanlifeoutfitters.com or call us at 754-444-8704 extension 2.

Step 1: Figure out your needs with a load calculation. We have a detailed blog post including sample load calculations you can use for this step. This exercise will really help you with the next two steps!

Step 2: Make a foundational decision on the type of system you'll be building. We've narrowed this down to three basic approaches/architectures - all of which use lithium-type batteries, and each one has a detailed blog post, free example wiring diagram, and, for the Victron-based systems, a corresponding kit/bundle of products that you can configure to your specific needs. You'll save a bundle with our bundles! You can think of this as the primary components and the products in the bundle are specific to the architecture/system design you've chosen.

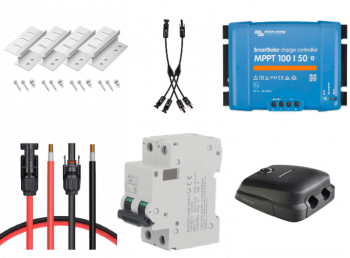

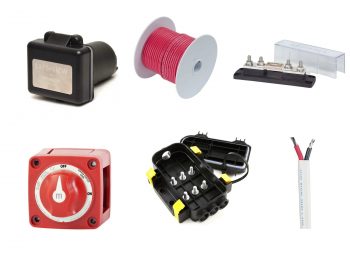

Step 3: Add on the "accessories" that you need for your particular system with our best price accessories bundle that includes everything from shore power inlets to circuit protection and wiring, and our solar components bundle that includes everything from mounting brackets to solar extension cables and charge controllers. These are the products that will tie everything together into a fully functional power system but are not specific to a particular example wiring diagram/architecture.

Example: in this blog post, where we compare a "traditional" Victron-based system to an EcoFlow Power Kit, we have some video screen captures from our store product pages showing how we configured our internal BMS bundle and our accessory bundle to get a close comparison. These screen capture videos are helpful to see how versatile our bundles are and how you might configure them.

Scroll Down For More Information


Victron Energy Bundle (External BMS Victron NG Smart Batteries)

Original price was: $1,734.08.Current price is: $1,507.90.

  • Our bundles are always the LOWEST PRICE available and we can match anyone's price.  Call at 754-444-8704 or email us for the best price.
  • Why Buy From Us? Vanlife Outfitters has been helping vanlifers since 2016. Besides having the best prices, fast and free shipping, we provide our customers with the best technical support in the industry (reviews).  Installing an electrical system can be intimidating, but with Vanlife Outfitters helping you along the way, you'll have the confidence to do it right the first time and get the help you need.
  • This Victron Energy bundle features the new NG components from Victron Energy and  includes the core components that we recommend in our example power system using Victron’s Smart lithium batteries with an external BMS and is detailed in this example wiring diagram.
  • Includes all the main components you need that are specific to this system (scroll down toward the bottom of the page for a detailed list). We also have an accessory bundle for the more “universal” components used in a complete electrical system such as shore power components, fusing, wiring, load center, etc. For little things like lugs, heat shrink, wire management, etc. we have this list of recommendations.
  • World-class support. We’re here for you when installing, configuring and using your system!
  • Questions on how to configure the bundle? Feel free to contact us and we can walk you through the options!
  • In-stock with fast free shipping to the continental USA!
Add to wishlist
SKU: VictronBundleEXTBMS-NG Categories: , , ,
buy with confidence, secure checkout, world-class support, free shipping


Description

We highly recommend that you read through this post that details an example electrical system using these components to help you understand how the system works, how you would need to wire it up and configure everything and to help you make decisions on which of the options we offer in the bundle would be best for your power system.

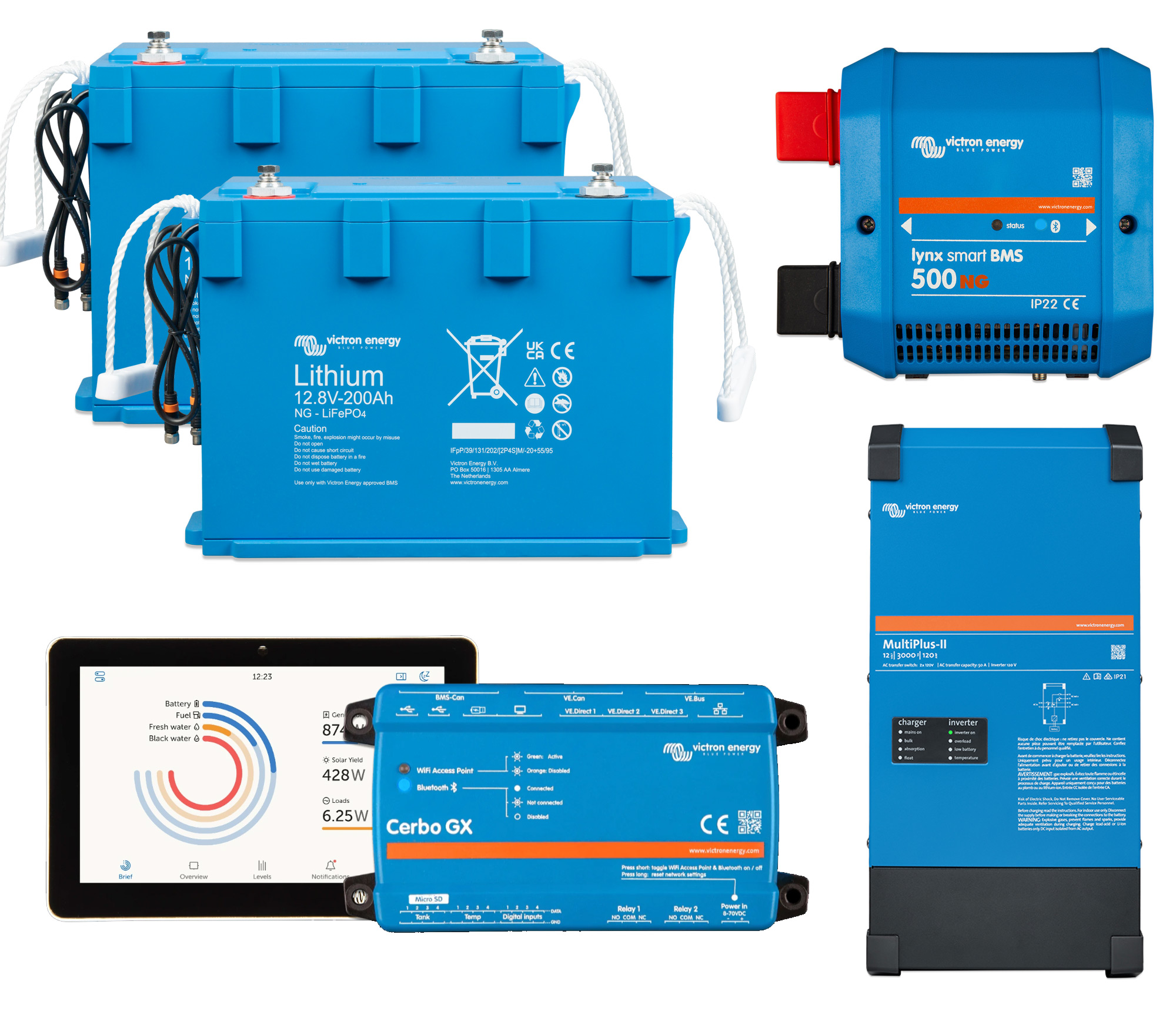

Bundle Includes The Following with FREE Shipping!

  • The required Lynx Smart BMS 500 NG (M10) battery management system.
  • A Lynx Power In (M10) for wiring your batteries into the system in parallel along with the needed terminal/MRBF fuses (included).
  • A Lynx Distributor (M10) which provides the functionality of two bus bars (DC positive and DC negative) with integrated fusing (fuses sold separately).
  • Cerbo GX monitoring and system control (see below)

Your Choice of MultiPlus Inverter/Charger

Choose between the 12/2000/80, the MultiPlus II 12/3000/120, or the dual phase/240 volt capable MultiPlus II 12/3000/120. Please feel free to contact us if you’re not sure which one to choose!

Your Choice of Victron Smart Lithium Batteries

Choose between one or more of either the 200 amp hour Smart NG batteries or the 300 amp hour Smart NG batteries. We don’t recommend mixing the two versions.  *Note, each battery will include a Blue Sea Terminal/MRBF Fuse block and 250 amp terminal fuse.

System Control & Monitoring with Victron’s Cerbo GX and the GX Touch  Screen

We offer two versions of the Cerbo GX in this bundle: the original Cerbo GX or a less-expensive Cerbo-S GX that does not have the analog temperature sensor inputs, the resistive tank monitoring inputs, and the BMS.Can port. This PDF datasheet compares the two shipping models. If you use a digital temp sensor like the Bluetooth Ruuvitags we sell or a digital tank monitoring solution like the SeeLevel system the removed ports on the Cerbo-S GX are not needed. The Cerbo GX offers sophisticated monitoring and control of the components of your electrical system – both locally in your van and, if you choose, “in the cloud” through their VRM portal online. The Cerbo GX pairs with a small, colorful touch screen (Touch 50 or Touch 70) to control the various displays. In addition to monitoring, you can control your MultiPlus inverter/charger from the touch display.

Optional Add-Ons

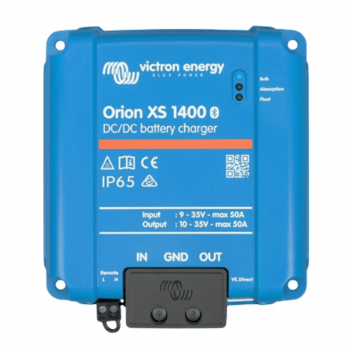

  • Orion DC-DC charger for charging from your alternator when driving
  • Your choice SmartSolar MPPT solar charge controllers. Need help knowing what size solar charge controller you need? Check out this awesome calculator.
  • A second Lynx Distributor or Lynx Power In.

Note: we purchase many of the Blue Sea Systems products in bulk with minimal packaging since we must repackage into boxes to ship to you. This allow us to supply our customers with the highest quality products with the least impact on the environment and packaging waste.

Electrical/Power System Products
When purchasing electrical system components, the customer acknowledges that they are responsible for installing the products safely according to the manufacturer's guidelines and using the correct wiring and configuration. Any damage caused to products, vehicle or person is the sole responsibility of the customer. The team at Vanlife Outfitters is happy to answer any product questions and we'll do our best to help you design and troubleshoot your system. We also offer a wide range of example power systems and other informational content. If you need help understanding power systems, designing your particular power system or troubleshooting complex issues on systems we did not provide/sell, we offer consulting services for camper van electrical systems. We highly recommend that you have your electrical system installed by a qualified ABYC or Victron Energy certified technician.

Additional information

Weight 1050 oz
Dimensions 24 × 16 × 16 in
