Victron Energy Lynx Shunt VE.Can (M10)

$374.00

  • Part of the Lynx system which can elegantly integrate with a Lynx Distributor or Lynx Power In When connected to a Lynx Distributor it will monitor each fuse location and communicate this to a GX device such as a Cerbo GX.

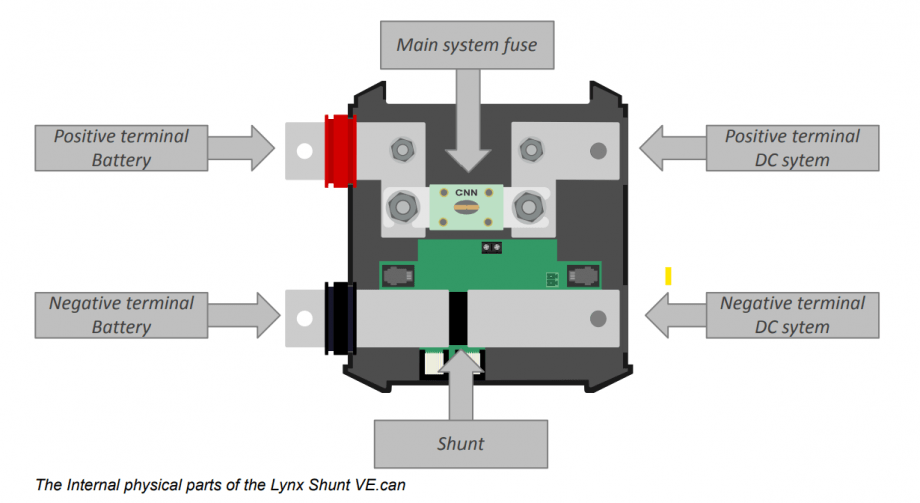

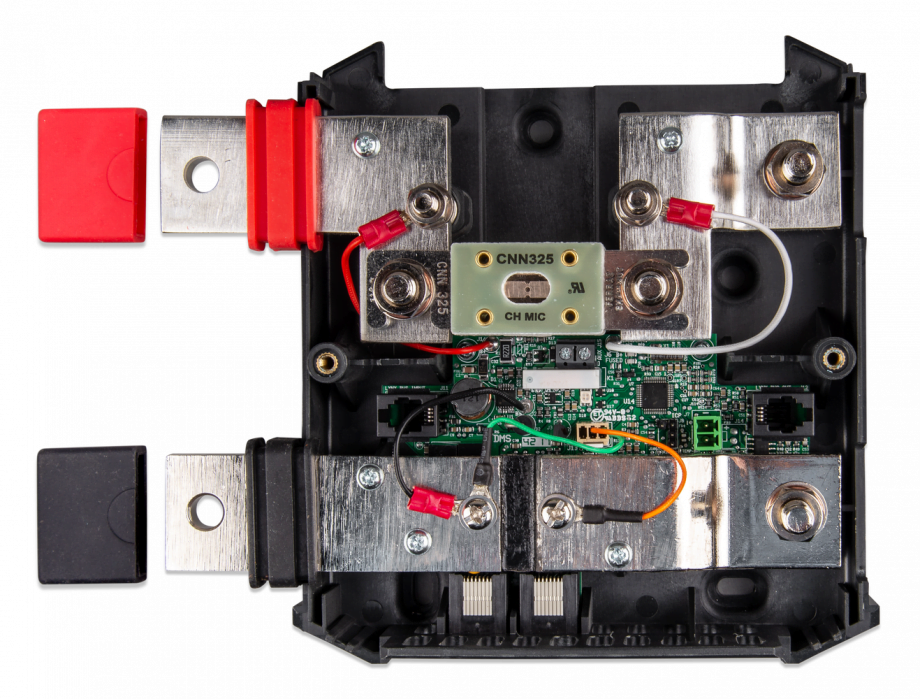

  • Includes battery monitoring shunt and a main system fuse (CNN fuse holder) for a combination of full system circuit protection and battery monitoring.
  • This is the M10 version of the Lynx Shunt that has a maximum current rating of 1000 amps (up to 60 volts) – there is also an M8 version. The difference is the size of the holes/connections on the main bus bars (M8/5/16″ or M10 /3/8″) where you connect (bolt-on) additional Lynx system products such as Lynx Distributors or a Lynx Power In.

We offer fast, FREE shipping on most Victron Energy products - including batteries and inverters! FREE shipping on Victron batteries. Small cables/adapters ship for a flat-rate of $5. These promotional shipping rates are for customers in the continental USA only.

5 in stock (can be backordered)

Add to wishlist
SKU: LYN040102110 Categories: , , ,
buy with confidence, secure checkout, world-class support, free shipping


Description

The Lynx Shunt VE.Can is an intelligent 1000A shunt with location for a fuse (not included), the built-in battery monitor accurately monitors the state of charge of your battery. Use a GX device (e.g. Cerbo GX) for reading out the information. Part of the modular Lynx distribution system.

PDF Manual.

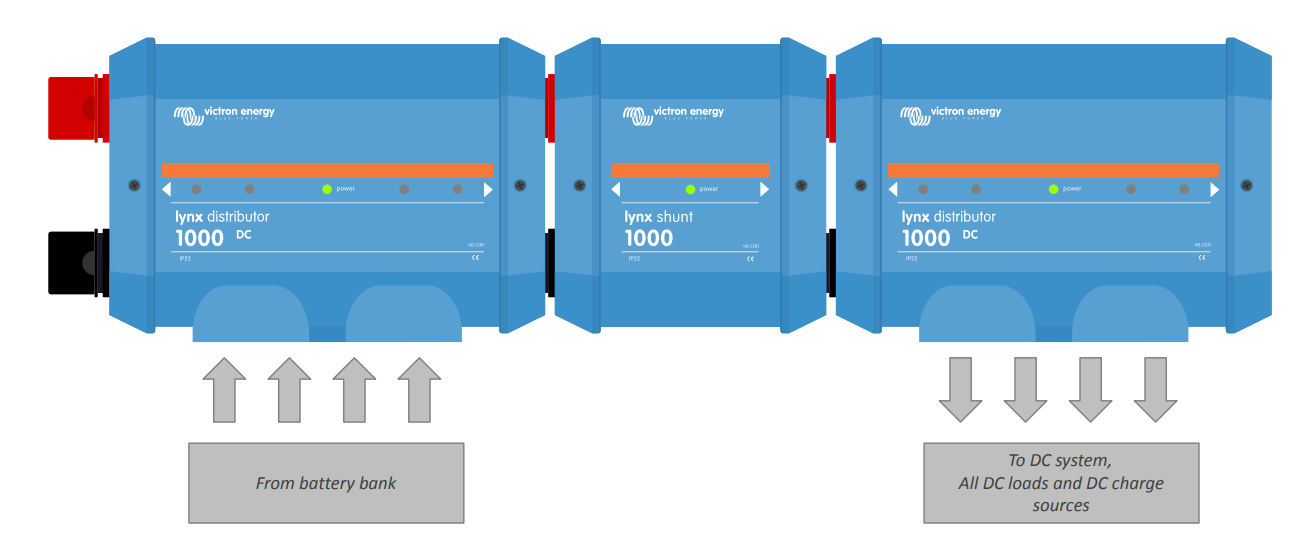

The Lynx Shunt is part of the modular Lynx Distribution system. For instance it can be paired with Lynx Distributor as shown in the diagram below. The Lynx Shunt can be wired up to a Lynx Distributor to monitor the condition of the fuses (wires included with the Lynx Distributor) all of which can be seen via Bluetooth with the VictronConnect app.

Additional information

Weight 72 oz
Dimensions 7.5 × 7.1 × 3 in
