Description

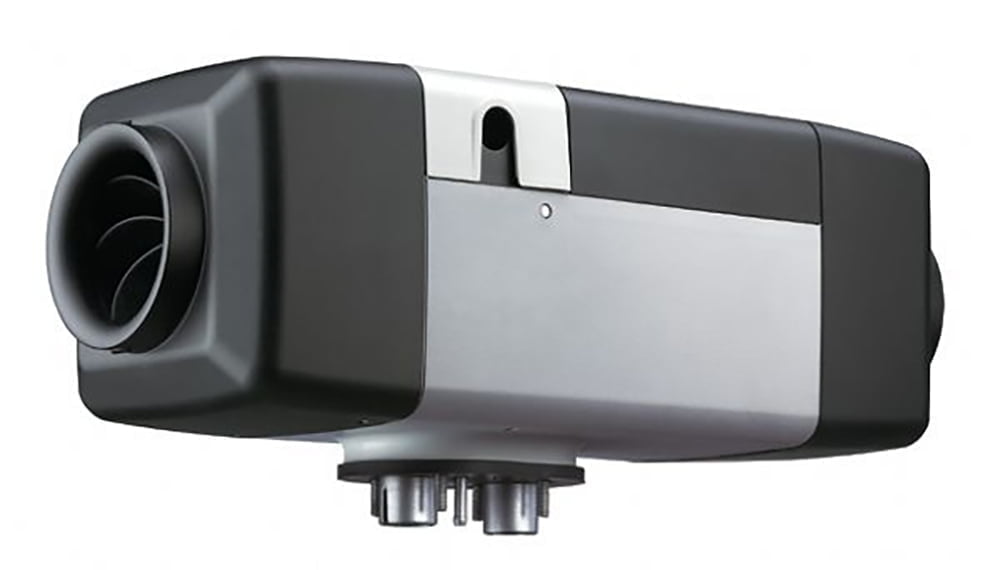

EVO 40 Diesel Heater Specs:
Operating Voltage: 12V DC
Output Range: 5118 BTU to 13,650 BTU (1.5 kilowatt – 4 kilowatt).
Fuel consumption: 0.07 – 0.15 gal/h (Can provide heat for up to 14 hours on just 1 gallon of fuel!)
Max Operating Altitude: 18,000 ft
Dimensions: 16.65″ long x 5.82″ wide x 6.37″ tall
Weight: 13 lbs (heater unit only)
Warranty: 2 years or 2000 operating hours
Webasto heaters have a variable speed fan that runs continuously when the heater is on. It runs very slowly when not heating and ramps up speed when heating. You also can set the heater to run on “fan only” mode.
Installing your heater on top of a subfloor instead of directly onto the van’s metal floor? Be sure to purchase a Surface Mounting Kit separately.

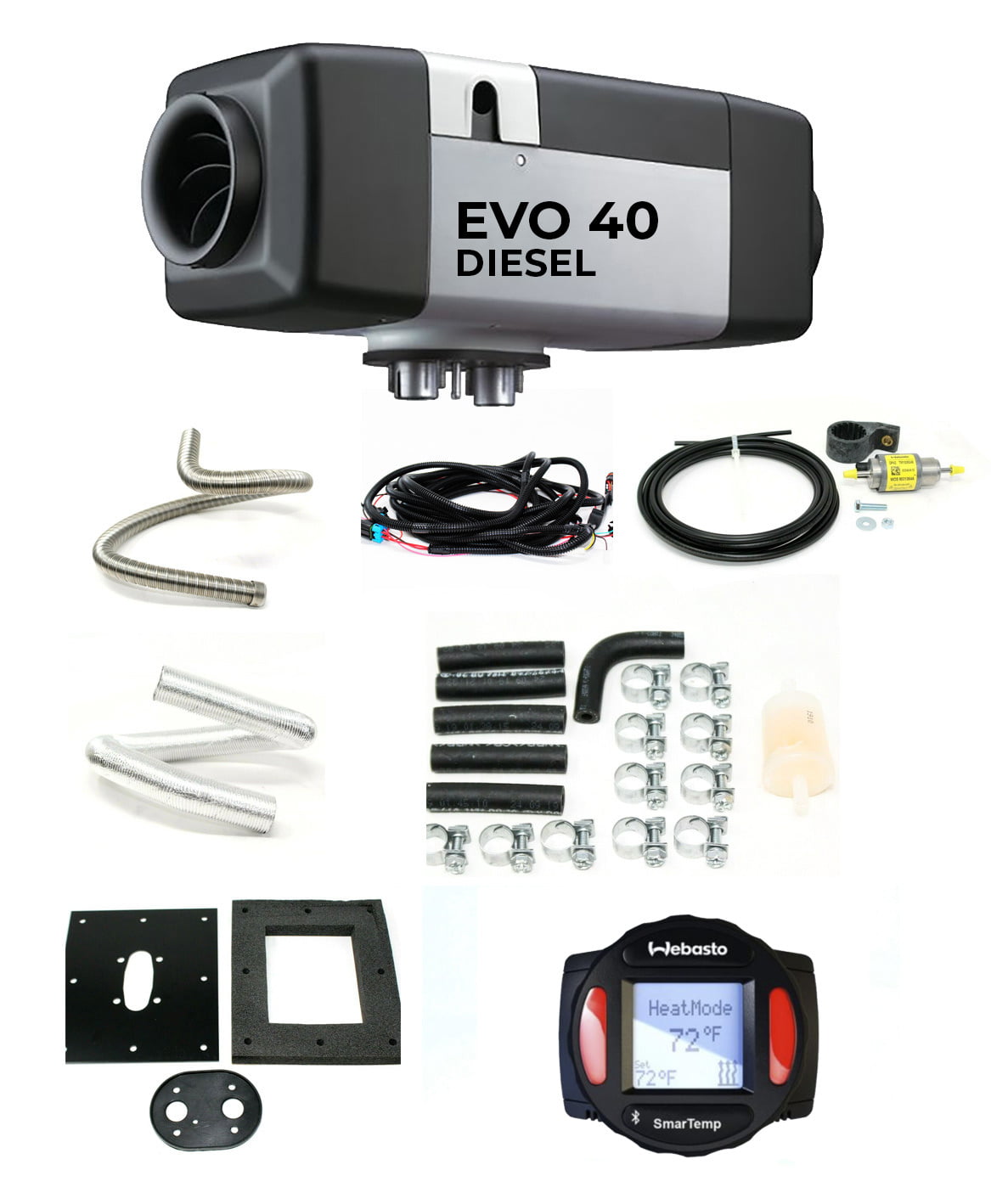

The Webasto EVO 40 Diesel Base Heater with SmarTemp 3.0 includes:
- Heater unit
- SmarTemp 3.0 Controller
- Universal fuel tank standpipe
- Fuel pump with wiring harness
- Fuel line with required fittings and fuel filter
- Mounting plate with foam gasket and bolts
- Wiring harness
- 1.2 meter (3.9 feet) flexible stainless steel exhaust hose (24mm)
- 1 meter (3.2 feet) aluminum combustion air intake hose (25mm)

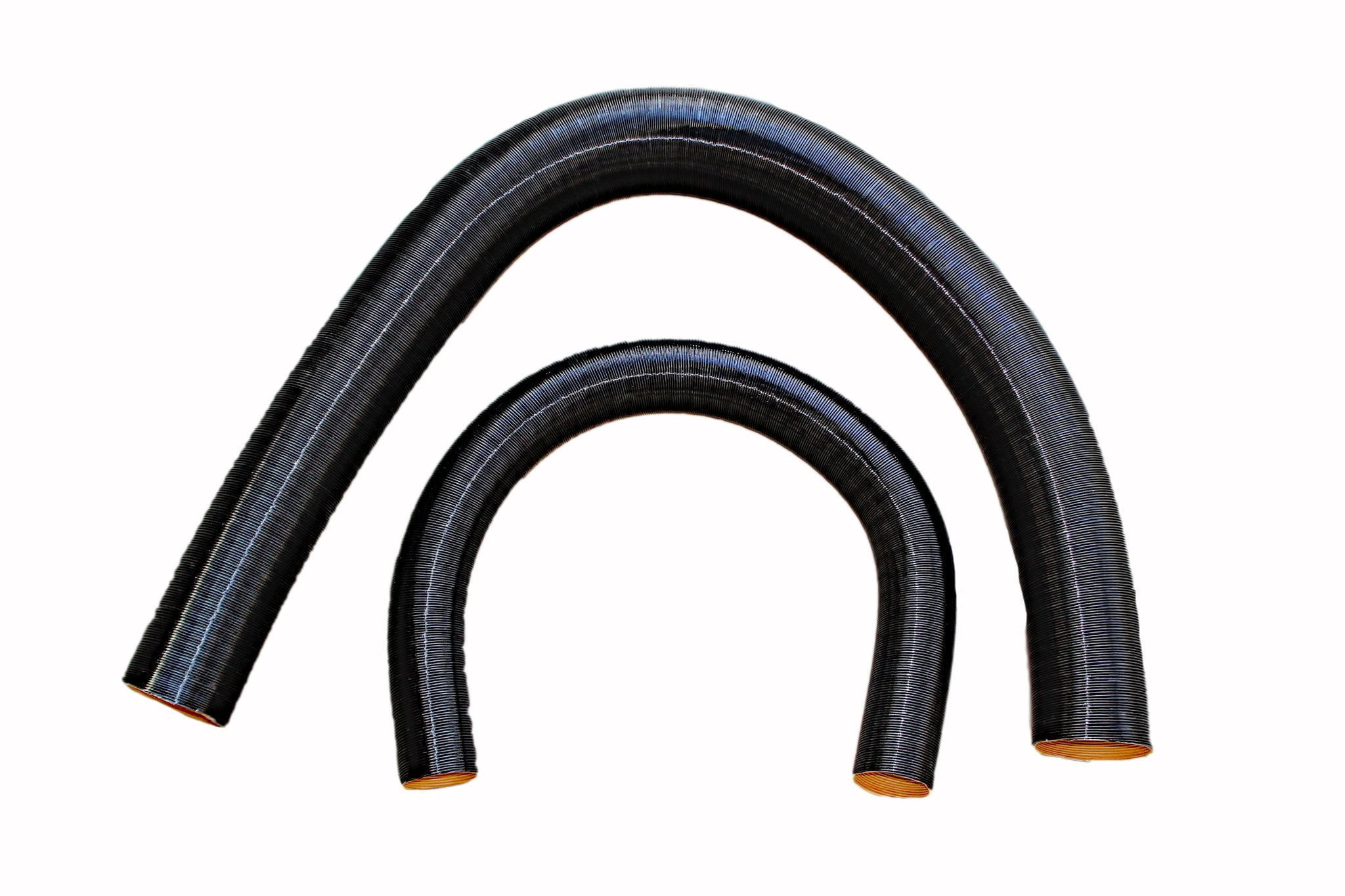

- 1.5 meters (4.9 feet) of 90mm “primary” ducting
- 1 meter (3.2 feet) of 60mm “branch” ducting

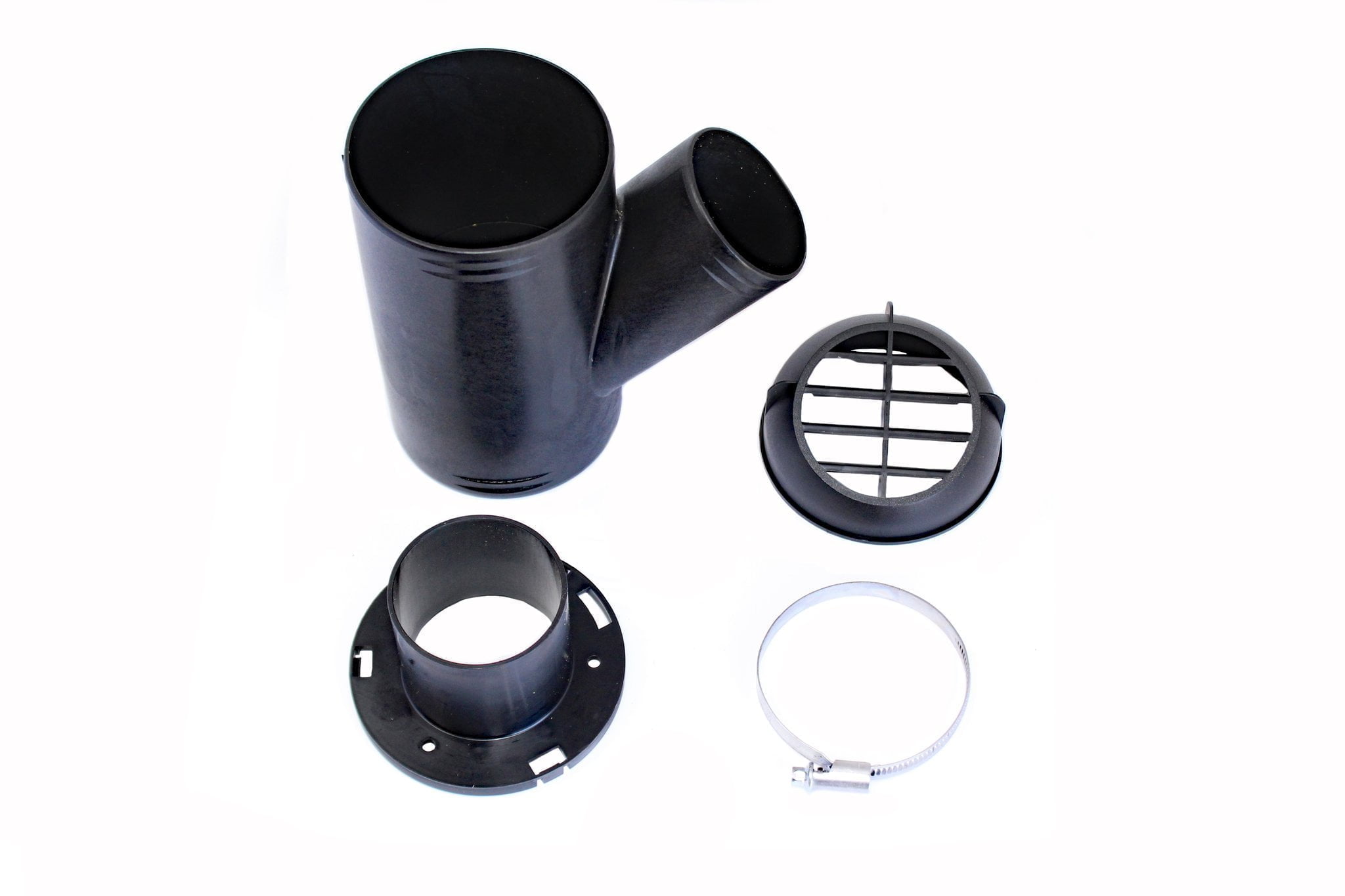

- Adapter Y for ducting (90mm to 60mm)

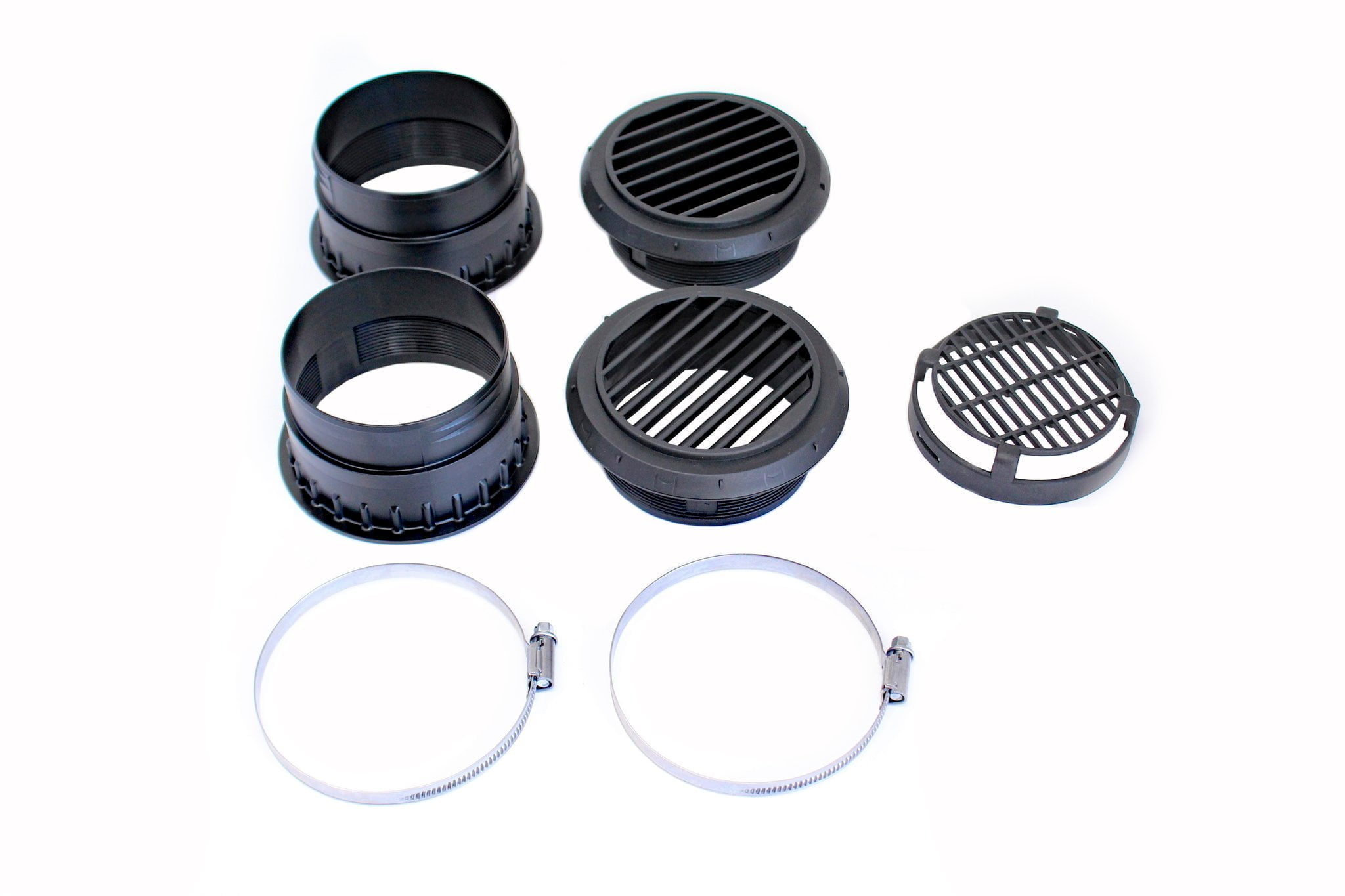

- 1x 90mm and 1x 60mm louver/vent
Wiring Overview - SmarTemp Controller
This heater includes the Smartemp 3.0 controller, which has Bluetooth control/monitoring, remote temperature sensing, and more. Below is an overview of the wiring for installing the heater with the SmarTemp 3.0 controller.
We Fully Support DIY Installations!
Unlike many authorized Webasto distributors, Vanlife Outfitters fully supports DIY installers. Our entire team has been trained to become Webasto certified "experts". Together with our distribution partner, we maintain a wide range products and replacement parts in-stock. If you experience a problem with your Webasto unit within the warranty period, we will work with you to determine the cause of failure and will either attempt to give instruction on how to correct any faulty workmanship or supply a replacement part. If a replacement part is needed we will send you the part immediately from their stock at no charge so that you can get up and running as quickly as possible. Of course, we rely on you to return any faulty parts in order to be reimbursed for the warranty repair.
If you're tempted to purchase your Webasto heater at a ridiculously low price from other online retailers, you should be aware that these are often European origin kits that are not compatible with all the North American parts and do not include some important parts. We have an extensive blog post about this here.
For your safety we recommend that you install a carbon monoxide detector in your van anytime you have any fuel burning appliance like a Webasto heater or propane cooktop.
