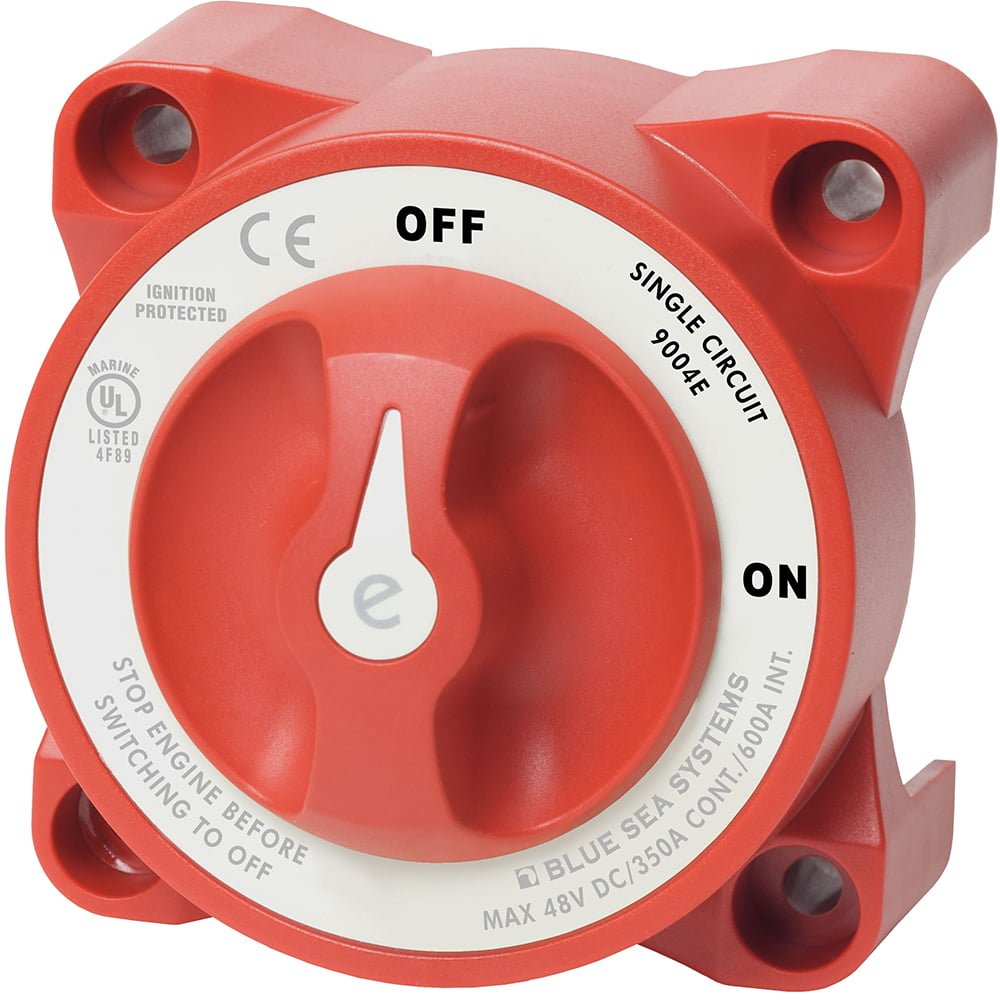

Blue Sea 9004e Battery Switch with AFD

$65.00

Heavy-duty battery switch rated for up to 48-volts.
Maximum current 350 amps – 600 amps for up to 5 minutes.
Features “alternator field disconnect” (AFD) which is great for secondary alternator power systems where you want to be certain the alternator is not producing current when the battery bank is disconnected. This feature will disconnect the field wire in parallel with the batteries.
Ignition protected
Case design allows surface or rear panel mounting
Meets American Boat and Yacht Council (ABYC) requirements for battery switches

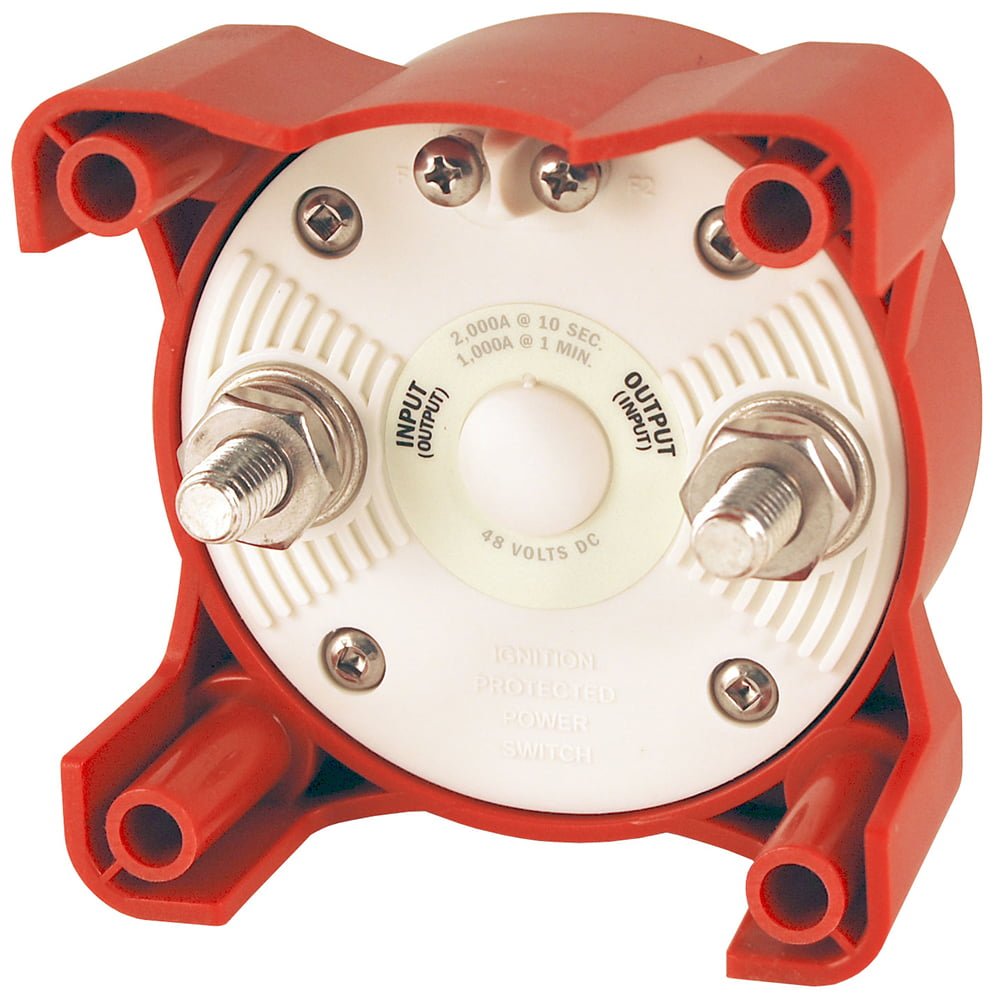

3/8″-16 tin-plated copper studs for maximum conductivity and corrosion resistance, accepts 3/8″ and M10 ring terminals
7/8″ (22.22mm) stud length to accept multiple cable terminals
Tactile textures indicate knob position by feel only
CE Marked
$5 flat-rate ground shipping to the continental USA

7 in stock

Additional information

Weight	65 oz
Dimensions	15 × 15 × 15 in
