Blog
Materials, Weight, and Build Strategy: Why Lighter and Simpler Usually Wins
By Clayton Houser – Professional van builder (50+ full builds) Clayton explains why lighter and simpler builds usually hold up better over time – not because they cut corners, but because weight, noise, rigidity, and permanence add up fast. He shares how restraint in materials, cabinetry, floor design, and build strategy can make a van quieter, more adaptable, and easier to live with long-term. This is the tenth article in Clayton's Van Build series - you can view the series homepage here. One of the hardest lessons in van building isn’t technical – it’s learning when to stop. Most vans don’t start out heavy or complicated. They get that way slowly, decision by decision, as people add “just one more thing” without realizing how quickly weight and complexity stack up. I’ve seen this over and over. The builds that work best long-term aren’t the most elaborate ones. They are the ones where people exercise restraint. Weight Adds Up Faster Than You Expect Almost everything you add to a van weighs more than you think. Cabinetry. Drawers. Countertops. Reinforcement. Hardware. It all stacks up quickly, especially once systems and storage are layered together. What surprises a lot of people is how early weight can become a constraint. A decision that feels small on its own – thicker materials, heavier furniture, extra structure “just in case” – can limit options later. Once weight is added, it’s very hard to take back. Where Weight and Complexity Actually Come From When people run into weight or complexity problems, it usually isn’t because of systems. It almost always comes from how furniture and structure were built. Cabinetry is the biggest contributor. I’ve seen a lot of cabinets built far heavier than they needed to be – thick materials, heavy joinery, extra reinforcement everywhere “just in case.” When you repeat that across a whole van, the weight adds up fast. What feels like a small decision on one cabinet becomes a major constraint once it’s everywhere. Material thickness plays a big role too. Going thicker than necessary doesn’t seem like a big deal at first, but once that choice is applied to beds, cabinets, and garage structures, the compounding effect is real. People are often surprised by how early weight can become an issue. Framing choices mattered as well. Some people used wood, others used aluminum systems, and both can work. The bigger issue wasn’t which material was chosen – it was whether the tradeoffs were understood. Strength, weight, noise, and permanence all come with those decisions, and they don’t show up until the van is being used. Heavier, more rigid builds also tend to be noisier. A lot of rattles and squeaks people blame on the van itself are actually caused by how tightly and aggressively things were built inside it. When everything is rigid and heavy, it doesn’t tolerate movement well. Finally, permanence can become a problem. Some materials and build strategies make future changes almost impossible. Once things are locked in, even small adjustments mean undoing finished work. That’s when regret can start setting in – not because the build is wrong, but because it can’t adapt. None of this is about cutting corners. It’s about being intentional. Building strong where it actually matters, and exercising restraint everywhere else. Overbuilding Feels Safe – Until It Isn’t A lot of overbuilding comes from good intentions. People want things to feel solid. They want durability. They don’t want rattles or flex. So they build heavier and stronger than necessary, especially with furniture and framing. The problem is that overbuilding often introduces new issues: More weight More noise Less flexibility Harder access to systems I’ve seen vans where the structure itself made changes difficult, simply because everything was built too aggressively from the start. Durability matters – but it doesn’t require building everything like a house. Noise Is Often a Build Problem, Not a Van Problem One thing that comes up a lot in heavier builds is noise. Heavier, more rigid construction tended to amplify noise, especially when furniture and framing didn’t allow for any movement as the van flexed. Rattles, squeaks, and vibration aren’t always caused by the van itself. They’re often caused by how things are built inside it. Heavy, rigid structures can amplify noise when they’re not designed with movement in mind. Lighter, simpler builds often end up quieter because there’s less mass fighting the motion of the van. That’s something people don’t usually think about until they’re living with it. A Simple Floor Example (Quiet, Warm, and Not Overbuilt) If you want a practical example of where restraint pays off, look at the floor. The floor affects comfort and noise more than people expect, and it is easy to overbuild because it feels “structural.” A simple approach is usually enough. Add a small amount of sound deadening on the big flat metal panels to make it quieter. Use a vehicle-friendly insulation layer for a thermal break and some acoustic absorption We love Thinsulate at Vanlife Outfitters for lots of reasons. Add a solid subfloor (I like ⅝” plywood), and then your finished surface. The primary point is to keep the stack-up thin, functional, and serviceable. When the floor gets overly thick or overly rigid, you give up headroom and add weight fast, and you do not always get comfort back in proportion. And if you keep it simple, it’s much easier to adjust later. Simpler Builds Are Easier to Change Materials and build strategy directly affect how adaptable a van is later. Heavier, more permanent construction tends to lock decisions in place. If something doesn’t work the way you expected, changing it can mean undoing a lot of finished work. Simpler builds leave more room to adjust. They make it easier to: Rework storage Modify layouts Access systems Fix issues without tearing everything apart That flexibility becomes more valuable the longer you own the van. Build Strategy Is About Tradeoffs, Not Right Answers There isn’t one “correct” way to build a van. Every material and strategy involves tradeoffs – weight versus strength, simplicity versus polish, flexibility versus permanence. The mistake I’ve seen most often isn’t choosing the “wrong” material. It’s choosing without understanding the tradeoffs. Once people understand what they are giving up by building heavier or more complex, they can make better decisions – even if they still choose to build more aggressively in certain areas. Restraint Is a Skill You Learn Over Time Experienced builders tend to build lighter not because they don’t care about quality, but because they’ve seen the consequences of overbuilding. They’ve dealt with weight issues. They’ve chased noise problems. They’ve tried to modify systems buried inside heavy construction. Restraint doesn’t mean cutting corners. It means being intentional about where strength, structure, and complexity actually matter – and where they don’t. The Vans That Last Are the Ones That Stay Usable The most successful builds I’ve seen weren’t frozen in time. They evolved. People used them, learned from them, and changed things as needed. Builds that were lighter and simpler supported that process instead of fighting it. When a van stays usable, it gets used more. When it gets used more, people enjoy it more. That’s the real measure of whether a build strategy worked. What Comes Next Once materials and build strategy are set, the remaining risks aren’t about weight or complexity anymore – they’re about decisions people wish they had made differently earlier. Those patterns show up again and again, across all types of builds. That’s what I’ll cover next. Frequently Asked Questions About Camper Van Materials and Weight 1. What parts of a camper van build add the most weight? In practice, the biggest weight surprises don’t usually come from systems – they come from furniture. Cabinets, bed platforms, drawers, and structural panels add up fast when they’re built heavier than necessary. To put numbers around that: a single 4×8 sheet of plywood can weigh anywhere from 35 to 70 pounds, depending on thickness and type. Once you multiply that across cabinets, beds, and garage structures, it’s easy for furniture alone to add several hundred pounds to a build. 2. Why does weight become a problem faster than most van builders expect? Because weight compounds. A choice that adds just a few extra pounds doesn’t feel meaningful in isolation, but when it’s repeated across the van, the total climbs quickly. For example, choosing 5/8-inch plywood instead of 1/2-inch typically adds 8–12 pounds per 4×8 sheet, depending on material. If that choice is repeated across ten sheets, that’s an extra 80–120 pounds from thickness alone – before hardware, fasteners, or finishes. That’s an example of how people can end up with much heavier van builds than expected without ever making one “big” mistake. 3. How do material thickness choices affect overall van weight? Thickness is one of the easiest ways to add weight without realizing it. Going thicker than necessary on plywood or panels may feel safer, but once that choice is applied to cabinets, beds, and storage, the compounding effect is real. People are often surprised by how much weight came from “just a little extra thickness.” The difference between common plywood thicknesses may not seem dramatic, but it adds up quickly. Typical ranges: 1/2-inch plywood: ~40–48 lbs per 4×8 sheet 5/8-inch plywood: ~48–60 lbs per 4×8 sheet 3/4-inch plywood: ~60–70+ lbs per 4×8 sheet When those thicknesses are used repeatedly in cabinetry, bed platforms, and garage structures, the cumulative impact is significant. 4. Is cabinetry really one of the biggest weight contributors in a van build? Yes. In my experience, cabinetry was often the single biggest source of unexpected weight in a van build. Cabinets, drawers, bed platforms, and storage structures are repeated throughout the van, so even modest material choices add up quickly. To put that in perspective, a full set of upper and lower cabinets can easily weigh 200–400 pounds or more, depending on material thickness and construction style. That’s significant on its own. For context, that’s in the same range as carrying 25–50 gallons of water – something most people think carefully about before committing to. What surprised people wasn’t that cabinets had weight, but how quickly that weight accumulated. By the time everything was installed, cabinetry often outweighed the systems they had worried about most. 5. What does “overbuilding” mean in a camper van conversion? Overbuilding usually means adding material and structure far beyond what’s required for real-world use. That often shows up as thicker panels, extra framing, or reinforced joints everywhere. Each individual choice might add only 5–10 extra pounds, but repeated across cabinets, beds, and storage, that can mean hundreds of extra pounds by the time the build is finished. That’s why restraint matters. 6. Why do many DIY van builders overbuild furniture and structures? Without experience, it feels safer to build heavier. People assume more material equals more durability. What I’ve seen over time is that experienced builders build lighter because they understand where strength actually mattered. They’ve learned that adding unnecessary structure often creates new problems – weight, noise, and reduced flexibility – without meaningfully increasing durability. 7. How can overbuilding make a van harder to live with long-term? Heavier, more permanent construction locks decisions in place. If something doesn’t work the way you expected, changing it can mean tearing out finished work. Overbuilt vans often become harder to modify, noisier on the road, and more stressful to live with over time. 8. Why do some camper vans have more rattles and noise than others? Noise is often tied to rigidity and mass. Heavier, more rigid furniture transmits vibration more easily as the van flexes. When that vibration has nowhere to go, it turns into rattles and squeaks. In practice, I’ve seen that rigid structures without isolation amplify vibration, especially in moving vehicles. 9. How do materials and build strategy affect noise in a van? Lighter, simpler builds tend to tolerate movement better. Heavier, tightly fixed builds tend to fight it. While interior noise varies widely, my experience shows that small changes in rigidity and mounting can meaningfully affect perceived noise levels. In practice, many noise complaints I saw traced back to how aggressively furniture was built, not the van itself. 10. Why do simpler van builds tend to age better over time? Because they’re easier to change. When materials and structures are lighter and less permanent, modifying a cabinet or reworking storage might mean removing 50 pounds of material, not tearing out 200+ pounds of built-in structure. That difference matters when people want to adapt their van instead of rebuilding it. 11. How does build strategy affect your ability to change or upgrade a van later? Build strategy determines how reversible your decisions are. Heavy, permanent construction makes change expensive and discouraging. Simpler construction keeps options open. Most people don’t regret not building heavy enough – they regret locking themselves into decisions they can’t easily undo. 12. How do experienced van builders decide where strength actually matters? Strength matters in specific places – beds, mounting points, and load-bearing structures. Elsewhere, excess strength usually just adds weight and rigidity. This selective-strength approach aligns with how professional upfitters and RV manufacturers think about structure: build strong where loads demand it, and stay light everywhere else. 13. Do I really need to insulate the floor? I have found that insulating the floor is one of the simplest ways to make a van feel more comfortable and less fatiguing. The floor is a big pathway for road noise and vibration, and it is also where you feel cold first. A good floor layer makes the whole van feel more solid and quieter, even when you do not change anything else. 14. What insulation works well under a van floor, and why? For floors, I like insulation that is designed for vehicles and that handles moisture well. 3M Thinsulate AU4002-5 is a good example. It is both thermal and acoustic, it is moisture resistant, and the double scrim makes it more durable under compression and friction. It also lets you avoid building a thick framed floor system in many cases (which helps headroom). 15. Do I need a vapor barrier or waterproof layer under the floor insulation? In most builds, I avoid adding plastic layers under the floor that can trap condensation. A material that is moisture resistant and breathable tends to be safer in the long run because it can dry out if moisture gets under the floor. The goal is to reduce the chance of creating a hidden wet layer that never dries. 16. How do I make the floor quieter without adding a lot of weight? If you want more quiet, a little sound deadening can go a long way. You do not need full coverage. I have seen good results when people cover roughly 25 – 30% of the large flat metal panels, then add the insulation layer and a solid subfloor on top. After that, the gains from adding more material usually drop off.
Learn more
Designing for Serviceability: Access, Simplicity, and Future Changes
By Clayton Houser – Professional van builder (50+ full builds) Clayton explains why the difference between a van that stays enjoyable and one that becomes a headache is simple – can you access and understand your systems after the build is finished? He shares the practical habits he uses to avoid buried wiring, tight layouts, and rework, so upgrades and fixes stay manageable. This is the ninth article in Clayton's Van Build series - you can view the series homepage here. One of the biggest differences between a van that’s enjoyable long-term and one that becomes frustrating has little to do with finishes, appliances, or features. It comes down to whether you can access and understand your systems after the van is built. I’ve seen plenty of vans that looked great on day one but became headaches later because everything was buried. Wires glued behind walls. Components built on top of each other. Systems you had to dismantle half the van to reach. Those builds weren’t failures because the parts were wrong. They failed because they weren’t designed to be worked on. Serviceability Isn’t About Repairs — It’s About Reality Even well-built systems need attention. Things change. Load needs increase. Components get upgraded. A connection loosens. A wire gets pinched. Something stops working the way it should. When that happens, the key question is simple: Can you get to it without tearing your van apart? If the answer is no, a small issue turns into a major project. I’ve seen people abandon features entirely because fixing them felt impossible. I’ve also seen clean, simple layouts where troubleshooting was straightforward and stress stayed low. That difference almost always came down to planning for future access. Burying Systems Is a Long-Term Mistake One of the most common problems I saw was people designing everything to disappear. Panels sealed up permanently. Cabinets built tight to the walls. Wiring run without thought to how it might be reached later. That approach looks clean at first, but it creates problems down the road. When something goes wrong, you’re forced to work around your own build instead of with it. I always tried to avoid designs where a failure meant tearing out finished surfaces. If a system mattered enough to install, it mattered enough to keep accessible. Simpler Layouts Are Easier to Understand Serviceability isn’t just about physical access — it’s also about mental clarity. When systems are scattered, stacked, or intertwined, it becomes hard to understand what’s connected to what. Troubleshooting turns into guesswork. Clean layouts, logical grouping, and clear separation make systems easier to live with. You don’t need to remember every detail of your build if you can see and follow it when needed. The goal isn’t to build something clever. It’s to build something you can still understand six months or two years later. Design for Change, Not Perfection Almost nobody finishes a van and never changes it again. People add gear. Travel styles evolve. Electrical needs grow. Priorities shift. Or it gets sold to someone new who wants to make changes. That’s normal. Problems happen when a build assumes nothing will ever change. Tight layouts, fixed decisions, and no room for expansion make even small upgrades feel overwhelming. I always thought about where things might go later — not because I knew exactly what would change, but because I knew something eventually would. Leaving space, planning access, and keeping systems understandable make those changes manageable instead of frustrating. Over time, that mindset translated into very specific choices I made during the build process. A Few Specific Ways I Designed Vans to Be Serviceable and Adjustable Over time, I stopped thinking about serviceability as a vague idea and started building it into very specific decisions. Here are some of the things I did frequently to make vans easier to live with, work on, and change later. I almost always ran extra wiring and left it in place. Even if a system didn’t need it on day one, I’d pull additional wires to likely future locations and leave them capped or coiled. For example, if a van didn’t have an A/C yet, I’d put in wires for it anyway, just in case. That way, adding capacity later didn’t mean opening walls or tearing things apart. I oversized wiring instead of running the bare minimum. I learned quickly that people almost always want more electrical capability later. Running larger wire early made upgrades possible without rewiring the entire van. It was a little more expensive, but well worth it down the line. I left physical space around systems. Instead of packing electrical components tightly together, I left room for expansion. That space mattered later when batteries were added or components changed. I avoided burying anything I might need to touch again. If a component mattered enough to install, it mattered enough to stay accessible. I tried not to permanently close in wiring, connections, or systems that could fail or need adjustment. I grouped systems so they were easy to understand. Keeping related components together meant that when something wasn’t working, I could look at the system and make sense of it instead of guessing where wires ran or what was connected to what. I tried to avoid spreading components throughout the van or routing wiring in ways that disappeared into walls, because once systems are scattered, even simple troubleshooting gets confusing fast. I planned for change, even when I didn’t know what the change would be. I assumed people’s needs would evolve. That mindset shaped how tightly things were built in and how difficult they would be to remove later. None of these decisions made the van more impressive on day one. But they made a huge difference months or years later, when something needed to be fixed, upgraded, or rethought. Sequencing Matters More Than Clever Solutions A lot of serviceability issues start with doing things too early. Running wiring before layout is finalized. Building cabinets before systems are fully thought through. Locking in decisions before understanding how everything fits together. Once something is built over, options shrink fast. That’s why I always tied serviceability back to sequencing. When decisions happen in the right order, access tends to take care of itself. When they don’t, people end up designing around mistakes instead of intentions. A Van That’s Easy to Work on Gets Used More This is the part people don’t expect. Vans that feel fragile or hard to fix often get used less. Owners avoid pushing systems, worry about breaking things, or hesitate to take longer trips. When systems are accessible and understandable, confidence goes up. People use the van the way it was intended — not carefully, but comfortably. A serviceable van invites use. A fragile one invites caution. The Real Goal Designing for serviceability isn’t about planning for failure. It’s about respecting the fact that vans live in the real world. They vibrate. They get hot and cold. They evolve with their owners. If you can access your systems, understand how they’re laid out, and make changes without tearing everything apart, you’ve built something that will last — not because nothing ever goes wrong, but because problems don’t derail the experience. That’s the difference between a van that slowly becomes a burden and one that quietly supports how you actually live. What Comes Next Once access, simplicity, and future changes are accounted for, the next set of tradeoffs becomes clearer — especially around materials, weight, and how aggressively to build things in. That’s where restraint really starts to matter. That’s what I’ll cover next. Frequently Asked Questions About Camper Van Systems Serviceability and Access What does “serviceability” mean in a camper van build? When I talk about serviceability, I mean whether you can get to and repair or improve your systems later without tearing the van apart. Vans live in the real world – things loosen, change, or get upgraded. If you can’t access wiring, connections, or components, even small issues become frustrating fast. A serviceable van isn’t one that never has problems – it’s one where problems don’t ruin the experience. Why is access to systems so important in a DIY van conversion? Because almost nothing stays exactly the same after the build is done. Electrical needs grow. Travel styles change. Something eventually needs attention. Vans get sold. When systems are buried behind walls or cabinets, people avoid fixing them or stop using features altogether. Access keeps problems manageable instead of overwhelming. What happens when camper van systems are buried or hard to reach? I’ve seen simple issues turn into major projects because a wire was pinched or a connection was buried where it couldn’t be reached. At that point, people often decide not to fix the problem – choosing to simply work around it instead. Or, they do fix the problem and have to tear apart their build to make it happen. Either way, frustration sets in and people start regretting decisions they made early in the build. How can I design my camper van so it’s easier to upgrade later? I always assumed people would want to change something later, even if they didn’t know what yet. That mindset shapes a lot of decisions – leaving space around systems, running extra wiring, and not locking everything in permanently. You don’t have to plan every future upgrade. You just have to leave yourself room to adapt. What parts of a camper van build are most likely to change over time? Electrical is a big one. People add batteries, devices, or charging methods later. Storage needs also evolve as people learn what they actually use. That’s why I focused on flexibility and access instead of building everything as if it would never change. Why do many camper van builders end up rebuilding parts of their van? Most rebuilds I saw weren’t caused by bad craftsmanship. They came from decisions made too early – before people really understood how they’d use the van. Or the way they used their van simply changed over time, and they needed the van to change with them. No matter the reason, once something is built over, changing it gets expensive and time-consuming. Designing for change up front avoids a lot of that pain. Why is it a mistake to lock in electrical components too early? Once batteries or inverters are purchased, everything else tends to get designed around them. If layout, garage space, or access isn’t settled yet, that leads to compromises. I always treated electrical as part of the layout – not something to decide in isolation. How should electrical systems be laid out for easier troubleshooting? I tried to keep electrical components grouped and understandable at a glance. When systems are scattered throughout the van or wiring disappears into walls, troubleshooting becomes guesswork. I usually put most electrical components together in the garage, accessible from both inside and outside of the van. Keeping things visible and logical reduces stress when something isn’t working. Is it okay to run extra wiring or leave room for expansion in camper van builds? Yes – that’s something I did intentionally. Running extra wires, oversizing them, and leaving space around components made later changes much easier. It’s not about overbuilding – it’s about avoiding rework when needs grow. What are the most common serviceability mistakes in camper van builds? The biggest ones I saw were burying systems, packing everything too tightly, and assuming nothing would ever need to change. Those choices usually come from trying to make everything look finished too early instead of thinking about how the van will be used over time. Why do some van builds feel fragile or stressful to use? When people don’t trust their systems, they use them less. If you’re worried about breaking something or don’t know how to fix it, that stress adds up. Vans that are accessible and understandable tend to get used more confidently and more often. How do professional camper van builders think differently about serviceability than first-time DIY builders? Experience teaches you where things go wrong. After seeing callbacks, rebuilds, and long-term frustration, you start designing differently. The goal shifts from making everything disappear to making everything workable. That’s a lesson most people only learn after their first build – unless they slow down and plan for it early.
Learn more
Vanlife Roadmap Podcast: Ep. 8
Built in Cardboard: Troy on designing a van from scratch - as an artist, without a tutorial in sight. Troy didn’t come to van life through YouTube. He came through ceramics, environmental art installations, and a decade of designing custom restaurants and high-end kitchens. When he finally built his first van, he did it the same way he’d approach any design project: from scratch, on his own terms, with cardboard boxes. He’s the founder of Nanna Vans, a custom build company in DeLand, Florida. His van — named Janet, after his late grandmother — is both his flagship build and his rolling portfolio. He’s signed design contracts off the back table. The cabin-feel interior, modular wall panels, and body-ratio-fitted seating all came from building the way an artist builds: by refusing to assume there’s a right way to do it. In this conversation, Troy walks through the design decisions that set his work apart — from the cardboard prototyping method to the modular electrical access system he developed by simply thinking about what happens when something breaks. About Troy Troy is the founder of Nanna Vans, a custom van build company based in DeLand, Florida, operating under his design firm TR Designs. A fine arts graduate of Stetson University, Troy spent years designing restaurants, custom kitchens, and high-end residential spaces before building his first van. His work lives at the intersection of art and utility — and his van, Janet, is named after his grandmother. Follow Nanna Vans on Instagram. What you’ll hear in this episode • Why Troy built his entire van interior in cardboard boxes before cutting a single piece of wood — and how it helped him dial in proportions, sightlines, and ergonomics before committing to anything • The fine art concept of “negative space” applied to van design: why what you leave out matters as much as what you put in • How Troy measured his own hip-to-floor and knee-to-floor ratios to engineer seating that actually fits the way he sits • Why modular, removable wall panels are the most underrated decision in any van build — and the electrical access nightmare they prevent • Why materials matter more than most builders realize, and how the small footprint of a van actually lets you afford better ones • The lighting spectrum mistake that makes van builds feel like hospitals instead of homes • How a last-minute email with photos of Janet landed Nanna Vans an exhibitor slot at Peace, Love & Vans — with no website, no business cards, and no logo — and what Troy scrambled to build in four weeks • What’s next in 2026: a new dedicated shop with a 10,000 lb lift, podcast area, and livestream setup Key Takeaways • Build in cardboard before you cut. Troy built his entire van interior out of cardboard boxes to feel the space before committing to any material. Free, fast, and it catches ergonomic problems before they’re permanent. • Negative space is part of the design. The question isn’t just “can I fit all of this?” — it’s “what do I leave out so the space still feels like a space?” A van that’s crammed full isn’t a home; it’s a storage unit. • Make your walls modular. If your panels can’t come off, your electrical is sealed in forever. Troy’s removable panel system lets him access every wire, swap components, and reconfigure — years after the initial build. • Materials make the mood. You’re working with 45–80 sq ft. The difference between pine and cedar, or basic white LEDs and warm-spectrum lighting, is the difference between a hospital room and a cabin in Tennessee. • Rent before you build. Spend a weekend in a van before you spend a dollar on parts. What you think you need and what you actually need are two very different lists. If you’ve got questions about your own build, reach out. We’re always happy to help. Want to explore more? Visit the Vanlife Outfitters Store to browse gear, learn from real-world builds, and get help choosing the right setup for your own vanlife adventure.
Learn more

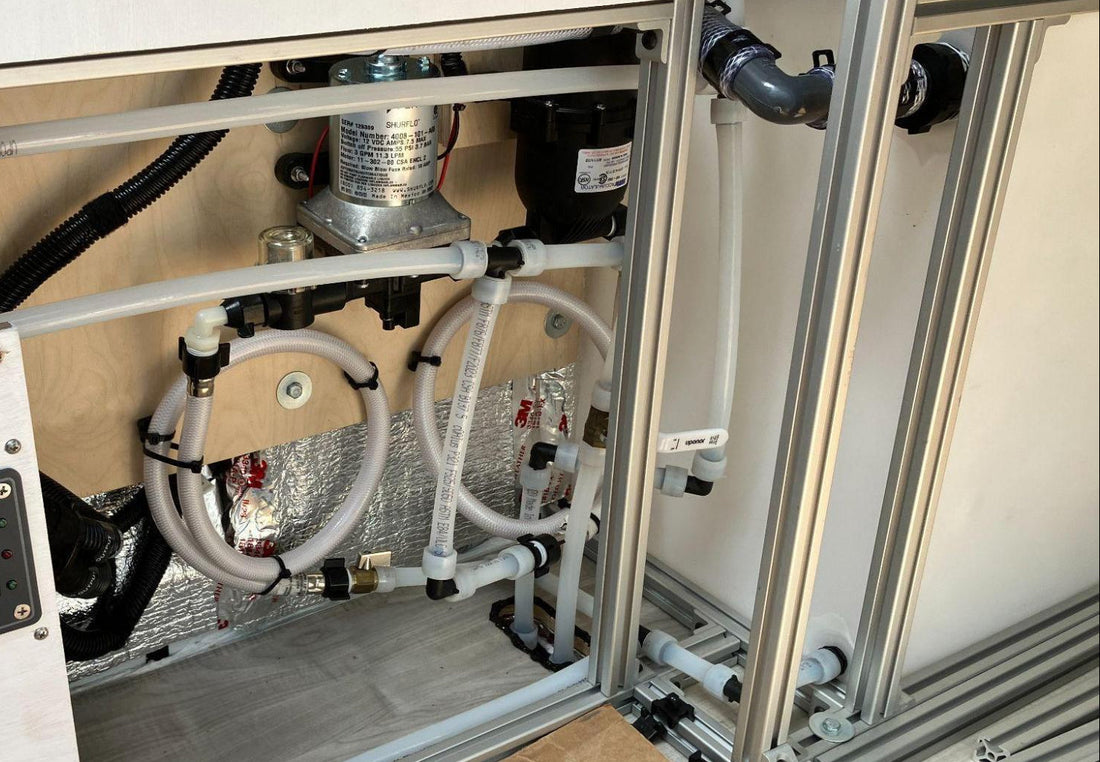

Camper Van Plumbing Diagram: Fresh Water System Using PEX-A
Plumbing is fun. Plumbing is fun. Plumbing is fun. That’s what I tell myself to get psyched up for a plumbing project. Because plumbing isn’t fun?! The reality is that plumbing is not so bad if you have a plan. This post helps a DIYer plan by showing an example of how I completed my fresh water plumbing system using PEX-A (also known as expansion PEX). This post starts with a little Plumbing 101 and details the major items in my plumbing system. I compare the differences in PEX-A vs PEX-B. I talk about how to approach van conversion plumbing by starting with the fresh water tank. And of course there is a free example plumbing diagram and list of all of the part numbers used in this fresh water van system too. Fun! Camper Van Plumbing System Overview Most van conversion plumbing systems include a tank, water pump, accumulator, and faucet. I’m on Team Hot Water, meaning my fresh water systems have a water heater. Every plumbing system needs to be designed to be filled (add an inlet), drained (add an outlet valve), and maintained (add shutoff valves). Other nice-to-haves may include additional indoor/outdoor showers, water filtration, or even multiple tanks to expand capacity. Water tanks provide the water storage reservoir for your plumbing system. Tanks are available in different sizes and layouts, including for undermount beneath your rig or for interior mounting, with wheel-wheel designs being very popular for their efficient use of space. Size matters for water tanks, but bigger isn’t always better. Bigger tanks mean more weight and more space, making a tradeoff where something else may not fit. Individual preference will vary between water usage and van size, but tanks in the 25-30 gallon range may be the sweet spot for many customers. A water pump is required to create pressure allowing water to flow through a water heater and to faucets or showers. An accumulator, or more accurately a pressure accumulator tank, is an optional but highly recommended device for your water system that helps reduce water pump cycling, stabilizing your water system pressure and reducing wear & tear on the water pump. A water heater takes cold fresh water through a tank and a heating element to provide hot water. We’re big fans of using Isotemp water heaters to get free hot water from the van’s engine coolant. Sink faucets and shower valves probably don’t need any explanation. That’s where the water is supposed to come out of your plumbing system. This all-electric (no propane) example plumbing system helps you understand how to design your own fresh water system using PEX-A. Want to know more about gray tank plumbing systems? Check out our blogs on camper van drains as well as an alternative take on fresh and gray water plumbing. Camper Van Plumbing Diagram Click to download a PDF of the example plumbing diagram. The diagram shows an example fresh water van plumbing system using PEX-A. Fittings and piping for each plumbing component are noted in the diagram, and identifying the fittings for your plumbing system is an important step as discussed in Understanding Fittings below. PEX-A vs PEX-B: Which is Better for Van Plumbing? PEX-A is one option for piping a van conversion fresh water plumbing system. PEX-B, vinyl tubing, or other options all have their tradeoffs. PEX-A is also known as Expansion PEX. One name brand PEX-A is Uponor/Wirsbo ProPEX (not to be confused with Propex, LPG/propane!). This post and example diagram provides name brand part numbers because skimping on quality may lead to seriously un-fun leaks. PEX-A and PEX-B are two of the most popular piping selections for camper van plumbing. PEX-A is slightly more expensive than PEX-B. However, PEX-A does have many advantages over PEX-B: Higher water flow rates due to less constriction from fitting design Better freeze-expansion resiliency More flexible routing and less prone to kinking PEX-A requires an “expander tool” to make each connection from fitting to piping. Unlike PEX-B, PEX-A does not require a Go/No-go Gauge to check every connection. A PEX-A connection example is shown in the following four pictures. 1) Parts left to right: fitting (elbow), ring with stop, and PEX-A piping 2) Insert the ring over the piping, then use the expander tool 3) Rotate the ring with piping, insert the expander tool further, and complete the expansion 4) Insert the expanded ring with piping fully on to the fitting, then allow the ring & piping to contract The two main gripes against PEX-A compared to PEX-B are that PEX-A is a little more expensive and that PEX-A requires a small wait time for the expanded ring with piping to contract (which completes the leak-free fitting). I think that freeze resiliency, water flow rate, and more flexible piping (which allows less fittings & couplings) justifies the slight cost increase for PEX-A. And waiting a few extra minutes to apply pressurized water to the completed plumbing system? Take a second to pat yourself on the back for a plumbing system well done, or go work on another build project for a few minutes. I don’t see a small wait time as an issue for a van build. Also, with PEX-A you don’t have to hunt for the Go/No-go Gauge to check every connection. I’ll fully admit that I had one PEX-A connection in my plumbing system that leaked like a sieve. It turns out that the ring with stop is an important part of an expansion PEX connection! I expanded the piping without the ring and installed that over a fitting. Oops! Lesson learned. Don’t do that. Key Parts in This Camper Van Water System Water tanks provide the water storage reservoir for your plumbing system. Most camper van water tanks are designed for unpressurized systems. Unpressurized means that the tank should not be filled by pressurized water, such as a directly attached garden hose from a city water spigot. These tanks are “gravity fill” and require an air vent such that air escapes the tank when water is added. Look at the heavy dashed line in the example plumbing diagram, where the water tank and everything before the water pump inlet operates as an unpressurized system. Because the “gravity drain” is unpressurized, and because this system only has ½” piping for that drain, emptying a full water tank using the gravity drain spigot is SLOW. More on that later in Maintenance, Draining, and Winterization Tips. A water pump pulls water from the water tank and creates a pressurized portion of the water system. To maximize the available fresh water, a water pump should pull from an outlet near the bottom of the water tank. It’s also advisable to use a strainer at the inlet port of the water pump. The SeaFlo 42-series water pump in our store includes a strainer. A fresh water system needs a pressurized portion, just like a household plumbing system, so that water is forced out by the pump when faucets or valves are opened. The example plumbing diagram shows two optional pieces that are recommended for a better-performing system: 1) an accumulator and 2) a pump “silencing kit”. An accumulator tank is a small device that uses an air bladder to smooth out water flow from the pump, reducing pump cycling and improving water pump lifespan. Most diagrams show the accumulator mounted inline immediately at the output of the water pump. However, an accumulator can be added anywhere to the pressurized (cold) water system to be effective, including as a “stub” with one port of the accumulator capped off. This makes it easy to add an accumulator to an existing water system. The pump silencing kit keeps your system quieter by minimizing vibration from the water pump. The flexible hoses help prevent pump vibration from traveling into your piping throughout the rig. Off-the-shelf silencing kits are available, as shown in the example plumbing diagram, but this can also be accomplished DIY by adding a few PEX-to-barb fittings and sections of flexible vinyl piping. A water heater has an inlet for pressurized cold water and an outlet for pressurized hot water. We talk a lot about Isotemp water heaters, including an install post and how to use our installation kit to connect the water heater to your van’s coolant system. Our Isotemp post intentionally doesn’t talk much about the water plumbing, because every rig is different. Well, this post and example plumbing diagram fills in that blank and shows you one way to connect an Isotemp into your van conversion water system. Aside from tapping into your van’s coolant system for free hot water, Isotemp water heaters have several other useful features for a camper van water system. The water heaters do have an AC powered heating element as a backup if you’re not running the engine or have access to shore power. The water heaters produce hot water, typically well above 150 degrees Fahrenheit, so Isotemp includes a mixing valve at the outlet so that you can set your plumbing system’s hot water to a non-scalding temperature, typically 100-120 degrees Fahrenheit. Because the hot water stored in the tank is mixed with cold water at the outlet, your effective hot water capacity is more than just the water stored in the heater. Isotemp water heaters include a safety/relief valve that doubles as a drain valve. This valve is located at the (cold) fresh water inlet to the water tank, but when the valve is opened both cold and hot water can be drained from your system. Do not cap the drain valve, as the tank may need to weep water from expansion during heating. This means that the drain valve should be plumbed, and Isotemp recommends a clamped vinyl tube for that purpose. Understanding Fittings Fittings are probably where plumbing becomes not fun for most people. To make plumbing simple, you need to know the gazintas and gazoutas of each plumbing component. Using a water tank as an example, the inlet (gazinta) is typically a 1-½” NPT female, while the outlet (gazouta) is typically a ½” NPT female in van plumbing systems. If you know what fitting the component has, then you know what “mate” your plumbing needs for each connection. In that example, a ½” NPT female needs a ½” NPT male to complete the connection. The plumbing trade still commonly uses female and male to describe the mating sides. The industry is slowly moving towards socket and plug to be more inclusive. This post uses the most common terminology to avoid confusion. But what do all these terms mean? Fittings are specified with the connection type, the mating side, and the size. Connection Type Common camper van plumbing fittings are NPT, NPS, barb and PEX. NPT, or National Pipe Tapered, is a standard for a threaded fitting. The threads narrow (taper) which allows a seal to be formed during connection. NPT fittings require Teflon (PTFE) tape or pipe dope during installation. NPS, or National Pipe Straight, is a common definition for non-tapered (straight) threaded fittings. Because there is no taper to force a seal, NPS fittings rely on a gasket or O-ring to prevent leaks. Barb fittings are intended for flexible piping, such as vinyl tubing. These fittings have ridges (barbs) that contact the piping to create a seal. Barb fittings are typically secured with clamps. Spring clamps are ideal because they provide equal pressure around the barbs, although standard (cheaper) worm-gear hose clamps can suffice. PEX fittings are intended for PEX piping. Very similar to barb, PEX-A uses contraction of the piping (while PEX-B uses a clamp or crimp ring) to secure the connection. Many, but not all, van plumbing component fittings are NPT. Water tanks, water pumps, accumulators, water heaters, and even some faucets are typically NPT. The example plumbing diagram shows a few examples of other fittings, including barbed fittings for the water tank gravity fill & vent connections and NPS fittings for the outdoor shower. If you use a household faucet for your galley sink, that may require another type such as ⅜” compression fittings. Mating Side The mating side of a fitting is typically female (socket) or male (plug). Many fittings combine the connection type (eg. NPT, NPS) and the mating side into a single acronym. The example plumbing diagram has a legend for these acronyms: FPT = female NPT MPT = male NPT NPSF = NPS female NPSM = NPS male Many in the trade refer to a fitting using just the size and acronym, ½” FPT for example. Why are the connections and mating sides inconsistent from acronym to acronym? Ask a plumber! Size Size is another source of confusion in fittings, because the size value varies with connection type. What? NPT fittings refer to the inner diameter (ID, the hole inside the fitting). NPS fittings specify neither the inner diameter nor the outer diameter, because the thickness of the pipe changes the resulting inner hole size. Barb fittings refer to the inner diameter of the piping that’s attached to the barb. PEX, like NPS, refers to neither the inner nor outer diameter size. Here’s my recommendation, don’t try and measure a fitting to determine its size. Check out the manufacturer information that tells you what fittings are required, or in rare cases when that’s not available for our products, contact us. Common van plumbing sizes are ½” and 1-½” (as in one and a half, 1.5”) for fresh water. ½” plumbing for the pressurized water system is sufficient for most camper vans. Some opt for ¾” plumbing in larger rigs or for more water flow. Drains vary depending on included fittings and desired flow rates, although 1-¼”, 1-½”, and 3” are common sizes. Selecting a Fitting Once you know the fitting you have on your plumbing component, you need to know what’s being connected on the other side. In most cases, the other side is your plumbing piping, ½” PEX-A in the example plumbing diagram and parts list. Selecting a fitting means knowing the connection type, the mating side, and the size for both sides of the fitting. Going back to the water tank outlet example, one side of the fitting needs to be ½” NPT male, and the other side of the fitting wants to be ½” PEX-A. In the example plumbing diagram, that fitting is a Uponor (Wirsbo) Q4625050. Uponor (Wirsbo) is the manufacturer, a name brand in the plumbing industry. Uponor officially titles that part number a ProPEX EP Male Threaded Adapter, 1/2" PEX x 1/2" NPT. The “EP” is new information in that product name, and that’s Engineered Polymer. More on that in a bit. For your fresh water system, make sure that you’re selecting drinking water safe components, fittings, and piping. The water tanks, pumps, and faucets in our store are drinking water safe. PEX, some vinyl tubing, and most polymer fittings are drinking water safe. For metal fittings, look for labels including “potable water”, “zero lead” or “lead free” stainless steel or DZR brass, and compliant with the Safe Drinking Water Act. Engineered Polymer (aka plastic) fittings are more resilient to freeze damage than metal fittings because the material tolerates expansion & contraction better than metal. Plastic fittings are also lighter and cheaper than metal fittings. PEX piping can connect easily to metal or plastic fittings, and valves are typically metal. Sometimes (like the ½” FPT to PEX fitting in our example plumbing diagram) it can be difficult to source plastic fittings. Caution is needed when mixing plastic and metal fittings, particularly with NPT, so the rule of thumb is to use male plastic fittings with female metal fittings…never the opposite. How to Plan Your Van Plumbing I recommend starting at the water tank when planning your fresh water plumbing system. For each plumbing connection, follow these steps: Identify the connection type, mating side, and size. Example: Water tank outlet is ½” FPT, so a ½” MPT fitting will be required. Identify the piping or next connection. Example: ½” PEX-A piping. Determine the appropriate fitting for the connection. Example: Uponor Q4625050 1/2" ProPEX EP Male Adapter. Run the piping to the next component. Repeat Steps 1-4 for each plumbing component. Don’t forget to think ahead about where to add shutoffs and drains for maintenance. Parts and Tools List Big box stores carry many of the pipings and fittings shown in the free example plumbing diagram. I prefer a dedicated plumbing store, and I’ve had good luck using supplyhouse.com. Use their Live Chat if you need help finding the right fitting, and they have great customer service and ship quickly (like us!). Here is a list of the piping and fittings in this fresh water plumbing system. Item Manufacturer and Part Number Purpose ½” MPT to ½” barb adapter Spears 1436-005 Water tank vent fitting ½” ID vinyl tubing (10’) Everbilt T10006010 Water tank vent line ½” hose clamp Everbilt 6760595 Water tank vent line clamps 1-½” MPT to 1-¼” barb adapter Spears 1436-212 Water tank fill fitting 1-¼” ID vinyl tubing (25’) Everbilt HKP001-PVC018 Water tank fill line 1-¼” hose clamp Everbilt 6720595 Water tank fill line clamps ½” PEX-A piping (100’) Uponor (Wirsbo) F1040500 Expansion PEX tubing ½” PEX Ring With Stop Uponor (Wirsbo) Q4690512 Every expansion PEX connection ¾” MHT to ½” PEX sillcock Webstone 33202WSSL Drain valve ½” PEX tee Uponor (Wirsbo) Q4755050 All three-way PEX tubing connections ½” MPT to ½” PEX adapter Uponor (Wirsbo) Q4625050 Water tank outletSink faucet ½” MPT to ½” PEX ball valve Uponor (Wirsbo) LF4795050 Maintenance shutoff ½” FPT to ½” PEX adapter Uponor (Wirsbo) LF4575050 AccumulatorWater heater ½” PEX ball valve Uponor (Wirsbo) LFR4815050 Maintenance shutoff ½” NPSM (swivel faucet) to ½” PEX adapter Uponor (Wirsbo) Q4360500 Outdoor shower ½” PEX 90 elbow Uponor (Wirsbo) Q4760500 Any right-angle PEX tubing connection ½” PEX coupling Uponor (Wirsbo) Q4775050 Join two pieces of PEX tubing ½” PEX plug Uponor (Wirsbo) Q4350500 Cap a piece of PEX tubingHelpful to build & test in stages I used these tools to properly build a PEX-A system for my camper van. Tool Purpose PEX-A expander tool Required for making PEX-A connections Tube cutter Helpful to make straight piping cuts PTFE thread tape Required for NPT fittings (or use pipe dope) The following plumbing components are shown in the example plumbing diagram. Component Manufacturer and Part Number Fresh water tank NW Conversions NWU0244 Many water tank options in our store Gravity fill Valterra A01-2003BU Water pump SeaFlo 42-Series SFDP1-030-055-42 Accumulator SeaFlo Pressure Accumulator Tank SFAT-075-125-01 Pump silencing kit Valterra P23512PB Water heater Isotemp Slim 25LMany water heater options in our store Sink with faucet Tec Vanlife Space-Saving Sink I-PL-T-SF-10 Outdoor shower Dura Faucet DF-SA189 Example, many options Maintenance, Draining, and Winterization Tips A van water system should be designed for easy maintenance. You want to be able to completely drain your water tank and piping for winterization or for periods when your van plumbing system is not in use. Be mindful of low spots where water can not fully drain from the piping, and add drain valves at those low locations. Shutoff valves should be added too. The example plumbing diagram shows a shutoff to disable the pressurized water system for water pump repairs, including regular inspection & cleaning of the strainer. A shutoff is also included to turn off the hot water system for tank inspection or repair. I strongly recommend adding an inspection hatch to your fresh water tank. An inspection hatch helps you mop up all remaining water in the bottom of the tank and clean the interior during maintenance. No water tank drain is perfect, so there is always some water remaining inside the bottom of your tank after draining. An inspection hatch also allows you to inspect a float-type water level sensor if you don’t opt for SeeLevel no drill tank monitoring system. This example van conversion fresh water plumbing system shows a ½” gravity drain to a garden hose spigot. The gravity drain is labeled “slow” for a reason…it takes a long time to drain a large water tank using ½” piping. Draining can be sped up using 1-½” piping to a dedicated drain through the van’s floor. In my case, the water heater is mounted so that the relief/drain valve is the lowest point of my water system. I leave the water pump on and manually open the Isotemp drain valve to rapidly empty my water system. Using this method, the cold water and hot water in the system can be drained rapidly. Still, the gravity drain is an important fallback that does not require power to operate, and after turning off the water pump any remaining water can be drained through the spigot. Frequently Asked Questions Can you use PEX plumbing in a camper van? Absolutely. PEX plumbing is flexible, easy for DIYers to install with minimal tools, cost-effective, resilient to freezing temperatures, and drinking water safe. PEX-A vs PEX-B: Which is Better for Van Plumbing? Both PEX-A (expansion PEX) and PEX-B are well-suited for camper van conversion plumbing systems. PEX-A is more flexible & resists kinking and has higher flow rates, while PEX-B is slightly more affordable. Do I need an accumulator in my camper van water system? No, but an accumulator is highly recommended. An accumulator is optional, but the pressure accumulator tank smooths out water flow, reducing pump cycling and improving water pump lifespan. What does gravity fill mean on a camper van water tank? Gravity fill is the standard method for filling camper van water tanks, and using a pressurized city water connection could cause a water tank to burst. Water flows into a tank using gravity and a vent to allow air to escape the tank. How do you winterize a camper van plumbing system? The recommended method to winterize a van conversion water system is to completely remove all water from the tanks and piping. Install drain valves at key (the lowest) locations in your plumbing that may trap water. Low pressure air can be used to help flush water through the piping, but use caution and don’t overpressurize the components. Using antifreeze is possible but not necessary for a well-designed water system. Do I need thread tape on fittings? NPT fittings require Teflon (PTFE) thread tape or pipe dope for lubrication and sealing. Apply tape to a male NPT fitting prior to assembly. NPS fittings rely on a gasket or O-ring to create a seal, and NPS fittings do not require tape. PEX and barb fittings rely on compression, so do not apply tape to those fittings. What is the difference between NPT and NPS fittings? NPT and NPS are both common plumbing fittings. NPT stands for National Pipe Tapered, and NPS stands for National Pipe Straight. NPT and NPS are not compatible, so select the appropriate mating type for each fitting.
Learn more
Vanlife Roadmap Podcast: Ep. 7
20 Vans, One Driveway: Tim Jowers on building weekend warrior vans with no shop and no advertising About Tim Tim Jowers is a self-taught van builder based in Texas who has completed 20 custom builds out of his home driveway since December 2021. A former distribution manager turned craftsman, Tim works alongside his son Ryan, whose welding and artistic background anchors the creative side of every build. Follow Tim’s work on Instagram. What you’ll hear in this episode Why Tim quit a 25-year warehouse management career in December 2021 and bought a ProMaster the same week — and what his son Ryan said when he suggested they build vans The solo 5,000-mile road trip Tim took to proof-test his first build: up to Mt. Bachelor for skiing, down through California, across to the Grand Canyon, and back home Why Tim and Ryan skip showers on every single build — and the specific cascade of problems (condensation, drainage, freezing, underslung tanks) that decision avoids Why cabinet work is the hardest part of any build — nothing in a van is square, which means scribing, templating, and multiple in-out-in fitting cycles on every upper cabinet Tim’s rattle prevention system: glue and screw every joint you can, put fabric between any wood-to-metal contact point, and drive the van after every major phase to find squeaks before they’re covered up The advice Tim gives every first-time builder before they spend a dollar: rent or borrow a van, spend a weekend in it, and find out what you actually need versus what you thought you needed Key takeaways Cabinets are where builds get hard. Floors, ceilings, and wall panels are relatively straightforward. Cabinets are not — a van is never square, which means every upper cabinet requires scribing to the roof curve and multiple fitting cycles before it’s right. The shower math doesn’t add up. An interior shower triggers hot water requirements, underslung gray tanks, drainage-grade parking, and condensation risk. Tim skips it on every build because the tradeoffs compound — and most customers agree after he walks them through it. Off-grid AC is a $5,000 decision, minimum. If you’re building a van for $20k and want off-grid air conditioning, you’ve just committed 25% of your budget to one system — before accounting for the larger battery bank and added weight. Rent before you build. Tim’s standard advice to every potential customer: find a van to borrow or rent, spend a weekend in it, and see which features you thought you needed actually matter. The first thing most people drop? The shower. Glue and screw, then drive. Tim’s rattle prevention method: glue and screw every joint possible, put fabric between any wood-to-metal contact, and drive the van after every major phase so you can find squeaks before they’re buried under panels. Resources + links Electrical Systems collection — batteries, inverters, solar, and monitoring for your van build Batteries & BMS — lithium options and battery management systems Sizing Your Electrical System — load calculations and system design guide Van Build Step-by-Step Guide — how to sequence a build the right way Listen to the full conversation with Tim on YouTube, Spotify, or Apple Podcasts. If you’re working through a build decision, reach out to our team — we’re always happy to help.
Learn more
Vanlife Roadmap Podcast: Ep. 6
What Grant from FreedomVanGo Learned Building Vans for Real Use A van build can look great online and still be wrong for the way you actually travel. That is one of the clearest lessons from this episode of Vanlife Roadmap. Grant from FreedomVanGo has built vans, used vans, refined vans, and helped customers think through what belongs in their own builds. His perspective is practical because it comes from doing the work, making mistakes, and changing his mind after actual travel. Grant’s path into vans was not a straight line. He grew up in Myrtle Beach, worked odd jobs, got into cars and motors early, served as a C-130 engine mechanic in the Air Force, spent time in Japan and Saudi Arabia, built a Subaru-focused parts business, and eventually moved from camping setups into a Sprinter. Along the way, the same pattern kept showing up – he liked figuring things out, building things, and sharing what he learned. That background matters because this conversation is not really about one perfect van layout. It is about how experience changes your standards. Grant’s first van worked, but it also taught him what he would not do again. The first van worked – but not for him Grant is unusually direct about his early van build. He says he “did everything wrong in the end,” even though it felt right at the time. Like many first-time builders, he pulled design cues from Instagram, YouTube, and other vans that looked good. The result was not a failure. The van worked well enough. But after 20 or 30 nights in it, he started to see the difference between something that functions and something that actually fits the way you live. That distinction is useful for any DIY van builder. For example, Grant used shiplap in the first van. It looked great. However, changes in temperature and humidity caused squeaks and rattles. He also put the fridge on the driver’s side wall, then realized how inconvenient that was when using the van near the beach. Every time he wanted something from the fridge, he had to climb into the van and track sand inside. That experience changed how he builds now. He prefers the fridge on the passenger side, near the slider, so it can be reached from inside or outside. The lesson is not that one fridge location is universally right. Grant is careful to say the driver-side fridge was bad for him. The bigger point is that small layout decisions become very obvious once you use the van in real places. A floor plan is not just a drawing. It is how you move, cook, sleep, grab a drink, clean up, and get in and out all day. Rent before you build One of Grant’s strongest recommendations is simple. Before spending serious money on a van build, rent vans and see what works for you. That advice comes directly from his own experience. In his first build, he chose things because they looked good or seemed like the right idea at the time. Now, when customers are preparing for a major build, he encourages them to spend money up front renting different vans so they can learn what they like before committing to a full build. That may feel like an extra expense, but it can prevent much bigger mistakes. A van build can easily become an exercise in imagined use. You think you need a certain cabinet, bed size, shower, fridge, or finish because it looks right in someone else’s setup. Then you spend real nights in the van and realize your habits are different. Grant gives a simple example with bed size. Some people told him he did not need a queen bed. But with two people and a dog, he quickly learned that a smaller bed did not work for him. Again, the point is not that every van needs a queen bed. The point is that your real use should decide what will work best for you. Spending time in rental vans will reveal things a spreadsheet cannot. For a broader planning framework, VLO’s guide on how to build a camper van without getting stuck walks through why purpose should come before tools, layouts, or shopping. Build around how you actually use the van Grant’s current layout philosophy was shaped by use, not theory. After the first van, he moved toward a more adaptable setup with Adventure Wagon and L-track because it allowed things to be mounted and changed more easily. That flexibility mattered because it gave him room to adjust the van as his needs became clearer. He also explains why he generally avoided indoor showers for a long time. His thinking was practical. If you are traveling in a city, there are often gym showers or other options. If you are in the middle of nowhere, an outdoor shower can work, even in cold conditions, if you have hot water and the van’s heat running. That may not be the right choice for every builder, and Grant says FreedomVanGo has more recently started doing indoor showers in some vans. But the reasoning is useful. A shower is not just a feature. It is space, plumbing, cost, weight, complexity, and maintenance. If you will truly use it, it may be worth it. If not, it may be taking over space that could serve you better in another way. This is where Grant’s advice lines up with a bigger Vanlife Roadmap theme. Good van decisions are rarely about copying someone else’s build. They are about understanding what kind of travel you are actually trying to support. Some cuts do not give you a second chance When Grant talks about practical build advice, one line stands out. “Measure 48 times before you make that first cut.” That came from experience. He tells a story about installing bunk windows early on and realizing after the cut that one measurement was about an inch off. The window still worked, but it was higher than he wanted. The mistake was fixable enough, but it left a mark. For DIY builders, that is a useful reminder. Some parts of a van build are forgiving. Others are not. Cutting holes for windows, fans, or other exterior components deserves extra patience because the cost of being wrong is high. This is also a good example of why van building can be both empowering and stressful. You can learn a lot and do more than you think, but confidence should not replace careful prep. A van is not a blank canvas in the abstract. It is a vehicle, and some decisions become permanent very quickly. Electrical is different Grant is encouraging about DIY work, but he draws a harder line around electrical systems. He sees electrical as one of the hardest parts of a van build because there is so much information, and much of it comes with bias. Some people recommend one battery brand, others recommend another. Some people push full Victron systems, while others point builders toward simpler power kits. In Grant’s view, the challenge is not just finding information. It is understanding the tradeoffs behind each option. His advice is not to skip the research. He says builders should put real time into learning. But if someone spends dozens of hours trying to understand electrical and still does not feel comfortable, he recommends paying someone. The reason is straightforward. Bad electrical work can do more than annoy you. It can damage the van or create a real fire risk. Grant says he has seen fires in vans from DIY electrical work done incorrectly. That does not mean every builder needs the most expensive system. It means the electrical system should match the builder’s needs, and the installation should be done safely. A simpler system that is understood and installed correctly is better than a complicated one chosen because it looked impressive online. VLO’s camper van electrical diagrams and camper van electrical planning resources are good next steps for builders trying to compare system types before buying components. You do not need all the fancy stuff to start Near the end of the conversation, Grant gives one of the most useful pieces of advice for future vanlifers. Do not start with a full build. Put a mattress in the back, add a fridge or cooler, and go use the van. That advice cuts through a lot of noise. The internet can make it seem like vanlife requires a long list of expensive parts before you are allowed to begin. Grant pushes back on that. He points out that people were having great experiences decades ago with much simpler vans. His point is not that nice parts are bad. FreedomVanGo builds vans, sells parts, and works with people who want more capable setups. But he is clear that much of what people see in modern vanlife is a luxury, not a requirement. A heater, air conditioner, electrical system, roof rack, suspension upgrade, super singles, shower, and cabinetry may all be useful in the right situation. But “useful” is not the same as “necessary.” Grant’s advice is to separate what you want from what you truly need, then make the choice honestly. If you want the upgrade, that is fine. Just do not convince yourself it is required before you have tested how you actually travel. When you are ready for a complete system, Vanlife Outfitter’s build-your-own electrical system bundle can help organize the choices – and reach out to our support team if you want to talk through your plans and ensure you get what you need. Saying no can be part of doing better work Grant also talks about FreedomVanGo as a business, and one theme connects directly back to van building itself – focus matters. He says they say no to far more projects than they say yes to. That may sound strange for a business, but his reasoning is practical. If a shop is not good at something, or if the work is not a fit for how they build, taking the project can be unfair to the customer. Figuring everything out on a customer’s van takes time, and customers are paying for that time. That mindset shaped the way FreedomVanGo grew. Grant describes starting in a two-car garage, helping local people, installing fans and electrical packages, and eventually moving into a warehouse. The growth was real, but it was not framed as growth for its own sake. He talks more about focus, fit, and not trying to become everything to everyone. For DIY builders, the same principle applies. A good build is not a pile of good ideas. It is a set of choices that work together – and sometimes the smartest decision is leaving something out. The bigger lesson for DIY builders Grant’s story comes back to a simple idea: Use the van before you overbuild it. Learn what matters to you. Be careful with permanent decisions. Take electrical seriously. Be honest about the difference between what you need and what you want. A good camper van build does not have to be the most impressive version of someone else’s layout. It has to support the way you actually travel. Related resources from Vanlife Outfitters Vanlife Roadmap podcast – More conversations about real van build decisions How to Build a Camper Van Without Getting Stuck – Start with purpose before layouts and shopping Camper Van Electrical Planning – Plan power around how you actually use the van Free Camper Van Electrical Diagrams – Example systems for DIY van builders
Learn more
Ford Transit CCP1, CCP2, and Dual Alternator Guide for Camper Vans
If you’re building a Ford Transit camper van, one of the more useful Ford-specific features to understand is the Transit Customer Connection Points. Ford provides an easy method to connect a house electrical system to the vehicle battery system, and in Ford-speak that is a Customer Connection Point, or CCP. The CCPs are one of the reasons the Transit can be a very builder-friendly van for camper conversions. They provide a straightforward way to connect DC-DC chargers to your Transit, but the details matter. Older vans, newer vans, single battery vans, two vehicle battery vans, and vans with the two alternators are not all the same. This post is not trying to duplicate Ford’s order option documentation, and it is definitely not a substitute for reading the Body & Equipment Mounting Manual, or BEMM, for your model year. But if you’re trying to understand Transit CCP1, CCP2, and the Dual Alternator option at a practical level, here is a quick take. What Are Ford Transit Customer Connection Points? Ford provides an easy method to connect a house electrical system to the vehicle battery system, and in Ford-speak that is a Customer Connection Point. The CCP(s) are located on the outside of the driver’s seat pedestal facing the door. The CCP(s) are an ideal way to connect DC-DC chargers to your Transit. Older or single battery vans may have a single 60 Amp CCP1, while newer models with the Dual AGM Batteries or Auxiliary Fuse Panel options have CCP1 as well as a 175 Amp CCP2. The CCPs are fused, and accessing those fuses is pretty annoying since they are located in the pedestal underneath the driver’s seat. Because you have to remove the seat to access the pedestal, we highly recommend designing your electrical usage of the CCPs lower than those fuse values. That is one of the practical points that matters most. Yes, the fuse values set an upper ceiling. No, that does not mean you should design your system right at those limits. CCP1 vs CCP2 CCP1 is always-on, and CCP2 is controlled intelligently on and off by the van’s computer. CCP2 may be load shed during periods of heavy alternator derating due to heat. CCP2 is not always on, and CCP2 typically remains on for some duration after the engine is turned off. If you’re comparing CCP1 and CCP2 for a camper van electrical build, the short version is that CCP1 is simpler and lower-capacity, while CCP2 is the more useful interface for higher-power charging setups when the van is equipped for it. In practical terms, CCP1 may be enough for a more modest electrical build. CCP2 is where things get more interesting if you want more charging power from the alternator while driving or idling. Which Transit Vans Have CCP1 and CCP2? Older or single battery vans may have only CCP1. Newer models with the Dual AGM Batteries or Auxiliary Fuse Panel options have CCP1 as well as CCP2. We think that the Dual AGM Batteries option is important for more than one reason, but one of the big ones is that it provides the CCP2 capability that allows a higher-current interface for DC-DC chargers. Older Transits with specific options may even have CCP3, where all three CCPs are fused at 60 Amps. That means if you’re shopping for a Transit specifically with camper van electrical in mind, it is worth paying attention to the order options and what Customer Connection Points are present - not just whether it has nice lifestyle features like swivel seats or an extended range gas tank. Using DC-DC Chargers with a Ford Transit A Victron Energy Orion XS 50 (or XS 1400 for 24 Volt systems) is a great fit for CCP1 or CCP2. Using one of these chargers provides 50 Amps of charging power from your alternator to your house system. If you have CCP2 without the Dual Alternator option, then you have more alternator capacity for even higher charging power. Ford alternator sizing has increased over the years, and the 250 Amp alternator is standard in the 2020+ models. Using that 250 Amp alternator as an example, roughly 100 Amps of charging power while driving (less at idle) is available for your house battery bank. Manufacturers recommend using no more than 50% of the rated alternator value, and you need to reserve power for the vehicle’s own use, so 100 Amps from a 250 Amp alternator is a reasonable value. Two Orion XS DC-DC chargers (either the XS 50 or XS 70) in parallel or one Sterling 120 Amp DC-DC battery charger are a great fit for CCP2. This is one place where the Transit can support a pretty capable camper van electrical setup without getting too exotic. If your power needs are moderate, the CCP approach can be a very good way to go. When installing a DC-DC charger in a Transit, you may wonder where's the CCP ground? The CCP(s) rely on a chassis ground, and those grounds are NOT on the driver's seat pedestal near the CCPs. It's important to identify where you'll make your chassis ground connection early in the build. The BEMM details grounding points in the Transit, but many DIYers use the threaded holes from the D-rings that come with the Ford Cargo Tie-Down Hooks order option. Is the Ford Transit Dual Alternator Option Worth It? The Dual Alternator option, which requires the Dual AGM Batteries option and has CCP2, adds a second alternator that works in conjunction with the primary alternator to dramatically increase power at idle as well as reduce alternator heating and loading while the engine is running. More than 150 Amps of power at idle is available from CCP2 with the Dual Alternator option. Technically, 220 Amps of power while driving (or more) may be possible, but that requires wiring around CCP2 directly to the vehicle batteries as well as participating in Ford’s signaling for load shedding. Interfacing directly to CCP2 and staying below that 175 Amp threshold is the easy way, but you can read the BEMM and make things complicated if that extra charging power is important. That is really the tradeoff. The Dual Alternator option can be very attractive if idle charging performance matters to you. But if your system is modest, or if you do not need even-higher power aftermarket secondary alternator charging, Dual Alternator may be the right middle ground for high-enough charging rates with a straightforward DC-DC install. When an Aftermarket Secondary Alternator May Be Better If even more massive charging power is a need for your system, you should avoid the Dual Alternator option and add a separate secondary alternator kit. With a secondary alternator kit, you can still use a DC-DC charger on the primary alternator in parallel with the secondary alternator regulator, so the kit allows much more charging power as compared to the Ford Dual Alternator option. For example with a 12 Volt 280XP secondary alternator kit and one or two Orion XS 50 or Orion XS 70 DC-DC chargers connected to CCP2, well over 300 Amps of charging power can be expected. For some camper van builders, this is probably beyond what is necessary. But for higher-demand systems, it is worth knowing that the factory Dual Alternator option is not the final word in Transit charging capability. Victron vs Sterling for Transit Charging If you have CCP2, this is one area where Victron DC-DC chargers are a little lacking. Right now, you need multiple Victron Orion XS chargers in parallel to take advantage of that 150+ Amps of easily accessible charging power. Sterling offers a one-box solution to fully use the benefits of the dual alternators, but Sterling does not have any integration to the Victron Cerbo GX and touch screen interface if that is important to your system. So the decision is not just about maximum charging output. It can also come down to ecosystem preference, monitoring, and how cleanly you want everything integrated into the rest of your electrical system. Don’t Ignore the Engine Run Signal Victron and Sterling DC-DC chargers have smart alternator sensing modes so that the chargers turn off when the engine is not running. Especially when using CCP1 which is always on, we highly recommend using Ford’s Vehicle Interface Connector (C33) Engine Run signal to the DC-DC charger’s remote terminal to ensure that the charger never depletes your vehicle battery bank. Read the BEMM for specifics on using the C33 interface signals. That is a small detail that can matter a lot in the real world. Even when a device has a smart sensing mode, hardwiring the proper Engine Run signal is the safer and more deliberate way to make sure your charger behaves the way you intend. Final Thoughts Ford Transit CCP1 and CCP2 provide a pretty builder-friendly way to connect a camper van electrical system to the vehicle side of the van. Older or simpler vans may only have CCP1. Vans with the Dual AGM Batteries or Auxiliary Fuse Panel option can also have CCP2, which opens the door to higher-current charging setups. Add the Dual Alternator option, and the Transit becomes even more capable for high-output charging, especially at idle. That does not mean every Transit builder needs CCP2 or two alternators. But if you’re planning a larger electrical system and want to make smart decisions before buying or building, these details are worth understanding early. And as always, read the BEMM for your specific model year before you cut, wire, drill, or assume anything. Frequently Asked Questions What are CCP1 and CCP2 on a Ford Transit? CCP stands for Customer Connection Point. Ford provides these connection points as an easier way to interface with the van’s battery system. In a camper van build, they are commonly used to connect DC-DC chargers to the vehicle side of the electrical system. What is the difference between CCP1 and CCP2? CCP1 is a lower-capacity connection point and is always on. CCP2 is higher-capacity and is controlled by the van’s computer. In practical terms, CCP1 can work well for simple, small charging setups, while CCP2 is the more useful option for higher-output camper van electrical systems. Which Ford Transit vans have CCP2? Older or single-battery vans may have only CCP1. Newer vans with the Dual AGM Batteries or Auxiliary Fuse Panel options can have both CCP1 and CCP2. If higher-current charging matters to your build, these are options worth paying attention to before you buy the van. Can I use a DC-DC charger with CCP1 or CCP2? Yes. Both CCP1 and CCP2 can be used with DC-DC chargers. A Victron Orion XS 50 is a strong fit for either one. If your Transit has CCP2, it gives you more room for larger charging setups than CCP1 does. CCP1 and CCP2 can be used simultaneously to different devices, but you should NOT connect CCP1 and CCP2 together. Is the Ford Transit Dual Alternator option worth it for a camper van? It can be, especially if idle charging performance matters to you. The Dual Alternator option adds a second alternator that increases available charging power at idle and helps reduce alternator loading while the engine is running. For higher-demand electrical systems, that can be a meaningful advantage. Should I design my system right up to the CCP fuse limits? No. The CCPs are fused, but those fuses are not especially convenient to access. You must design your system below those fuse limits rather than treating the fuse rating as your target operating point. Is Victron or Sterling better for a Ford Transit charging setup? That depends on your priorities. Victron is a very good fit if you want consistency with the broader Victron ecosystem and monitoring tools. Sterling can be attractive if you want a one-box higher-amperage solution, especially for taking fuller advantage of CCP2. The better choice depends on your system goals, not just the charger specs alone. Should I use Ford’s C33 Engine Run signal? Yes, especially if you are using CCP1. Because CCP1 is always on, wiring the C33 Engine Run signal to the charger’s remote terminals is a smart way to ensure the charger does not deplete your vehicle battery bank. Even if your charger has smart sensing features, using the proper Engine Run signal is a more deliberate approach. Additional Resources Ford Transit page. Use Build & Price to see all of the Ford options. Ford Transit Body & Equipment Mounting Manual Search by Model and “mounting manual” to find your model year BEMM. Ford Transit USA Forum is an active community of Transit owners and DIY camper van conversion enthusiasts.
Learn more
Why I Picked a Ford Transit for My Camper Van Conversion
We’re a vanlife company that enjoys and uses our camper vans. We do more than just sell products in our store. Our team has experience building and traveling in the big three camper van chassis – RAM ProMaster, Mercedes Sprinter, and Ford Transit – as well as Volkswagons, box trucks, and more. Zach wrote all about his preference for ProMaster. Mike talked about how he fell for “the look” of a “big…tough” Sprinter. This blog covers why I picked a Ford Transit for my DIY camper van conversion. This post is not a sales pitch for the Ford Transit. If you’re trying to decide between a ProMaster, Sprinter or Transit, my short answer is that the Transit gave me the best mix of AWD availability, useful factory options, lower expected cost of ownership, and easy service access across North America. That combination made it the best van for my camper conversion. Since you’re reading this blog, you’ve probably already read this suggestion in posts from Clayton or Mike or everyone else at Vanlife Outfitters – we strongly recommend renting or borrowing a camper van to try before you buy. I followed our own advice and rented a Hymer Sunlight and a Winnebago Revel well before I settled on a floorplan or specific equipment. The Sunlight was based on the Ram ProMaster chassis, and the Revel is built from a Sprinter chassis. Renting these vans provided tons of experience to base my own design decisions: van driving comfort, features/options, floorplan tradeoffs, installed devices, and more. So I rented a ProMaster and Sprinter, then I picked a Transit. Pray tell! The interwebs are full of opinions (and maybe a few facts too) comparing ProMasters, Sprinters, and Transits as a base for DIY camper van conversions. Each of the big three chassis offers tall and long models to support a glamping rig or smaller models to suit your needs. The vanlife industry has come a long way in a few years, so now all of the major models have customized options from roof racks to interior trim kits to water tanks and more. There are a few reasons why I chose a Transit. Why I Chose a Ford Transit Over a Sprinter or ProMaster AWD I wanted four or all wheel drive for peace of mind in snowy conditions and forest roads with variable conditions. Ford offers an AWD option in the Transit, but 4X4 is a (fairly expensive) aftermarket conversion. AWD eliminated the ProMaster from my list since it’s only front wheel drive. That alone did not make the decision for me, but it was a big factor. OEM Options All of the manufacturers offer numerous build options that help jumpstart the conversion from empty van to camper van. I found that many Ford dealerships had conversion-ready vans on their lots with options like swivel seats, extended gas tank, and even the hotly debated dual alternator package. You can always special order your van to tick every option box on your list. I tried, twice!, and never took delivery, but that’s a story for a different post. Cost and Service Having owned and maintained a European import car, I decided that the higher entry cost plus maintenance costs of a Mercedes was not for me. Since I’ve put hundreds of thousands of miles on my past travel vehicles, knowing that nearby service centers can fix Ford vehicles almost anywhere in North America was a factor for me. A desire for lower cost of ownership and ease of service pushed Mercedes down on my list. A Transit was an easy choice, and I certainly have no regrets. Ford Transit 101 for Camper Van Conversions Transit models and options vary by year, so this post won’t try and duplicate Ford’s website. Just know that we’re talking about the commercial Ford Transit van and not the Transit Connect, which is smaller. A majority of camper vans start with a Cargo Van model, although some customers needing more than two seats may opt with a Crew Van or Passenger Van model. Transit vans are available in many sizes including 130” and 148” wheelbases, three body heights from low to high, three body lengths from regular to extended, and four vehicle weight ratings. The largest Transit is a high roof, extended length van. Lower roof heights or shorter bodies trade off interior space for other benefits such as fitting in garages, easier parking and maneuvering, better fuel economy (due to weight), and of course cost. Ford offers two engine types (PDFi and EcoBoost), but there is not a diesel option for the Transit. The drive train options are AWD or rear wheel drive. Ford offers many build options that are helpful for camper van conversion. Note that some options are only available in specific models or years. Here is a quick take on some of the most popular options. 253-degree Rear Door Opening – useful if you need easy access to the garage to load and unload gear. 4-way manual swivel Driver and 4-way manual swivel Passenger seats – provides factory swivel seats. Auxiliary Fuel Port Extension Line – allows easy connection of an air heater to the fuel tank without the dreaded task of “dropping the fuel tank” during the install. Auxiliary Heater / AC Prep Package – comes with “stub lines” for the radiator coolant to allow easier connection to an IsoTemp water heater. Cargo Tie-Down Hooks – a low-cost option that provides threaded holes throughout the cargo area that are extremely useful for connecting your electrical system chassis ground. Digital Rearview Mirror – lets the driver see behind the vehicle virtually while driving. Extended Range Fuel Tank – increases the size of the fuel tank from 25 gallons to 31 gallons. Dual AGM Batteries – provides protection from running down your starter battery and is one of the factory options many van builders look for to help connect their electrical setups. Dual Alternator – can be valuable for higher-power charging setups. Check out this post for way more detail on Dual AGM Batteries, Dual Alternator and Ford Customer Connection Points for your Transit electrical systems. Front Overhead Shelf – provides a tiny bit of extra storage space and useful mounting points. Large Center Console – provides more drink holders and nooks and crannies between the driver and passenger areas. Power Sliding Door or Close Assist Feature – helps close the sliding door and minimizes that clanking door sound from slamming the heavy door closed. For DIY builds, you should understand the Body & Equipment Mounting Manual. The BEMM “provides general descriptions and advice for modifying vehicles” in Ford-speak. The BEMM details many important items that you need to know in a van conversion: Where and where not to drill and cut during the build How to interface to the Ford battery system Where to access chassis grounds How to access the roof rack mounting points Locations of airbags, safety equipment, and driving aid sensors Body mounting points My Experience with a Transit Camper Van Build I love my high roof, extended length Transit. The high roof Transit provides the most internal headroom of the big three (except for the Super High Roof ProMaster that has other limitations), which is high enough to comfortably stand in the aisle and support a bed lift that converts the garage into a dinette and workspace for rainy days. The length provides more than enough room for a queen-length bed, a sink and cookspace, a shoilet, and of course storage. The roof is large enough for an air conditioner, a rooftop fan, solar, and antennas for TV and internet. More broadly, the Transit worked well for the kind of camper van conversion I wanted – something capable enough for travel and boondocking, but still comfortable and practical to live with. Transits are not true off road vehicles, but they are perfectly capable in appropriate conditions. Transits can be modified with an aftermarket body lift, which then allows larger tires for more ground clearance and comfort on unmaintained roads. I’m still not doing the Rubicon in my Transit though. The extended length Transit in particular has a terrible departure angle, so you just need to be mindful of where you’re taking your rig. The van drives great with easy handling in all but extreme crosswinds (I’m talking to you, front range winds!). For a little perspective, here are some post-build numbers from my Transit build. Height is just under 10’ due to body lift and larger tires with rooftop A/C and vent fan. Fully loaded weight is approximately 9300 lbs with a 30 gallon fresh water tank. Ground clearance is roughly 8” to the differential. Ford Transit Camper Van Pros and Cons Does the Ford Transit have some disadvantages? Sure. The van is widest at mid-height. The Transit body is curved in all three directions, making cabinet building and installation…more fun? Transits are known to be fairly narrow in the cabin, so traversing between the driver and passenger seats or even trying to swivel the seats with the doors closed is a bit of a challenge. I’ve also had a fair share of recalls, and the workmanship is okay but doesn’t scream luxury brand. As an example, the threaded holes on the roof to accept mounting adapters are sometimes misaligned with the covers to access said holes. I consider myself lucky that my holes were accessible and didn’t require some grinding to complete my roof rack install. That said, no van is perfect, and I can live with these tradeoffs. On the plus side, the Transit checked the boxes that mattered most to me: AWD availability, useful factory options, strong service access, good headroom, and enough space to build the layout I wanted. If those same things matter most to you, a Ford Transit is a strong camper van platform to consider. Final Thoughts If you’re trying to choose the best van for a camper conversion, there is no perfect answer. ProMasters, Sprinters and Transits all have strengths and weaknesses. For me, AWD, lower expected cost of ownership, easier service access, and the right mix of factory options made the Transit the clear winner. I rented a ProMaster and Sprinter, then I picked a Transit. I certainly have no regrets. If you’re still comparing vans, I’d strongly recommend doing what I did – rent or borrow before you buy. A few days of real-world use will teach you more than hours of reading opinions on the internet. Frequently Asked Questions – Ford Transit Camper Van Conversion Is a Ford Transit good for a camper van conversion? Yes. A Ford Transit is a strong camper van platform because it offers multiple sizes, useful factory options, available AWD, and broad service access across North America. It is not perfect, but it gives many DIY builders a very practical mix of capability, comfort, and ownership simplicity. Why choose a Ford Transit over a ProMaster or Sprinter? For me, the Transit gave the best overall mix of AWD availability, factory options, lower expected cost of ownership than a Sprinter, and easier service access. A ProMaster or Sprinter may be a better fit for some builders, but those were the factors that pushed the Transit to the top of my list. Is Ford Transit AWD good enough for vanlife? For most vanlife use, yes. The Transit is not a true off-road vehicle, but AWD is very helpful for snowy roads, wet conditions, and forest roads with variable conditions. I wanted it for peace of mind, not because I was trying to turn the van into a hardcore trail rig. What Ford Transit options are best for a camper conversion? That depends on your build, but some of the most useful factory options can include swivel seats, an extended range fuel tank, 253-degree rear door opening, auxiliary fuel port extension line, overhead shelf, and certain electrical-related options. It is worth thinking through your build goals before buying the van, because the right factory options can make the conversion much easier. What are the downsides of a Ford Transit camper conversion? The Transit does have tradeoffs. The body is curved in all three directions, which can make cabinet work and installation more complicated. The cabin is also fairly narrow, especially when moving between the front seats. I have also had my fair share of recalls, and the workmanship does not exactly scream luxury brand. None of that makes it a bad choice, but those are real tradeoffs to consider. Should I rent a ProMaster, Sprinter or Transit before buying? Absolutely. Renting or borrowing a van before buying is one of the best ways to make a smarter platform decision. A few days of real-world driving and living in a van will teach you a lot about comfort, layout, visibility, storage, and what features actually matter to you. That experience was a big help in my own decision. Additional Resources Ford Transit page. Use Build & Price to see all of the Ford options. Ford Transit Body & Equipment Mounting Manual Search by Model and “mounting manual” to find your model year BEMM. Ford Transit USA Forum is an active community of Transit owners and DIY camper van conversion enthusiasts.
Learn more
Victron Lynx Distributor Fuse Size Guide: Mega Fuse Selection Chart
The Victron Energy Lynx Distributor is a really convenient device that provides both positive and negative bus bars, along with four fuse locations for power distribution to your chargers and loads. The Lynx Distributor uses Mega fuses, but the right fuse size depends on the specific device in your electrical system. In this short guide, we provide a quick reference for manufacturer-recommended Lynx Distributor fuse sizes for common components like Victron MultiPlus inverter/chargers, Orion DC/DC chargers, MPPT charge controllers, Wakespeed alternator setups, and load centers. We recommend a Lynx Distributor as part of your camper van electrical system in all of our free example wiring diagrams, whether or not your system includes other Victron Lynx devices. This blog is short and sweet – keep reading for a quick reference guide to choosing fuses for your Lynx Distributor, This guide applies to both M8 and M10 Lynx versions that use the same Mega fuses. How To Choose The Right Lynx Distributor Fuse Size The Lynx Distributor uses Mega fuses. Mega fuses support fuse ratings from 40 Amps up to 500 Amps. Many customers contact us looking for help with Lynx Distributor fuse size selection. How do we pick fuse ratings? We read the manual! In most cases, the device manufacturer already tells you the recommended fuse size, so this guide simply pulls those recommendations into one place for quick reference. That is especially helpful for common van electrical components like inverter/chargers, DC/DC chargers, MPPT charge controllers, secondary alternators, and load centers, where fuse size can vary quite a bit by model and system voltage. Common Fuse Sizing Mistakes Choosing the right fuse size is not the same thing as sizing your cable. A fuse recommendation helps protect the branch circuit and connected device, but cable size still needs to be chosen based on current, cable length, voltage drop, insulation rating, and installation conditions. In other words, do not assume the fuse size automatically tells you which wire size to use. We recommend using the Blue Sea Circuit Wizard to help with cable sizing. DC/DC chargers and MPPT charge controllers can also require a little extra attention. With many DC/DC chargers, the house battery side needs a fuse, and the vehicle battery side does too. With MPPTs, the battery-side fuse is only part of the picture, and a solar-side disconnect is often recommended as well. This chart is meant to give you a quick starting point for the Lynx Distributor side of the system, while still pointing you back to the manufacturer documentation for full installation details. Victron Lynx Distributor Fuse Chart By Device Use the chart below to find manufacturer-recommended Mega fuse sizes for common devices used with the Victron Lynx Distributor. Select the column for your system voltage. Match your device model exactly. Use the manufacturer-recommended fuse size shown. Confirm cable size and installation details separately. Device System Voltage 12 Volts 24 Volts 48 Volts Inverter/charger MultiPlus 12/2000/80300 Amp MultiPlus 12/3000/120400 Amp MultiPlus 24/3000/70300 Amp MultiPlus 48/3000/35125 Amp MultiPlus 48/5000/70200 Amp DC/DC charger OUT House battery side fuseIN Vehicle battery side also requires fuse Orion-Tr Smart 12/12/3060 Amp Orion XS 5060 Amp Orion XS 140060 Amp Orion XS 70 80 Amp 2x Orion XS 50125 Amp 2x Orion XS 1400125 Amp 2x Orion XS 70 175 Amp MPPT charge controller BATT House battery side fusePV solar side disconnect recommended MPPT 100/2040 Amp MPPT 100/3040 Amp MPPT 150/3540 Amp MPPT 100/5060 Amp MPPT 150/6080 Amp MPPT 150/7080 Amp MPPT 150/85100 Amp Secondary alternator 280XP300 Amp 55XP200 Amp 51V-HPX100125 Amp Load center (12 Volts) Primary fuse to branch fuses in load center Direct to load center80 Amps Orion 24/12-70 to load center60 Amps 2x Orion-Tr 48/12-30 to load center40 Amps Example wiring diagram uses Littelfuse holder with 80 Amps for additional capacity. See Bonus Tips below Bonus Tip #1: Blown Fuse Monitoring The Lynx Distributor has a power LED as well as four fuse status LEDs. These LEDs can help you detect blown fuses. If the Lynx Distributor is connected to a Lynx Smart BMS (using the RJ10 cable) then the fuse status can be viewed with the VictronConnect app or by using a Cerbo GX and touch screen. If you do not use all four Mega fuse locations in your Lynx Distributor, you will see false alarms from the unused locations (because having no fuse is an “open” just like a blown fuse). We recommend installing spare Mega fuses in unused fuse locations to work around this nit. If you don’t have a Lynx device connected to your Lynx Distributor to power the LEDs, then you may want to check out the Turning On The LED Lights On The Lynx Distributor hack in this blog. Bonus Tip #2: Using a 5th fuse or connection with a Lynx Distributor If you use up all four Lynx Mega fuse holders but still need another fuse location (or three), we recommend a few ways to expand. A MRBF Terminal Fuse Block and fuse fits nicely on the “upper right” positive stud of the Lynx Distributor. For a single extra fused branch, wire your extra charging source or load directly to the MRBF. The MRBF can be expanded with a Littelfuse MIDI Fuse Holder (3 Position) which acts as a compact secondary bus bar for up to 200 Amps of maximum current with three MIDI fuse holders. MIDI fuses range from 30 Amps and up. Using a short (less than 7”) cable, you can bolt a lug directly to the “upper right” positive stud and use an inline fuse holder (that comes with some devices like air conditioners), a Mega Fuse Holder, or a MIDI Fuse Holder. Frequently Asked Questions What fuse size should I use for a Victron Lynx Distributor? The Lynx Distributor uses Mega fuses, but the correct fuse size depends on the specific device connected to that fused branch. In most cases, the best place to start is the device manual. This guide is meant to save you time by pulling together manufacturer-recommended fuse sizes for common devices like MultiPlus inverter/chargers, Orion DC/DC chargers, MPPT charge controllers, Wakespeed alternator setups, and load centers. Does the Victron Lynx Distributor use Mega fuses? Yes. The Victron Lynx Distributor uses Mega fuses for up to four positive fused connections. Mega fuses are a good fit for many camper van electrical system components because they are available in a wide range of current ratings and are commonly used for higher-current branches like inverter/chargers, chargers, and load centers. What is the difference between Victron Lynx Distributor M8 and M10? The main difference is the stud size on the bus bars. The M10 model uses M10 studs for interconnecting other Lynx devices or external lugs, while the M8 version uses M8 studs. For either version, the fuse connections require M8 lugs. The M10 version replaced the M8 version, so most newer systems will use M10. Can I use a Lynx Distributor without a Lynx Smart BMS? Yes. A Lynx Distributor can be used as a standalone set of positive and negative bus bars with four fused connections. It does not require a Lynx Smart BMS to function. That said, if you want certain LED and monitoring features to work through the broader Lynx system, you may need another Lynx device such as a Lynx Smart BMS or Lynx Shunt. Do I need a fuse on both the input and output side of a DC/DC charger? Yes. For DC/DC chargers, it is common for the house battery side to require a fuse and for the vehicle battery side to require one as well. The exact setup depends on the charger model and your wiring layout, so always confirm with the manufacturer documentation. This guide is intended as a quick reference, not a substitute for the installation manual. What does a Victron Lynx Distributor do? A Victron Lynx Distributor provides a clean way to distribute both positive and negative power in your electrical system while also giving you four fused positive connections for major devices and branches. In practical terms, it helps organize your system, reduce wiring clutter, and add overcurrent protection to important circuits like chargers, inverter/chargers, and load centers. Do I connect both negative and positive to the Lynx Distributor? Yes, the Lynx Distributor contains two separate bus bars. The red, top bar is for positive, and the black, bottom bar is for negative. How do I connect a Cerbo GX to a Lynx Distributor? A Lynx Distributor does not bolt directly to a Cerbo GX. A Lynx Shunt or Lynx Smart BMS is required to transmit data to a Cerbo GX. Additional Resources Learn about our systems and free example wiring diagrams Victron Energy Lynx Distributor manual
