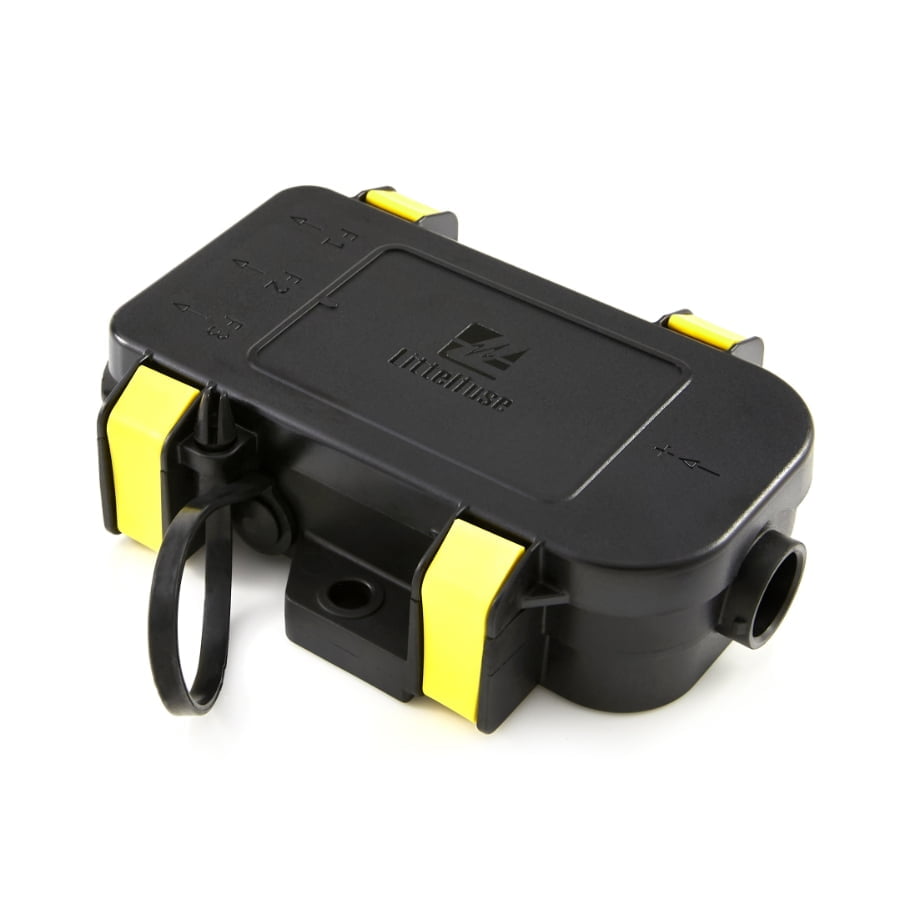

Littelfuse MIDI Fuse Holder (3 Position)

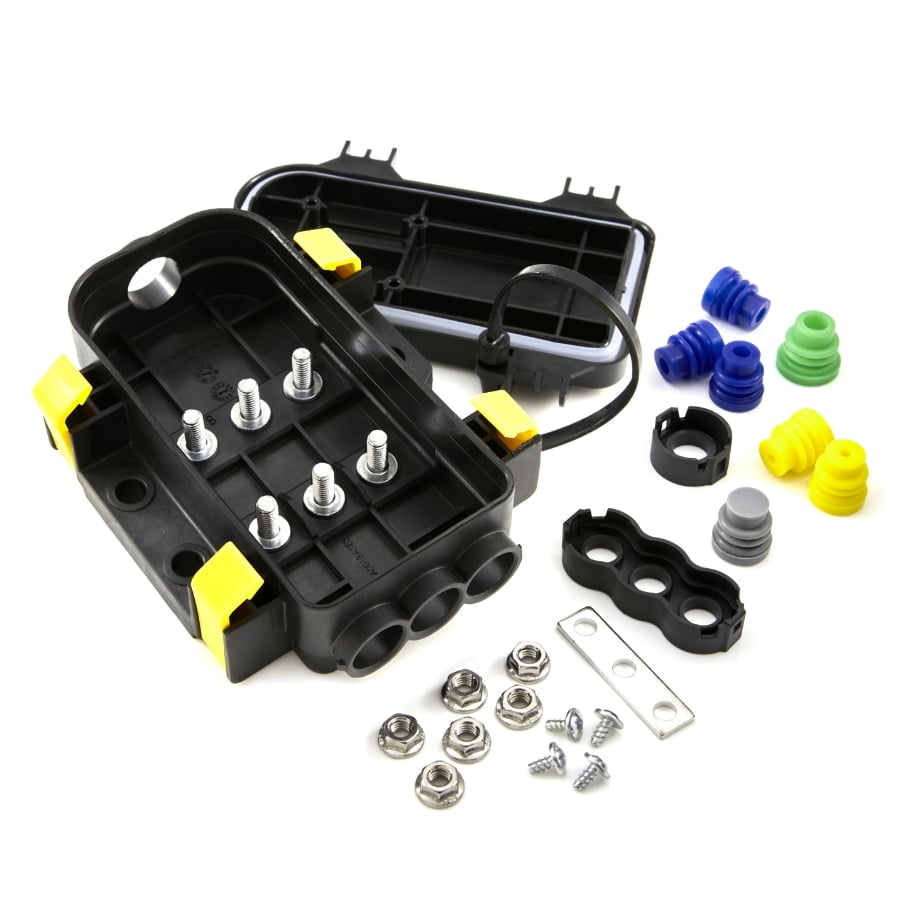

Also referred to as Cole-Hersee brand, the Littelfuse MDB series fuse holders are internally bussed, water-proof, and dust-proof developed for high current loads, and harsh conditions. Well suited for near-the-battery applications, they can be mounted in exposed locations to fit your design. This style fuse holder can be configured with 2 or 3 MIDI fuses and includes the cover seal and M5 thread bolts for fuse installation. Innovative cable seals provide a tight seal for power cables in a variety of diameters. Rugged mounting holes allow secure fastening. A spare fuse location is built into the cover for easy replacement.

  • Voltage: 6-58V DC
  • Total Max Current: 200A
  • Wire sizes input: 16 or 25 mm2
  • Wire size output: 6-16 mm2
  • Operating temp range: -40°C – 85°C.
  • Fuse torque: 5 Nm.
  • Mounting torque: 6-8 Nm
  • Ingress Protection: IP67, IP69K.
  • Flammability Rating: UL94-V0
  • Sealed to IP67 and IP69K for maximum flexibility in mounting location.

$5 flat-rate ground shipping to the continental USA.

21 in stock

buy with confidence, secure checkout, world-class support, free shipping

Additional information

Weight 32 oz
Dimensions 15 × 15 × 15 in
