Fiamma awnings are the industry standard for camper vans because of their high quality and range of options. However, that range of options can be quite confusing! This post breaks down the various options from Fiamma and compares them to each other so it’s easier for you to decide which awning is best for yor rig.
Still confused? Need advice or a particlar part? We’re here to help! Contact us with any questions you might have.
Roof Mounted Awnings for Sprinter and Promaster Vans

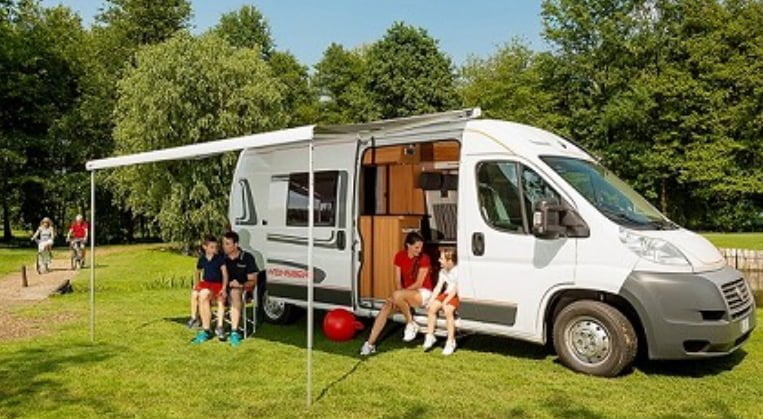

Fiamma F80S Awnings – Uses Legs To Support The Awning
- Uses legs to support awning that go to the ground or attach to the side of the vehicle
- Manual crank by default with optional electric motor
- Lengths: 10’ 6”, 12’ 2” and 13’1”
- Extension out from case: 8′ 2″
- Case colors: Polar White, Titanium and Deep Black
- Royal Grey fabric
- Extremely small cross-section to integrate it even better in the contour of the vehicle
- Mounting brackets are available for Promaster, Transit and Sprinter vans

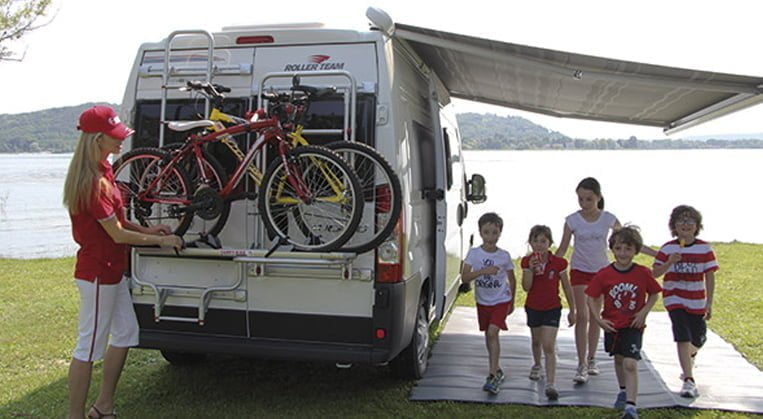

Fiamma F65 Eagle Awnings – Self-Supporting, No Legs Necessary
- Self-supporting arms – doesn’t need legs for support making it easier to deploy
- Electric motor included
- Wind sensor that automatically closes the awning in case of strong wind, avoiding possible damages
- Lengths: 10′ 6″, 12′ 2″, 13′ 2″ and 13′ 9″
- Extension out from case: 8′ 2″
- Case colors: Polar White, Titanium and Deep Black (depending on model)
- Royal Grey fabric
- Mounting brackets are available for Promaster, Transit and Sprinter vans
Wall or Roof Rack Mounted Awnings

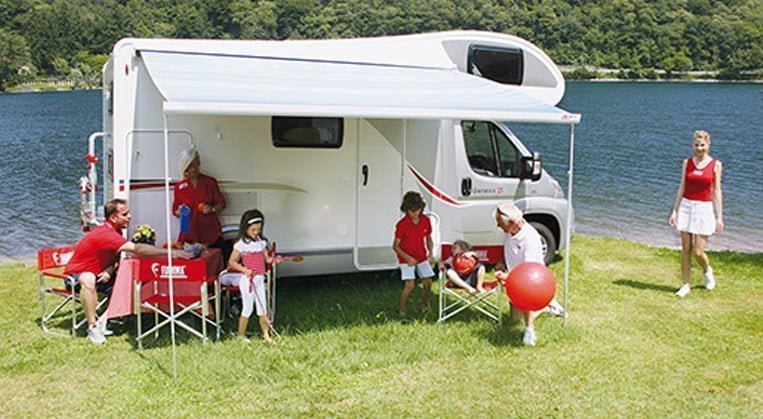

Fiamma F45S Awnings – Uses Legs To Support The Awning
- Uses legs to support awning that go to the ground or attach to the side of the vehicle
- Designed to be mounted onto a flat vertical surface such as a sidewall of a vehicle (such as a Ford Transit) or onto a roof rack.
- Manual crank by default with optional electric motor
- Lengths: 8′ 8″, 10′ 1″, 11’ 6”, 13′ 1″ and 14′ 8″
- Extension out from case: most are 8′ 2″ but the he 8′ 8″ length awning only extends 6′ 6″
- Case colors: Polar White, Titanium and Deep Black
- Royal Grey fabric
- Standard with a 3-piece mounting bracket to mount to a flat surface included and can be used for the Ford Transit high roof van or Promaster chassis class-b motorhome.
- 8′ 9″ and 10′ 1″ lengths can be used with VW Eurovan or VW Vanagon
- Mounting brackets also available for Winnebago Rialta or other, low-roof, full-size vans: Ford/Chevy/Dodge

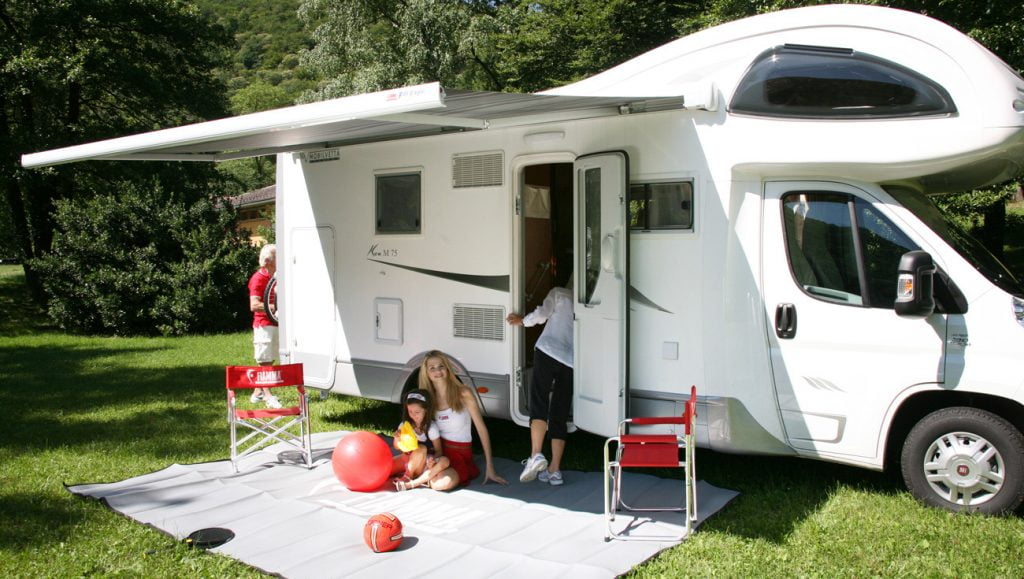

Fiamma F45 Eagle Awnings – Self-Supporting, No Legs Necessary
- Self-supporting arms – doesn’t need legs for support making it easier to deploy
- Designed to be mounted onto a flat vertical surface such as a sidewall of a vehicle (such as a Ford Transit) or onto a roof rack.
- Electric motor included
- Wind sensor that automatically closes the awning in case of strong wind, avoiding possible damages
- Only available in 13′ 8″ length
- Extension out from case: 8′ 2″
- Case colors: Polar White or Deep Black
- Royal Grey fabric
Accessories/Other Fiamma Products

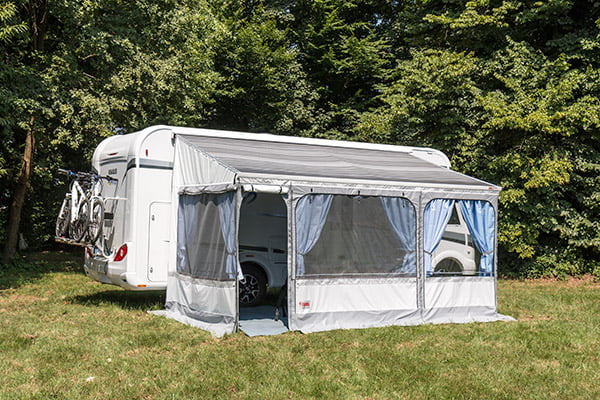

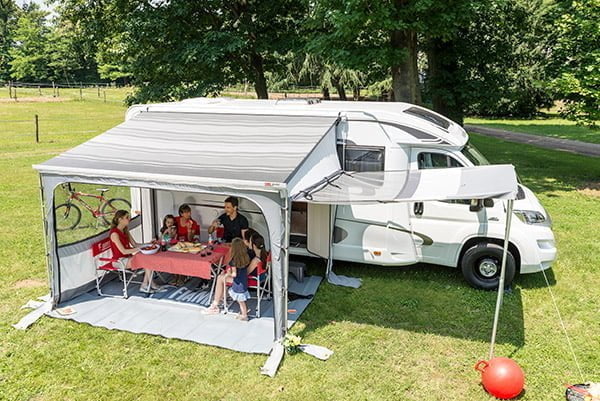

Screened Enclosures/Rooms for Fiamma Awnings
Extend your living space with this lightweight and durable room that is compatible with the F45S and F80S models. Sets up easily with one person!
Privacy Room for Fiamma Awnings
Extend your living space with this highly durable, more substantial room that is compatible with the F45S and F80S models. Sets up easily with one person!

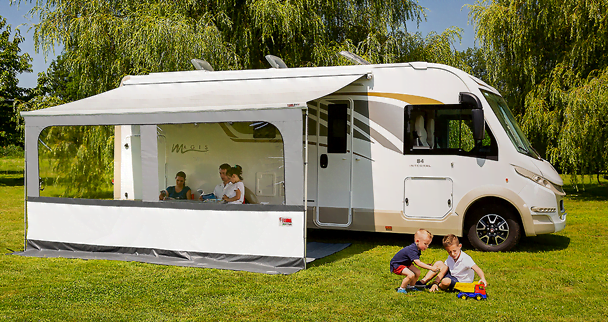

Sun Blockers for Fiamma Awnings
Block sun and weather on the front of your awning with these “blockers” designed for each length of Fiamma awnings. Compatible with the F45S and F80S models.

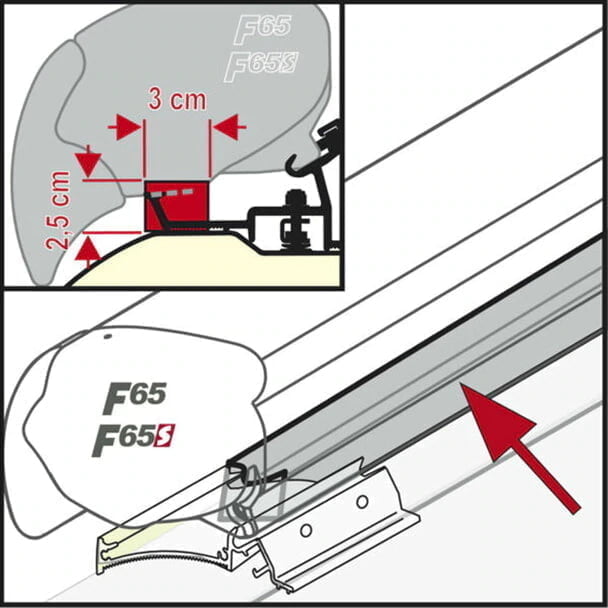

Rubber Rain Guards for Fiamma Awnings
Prevents rain from flowing through the gap between your roof and the awning.

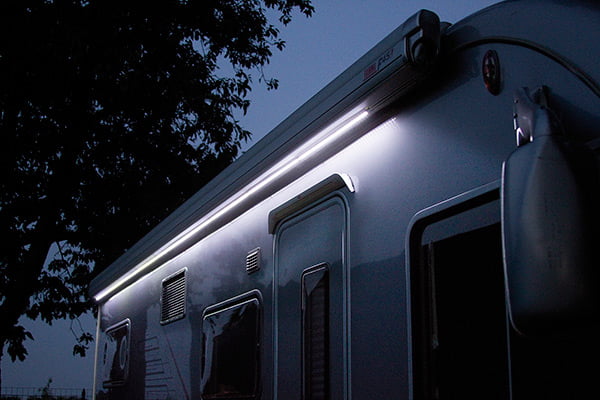

Fiamma F45s LED Light Kit
Light up your night with this LED light kit that easily integrates into the F45s Awning. This kit can easily be added to your existing awning or added to a new awning as it slides seamlessly into a channel in the awning case.
Fiamma Carry-Bike
Rear cargo door mounted bike rack. Available for both Sprinter vans and Promaster vans.

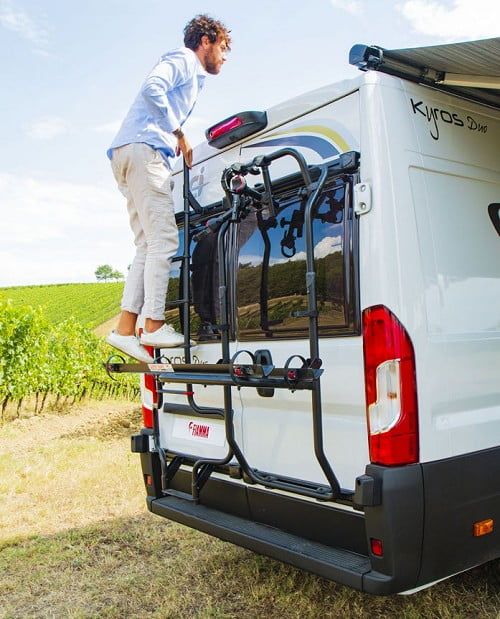

Fiamma Promaster Rear Ladder
Great looking aluminum ladder for Promaster vans (high roof only). Available in aluminum or black finish.
Fiamma Promaster Roof Rack
Simple and elegant roof rack system for Promaster vans.

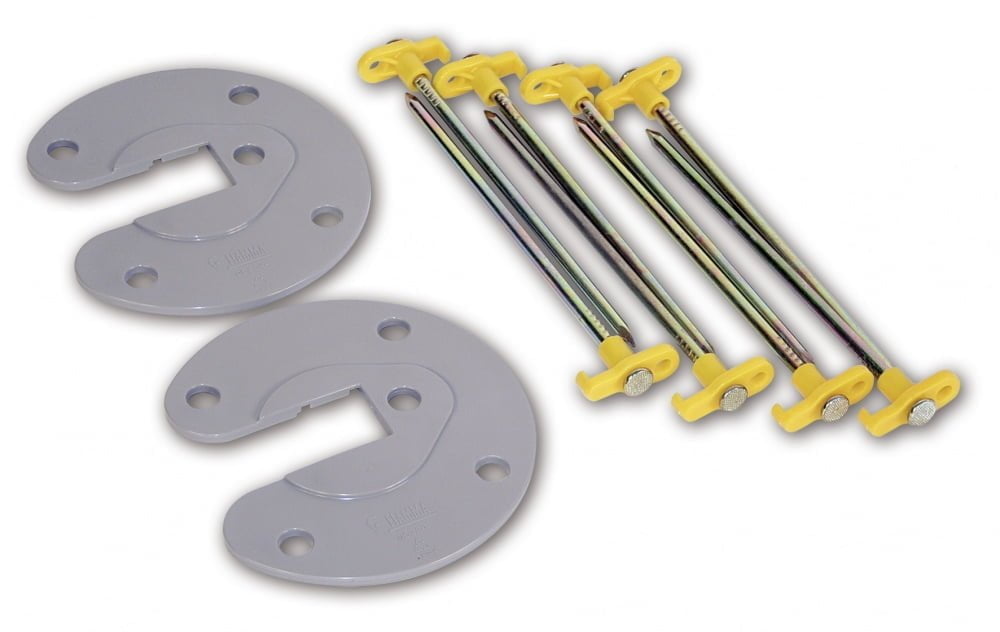

Fiamma Awning Ground Stake Plate Kit
Secure the legs of your Fiamma F45S or F80S awnings with this plate kit.
