20 Gallon Wheel Well Water Tank – Sprinter/Transit (Driver or Passenger Side)


  • Can be used over the rear passenger or driver side wheel well.
  • Suitable for most Sprinter and Transit vans (please scroll down for complete vehicle fitment details). It cannot be used on “dually” vans.
  • Includes heavy-duty metal straps, rivnuts, rivnut tool, and bolts for securing the tank to your van.
  • Pair with the Cerbo GX and SeeLevel Kit for easy water level monitoring.
  • Free shipping to the continental USA!
  • Tanks are expected to ship out within 2-3 weeks. Backorders may take longer, see note below.

Shipping Expectations These are amazing tanks but the manufacturer is having difficulty keeping up with demand. We wanted to let you know in an effort to set expectations on when your tank will arrive. Backorder tanks are expected to ship out within 4-6 weeks, but in some cases this may be as long as 10-12 weeks. It may arrive sooner, but if this is an issue or could delay your build, consider purchasing a different tank.

SKU: 10-3002 Categories: ,
buy with confidence, secure checkout, world-class support, free shipping



  • Made from BPA-Free, Food Grade Polyethylene Plastic.
  • Designed for non-pressurized systems, must be vented.
  • Accepts most universal fittings (not included).
  • Includes ports on both ends and top for a customizable plumbing system.

Tank Capacity: 20 gallons

Tank Type: Over The Wheel Well

Dry Weight: 25.7 lbs

TEI Listed / RVIA Approved: Yes

PDF Details

WARNING: This product can expose you to chemicals including carbon black, silica – crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

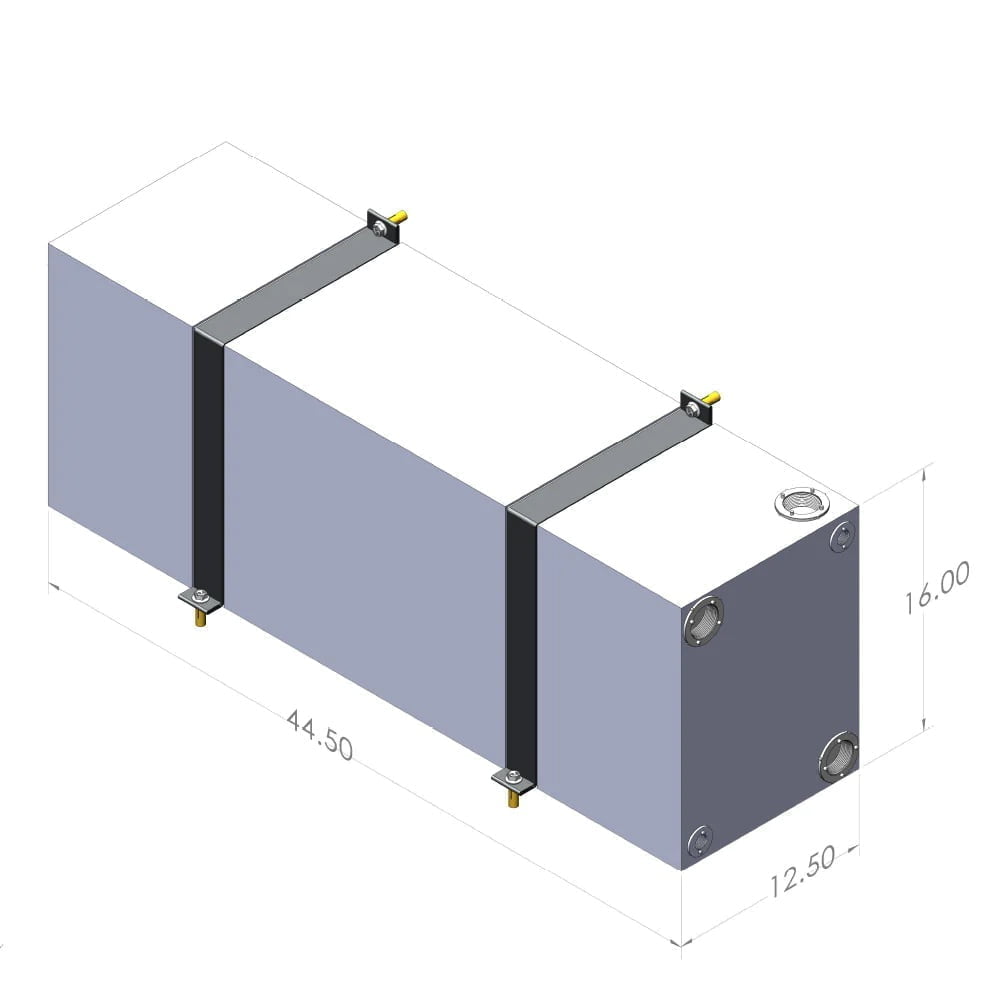

Dimensional Drawing

Overview - Ford Transit

Overview - Mercedes Sprinter

Vehicle Fitment

2007-2024MercedesSprinter 2500 144\ & 170\ Wheelbase3.0L Diesel
2007-2024MercedesSprinter 2500 144\ & 170\ Wheelbase2.0L Diesel
2007-2024MercedesSprinter 3500 144\ & 170\ Wheelbase3.0L Diesel
2007-2024MercedesSprinter 3500 144\ & 170\ Wheelbase2.0L Diesel
2015-2024FordTransit 1503.5L Ecoboost
2015-2024FordTransit 2503.5L Ecoboost
2015-2024FordTransit 3503.5L Ecoboost
2015-2019FordTransit 1502.0L Diesel
2015-2019FordTransit 2502.0L Diesel
2015-2019FordTransit 3502.0L Diesel
2015-2024FordTransit 1503.7L Gas
2015-2024FordTransit 2503.7L Gas
2015-2024FordTransit 3503.7L Gas

Additional information

Weight 5000 oz
Dimensions 60 × 30 × 30 in
