Fiamma F45S Awnings

$999.00

SKU:06280H01R

Model/Length: F45S 260 - 8' 8" length

F45S 260 - 8' 8" length F45S 300 - 10' 1" length F45S 350 - 11' 6" length F45S 400 - 13' 1" length F45S 450 - 14' 8" length

Case Color: Polar White

Polar White Titanium Deep Black

Fast Shipping
Expert Support
Road-Tested Gear

Useslegsto support awning that go to the ground or attach to the side of the vehicle

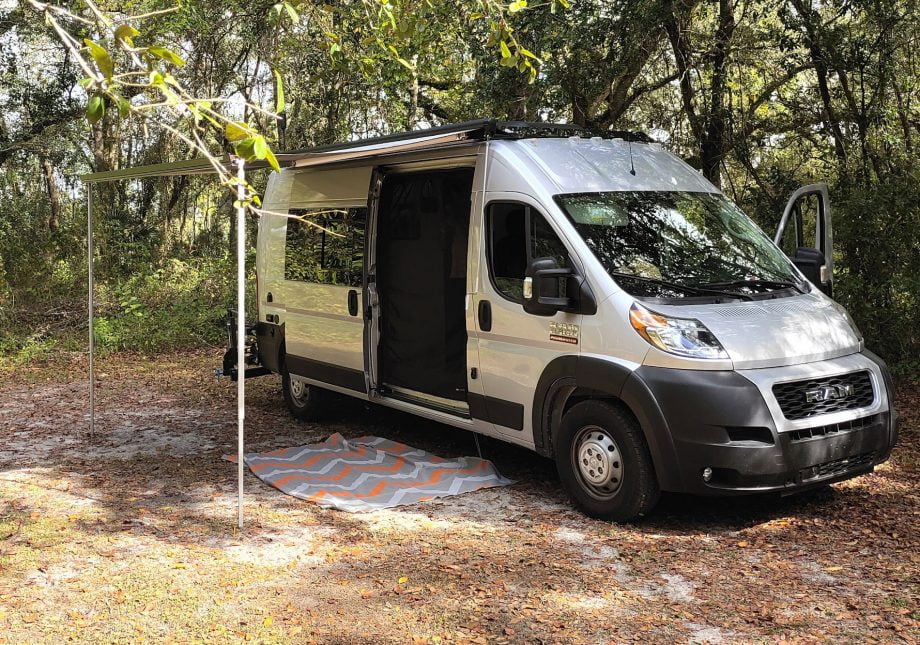

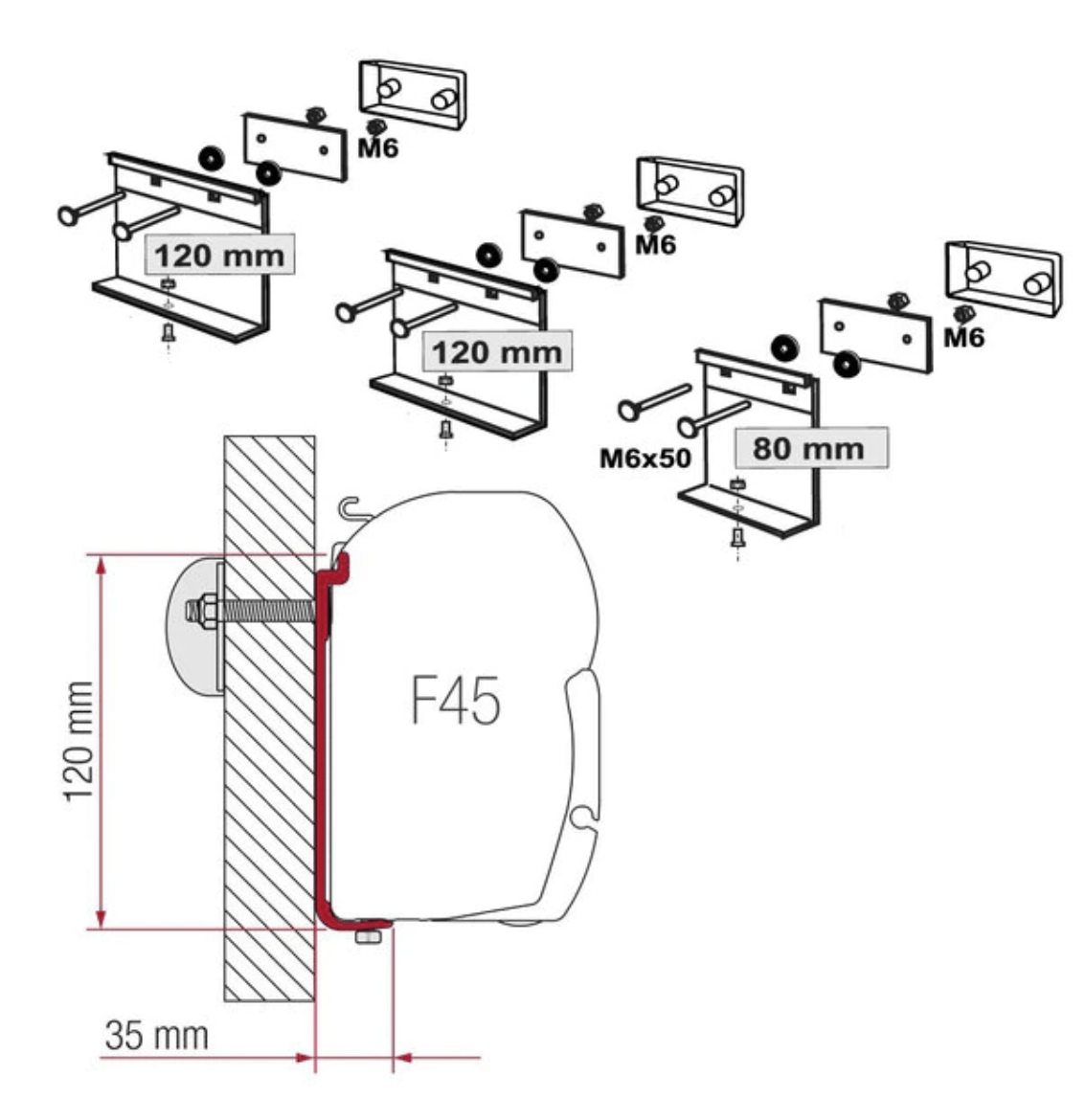

Designed to be “wall-mounted” to the side of an RV, or mounted to the roof rack of a van.
The new 2024+ Ram PromasterSuper High Roof(not to be confused with the Standard High Roof) can use the includedstandard bracketsto “wall-mount” the awning to the side of the vehicle.
The Ford Transit High Roof, Winnebago Rialta, VW Vanagon, and VW Eurovan can use their specific bracket kits (selected below) to “wall-mount” the awning to the side of the vehicle.
All other vans will need a roof rack to mount to using the standard brackets. Example shown inthis video.
Manual crankby default with optional electric motor
Lengths: 8′ 8″, 10′ 1″, 11’ 6”, 13′ 1″ and 14′ 8″
Extension out from case: most are 8′ 2″ but the 8′ 8″ length awning only extends 6′ 6″

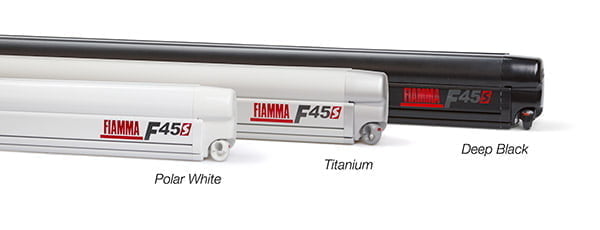

Case colors: Polar White, Titanium and Deep Black
Royal Grey fabric
Rubber rain guard,sun blockersandscreened add-on roomsare also available
These awnings ship via truck freight.
We are back ordered on F45S 300 Black (06759A01R) until 2nd half of October
Lead times are 3-5 days for shipping out manual awnings, and then 3-4 weeks for electric awnings.

Description

Fiamma F45S awnings awnings are designed to mount to the side of a vehicle and are often used on flat walled vehicles such as class-c motorhomes. There are many mounting brackets available for various vehicles when you add this product to your card.

These awnings use legs to support the awning either against the wall of the vehicle or to the ground. They come with a manual crank but a 12 volt DC motor option can be added when configuring your awning.

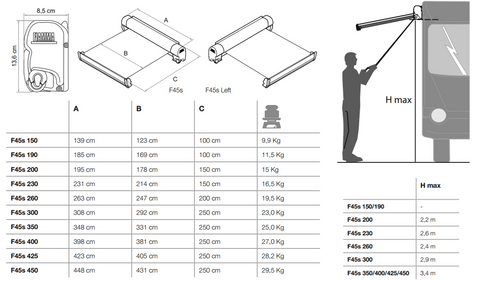

The awning comes in various lengths and case colors. The shortest model (F45S 260) extends out 6' 6" and all the other models extend out 8' 2". Notes For Ford Transit Vans
This model can be installed on Ford Transit high roof Transit vans using the Fiamma bracket (98655-741) that can be ordered below. You can check out the manual for that bracket here. Here's a great blog post about this from Far Out Ride. For mid-roof Transit vans, Fiamma recommends adding a roof rack and then mounting a F45S to the side of the roof rack. DIYVans also makes very nice adapter brackets for attaching the F45S to the side of your van using the factory roof attachment points.

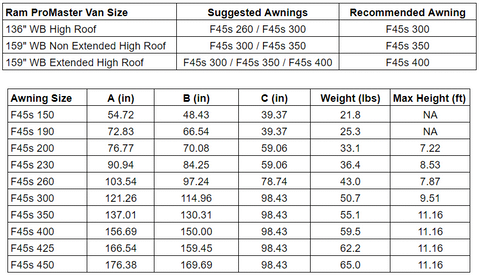

Recommended Lengths for 2014+ Ram Promaster (roof rack required)

136" wheelbase high roof: 10' 1" length
159" wheelbase high roof: 11' 6" length
159" wheelbase high roof extended length: 13' 1" length

Recommended Lengths for 2007+ Mercedes Sprinter (roof rack required)

144" wheelbase high roof: 10' 1" length
170" wheelbase high roof: 11' 6" length
170" wheelbase extended high roof: 13' 1"

Recommended Lengths for 2015+ High Roof Ford Transit

148” Standard: 10’1” length w/ the 98655-741 Transit brackets
148” Extended: 11’6” length w/ the 98655-741 Transit brackets

For VW Eurovans or VW Vanagons we recommend 8' 9" (F45S 260) and 10' 1" (F34S 300) models.

About the LED Light Optional Upgrade
Adds an awning case

LED light bar that is suitable for external use and is inserted (with pressure) in the lower housing rail of the case. It comes in a standardized length of 8.2 feet (2.5 meters) and includes:

1x light bar with wiring for the 12 V electrical connection
4x additional light bars

Made in USA! Two year limited warranty. Warranty to the original owner.

User manual (PDF)

Need Parts Or Accessories?
We sell the entire line of Fiamma products so we can help you with replacement parts or accessories! Please contact us with your particular needs and we'll be happy to help!
