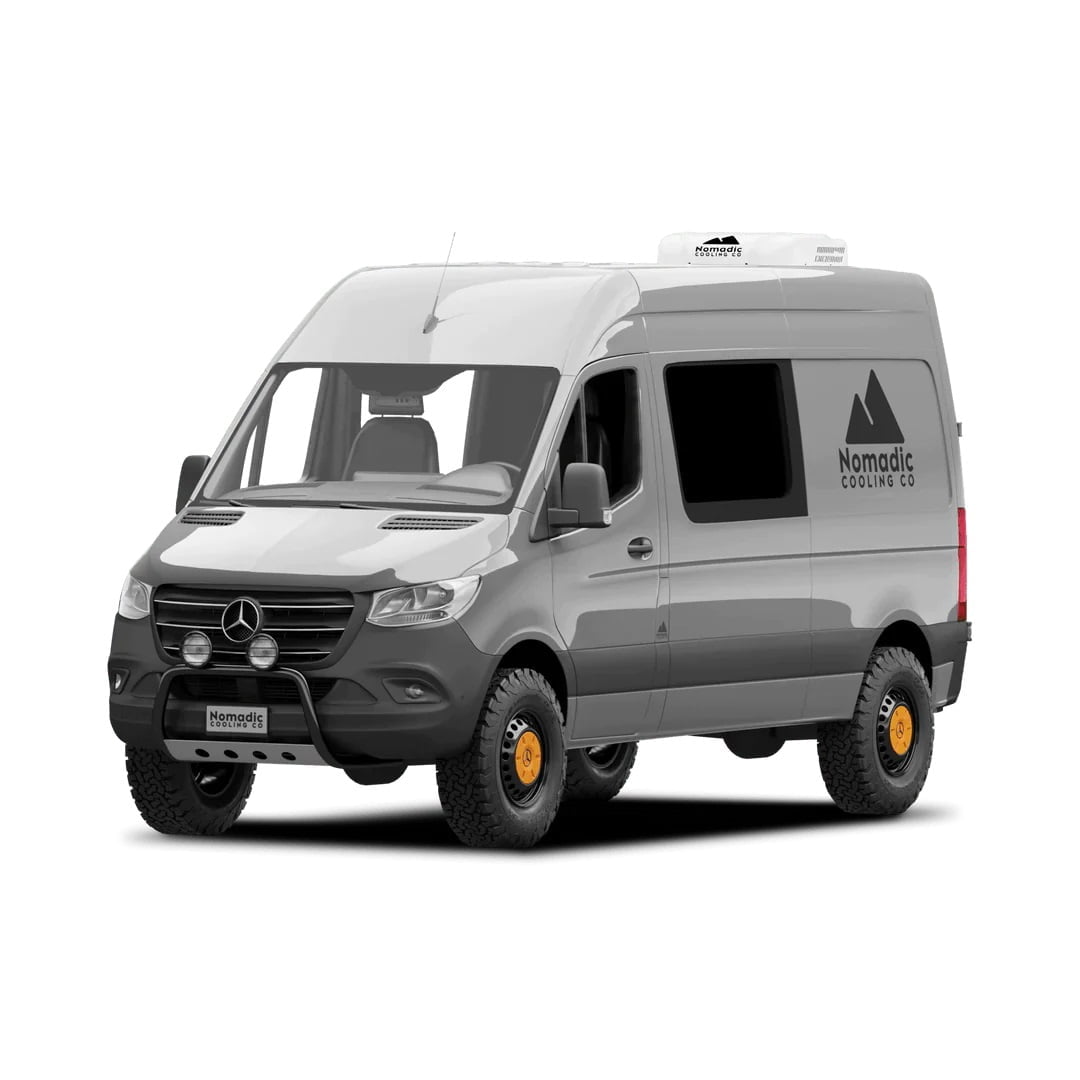

Nomadic Cooling - X3 Air Conditioner - 12-Volt

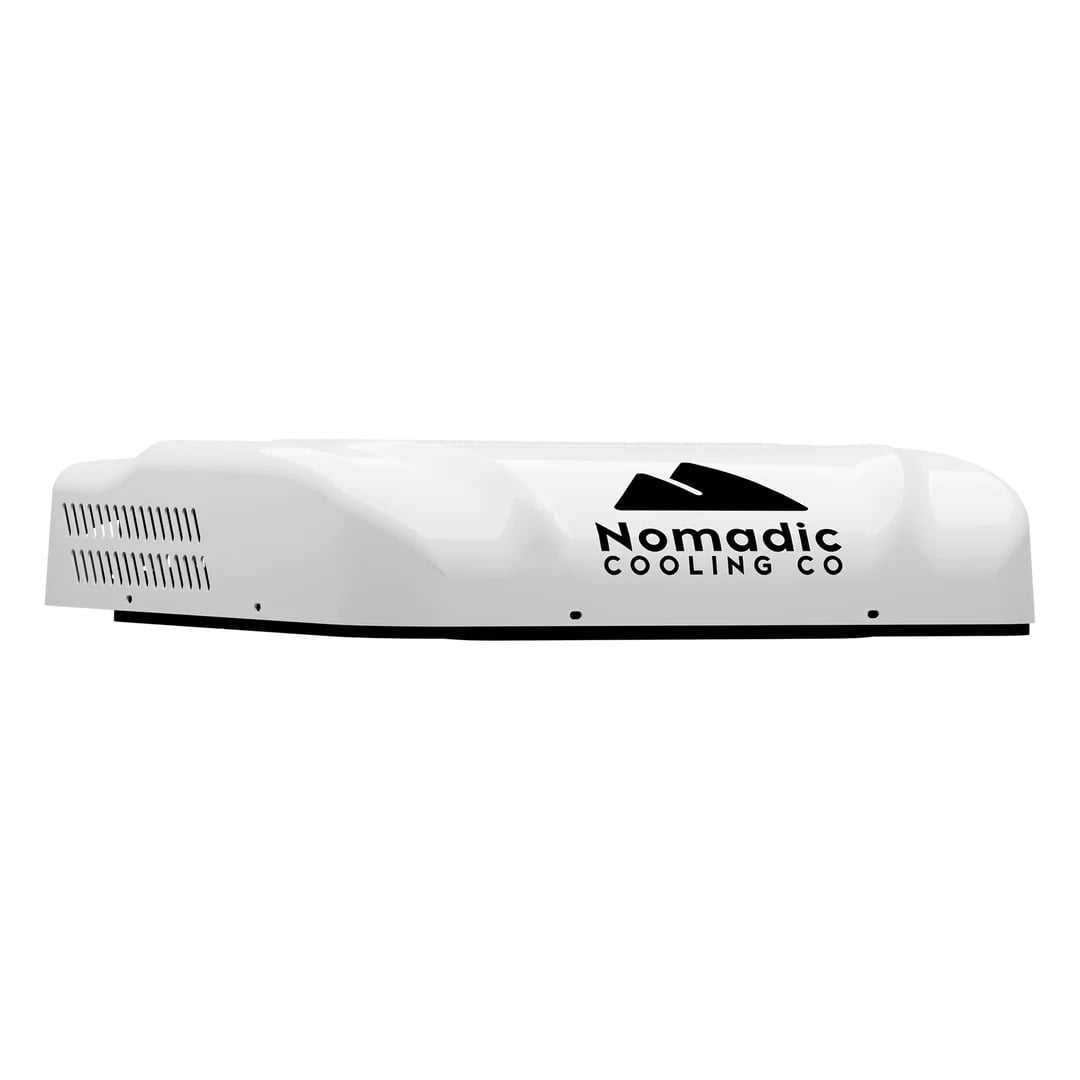

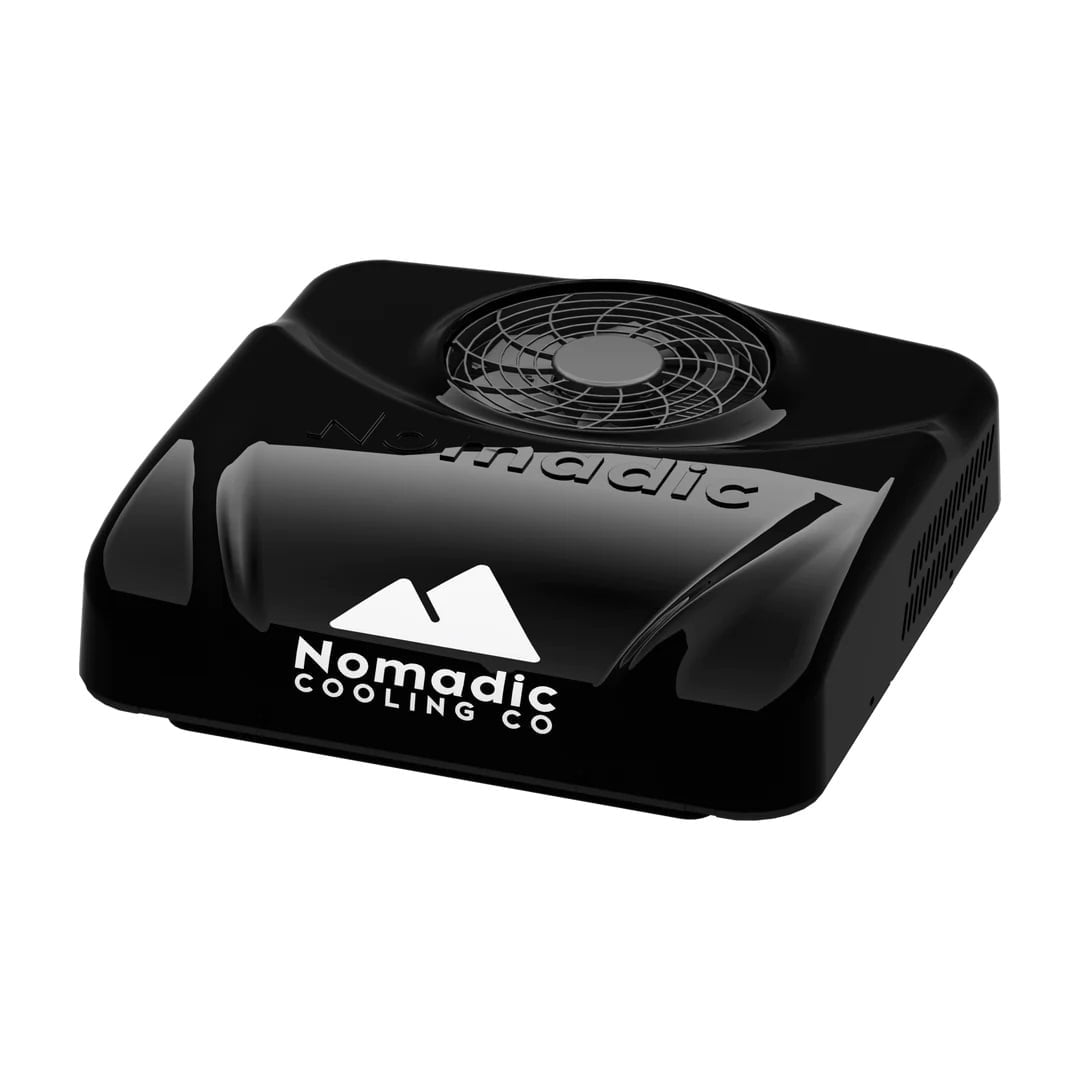

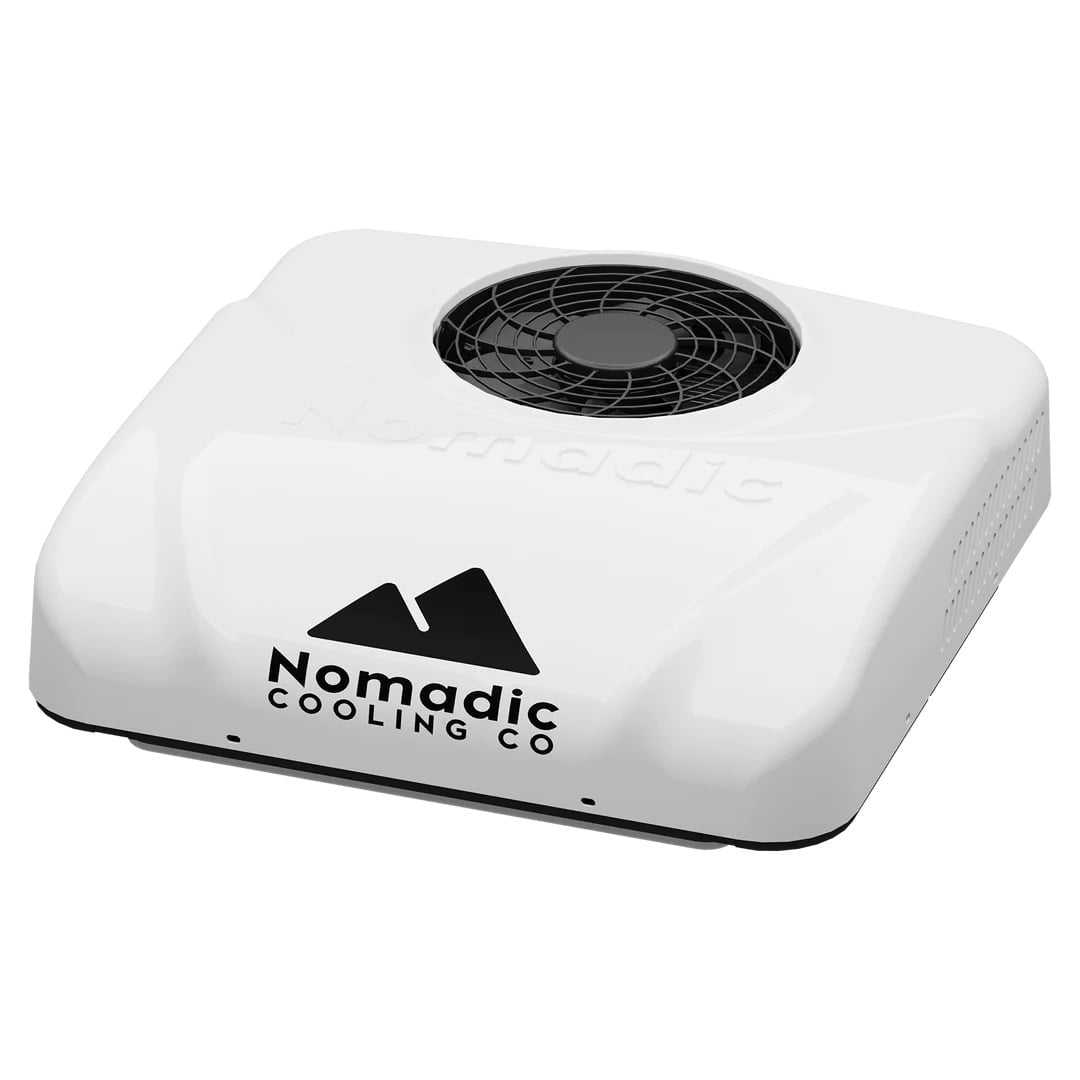

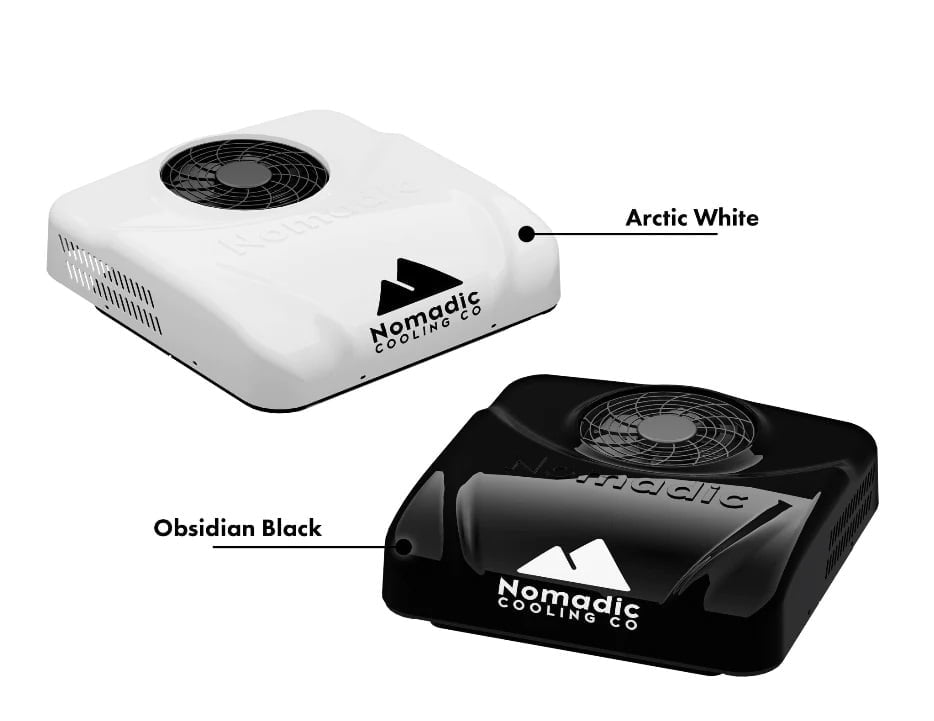

Nomadic Cooling X3 12V Rooftop Air Conditioner

A compact, battery-powered rooftop air conditioner designed for true off-grid cooling.

The latest generation Nomadic X3 is built for overlanders, van campers, and RV travelers who want reliable air conditioning without running their engine or plugging into shore power.

This energy-efficient 12V DC air conditioner runs directly from your battery system, giving you the freedom to stay cool wherever you park. As long as your electrical system is sized appropriately, you can run the X3 completely off-grid.

The newest generation improves on previous Nomadic units with a smaller footprint, quieter operation, and smarter electronics for better performance and reliability.

Why Builders Choose the Nomadic X3

• Runs directly from your battery system — no shore power or engine required

• Compact rooftop footprint compared to most RV air conditioners

• Variable-speed compressor adjusts power consumption to conditions

• Quiet brushless internal fans for lower operating noise

• Designed specifically for vans, RVs, and off-grid travel

For many van builds, the X3 is the go-to solution when traditional rooftop AC units are too large or too power-hungry.

Performance & Efficiency

The Nomadic X3 uses variable-speed compressor technology that allows the system to scale power consumption based on cooling demand.

Eco Mode is recommended for normal operation and provides efficient cooling with lower power consumption.
Max Mode delivers maximum cooling for short periods, such as initially cooling a hot van, before switching back to Eco mode.

Nomadic recommends at least 400Ah of lithium battery capacity, depending on your desired runtime and environment.

Key Features

• Quiet brushless internal fans (≤ 60 dBA at maximum power)

• Variable-speed compressor adjusts to ambient conditions for efficiency

• Spring-bushing mounted compressor reduces vibration and improves longevity

• Modern LCD control panel with improved sunlight visibility

• Intelligent microprocessor control system

• Built-in protection functions:

  • Pressure alarm

  • High/low voltage protection

  • Motor over-current protection

  • Motor temperature protection

• Sight glass for easier troubleshooting

• Stainless steel hardware

• Rubber-dampening feet for vibration reduction

• Fits industry-standard 14" × 14" roof openings

Specifications

Model: X3 – 12V

• Eco Mode Current: 50A

• Max Mode Current: 110A

• Rated Power: 1,320W

• Cooling Capacity: 11,830 BTU

• Refrigerant: R134a

• Refrigerant Oil: POE68

• Refrigerant Quantity: 600 ±30 g

• Speed Range: 1,000–3,000 RPM

• Weight: 57.3 lbs

Dimensions:
31.33" × 31.5" × 7.36"

Power Cord Requirement:
2 AWG

Wiring Notes

Units shipped starting mid-2024 include DC power wires with ring terminals exiting the bottom of the unit. Earlier versions used Anderson connectors.

These wires must be connected to your DC electrical system using appropriately sized wiring (2 AWG recommended).

If using the Nomadic DIY installation kit, note that the included wiring uses Anderson connectors. You may need to provide a mating connector or splice the wiring depending on your setup.

Installation Notes

The X3 installs in a standard 14" × 14" roof opening.

For best results, we recommend building a wood support frame around the roof opening that matches the height of your ceiling finish. Waterproofing this frame (for example with FlexSeal) helps protect against condensation and ensures the airflow is directed into the living space instead of the ceiling cavity.

This support frame also helps eliminate the need for the trim ring included in Nomadic’s optional DIY installation kit.

Resources

• PDF Manual

• PDF Installation Guide
