NW Conversions 11 Gallon Undercarriage Water Tank - Sprinter

Free ShippingSave 10%

NW Conversions 11 Gallon Undercarriage Water Tank - Sprinter

Name: NW Conversions 11 Gallon Undercarriage Water Tank - Sprinter
Brand: NW Conversions
SKU: NWS0241
Price: 260.10 USD
Availability: InStock

$260.10

$260.10 ~~$289.00~~

SKU:NWS0241

In stock

Fast Shipping
Expert Support
Road-Tested Gear

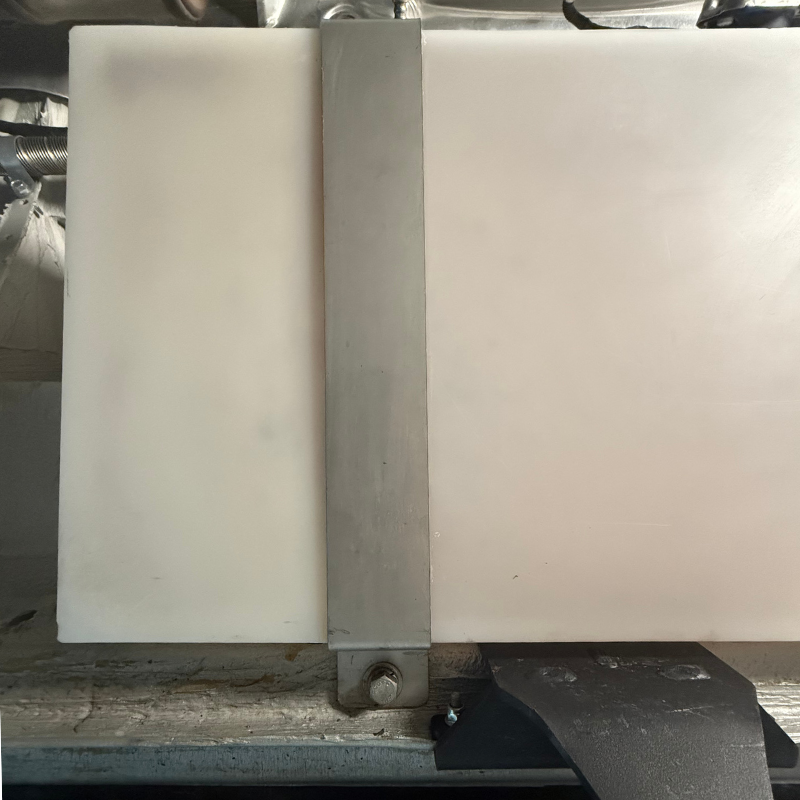

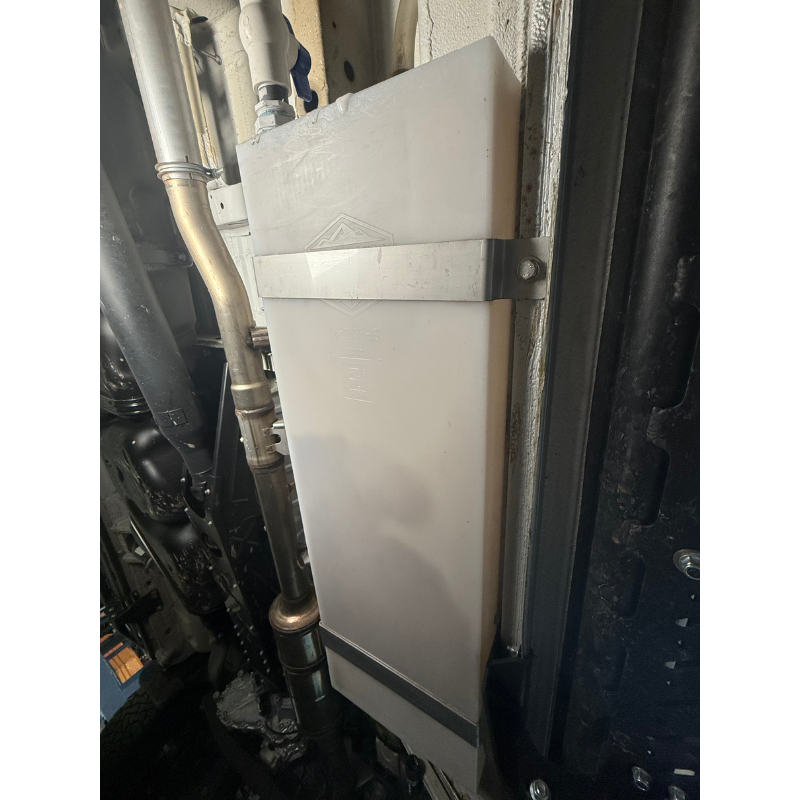

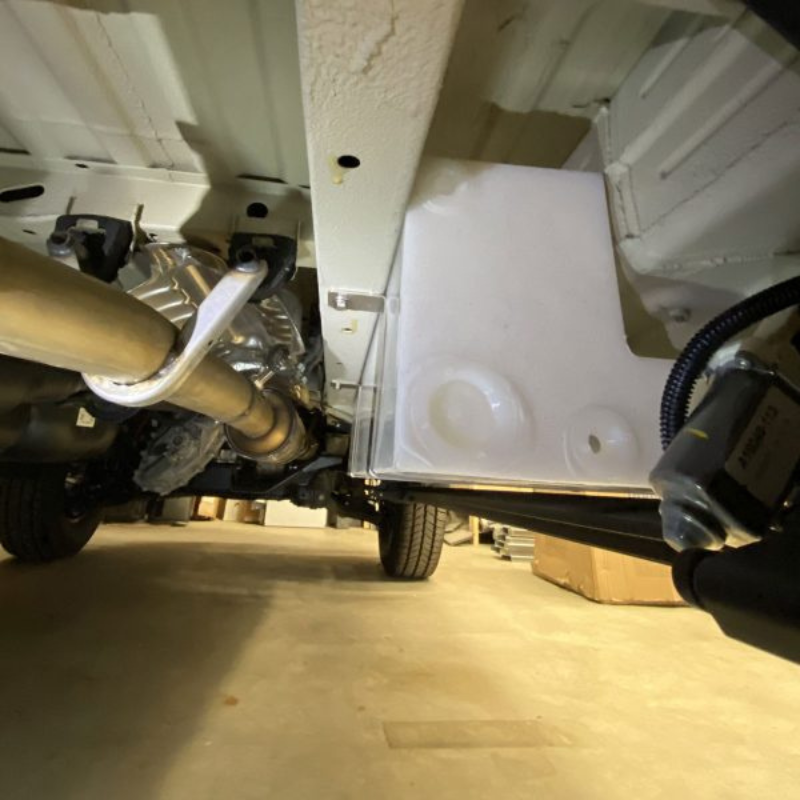

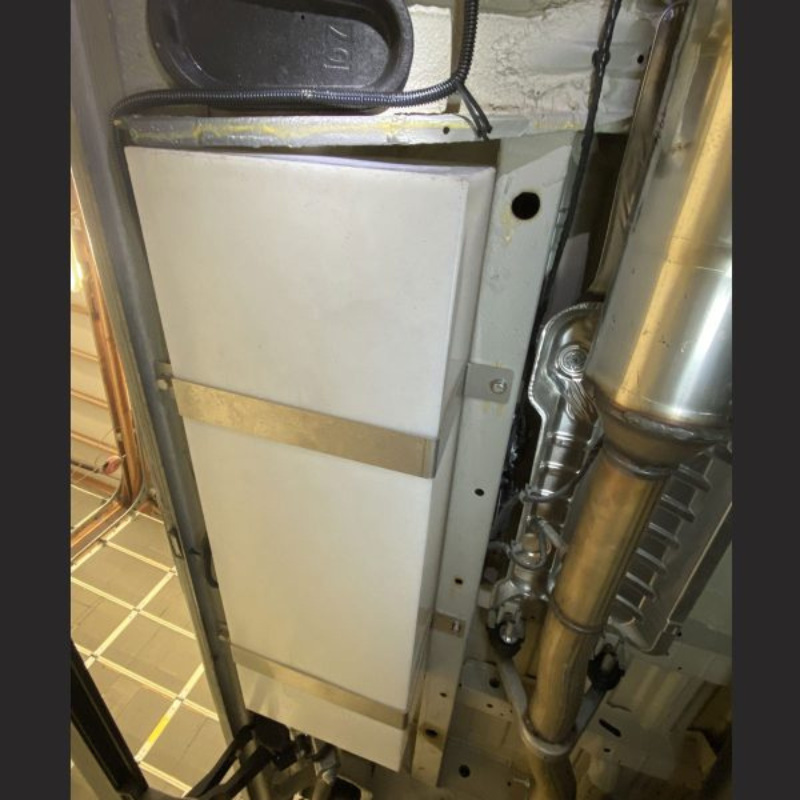

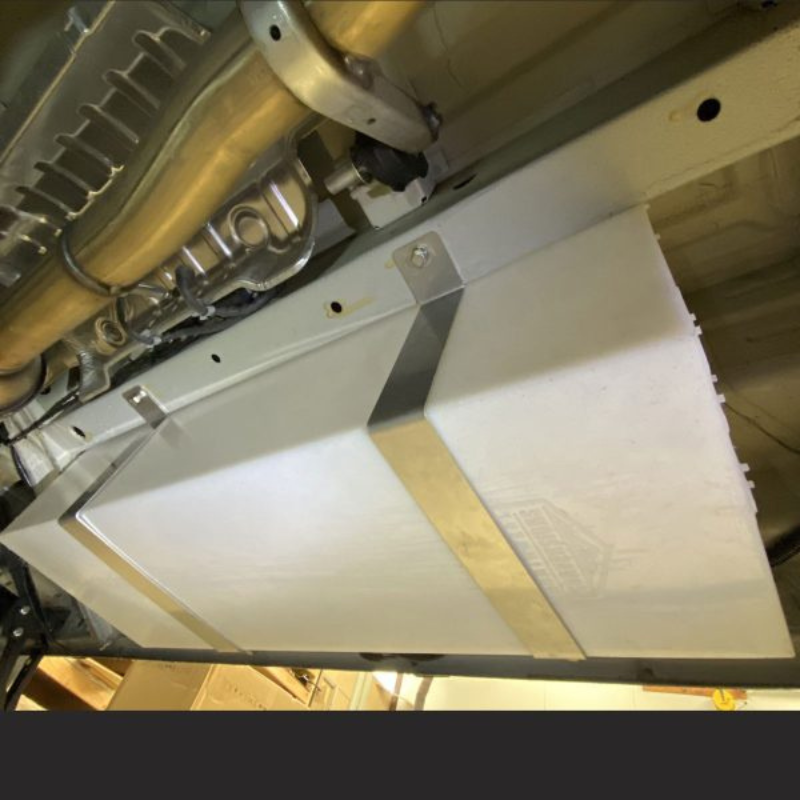

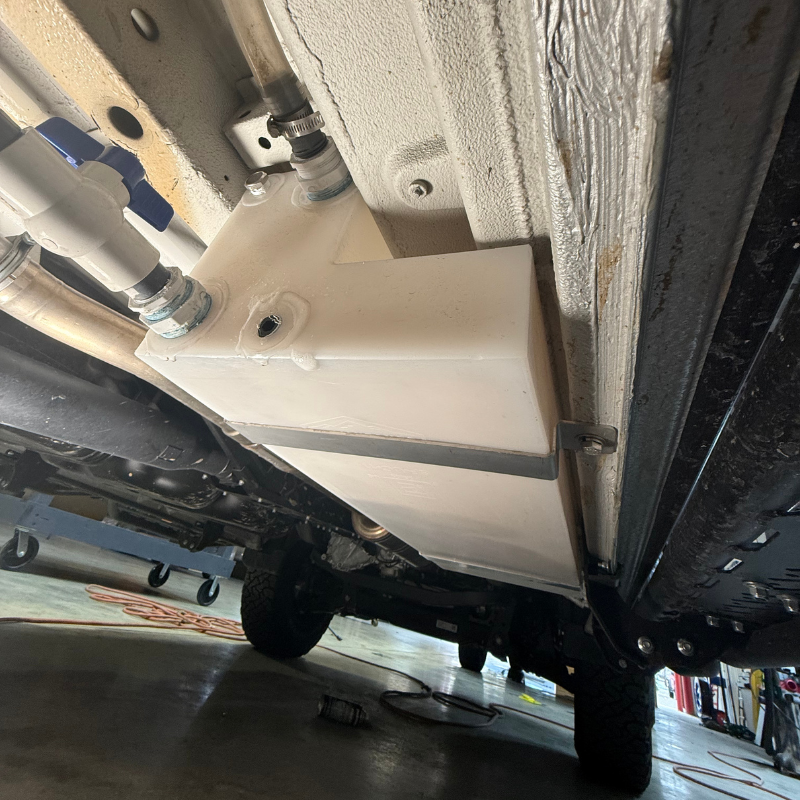

Claim the unused space under your slider door without drilling a single new hole in your floor. This tank mounts between the Sprinter's frame and the passenger-side slider door step cutout, using otherwise wasted undercarriage space. Ideal as a dedicated grey tank paired with a larger fresh water setup, or used standalone for fresh water.

⚠️ Gas engine Sprinters: The exhaust runs closer to the frame on gas models. A heat shield (not included) should be installed between the tank and exhaust before use.

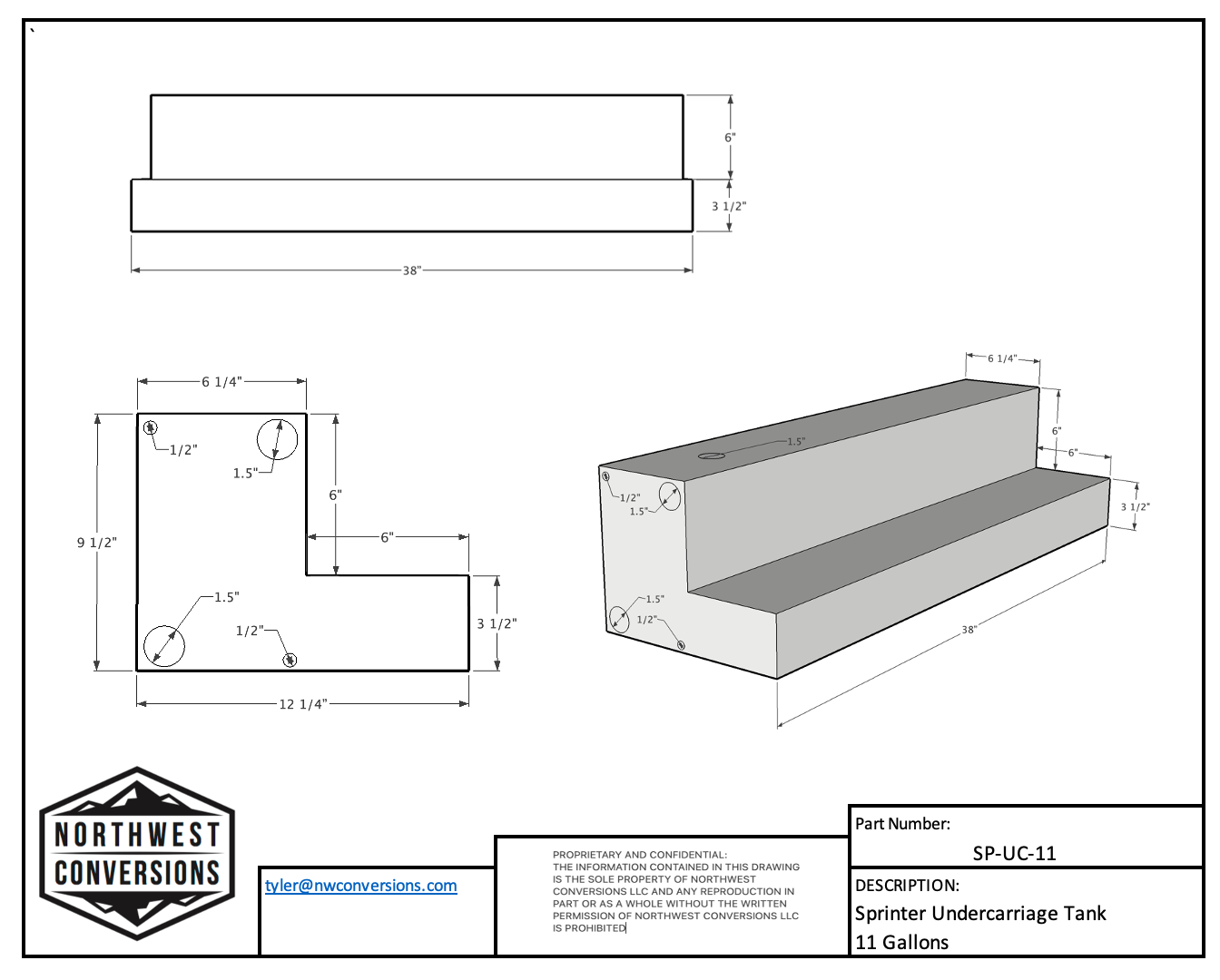

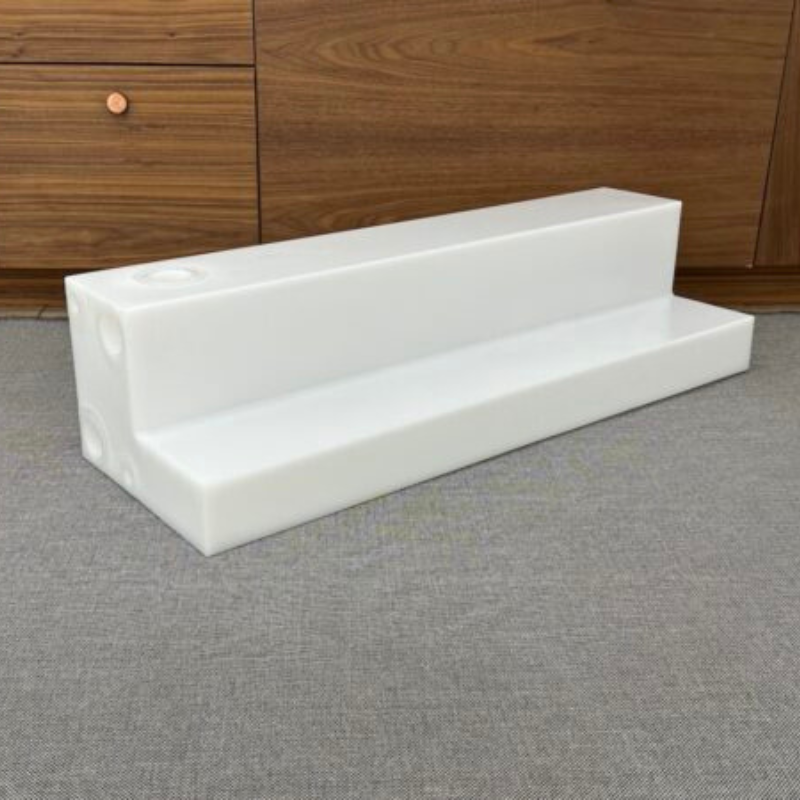

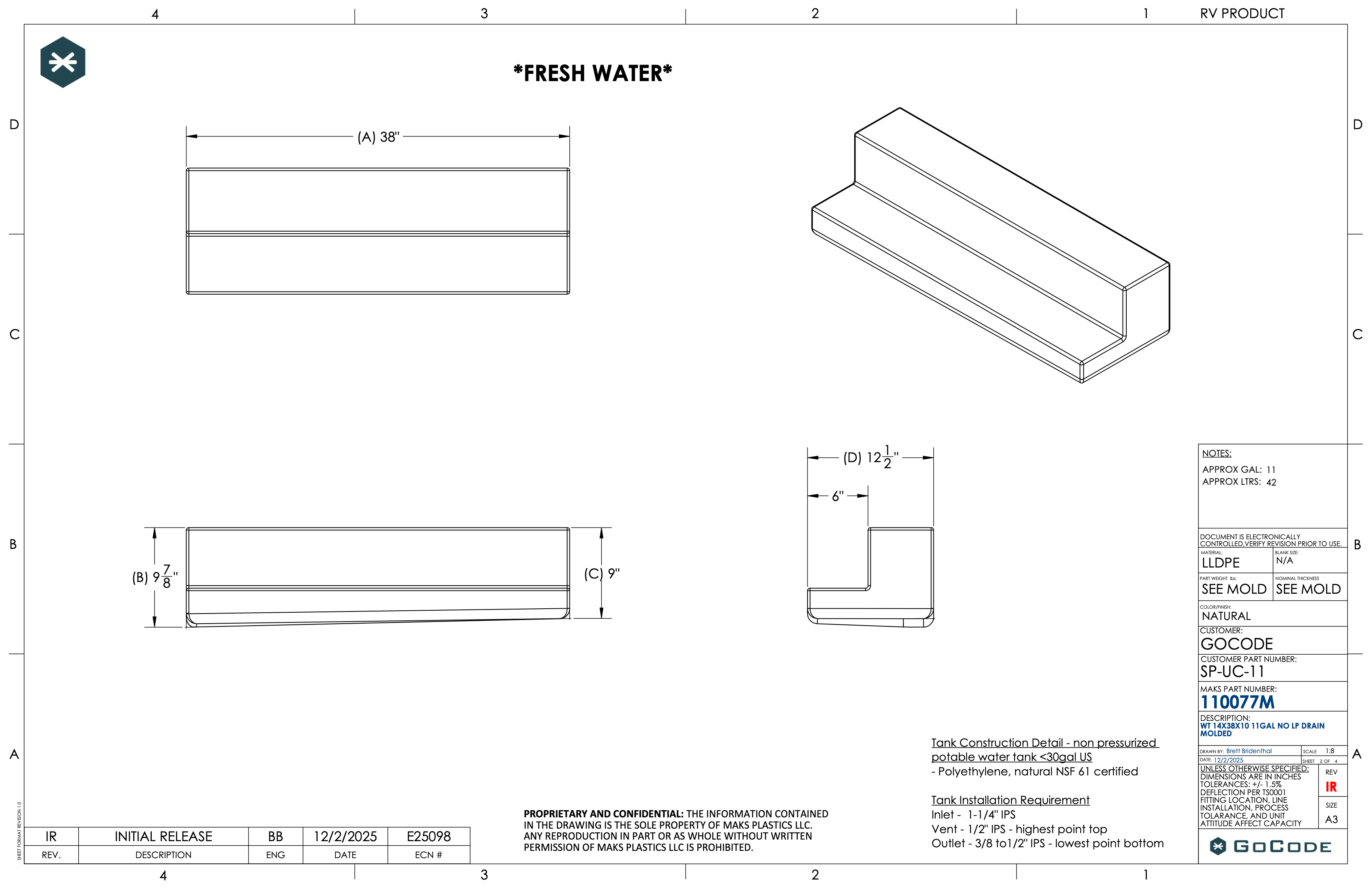

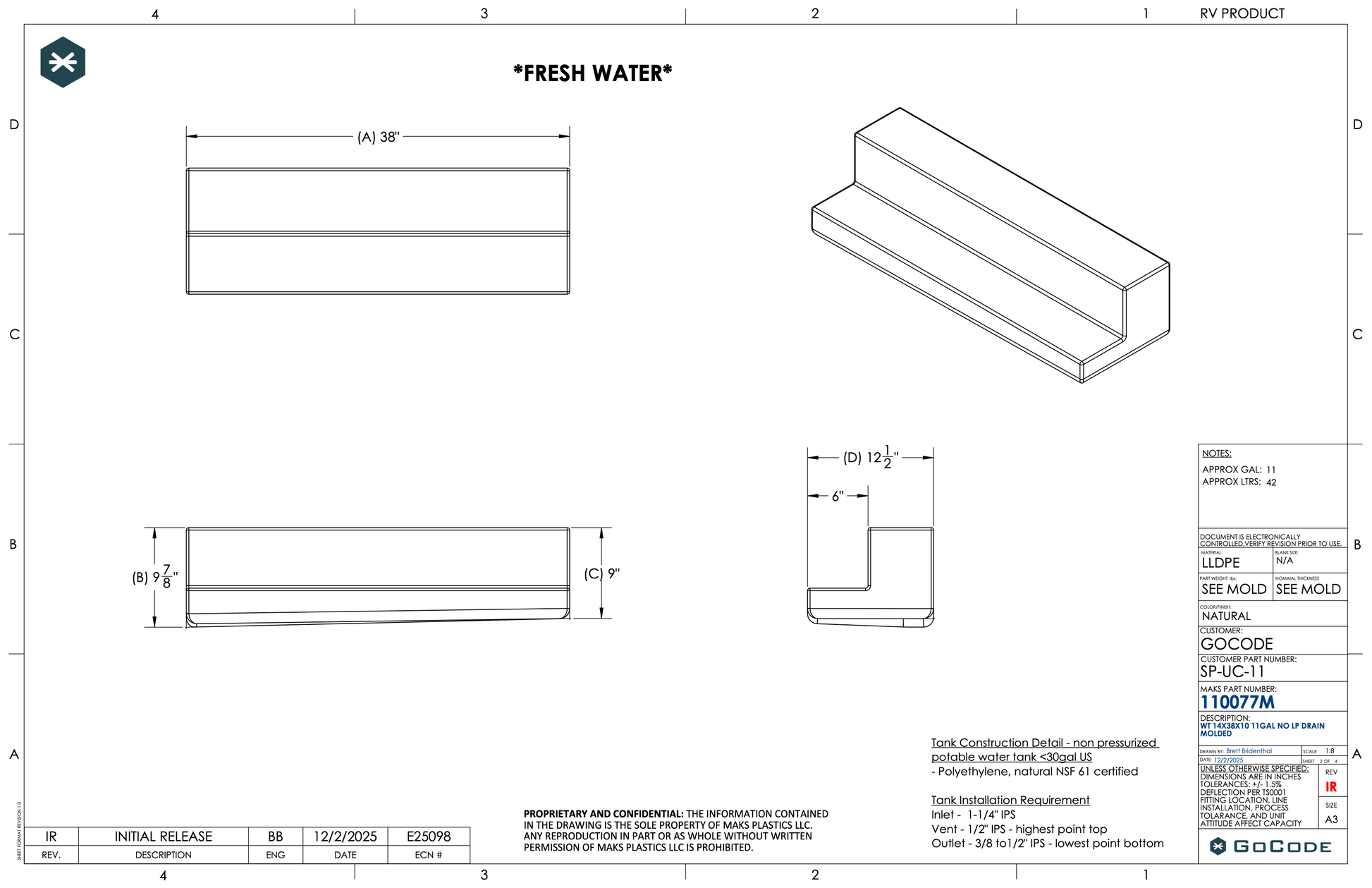

Dimensions & Weight

Size: 37.5" long × 12.25" wide × 9.25" tall
Capacity: 11 gallons
Weight: 12 lbs

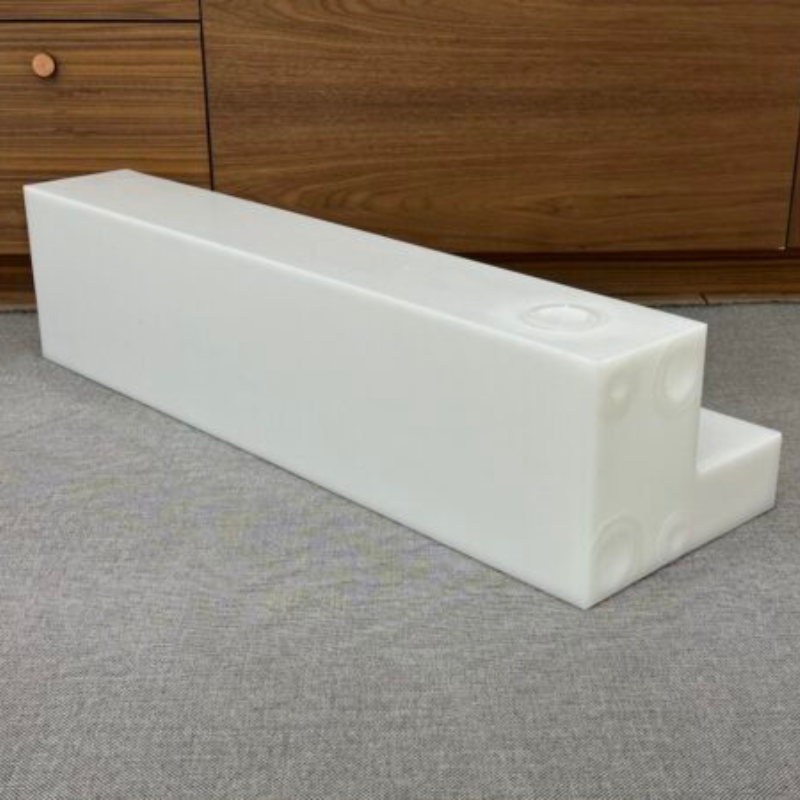

Ports & Plumbing

(1) 1.5" NPT port on the rear-facing end
(2) 1/2" NPT ports on the rear-facing end
(1) 1.5" NPT port on top
Not designed for pressurized systems, must be vented

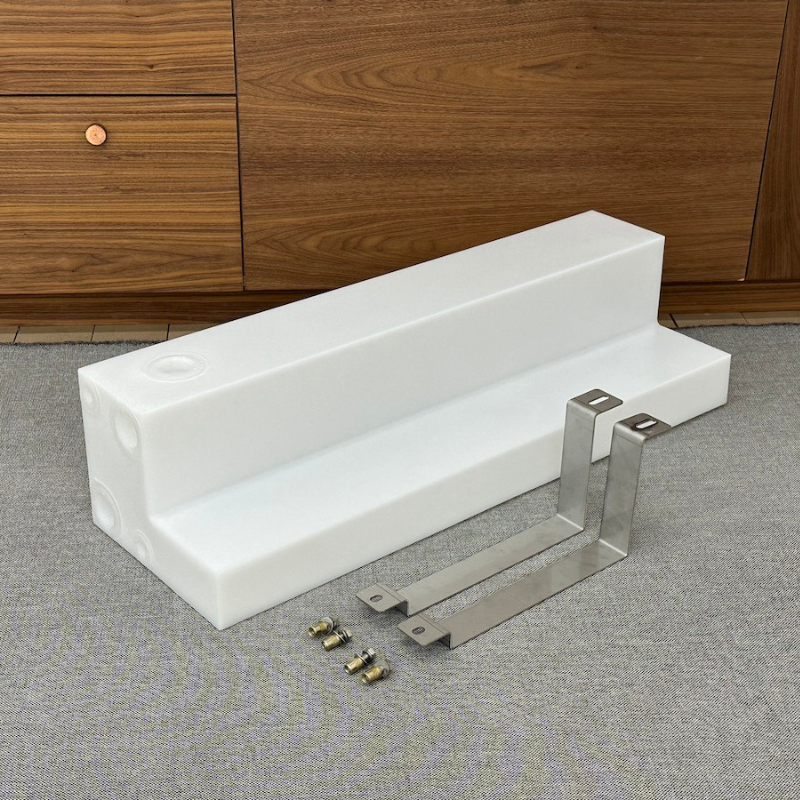

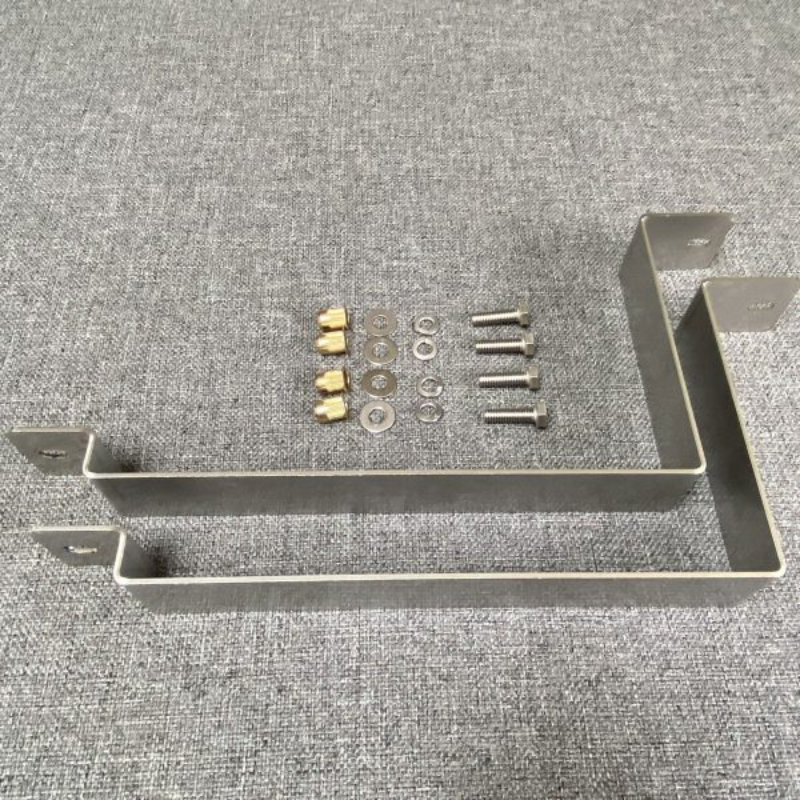

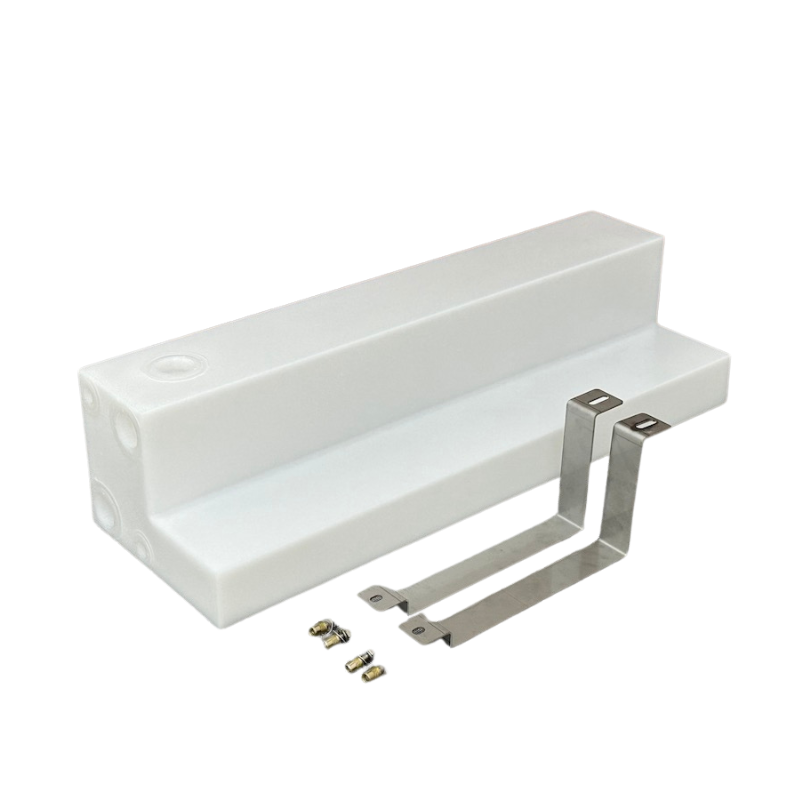

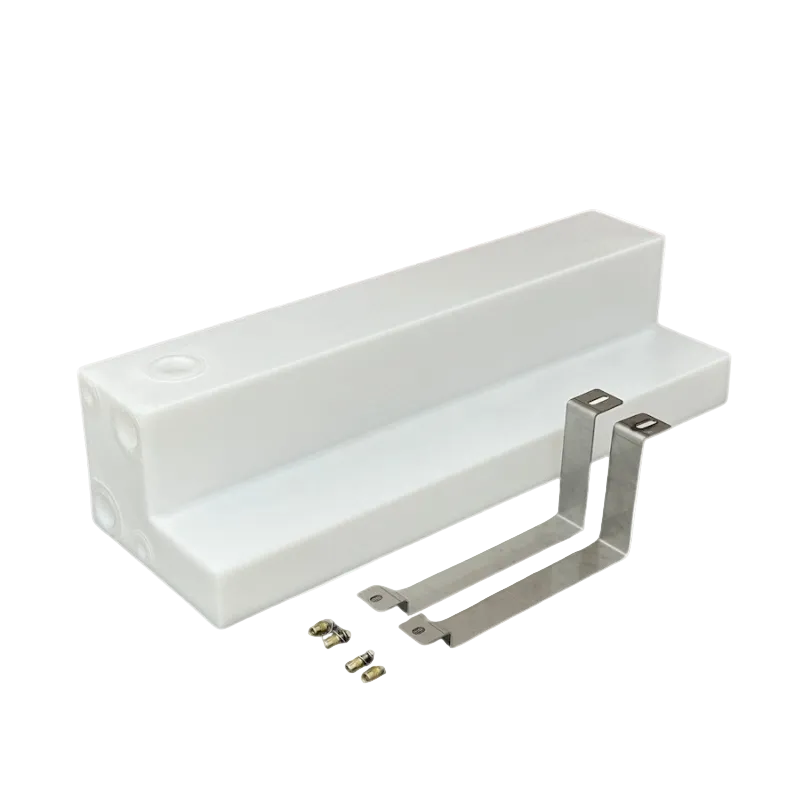

Included With Every Order

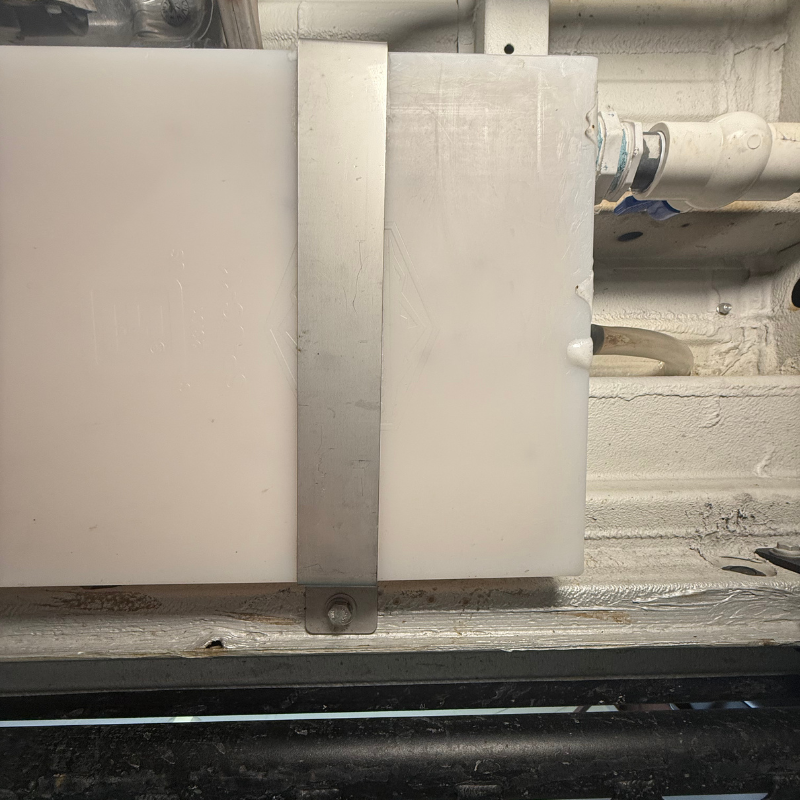

(2) stainless steel laser-cut mounting straps
Stainless 3/8" hardware and 3/8" rivnuts
Note: rivnut tool required, not included

Materials & Certifications

BPA-free, food-grade polyethylene
IAPMO TS 4 Certified
Made in the USA

Vehicle Compatibility

Mercedes Sprinter 1500/2500/3500 (2007-present), wheelbases 144", 170", and 170" EXT

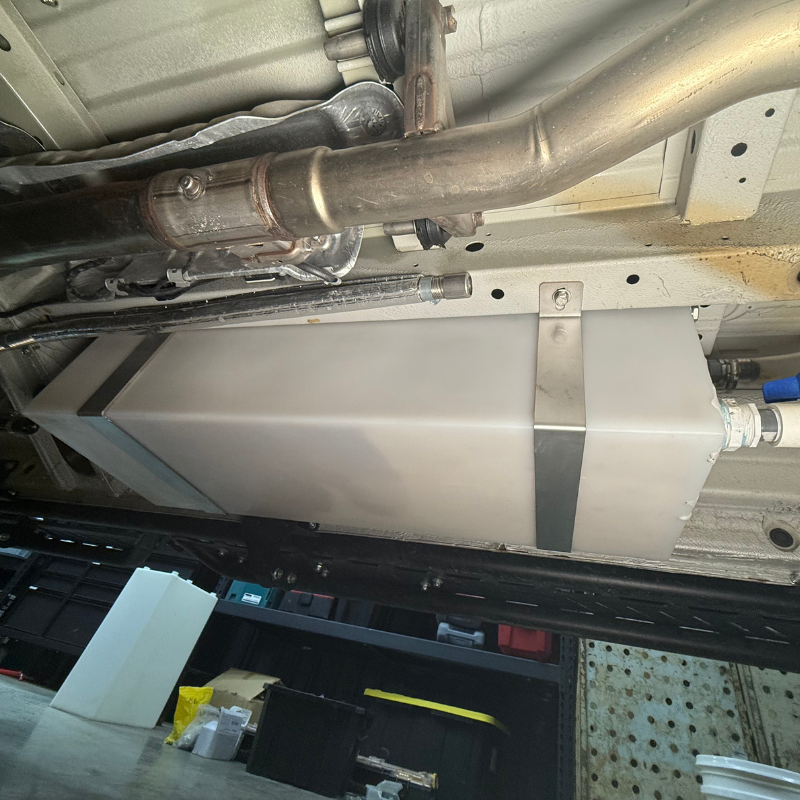

Passenger side, under slider door step area
May fit other makes and models, confirm dimensions before ordering
Compatible with AMP Research PowerStep Electric Running Boards for 2019-2021 Mercedes Sprinter (part #76264-01A), may be compatible with additional running boards
