NW Conversions 16 Gallon Undercarriage Water Tank - Transit
NW Conversions 16 Gallon Undercarriage Water Tank - Transit
SKU:NWT0239
In stock
DESCRIPTION
- Fits Transit Van undercarriage Passenger side slider door area.
- Compatible with Ford Transit Vans (2007-Present)
- Fits Transit Trail with Factory Running Boards
- Tank can be used for fresh or grey water
- 16 Gallon Tank
- Tank is designed not to be pressurised (I.e. Needs to be vented).

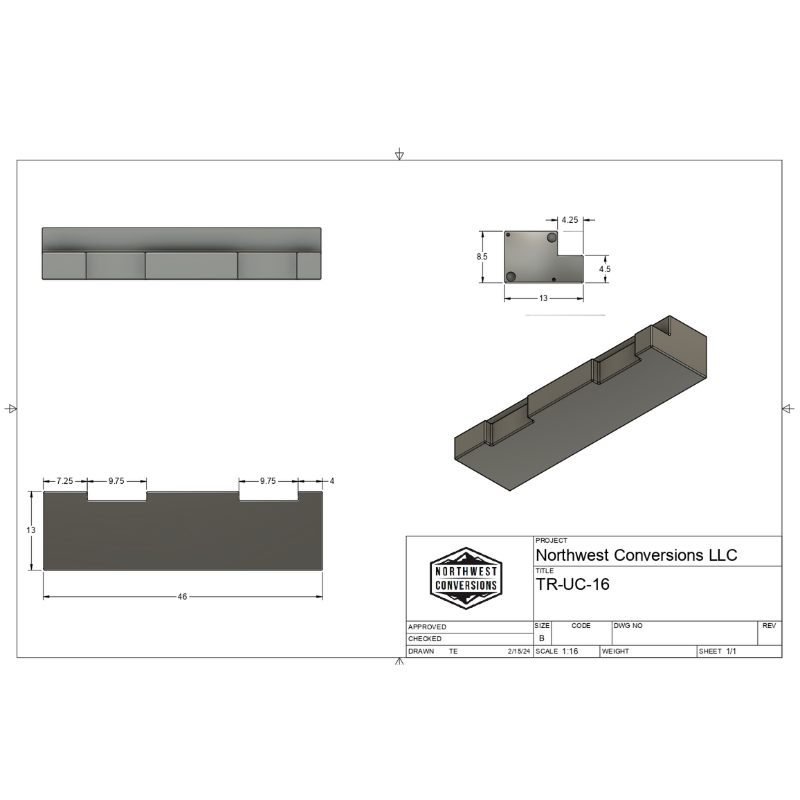

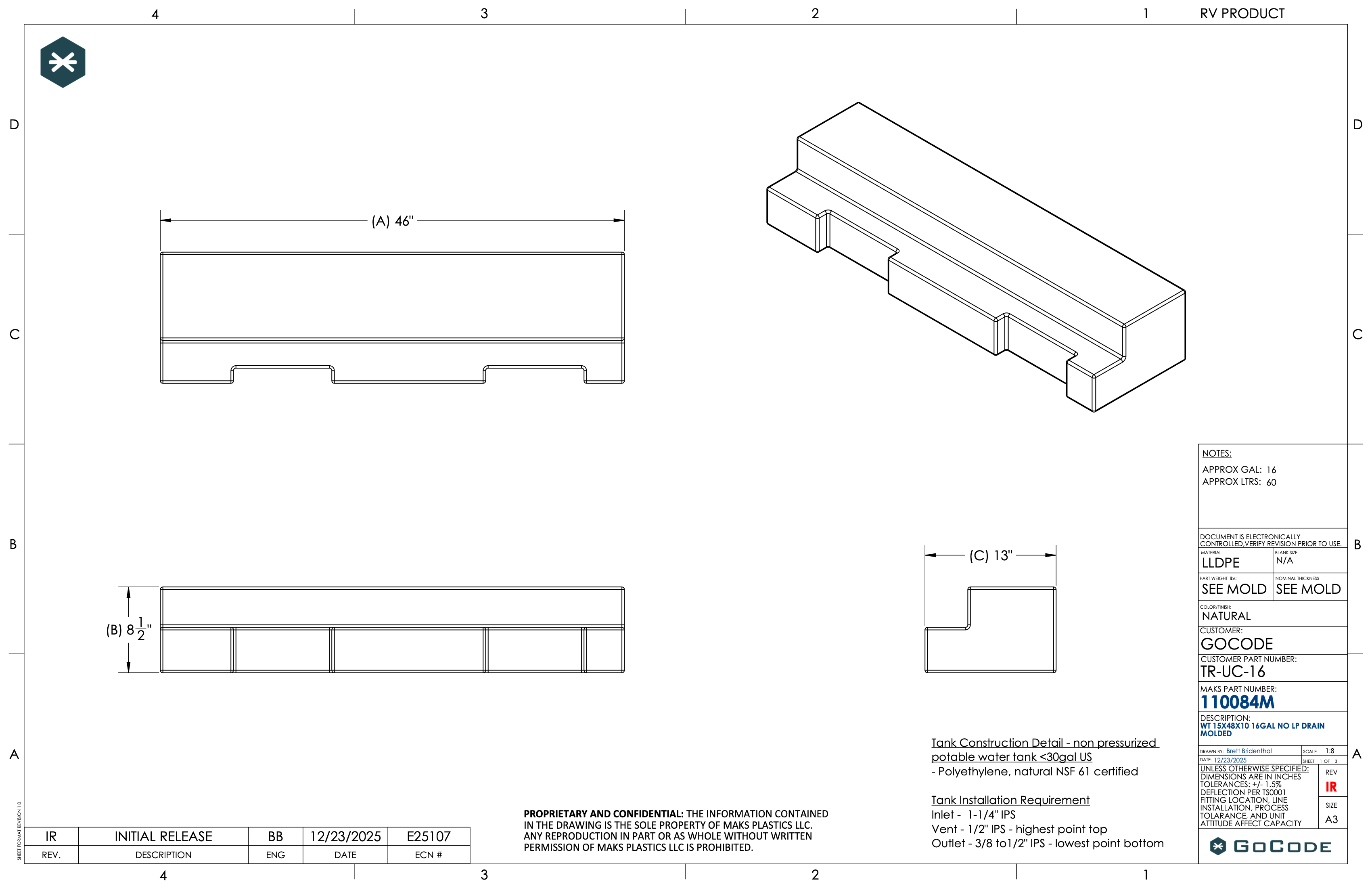

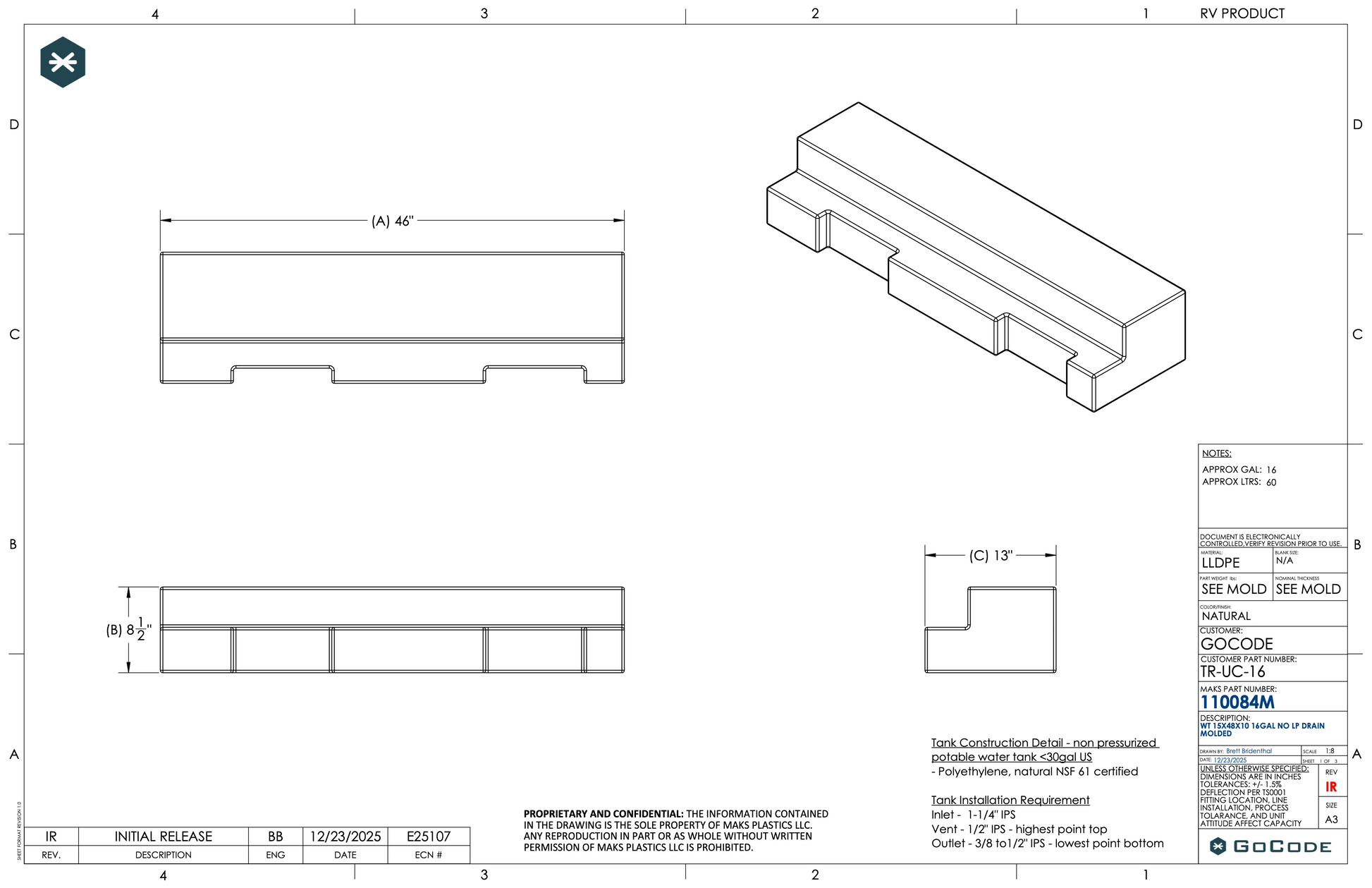

- Overall dimensions: 46″L x 8.5″H x 13″W.
- BPA Free, food grade polyethylene plastic.
- IAPMO TS-4 Certified
- Tank has (2) 1.5″ NPT port and (2) 1/2″ NPT ports on end that will face the rear of van.
- Tank has (1) 1.5″ NPT port on top.

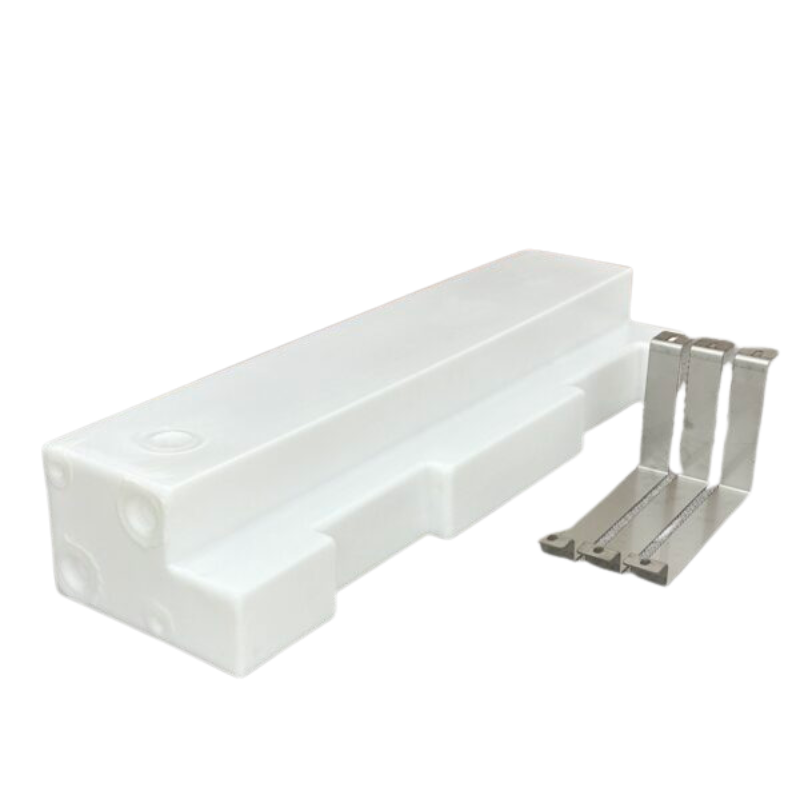

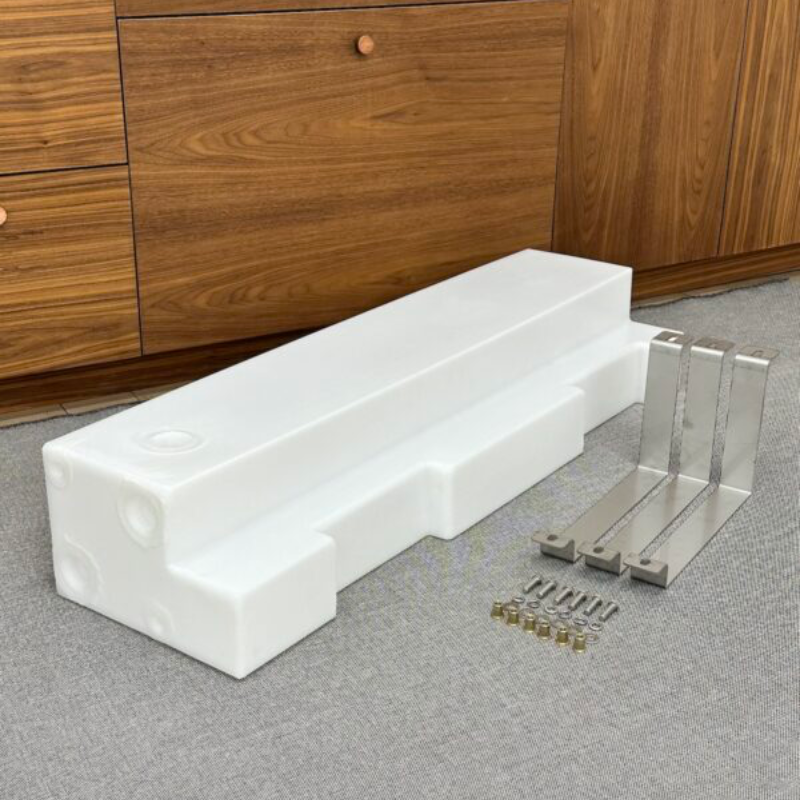

- *(3) Stainless steel Brackets, Stainless steel hardware, and rivnuts included.

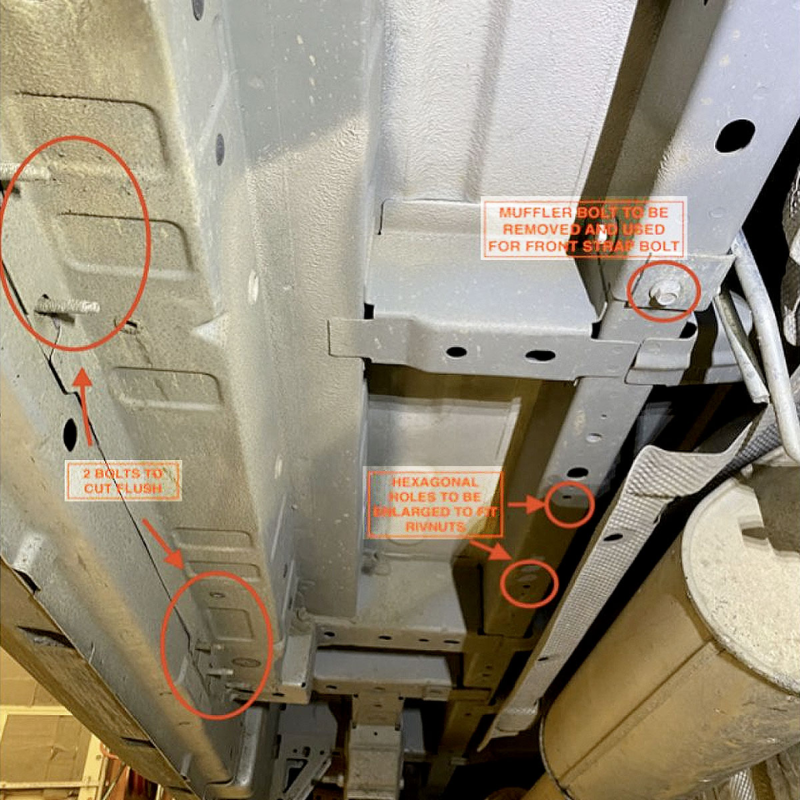

- Requires drilling of (3) new holes (17/32″) for 3/8″ rivnuts near pinch weld, enlarging (2) hexagonal holes on frame and using (1) factory bolt for exhaust hanger location.
- This will require a rivnut tool.
- Made in the USA
- Weight: 24 lbs

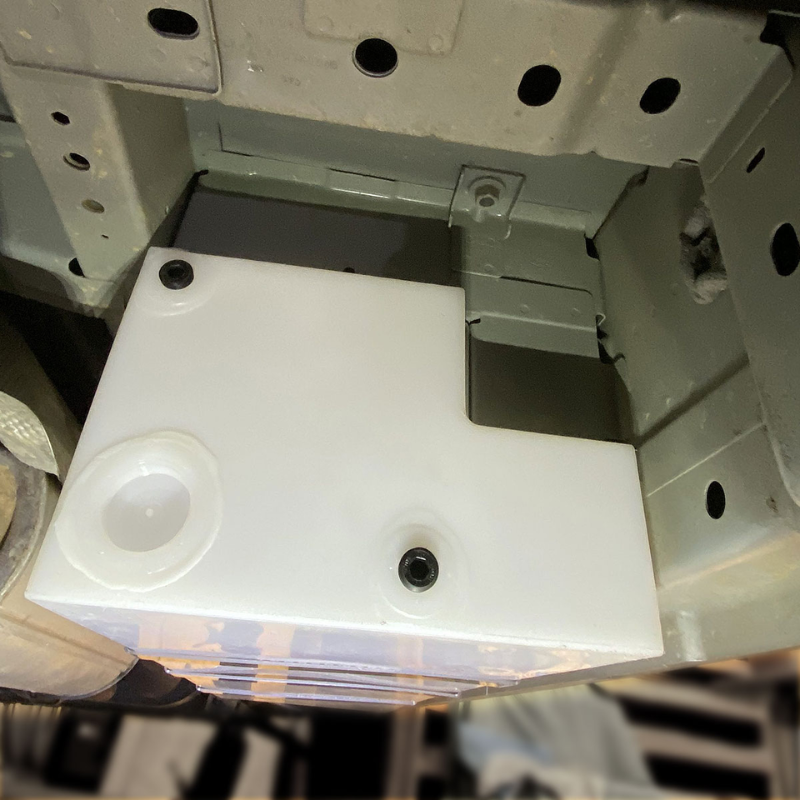

The 16 Gallon Transit Van Undercarriage Water Tank is designed to fit under the van on the Passenger side under the slider door area but can also fit the driver side next to the fuel tank. (3) Stainless steel laser cut straps, 3/8″ hardware and 3/8″ rivnuts are included (Rivnut tool needed for installation not included). Tank fits Ford Transit van. It may fit other makes and models as well.
Tank Compatibility:
