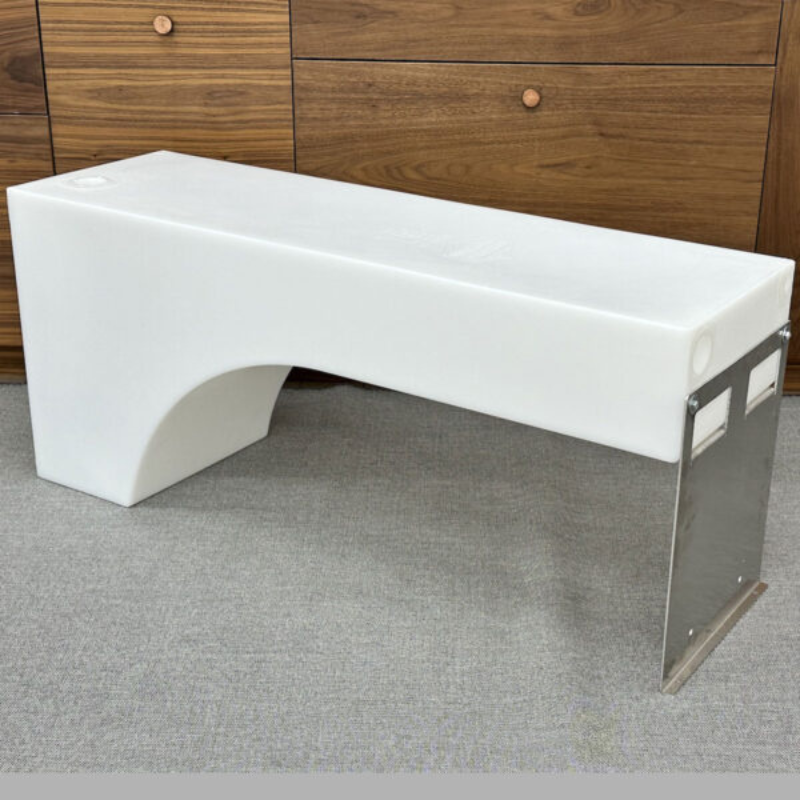

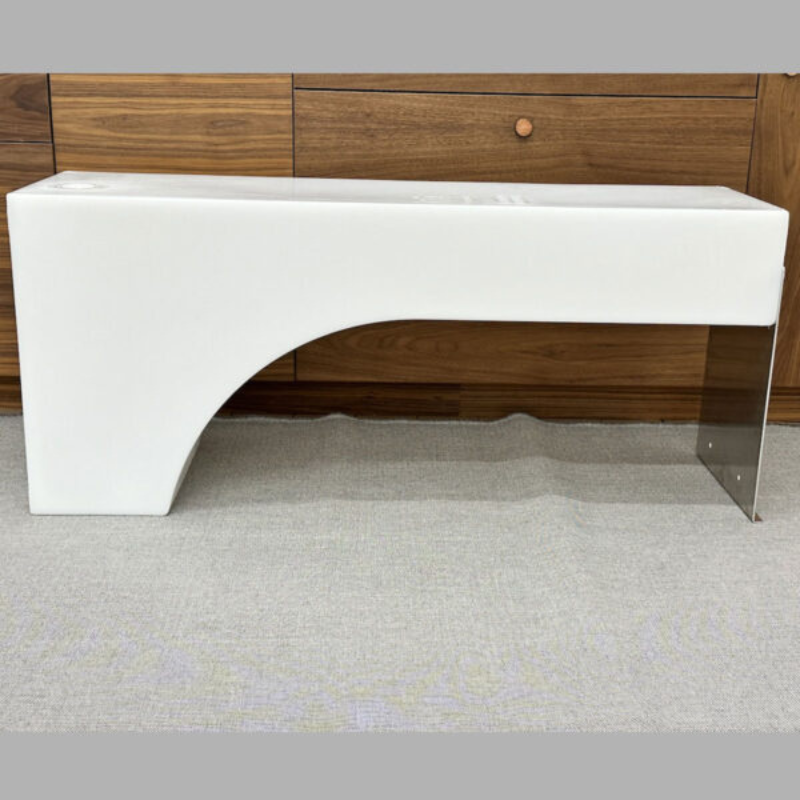

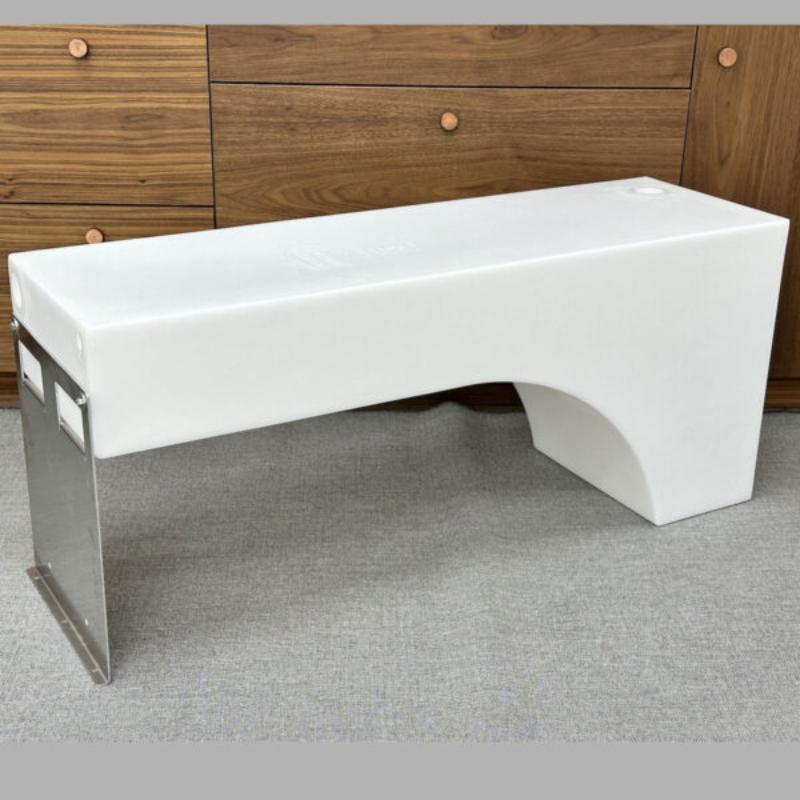

NW Conversions 25 Gallon Dually Wheel Well Water Tank - Sprinter/Transit
NW Conversions 25 Gallon Dually Wheel Well Water Tank - Sprinter/Transit
SKU:NWU0253
In stock
- 25 Gallon Wheel Well Water tank
- Designed for the Sprinter 3500 Dually. Fits Transit Dually also.
- Will fit other makes and models

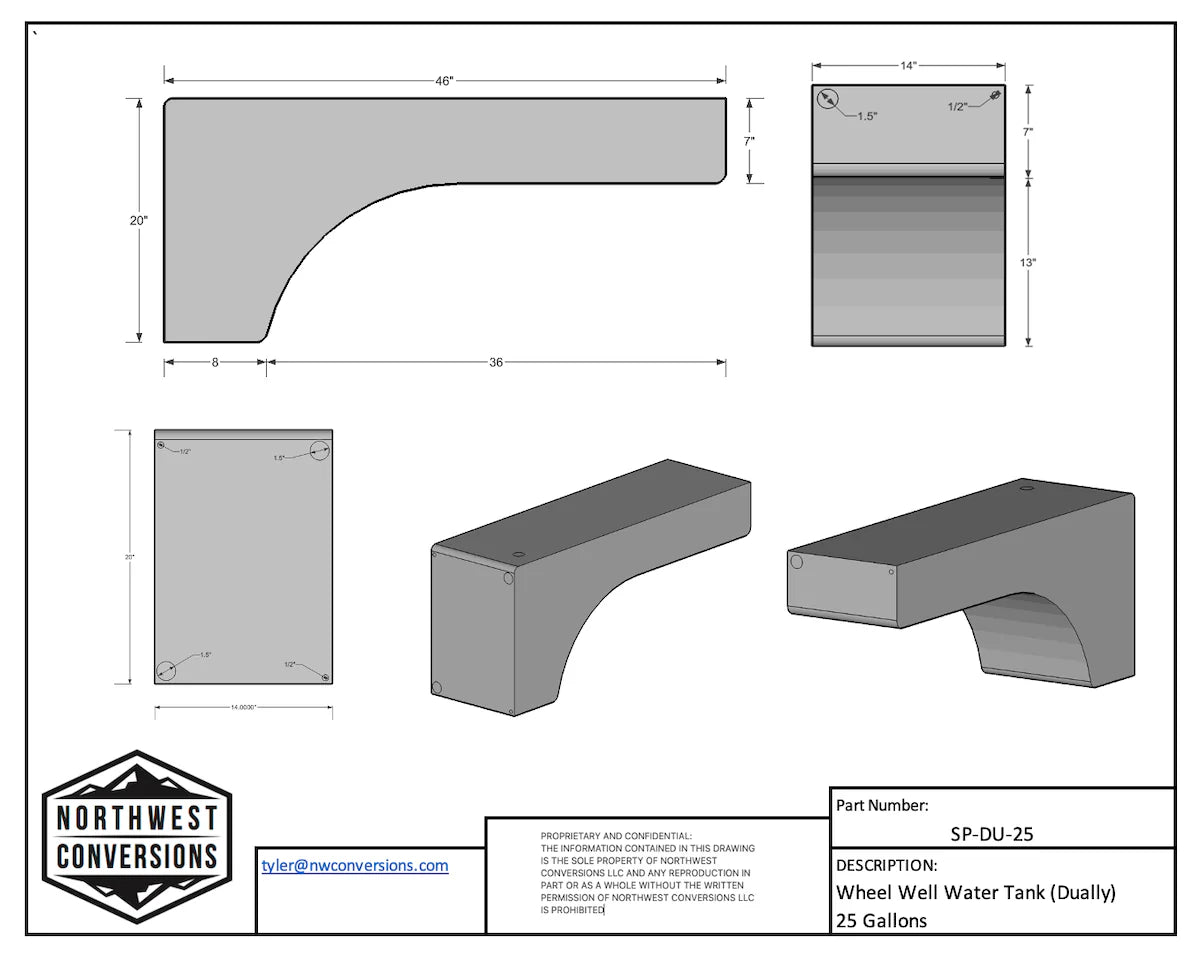

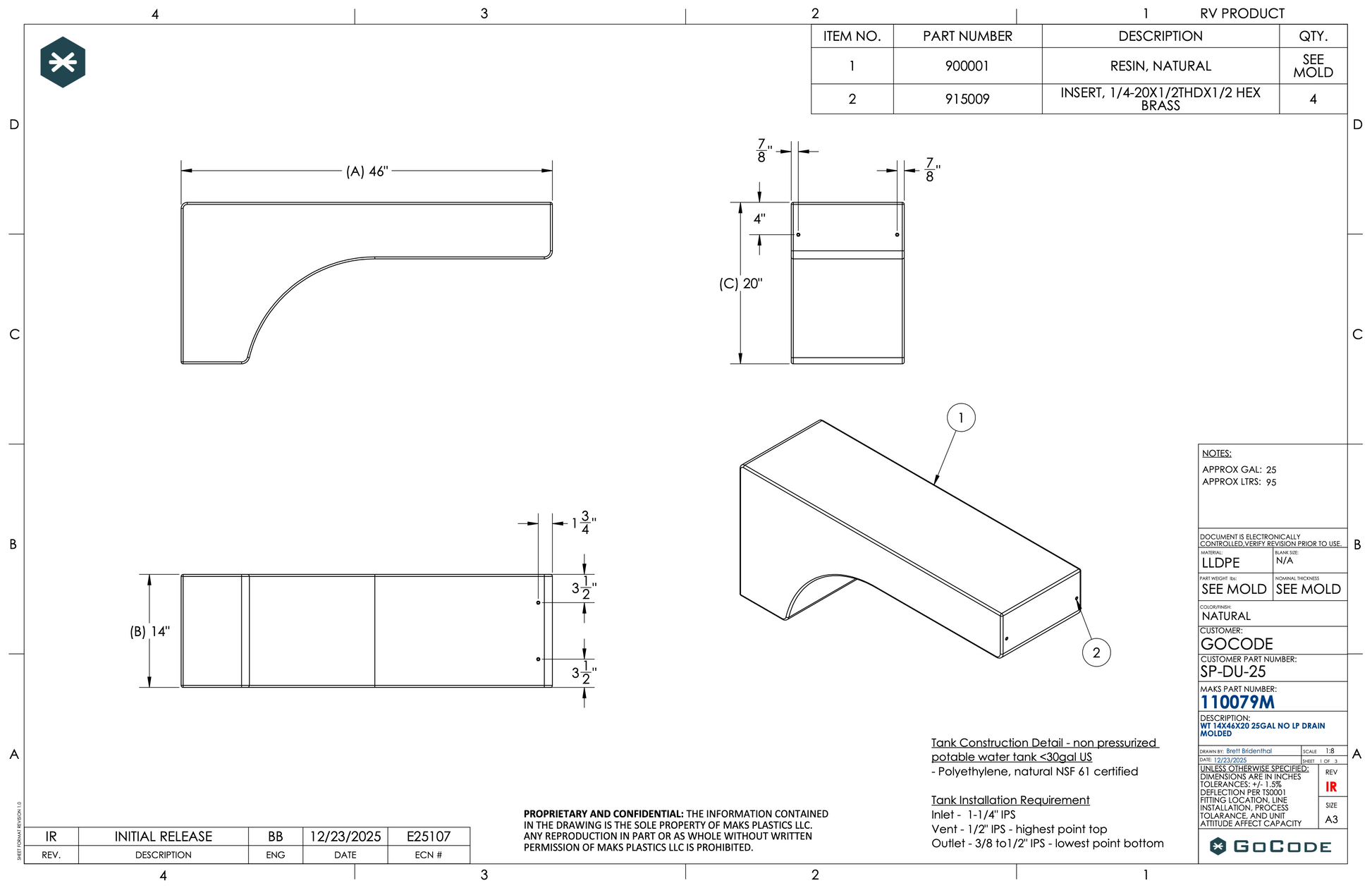

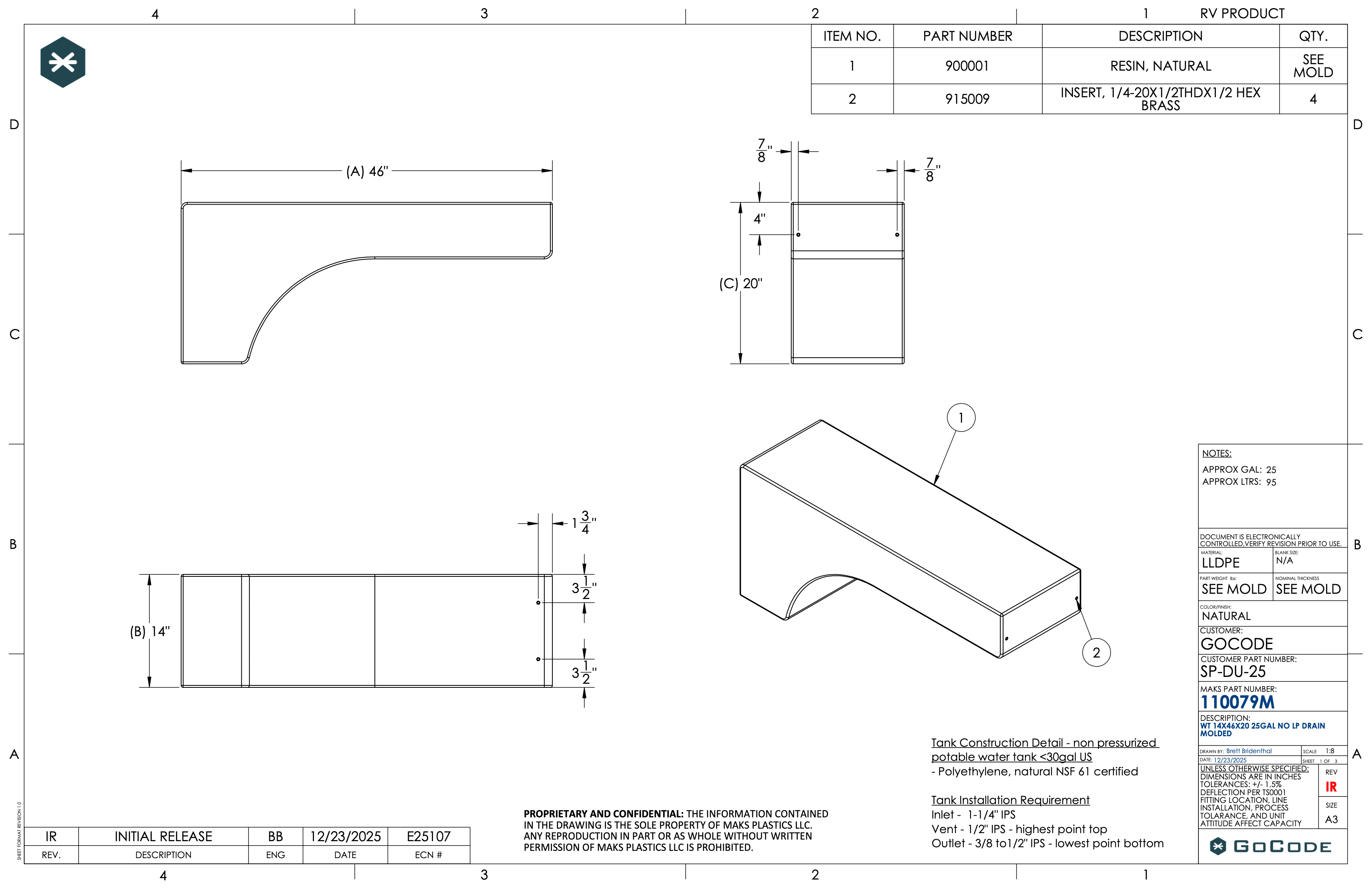

- 46" Long, 20" Tall and 14" Wide
- (2) 1.5" NPT ports and (2) 1/2" NPT Ports on larger end
- (1) 1.5" NPT port on TOP
- (1) 1.5" NPT port and (1) 1/2" NPT port on end that goes above wheel well

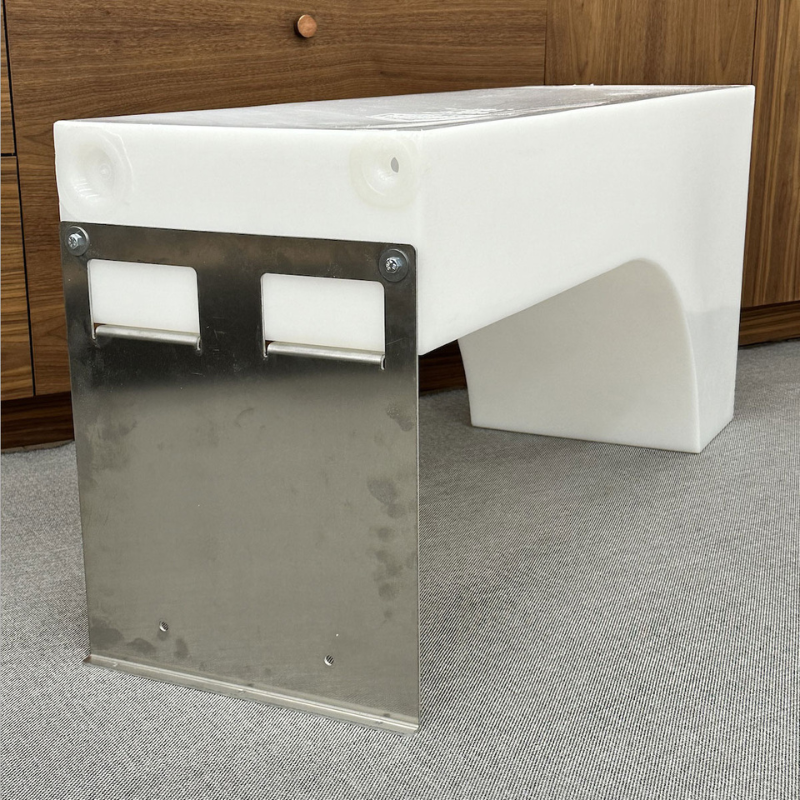

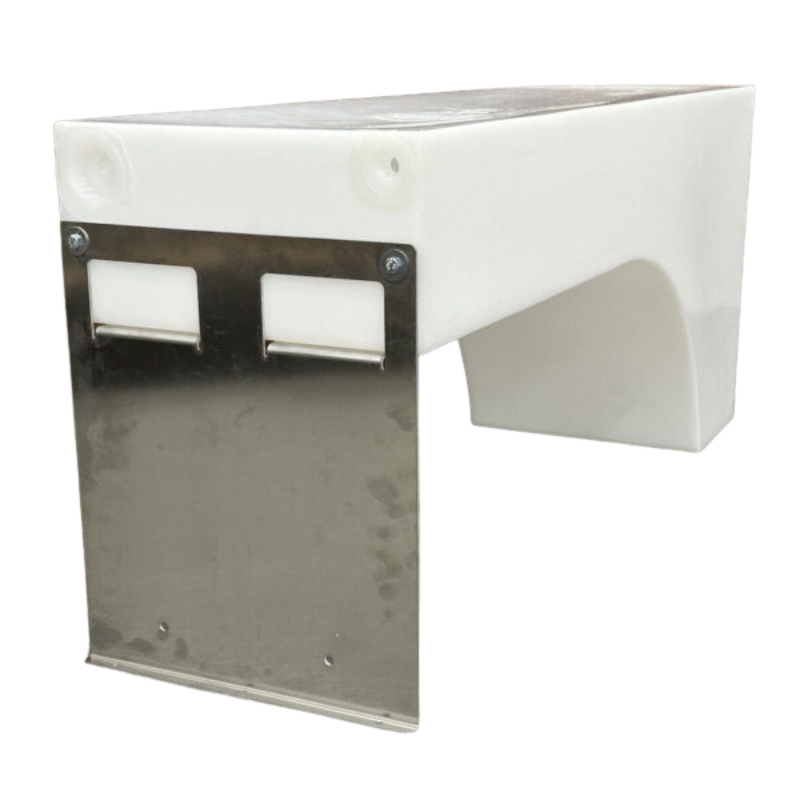

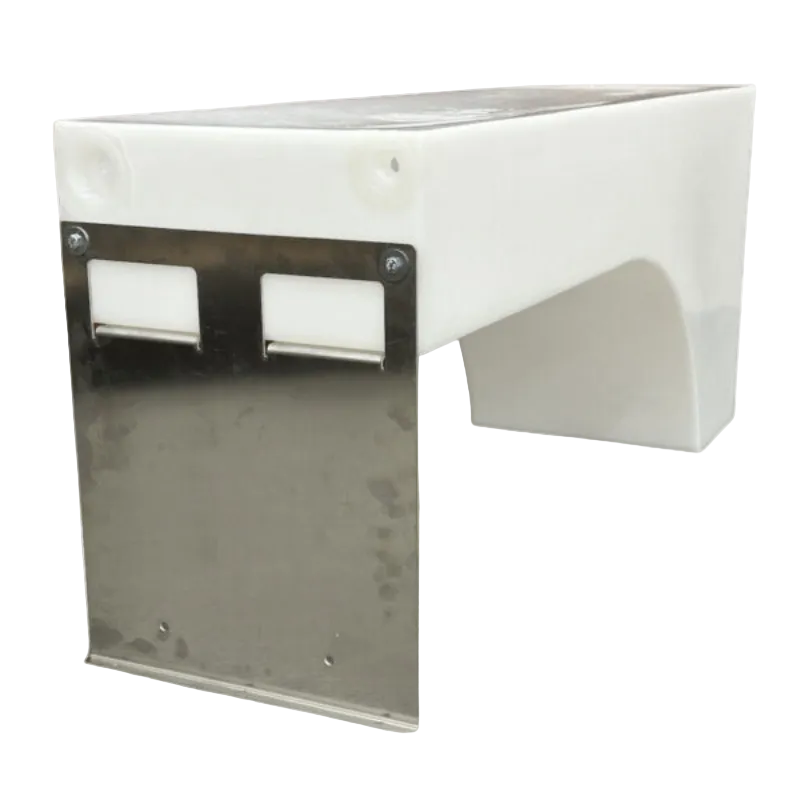

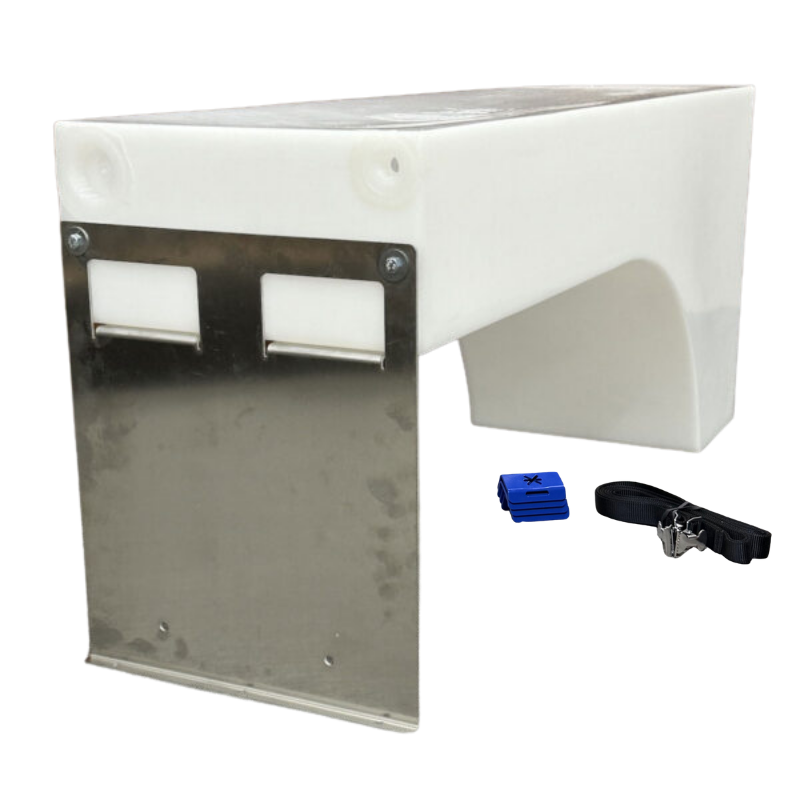

- Support plate and hardware for the support plate are included.
- TRANSIT Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
- **PROMASTER** needs to be elevated 3.5" to fit the large wheel wells.
- Can be placed either driver or passenger side
- Tank is designed NOT to be PRESSURIZED (I.e. Needs to be vented).
- Tanks are made from BPA Free Food Grade Plastic
- IAPMO TS 4 Tested and Certified
- Made in the USA
- The SP-DU-25 gallon wheel well water tank is designed to use the wasted space around the well. It is designed to fit the Sprinter 3500, Sprinter T1N and Transit dual wheel vans. The tank can also fit other vehicle makes and models.Check out exterior tanks:Additional Undercarriage 16 gallon water tank or The 11 Gallon Sprinter Undercarriage Water Tank
Weight: 28 lbs
Dimensions: 46 × 20 × 14 in
