NW Conversions 36 Gallon Wheel Well Water Tank - Sprinter/Transit

NW Conversions 36 Gallon Wheel Well Water Tank

Maximize wheel well space and free up your garage for gear.

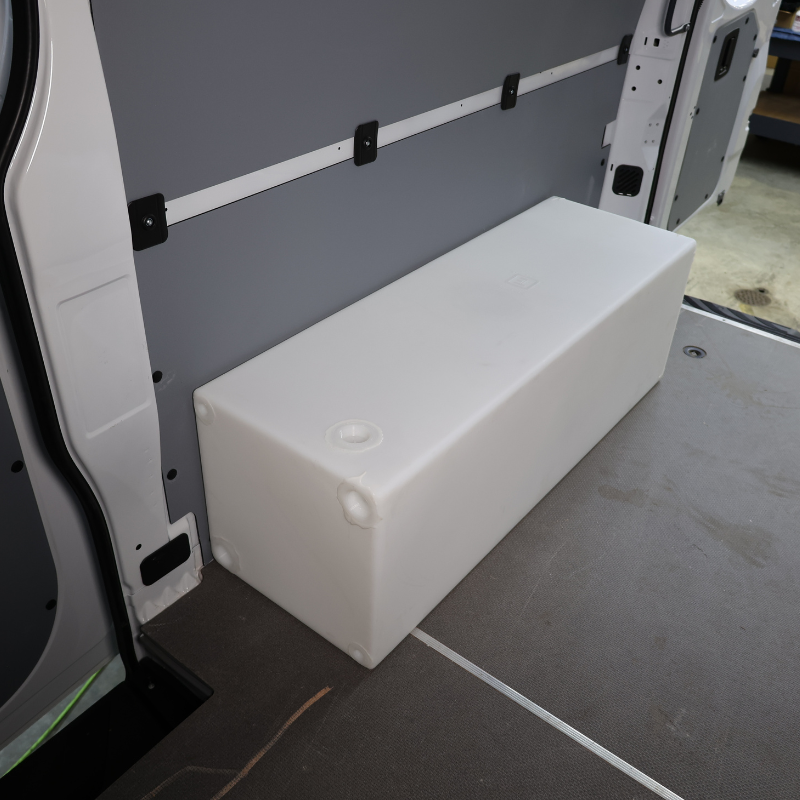

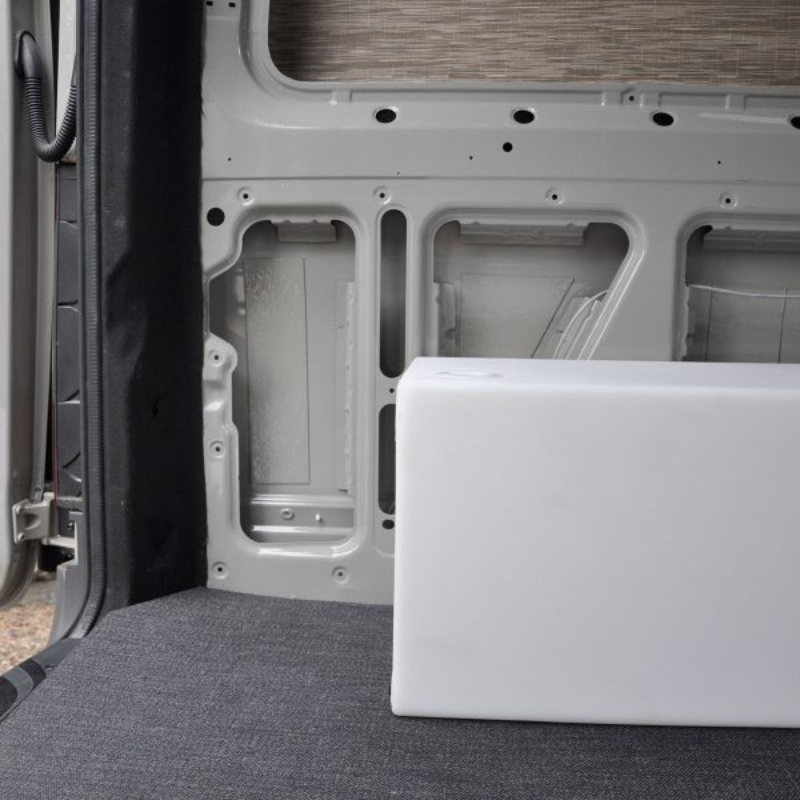

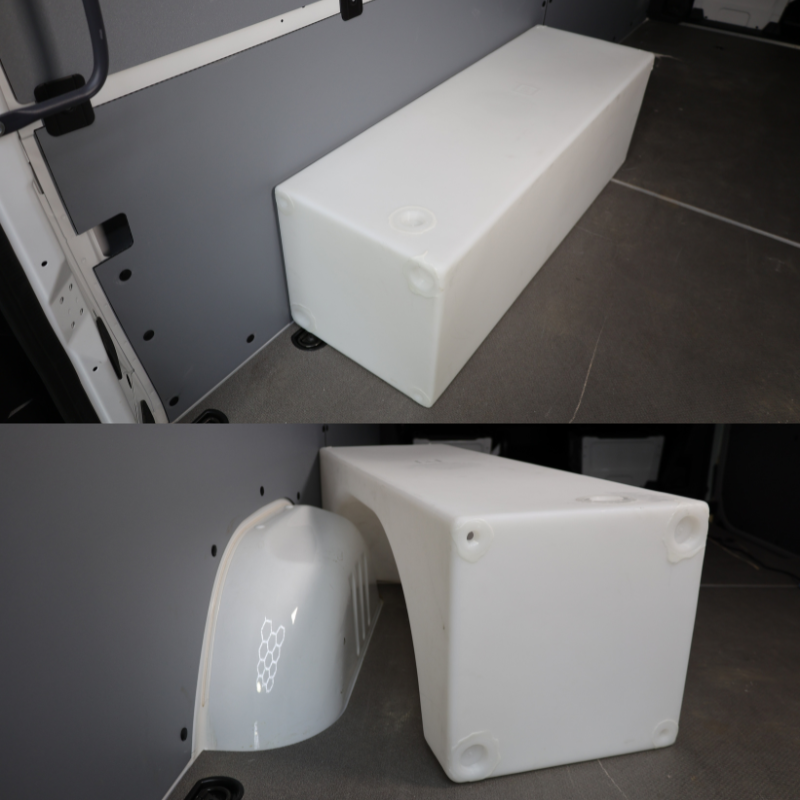

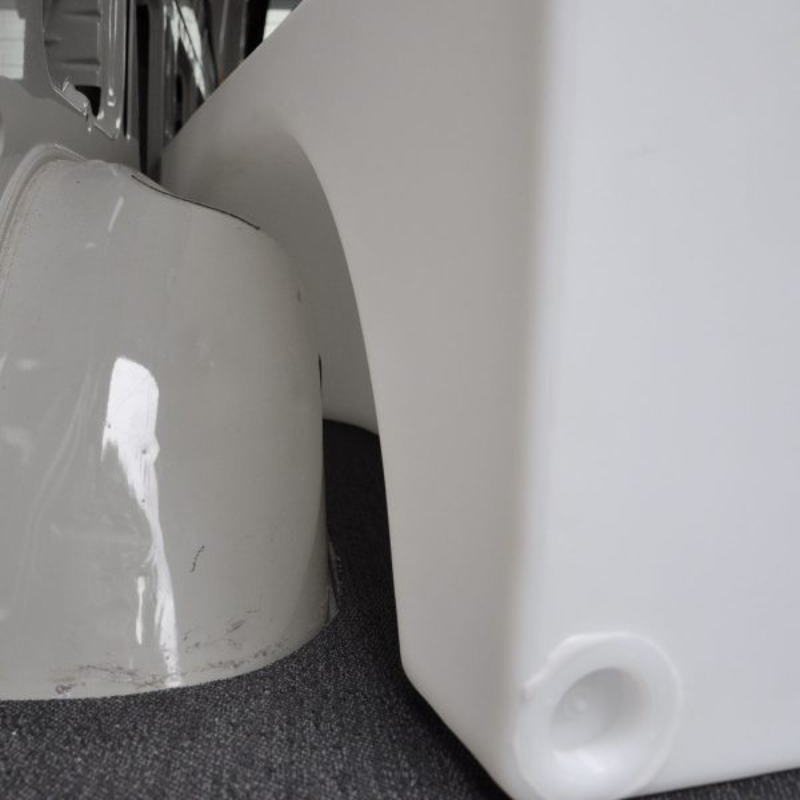

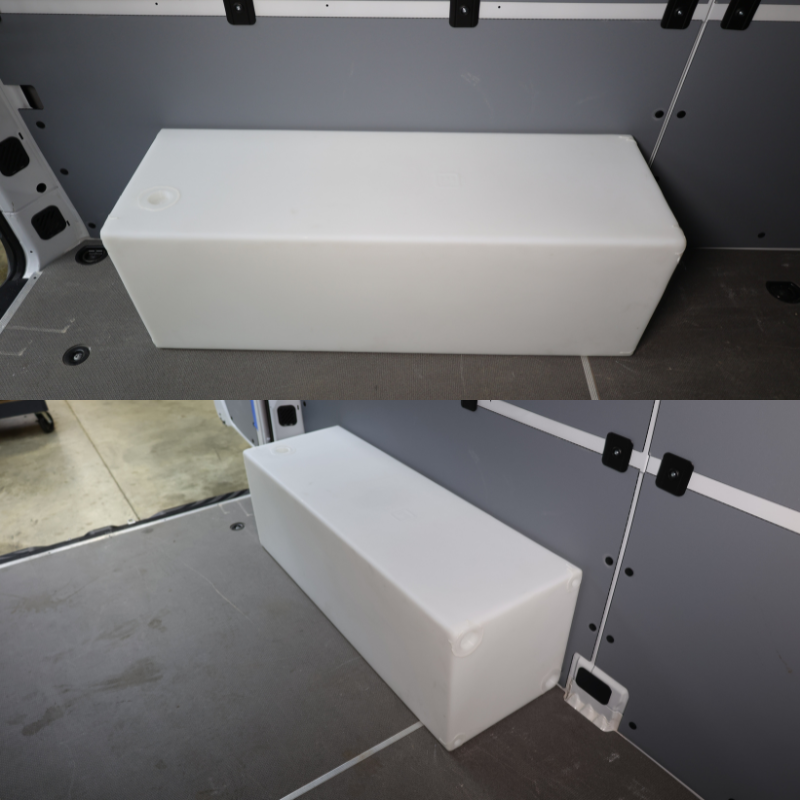

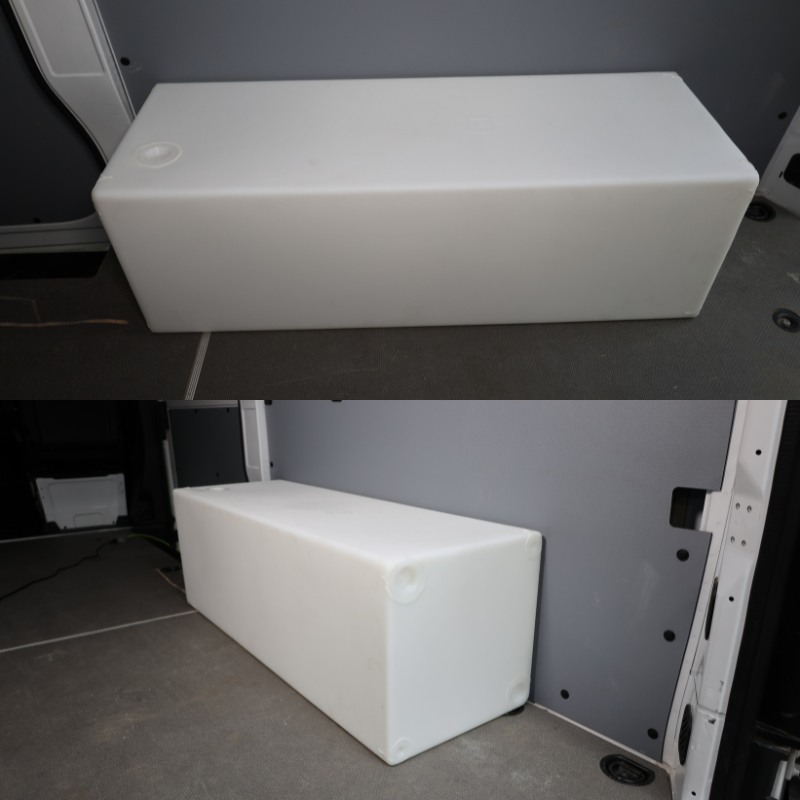

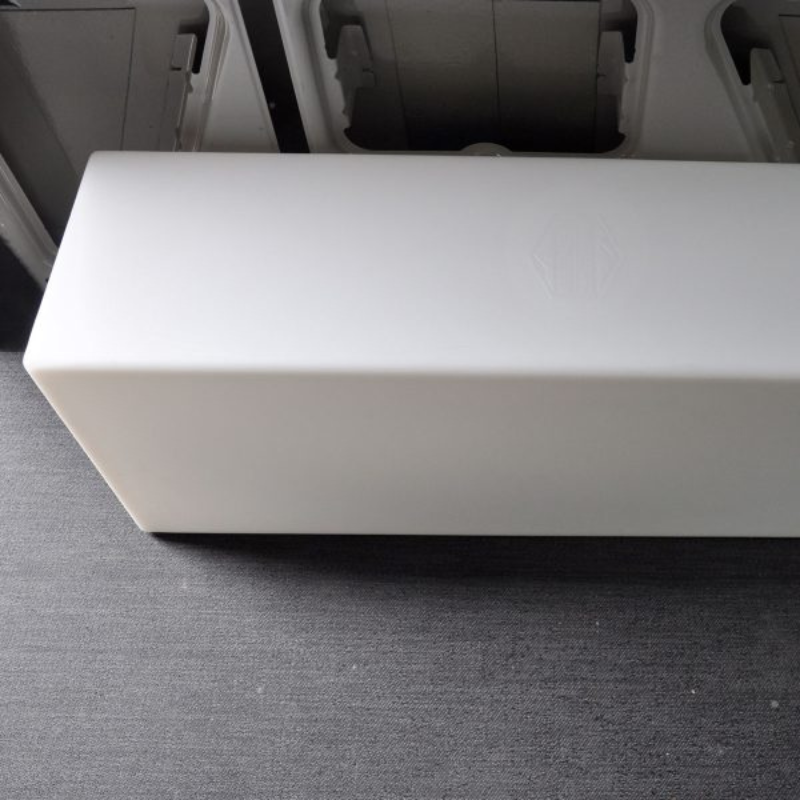

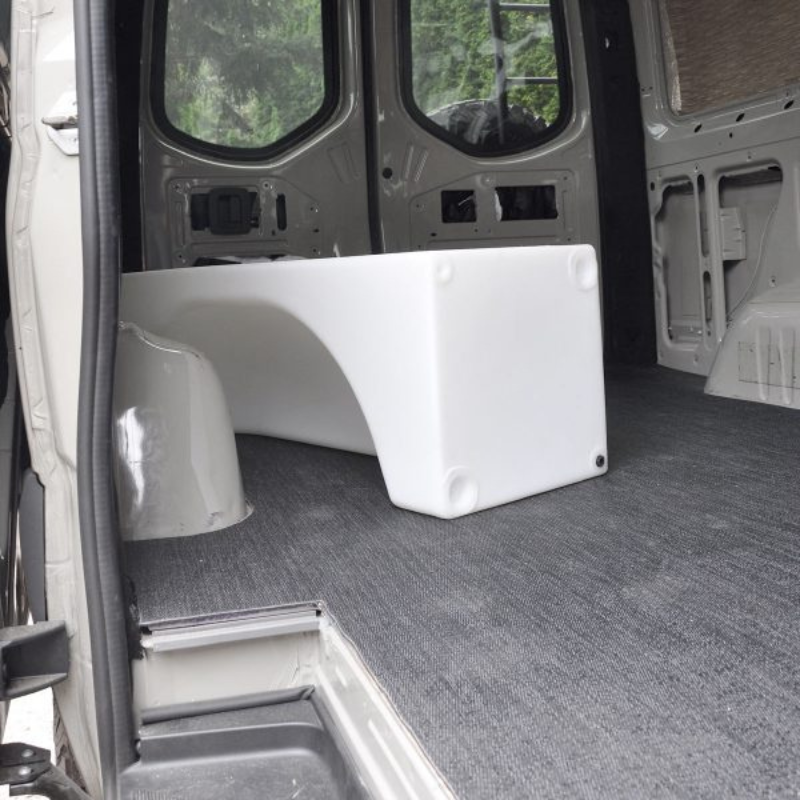

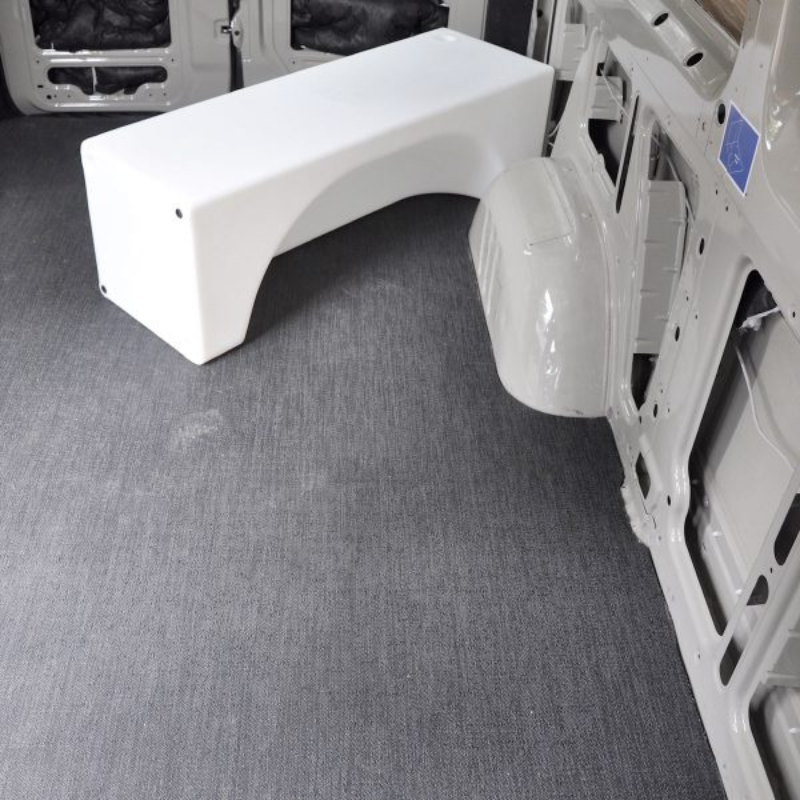

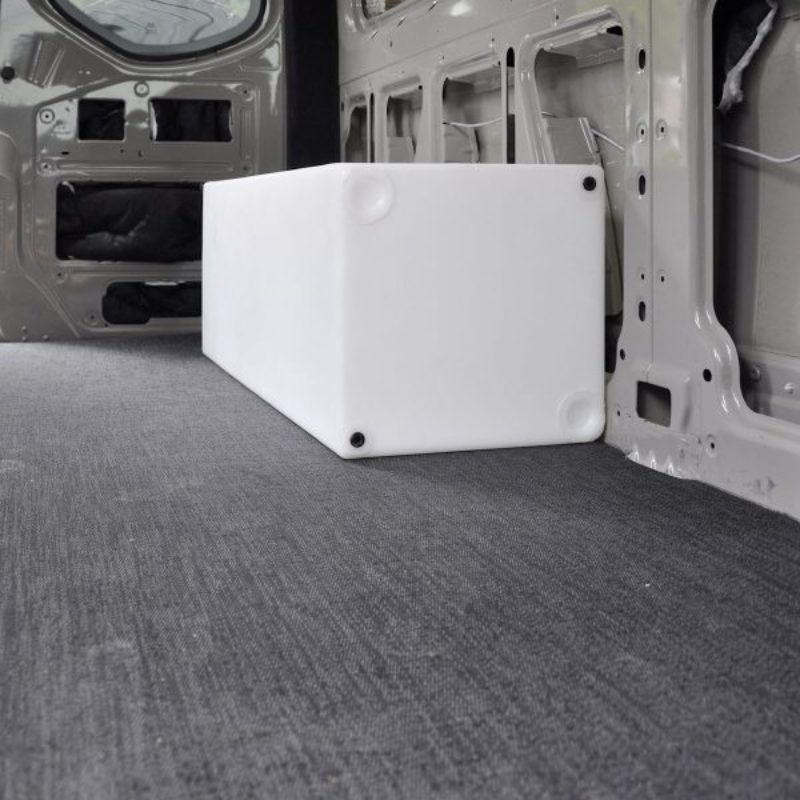

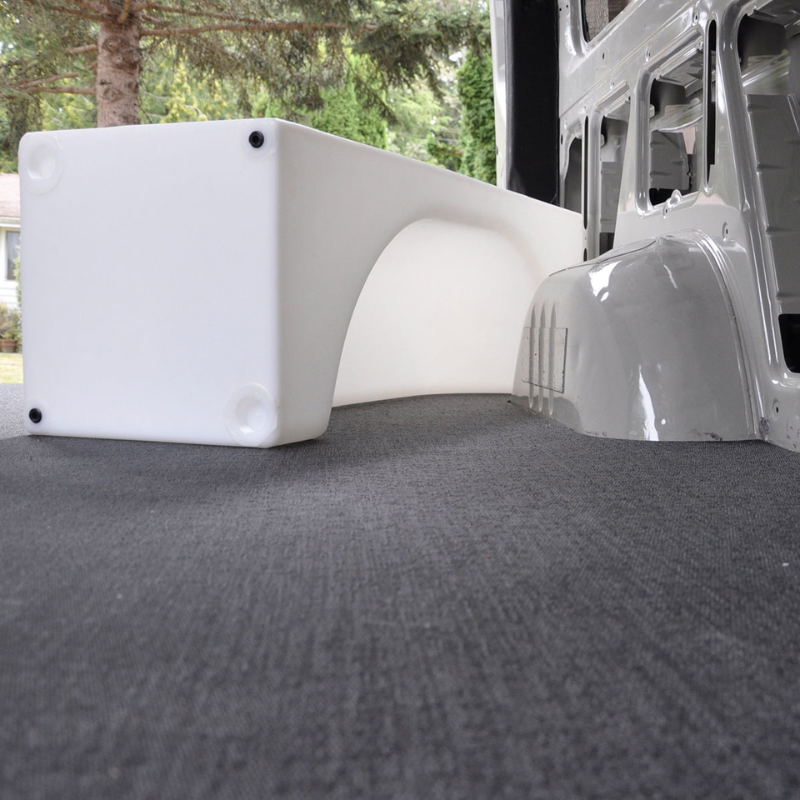

The NW Conversions 36 Gallon Wheel Well Water Tank is designed to utilize the wasted space directly above and around your van’s wheel well. It fits tight to the wheel well, allowing you to reclaim valuable garage space for bikes, storage bins, tools, and other gear.

With a 48” long, low-profile design (16” deep × 16” tall), this tank centers cleanly over the wheel well while keeping your water system fully inside the van — ideal for cold-weather travel where exterior tanks aren’t an option.

Vehicle Fitment

• Designed to fit Sprinter 2500 and Sprinter T1N

• Fits Ford Transit (single rear wheel) vans

  • Transit wheel wells are slightly smaller than Sprinter, providing additional room for insulation

• Promaster requires elevating the tank approximately 3.5” to clear larger wheel wells

• Can be installed on either driver or passenger side

• May fit other makes and models depending on layout

Designed for Clean, Easy Plumbing

This tank includes multiple thoughtfully positioned ports to give easy access during plumbing:

• (2) 1.5” NPT ports on each end

• (2) 1/2” NPT ports on each end

• (1) 1.5” NPT port on top (ideal for fill or sensor installation)

The tank is not designed to be pressurized and must be properly vented in your system.

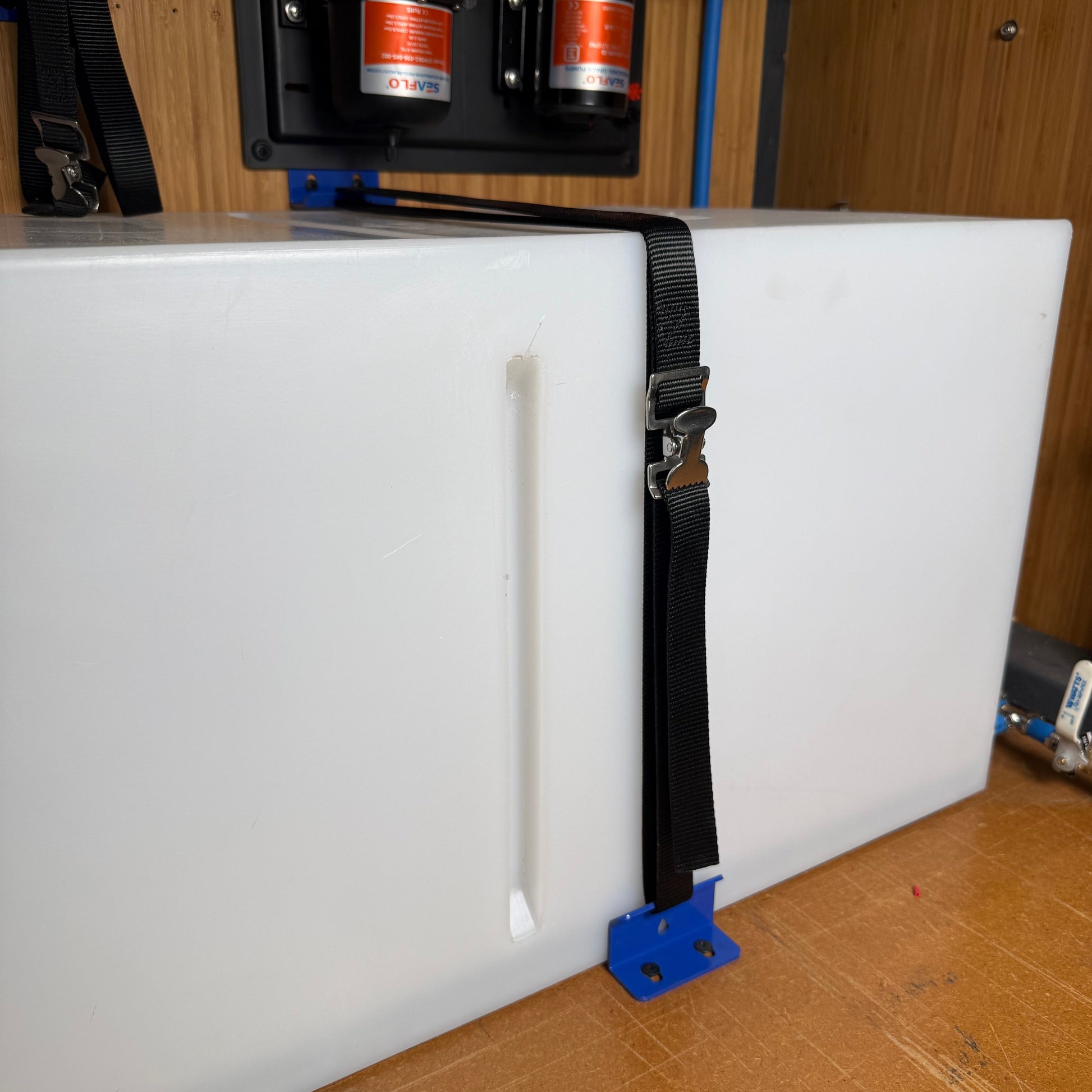

Secure & Simple Installation

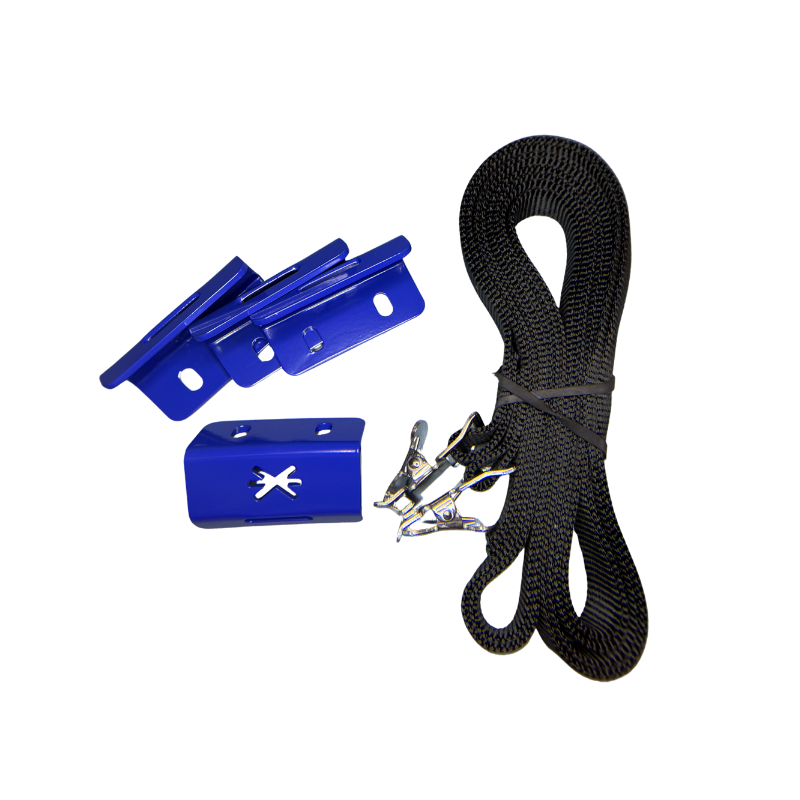

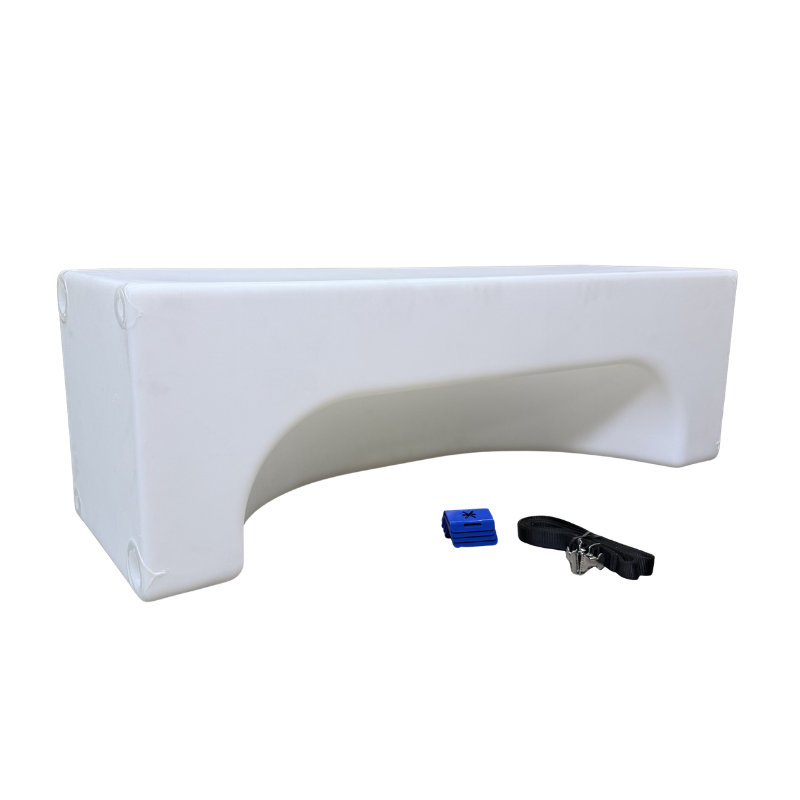

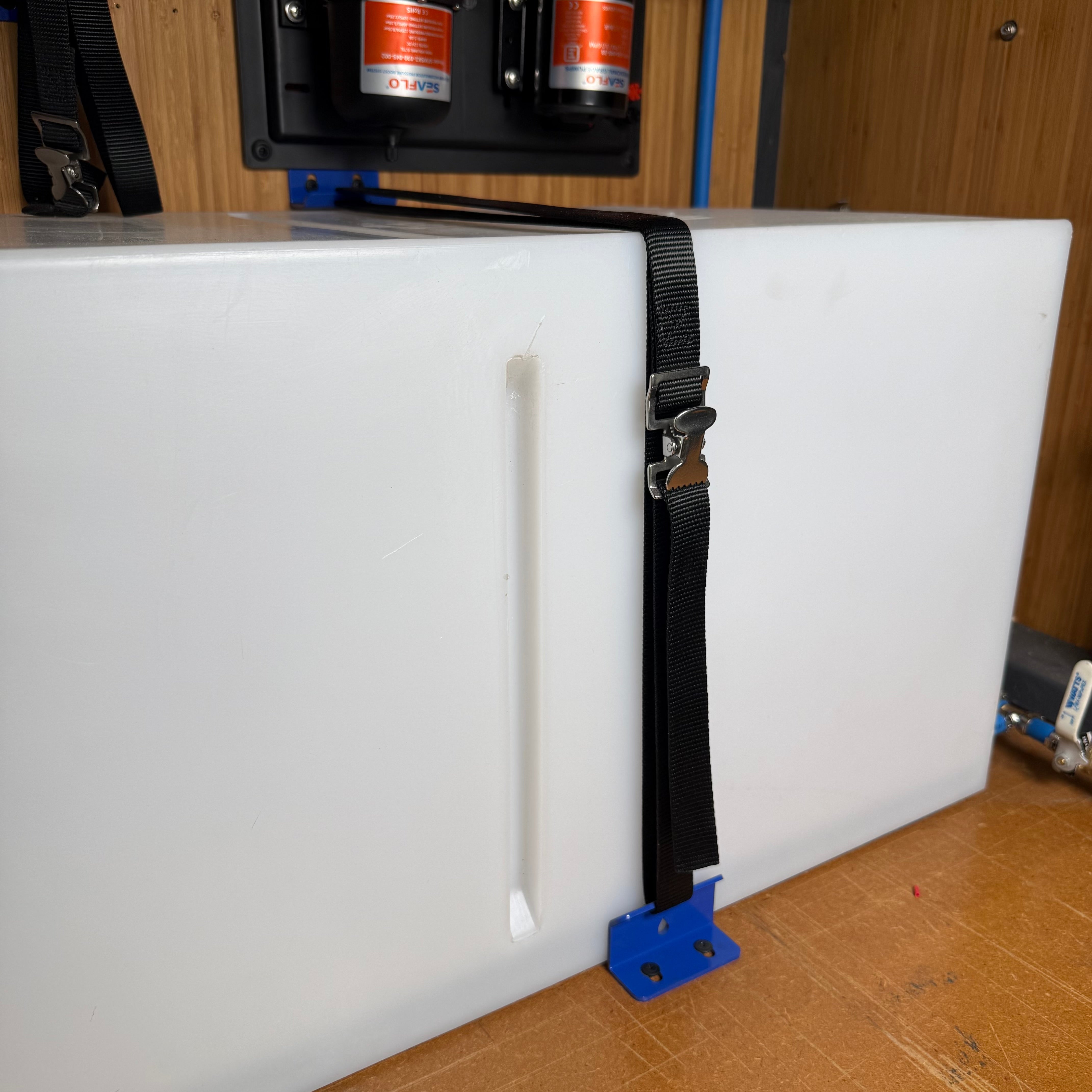

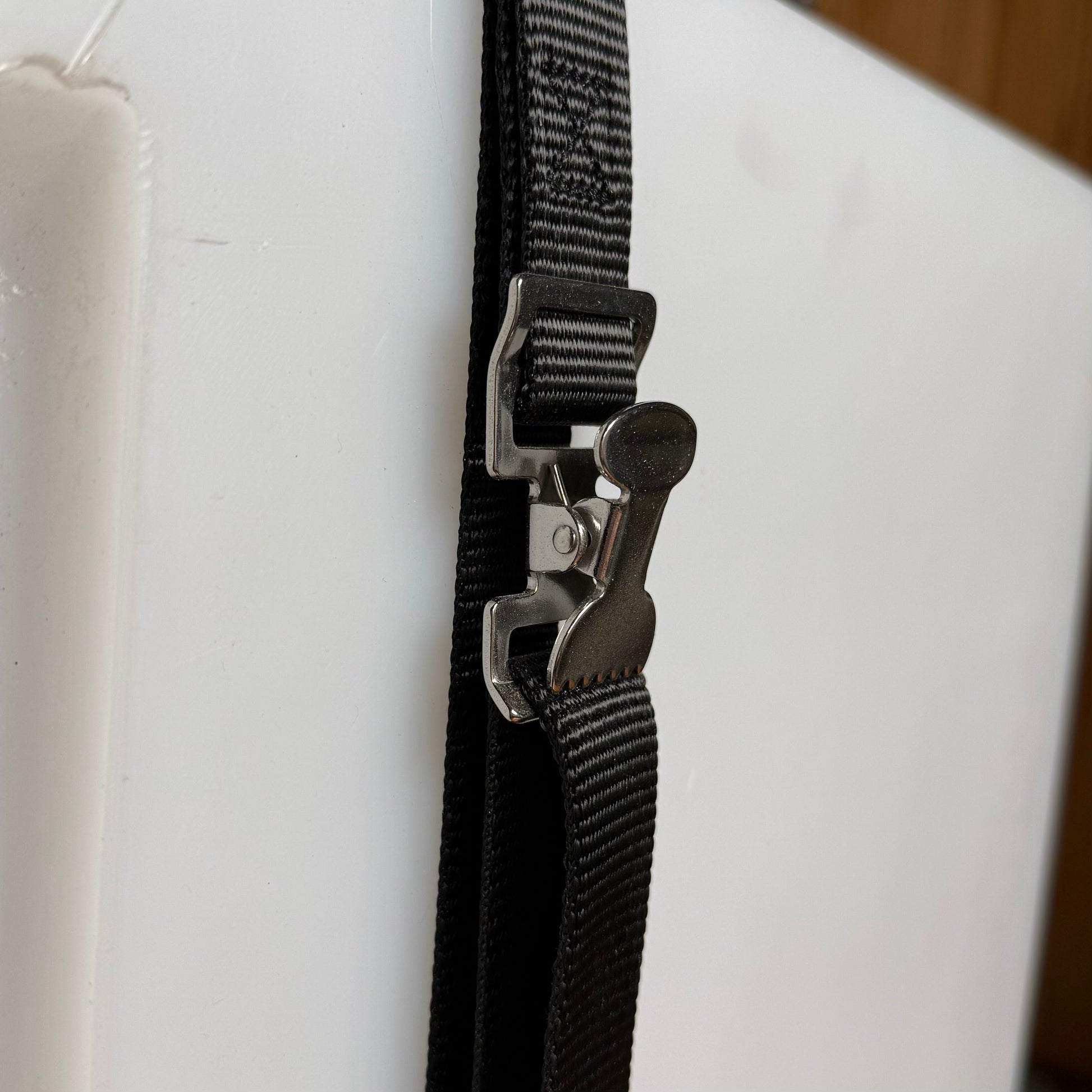

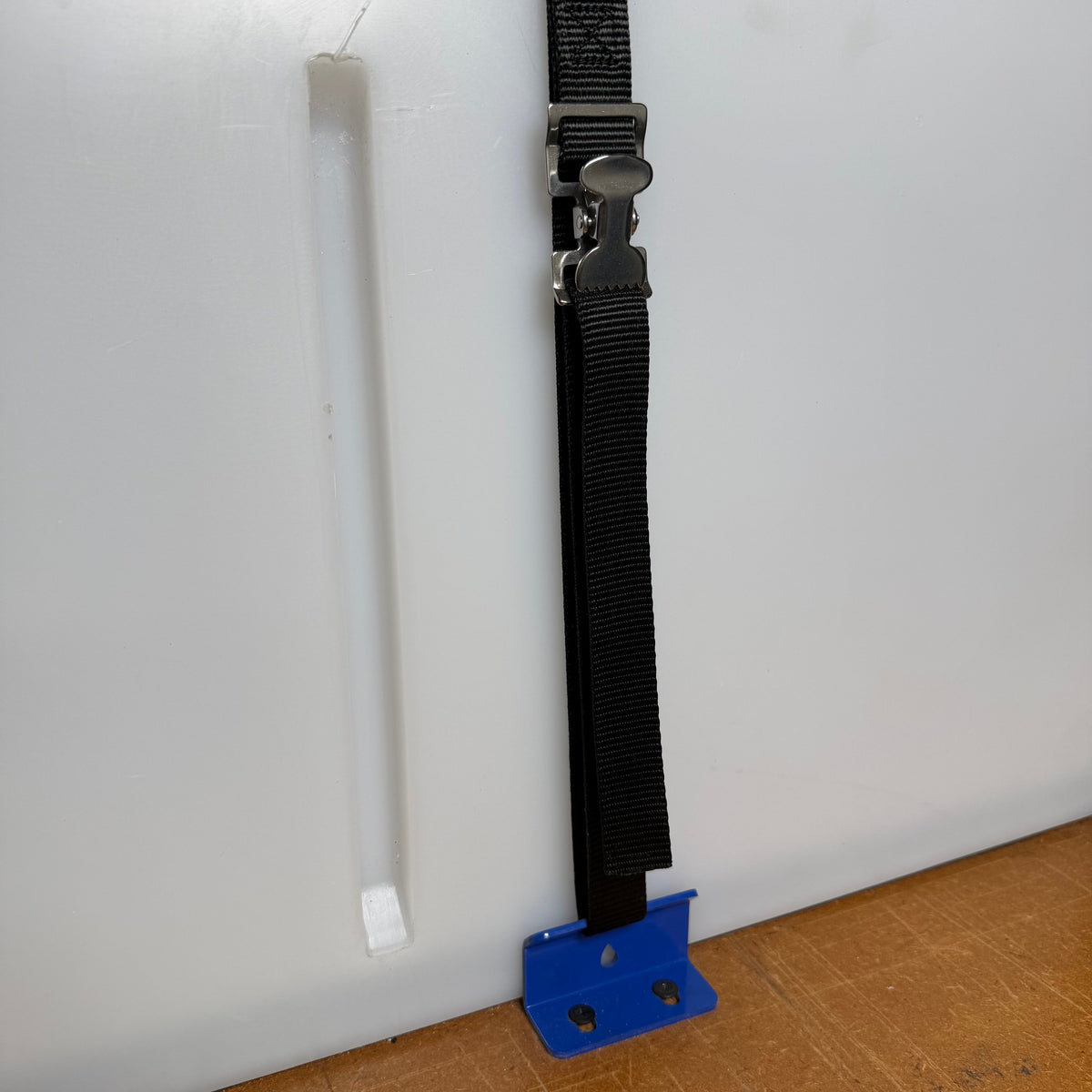

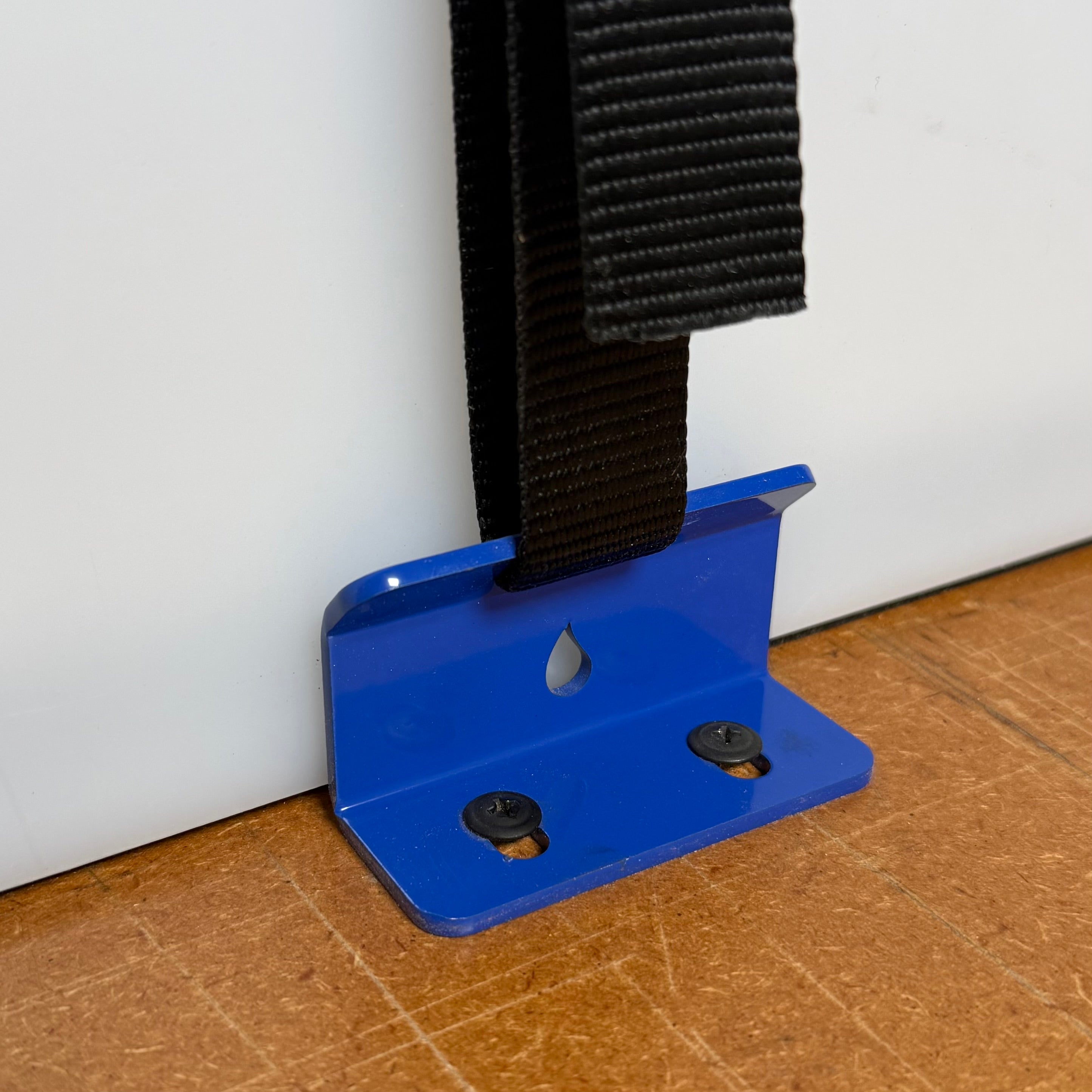

• Includes brackets and straps to properly secure the tank

• Designed to mount tight and stable over the wheel well

• Keeps weight low and centered

Specs

• 36 gallon capacity

• Made from BPA-free, food-grade plastic

• IAPMO TS 4 Tested and Certified

• Made in the USA

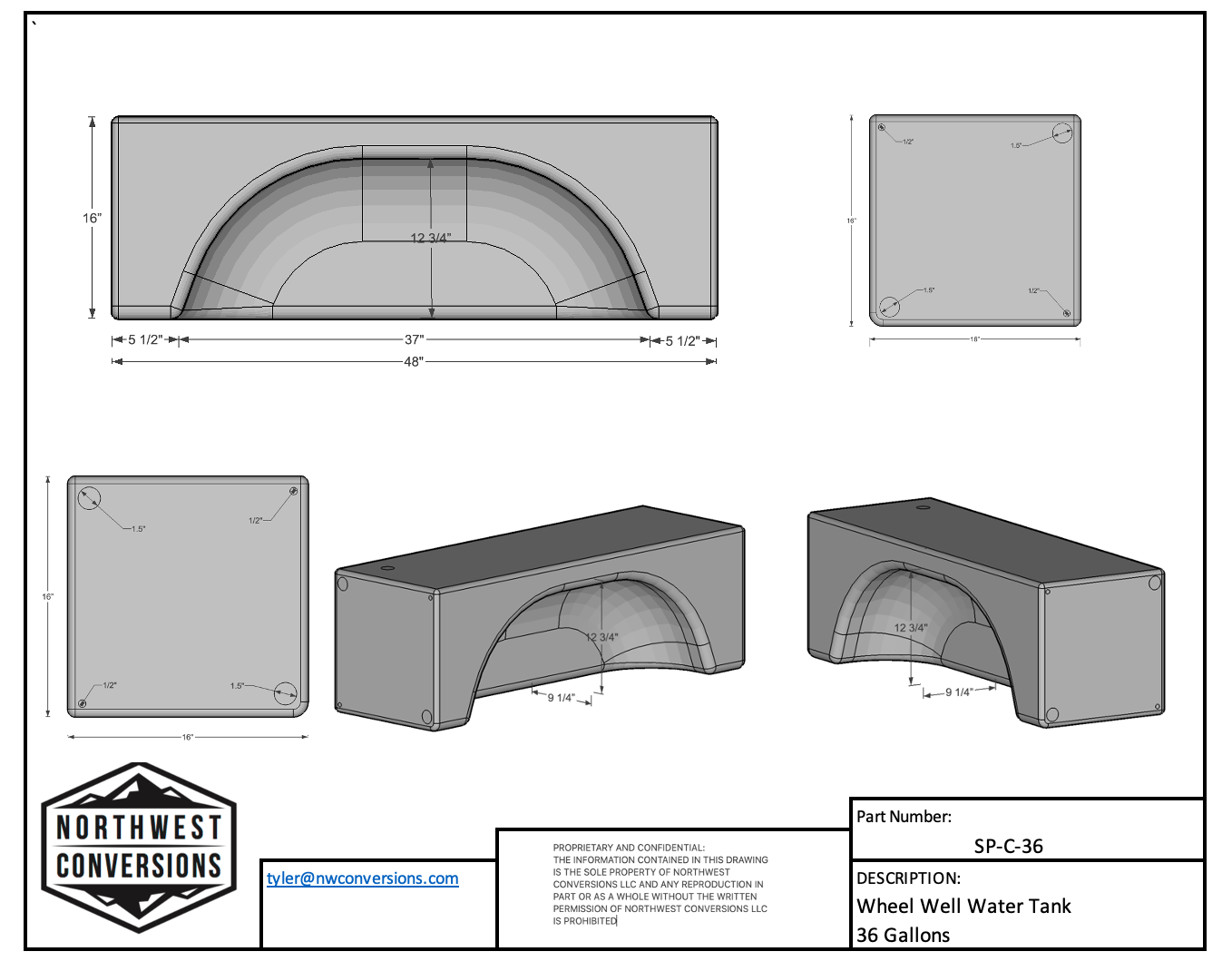

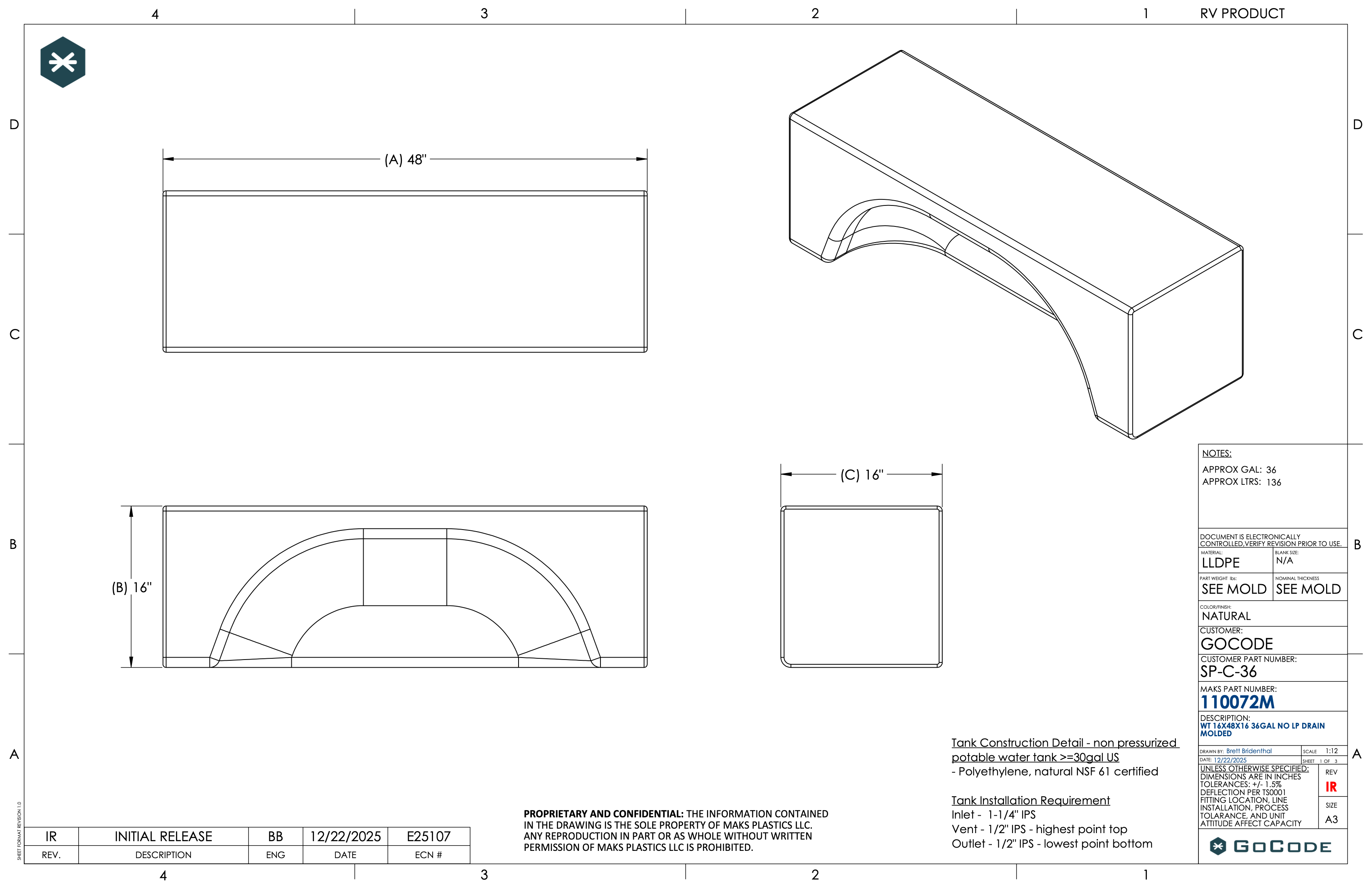

• Dimensions: 48” × 16” × 16”

• Weight: 31 lbs

If you're building a van that needs serious water capacity without sacrificing garage storage, this wheel well tank is a clean, space-efficient solution designed specifically for Sprinter and Transit layouts.
