Sterling Power 48V to 12V Converter & DC-DC Battery Charger - 40 Amp

Sterling Power 48V to 12V Converter & DC-DC Battery Charger - 40 Amp

Name: Sterling Power 48V to 12V Converter & DC-DC Battery Charger - 40 Amp
Brand: Sterling Power
SKU: BB4812
Price: 399.00 USD
Availability: InStock

$399.00

SKU:BB4812

Low stock

Fast Shipping
Expert Support
Road-Tested Gear

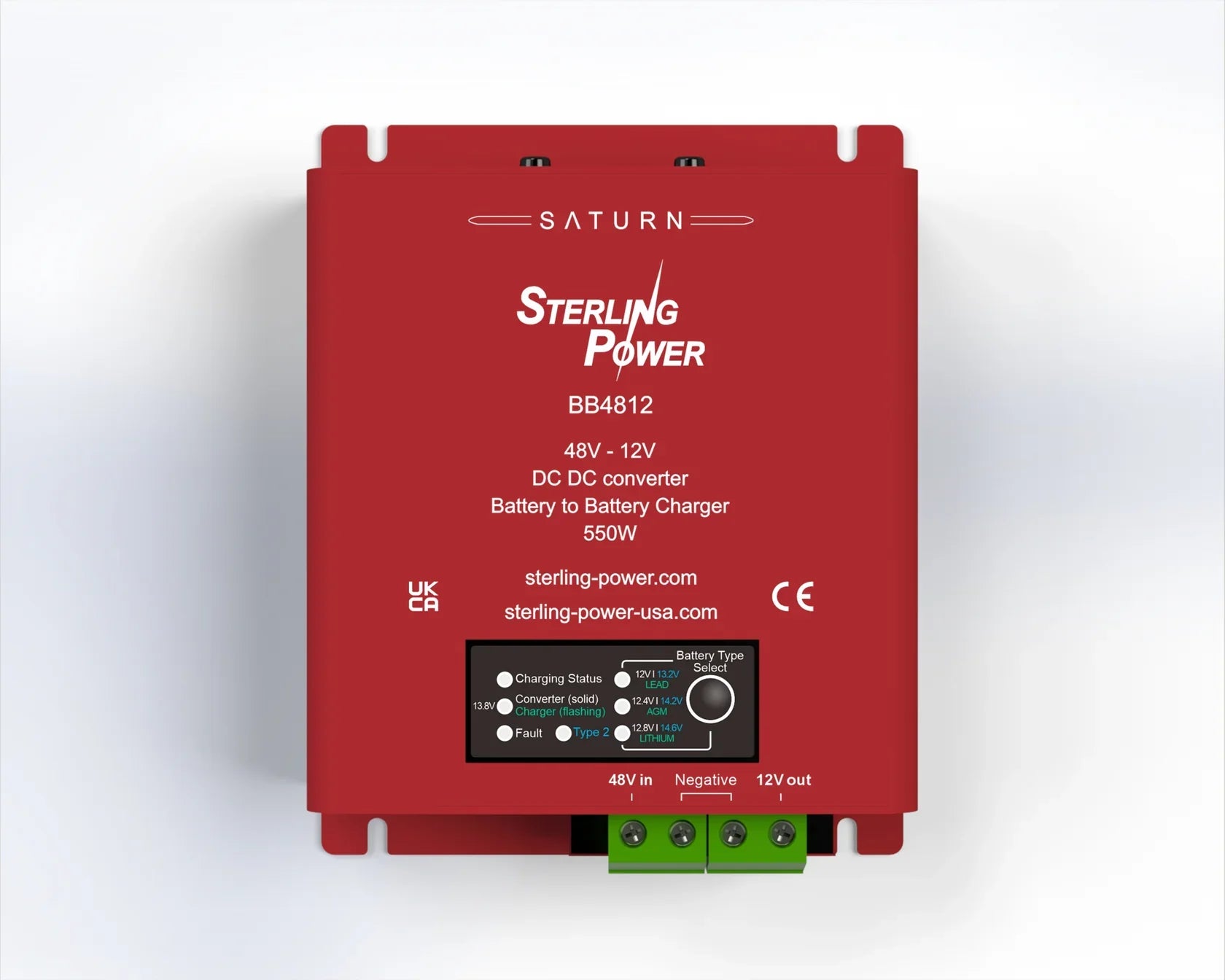

The Saturn BB4812 DC DC converter and battery to battery charger.

This is a dual purpose device. The first function enables a simple convertion of a 48V (39-60V) DC supply to provide a very stable 12V (customisable) DC Supply to the tune of 40A ~550W. So, it can be used as a standalone converter to give you a 12V feed from your 48V battery bank (lithium or lead acid). This may be required to run 12V fridges, 12V pumps, 12V USB-C laptop / phone chargers, 12V LEDs, 12V ~500W inverter. No 12V battery required, although, there is no problem having one.

It's additional function is one of a DC DC charger. So, just like our range of Saturn BB chargers. It can simply charge up a 12V battery / bank from a 48V supply. It operates like a normal multistage battery charger. This is also 40A rated, current limiting and the charge voltages are adjustable.

Due to its high level of capacitance it operate an extremely stable 12V DC supply. The default, out of of the box 12V output is 13.8V. So, without making any adjustments to the device, applying 39-60VDC to the input, it shall deliver 13.8V at 40A = 552W. Due to its combined charger and converter function a 12V battery doesn't have to be used as a buffer, but of course, it can be added, the BB4812 is current limiting.

BB4812
Input voltage range: 39V-60V
Continuous Rated output power at default setting: 40A at 13.8V ~550W
Continuous Rated input current - too varied, based on input voltage: 565W
Quiescent current: 1mA
Efficiency rating: 98%

Self recovering protections:

Under voltage protection
Input over voltage protection
Output over voltage protection
Over current protection
Charge over temperature

Operational Temperature: -20 Deg C -> 60 DegC

Approval:CE | UKCA

Cooling method: Thermostatically Controlled, Variable low speed fan

Dimensions: 165mm x 130mm x 56mm (6.50" × 5.12" × 2.20")

Weight: 1.0Kg (2.20 lb)
