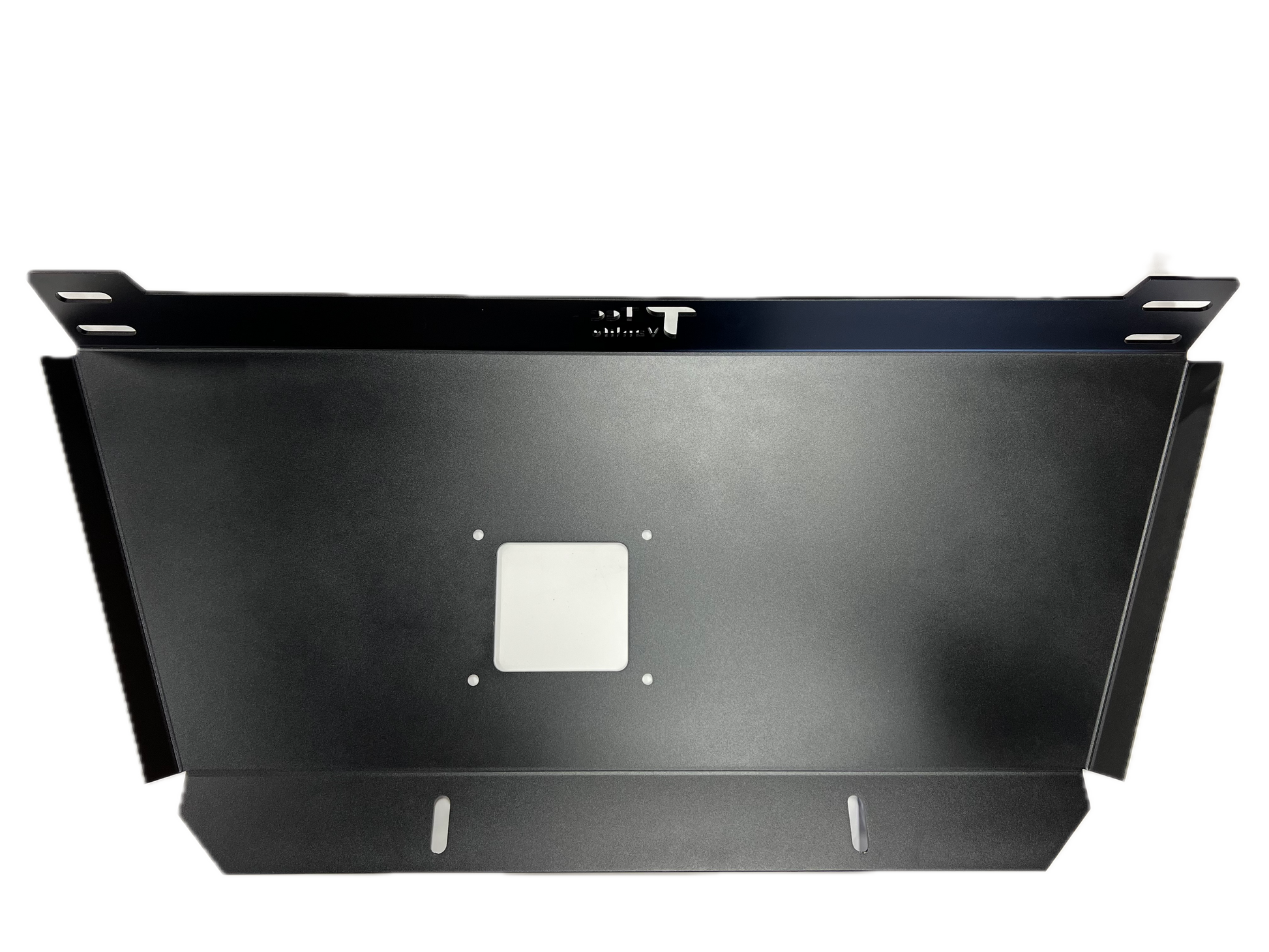

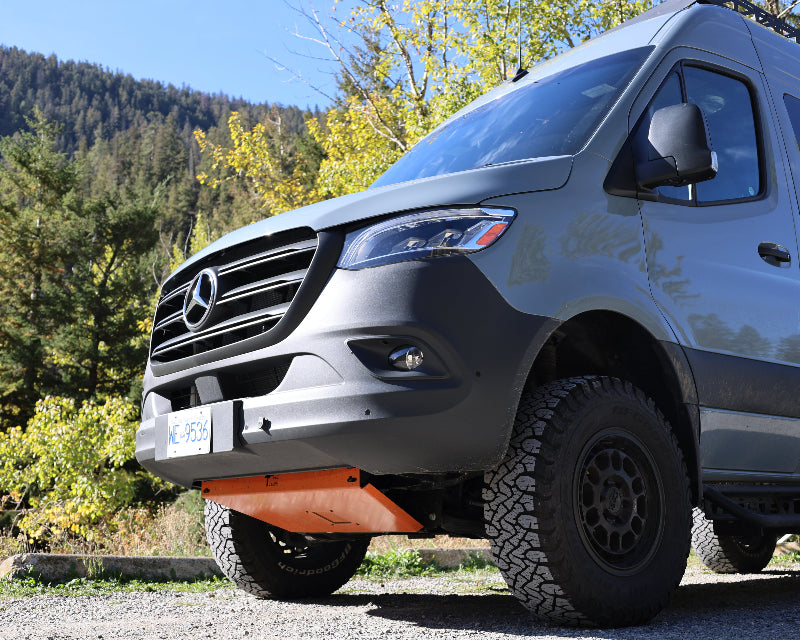

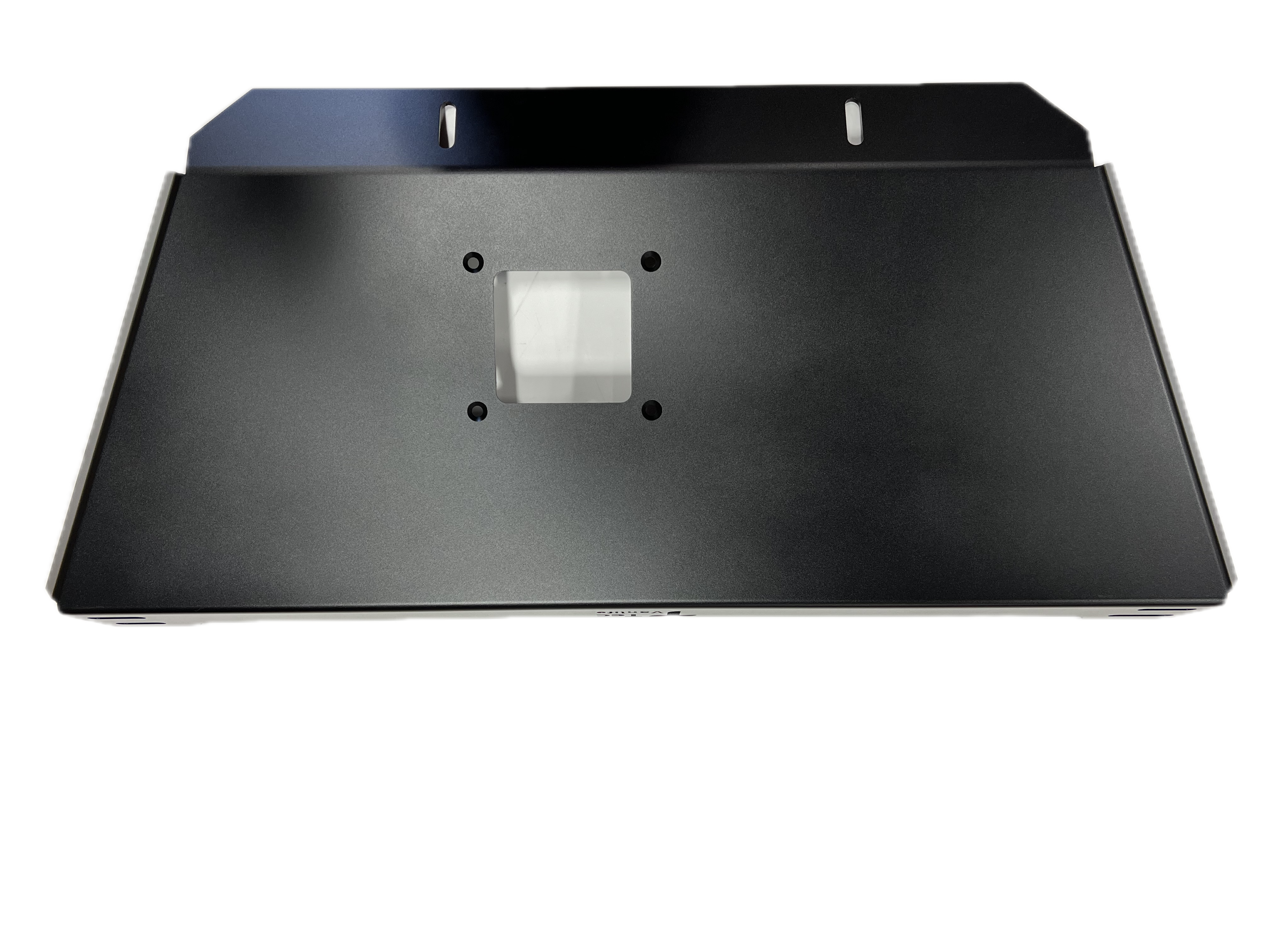

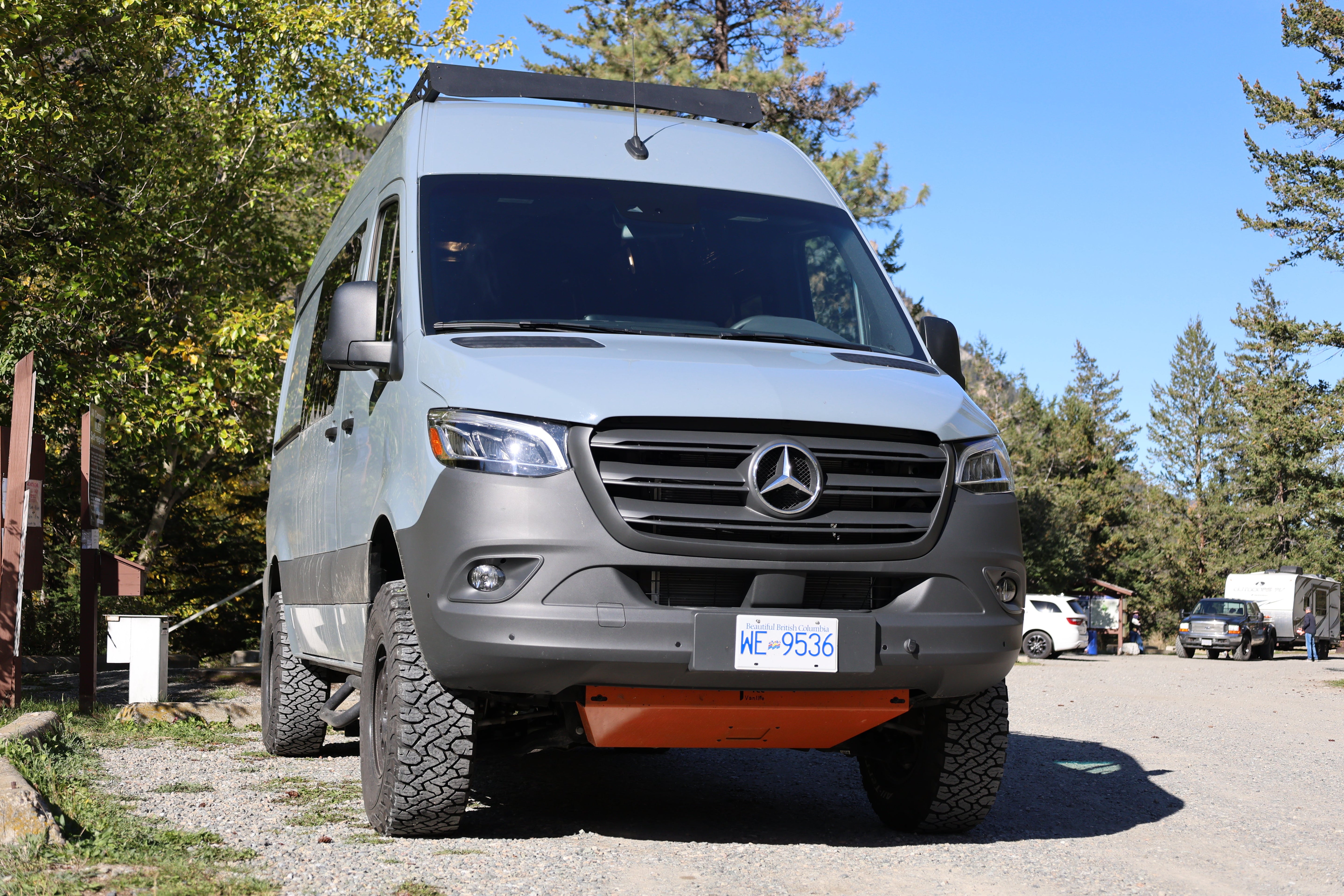

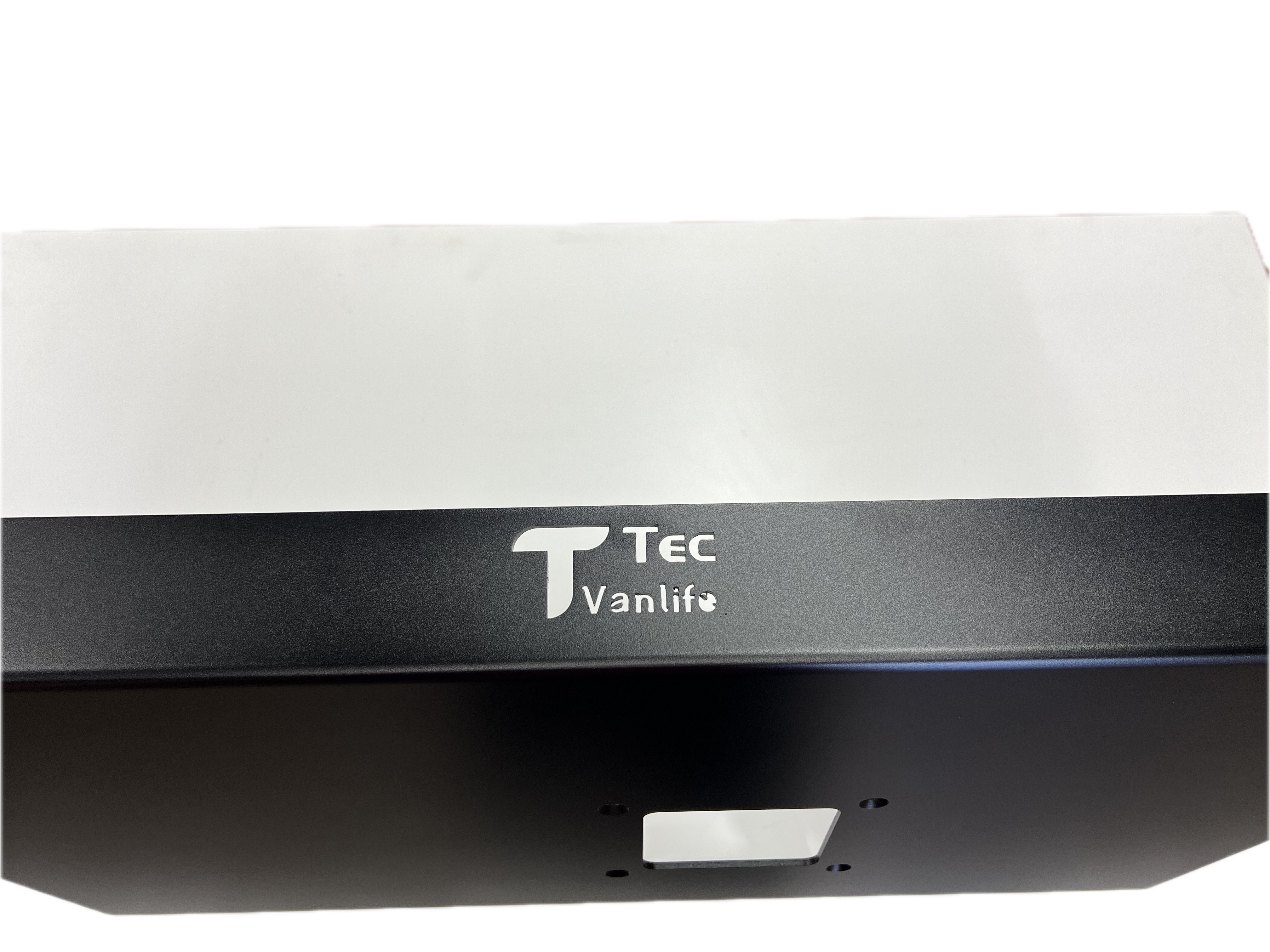

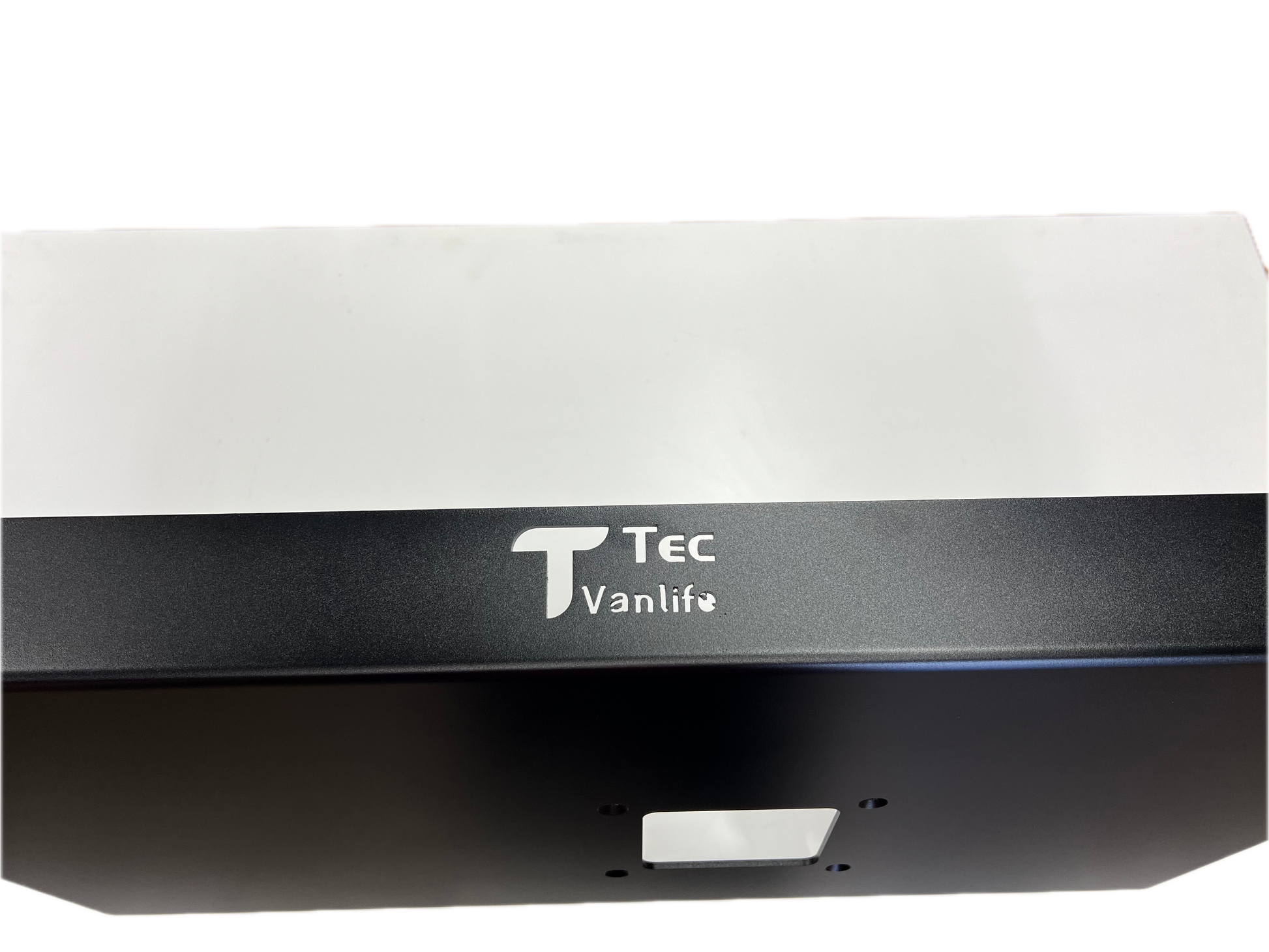

Tec Vanlife Engine Skid Plate (Sprinter 2019+)

Protect your Sprinter’s engine and front underbody components from rocks, debris, and rough terrain with this lightweight aluminum skid plate.

Key Features:

• Constructed from 3/16" thick high strength aluminum for durable underbody protection without excessive weight
• Helps protect the oil pan, steering components, crossmember, and subframe from rocks, logs, roots, snow, ice, and road debris
• Aluminum construction provides natural corrosion resistance for use in harsh road and trail conditions
• Designed for 2019 and newer Mercedes-Benz Sprinter models, including 2019 to 2022 4x4 and 2023 and newer AWD models
• Installs using existing factory mounting points without drilling, trimming, or additional brackets
• Compatible with the factory engine splash guard and aftermarket lift kits
• Lightweight design minimizes unnecessary impact on vehicle weight and performance

Specifications:

• Dimensions: 41" x 23 1/4" x 4" (1041 x 591 x 102 mm)
• Material Thickness: 3/16" (5 mm)
• Weight: 18.6 lb (8.4 kg)
• Material: Aluminum

Compatibility:

• 2019 to 2022 Mercedes-Benz Sprinter 4x4 models
• 2023 and newer Mercedes-Benz Sprinter AWD models

Installation Instructions:

1. Prepare the Van

• Park the van on a level surface and engage the parking brake.
• Raise the front of the van and support it securely with jack stands, or use a vehicle lift for easier access.

2. Position the Skid Plate

• Lift the skid plate into position beneath the engine bay.
• Align the front mounting holes with the factory threaded holes in the front crossmember.
• Insert the factory bolts or reinstall the existing bolts if they were removed.
• Hand tighten the bolts to hold the skid plate in position.

3. Secure the Rear Mounting Points

• Align the rear mounting holes with the factory mounting points near the lower control arm and suspension subframe.

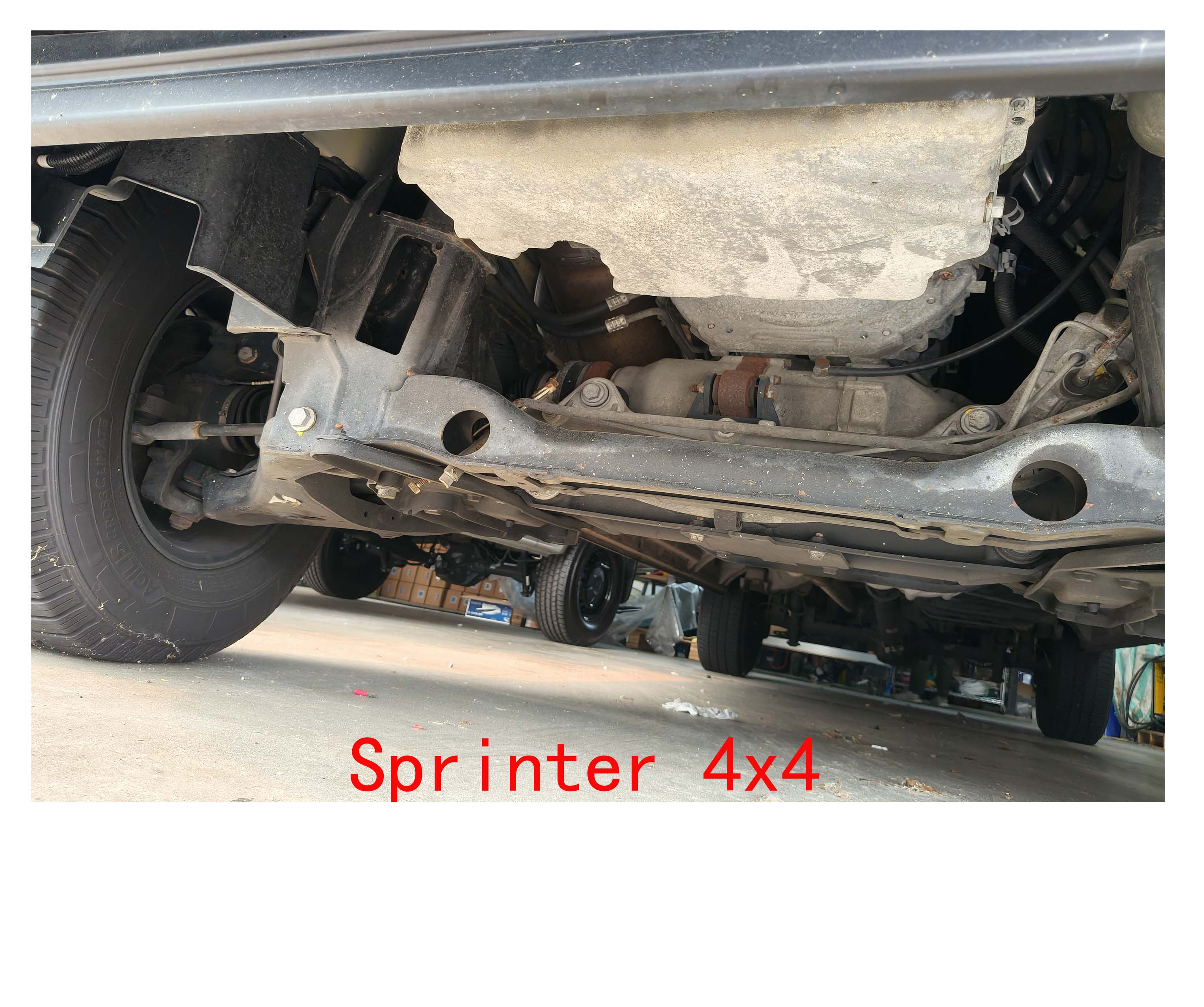

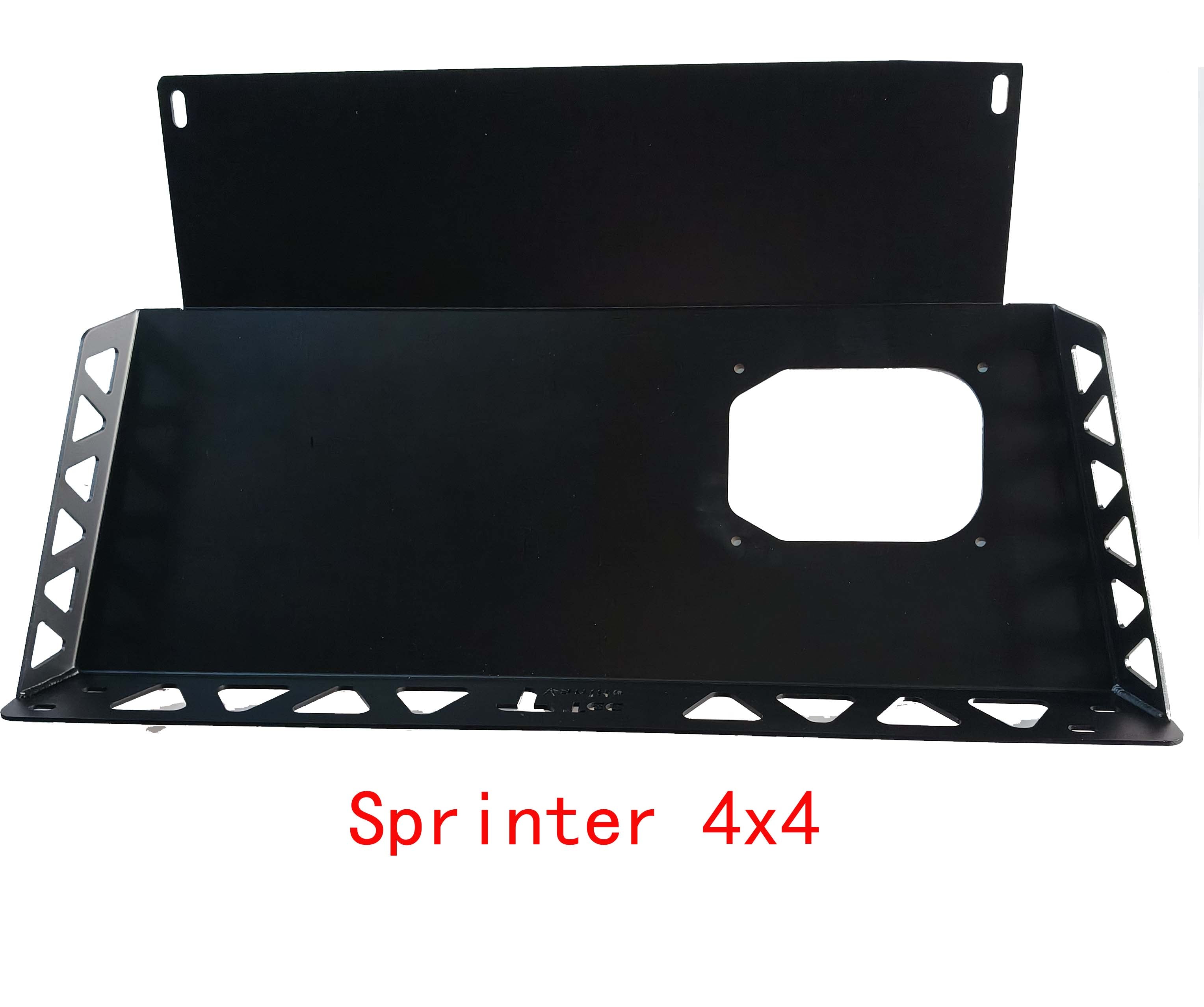

• On 2019 to 2022 Sprinter 4x4 models, the rear mounting points are positioned farther apart.

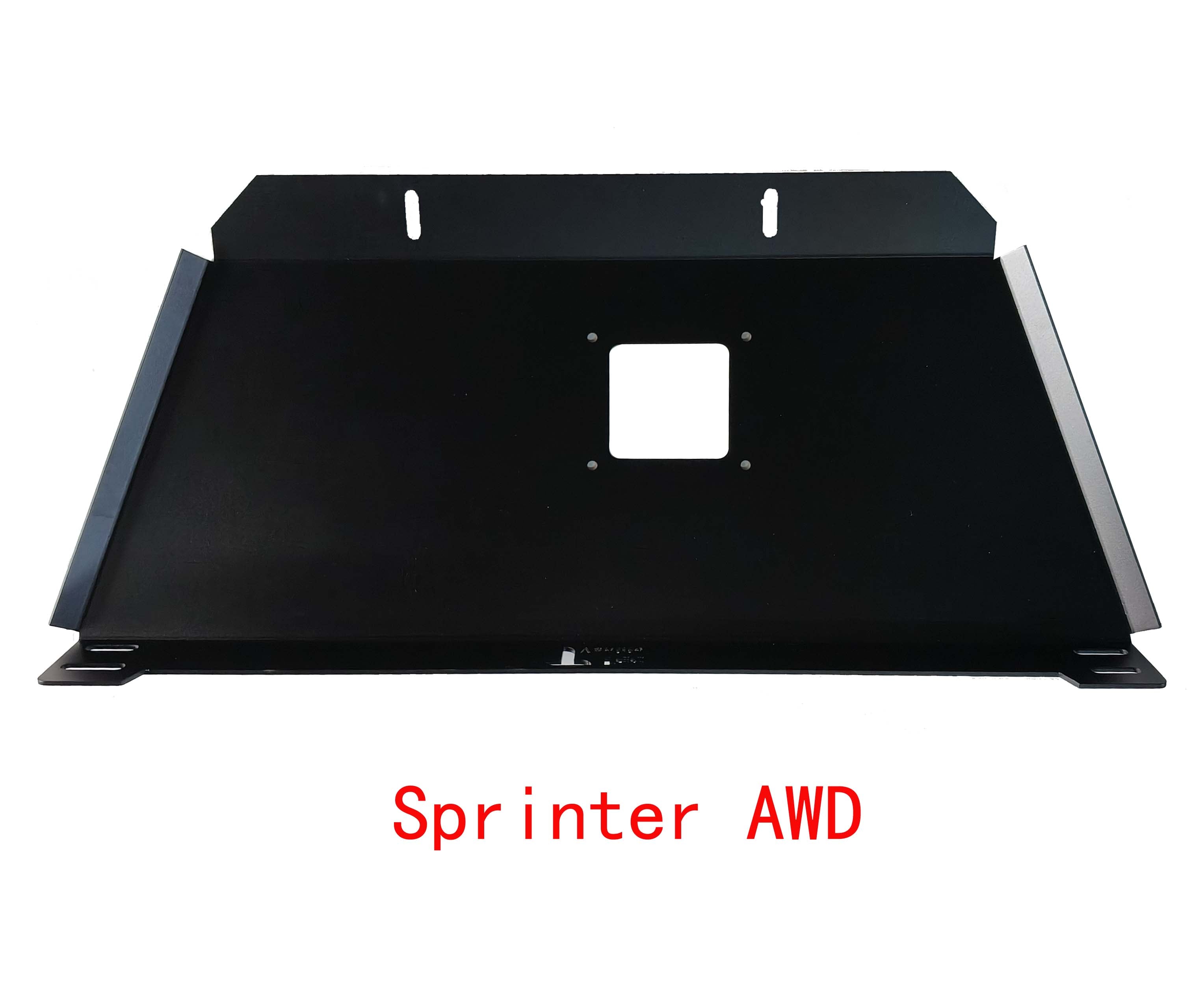

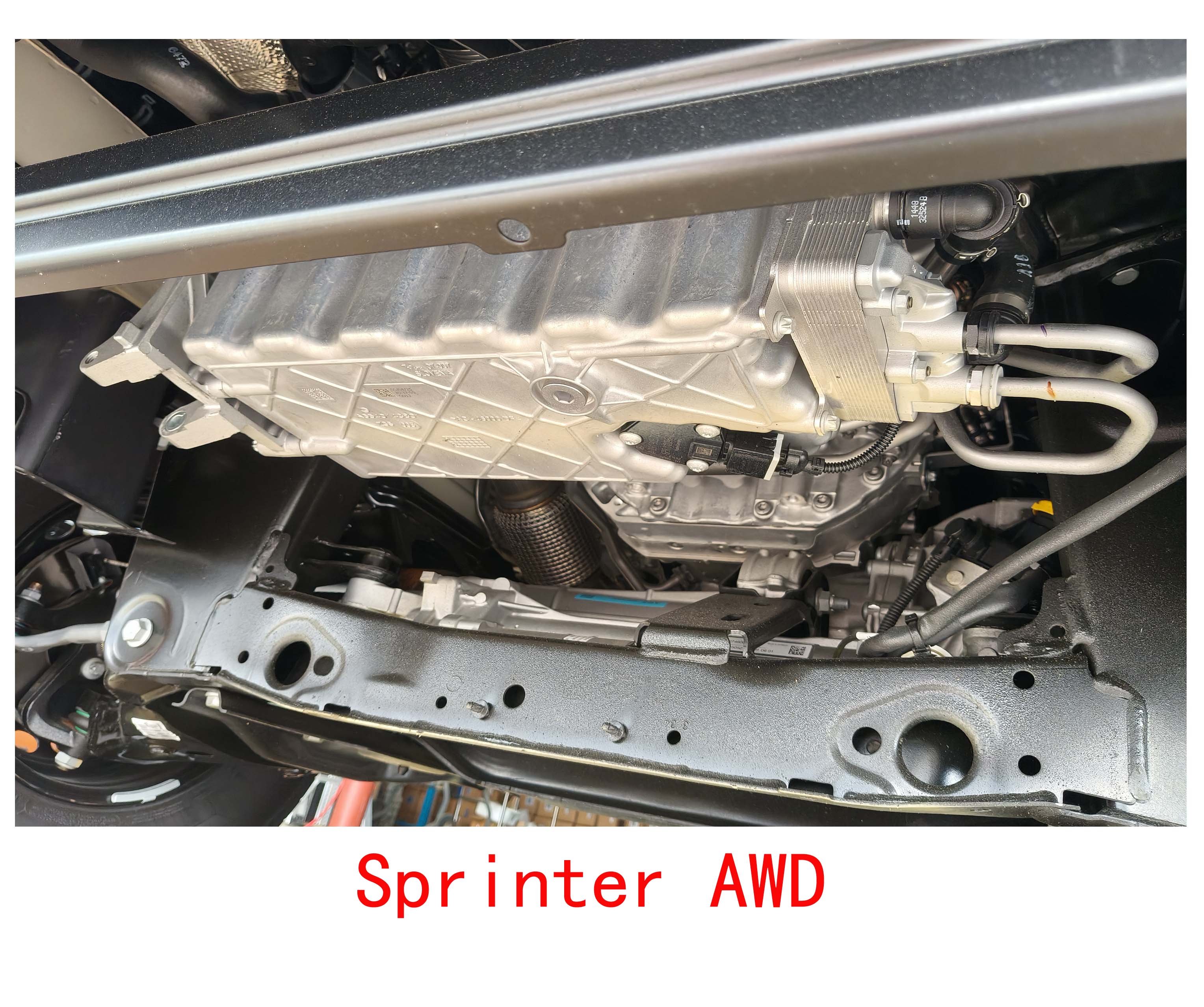

• On 2023 and newer Sprinter AWD models, the rear mounting points are closer together and positioned slightly farther forward.
• Insert the two included bolts into the appropriate rear mounting points and hand tighten them.

4. Tighten the Hardware

• Confirm that the skid plate is centered and sits flush against the mounting surfaces.
• Tighten the front and rear mounting bolts evenly to 30 to 35 ft lb.

5. Final Inspection

• Verify that the skid plate is secure and does not interfere with nearby components.
• Recheck the mounting hardware after the first trip on rough terrain or after approximately 60 to 125 miles (100 to 200 km).

Description:

Designed for compatible Mercedes-Benz Sprinter models, this engine skid plate helps protect the oil pan, steering components, crossmember, and front subframe from impacts caused by rocks, roots, snow, ice, and road debris. The formed 3/16" aluminum construction provides durable underbody protection while keeping the overall weight to a minimum.

The corrosion resistant aluminum plate mounts directly to existing factory attachment points without drilling, trimming, or additional brackets. Separate rear mounting positions accommodate the different subframe layouts used on 2019 to 2022 Sprinter 4x4 models and 2023 and newer Sprinter AWD models.
