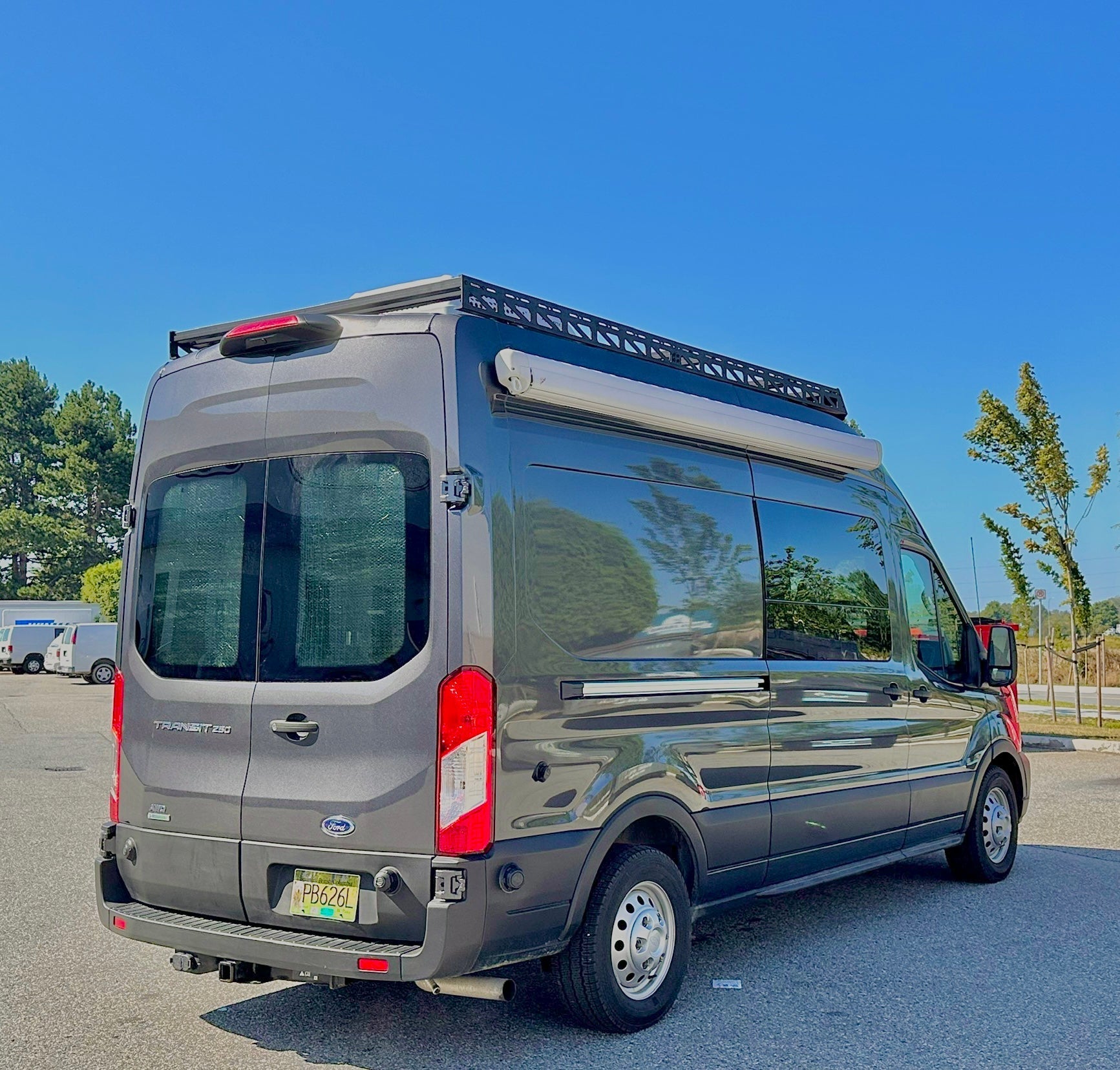

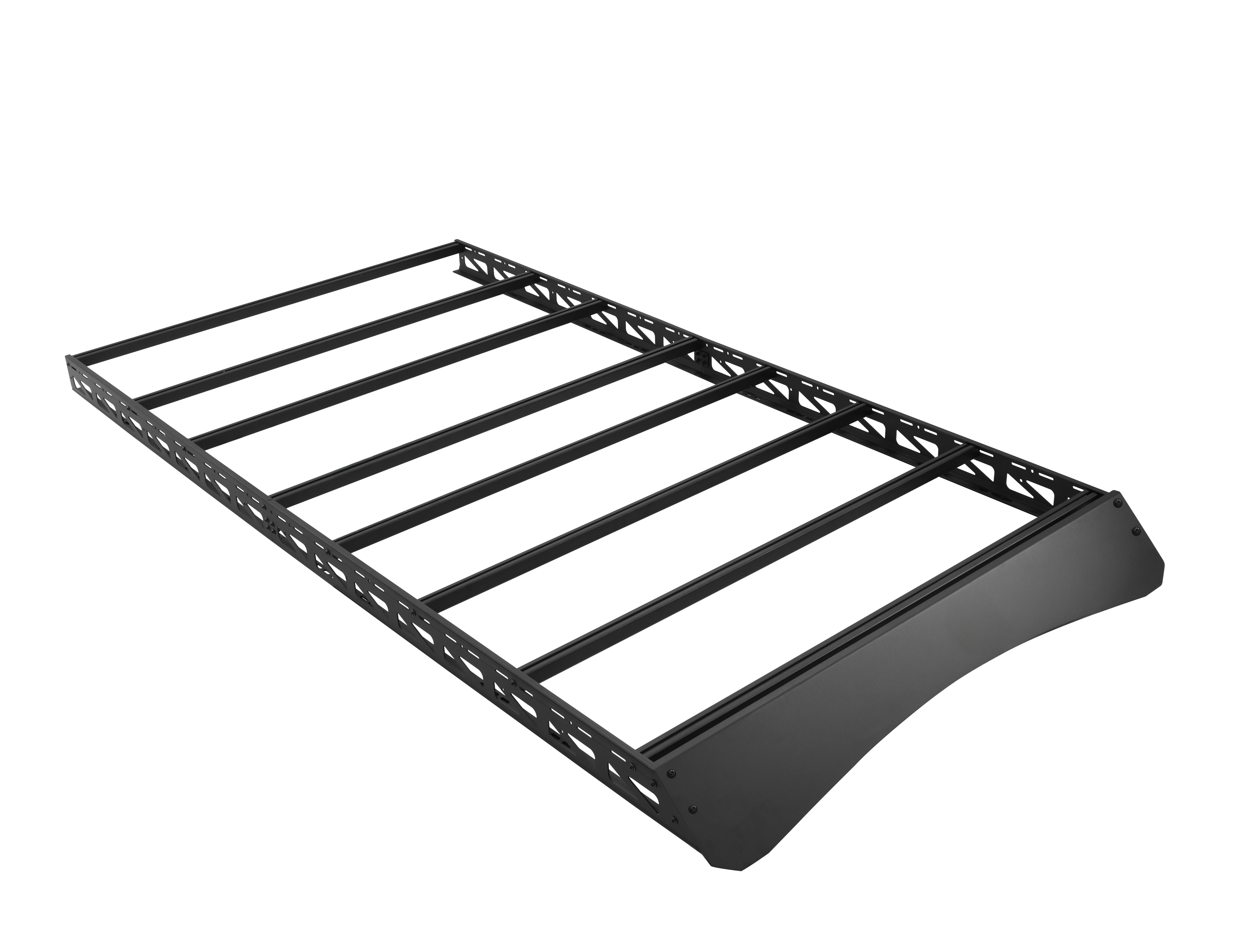

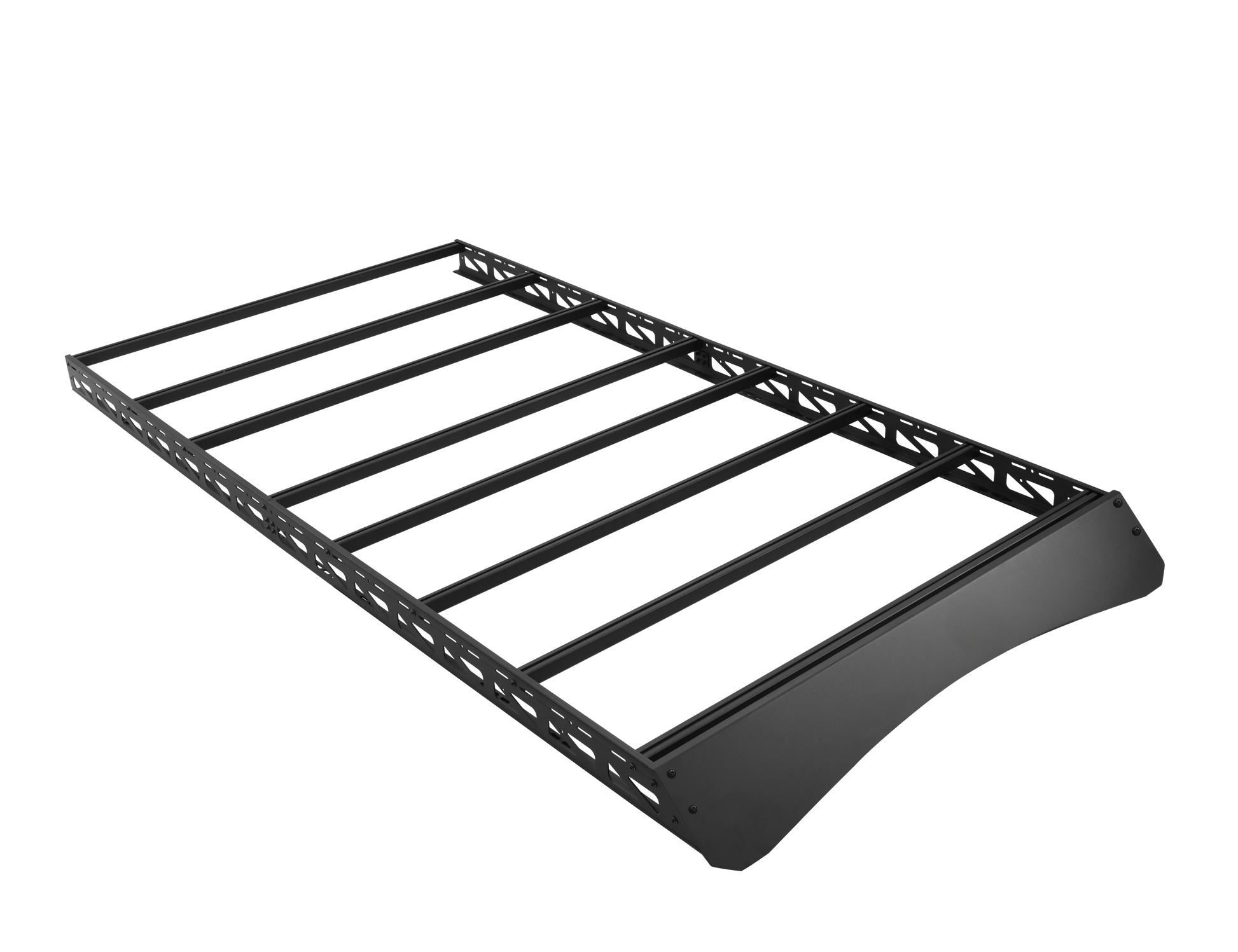

Tec Vanlife Modular Roof Rack - Ford Transit

Heavy duty, versatile roof platform for 2015+ Ford Transit vans, built for demanding van conversions and overland use that require secure mounting of solar panels, decking, and awnings.

- FREE shipping to the lower 48 states.

- Download installation instructions [PDF]

Key Features:

• Compatible with 2015+ Ford Transit

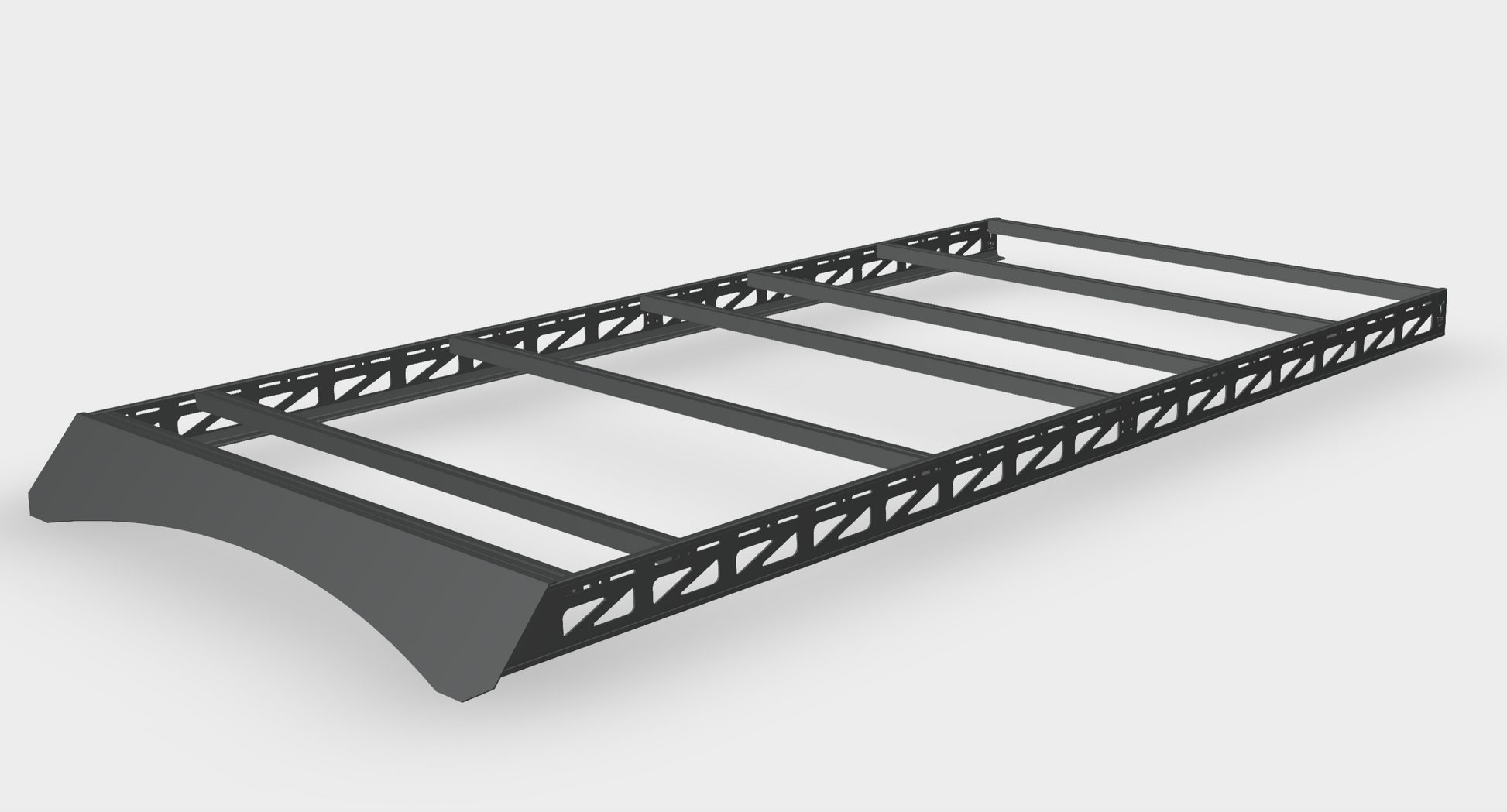

• Modular design for flexible setup

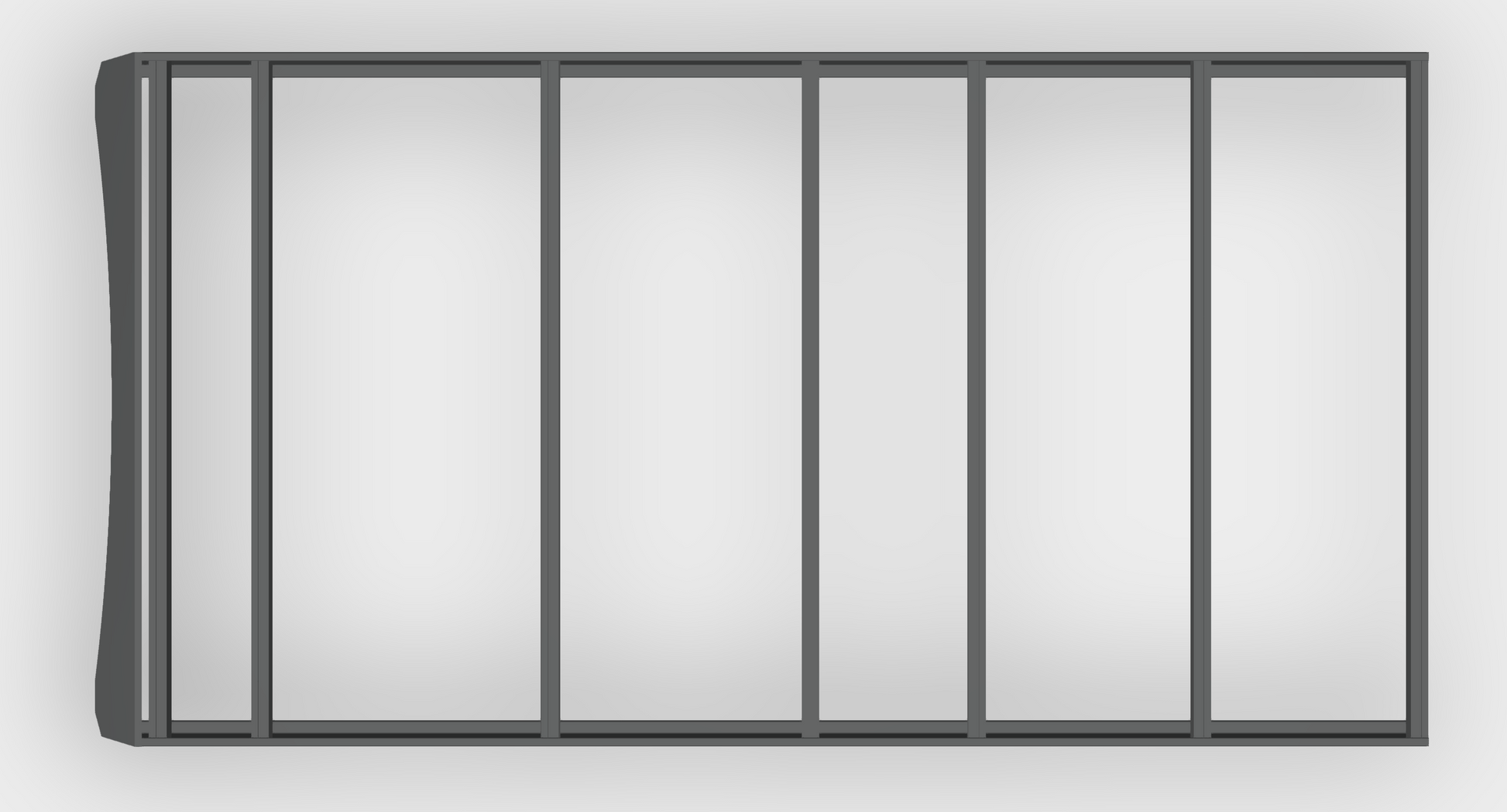

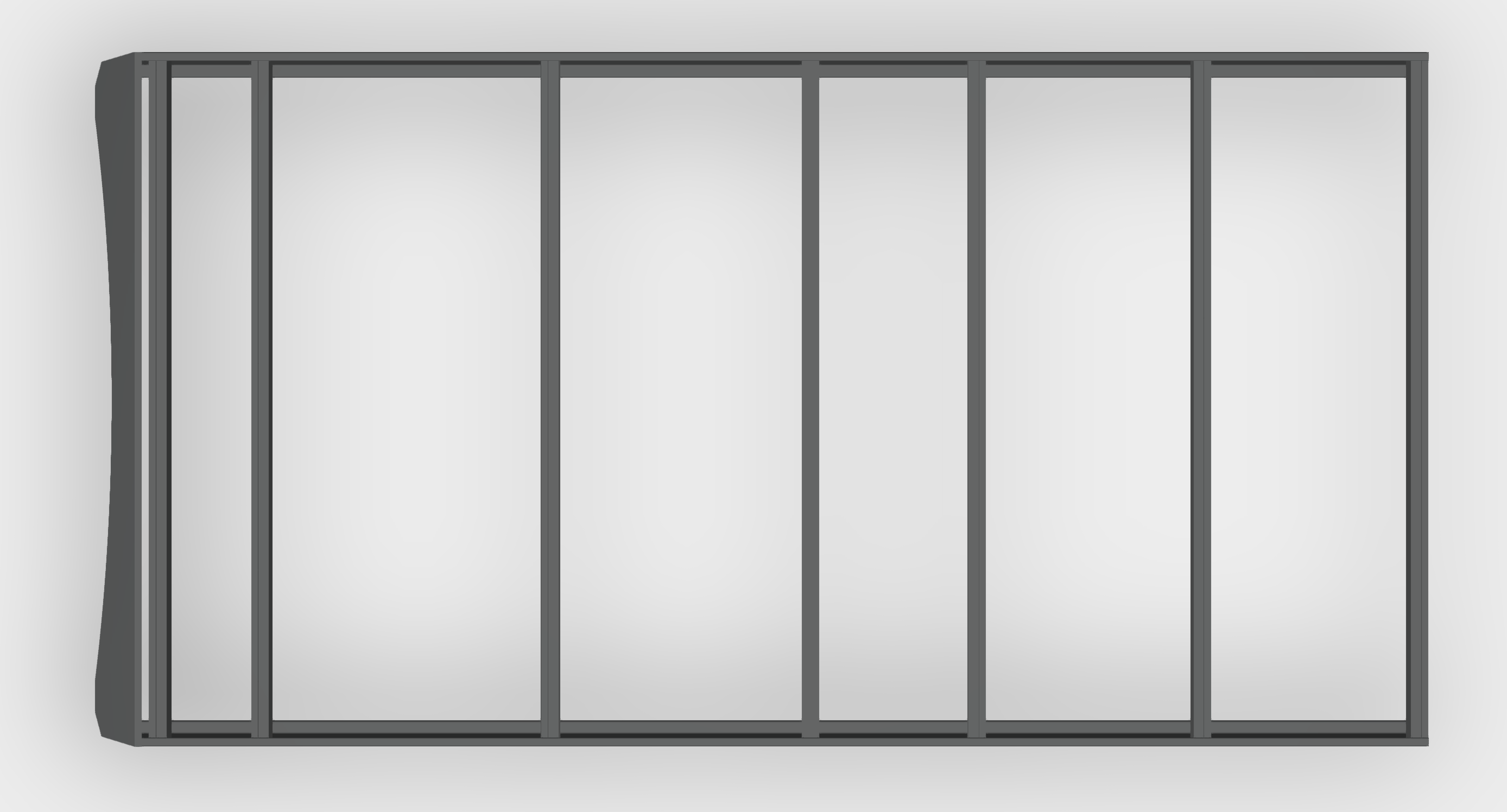

• Adjustable crossbar system to work around solar panels, cargo, roof fans, A/C units, and other equipment
• Compatible with decking, Fiamma awnings, and L-Track or bolt on accessories
• Heavy duty, high pressure molded aluminum construction
• High strength to weight ratio

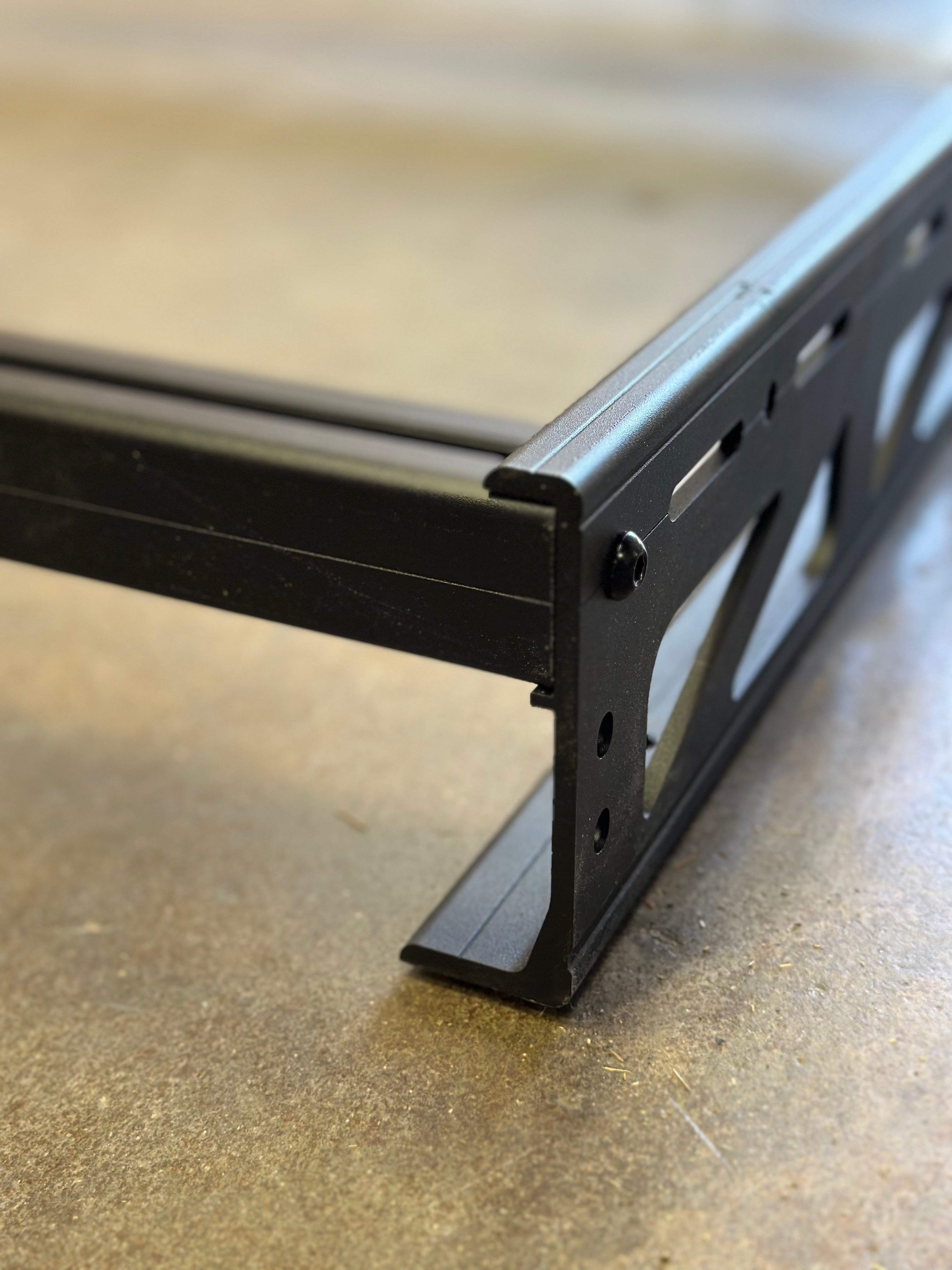

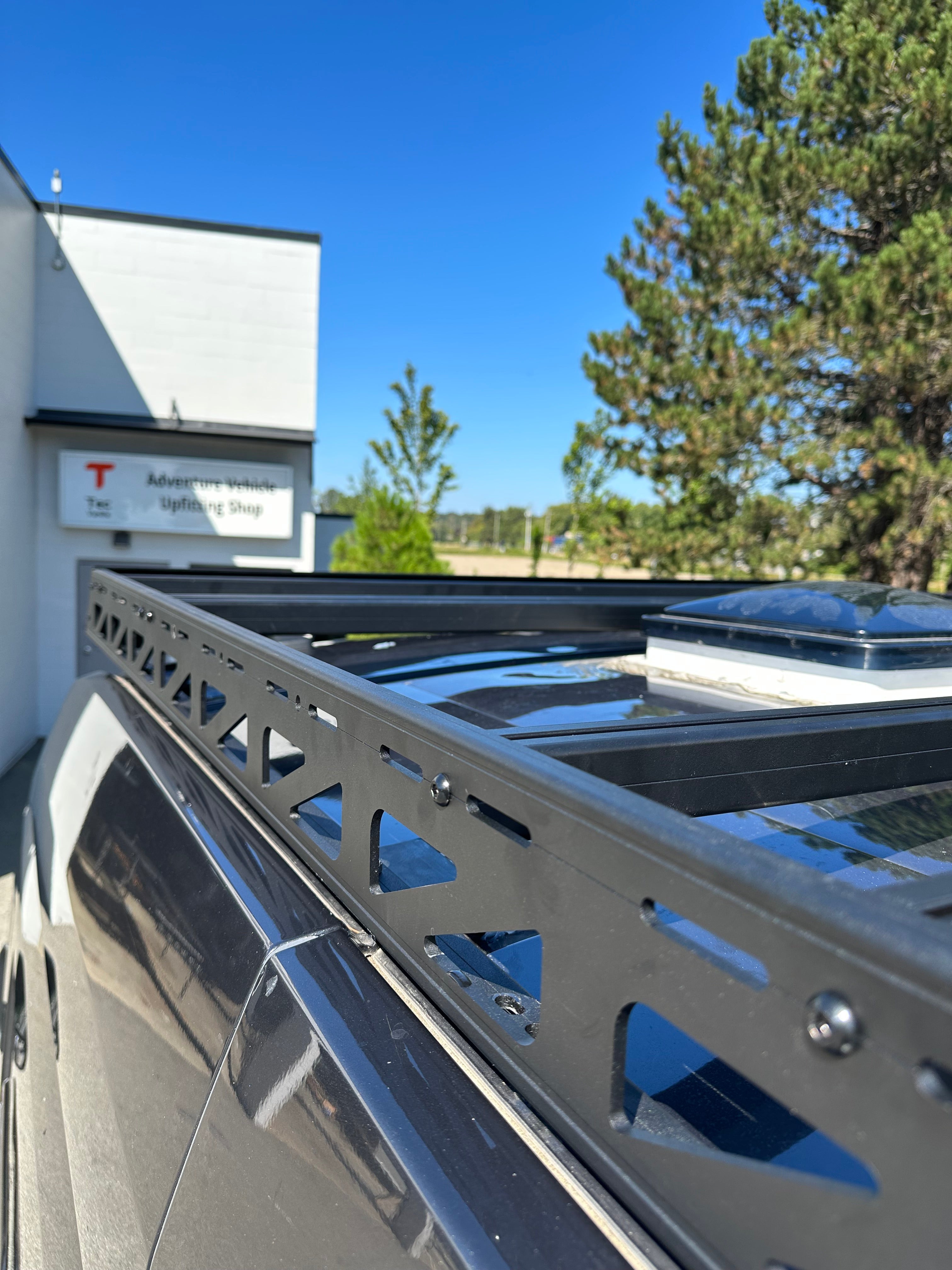

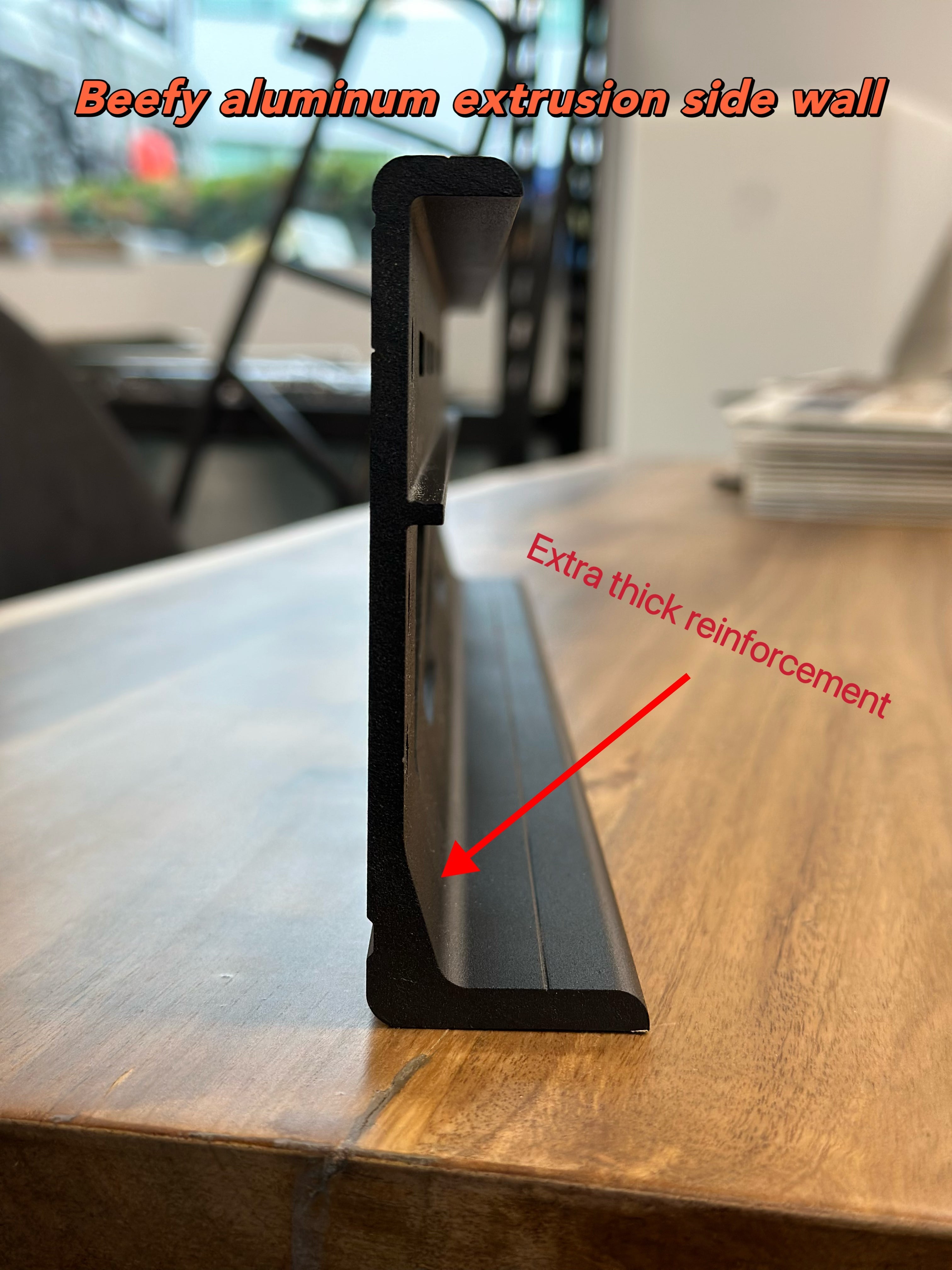

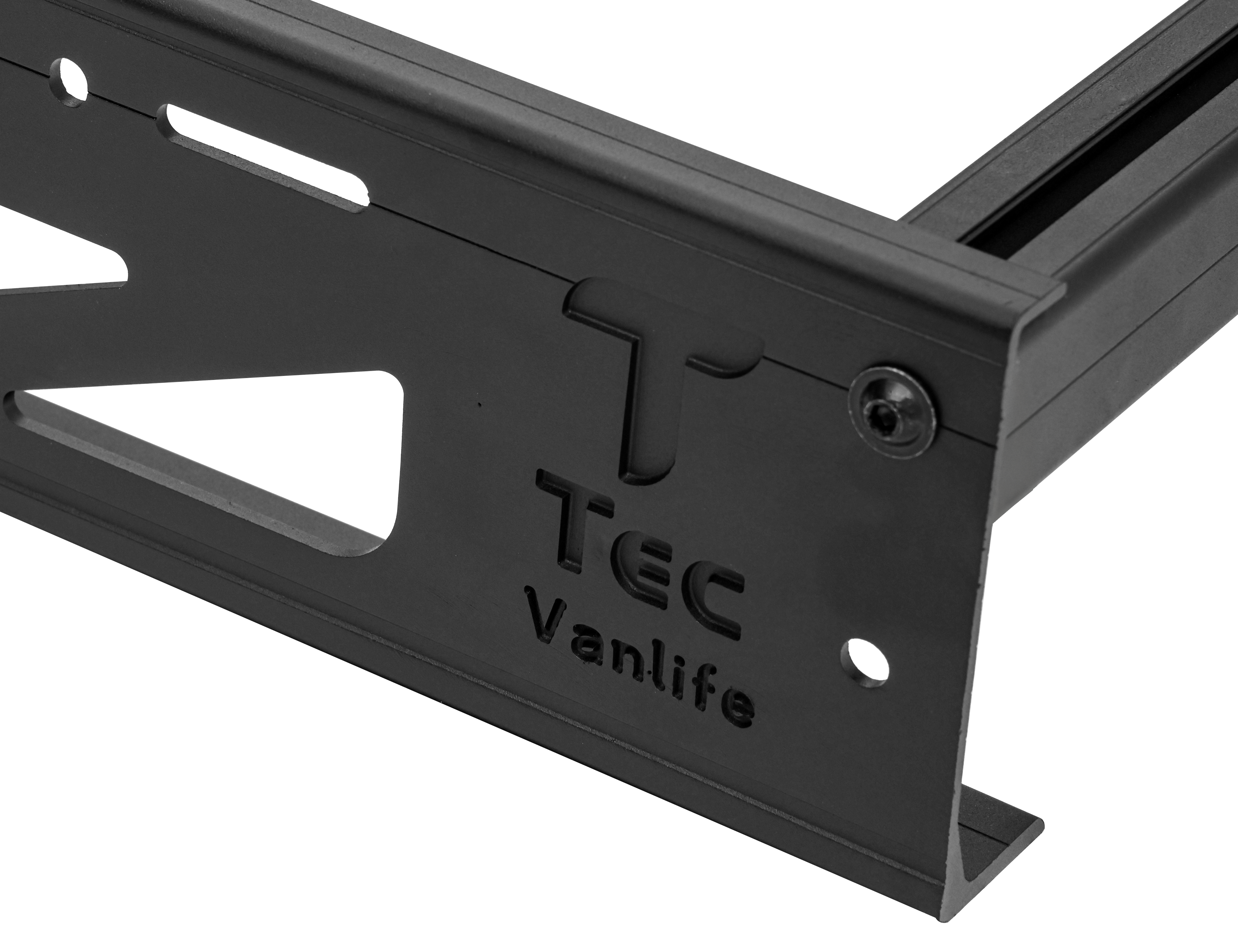

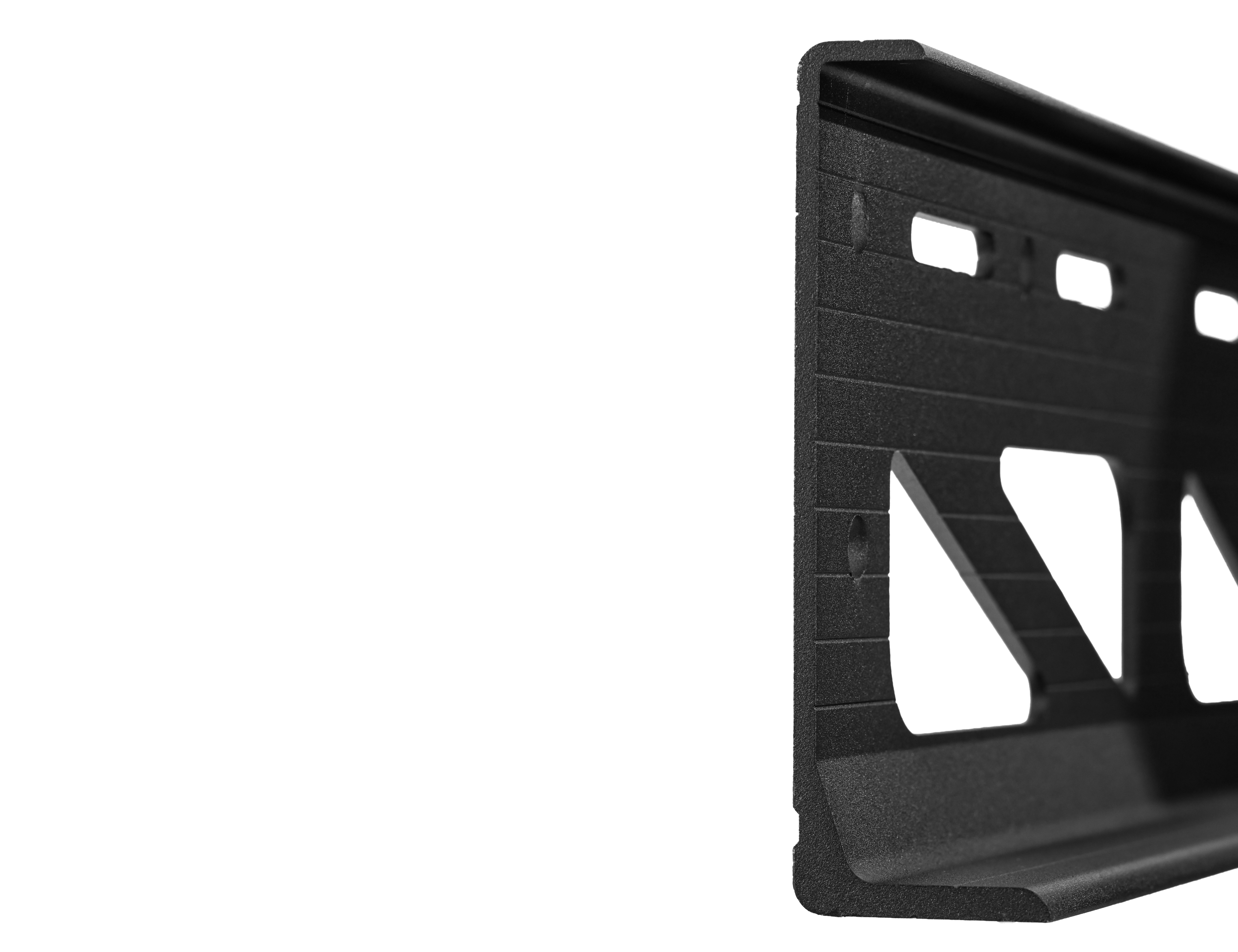

• One piece aluminum side profiles with double thick corners for superior strength and rigidity

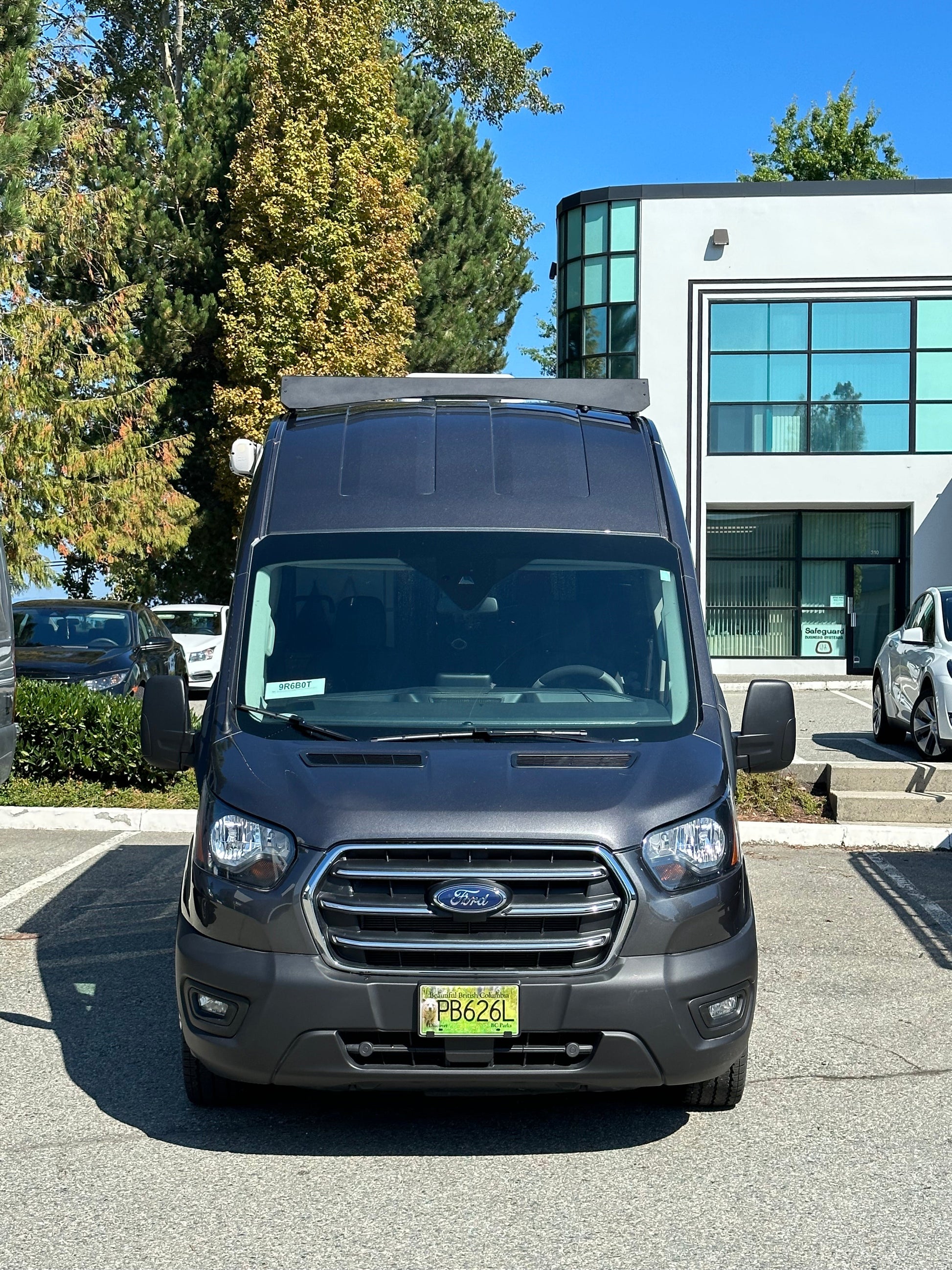

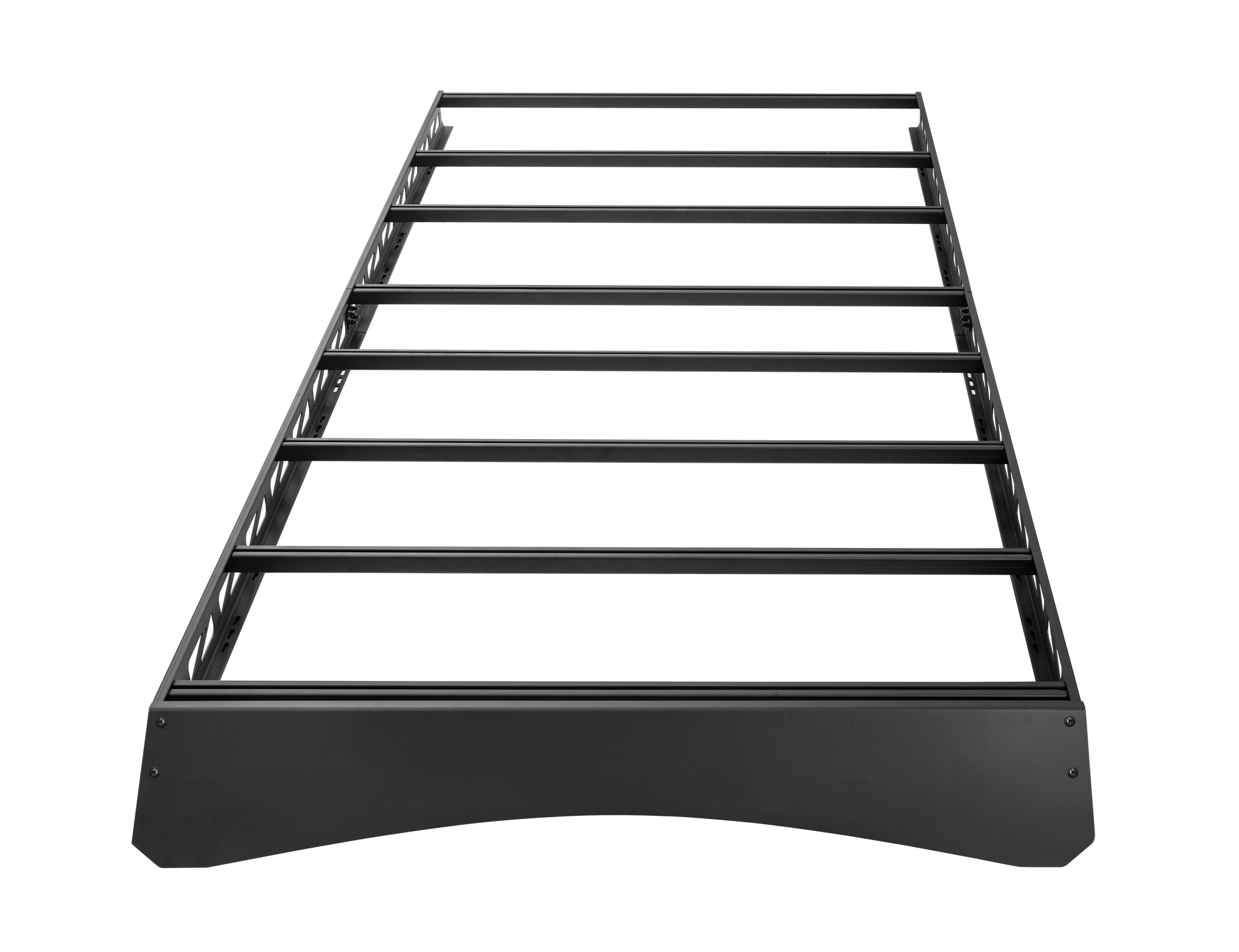

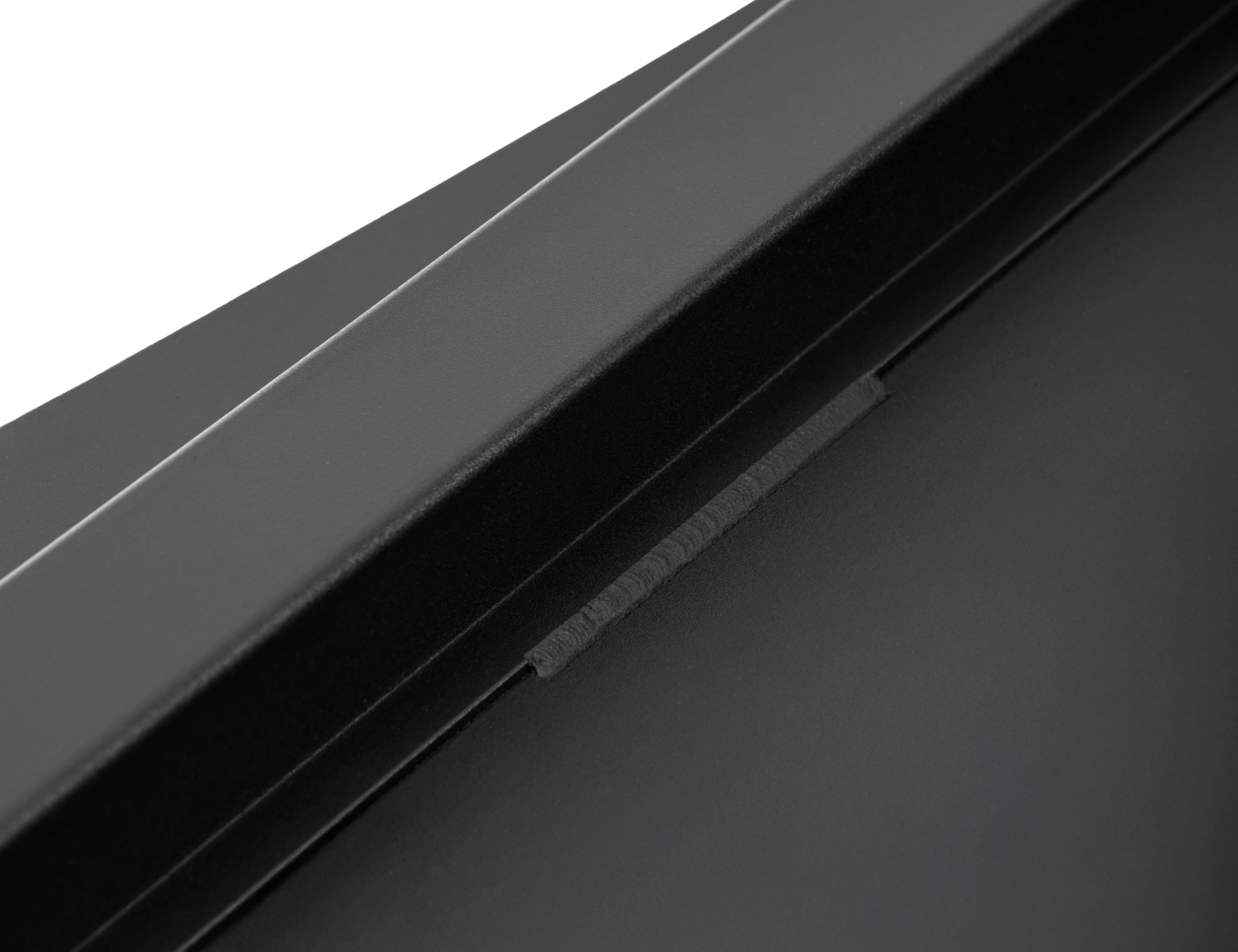

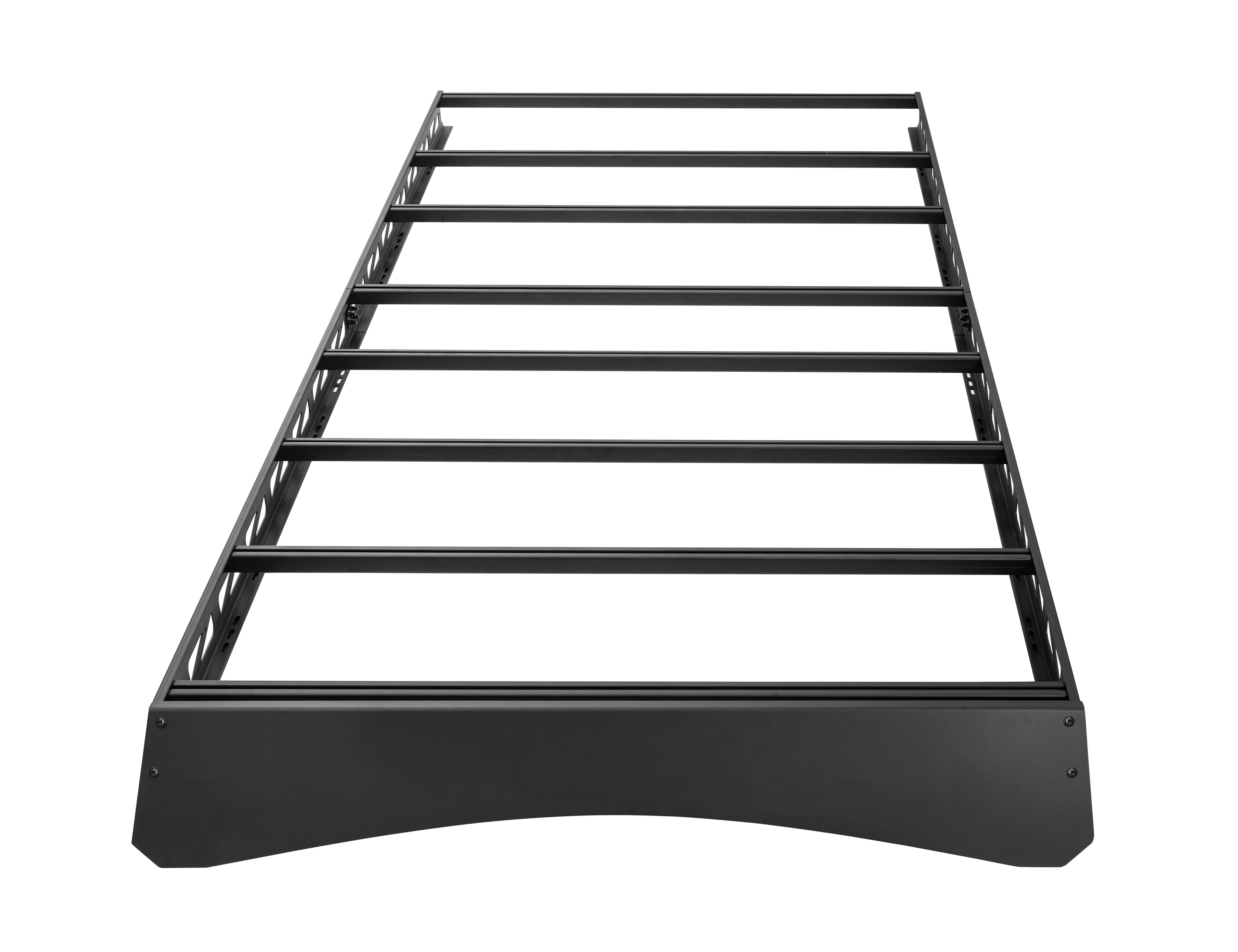

• Aerodynamic front fairing with engineered gap to reduce turbulence, drag, and wind noise

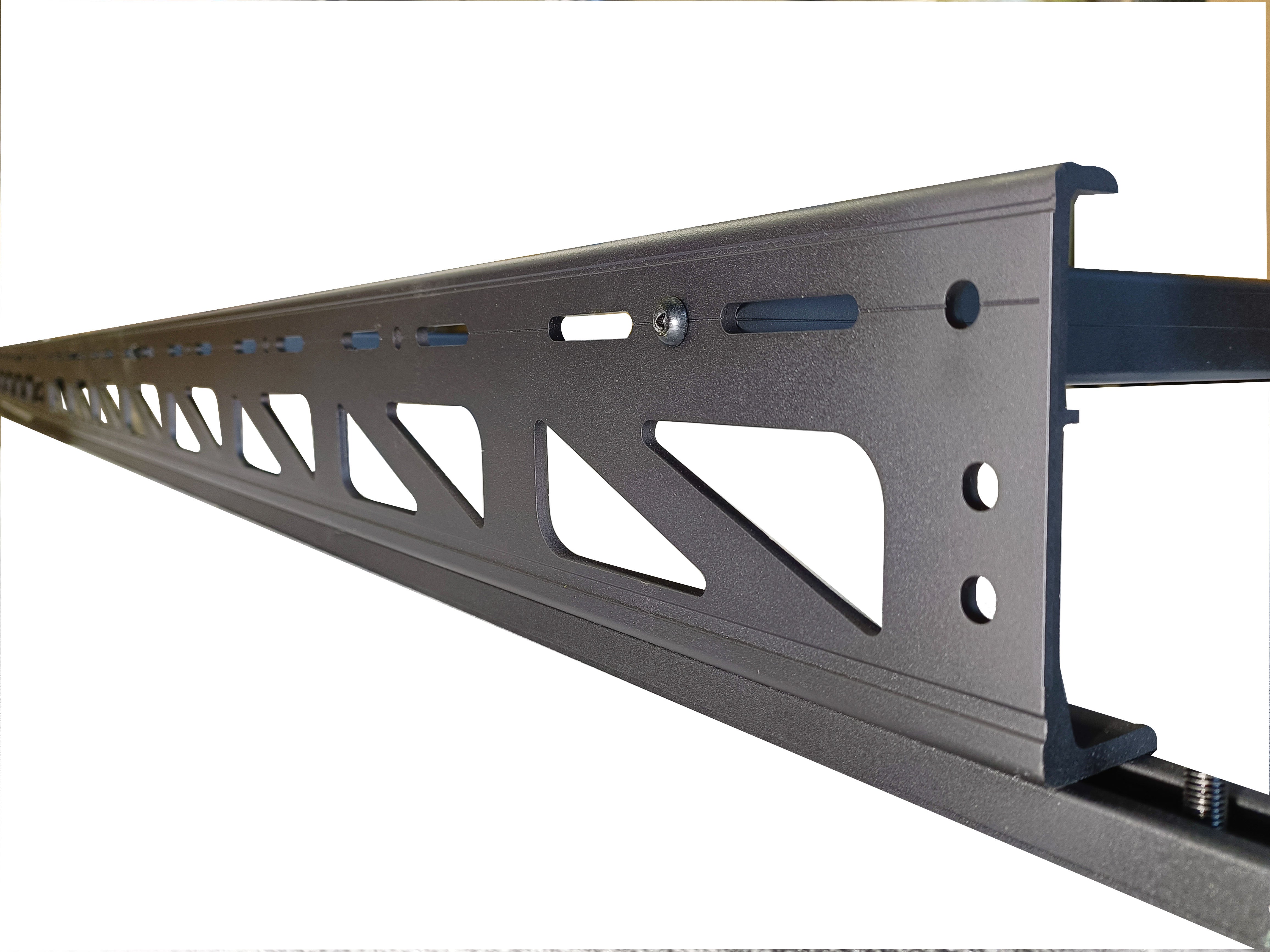

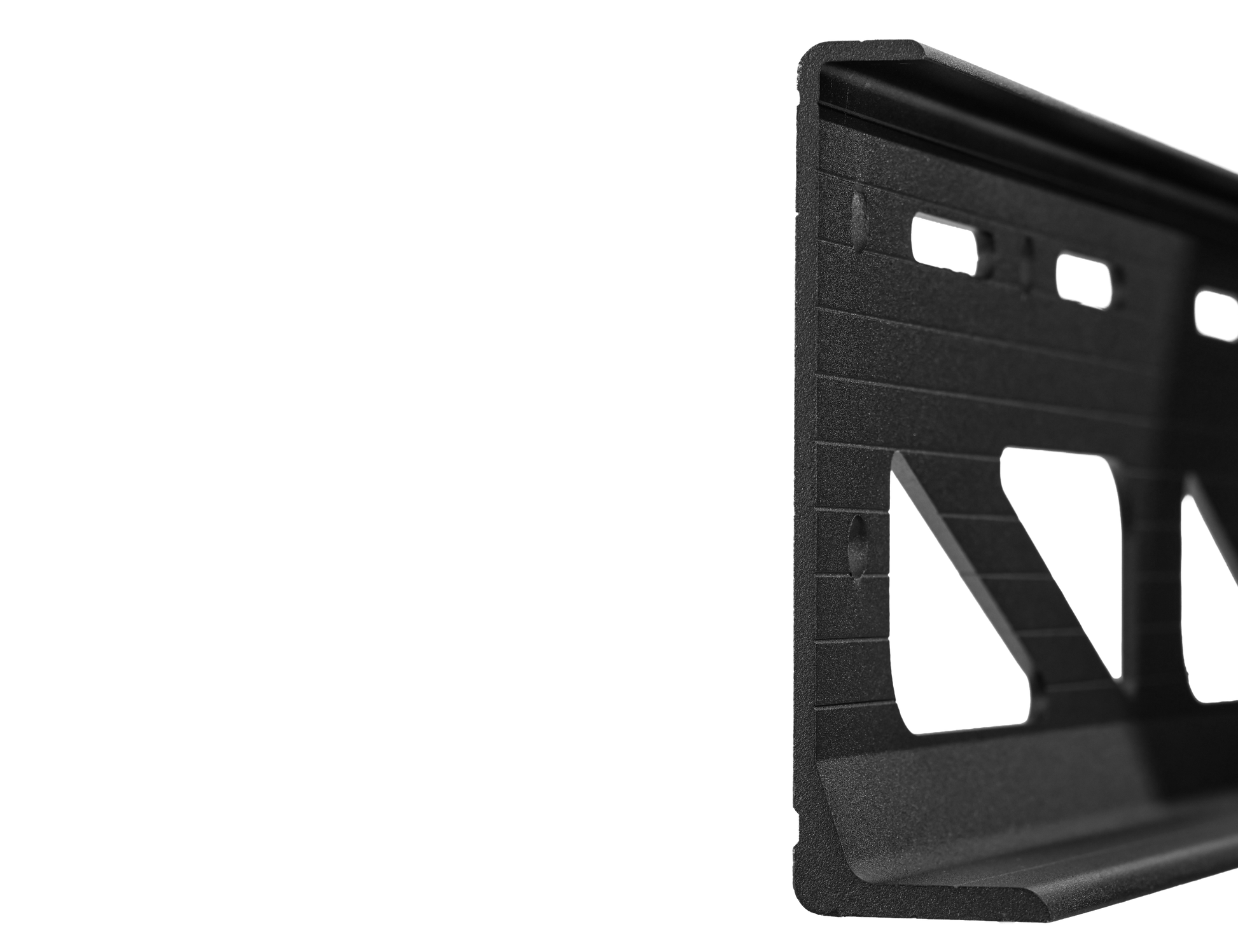

• Laser cut sidewalls for optimized structure and improved airflow around rooftop gear
• Straightforward installation

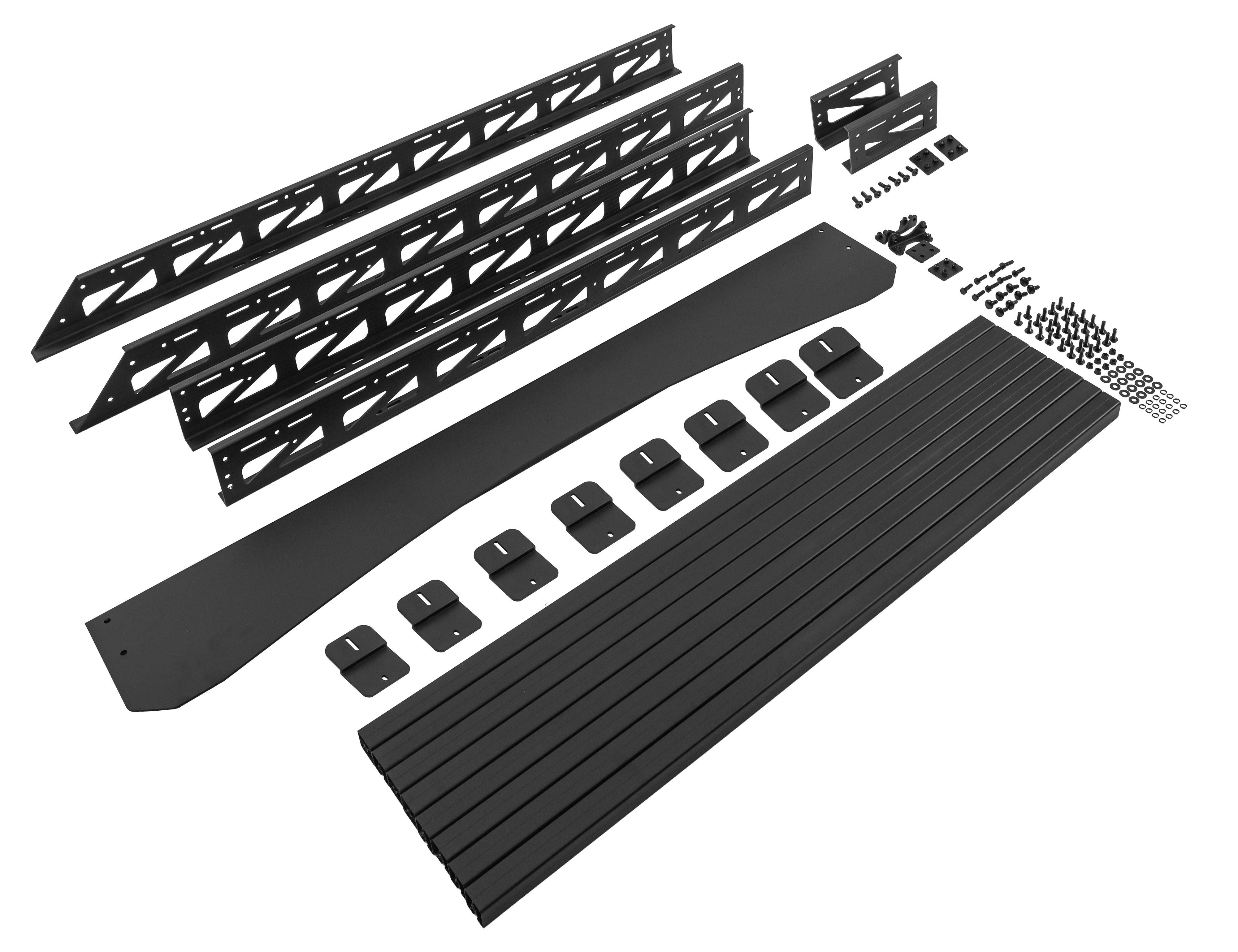

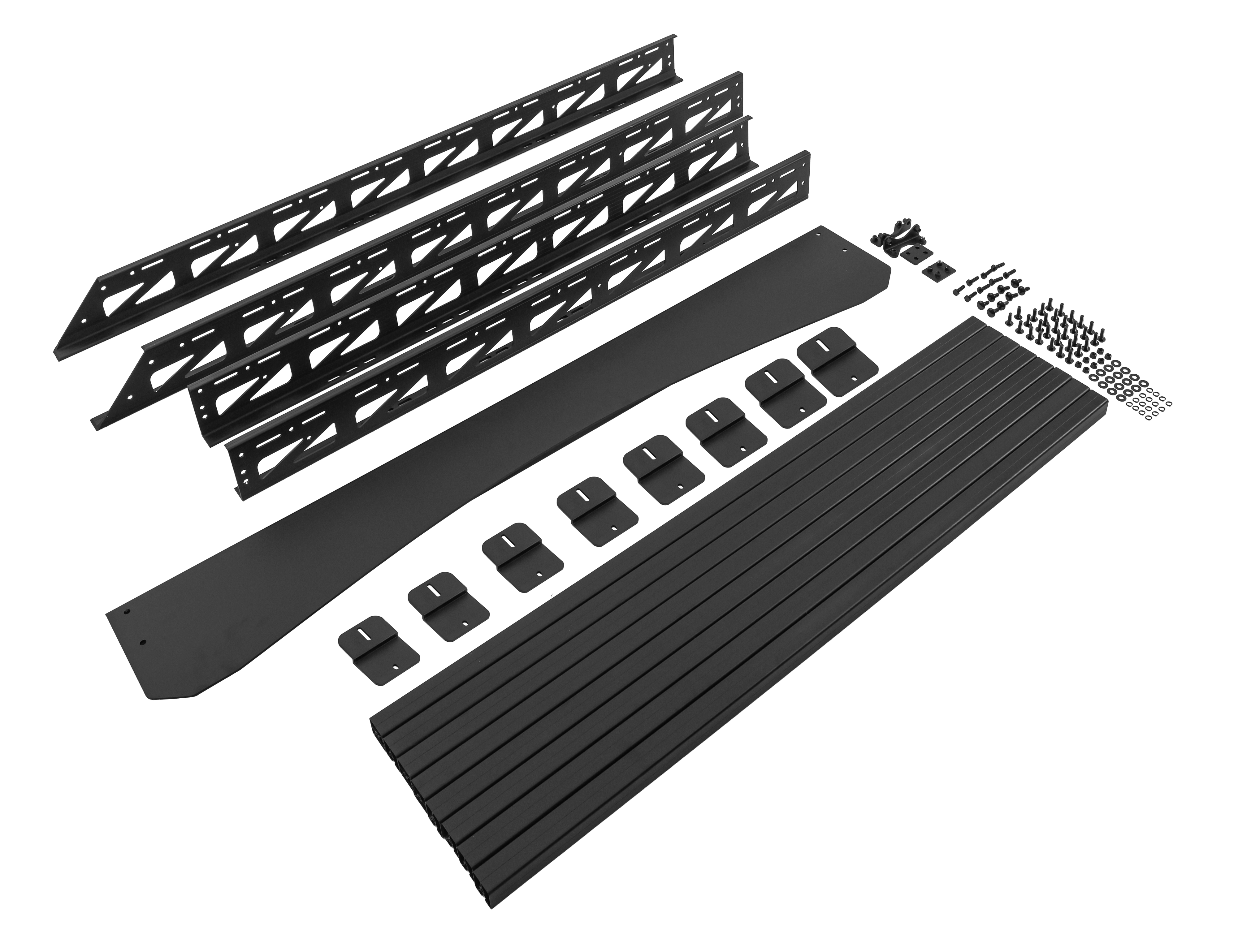

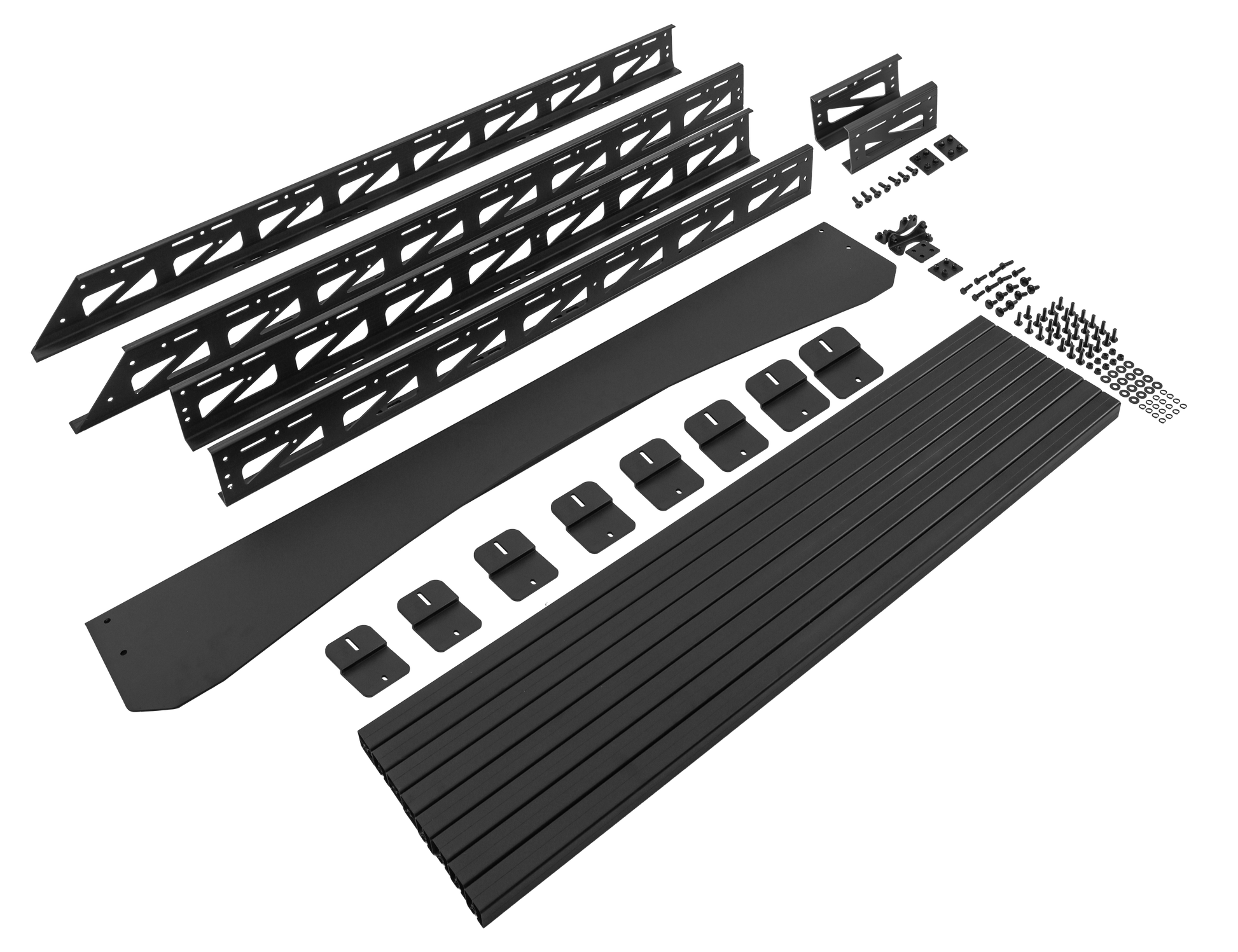

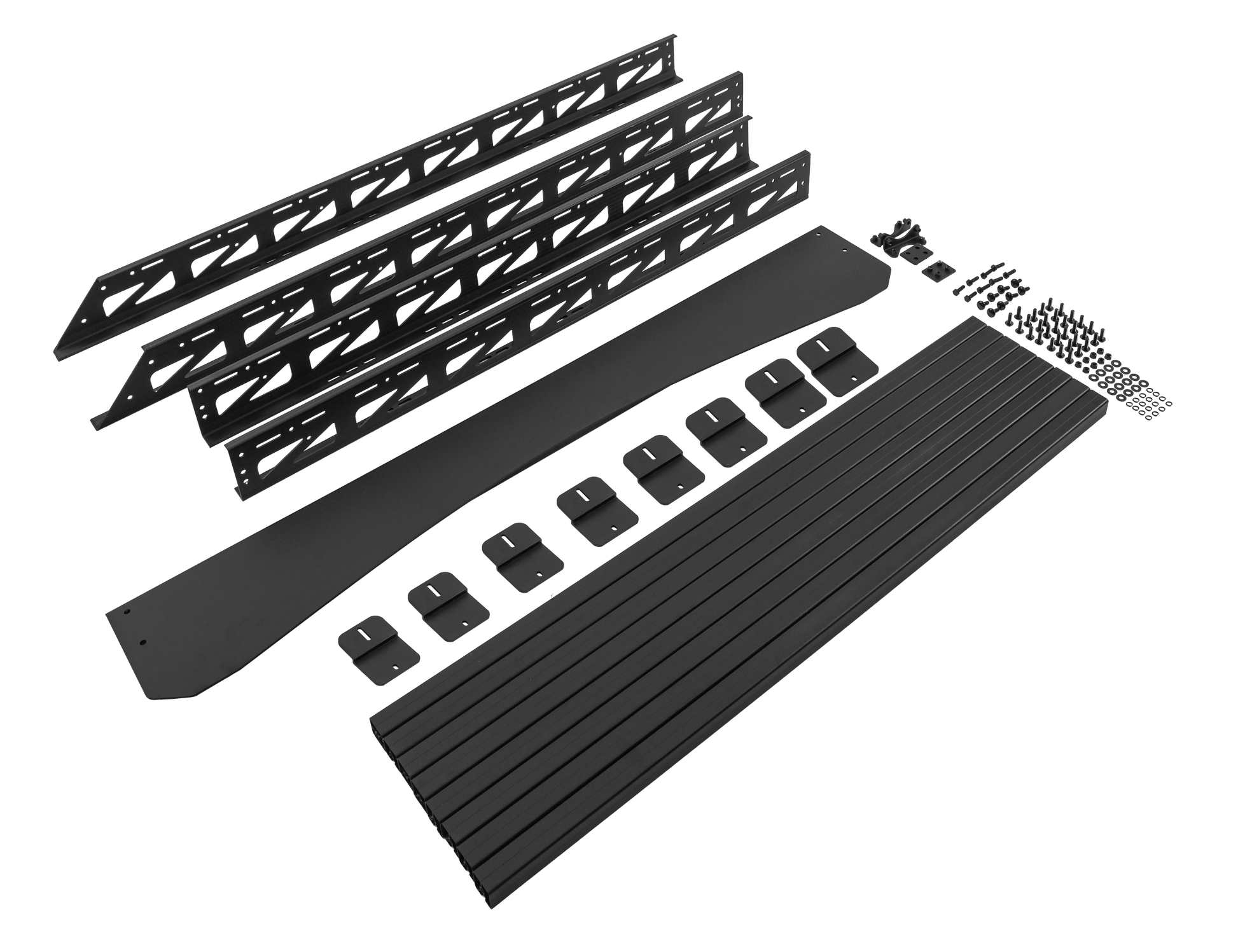

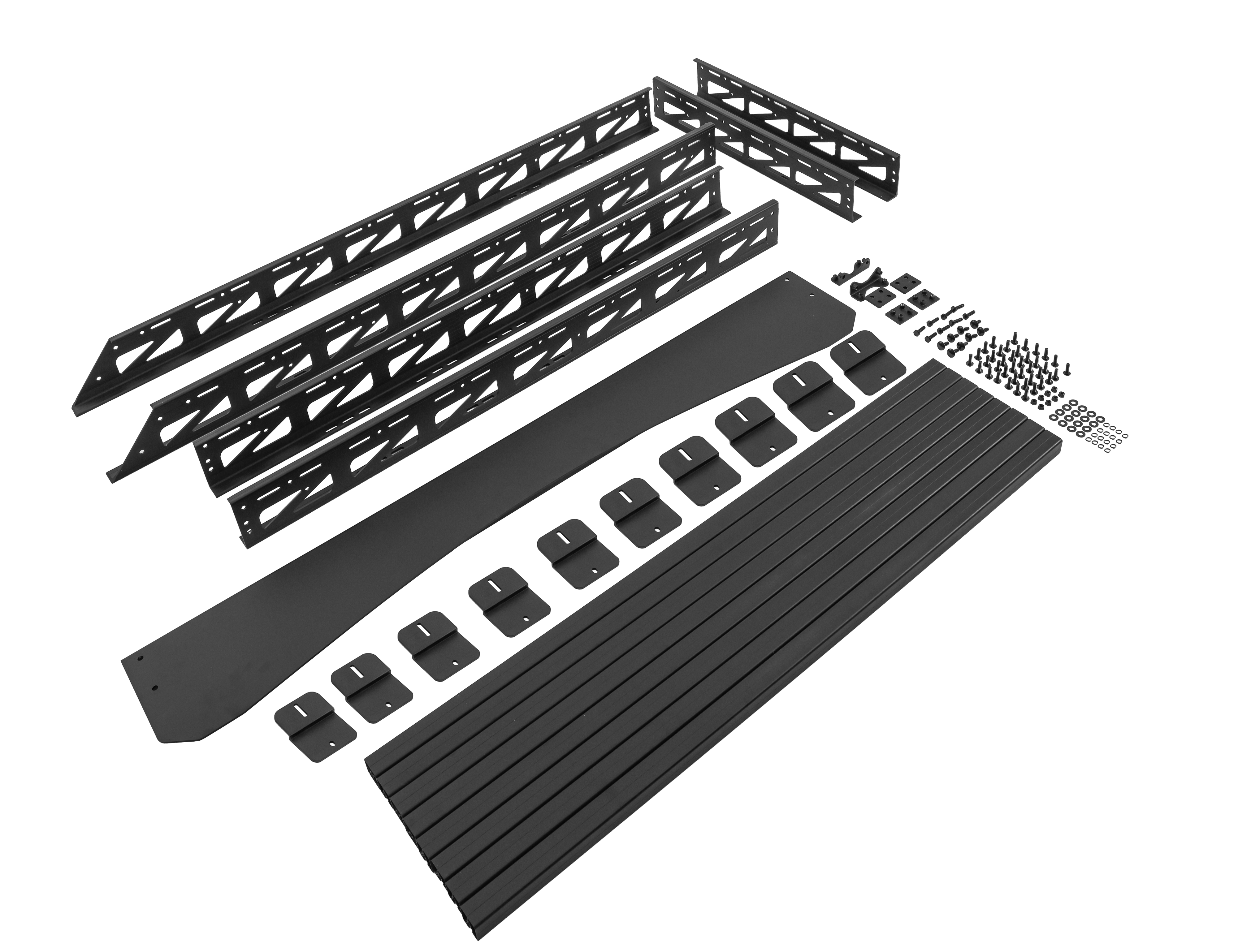

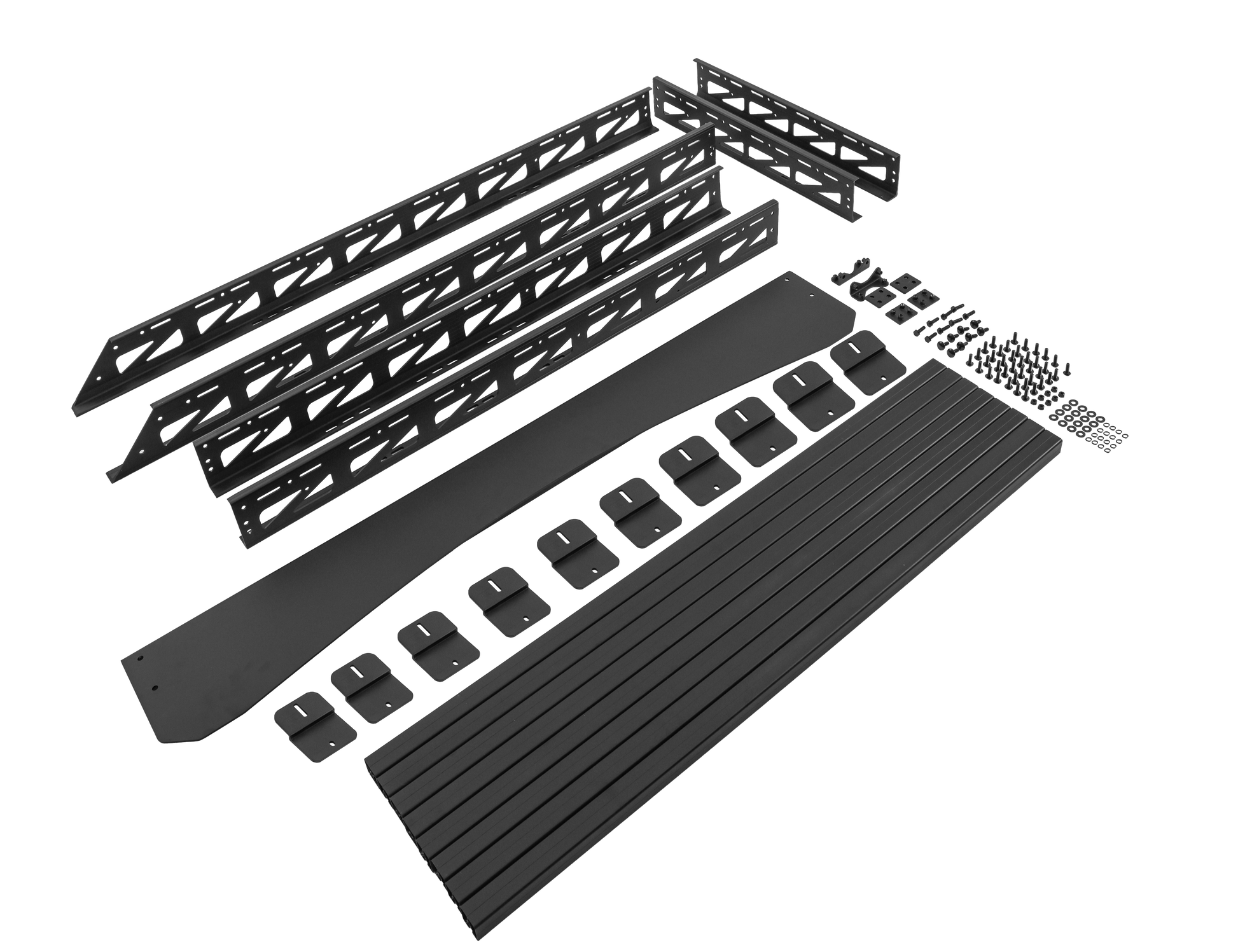

• Mounting hardware included
• Accessory options available

Measurements:

• Width: 62.79" (1595mm)
• Crossbar Length: 62.4" (1585mm)
• Internal Width: 61.22" (1555mm)

Vehicle Fitment & Compatibility:

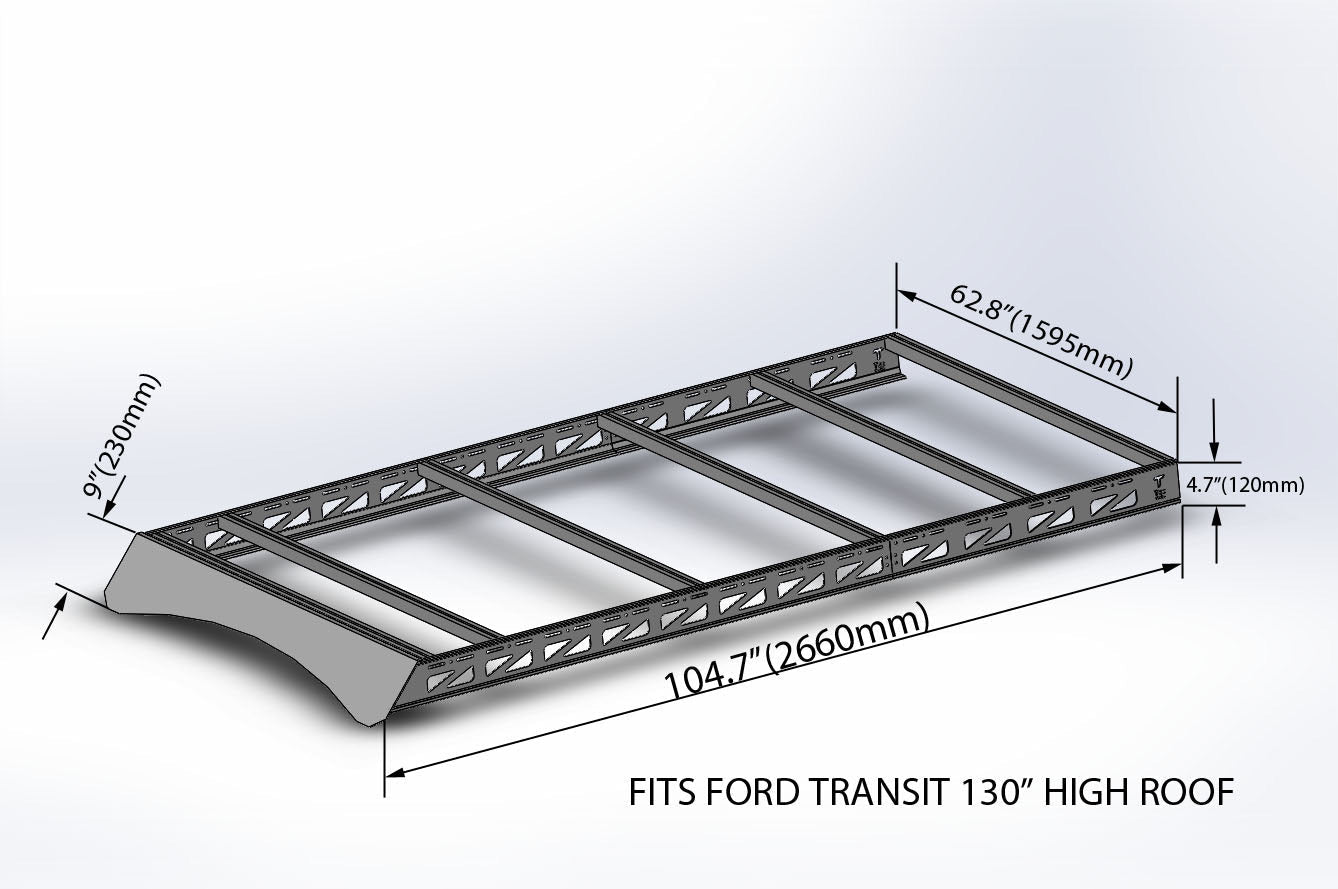

• 130 HR Transit: 104.72" (2660mm)
• 148 HR Transit: 121.54" (3086mm)

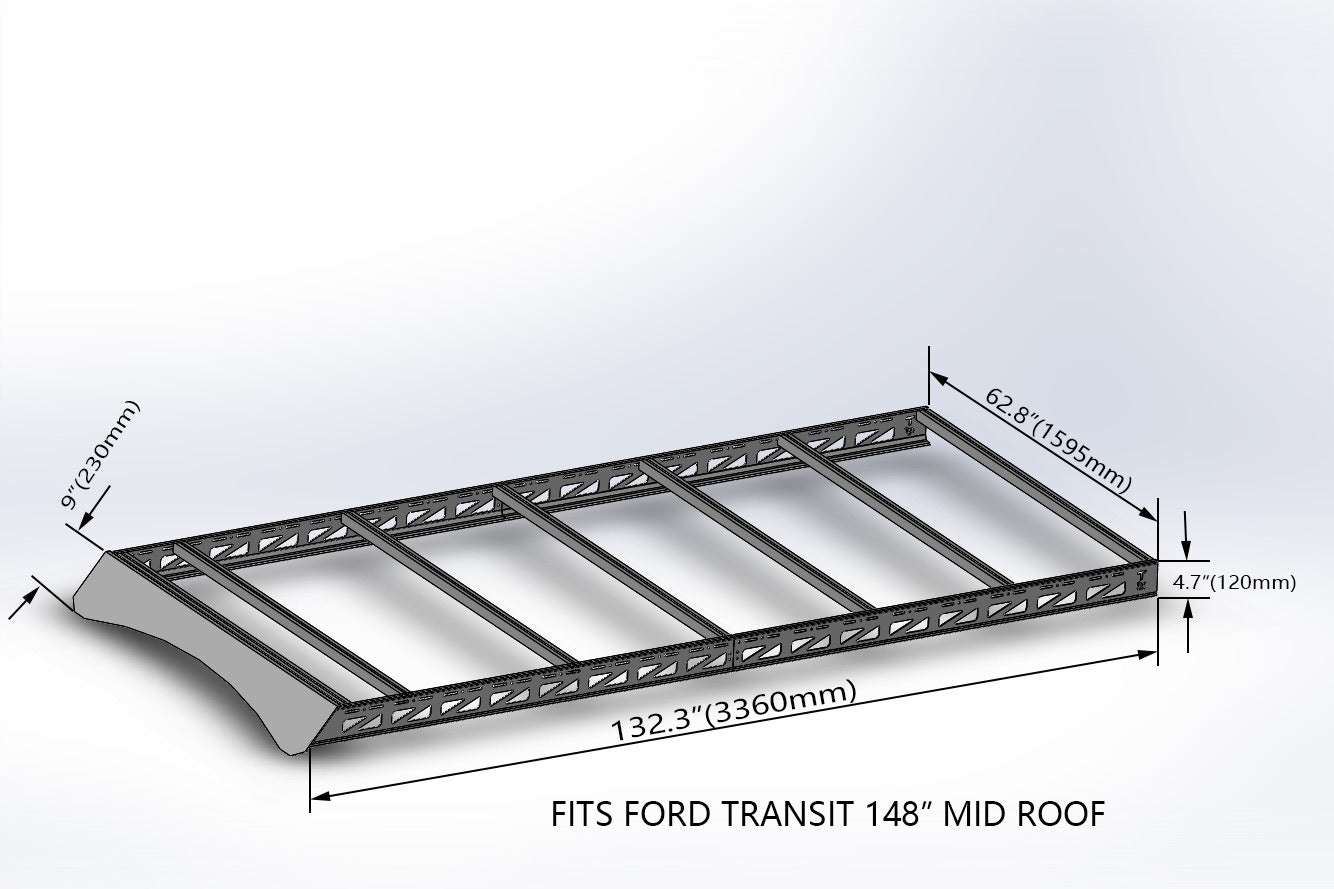

• 148 MR Transit: 130.2" (3306mm)

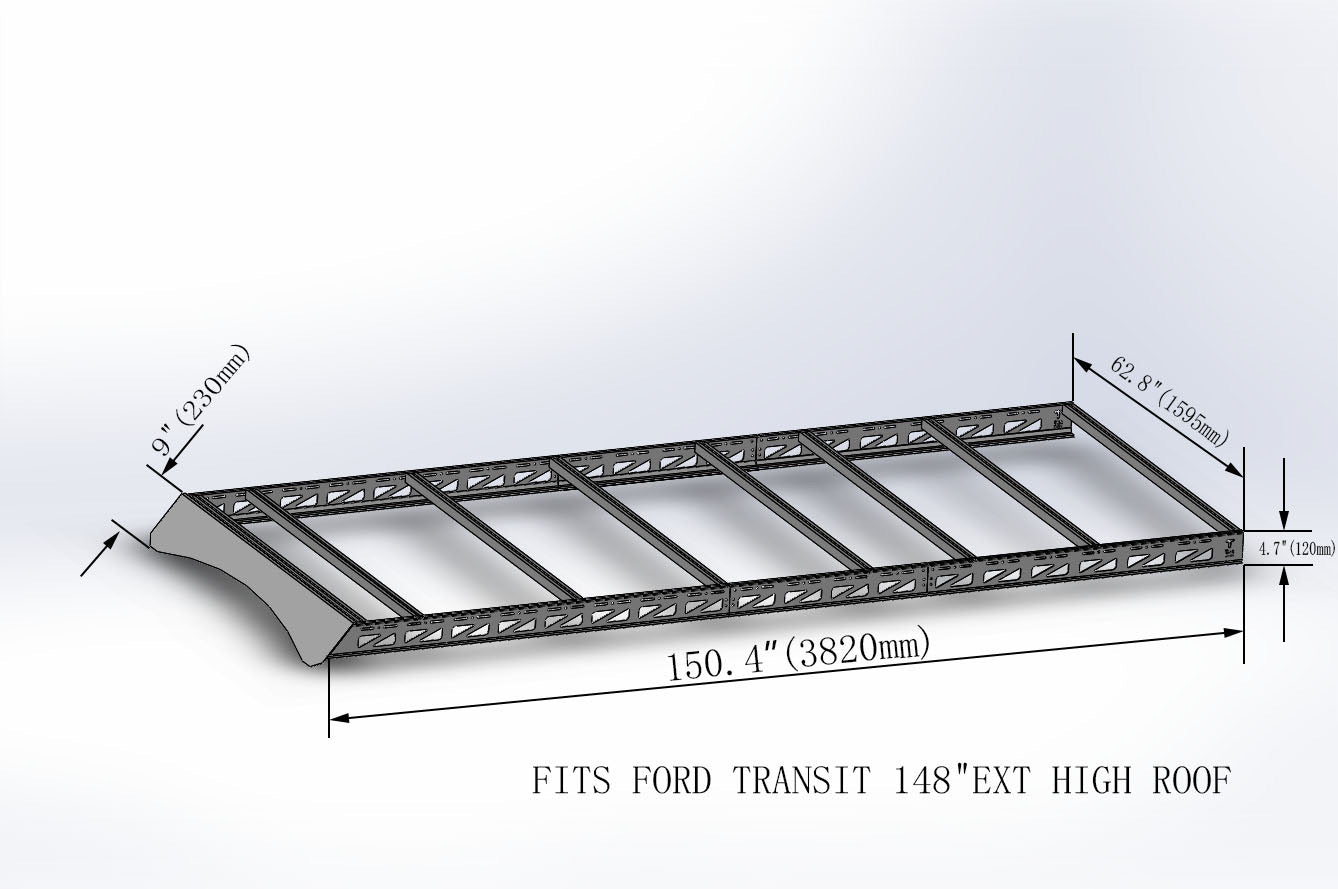

• 148 HR EXT Transit: 150.4" (3820mm)


Weights:

• 130 HR Transit: 49 lb (22.2 kg)
• 148 HR Transit: 58 lb (26.3 kg)
• 148 MR Transit: 58 lb (26.3 kg)
• 148 EXT Transit: 74 lb (33.6 kg)

Description:

This modular roof rack provides a heavy duty platform for Ford Transit builds. High pressure molded aluminum extrusions form robust, one piece side profiles with double thick corners and reinforced side rails to support awnings and other heavy rooftop equipment without compromising stability.

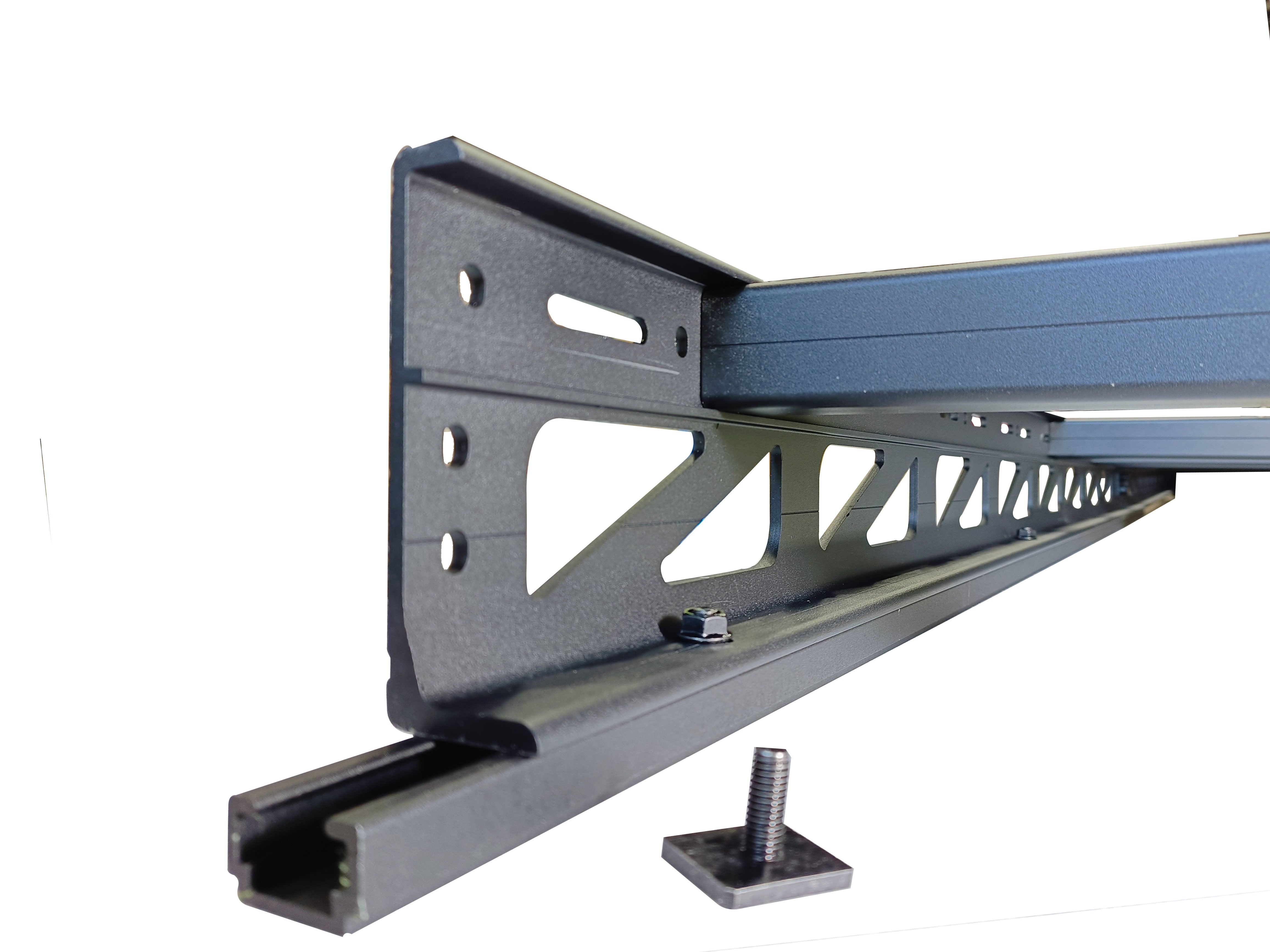

Instead of bent aluminum sections with multiple weak points, the rack uses continuous aluminum profiles that maintain structural integrity along the full length of the van. Crossbars slide and reposition to work around solar panels, roof fans, A/C units, cargo boxes, and other accessories, allowing full use of the roof space.

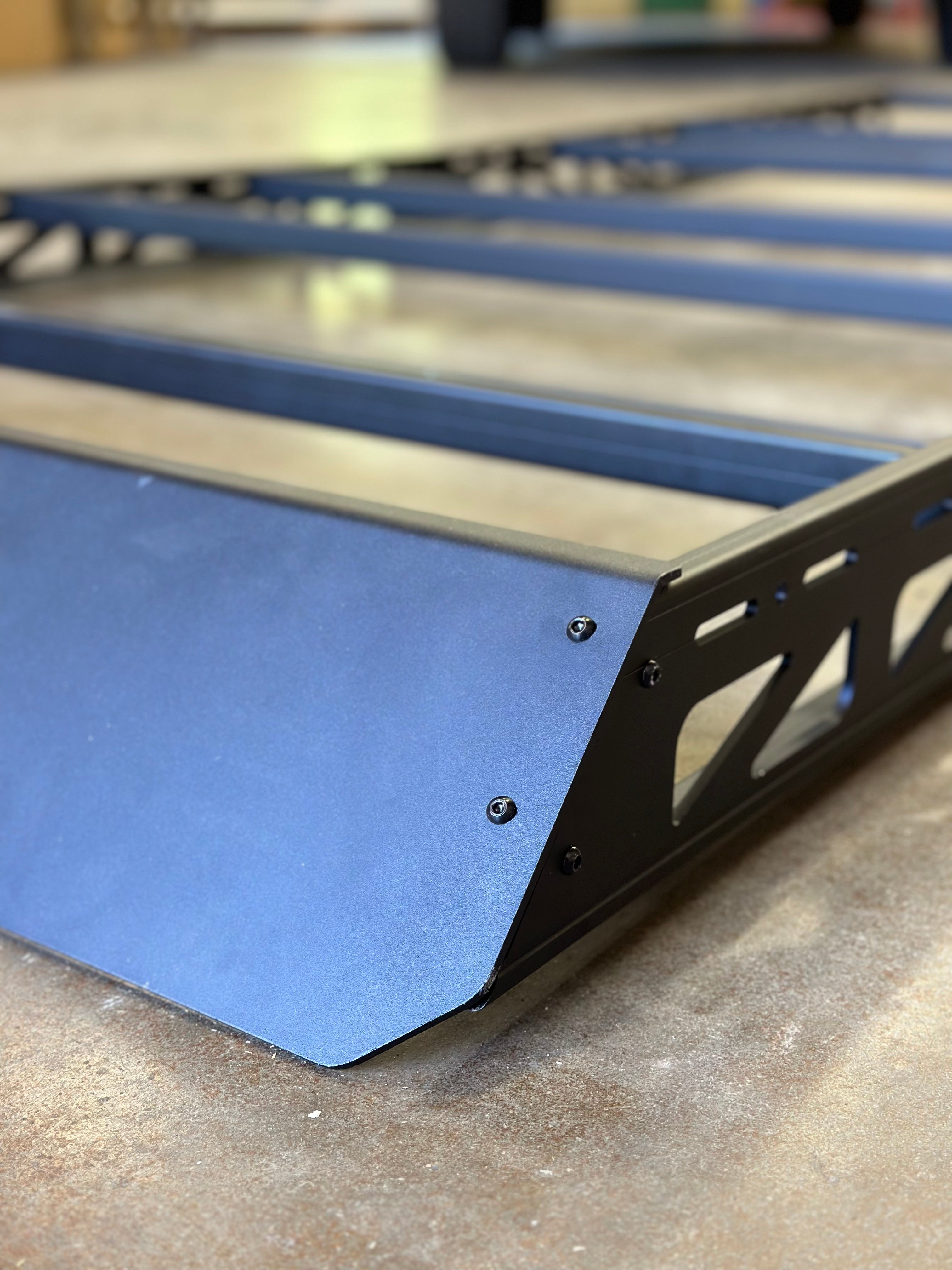

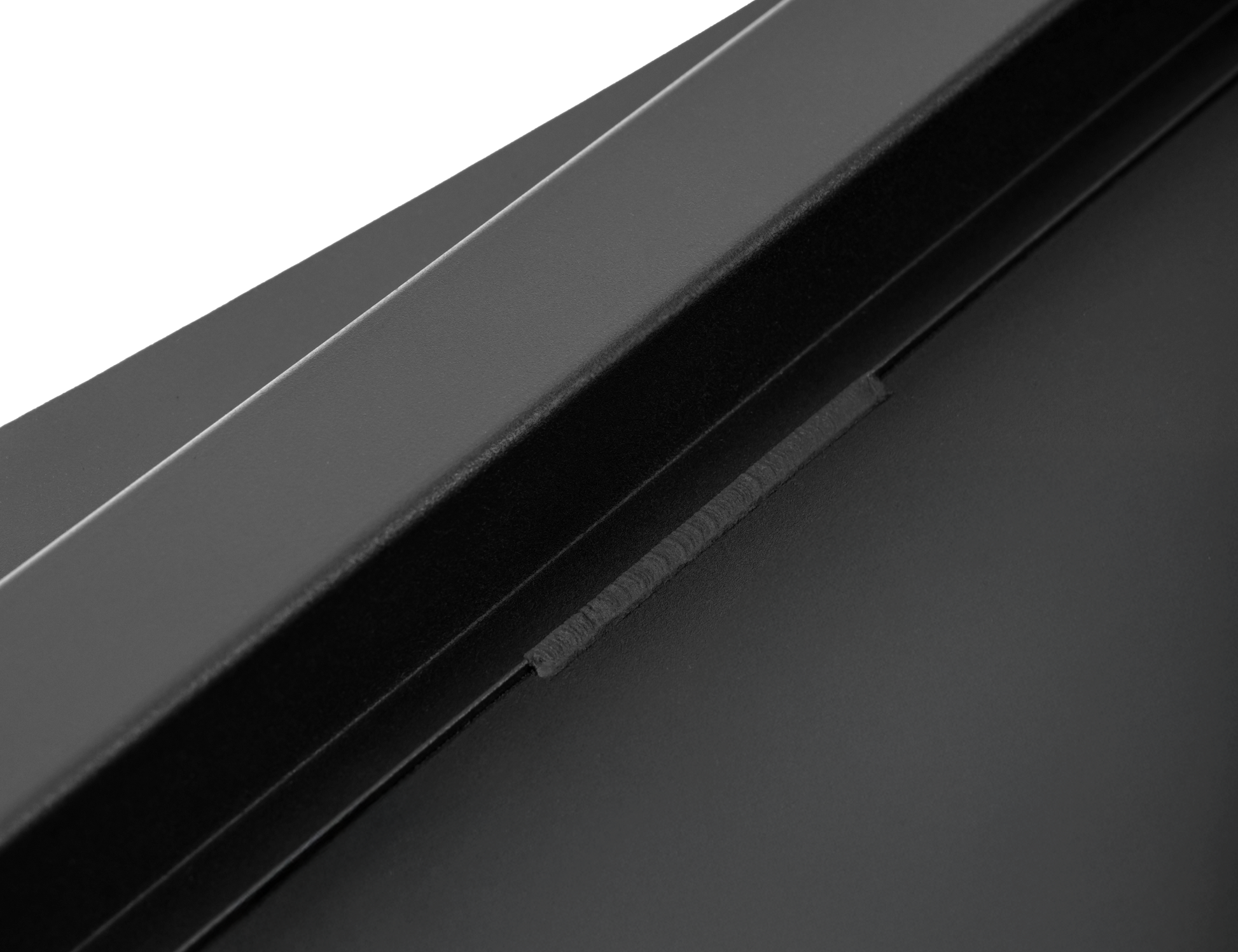

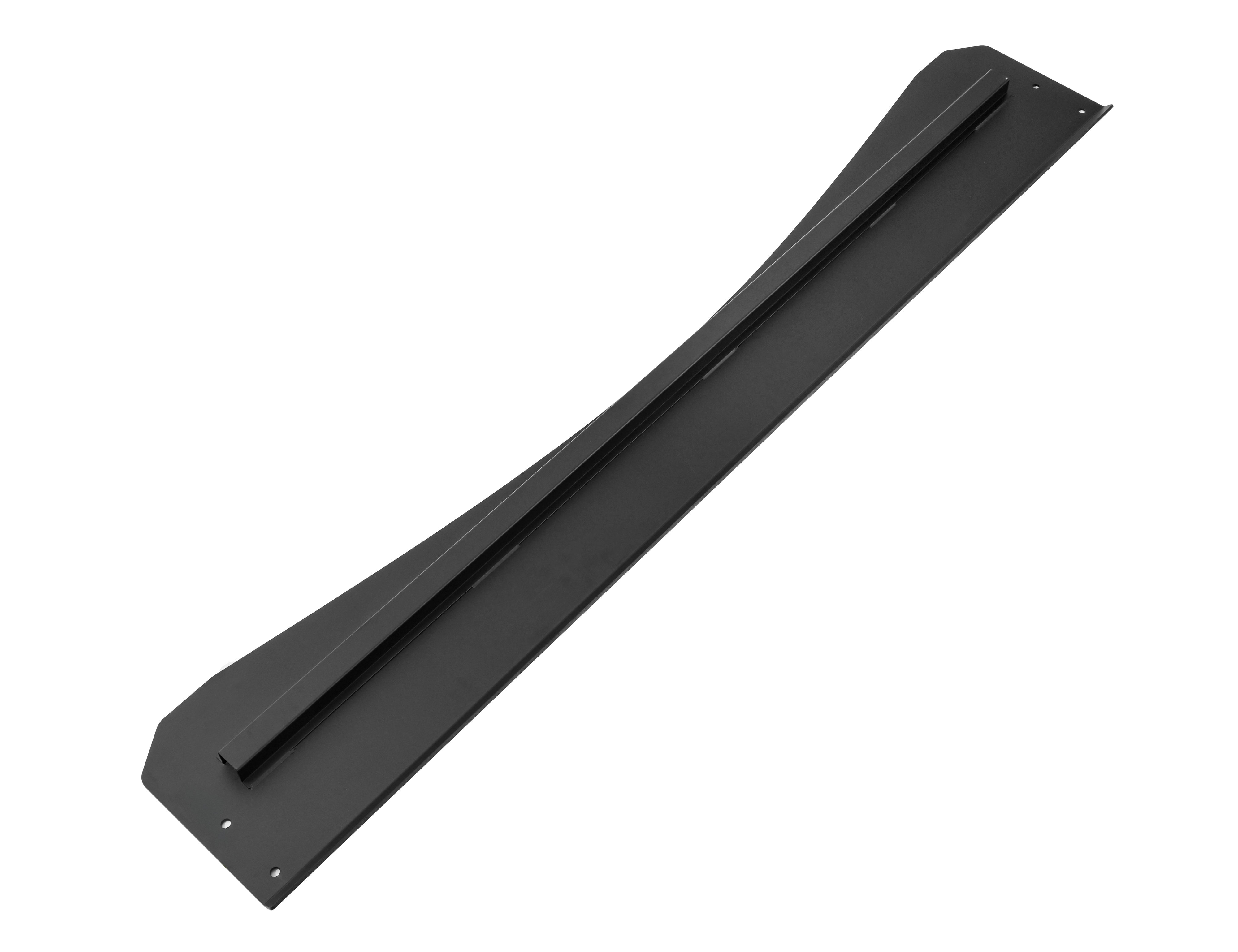

The front fairing, together with a deliberate gap between the fairing and the van body, smooths airflow to reduce turbulence and wind noise while driving and to improve cooling beneath solar panels when parked. Laser cut openings in the sidewalls further reduce weight and promote airflow around roof mounted components without compromising strength.

All required mounting hardware is supplied, and installation can be completed using standard tools. Accessory items such as roof decks and Starlink brackets are available separately.

FAQ:

1. Which Ford Transit models and years does this roof rack fit?

Fits 2015+ Ford Transit 130" high roof, 148" high roof, 148" extended high roof, and 148" mid roof models.

2. Does this rack install onto the factory roof mounting points, and does installation require any drilling or modification?

The rack attaches to the factory roof mounting points using the included adapter plates. No drilling or other vehicle modification is required.

3. Can this roof rack be installed by one person, what tools are required, and how long does installation typically take?

Installation can be completed by a single person using basic hex wrenches and a 13 mm wrench. The typical installation time is approximately 2 hours.

4. Is this rack compatible with solar panels, roof decks, and Fiamma awnings out of the box?

Yes. Solar panels, Fiamma awnings, and roof decks can be mounted. Mounting accessories requires the appropriate brackets or hardware, which are available separately in this store.

5. Will this roof rack interfere with the factory antenna, roof vents, or cabling channels?

No. The crossbars can be positioned freely and will not interfere with vents, AC units, or interior wiring.

6. How does this roof rack affect fuel economy and wind noise at highway speeds?

Fuel consumption will increase slightly at highway speeds. In typical installations, there is no noticeable increase in wind noise.

Regular inspections and hardware checks are critical to keeping your rack safe and reliable over the long term. Always stay within the maximum roof load specified by the vehicle manufacturer and use all available attachment points on the van roof to distribute weight properly. After installation, recheck and retighten all hardware at approximately 100 miles, and then every 600 miles thereafter. At the same time, inspect the overall integrity of the rack every 600 miles or at least once a month, whichever comes first.
