Tec Vanlife Passenger Door Aluminum Gear Rack - Sprinter
Tec Vanlife Passenger Door Aluminum Gear Rack - Sprinter
SKU:E-RR-T-GR-ND
In stock

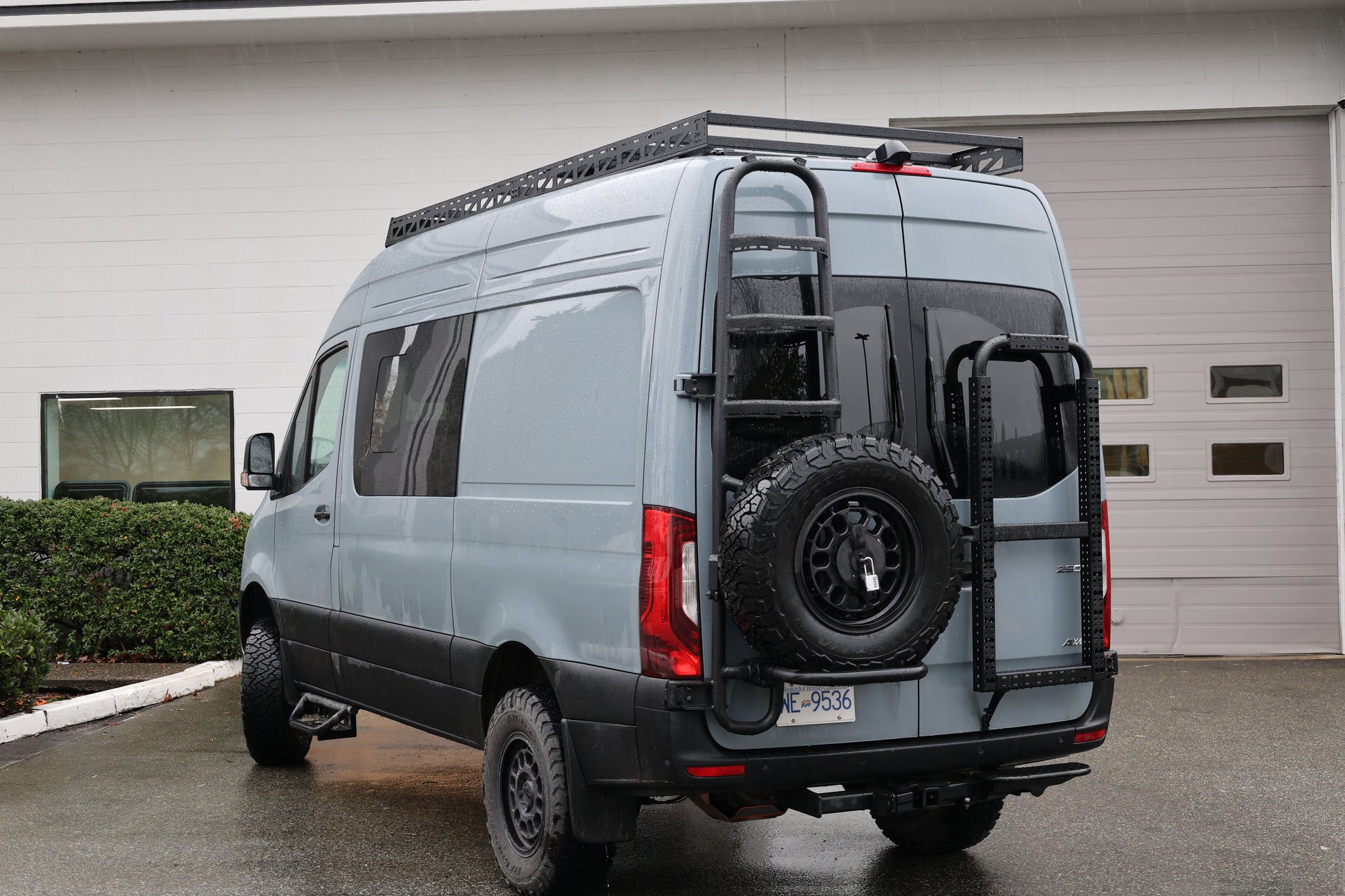

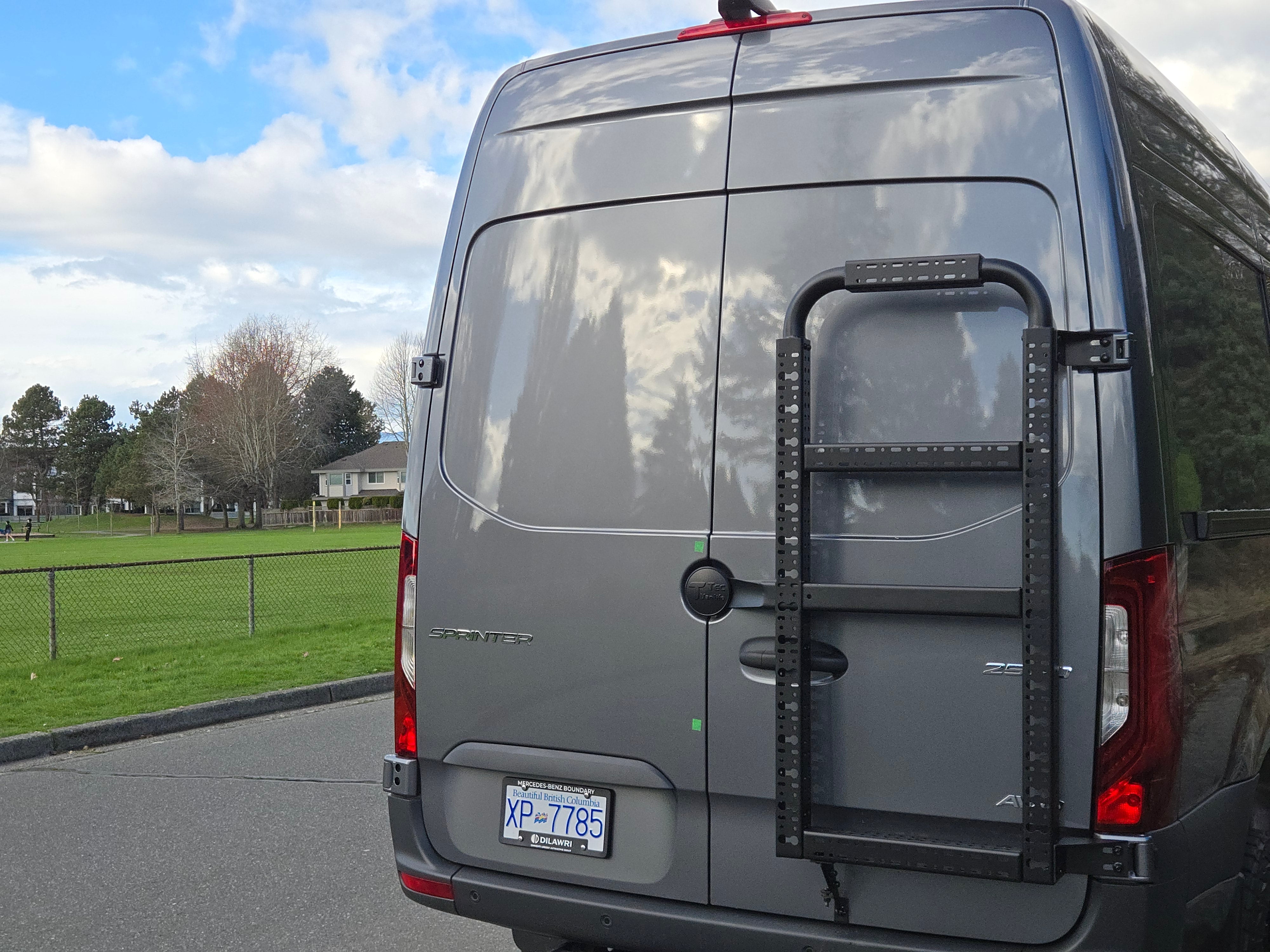

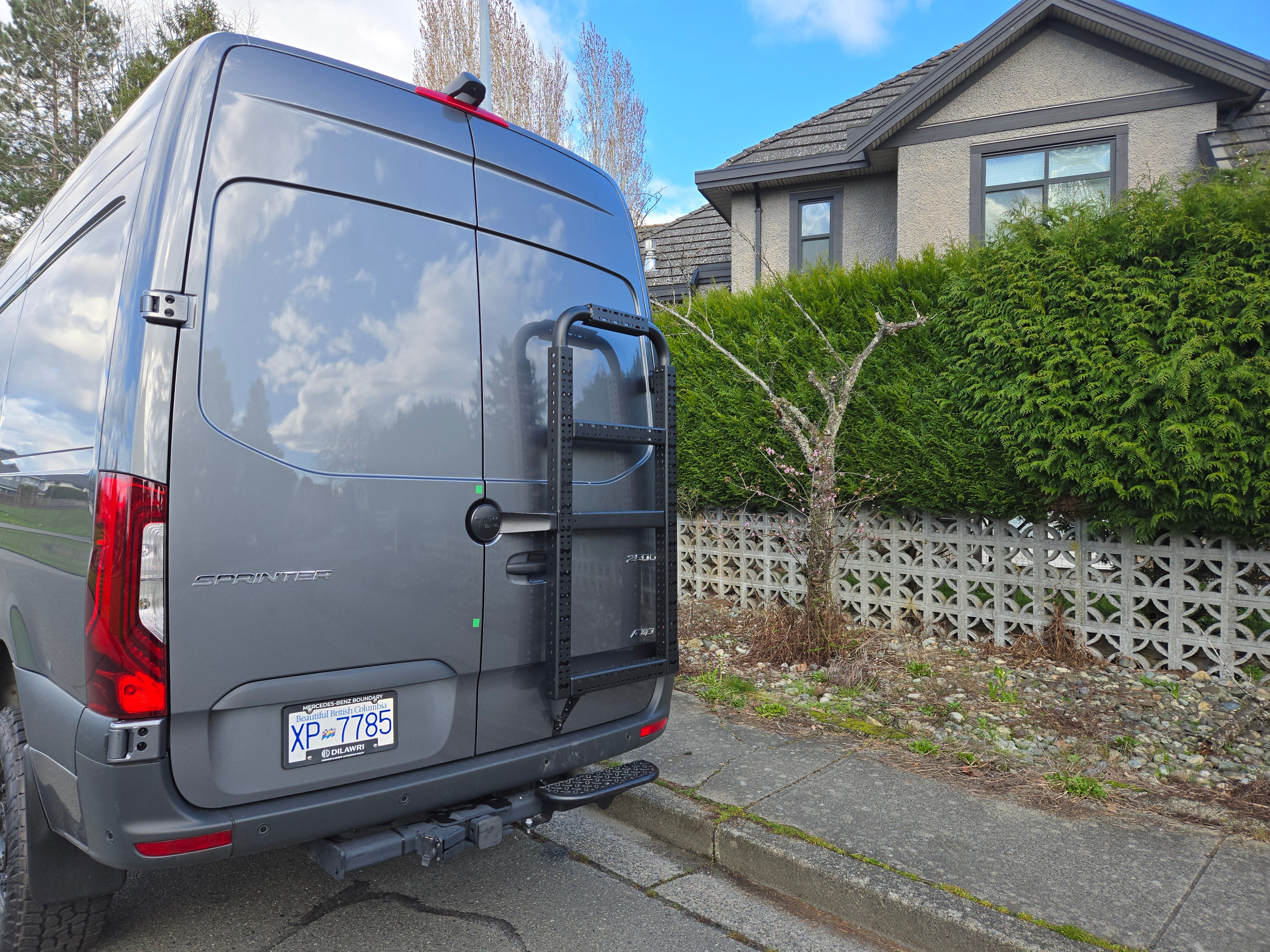

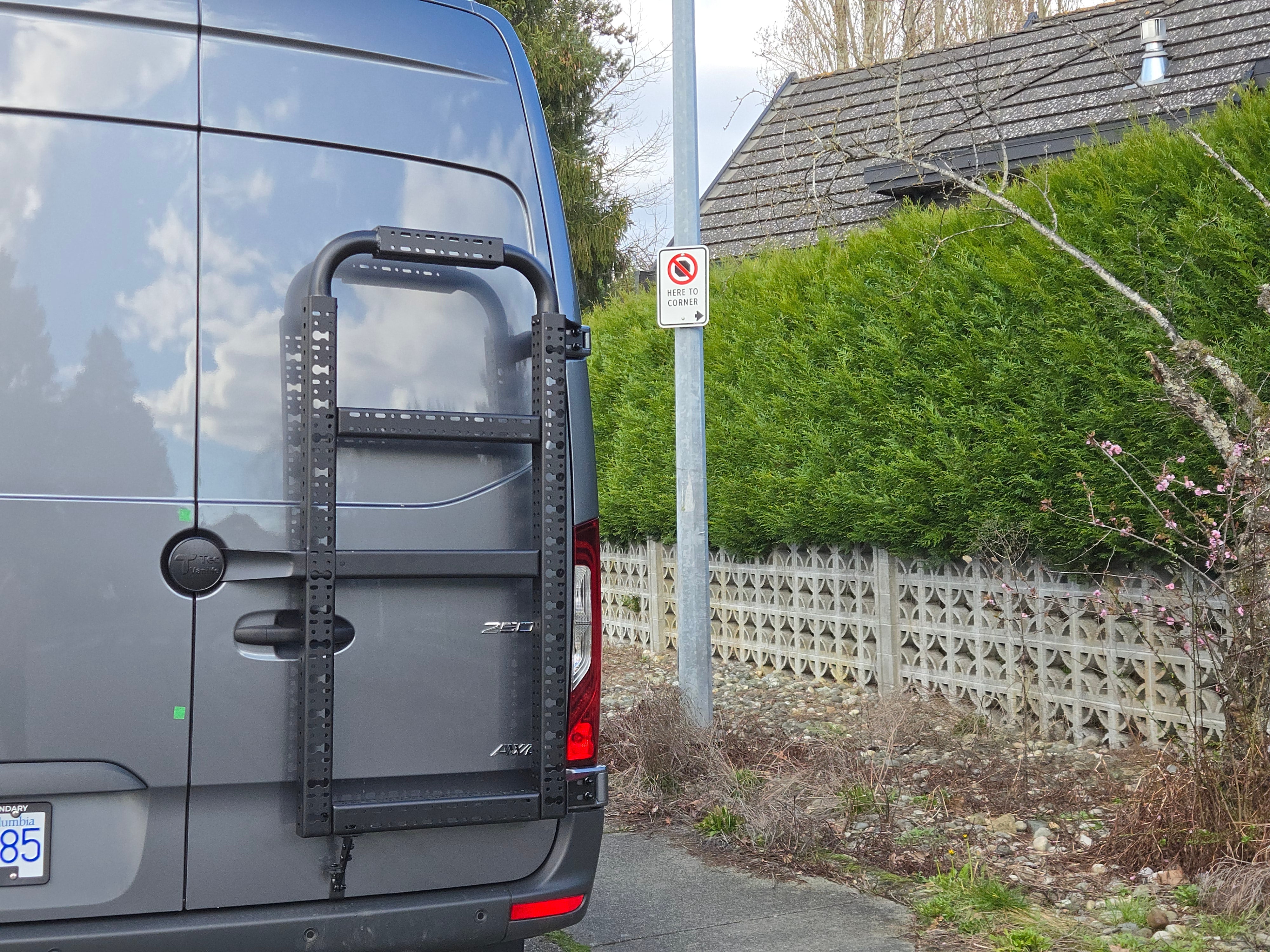

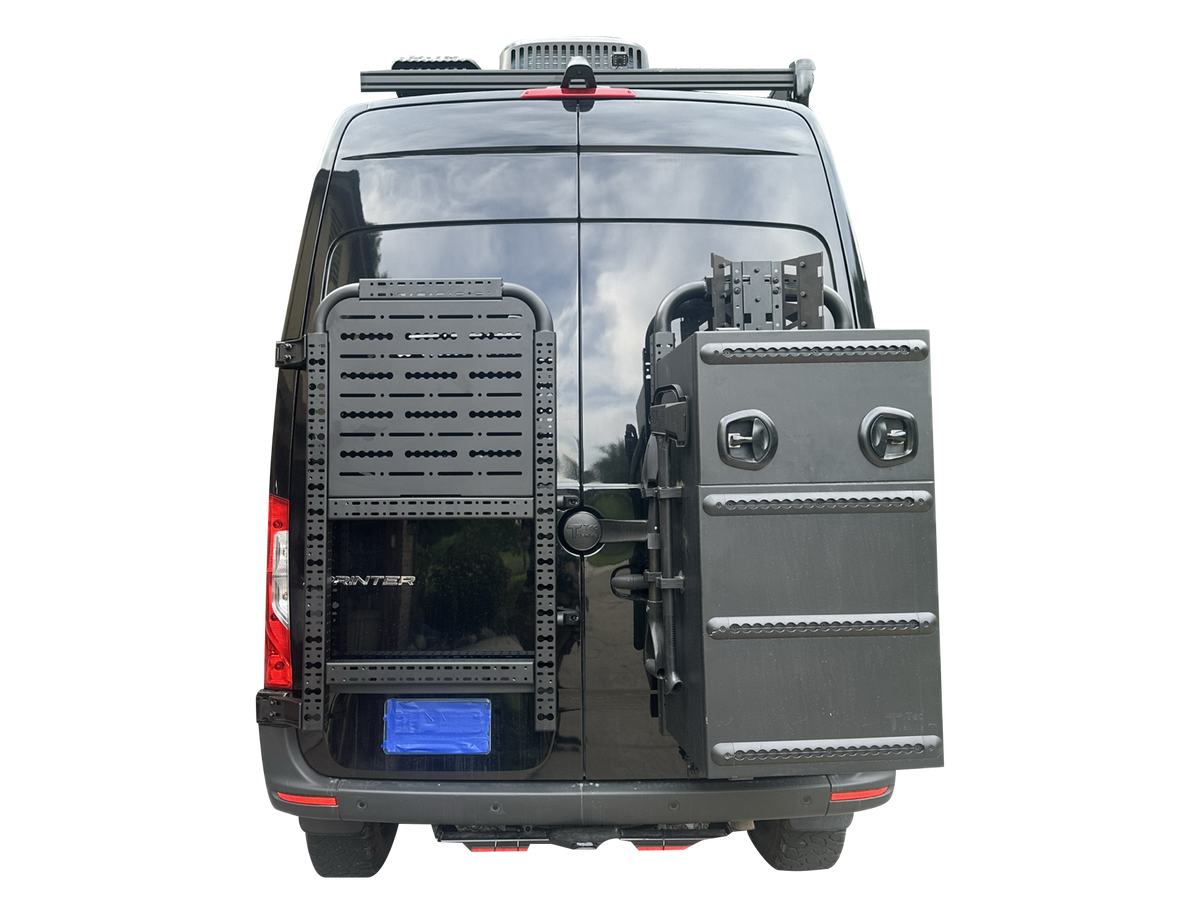

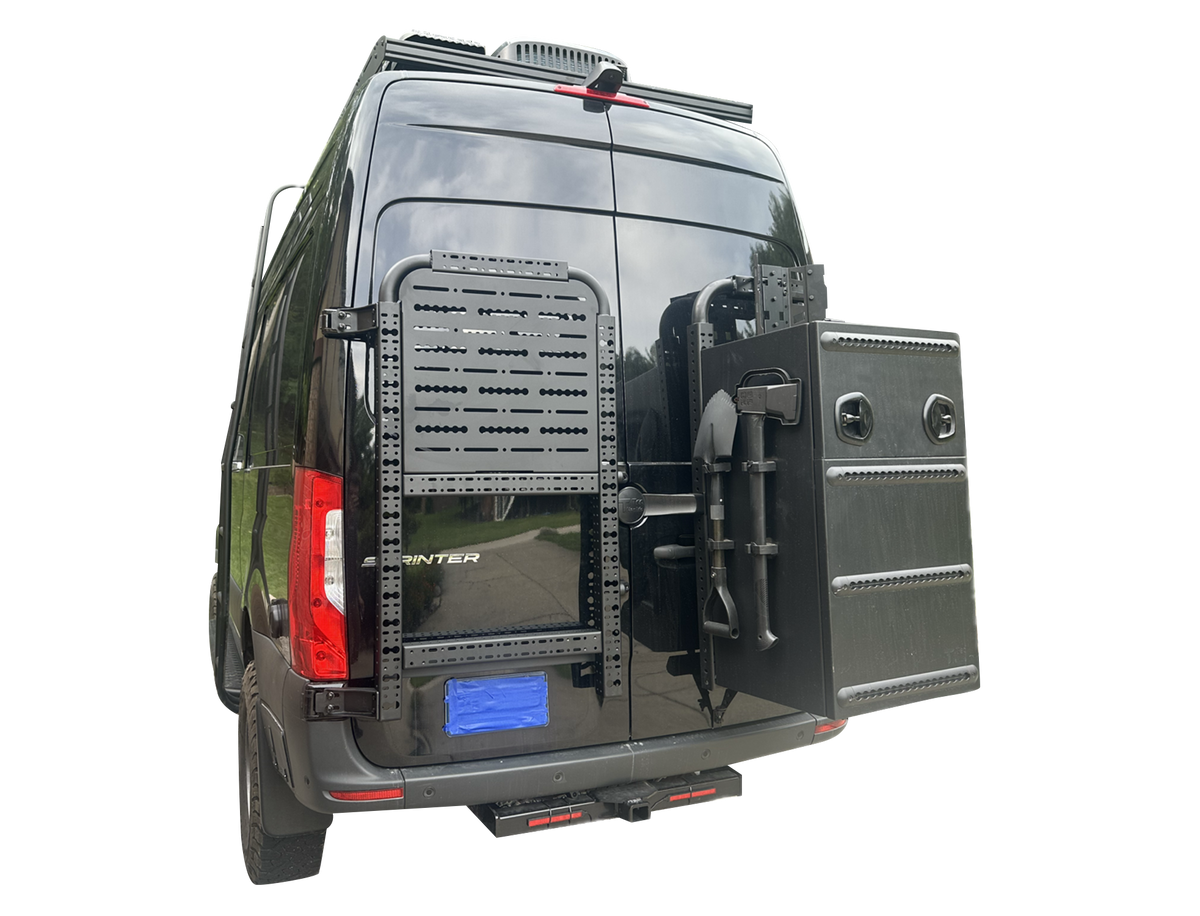

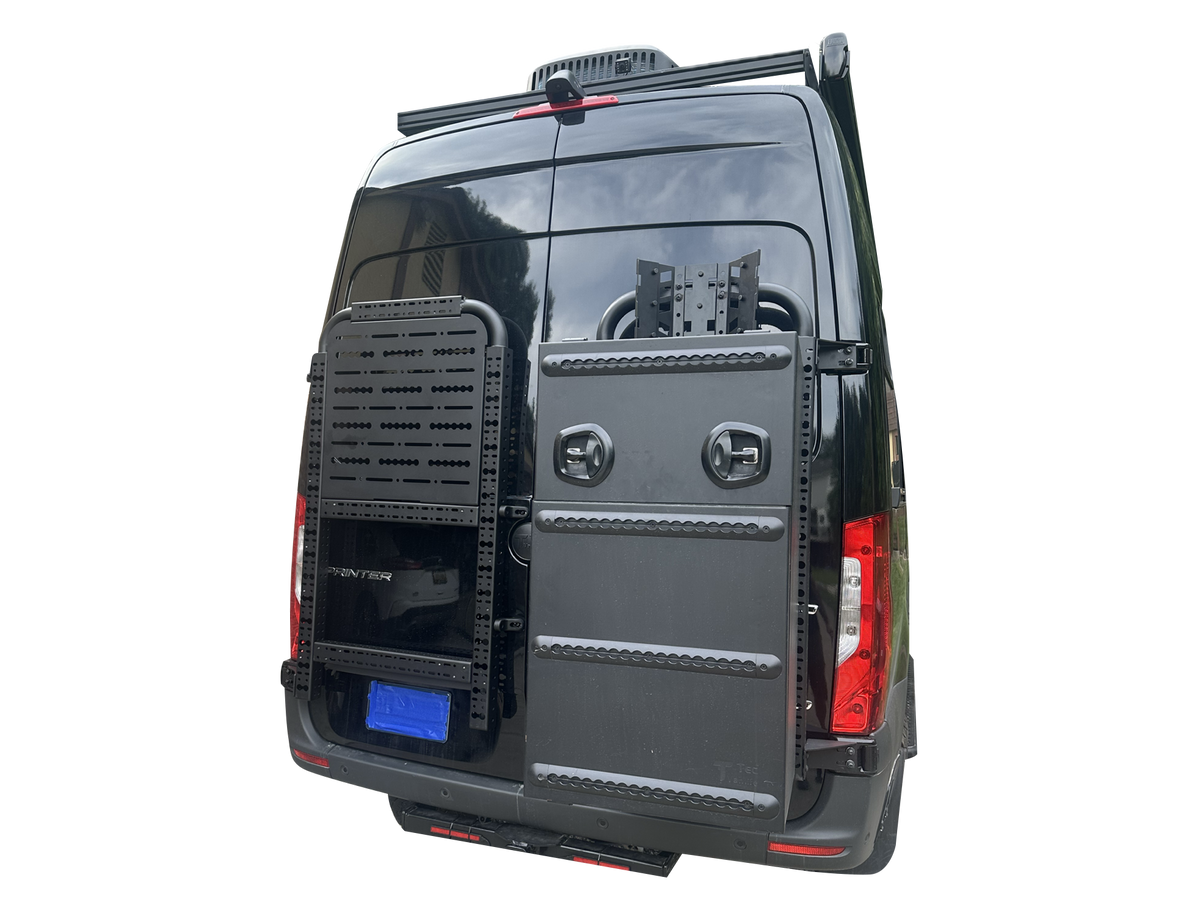

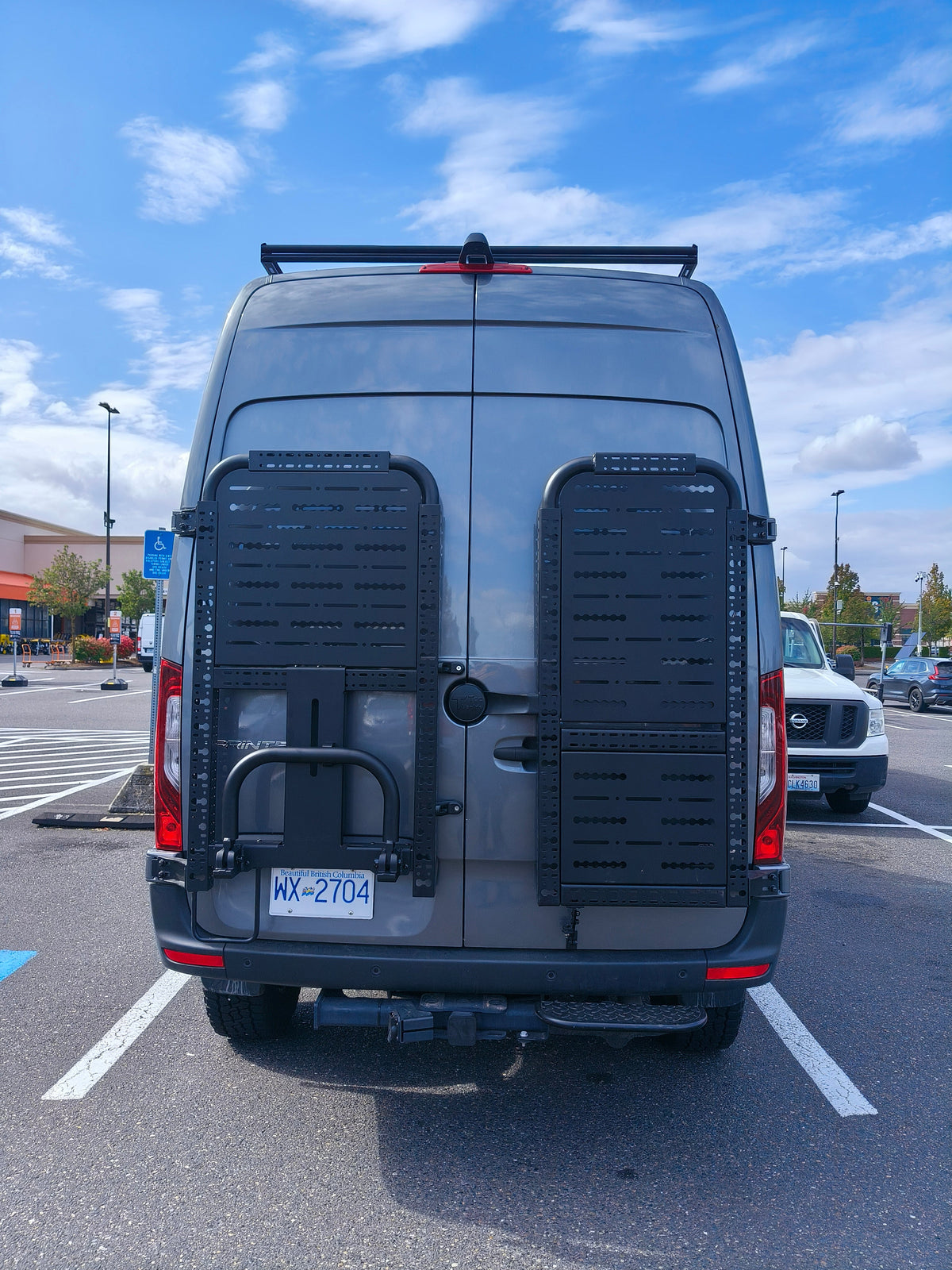

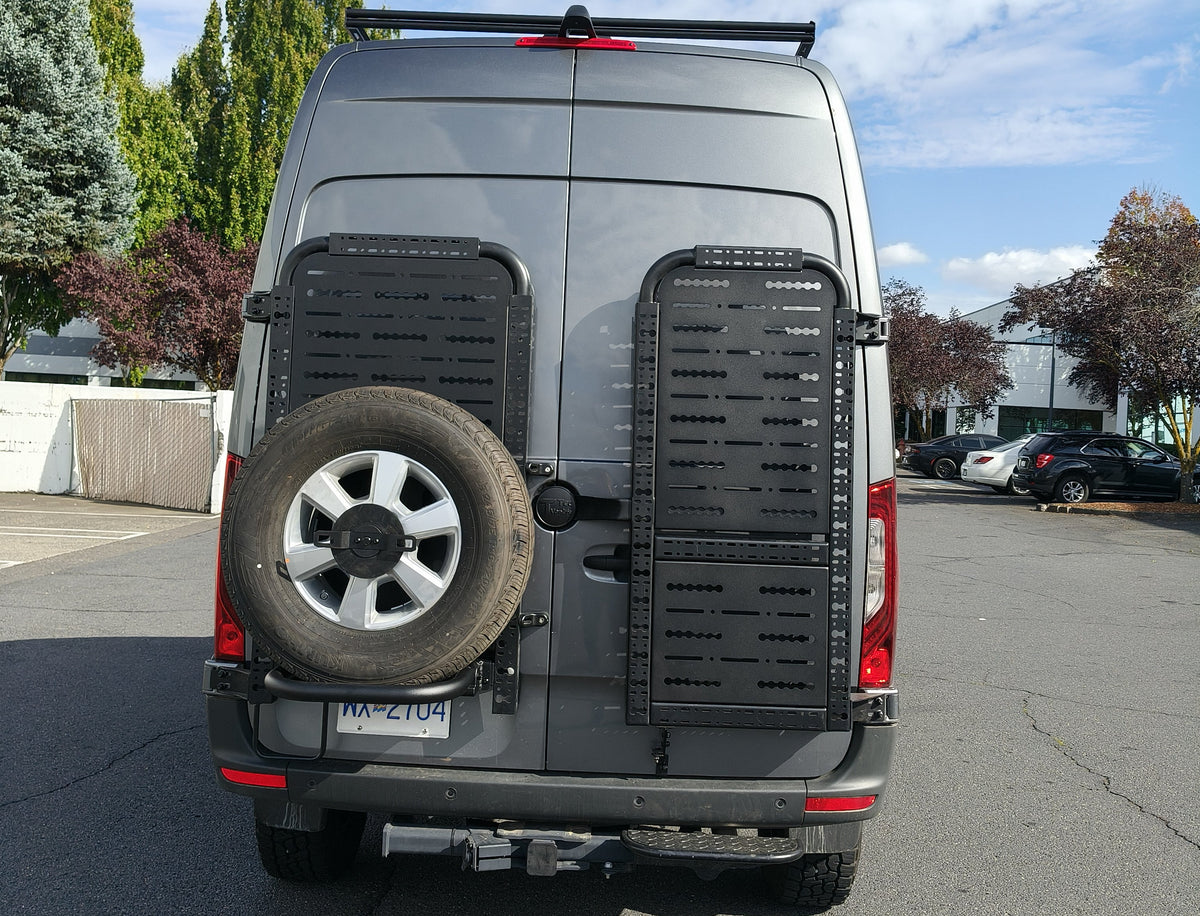

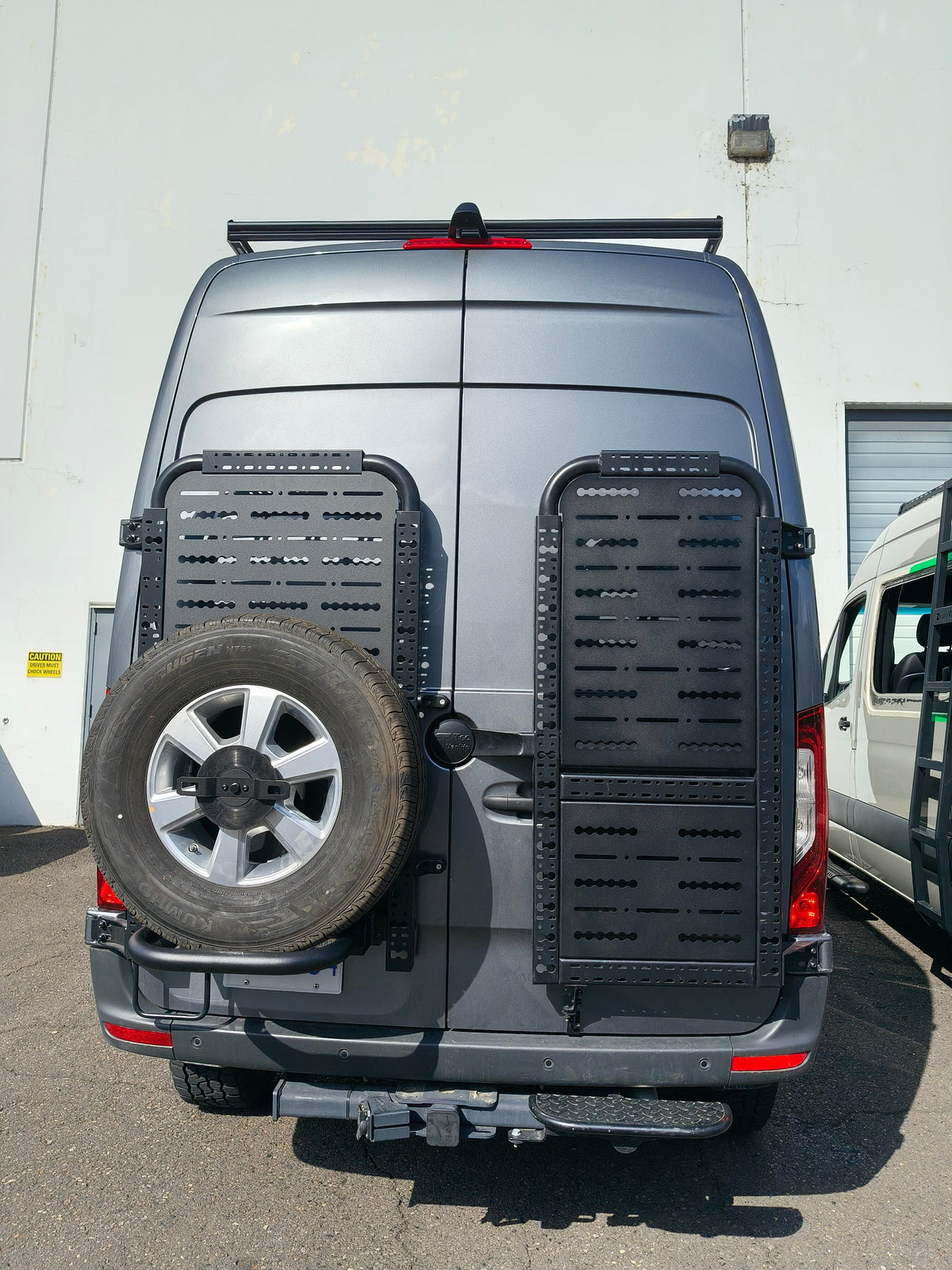

Direct fit rear door gear rack for 2019+ Sprinter 180° hinge models, providing a no drill mounting base for storage boxes, bikes, and fuel containers.
- FREE shipping to the lower 48 states.
- Download installation instructions [PDF]
- Engineered for 2019+ Mercedes Sprinter models with 180° rear door hinges
- Loads up to 180 lbs

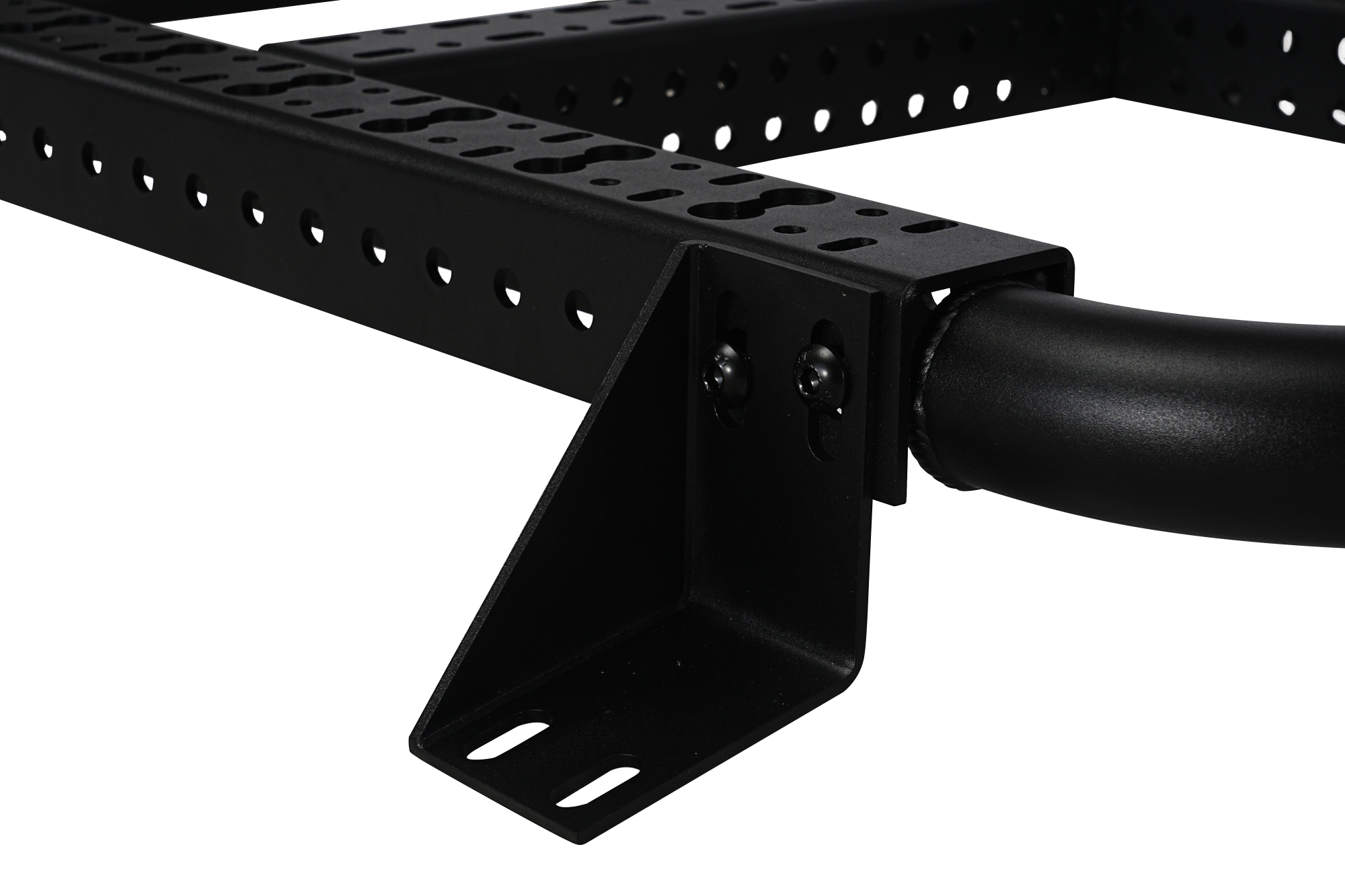

- Installs using factory hinge points and OEM badge mounting holes; no drilling required
- Constructed from lightweight aluminum; total system weight 15 lbs

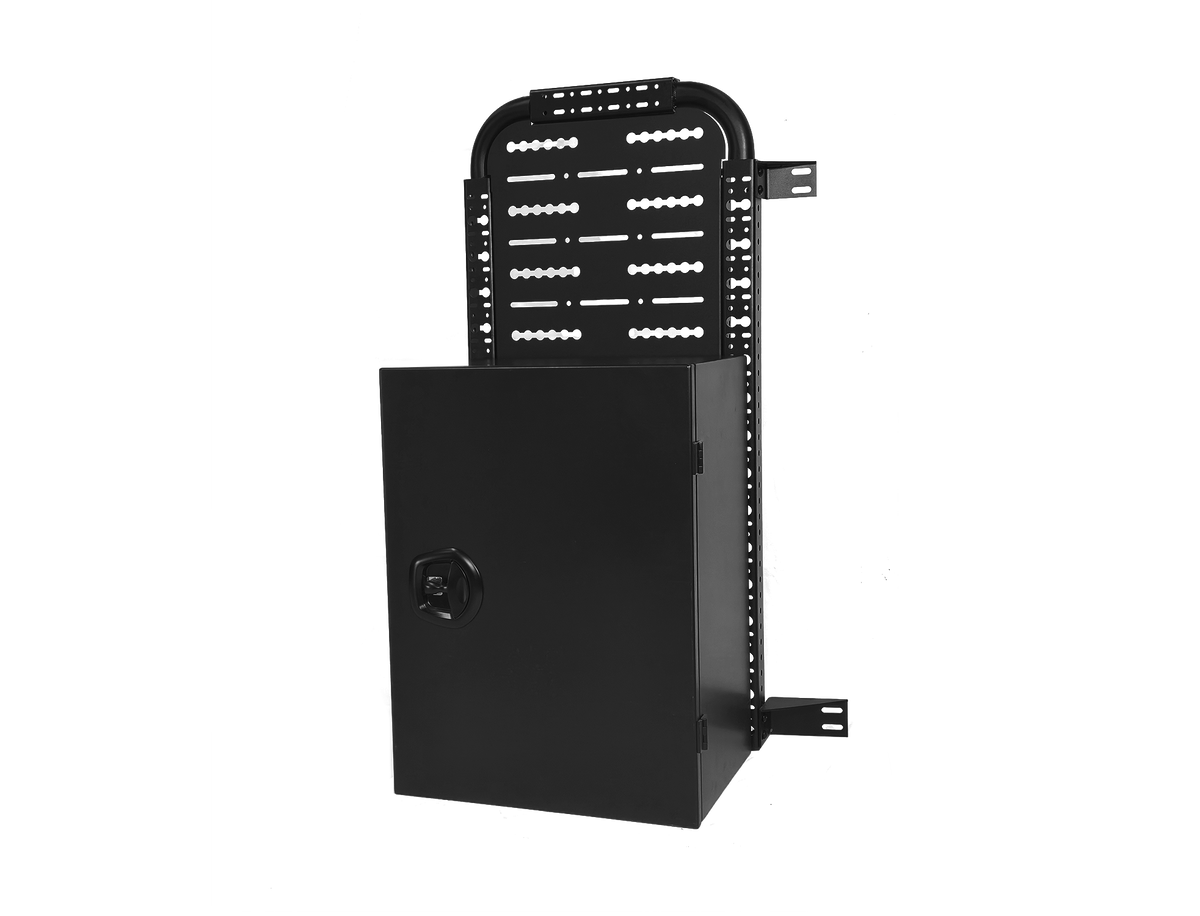

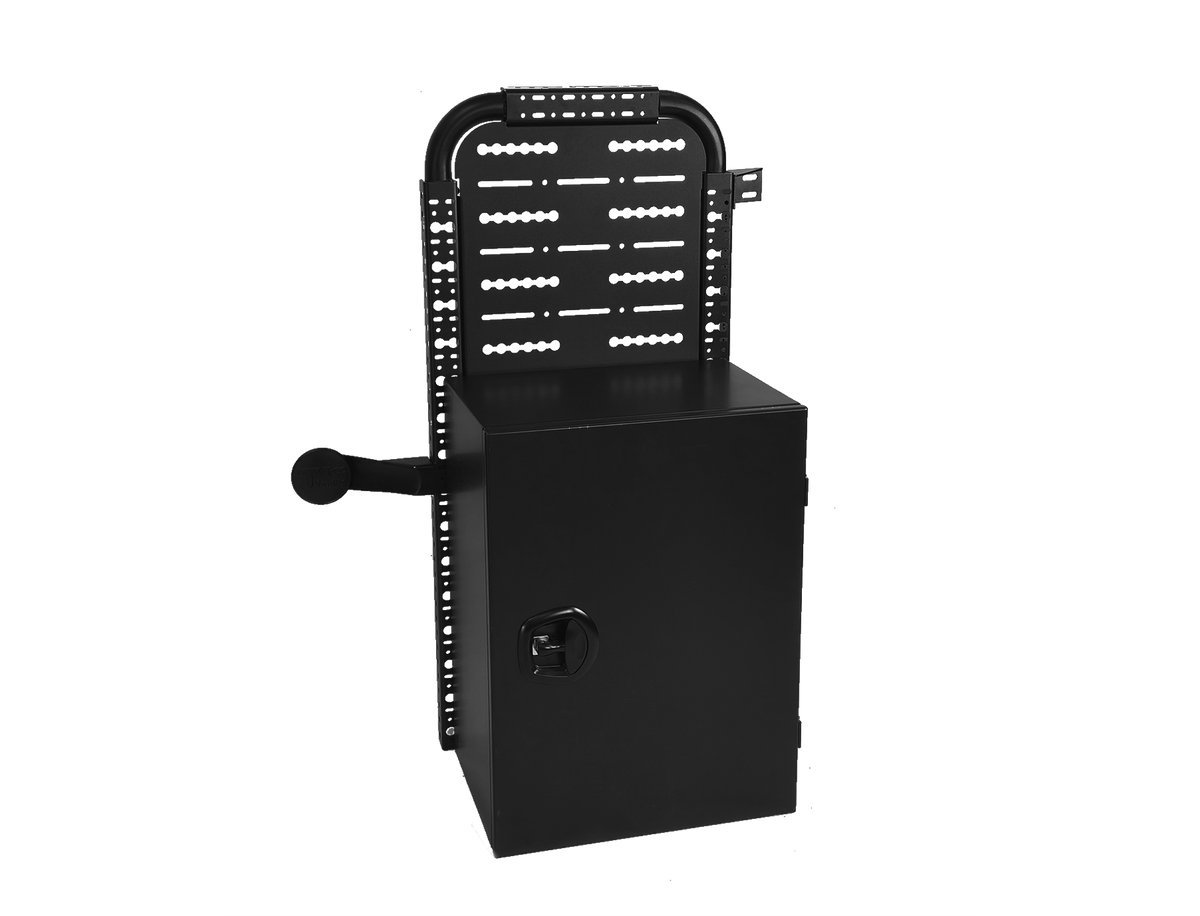

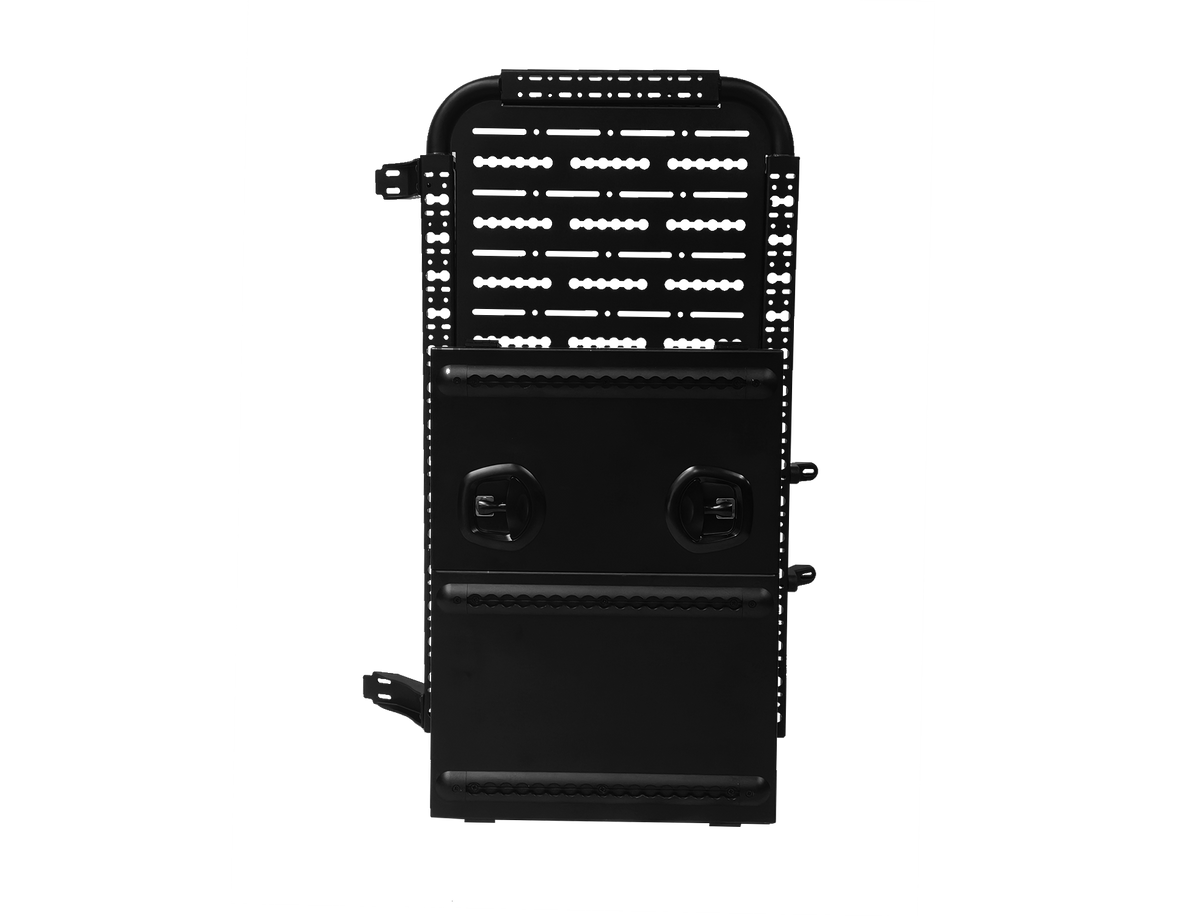

- Provides mounting capability for storage boxes, bike carriers, and fuel containers

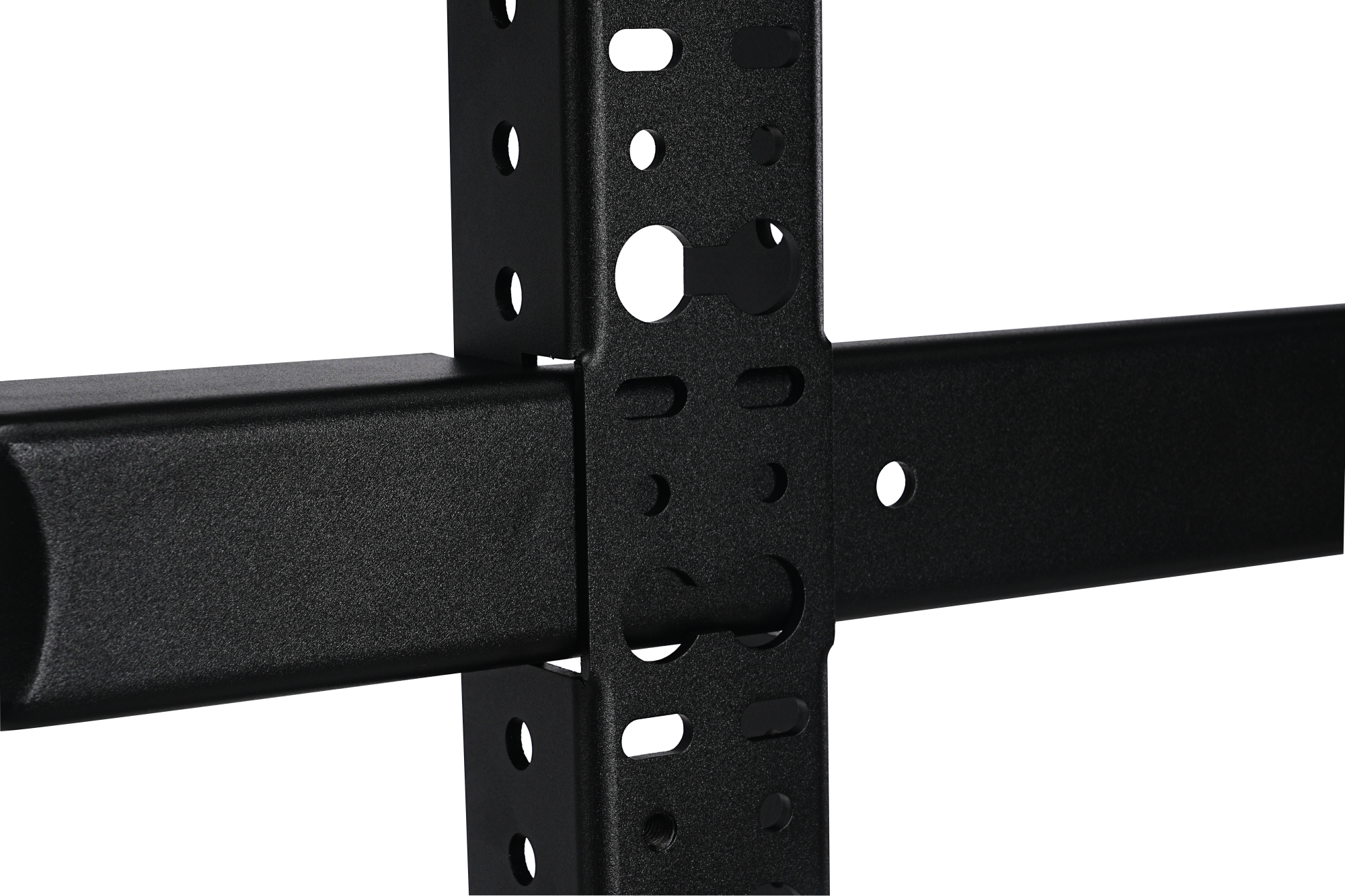

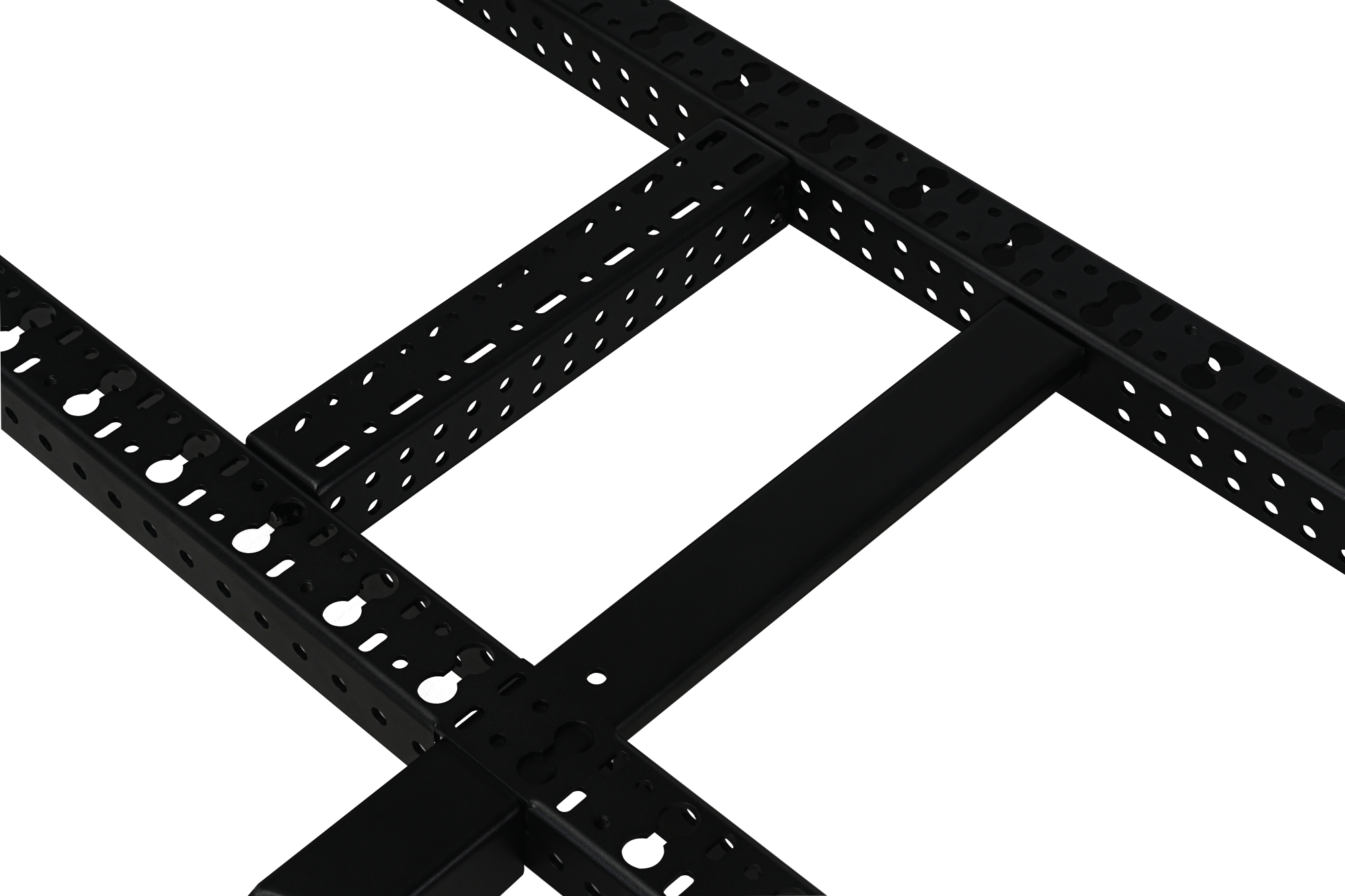

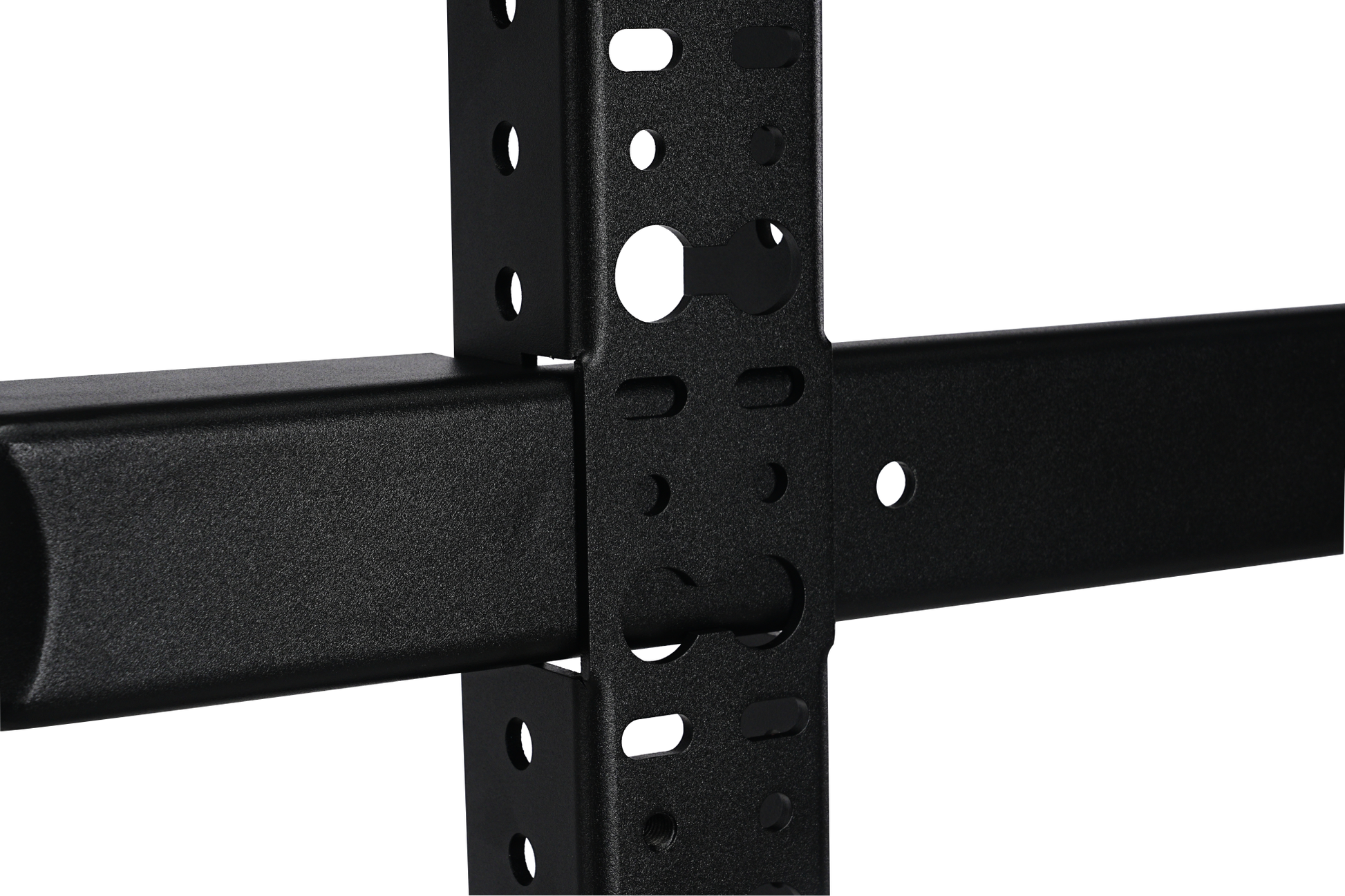

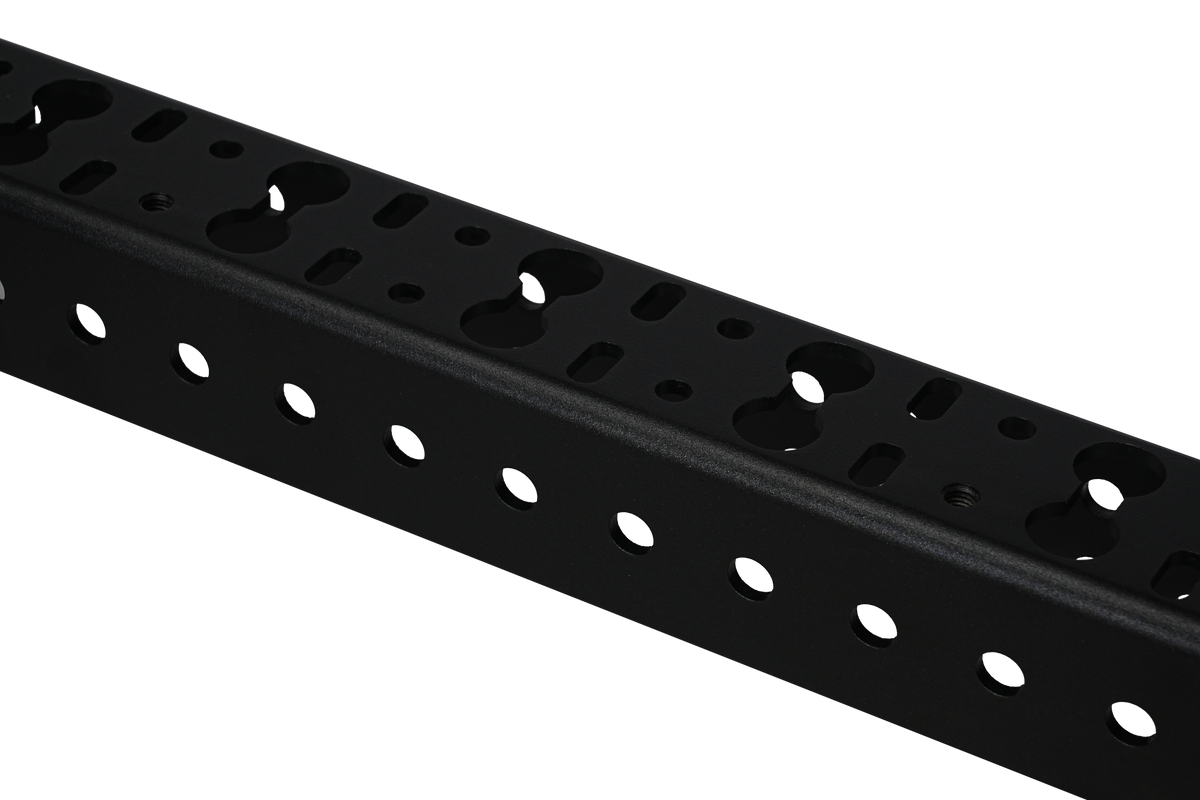

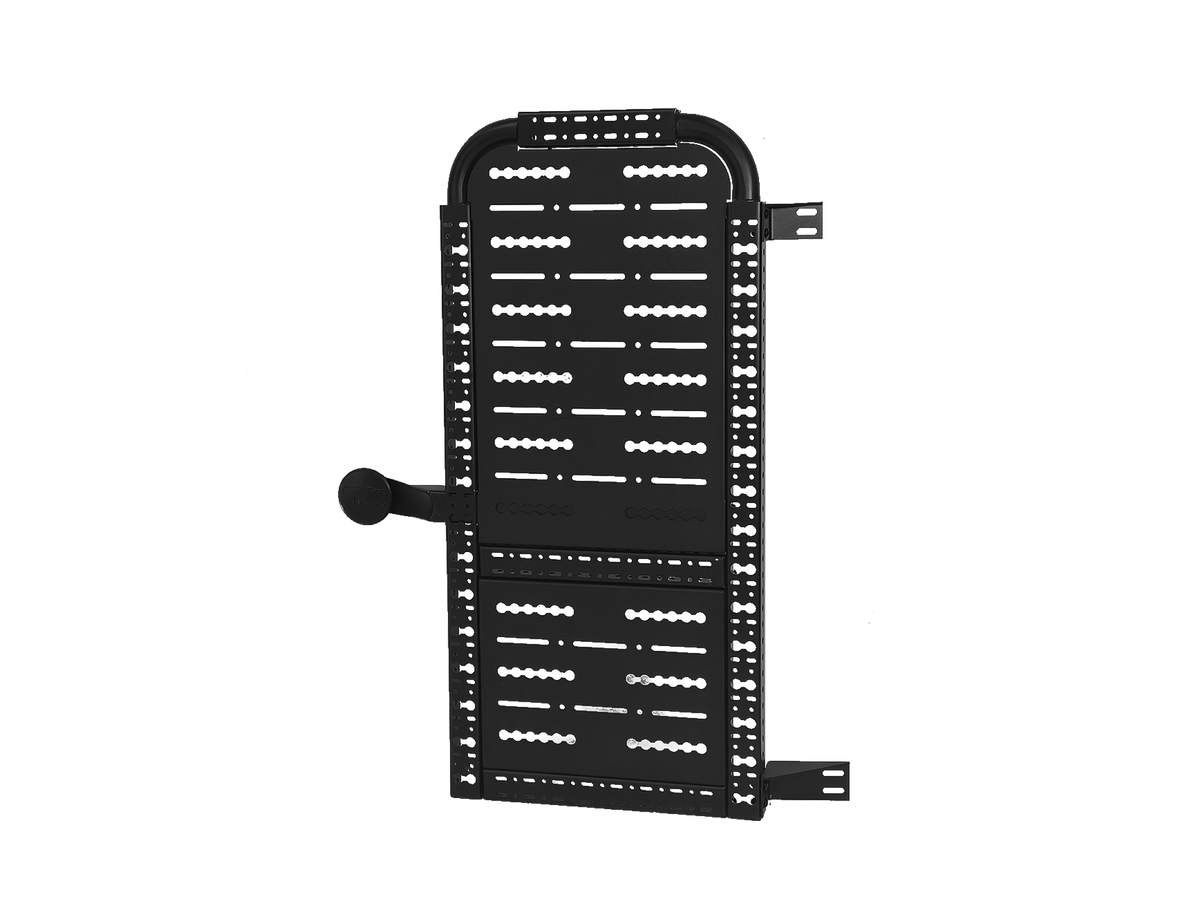

- Features L-track holes and slotted rails for standard attachment hardware

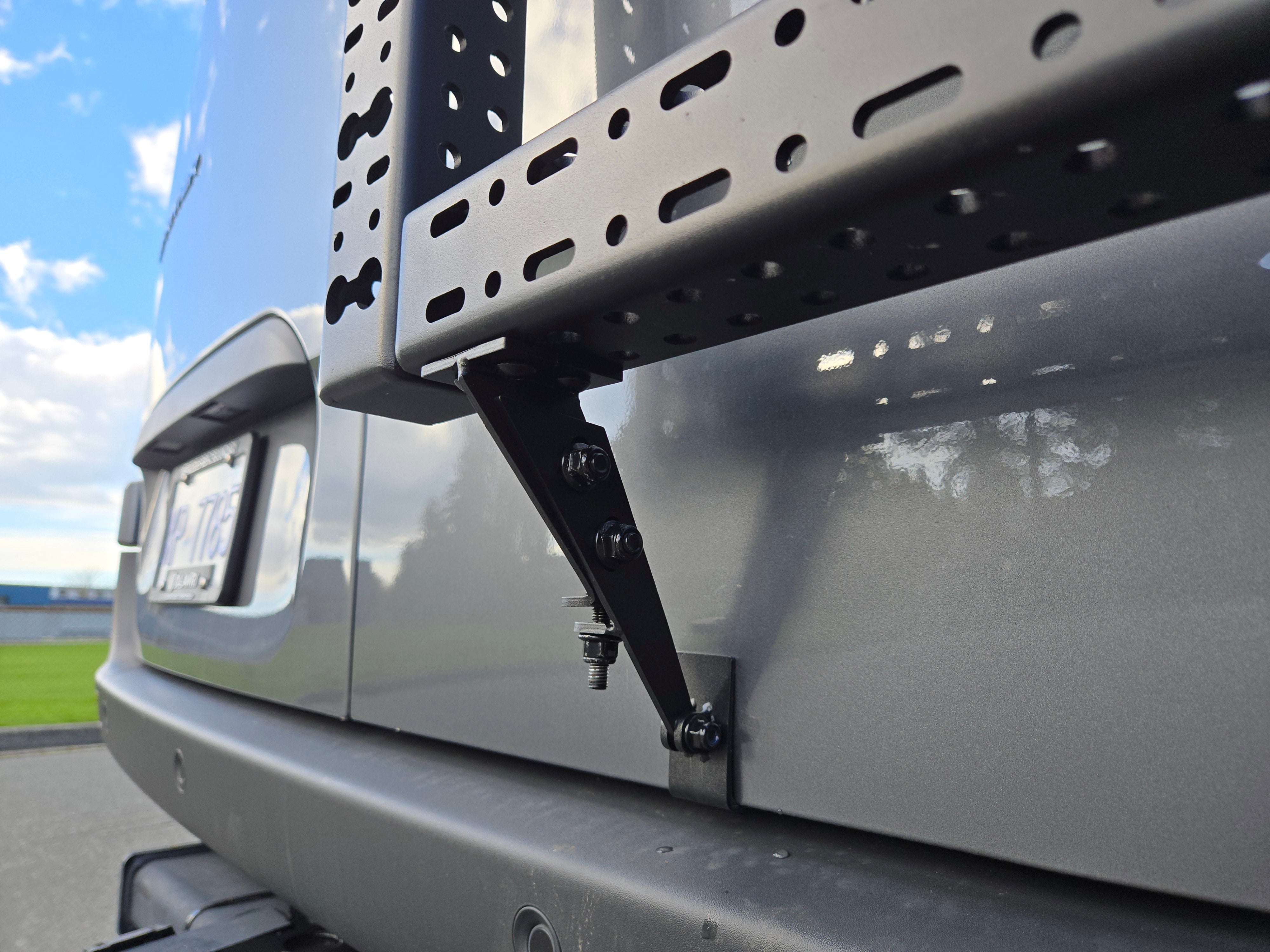

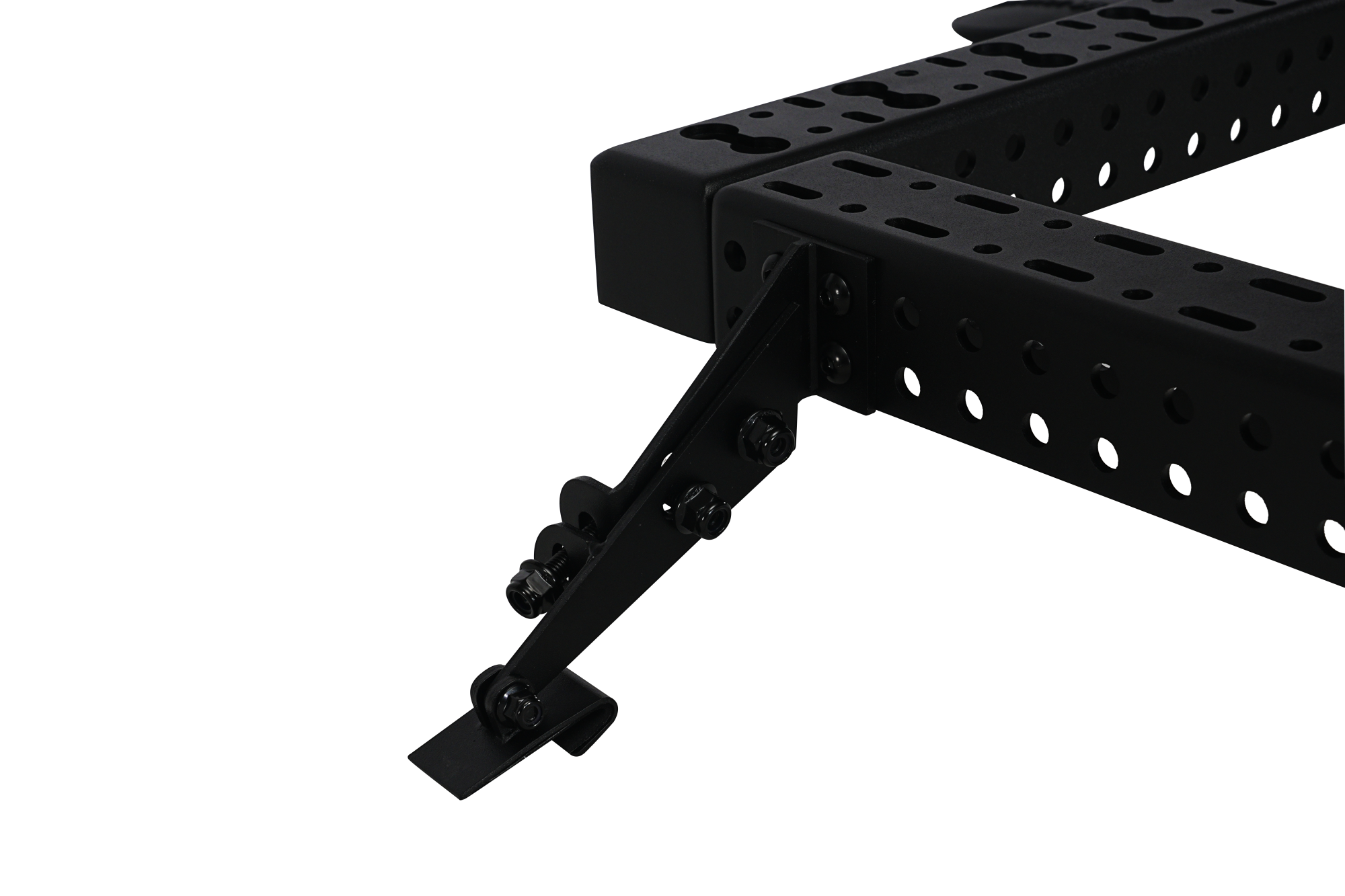

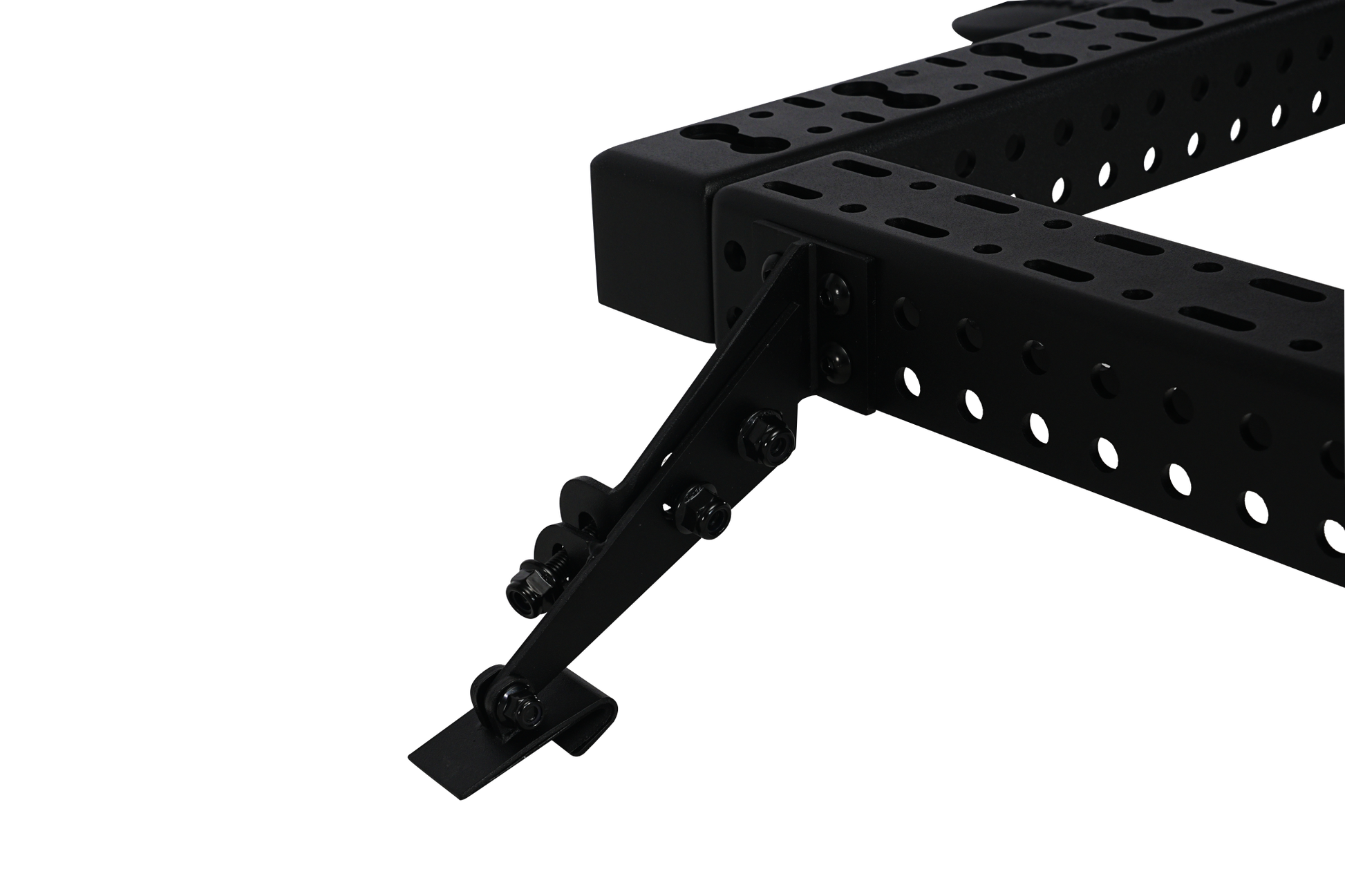

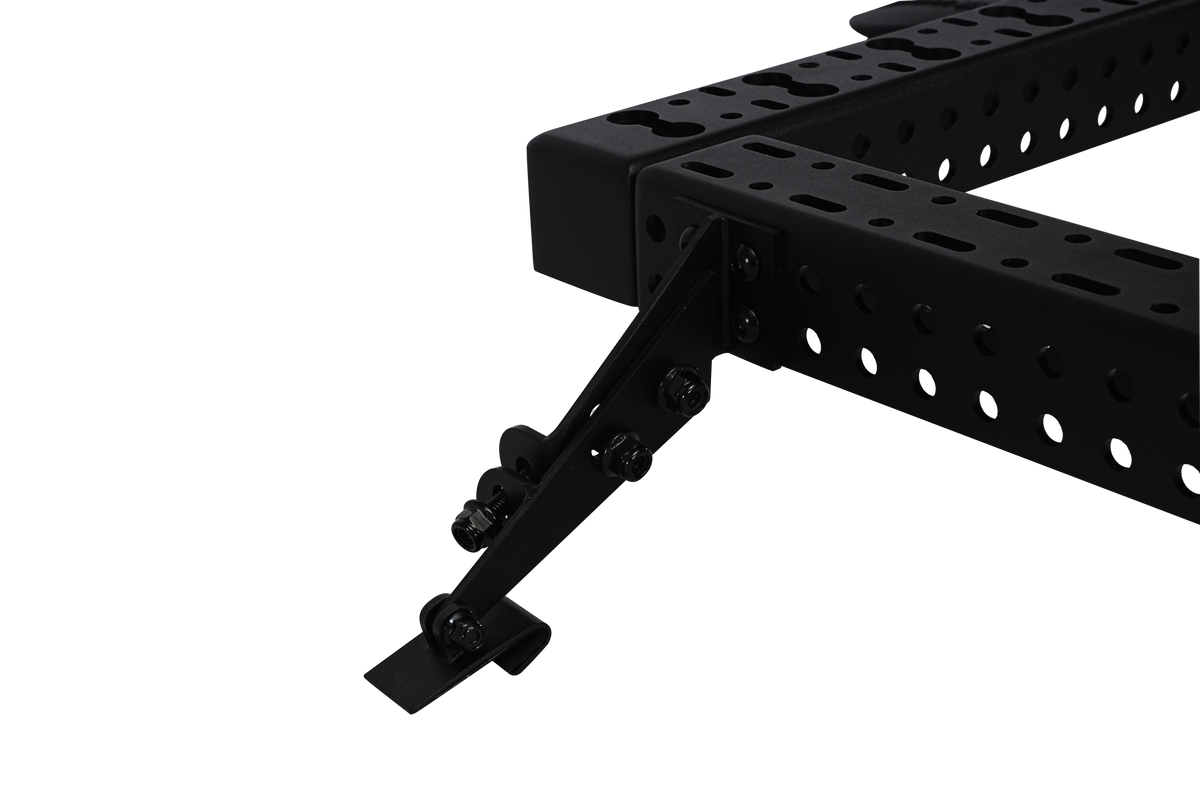

- Equipped with a lower door clamp to improve load stability
- Maintains full rear door operation without interference
- Installs without permanent vehicle modifications
- Supplied with required mounting hardware
Measurements:
- Height: 49.2" (1250 mm)
- Width: 22.8" (580 mm)
- Weight: 15 lbs (6.8 kg)
Description:

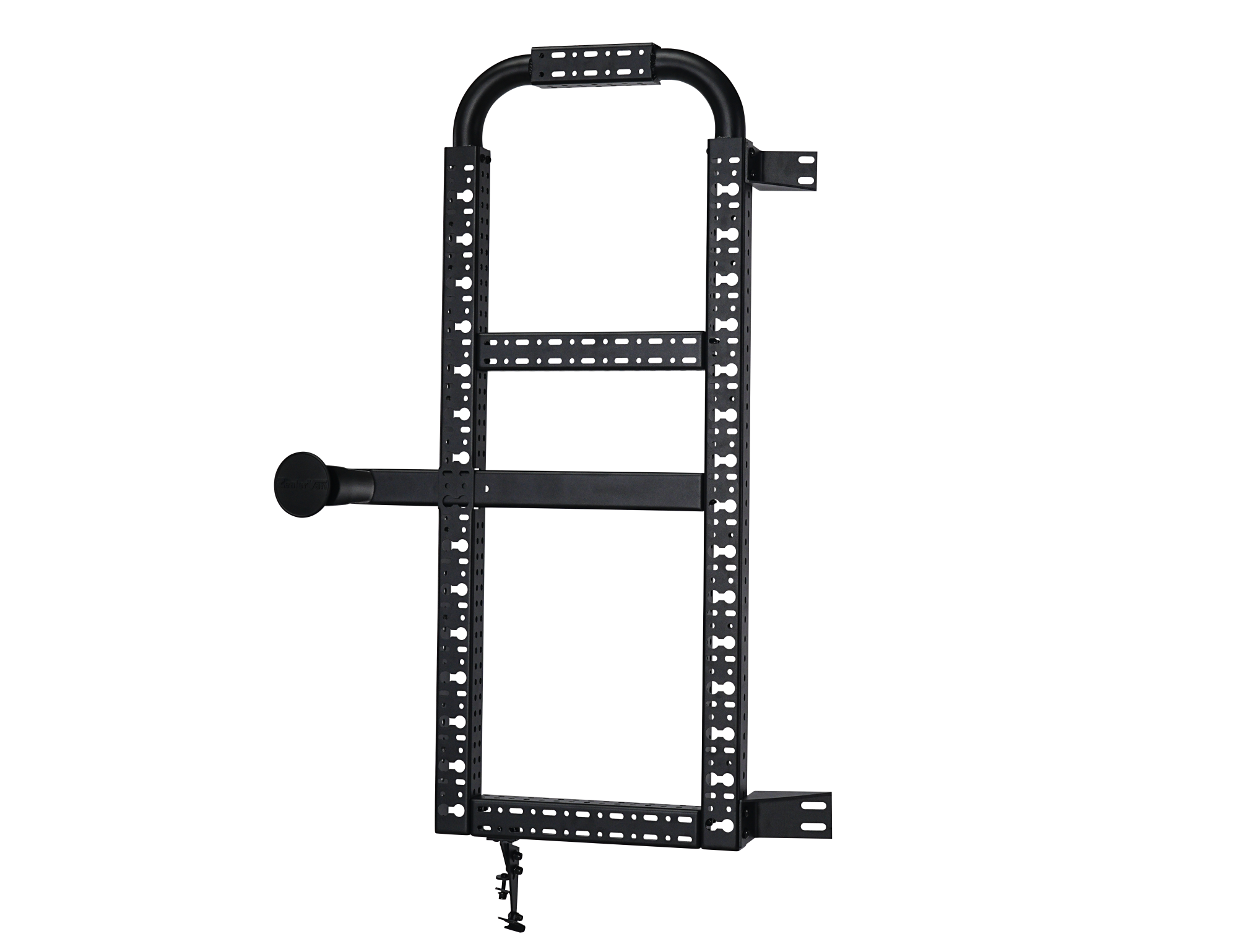

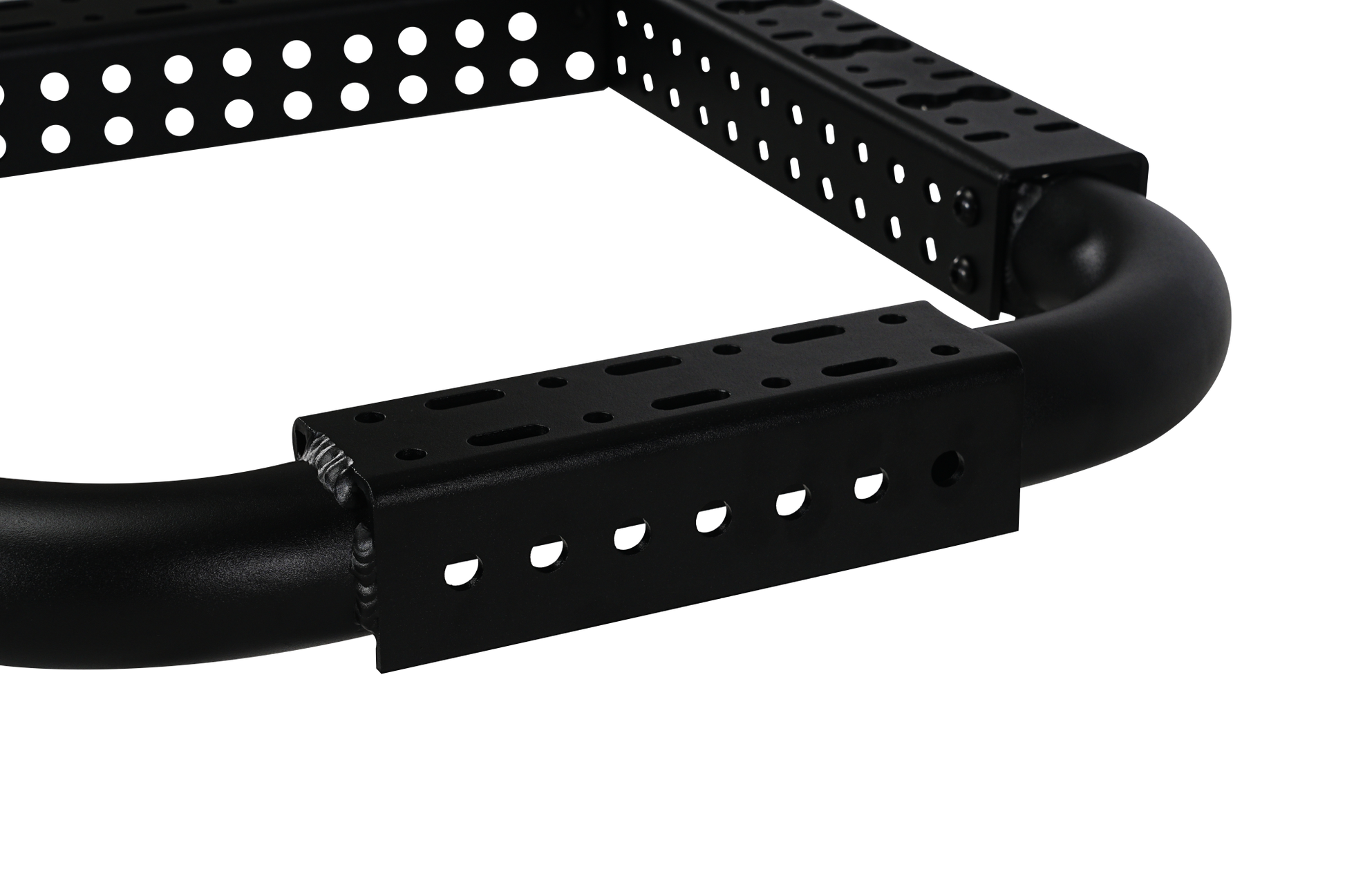

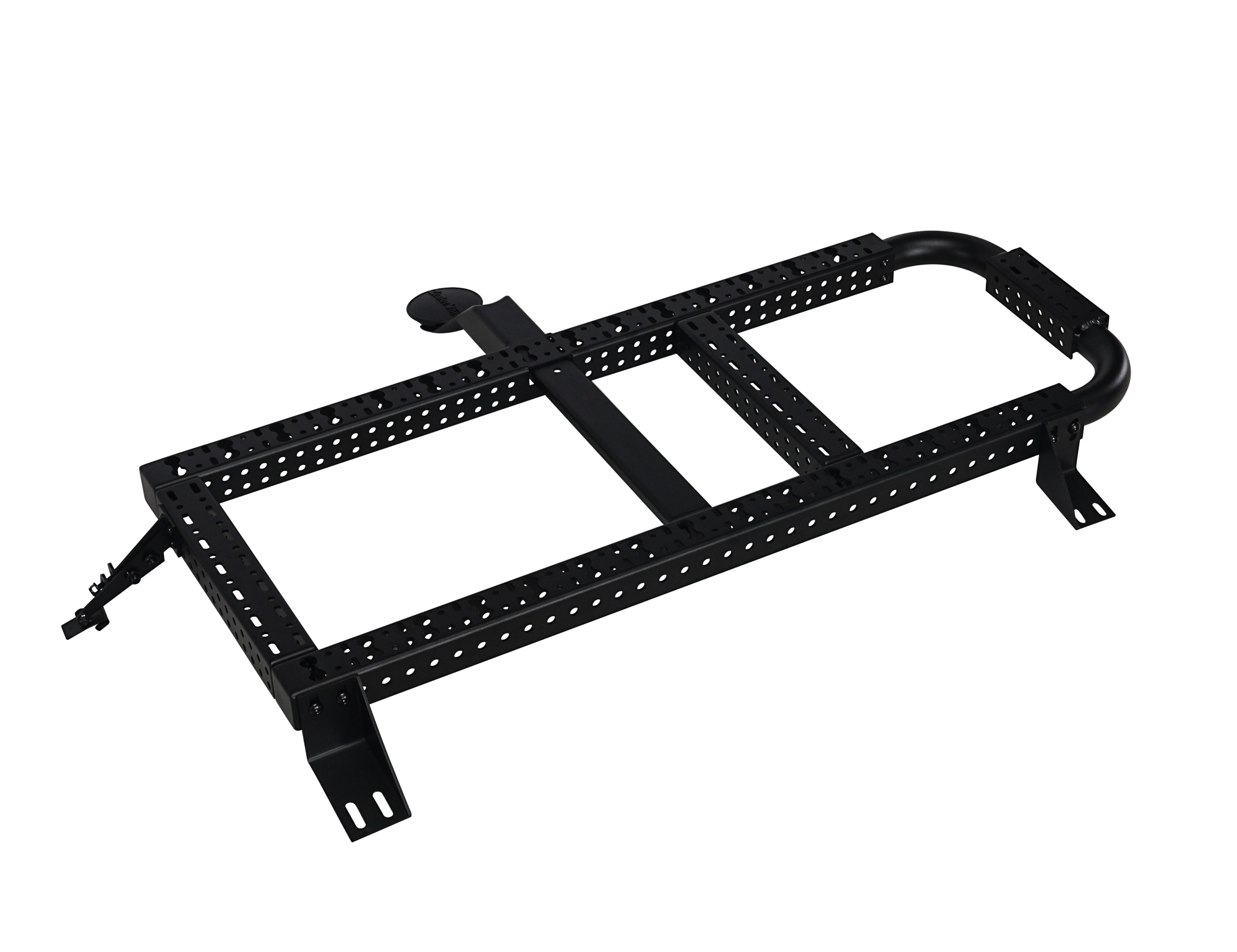

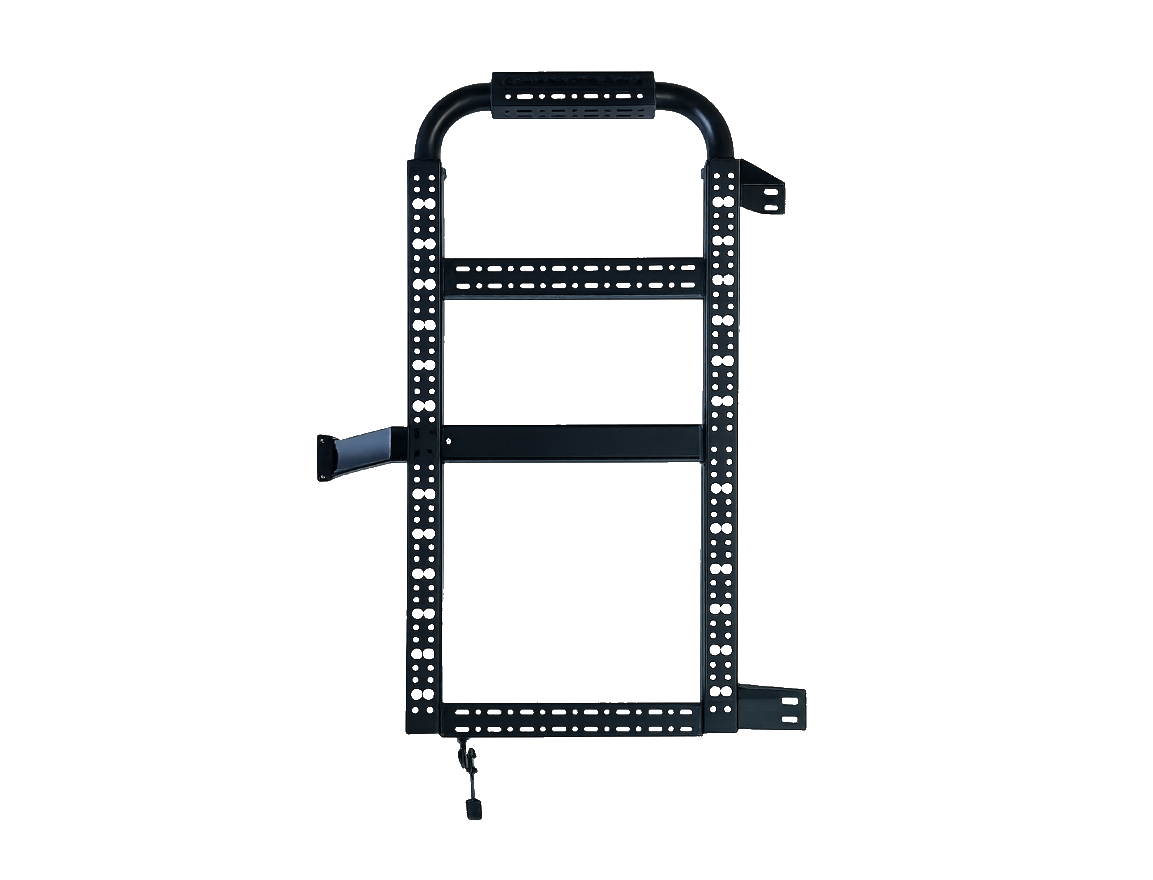

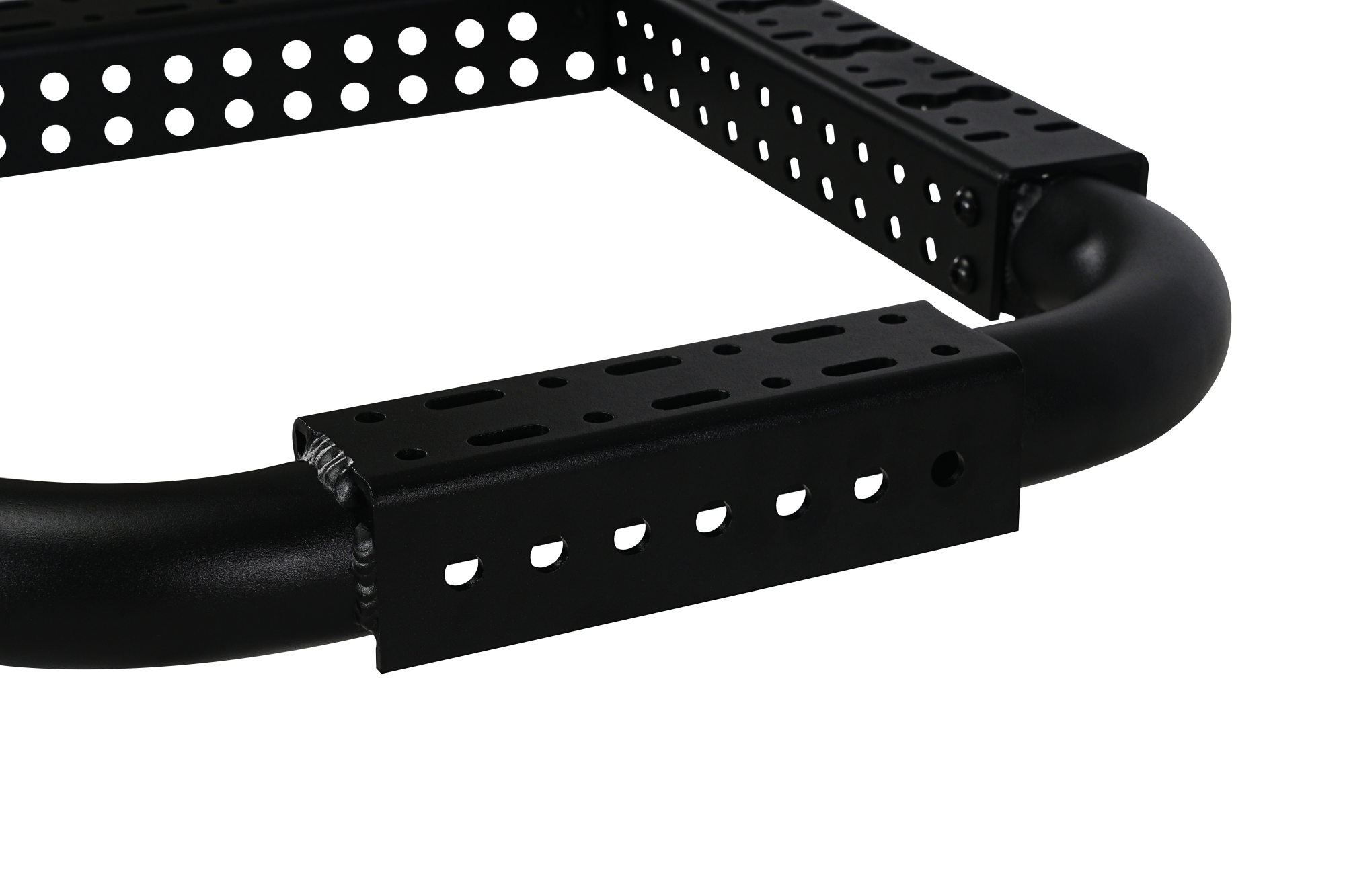

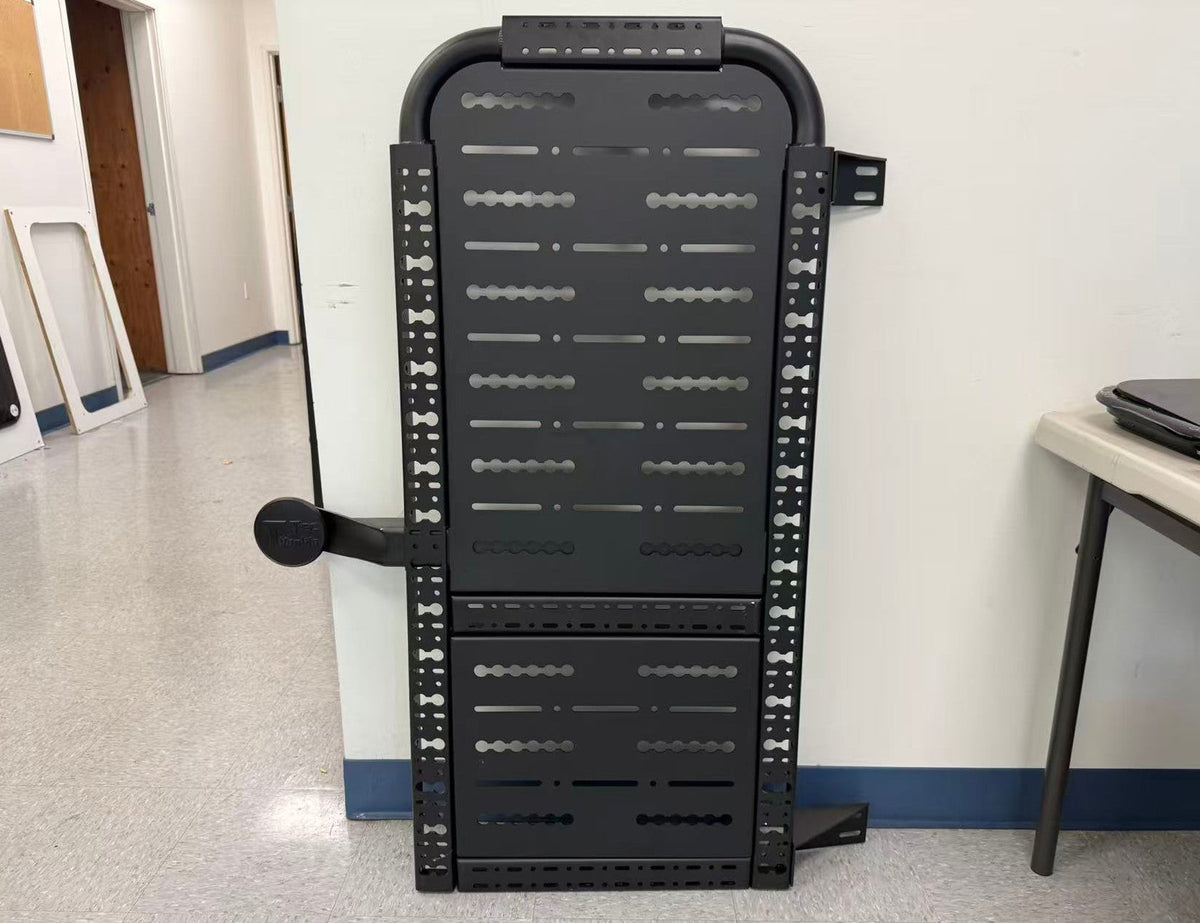

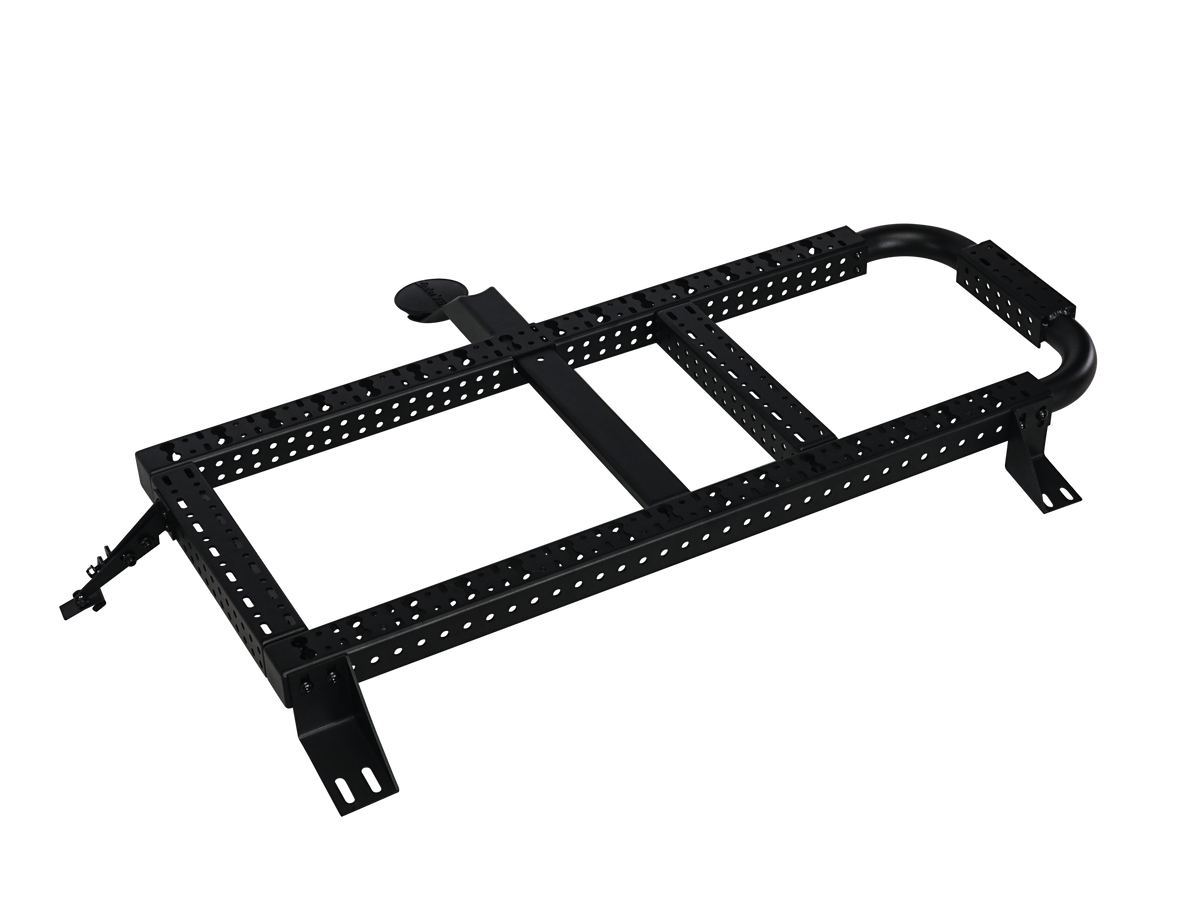

Constructed from a lightweight extruded aluminum frame, this rear passenger door gear rack is designed for 2019+ Sprinter models equipped with 180° rear door hinges. The structure provides a stable and dependable mounting base for accessories commonly carried on rear doors while keeping overall system weight to a minimum.

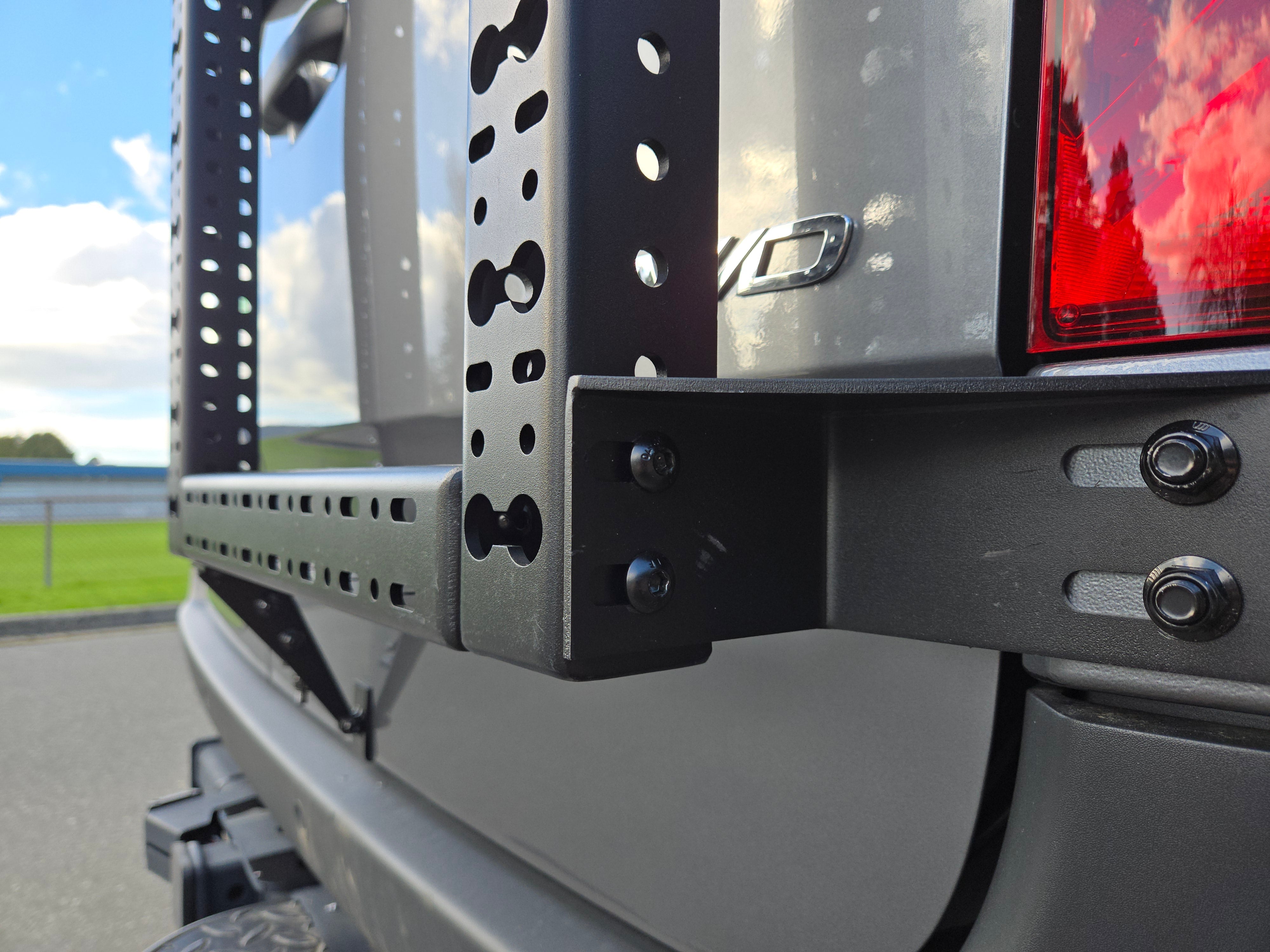

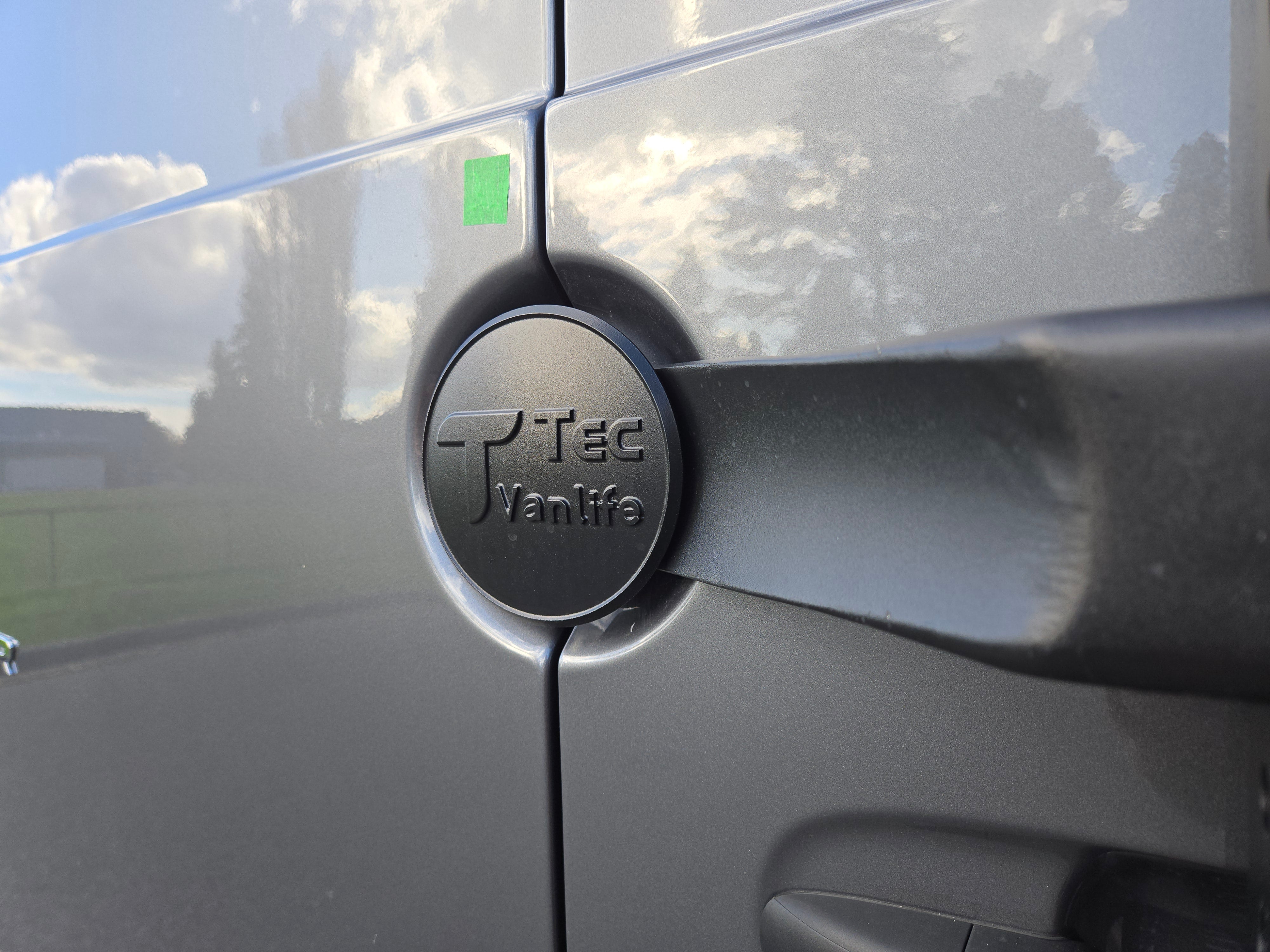

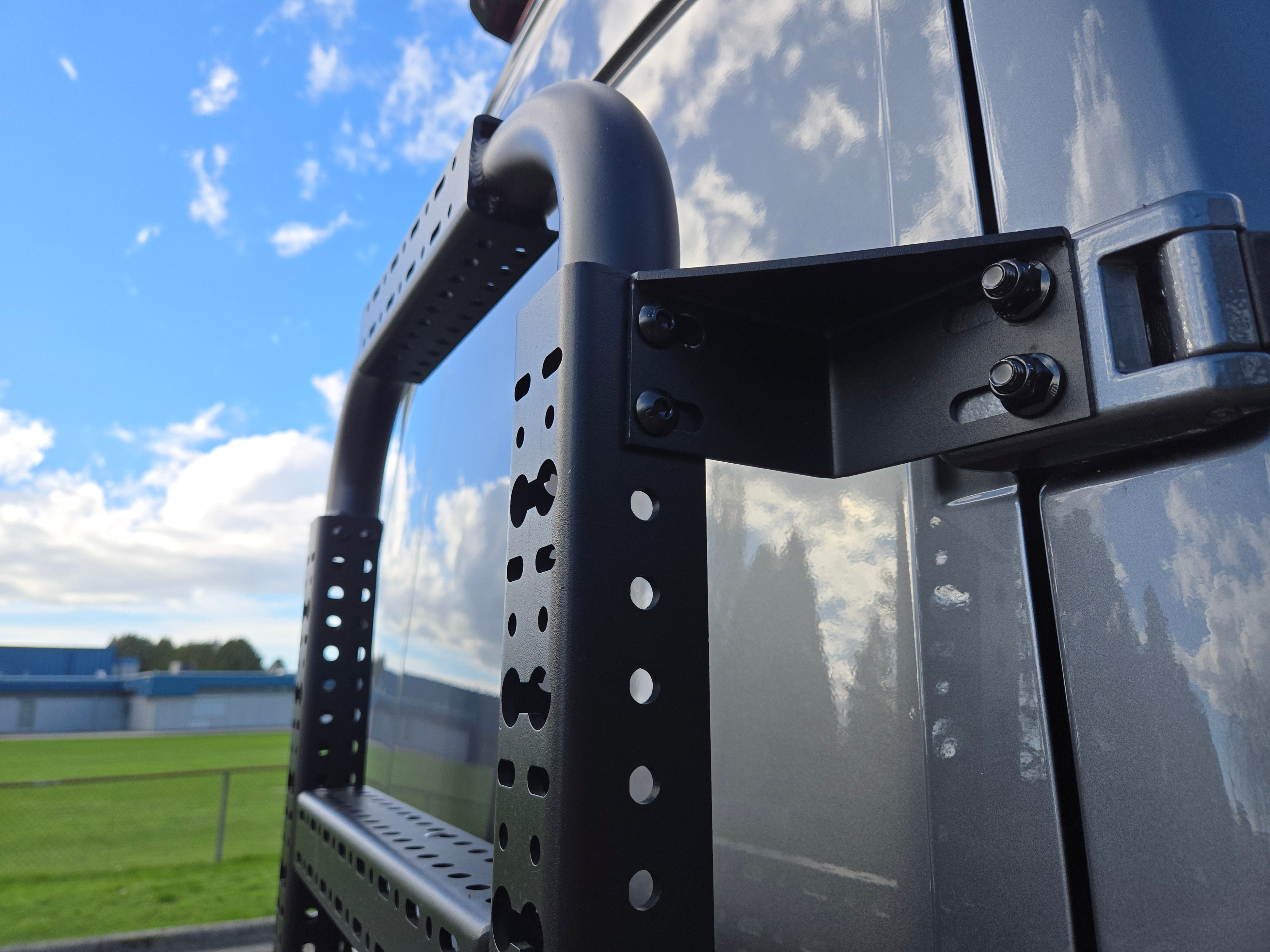

Installation follows a straightforward, no drill process. The rack mounts directly to the factory hinge locations and utilizes the OEM Mercedes badge openings as a third anchor point. A lower door clamp is included to improve load distribution and overall stability across the door. All installation steps can be completed with standard hand tools, and no modification to the vehicle body is required.

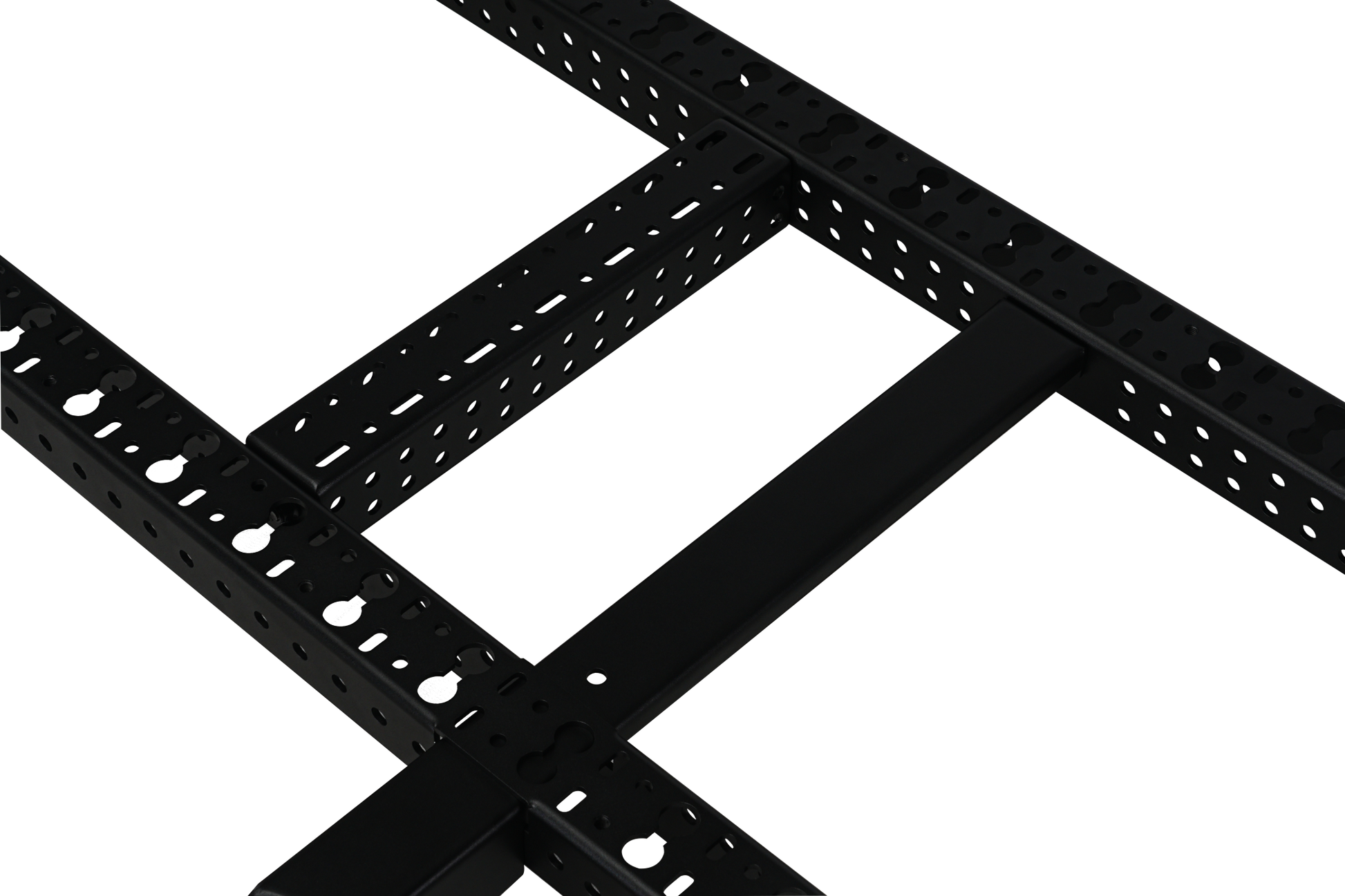

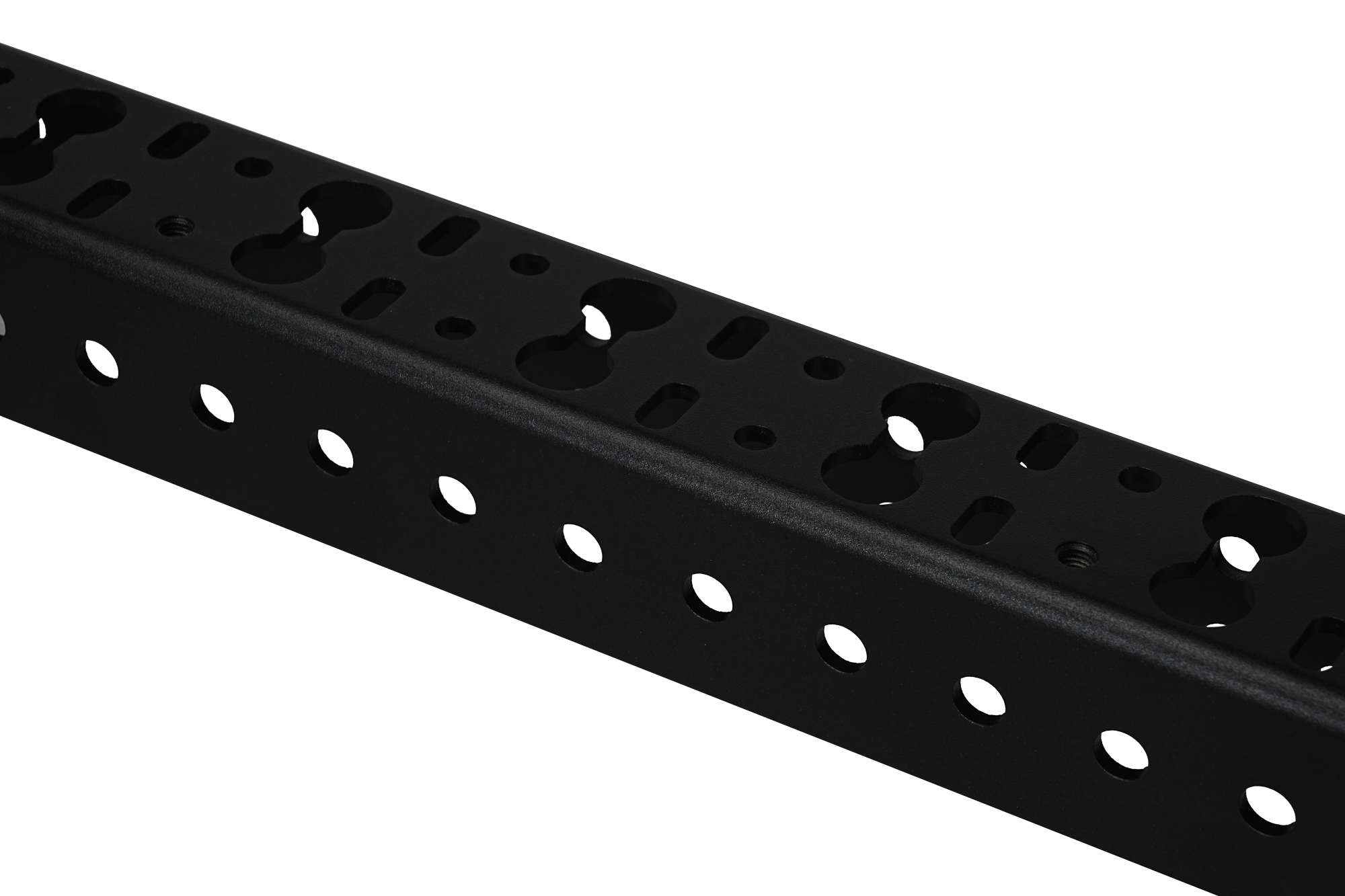

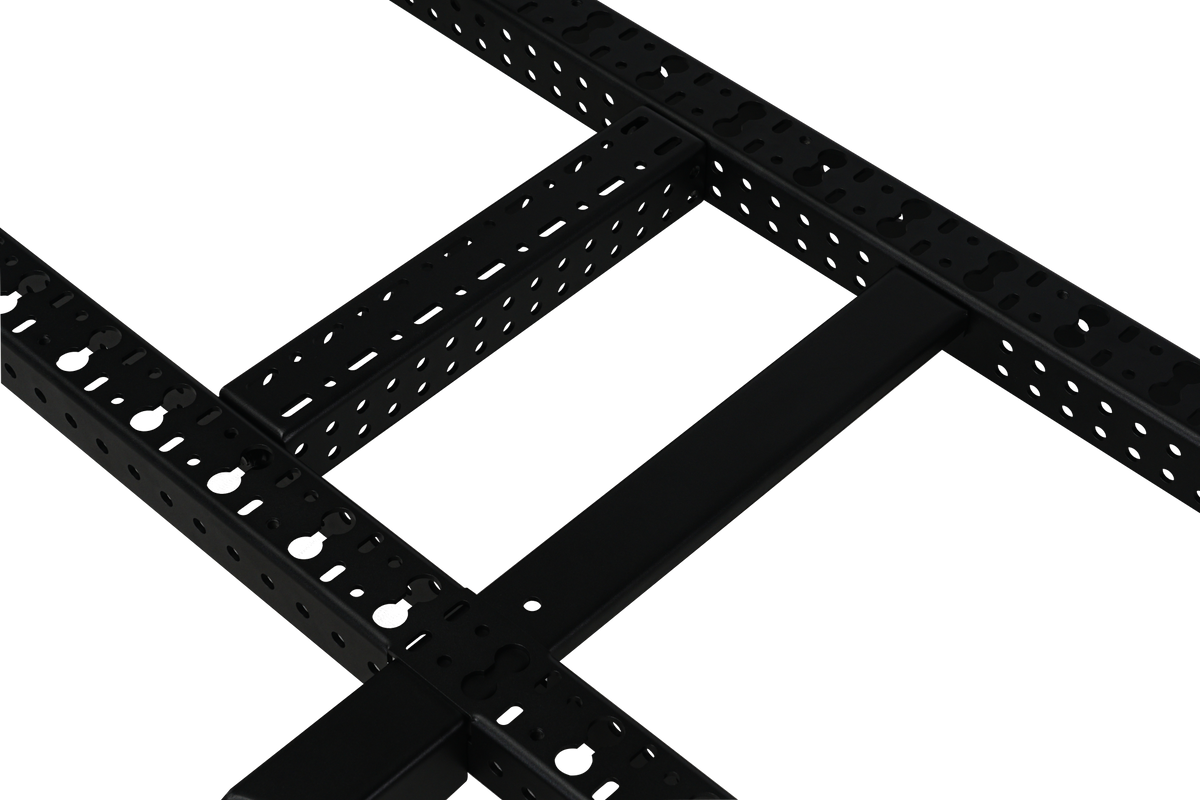

The rack features L-track holes and slotted mounting rails, offering compatibility with storage boxes, bike carriers, fuel containers, and other rear door equipment. Its lightweight aluminum frame adds minimal load to the door, keeping door movement consistent under everyday use.
FAQ:
1. Does this rear door gear rack work with both 180° and 270° rear door hinges, or only the 180° hinge version?
This rack is designed for vehicles equipped with 180° rear door hinges only. Vehicles with 270° hinges can be converted by replacing the hinges using parts available from Mercedes-Benz dealers.
2. Does installation require removing interior trim panels to access the hinge bolts, and what steps are involved?
No interior trim removal is required. Installation only involves removing the factory Mercedes badge to access the mounting points.
3. Can this gear rack be installed by one person? How long does installation typically take?
One person can complete the installation, though having two people makes the process easier. Typical installation time is around one hour.
4. Will adding gear to the rear door affect hinge durability, door sag, or the door’s ability to open and close normally?
No. When installed correctly, the rack does not negatively affect hinge function or door alignment.
5. Can the rear doors open fully with accessories mounted, and are there any interference concerns with the secondary door, ladders, the rear camera, or rear parking sensors?
The rear doors can still open fully, and the rack does not interfere with existing equipment such as ladders, cameras, or sensors.
6. Are there any clearance considerations when mounting storage boxes, bikes, or fuel containers—specifically around taillights, hinges, or body panels?
Yes. Clearance should be checked based on the size of the accessories being installed to ensure taillights remain visible and sensors are unobstructed.
