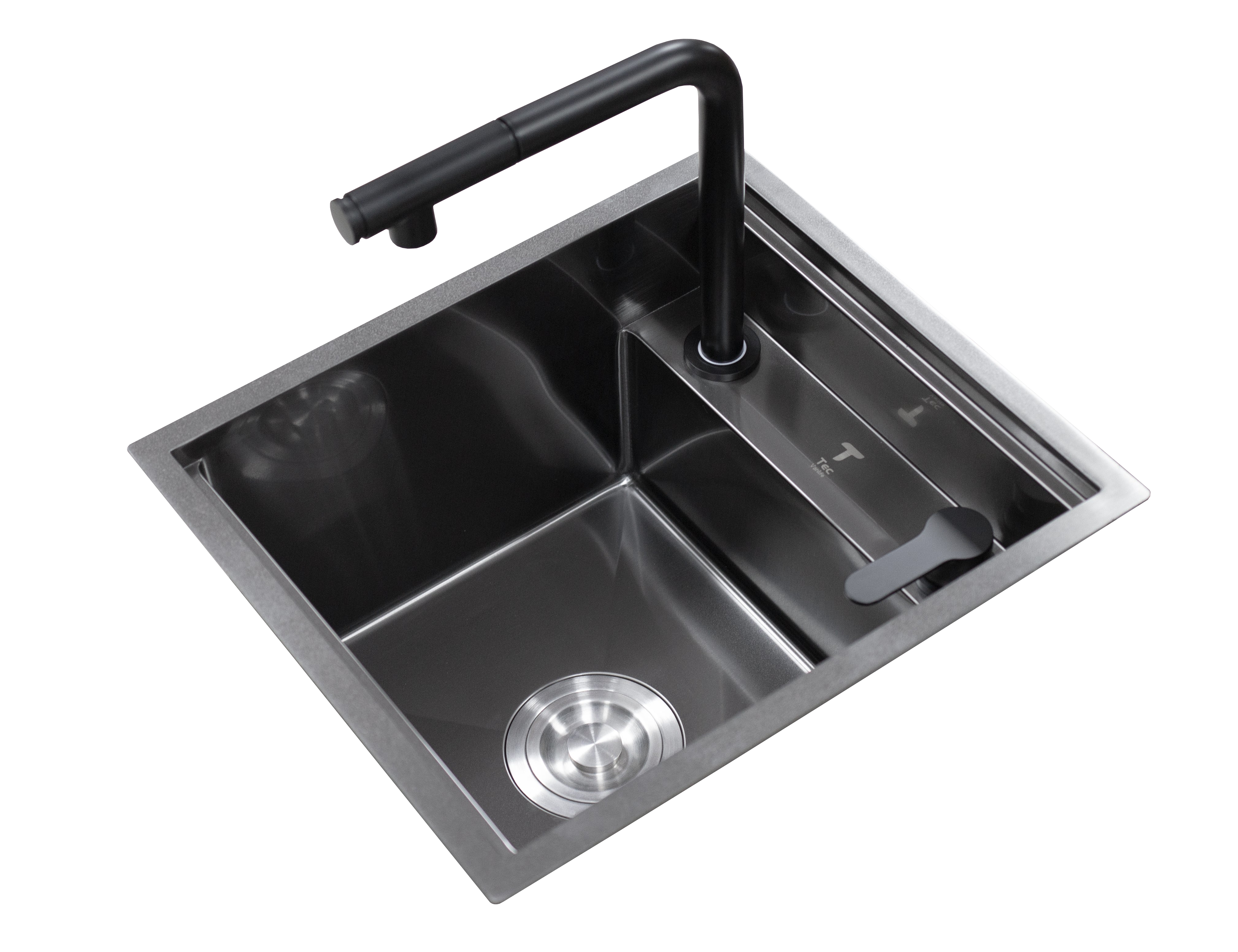

Tec Vanlife Space-Saving Sink with Hideaway Faucet

Stainless steel camper van hidden sink with a retractable pull out faucet and low profile drain, designed to maximize countertop and cabinet space.

Key Features:

• Hideaway Design: The faucet retracts below the countertop when not in use, allowing the sink cover to sit flush and maximizing usable counter space.
• 52" Pull Out Spray Head: Provides over 4 feet of reach for washing dishes, rinsing gear, or use as a showerhead.
• 360° Rotating Faucet: The faucet pivots freely for easier positioning and everyday use.
• Deep Basin: The 9" sink depth accommodates full size dishes while helping contain splashes.

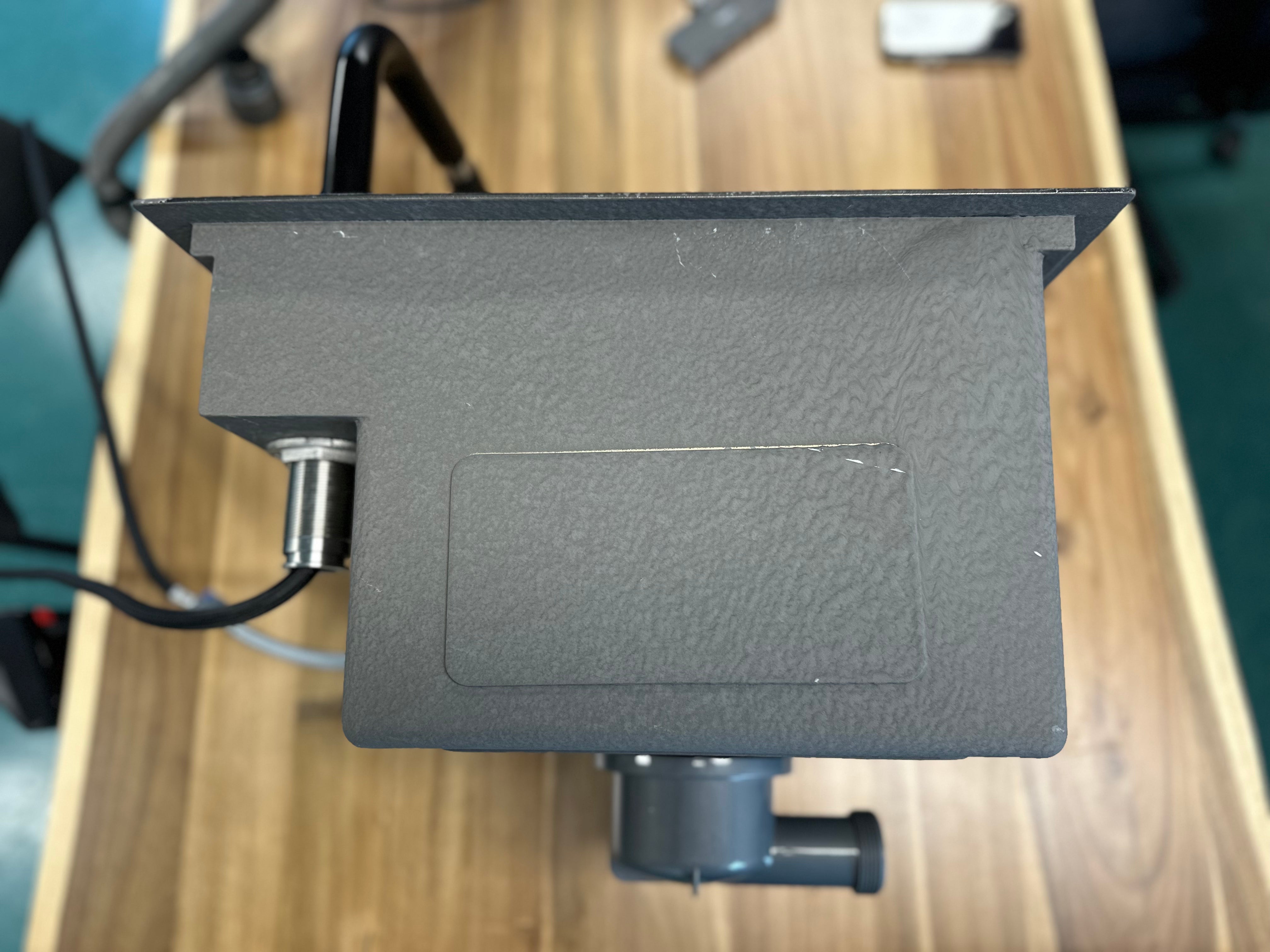

• Low Profile Drain: The included drain reduces the amount of space required beneath the sink, leaving more room for plumbing, water tanks, and cabinet storage.
• Nano Coated Finish: Durable, stain resistant, and easy to clean with a sleek black finish.
• Scratch Protection: Integrated rubber bushings reduce metal to metal contact around the retractable faucet mechanism.

Specifications:

• Exterior Dimensions: 450mm x 390mm (17.7" x 15.3")
• Interior Dimensions: 380mm x 347mm (14.9" x 13.6")
• Cutout Dimensions: 420mm x 360mm (16.5" x 14.2")
• Depth: 230mm (9")
• Material Thickness: 3mm
• Faucet Hose Length: 52"
• Drain Opening: 3 1/2" (90 mm)

Description:

The Tec Vanlife Hidden Sink is a compact camper van and RV sink designed for kitchens where countertop and cabinet space are limited. The retractable faucet lowers below the countertop when not in use, allowing the sink cover to sit flush and converting the sink area back into usable workspace.

The faucet includes a 52" pull out spray hose that can be stored below the sink and extended for washing dishes, rinsing gear, cleaning outside the van, or use as a showerhead. The faucet also rotates 360 degrees for easier positioning around the sink and connects to standard 1/2" NPT plumbing.

The 9" deep stainless steel basin provides enough space for larger dishes while helping contain splashes. The nano coated finish provides a durable, stain resistant surface that is easy to clean, while integrated rubber bushings help reduce metal to metal contact around the retractable faucet mechanism.

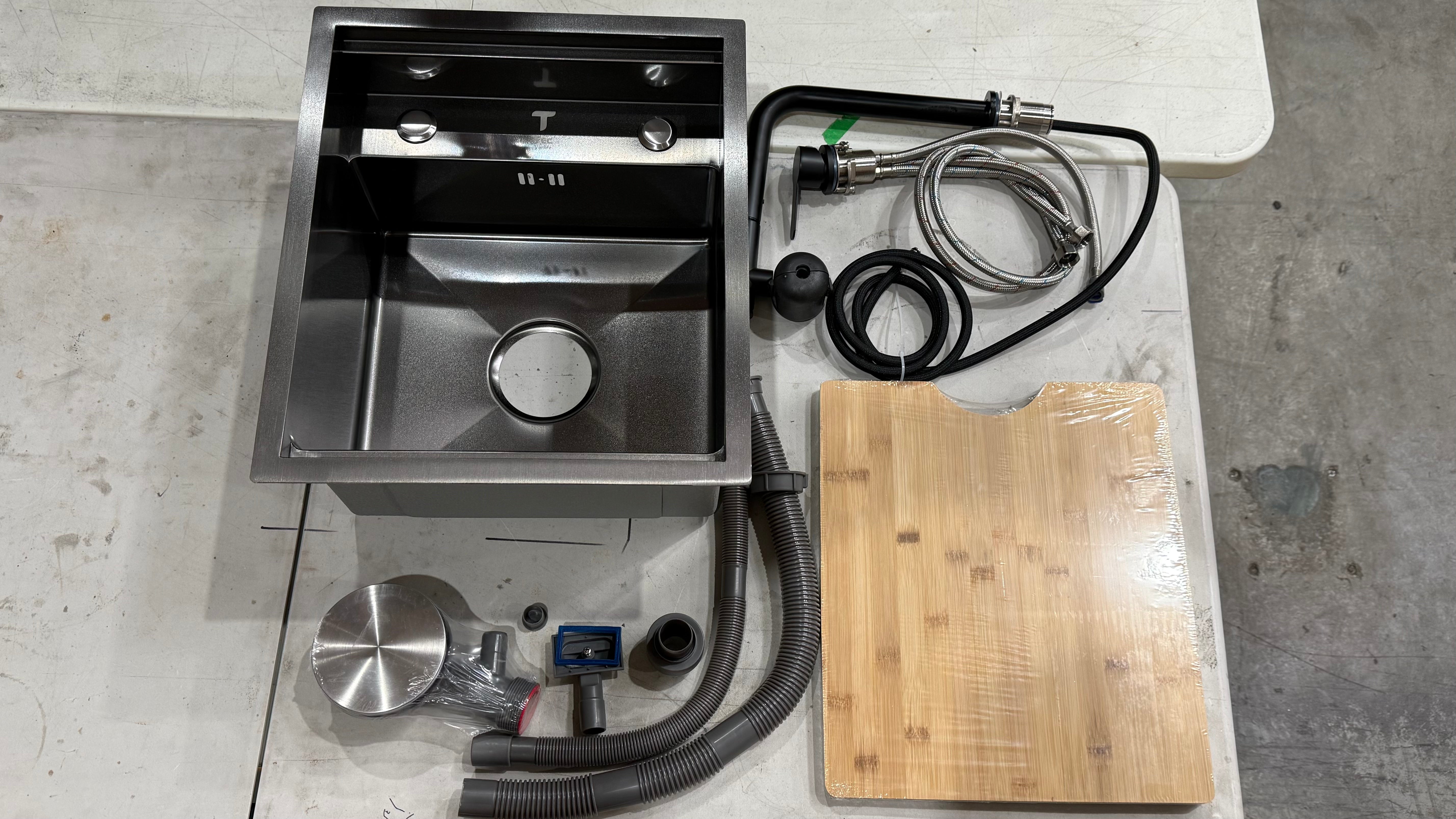

The included low profile drain keeps the drain connection close to the bottom of the sink to preserve more usable cabinet space. It includes a 3 1/2" (90 mm) basket strainer, flexible drain hose, and adapters for connecting to 1 1/4" and 1 1/2" drain fittings. The flexible hose can be routed around water tanks, cabinets, and other plumbing components to accommodate compact camper van and RV layouts.

Installation Notes:

For step by step faucet installation, refer to our faucet installation video.

For a reference setup showing how the drain can be attached to the sink, refer to our sink drain installation video.

For a reference setup showing how the drain can be connected to a gray water tank, refer to our gray water tank connection video.

FAQ:

1. Does the drain come with the sink?

Yes, the drain kit is part of the sink package.

2. What size is the drain connection for the gray water tank?

The gray water connection side is 1-1/4" by default. The drain kit also includes an adapter for 1-1/2" connections.

3. The spray head does not sit flush after retracting. What should I check?

Check whether the included weight is installed properly. The weight helps pull the hose back and allows the spray head to sit flush.
