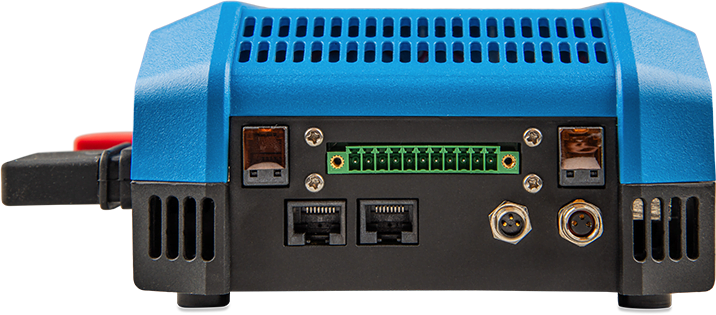

Victron Energy Lynx Smart BMS 500 (M8) (Clearance)

Name: Victron Energy Lynx Smart BMS 500 (M8) (Clearance)
Brand: Victron Energy
SKU: LYN034160200
Price: 898.00 USD
Availability: InStock

$898.00

$898.00 ~~$997.90~~

SKU:LYN034160200

In stock

Fast Shipping
Expert Support
Road-Tested Gear

This product is brand new! We are clearing out our stock to make room for new products. Take advantage and get a great deal! All sales are final on clearance items.

The Lynx Smart BMS is a dedicated Battery Management System for Victron Lithium Smart Batteries. This BMS is not for Victron NG batteries. There are multiple BMS options available for Victron Smart Lithium series of batteries, and the Lynx Smart is the most feature-rich and complete option.

This is the M8 version of the Lynx Smart BMS that has a maximum current rating of 500 amps (up to 60 volts). There is also a M10 version. The difference is the size of the holes/connections on the main bus bars (M8/5/16″ or M10 /3/8″) where you connect (bolt-on) additional Lynx system products such as additional Lynx Distributors or a Lynx Smart BMS. The terminals inside the Distributor are M8 (5/16″) on both versions to accept standard hole-size mega fuses.

Features:

Built-in 500A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch
Battery monitor, indicating state of charge percentage and more data.
Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
Bluetooth for use with VictronConnect App, setup and monitoring.
Local and remote monitoring using a Victron GX device like the the Cerbo GX.

We offer fast, FREE shipping on most Victron Energy products - including batteries and inverters! FREE shipping on Victron batteries. Small cables/adapters ship for a flat-rate of $5. These promotional shipping rates are for customers in the continental USA only.

Product Manual

The Lynx Smart BMS is part of the modular Lynx Distribution system. For instance it can be paired with a Lynx Power In and a Lynx Distributor as shown in the diagram below. The Lynx Smart BMS can be wired up to a Lynx Distributor to monitor the condition of the fuses (wires included with the Lynx Distributor) all of which can be seen via Bluetooth with the VictronConnect app.
