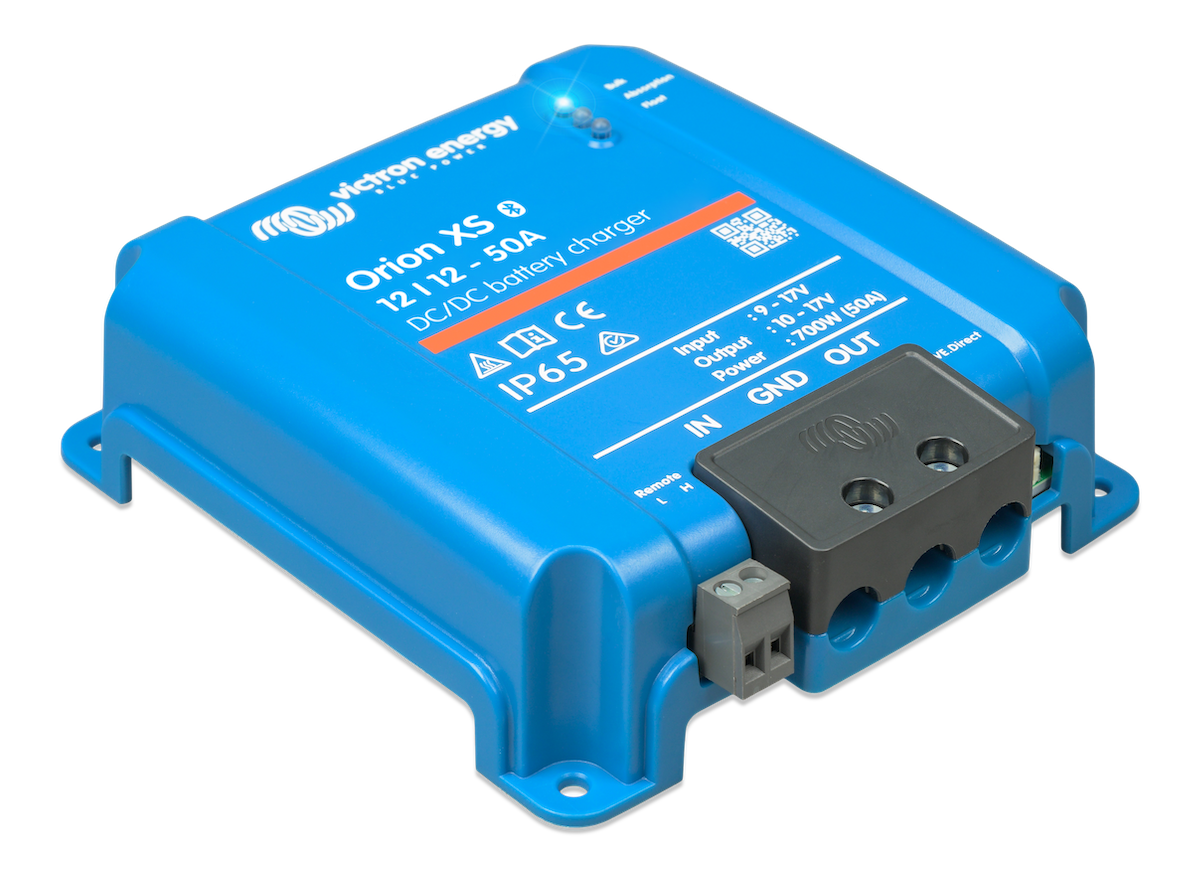

Victron Energy Orion XS 12/12/50 - Non-Isolated - 50 Amp DC-DC Charger
Victron Energy Orion XS 12/12/50 - Non-Isolated - 50 Amp DC-DC Charger
SKU:ORI121217050
In stock
- The latest in the Orion DC-DC charger technology from Victron Energy with more efficient charging for lower heat output. Also referred to as a Buck/Boost.
- Innovative aluminum circuit board cooling technology delivers an astonishing 98% efficiency without the need for fans
- Can be configured as either an intelligent charger or a power supply.
- Capable of charging a 12-volt battery bank up to 50 amps. Multiple units can be wired in parallel in a system for increased charging capability (100 amps, etc.). However, the general guidance is to limit DC-DC charging from a vehicle factory alternator to less than 50% of its rated capacity.
-
Now supports an emergency reverse charge function that allows you to manually enable a 15 minute reverse direction charge using your lithium house battery bank to recover a starter battery that is too flat to crank your engine.
- The charge current is adjustable with a minimum step size of 0.1A. Configurable with VictronConnect.
- Bluetooth configuration/monitoring with VictronConnect.
- VE.Direct connection that can be used with a GX device like the Cerbo GX.
- Compatible with “smart alternators” with built-in engine shutdown detection so the charger only draws power when the engine is running.
- Designed to withstand dust and water pollution and has an IP65 classification
Migrate from Isolated DC-DC Chargers to Non-Isolated
Some of our customers may be migrating from an "isolated" DC-DC charger such as the Orion 12/12/30 Isolated DC-DC charger from Victron where there would have been both a negative and positive wire ran from the vehicle battery/connection point to the DC-DC charger. We primarily sell the "non-isolated" version of the Orions DC-DC chargers. The non-isolated version is a little easier to install since you only need to run a DC+ cable from the vehicle battery to the Orion DC-DC charger and the ground uses the chassis which is connected to your house power system negative bus bar through the chassis ground on the Lynx Distributor in our example wiring diagram.
