Webasto Air Top EVO 40 Diesel Heater with SmarTemp 3.0 Controller

Webasto Air Top EVO 40 Diesel Heater with SmarTemp 3.0 Controller

Name: Webasto Air Top EVO 40 Diesel Heater with SmarTemp 3.0 Controller
Brand: Webasto
SKU: 5013908B
Price: 1980.00 USD
Availability: InStock

$1,980.00

SKU:5013908B

In stock

Fast Shipping
Expert Support
Road-Tested Gear

Genuine Webasto Air Top EVO 40 Air heater kit. With an output range of 5100 BTU to 12000 BTU (1.5 kilowatt - 3.5 kilowatt) the Air Top EVO40 series air heaters can provide heat for up to 16 hours on 1 gallon of fuel. Investing in a Webasto diesel air heater will save fuel, save maintenance, save money and save pollution.

Specifications:

North America Kit
Authorized North American Distributor in USA
Full Webasto backed Warranty support for all product purchased from us
Heater type: Air for Cabin, Bunk, Sleeper or Cargo
Operating Voltage: 12 vdc
Fuel Type: Diesel
Heat output range: 5100 btu - 12000 btu (1.5 kW - 3.5 kW)
Elevation Rating: 18,044' (5,500m)

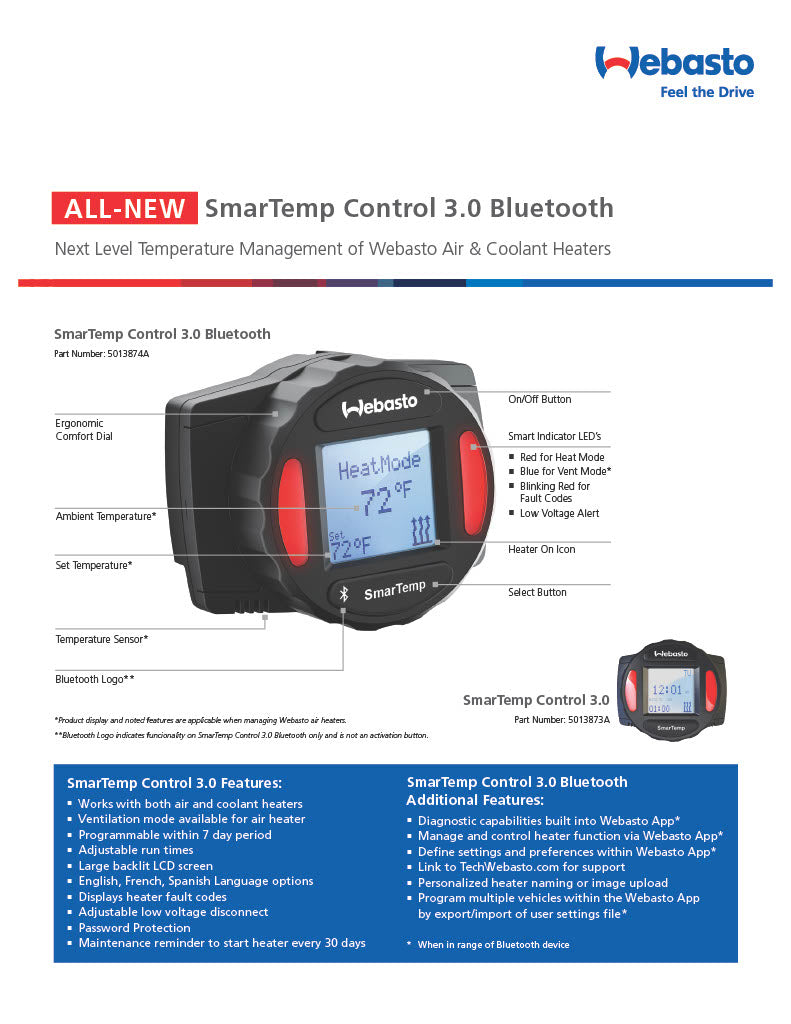

Heat output control: Programmable Smartemp 3.0BT Controller
Ducting Connections: 90mm
Fuel consumption: 0.07 - 0.15 gal/h (Can provide heat for up to 14 hours on just 1 gallon of fuel!)
Dimensions: 16.65" long x 5.82" wide x 6.37" tall
Weight: 13 lbs (heater unit only)
Warranty: 2 years or 2000 operating hours

Webasto Installation Guide

Vanlife Outfitters Installation Blog Post

Webasto heaters have a variable speed fan that runs continuously when the heater is on. It runs very slowly when not heating and ramps up speed when heating. You also can set the heater to run on "fan only" mode.

Installing your heater on top of a subfloor instead of directly onto the van's metal floor? Be sure to purchase a Surface Mounting Kit separately.

Optional Accessories:

Intake Air Silencer
Exhaust Air Silencer
Fuel tank connector for Ford Transit or for Promaster/Sprinter

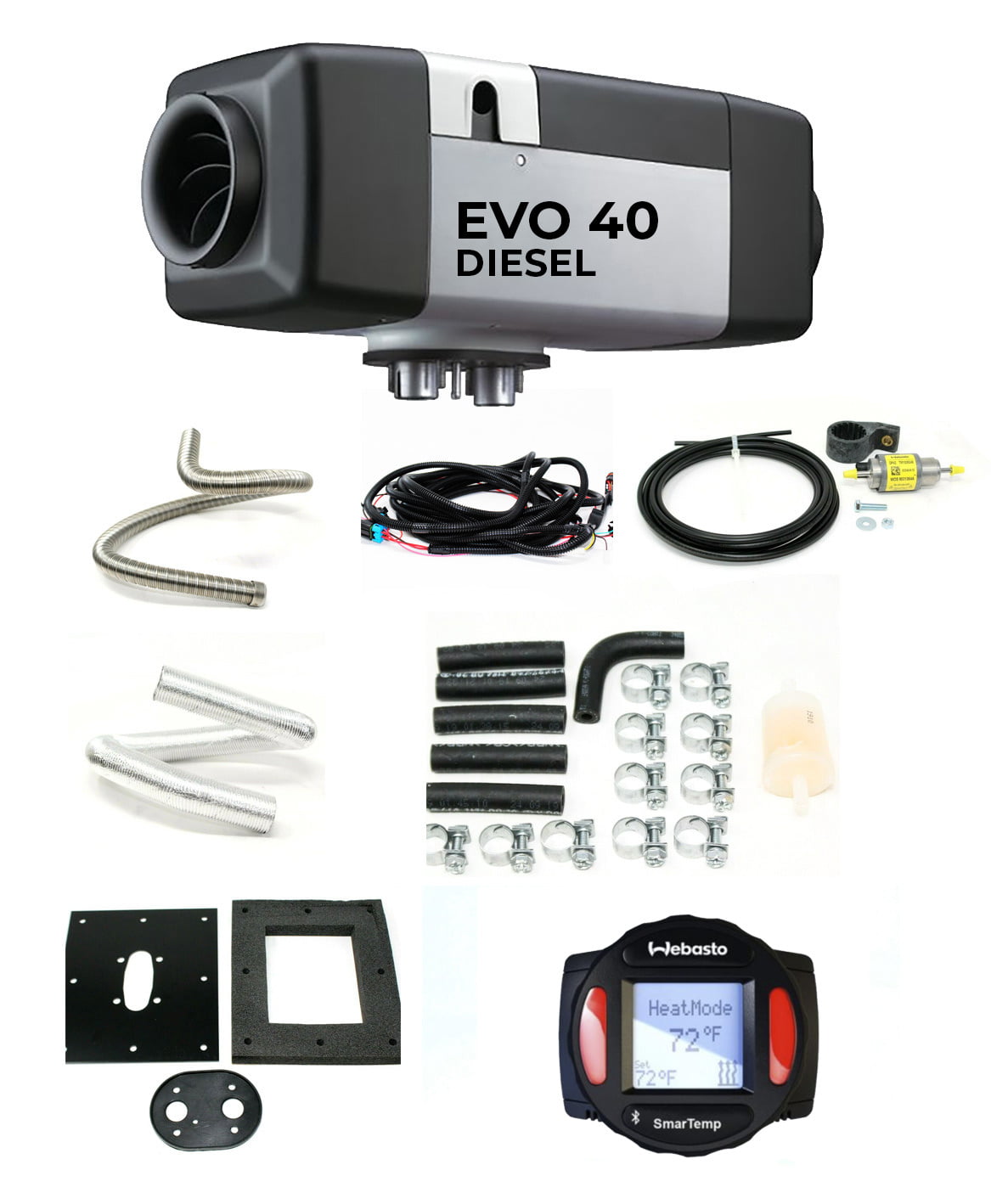

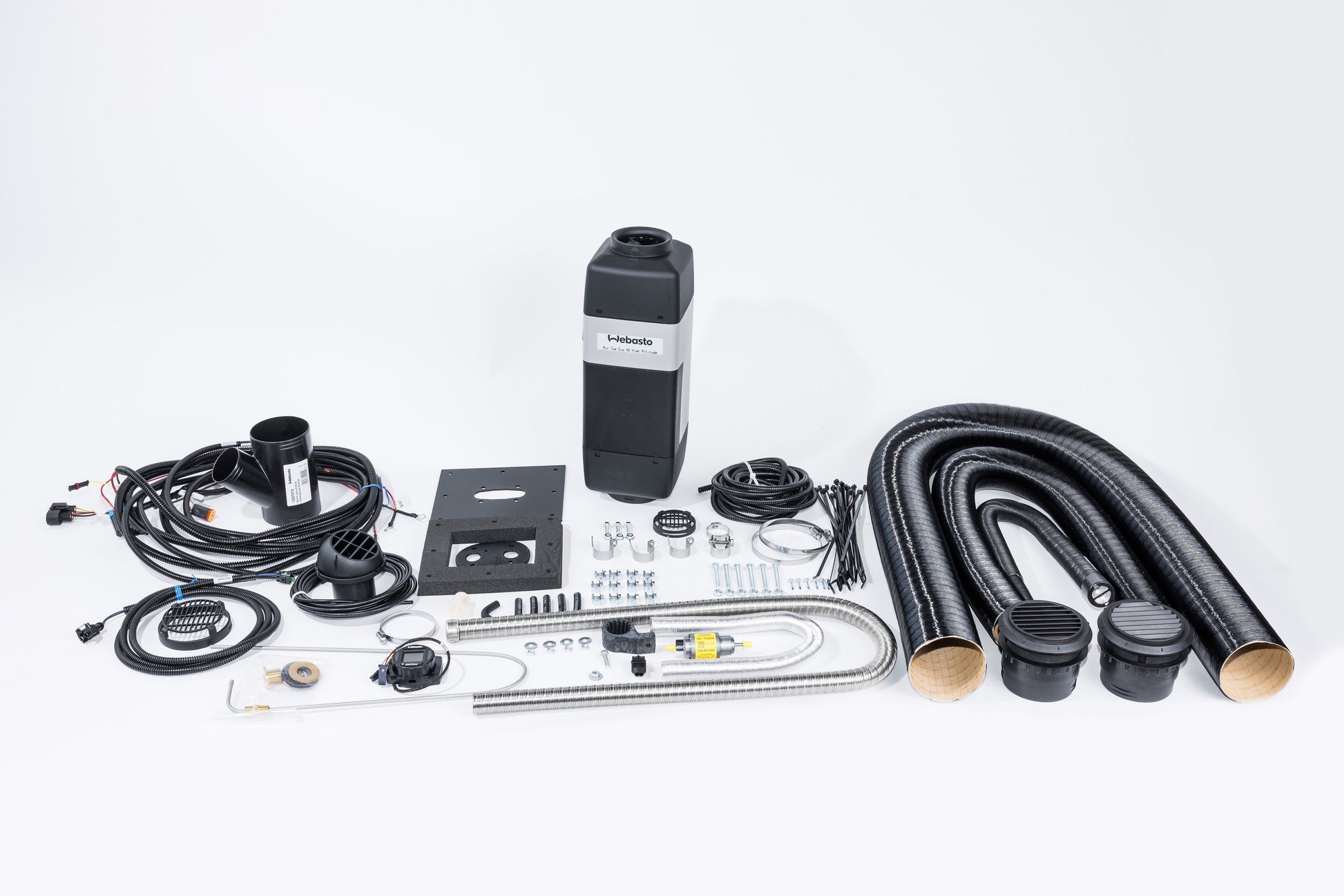

Kit includes:

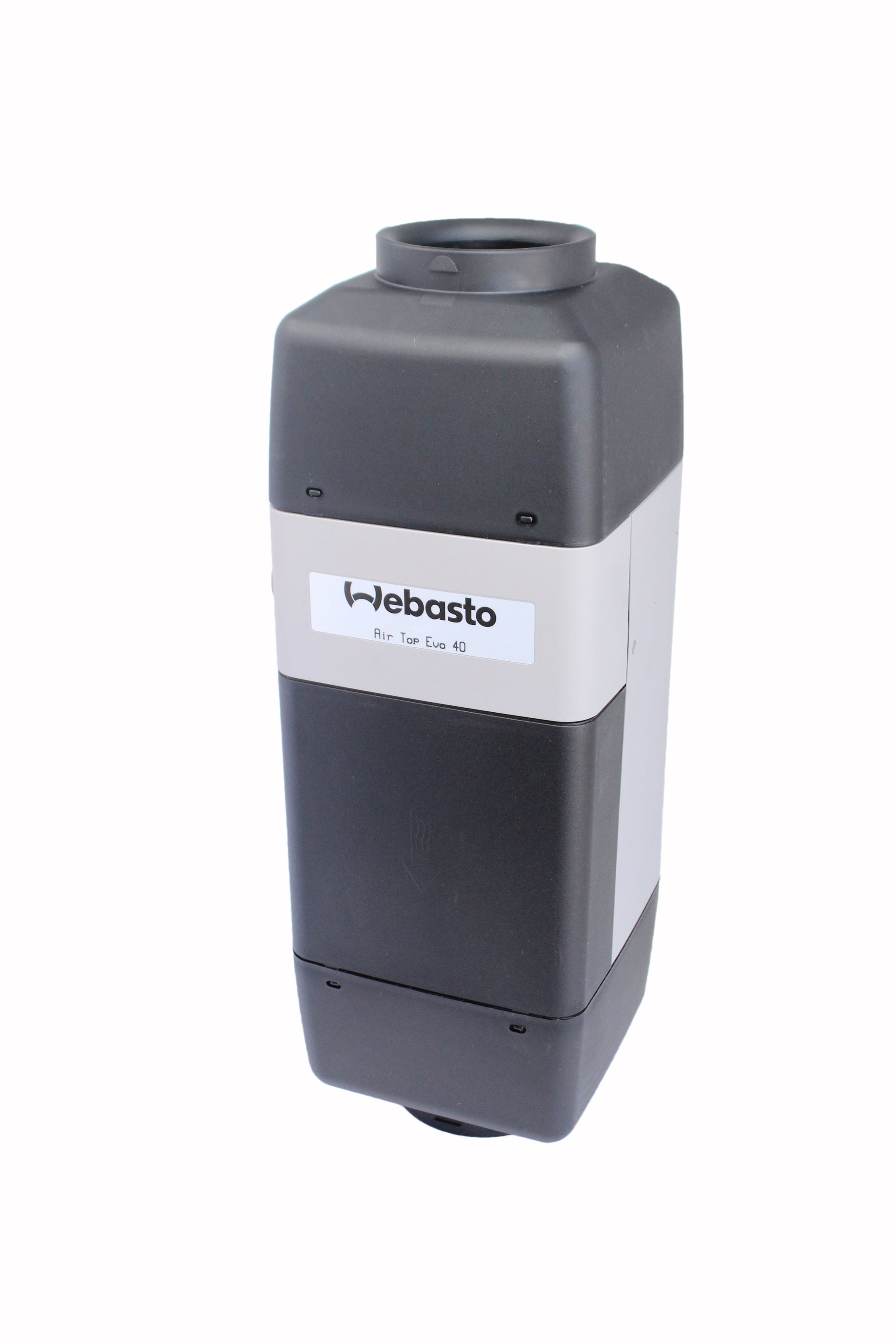

Heater unit

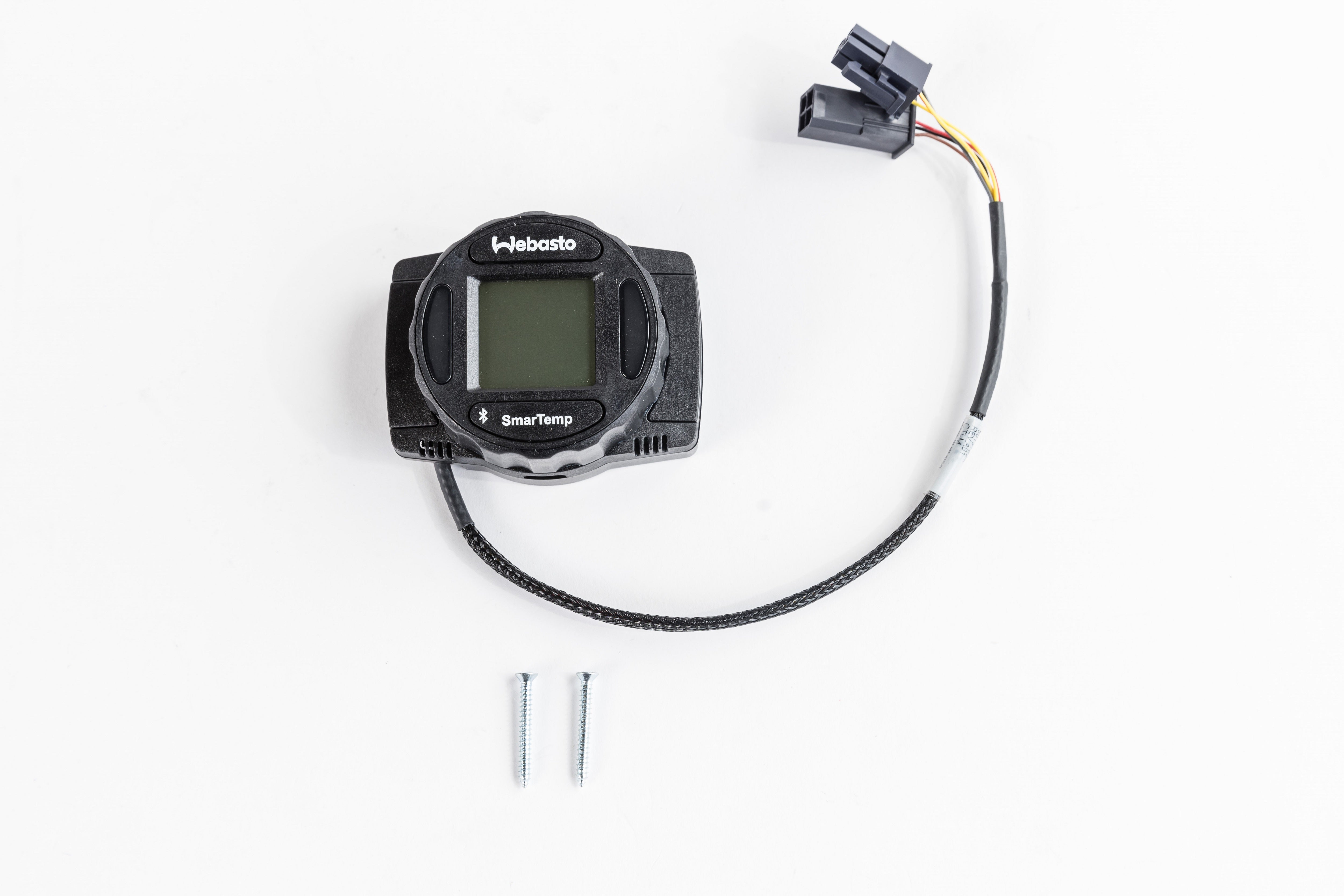

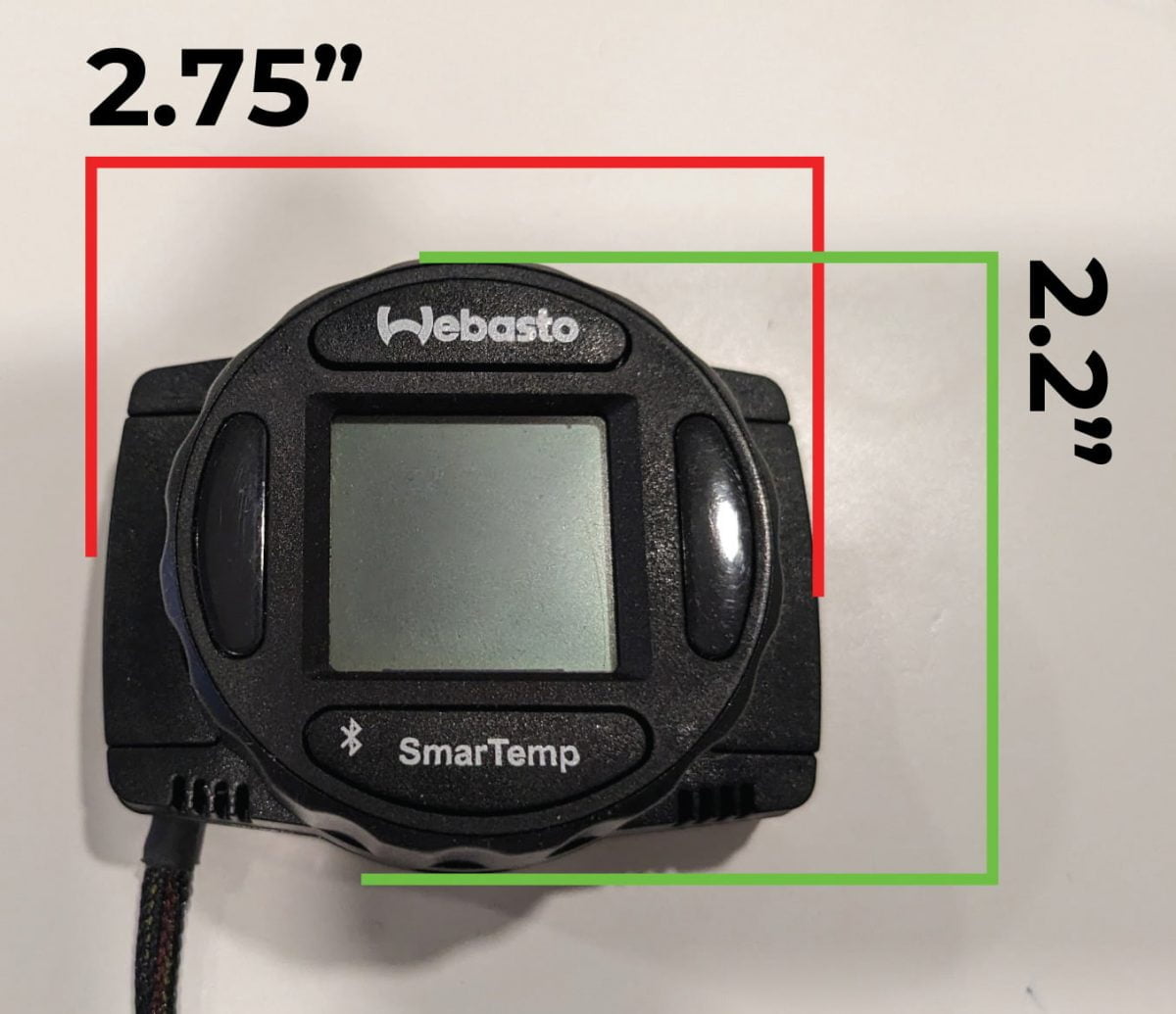

SmarTemp 3.0 Controller

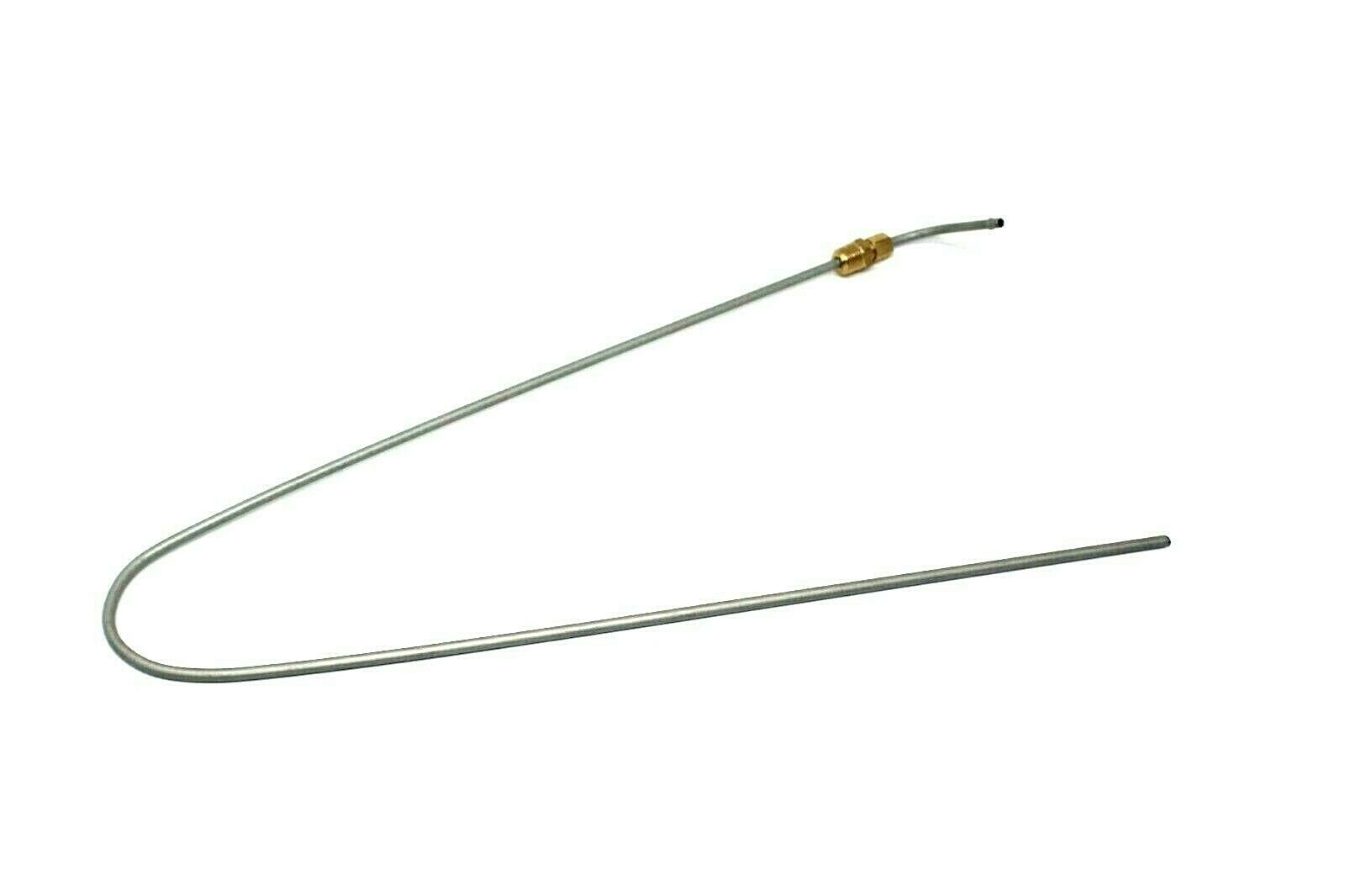

Universal fuel tank standpipe

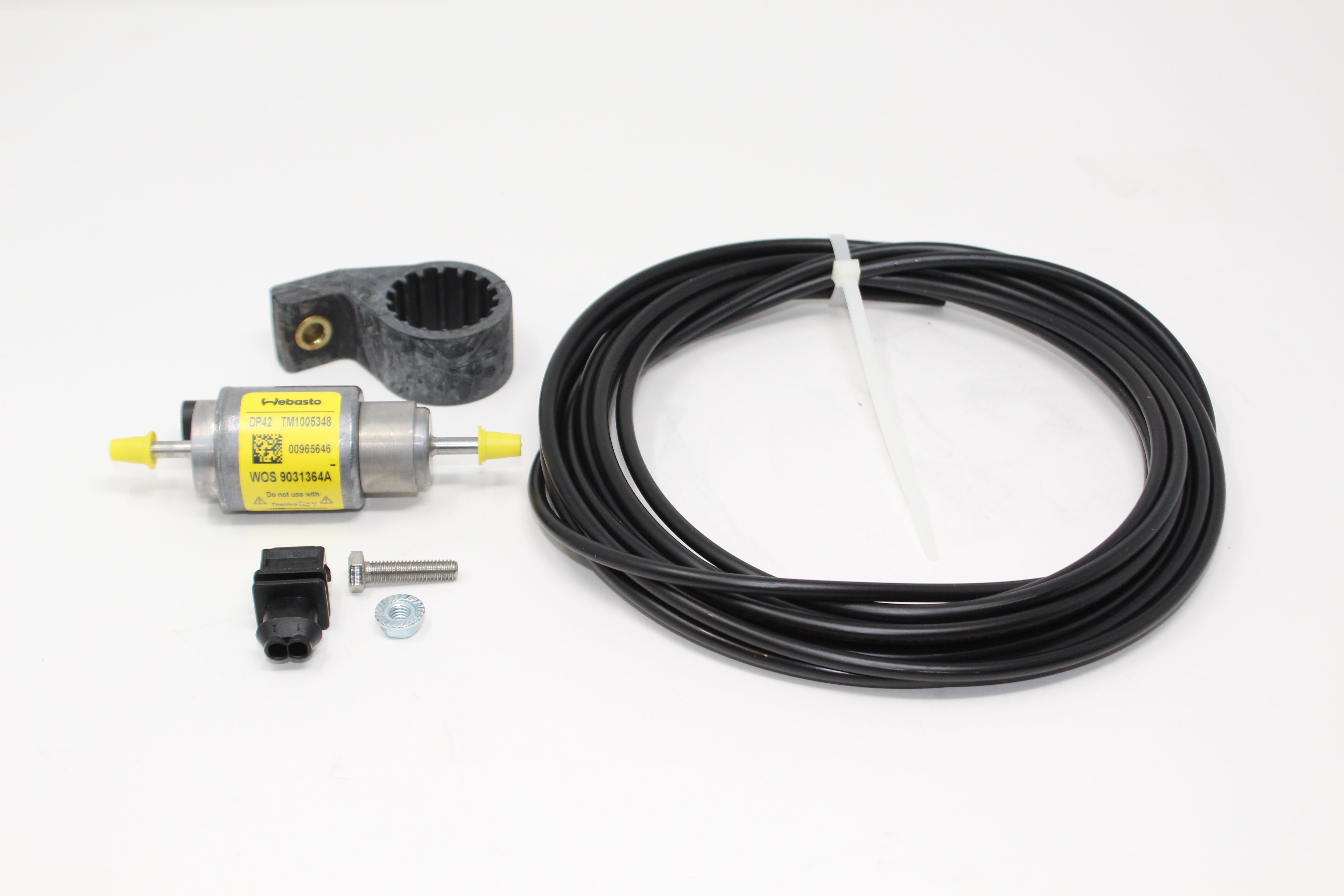

Fuel pump with wiring harness

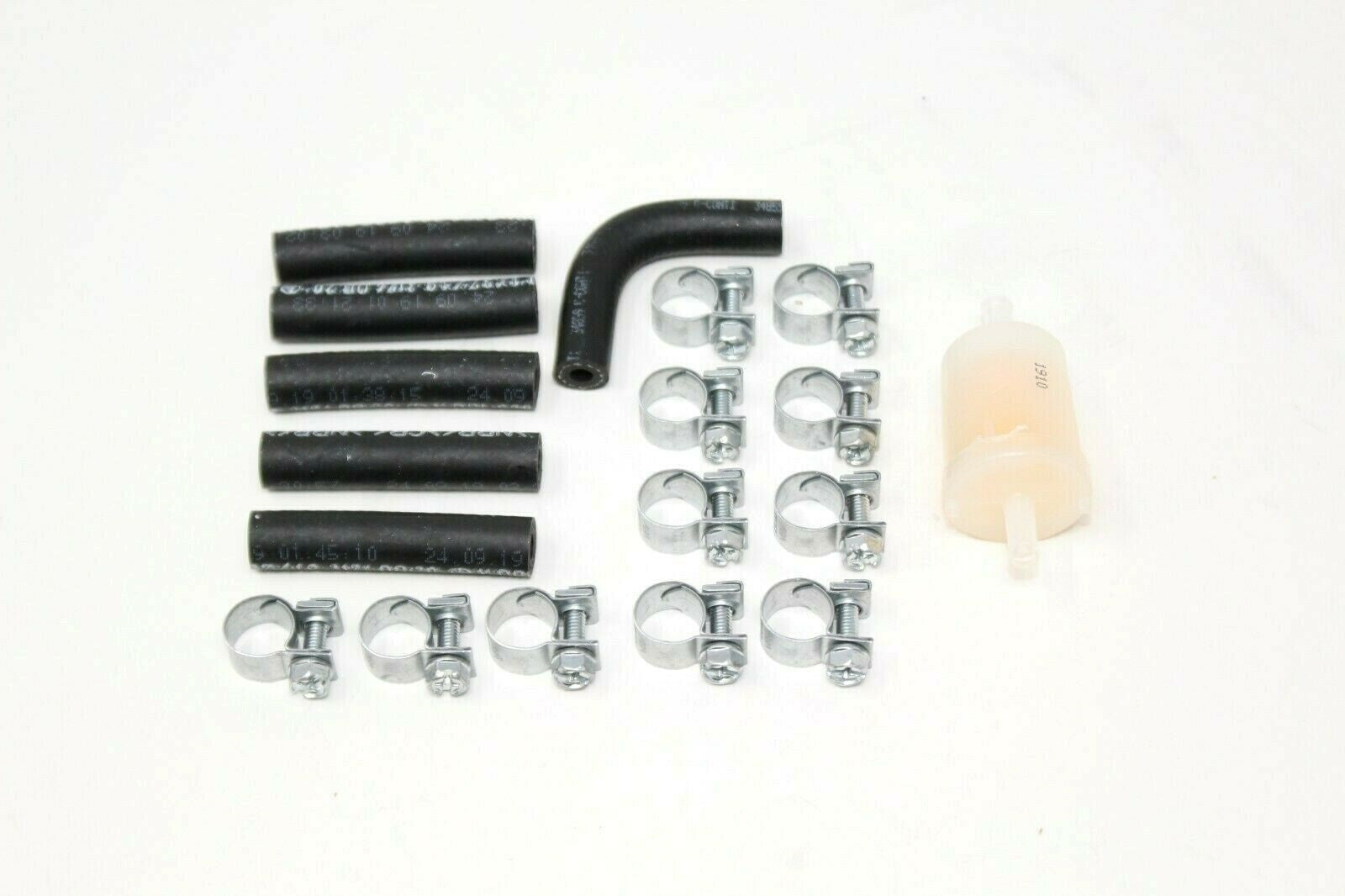

Fuel line with required fittings and fuel filter

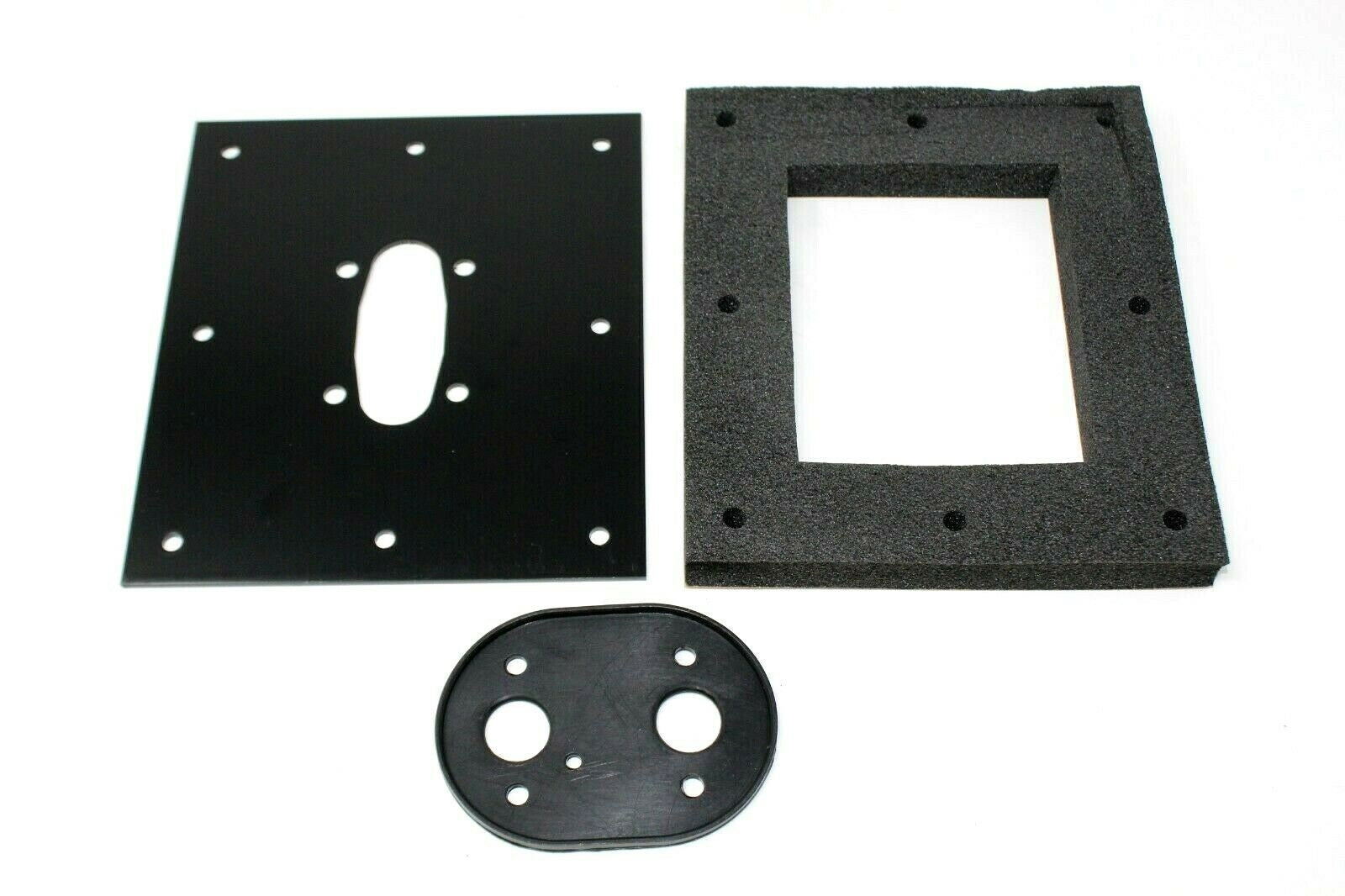

Mounting plate with foam gasket and bolts

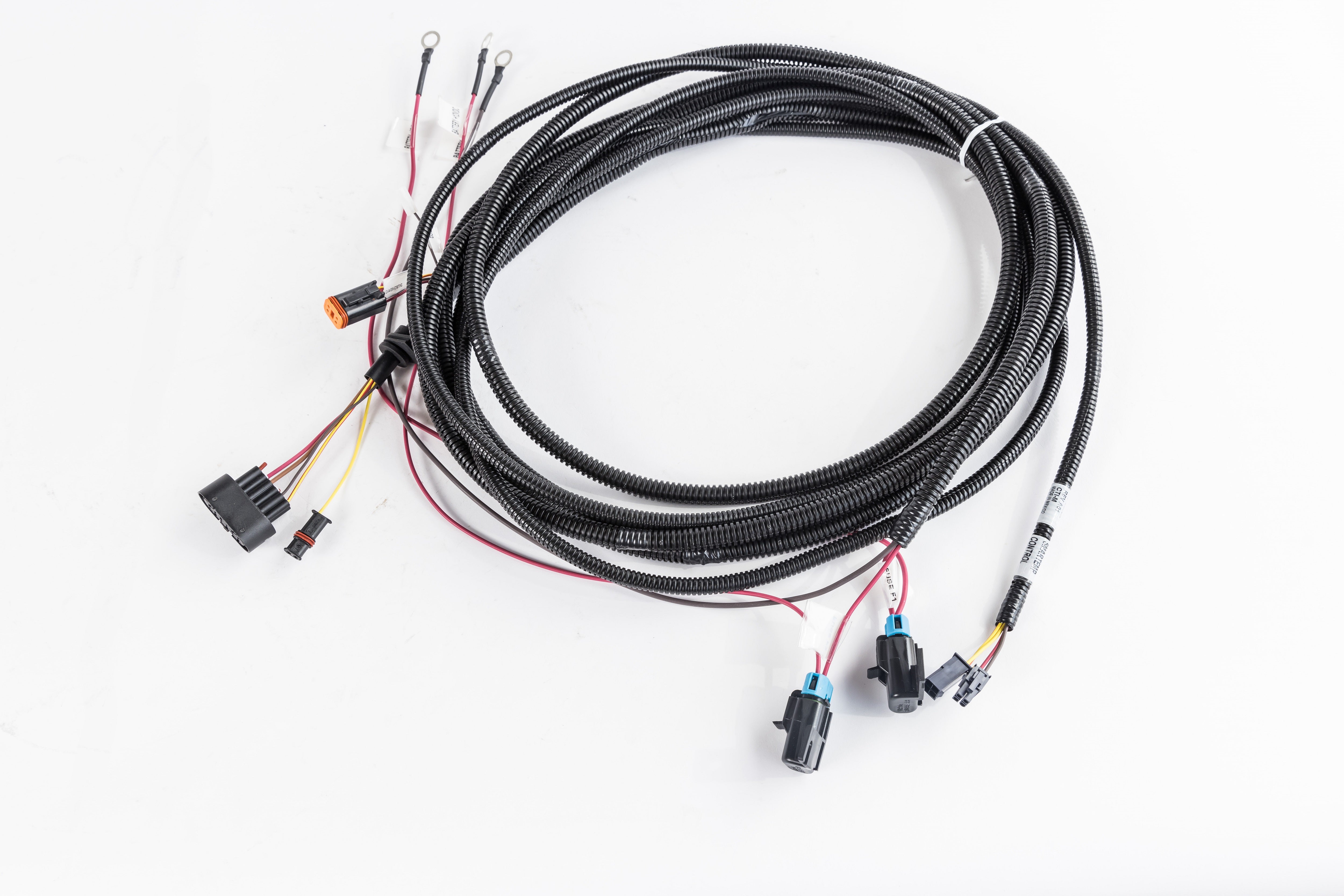

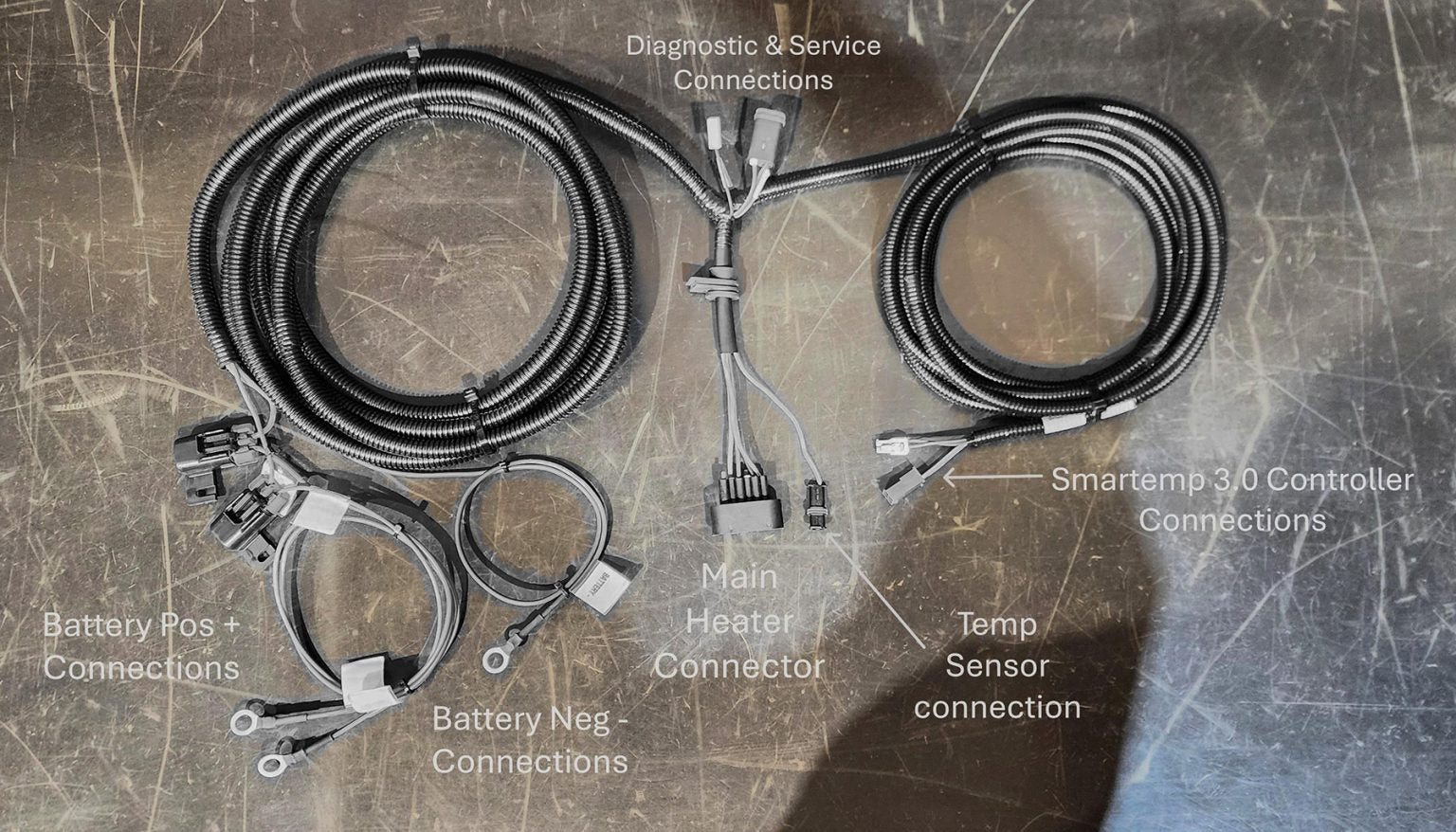

Wiring harness

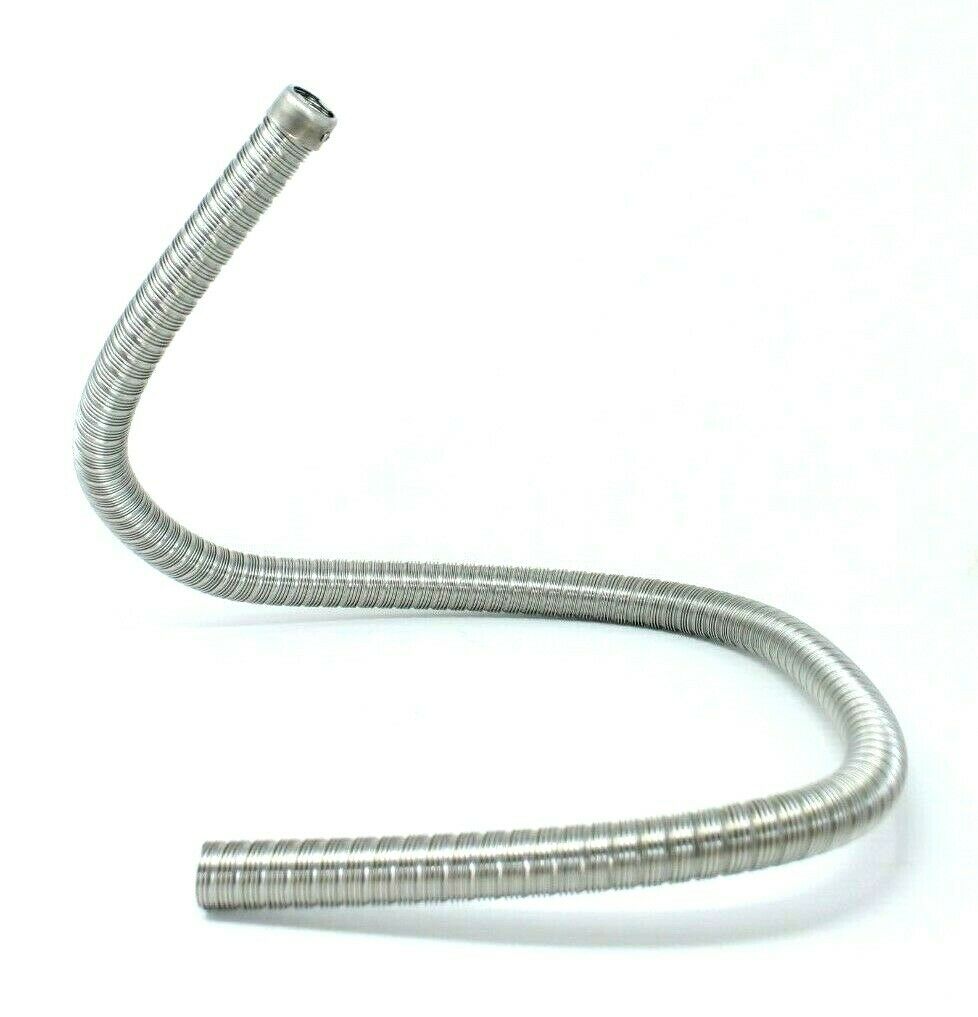

1.2 meter (3.9 feet) flexible stainless steel exhaust hose (24mm)
1 meter (3.2 feet) aluminum combustion air intake hose (25mm)

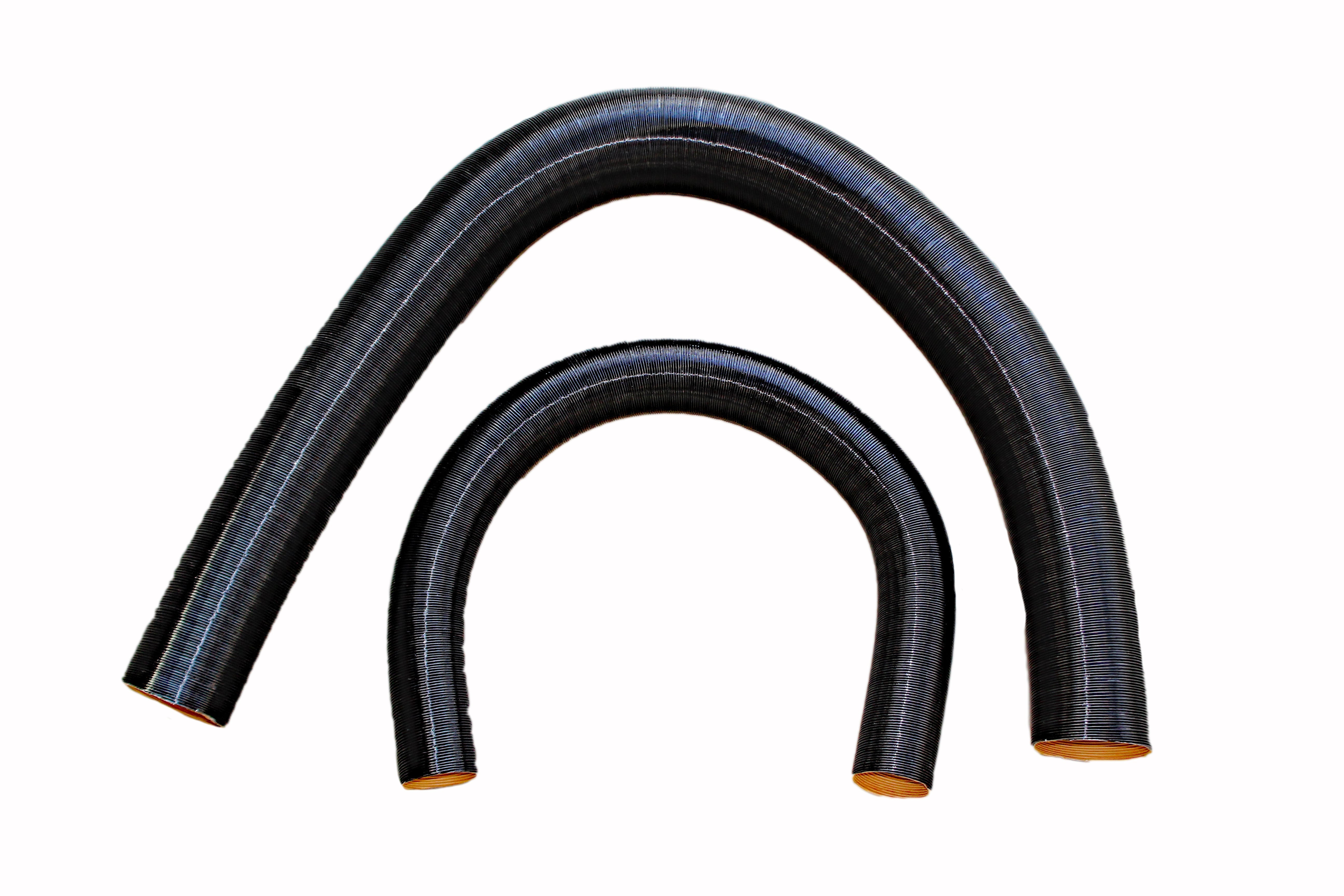

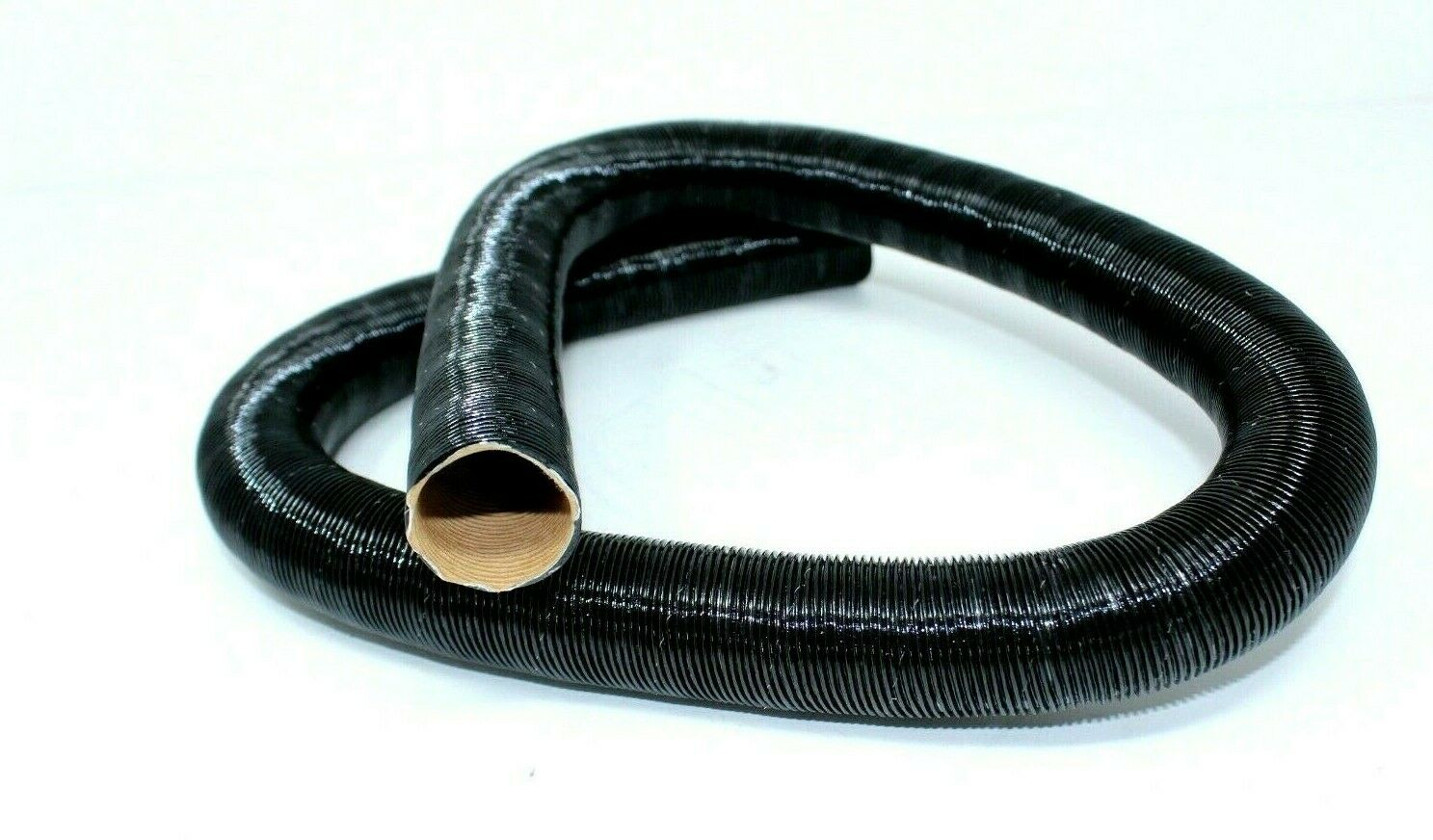

1.5 meters (4.9 feet) of 90mm "primary" ducting
1 meter (3.2 feet) of 60mm "branch" ducting

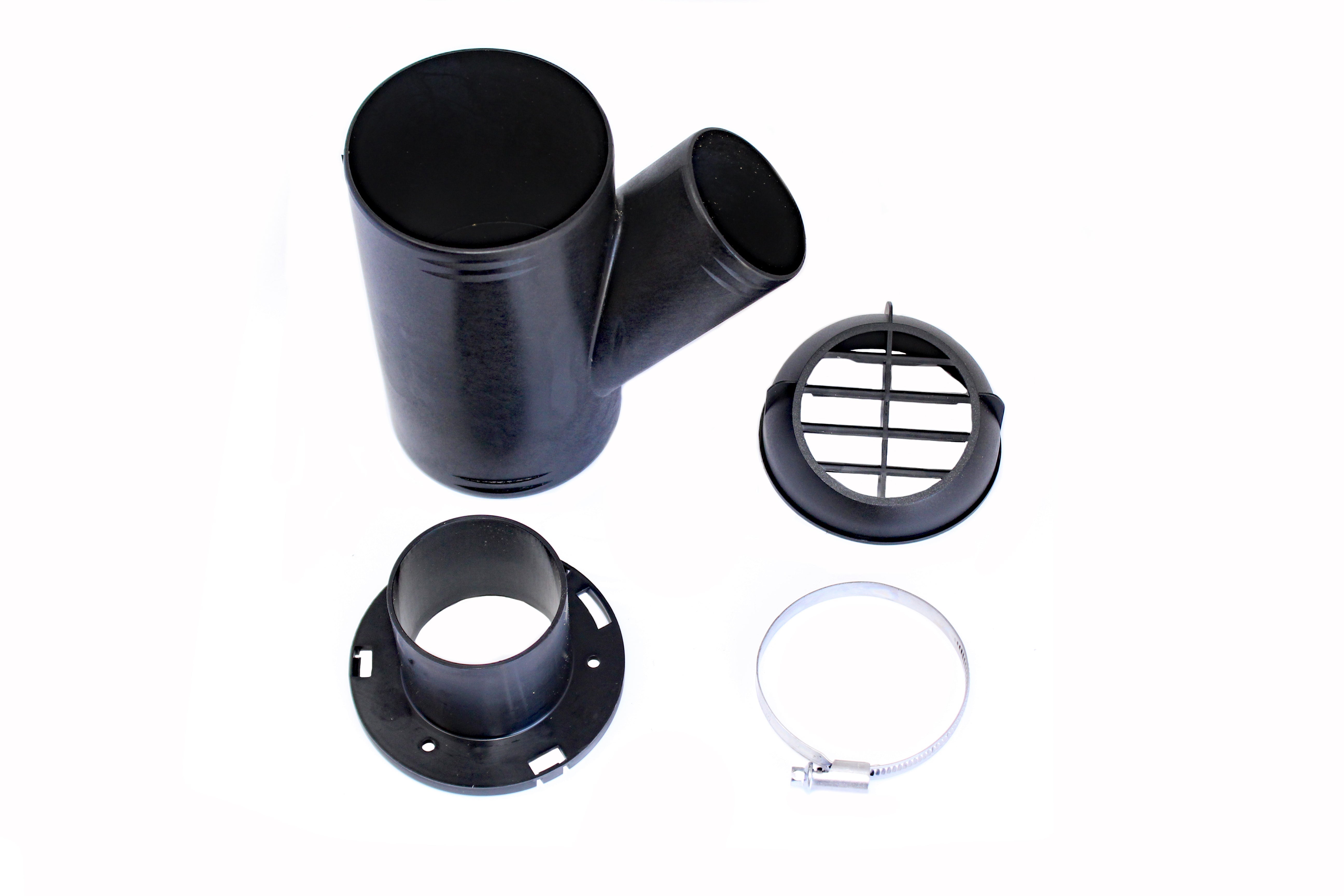

Adapter Y for ducting (90mm to 60mm)

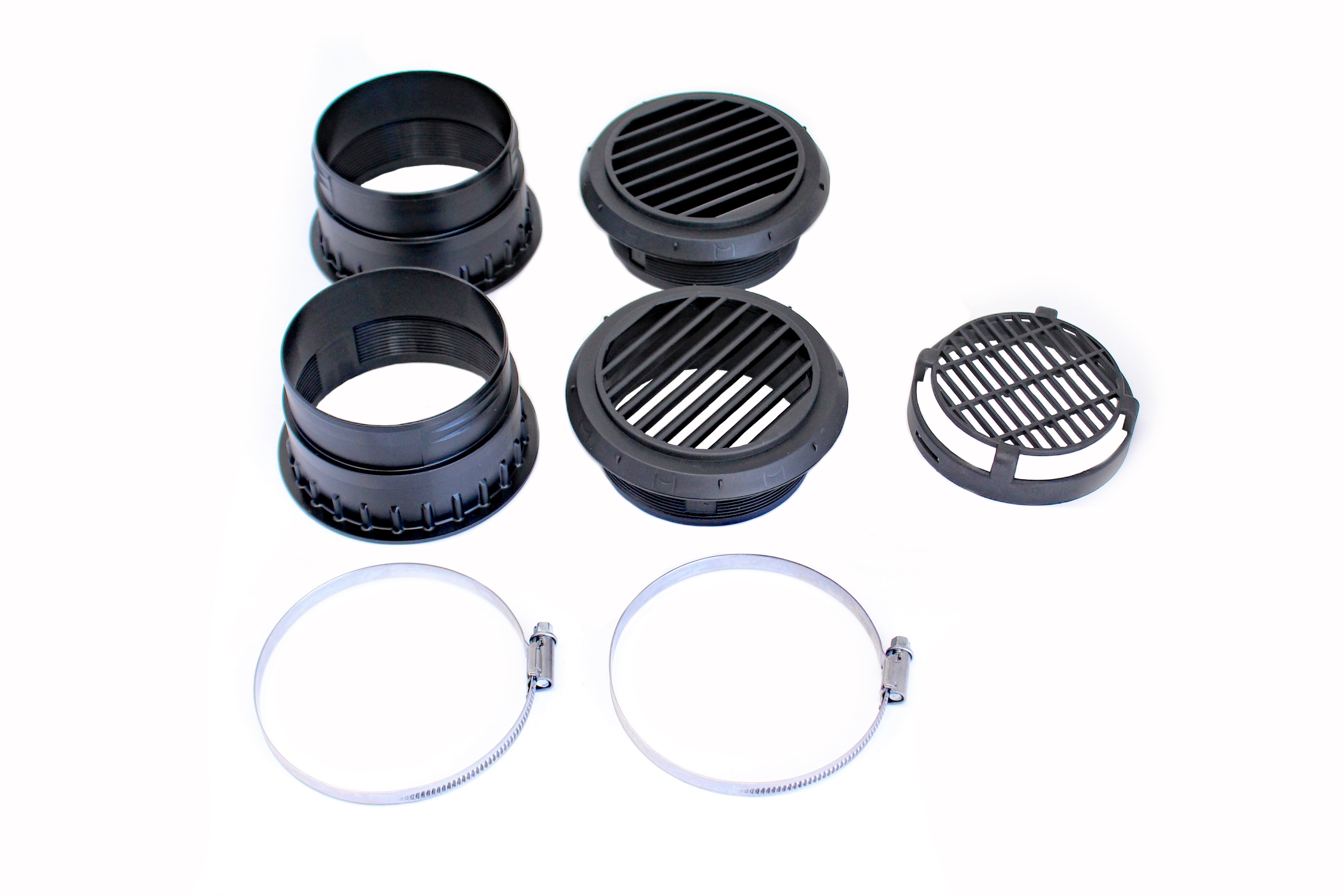

1x 90mm and 1x 60mm louver/vent
Operation/Installation Manual

We Fully Support DIY Installations!

Unlike many authorized Webasto distributors, Vanlife Outfitters fully supports DIY installers. Our entire team has been trained to become Webasto certified "experts". Together with our distribution partner, we maintain a wide range products and replacement parts in-stock. If you experience a problem with your Webasto unit within the warranty period, we will work with you to determine the cause of failure and will either attempt to give instruction on how to correct any faulty workmanship or supply a replacement part. If a replacement part is needed we will send you the part immediately from their stock at no charge so that you can get up and running as quickly as possible. Of course, we rely on you to return any faulty parts in order to be reimbursed for the warranty repair.

If you're tempted to purchase your Webasto heater at a ridiculously low price from other online retailers, you should be aware that these are often European origin kits that are not compatible with all the North American parts and do not include some important parts. We have an extensive blog post about this here.

For your safety we recommend that you install a carbon monoxide detector in your van anytime you have any fuel burning appliance like a Webasto heater or propane cooktop.
