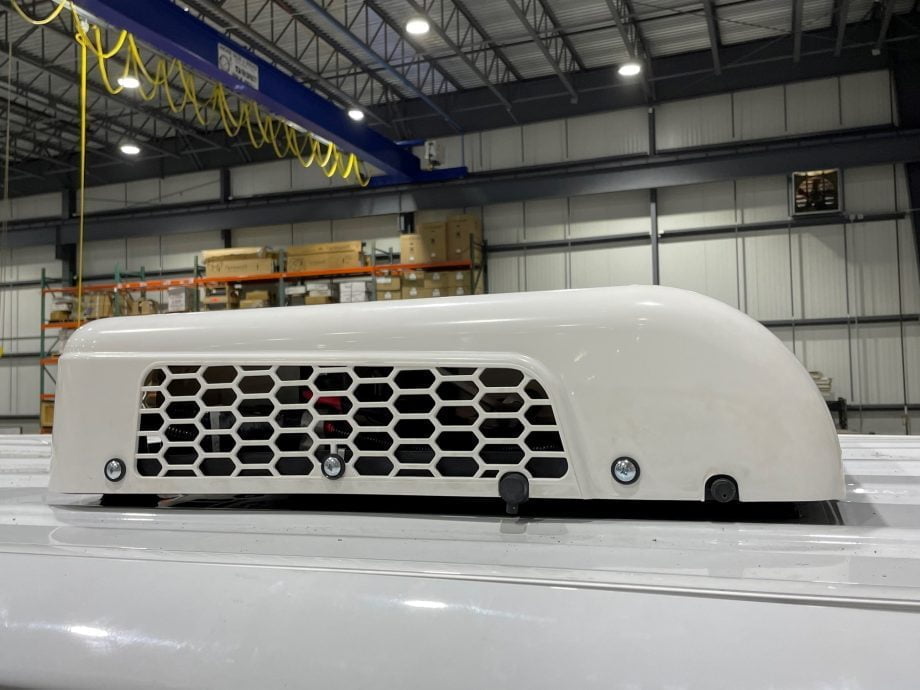

B-Cool 9000RM 12 Volt DC Air Conditioner (10,230 BTU)

$2,449.00

  • Energy efficient 12 volt DC (battery powered) alternative to traditional, 120 volt AC rooftop air conditioner units
  • Only uses 50-70amps when running
  • Enables using AC off grid from your camper van batteries for longer periods of time
  • 10,230 BTU cooling capacity with two fan speeds (high or low)
  • Two year warranty
  • FREE truck freight shipping to the lower 48 states. We can ship to Alaska and Hawaii but you’ll have to contact us for the shipping costs which are NOT calculated at checkout to those two states.
  • In-stock and ready to ship directly from the B-Cool warehouse! Orders typically ship out via truck freight within 48 hours after your order.
SKU: B-Cool 9000RL Category: Tags: , ,


Description

Check out this energy efficient 12-volt air conditioner that is perfect for a camper van. It installs onto your van’s roof just like traditional RV air conditioners but is vastly more energy efficient. Most rooftop air conditioners require 120 volt AC power to operate. Normally this is provided by shore power or a generator. In some cases you can run a standard unit from an inverter but inverters often struggle “starting” the compressor. In contrast, this B-Cool unit runs directly from your 12 volt DC battery bank. We highly recommend using lithium deep cycle batteries with this unit.

Not sure which unit is best for your rig? Check out our comparison spreadsheet to see many of the most important data points across the various units at a glance. We'll be continually adding to this reference over time and expanding it with as much "real world" testing as we can!

Cooling Capacity: 10,230 BTU

Quiet operation: rated between 36-40 dBa.

Power consumption: ranges between 50 and 70 amps at 12 volts DC depending on conditions.

Net Weight:  83.75lbs (38kg)

Dimensions:
Rooftop unit: 37.8″ long x 28.35″ wide x 6.5″ 19.7″ tall
Interior unit: 19.7″long  x 13.4″ wide x 4.5″ tall

Roof hole/cut out size:
Minimum: 24.4″ long x 14.2″ wide
Maximum: 29.5″ long x 19.7″ wide

Refrigerant: R-134a @ 650g

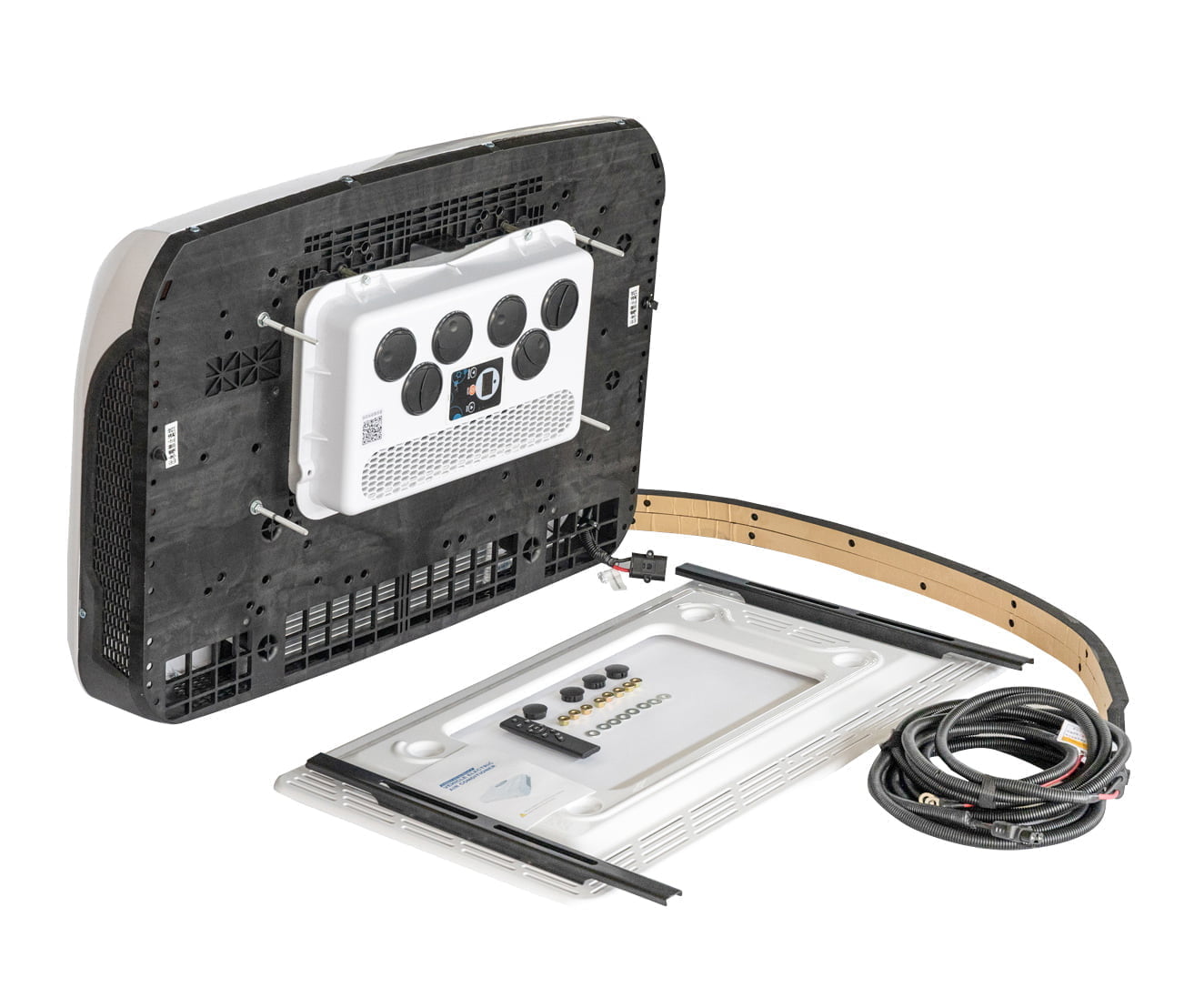

Air Conditioner Includes

  • B-Cool 9000 RM 12V air conditioning unit
  • Interior trim panel
  • Remote control
  • Wiring harness
  • All mounting hardware
  • Waterproof gasket
  • Manual

PDF Manual (PDF)

Van Installation Guide (PDF)

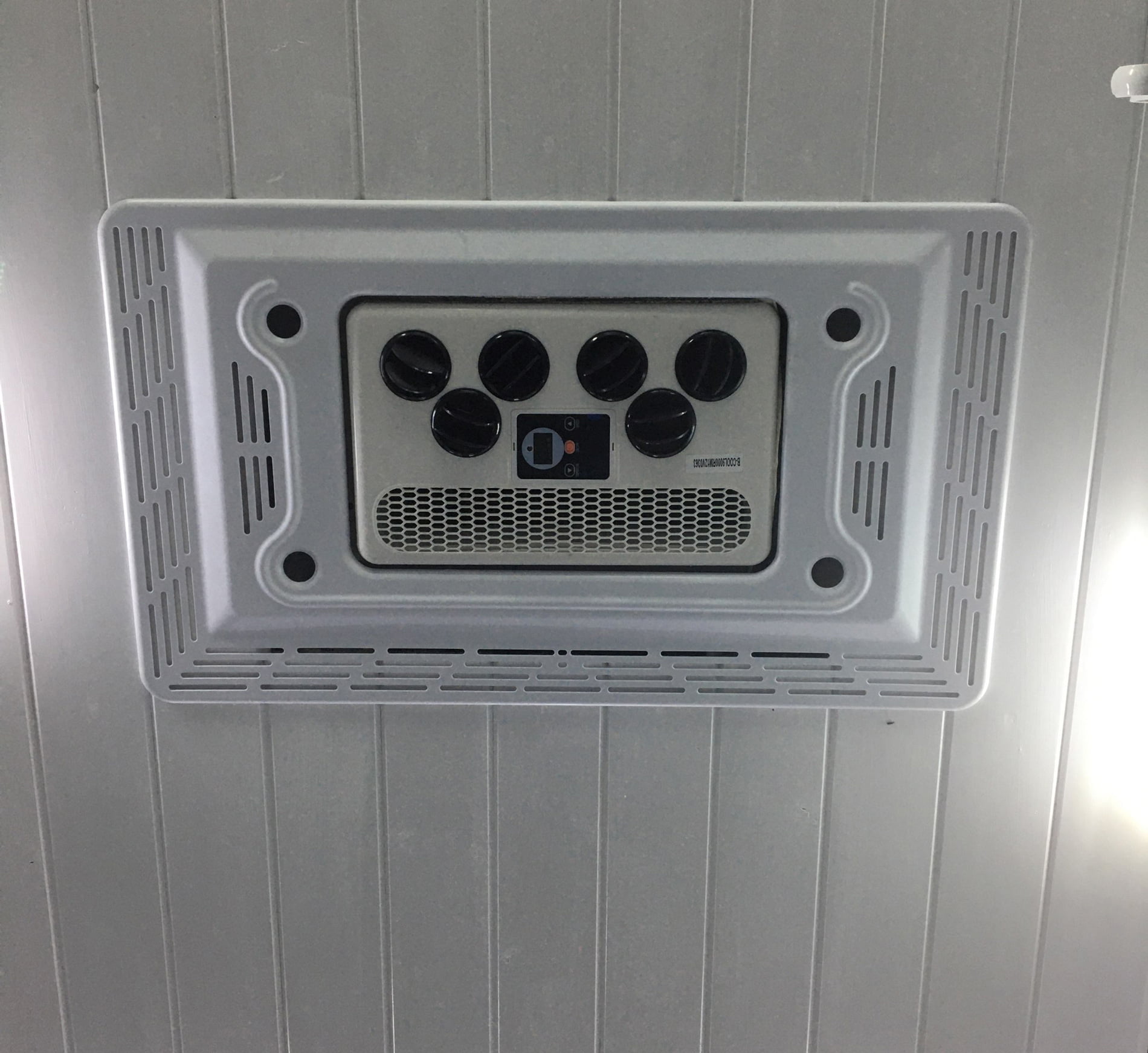

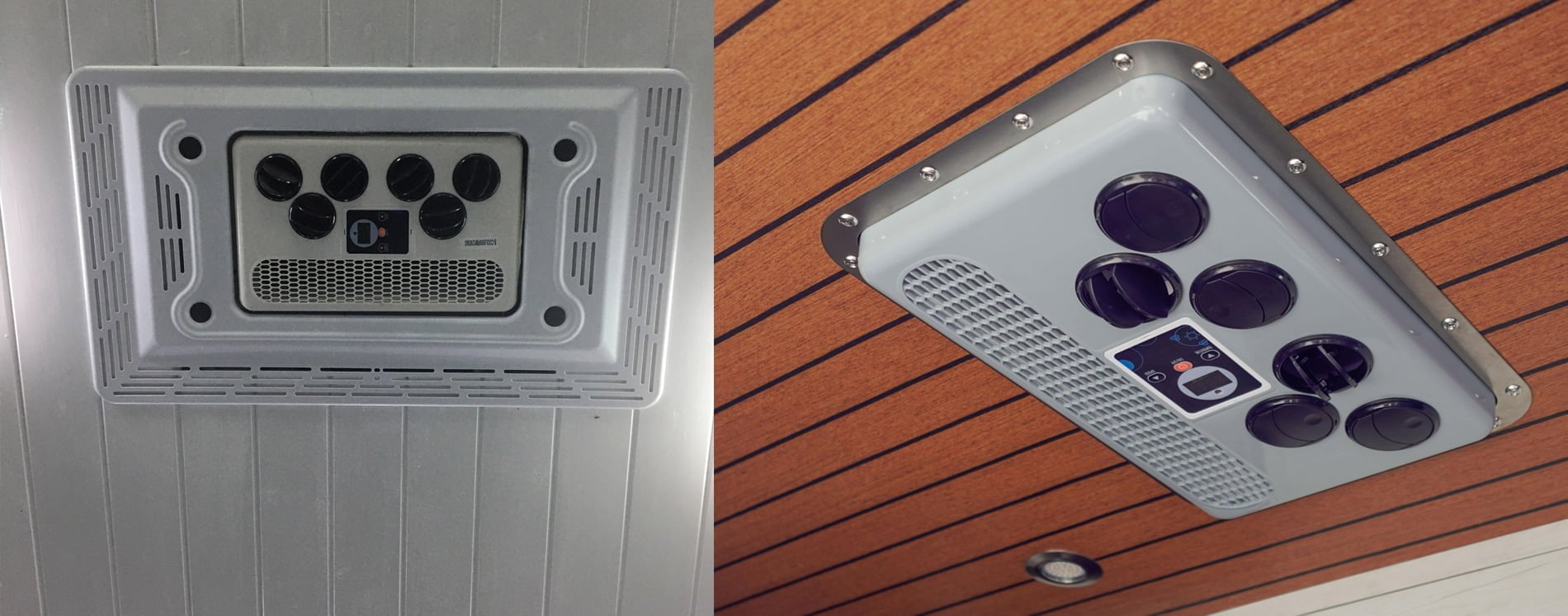

Interior Trim Options

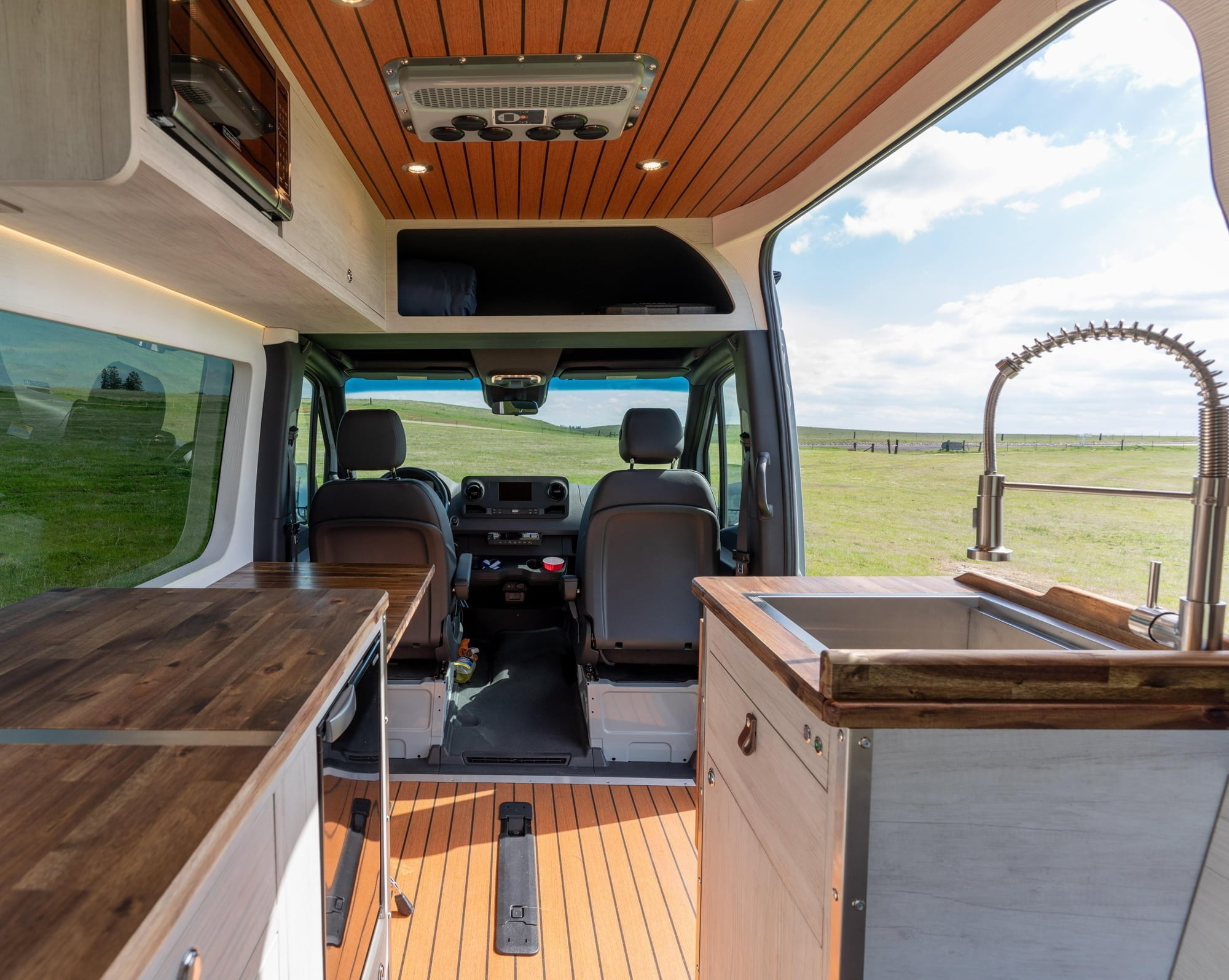

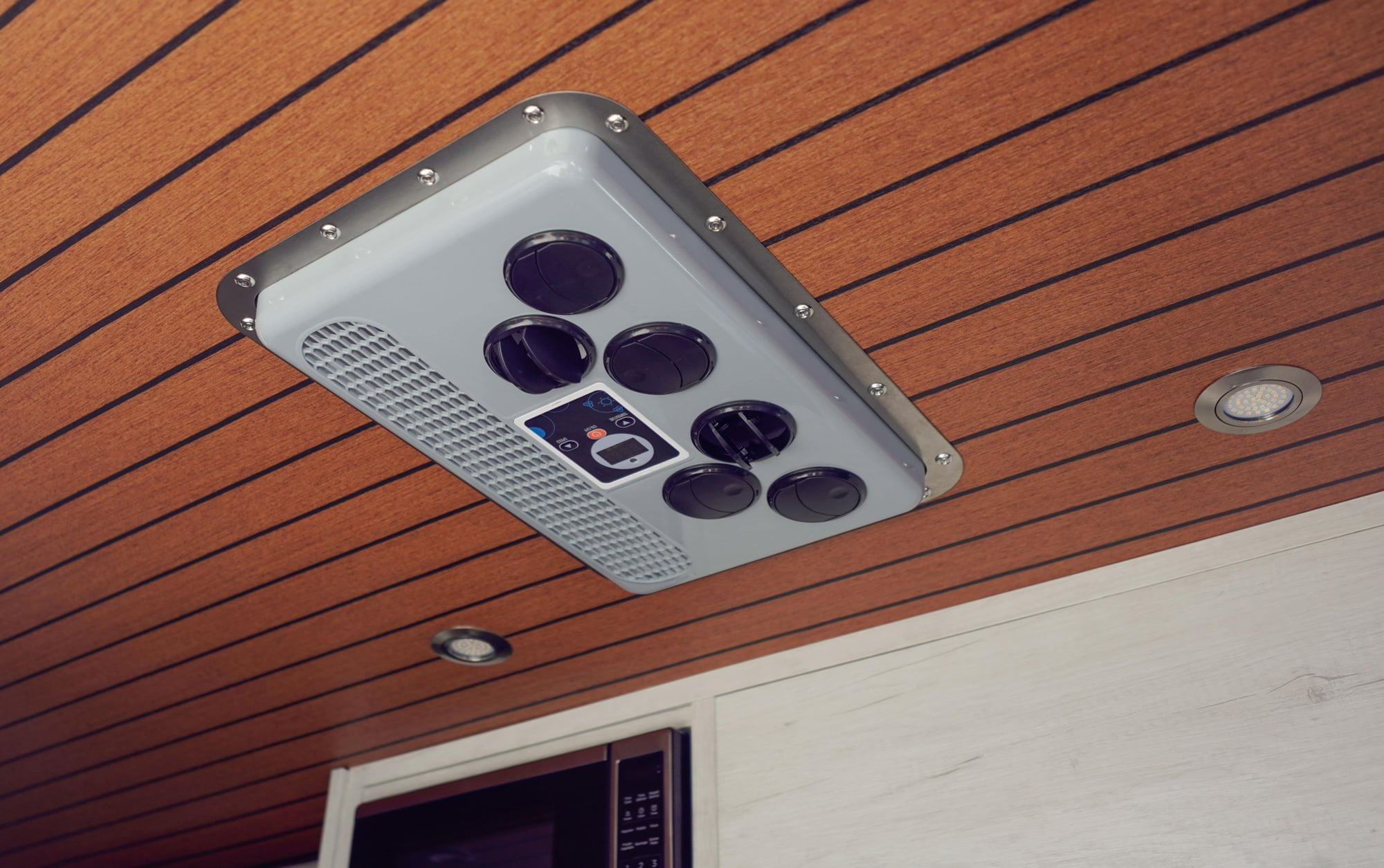

The interior unit can be installed with the included trim piece or you can choose to use your ceiling material to create your own trim appearance as illustrated by the van install below that used Lonseal flooring on the ceiling along with a custom trim ring. Note, both the interior and exterior units are white. The image on the left below shows the interior united painted a light grey.

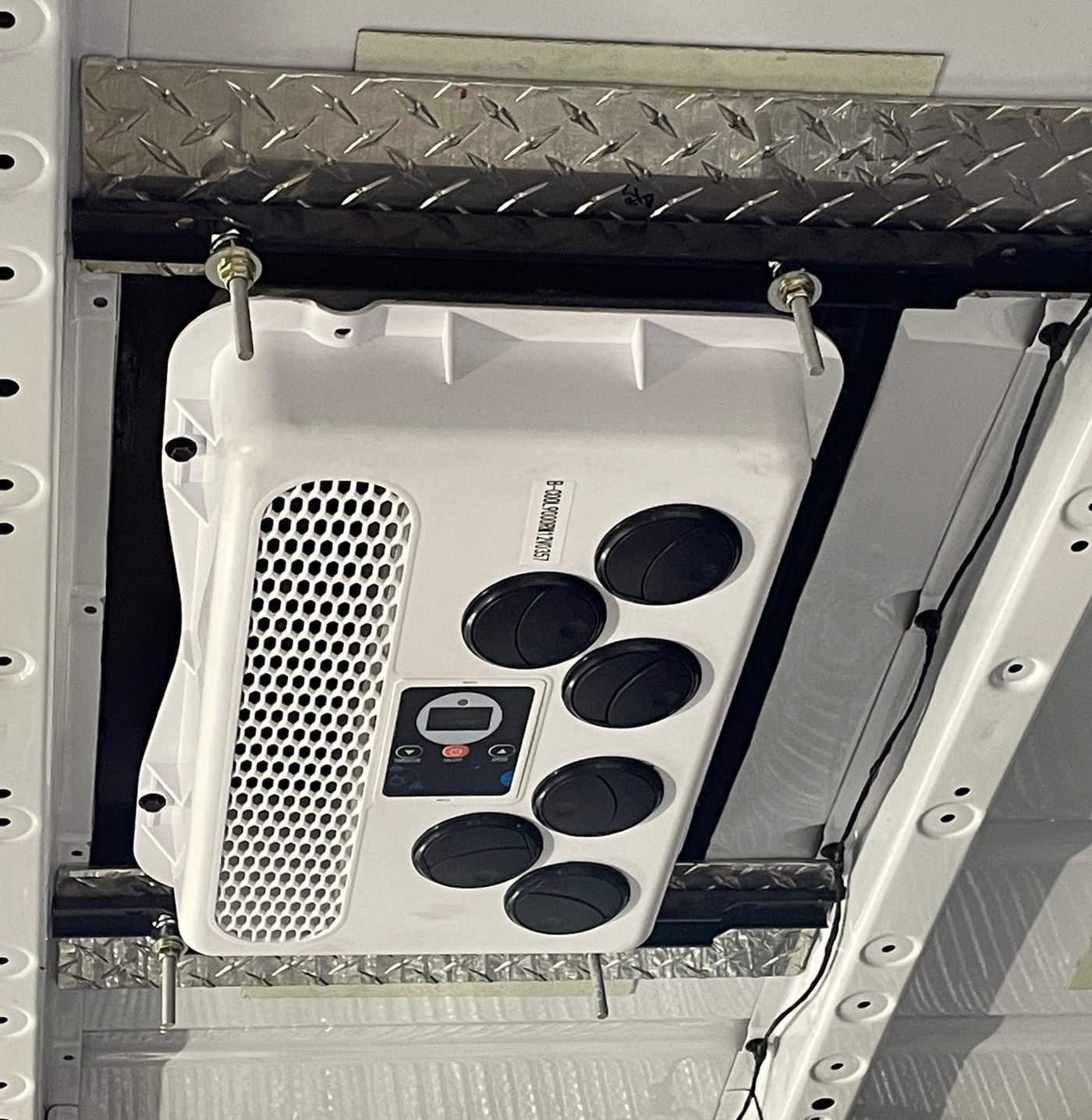

Installation Video

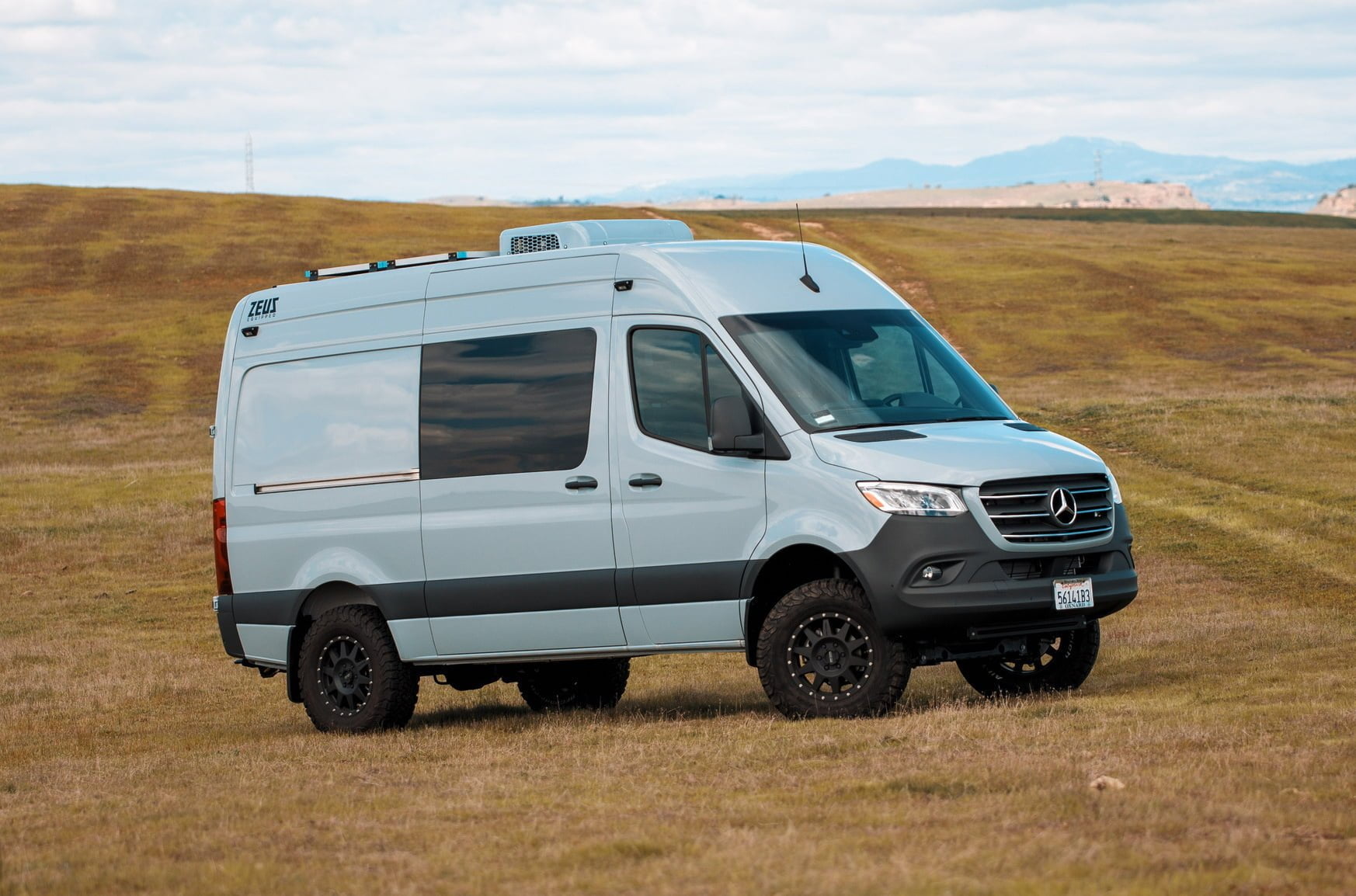

B-Cool exterior unit painted to match Sprinter van.

Additional information

Weight 1216 oz
Dimensions 37.8 × 28.35 × 6.5 in
Outside Shroud Color

White (Base), Black Rino Liner, Glossy Black, Custom Color Match
