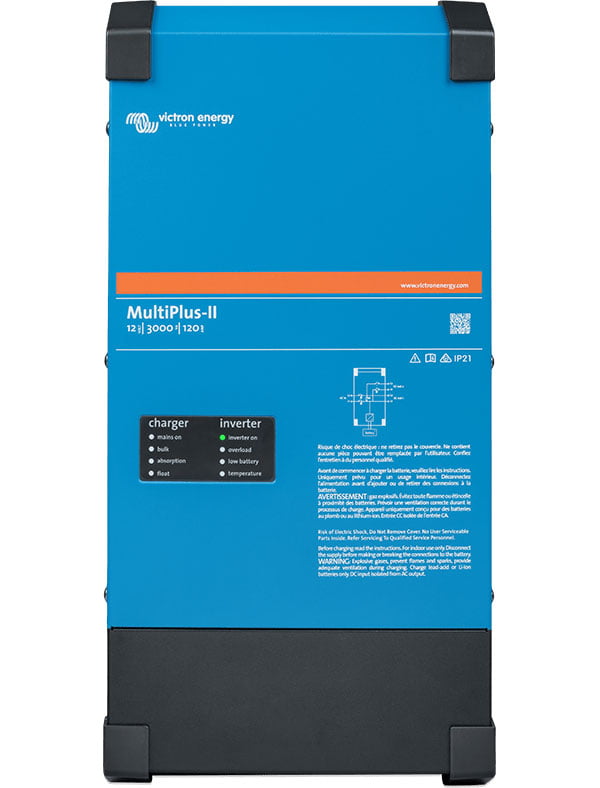

The MultiPlus-II 12/3000/120 is the newer version of the venerable MultiPlus 12/3000/120.
It’s also available in a dual phase, 2x-120 volt AC version (240 volt capable).
As the Multiplus name suggests, this unit combines both a sine wave inverter and battery charger in one compact enclosure. Programmable for use with all battery types including Lithium Ion This new model is more compact in size and features a 50 amp transfer switch. 5 Year manufacturers warranty.
The MultiPlus-II 2x 120V has all of the expected features of our versatile inverter/charger range, including PowerControl, PowerAssist, Input Current Limit, two AC outputs, as well as parallel and 3ph configuration for larger capacity VE.Bus systems. Suitable for LiFePO4 batteries and a variety of other battery technologies.
Dimensions: 21.5″ tall x 10.8″ wide x 5.8″ deep
Unique PowerAssist Feature
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Uninterrupted AC power (UPS function)
In the event of a grid failure when connected to shore power, the inverter is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
