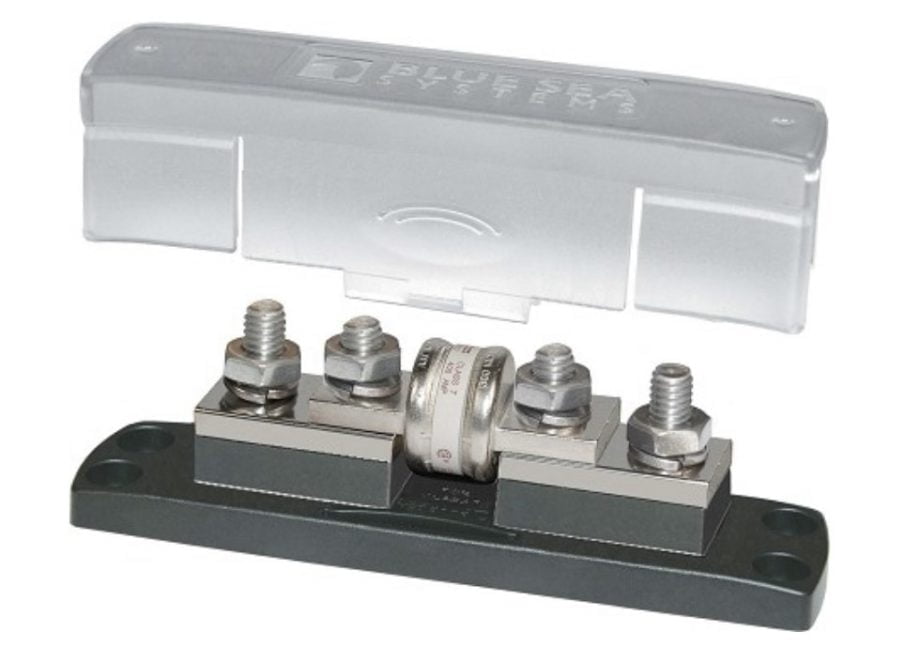

Blue Sea T-Fuse Block (5502)


  • The fuse system recommended by most inverter manufacturers for high speed response to short circuits
  • Clear insulating cover, satisfies ABYC/USCG requirements
  • For use on systems up to 160 Volts DC
  • Large 3/8″ stud terminals accept ring terminals for wire up to 4/0 AWG
  • Large heat-dissipating tin-plated copper mounting blocks
  • For use with Class-T (JJN, JLLN) fuses from 225 Amps to 400 Amps
  • Fuses sold separately

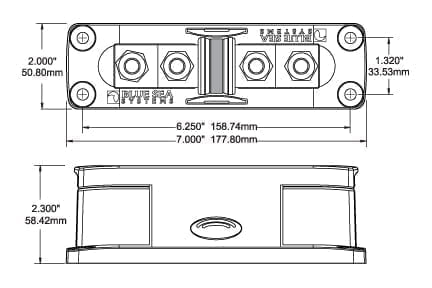

  • Dimensional drawing

10 in stock (can be backordered)
