Description
Specs:
Amperage: 30 amps
Dimensions: 4-3/8″ wide x 4-1/4″ tall x 4-1/4″ deep
Outlet depth: 1-3/8″
Spacing between mounting holes (center-to-center): 2-7/16″ x 2-7/16″
ETL certified
2-Year warranty

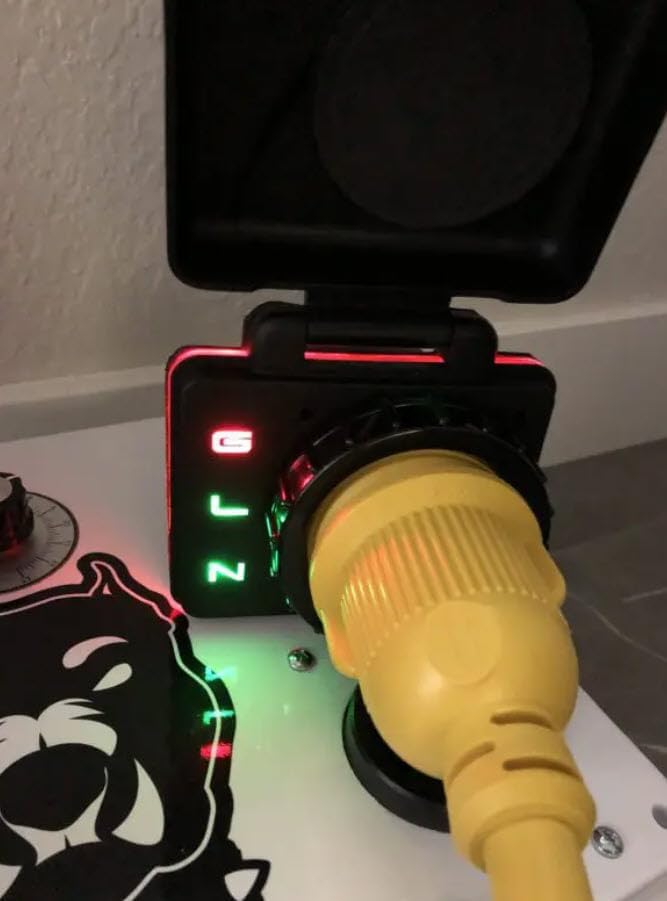

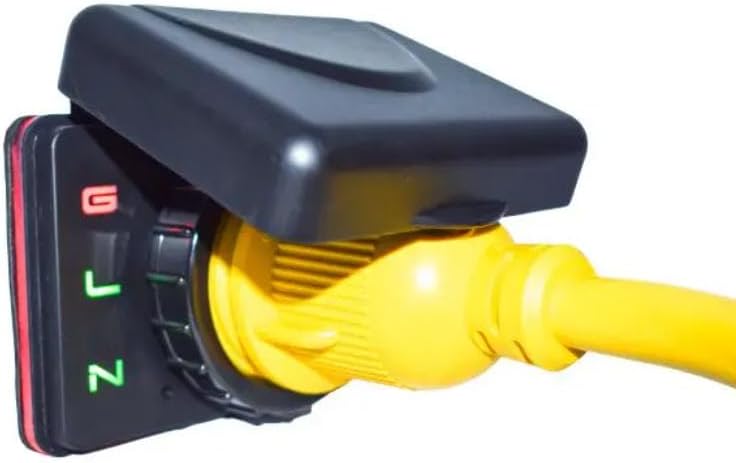

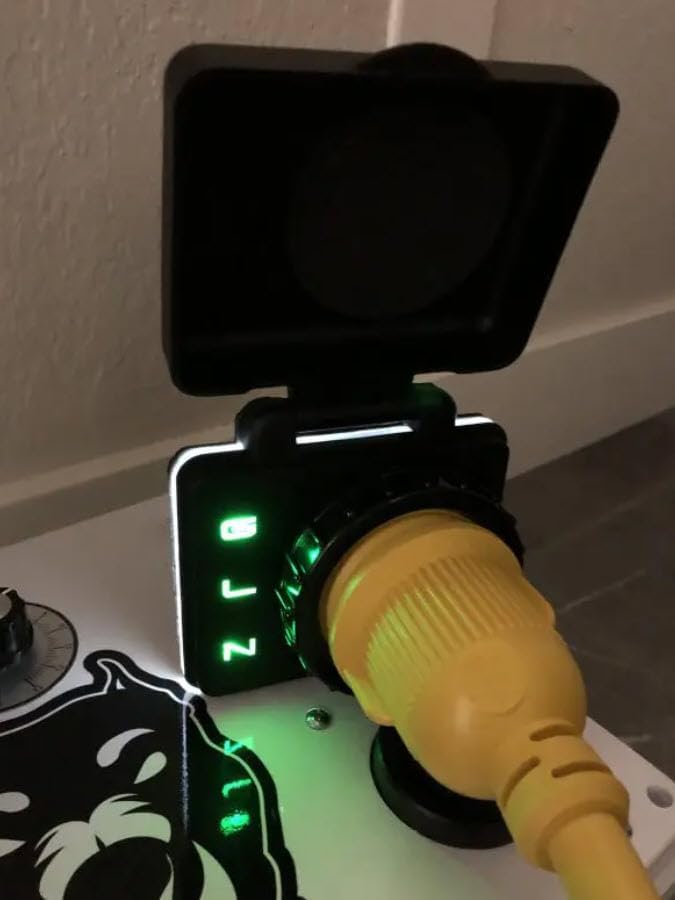

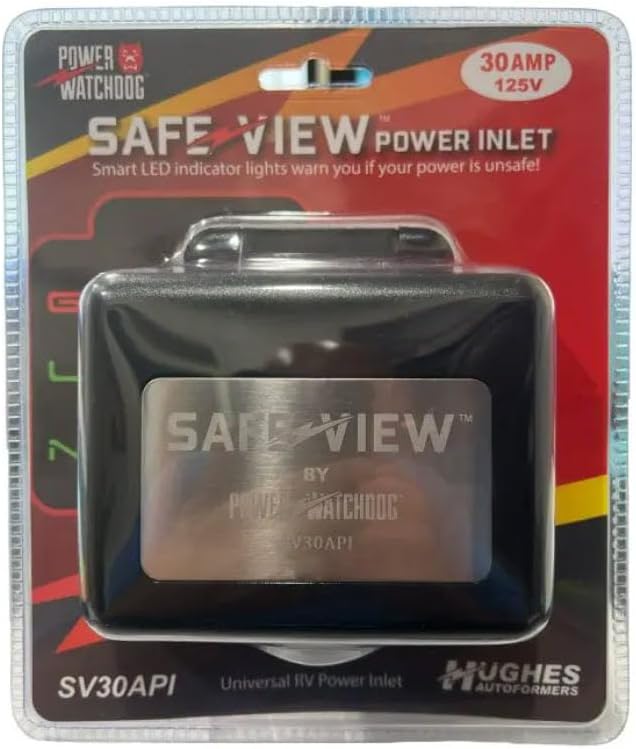

The SafeView Power Inlet lets you ‘see’ if your connection is good. When you connect your RV to a power source, it will show either green (good) or red (fault detected) for each circuit. This helps you determine what you should do. Is it a missing line, missing neutral, open ground, or reverse polarity? It is as easy as seeing the red or green LED lights. It also features a ‘halo’ status light. If it is solid white, you have a good circuit, if it is blinking red, there is a fault present. This satisfies the recent RVIA (Recreational Vehicle Industry Association) requirements that RVs be able to detect for reversed polarity upon connection.

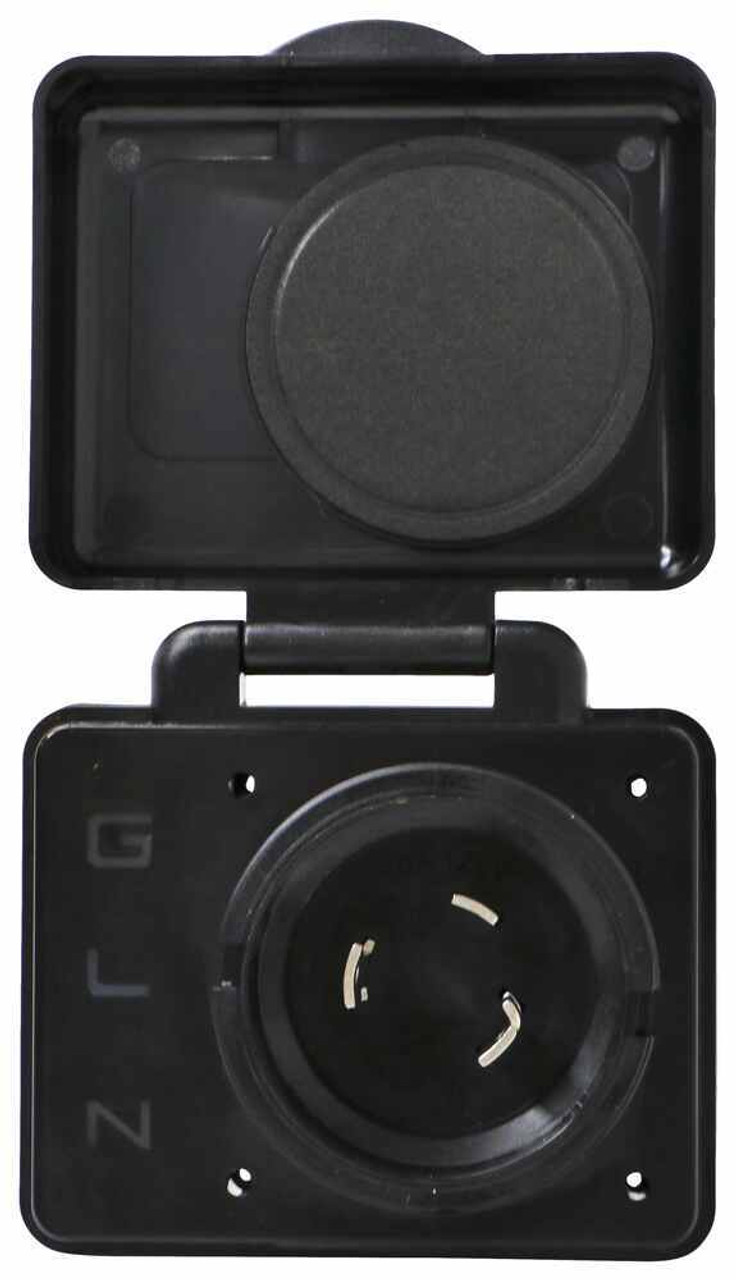

30 Amp (220 Volt) G = Ground (Green Wire), L = Load (110 Volt Line) (Black Wire), N= Neutral (White Wire)
