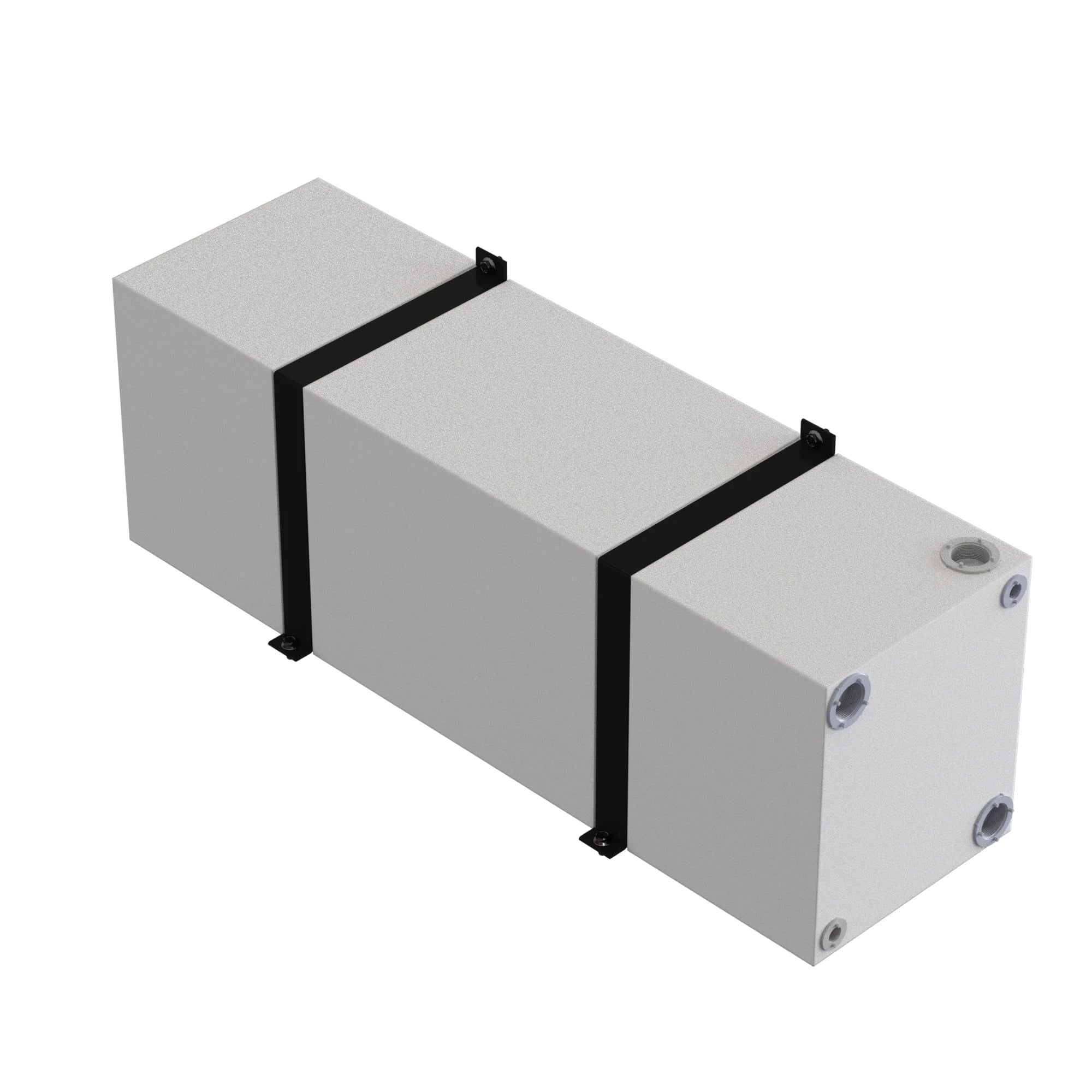

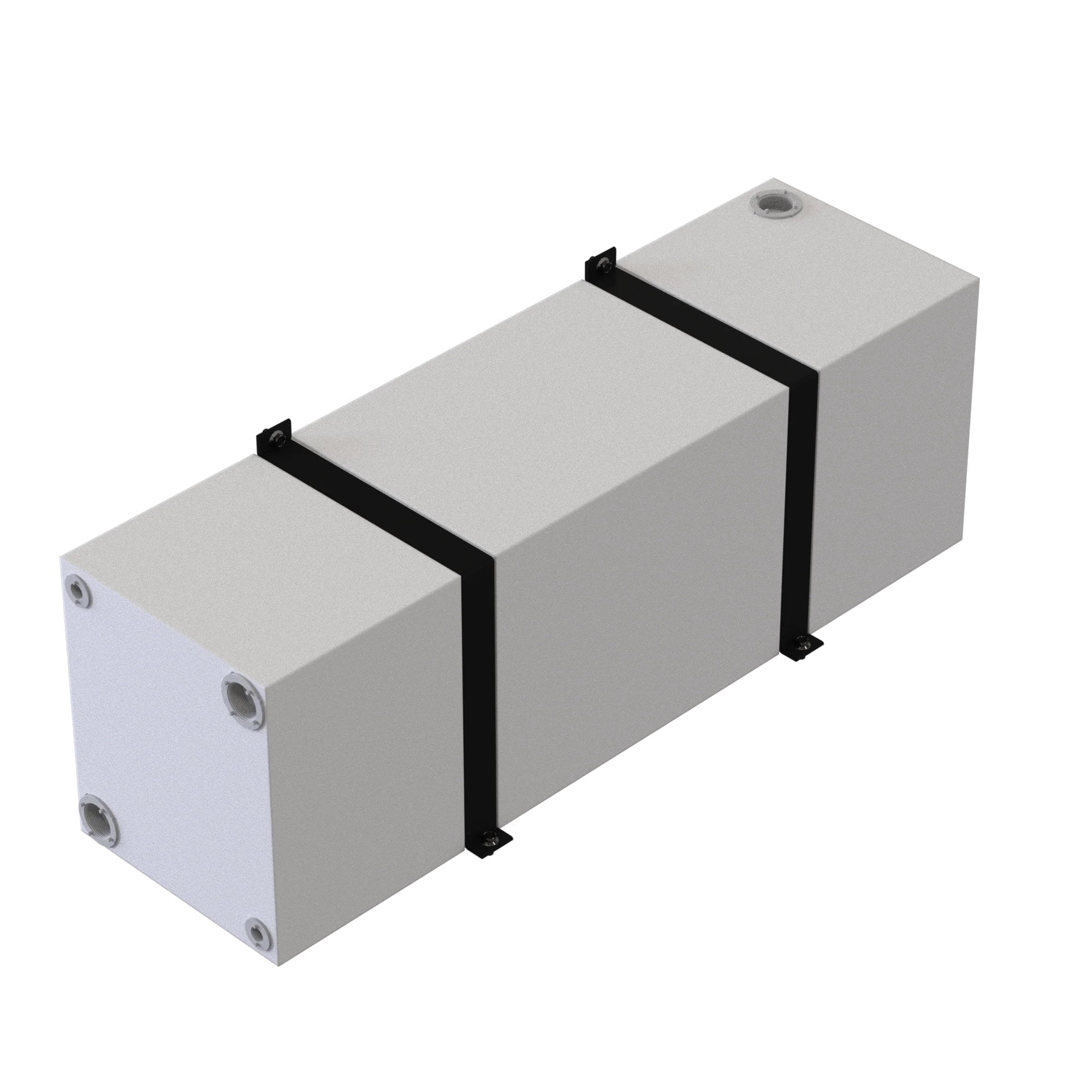

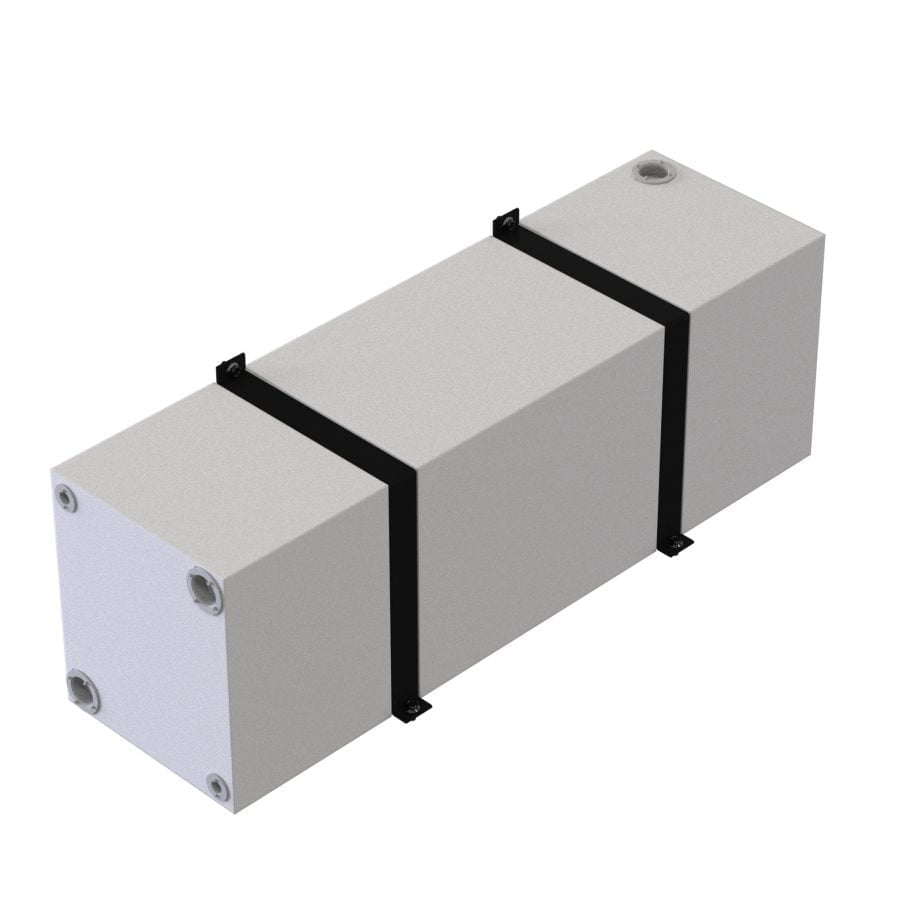

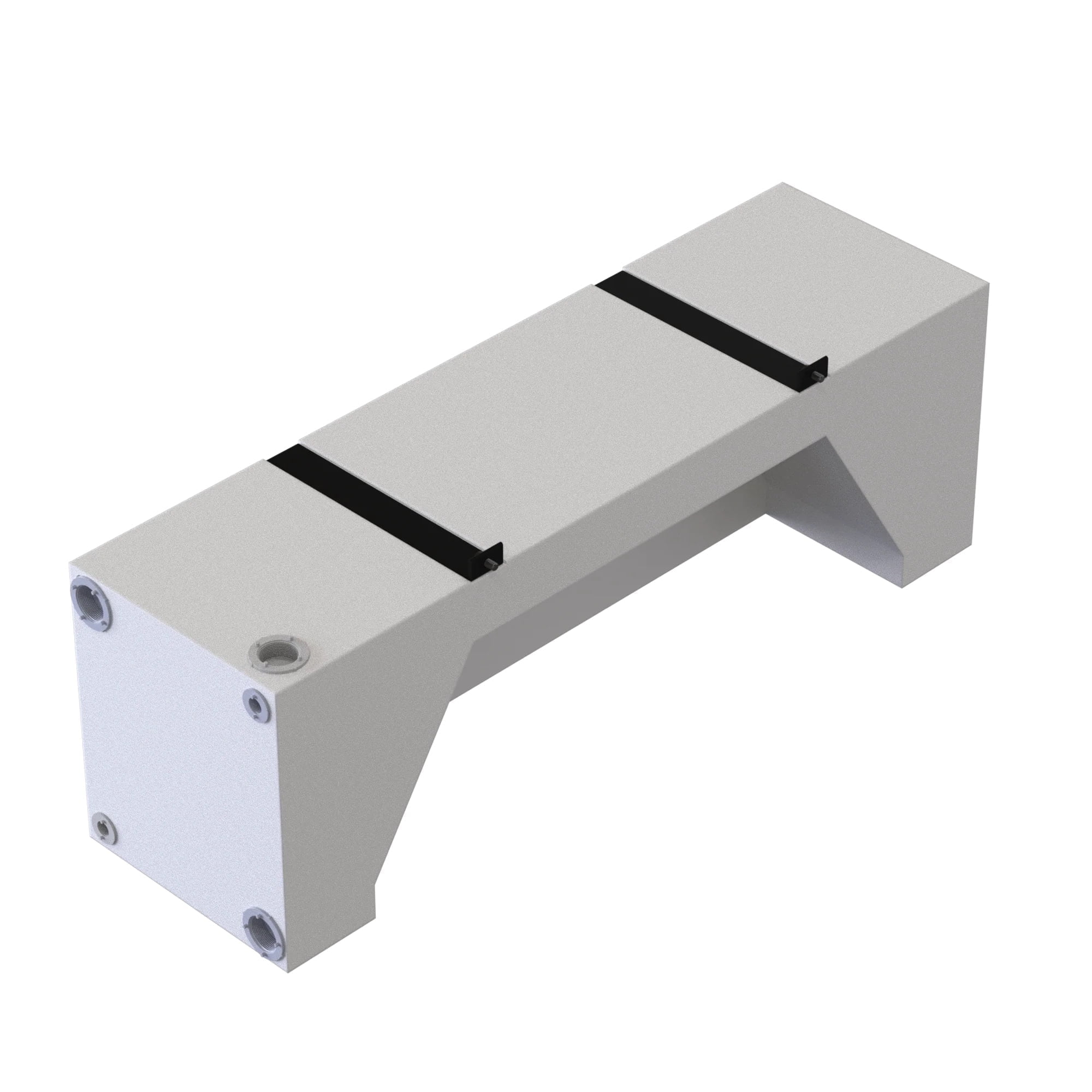

24 Gallon Wheel Well Water Tank – Sprinter/Transit (Driver or Passenger Side)


  • Can be used over the rear passenger or driver side wheel well.
  • Suitable for most Sprinter and Transit vans (please scroll down for complete vehicle fitment details). It cannot be used on “dually” vans.
  • Includes heavy-duty metal straps, rivnuts, rivnut tool, and bolts for securing the tank to your van.
  • Pair with the Cerbo GX and SeeLevel Kit for easy water level monitoring.
  • Free shipping to the continental USA!
All of our fresh water tanks are currently on backorder while the manufacturer is working toward keeping up with the overwhelming demand. We don't currently have an ETA for when they will be back in stock and available for ordering, but please click the blue "Email Me When Available" button below to receive a notification.
Out of stock

Out of stock

SKU: 10-3005 Categories: ,
buy with confidence, secure checkout, world-class support, free shipping



  • Made from BPA-Free, Food Grade Polyethylene Plastic.
  • Designed for non-pressurized systems, must be vented.
  • Accepts most universal fittings (not included).
  • Includes ports on both ends and top for a customizable plumbing system.

Tank Capacity: 24 gallons

Tank Type: Over The Wheel Well

Dry Weight: 28.9 lbs

TEI Listed / RVIA Approved: Yes

PDF Details

WARNING: This product can expose you to chemicals including carbon black, silica – crystalline, methylene chloride, and lead which are known to the State of California to cause cancer, and lead, which is known to the State of California to cause birth defects or other reproductive harm.

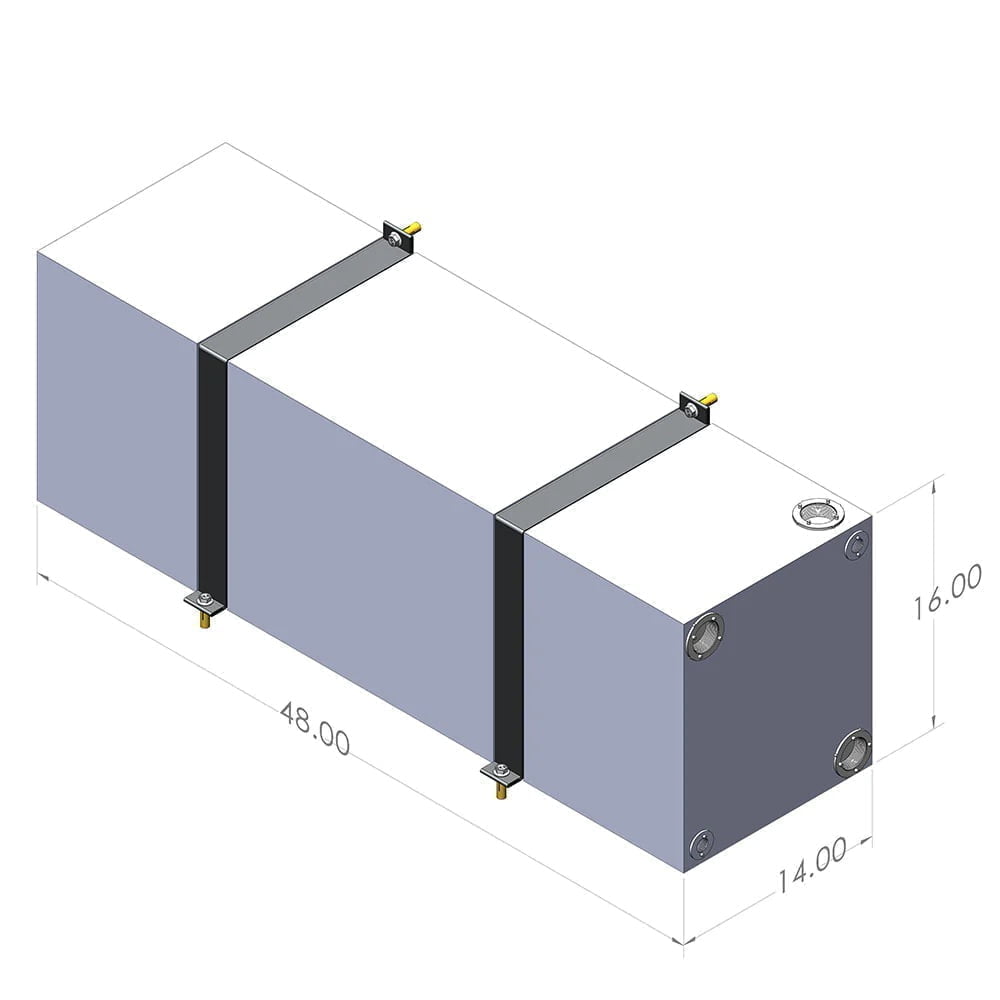

Dimensional Drawing

Overview - Mercedes Sprinter

Overview - Ford Transit

Vehicle Fittment

2007-2024MercedesSprinter 2500 144\ & 170\ Wheelbase3.0L Diesel
2007-2024MercedesSprinter 2500 144\ & 170\ Wheelbase2.0L Diesel
2007-2024MercedesSprinter 3500 144\ & 170\ Wheelbase3.0L Diesel
2007-2024MercedesSprinter 3500 144\ & 170\ Wheelbase2.0L Diesel
2015-2024FordTransit 1503.5L Ecoboost
2015-2024FordTransit 2503.5L Ecoboost
2015-2024FordTransit 3503.5L Ecoboost
2015-2019FordTransit 1502.0L Diesel
2015-2019FordTransit 2502.0L Diesel
2015-2019FordTransit 3502.0L Diesel
2015-2024FordTransit 1503.7L Gas
2015-2024FordTransit 2503.7L Gas
2015-2024FordTransit 3503.7L Gas

Additional information

Weight 5000 oz
Dimensions 60 × 30 × 30 in
