Front Runner SlimPro Mercedes Benz Sprinter (L3H2 / 170″ LWB / High Roof) (2007-CURRENT)


  • Compatible with Mercedes Benz Sprinter L2/H2 / 144″MWB High roof vans with a vehicle length of 5923mm / 233.2″.
  • Load-carrying area: 3176mm (125″) L x 1352mmW (53.2″).
  • Twelve (12) Mounting Feet secure into van’s existing factory mounting points.
  • Included Slat Bracket can be inverted for a lower profile at 85mm (3.4″) height, or left in standard configuration at 127mm (5″).
  • Compatible with most Front Runner accessories.

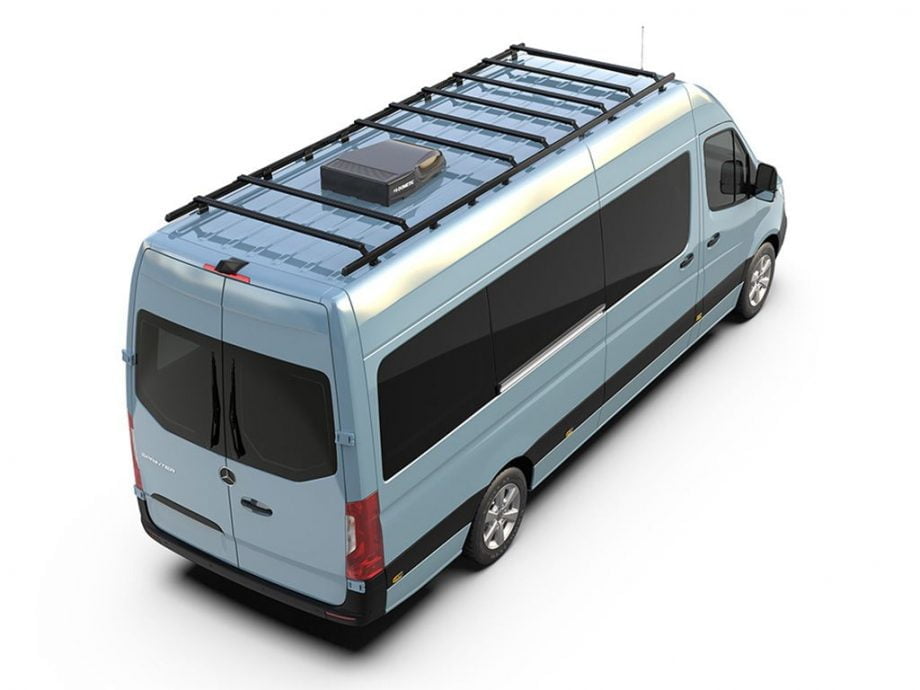

  • Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
  • Fitment guide and all mounting hardware are included. No drilling or modification required.
  • All Front Runner racks are backed by a limited lifetime warranty.*
  • If you're planning on mounting a "wall mount" style awning like the Fiamma F45S, you'll need these "adapter" mounting brackets that pair up with the mounting brackets that come with your awning.

Free ground shipping in the USA (Lower 48 States)!

SKU: KVMS004T Categories: , ,
buy with confidence, secure checkout, world-class support, free shipping


Unlock your van’s storage potential with this highly versatile, rugged roof rack kit for Mercedes Benz Sprinter vans. Long distance van-life mission, weekend trip or hauling equipment such as ladders and pipes, the low profile rack is designed to support large loads. It features an adjustable slat system to accommodate just about any type of roof-mounted equipment such as air conditioning units, skylights and air vents. The rack’s expansive load-carrying area was designed to carry gear and mount Front Runner accessories in a huge range of configurations.

Installation Manual

KVMS004T – Mercedes Benz Sprinter (L3H2/170″ LWB/High Roof) (2007-Current) Slimpro Van Rack Kit – by Front Runner
Consisting of:
7x FAVF004 – Mercedes Sprinter Van Rack Foot Set
2x RRAC207 – Van Rack Joiner Kit
2x RRAC208 – Van Rack Side Profile End Caps
4x RRAC940 – Merc Bens Sprinter Slimpro Van Track T-Bolt Kit
5x RRNS1255 – Narrow Slat / 1255mm (Pair)
1x SPVT001 – Van Rack Side Profile / 1156mm
1x SPVT002 – Van Rack Side Profile / 1358mm
1x SPVT003 – Van Rack Side Profile / 1560mm
1x WDST013 – Wind Deflector Van Rack 30mm Lip
Material Used:
Black epoxy powder – coated T6 aluminium
High strength steel
Assembled Rack Kit Dimensions:
4130mm (162.6″) L x 1352mm (53.2″) W x 143mm (5.6″) H
Approximate Installed Weight: 18.39kg (40.54lbs)
Shipping Dimensions:
Width: 440mm (17″)
Length: 1730mm (68″)
Height: 160mm (6″)
Shipping Weight:
Weight: 47kg (103lbs)

Overview Video
