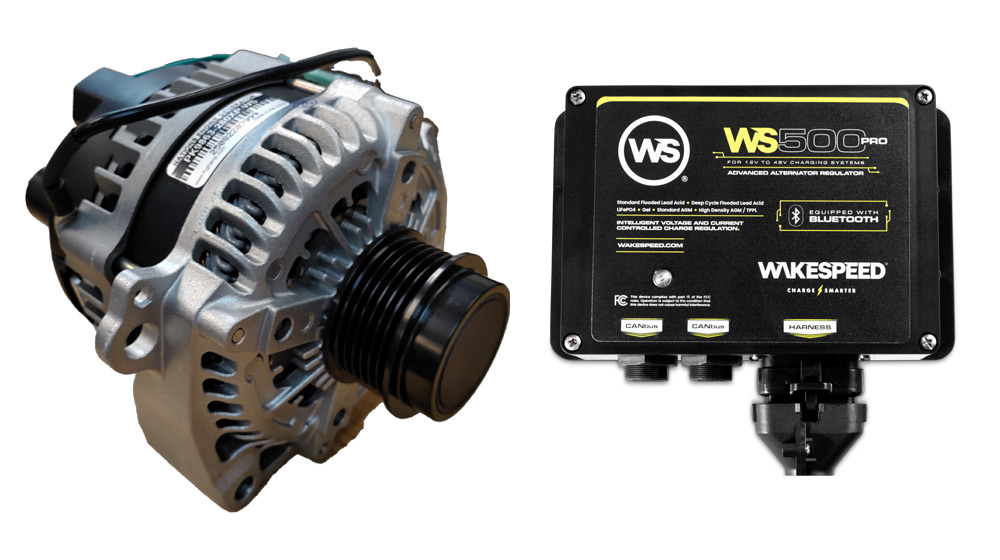

Nations Alternator with Wakespeed WS500 Regulator

$0.00

  • If you’re looking for a reliable way to rapidly charge your batteries, a dedicated secondary alternator is a great option.
  • Price determined by vehicle (see choices below).
  • In our testing with the 280 amp alternator, we see anywhere between 120 and 220 amps of output depending on vehicle, engine RPMs, temperature and the state of charge of the battery. Check out this video demonstrating a Nations altenator in a Sprinter van.
  • You can read about all the benefits of a secondary alternator power system in this blog post. We also sell this in a discounted bundle with Lithionics or Victron batteries.

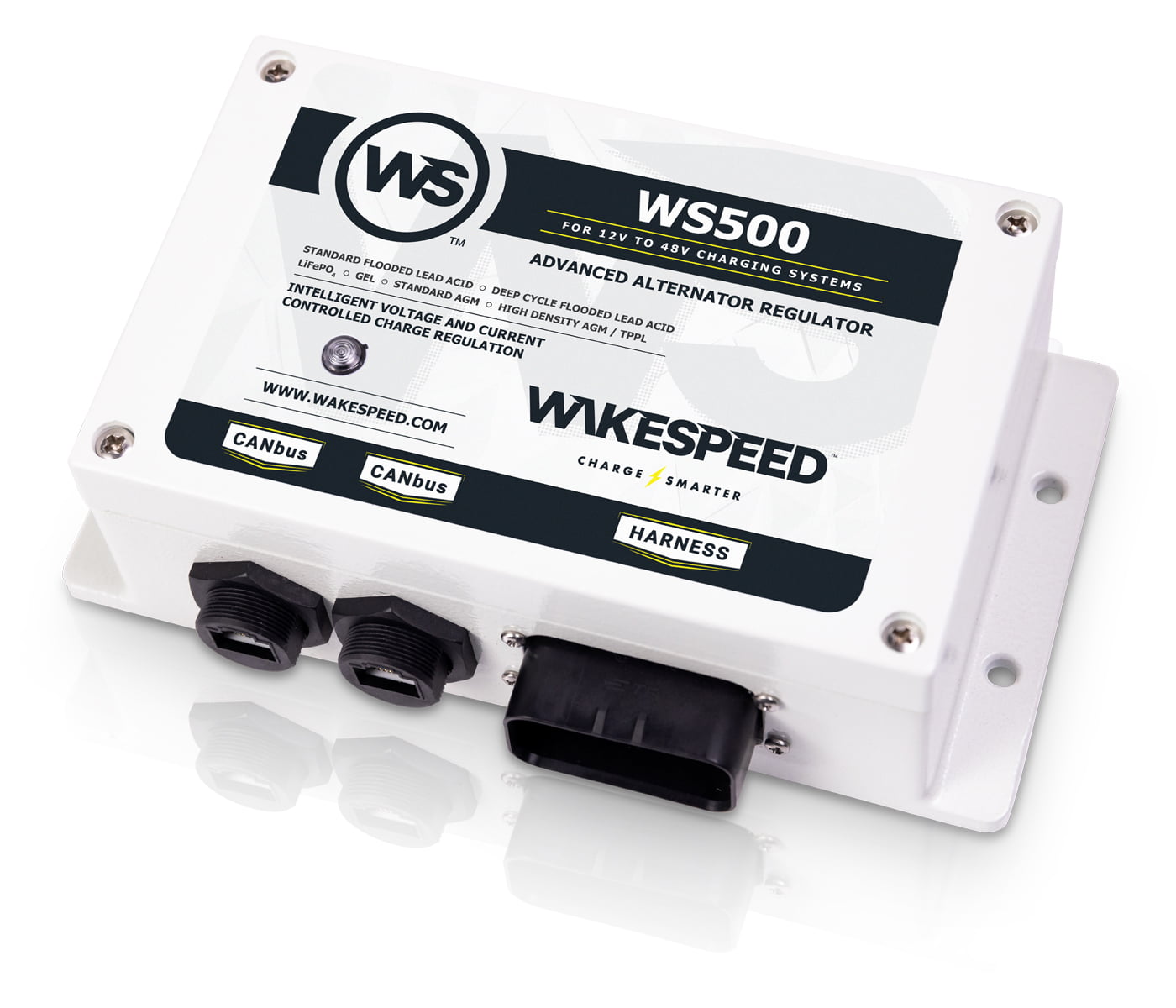

  • Includes the advanced Wakespeed WS500 charging regulator that will ship pre-configured for your particular batteries based on the information provided below when ordering. Please see the details and a list of qualified batteries below.
  • This kit is for 12 volt power systems. Please contact us if you need a 24 or 48 volt option.
  • Lead times are typically 3-6 weeks.
  • Free ground shipping to the continental USA.

This choice determines which base kit you receive and the cost of the kit. The Nations secondary alternator in this bundle ships with the correct mounting and other hardware/parts for your specific vehicle. Be sure to choose carefully! NOTE: if your Sprinter van came with the factory N62 alternator bracket, this kit is NOT compatible. There is an a Nations product for the N62 bracket but it's not recommended by ourselves or by Nations Alternator. For Sprinter vans, we always supply the "3-belt" version of the kit. The vehicles included in this list are our "standard" kits. We can customize a kit to your specific needs if you vehicle isn't listed here. Please contact us with any questions!

$0.00

We only support the battery brands/makes listed below so that we can fully support your installation if needed and to ensure the highest performance and safety. Your choosen battery type also determines which "version" of the Wakepeed regulator and "van wiring harness" you will be provided. Lithonics batteries will receive the "black box" version of the Wakespeed with the Lithionics version of the van harness. Victron Smart batteries or Battleborn batteries will receive the "white box" version of the Wakespeed with the standard van harness. You can read more about the different versions of the Wakespeed regulator, van harnesses and qualified batteries in our post about the Wakespeed WS500 regulator.

Please enter the total number of batteries you'll be using in your system. Each of the batteries must be of the type indicated above and identical. This information is used to configure the Wakespeed regulator correctly.

Please enter the storage capacity of your batteries in amp hours. They must be of the type indicated above and identical. This information is used to configure the Wakespeed regulator correctly.

  • Options/Add-Ons Price: $0.00
  • Base Price: $0.00
  • Total: $0.00
SKU: Nations Alternator Kit Categories: ,


Description

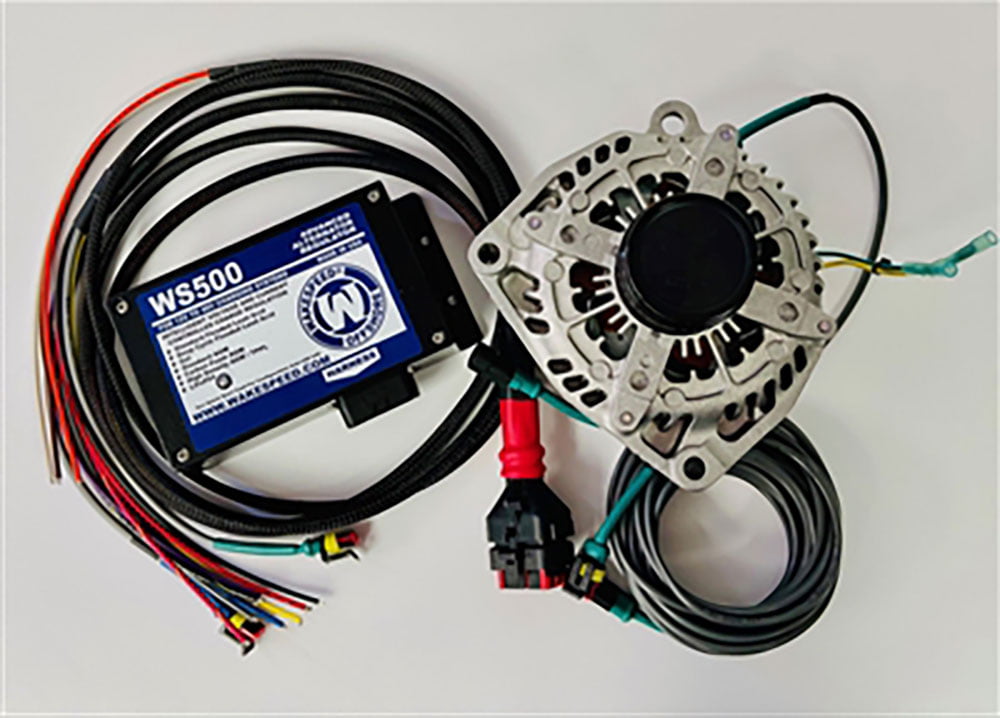

Kit includes:

  • Dual alternator mounting bracket
  • High current charging alternator. Most kits include a 280 amp alternator. If you have a Ford Transit van (2020 or newer with the 3.5L Ecoboost engine), that kit includes an even higher capacity, large case Denso Hairpin 300 Amp XM alternator rated for 300 amps.
  • Wakespeed WS500 regulator pre-programmed for approved/qualifeid batteries (see list above) with your choice of wiring harness.
  • OEM GM idler pulley for the best serpentine belt life. Note, some competing companies  use alternator bearings which can cause extreme heat and destroy serpentine belts.
  • Gates Green Stripe serpentine belt.
  • ALL mounting hardware needed to install the bracket and alternator to the vehicle.

Additional information

Weight 4000 oz
Dimensions 25 × 25 × 25 in
