Description

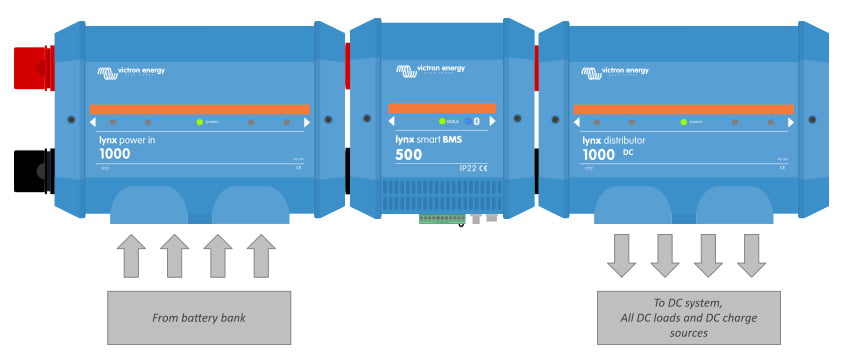

The Lynx Power In is part of the modular Lynx Distribution system. For instance it can be paired with a Lynx Distributor and a Lynx Smart BMS as shown in the diagram below.
$141.10
A modular DC busbar, used to connect batteries to the Lynx DC distribution system.

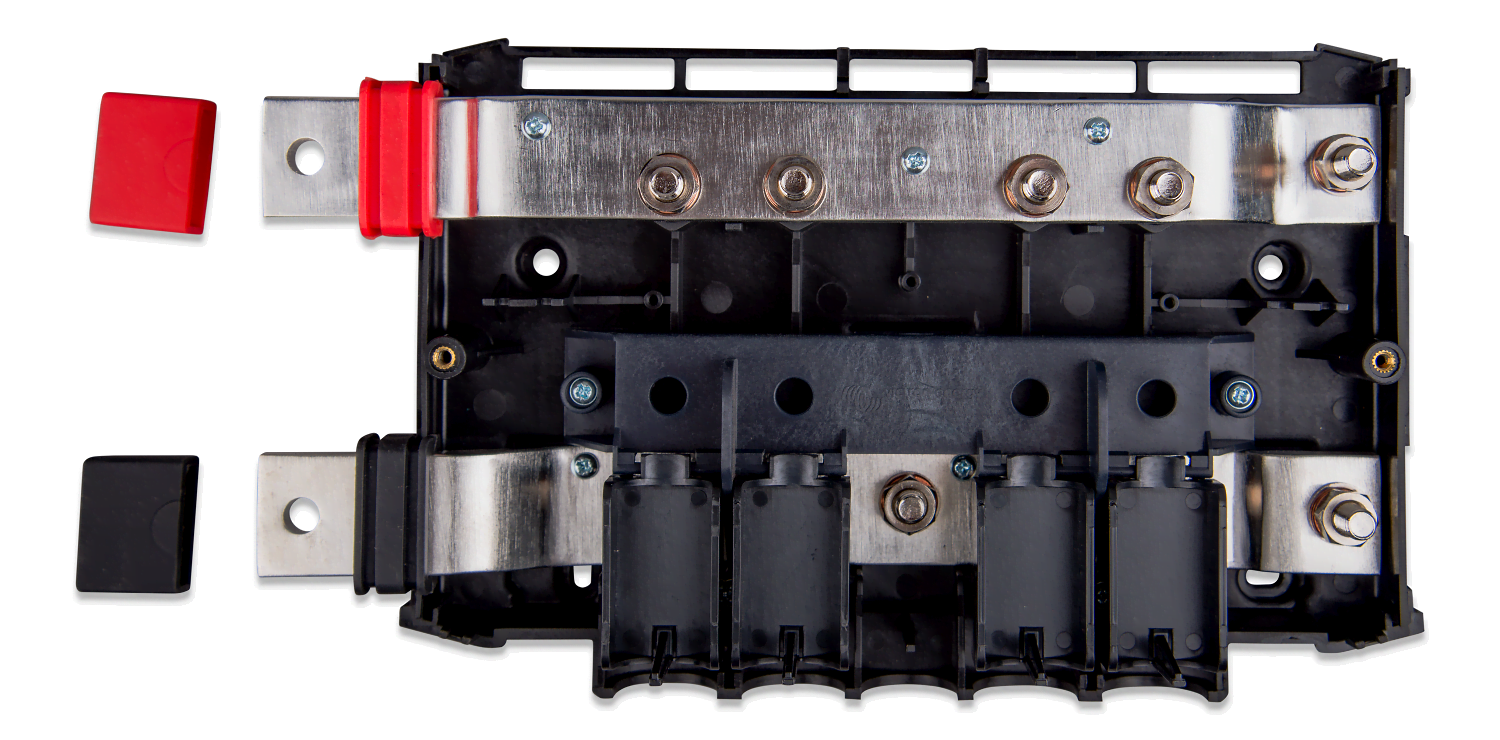

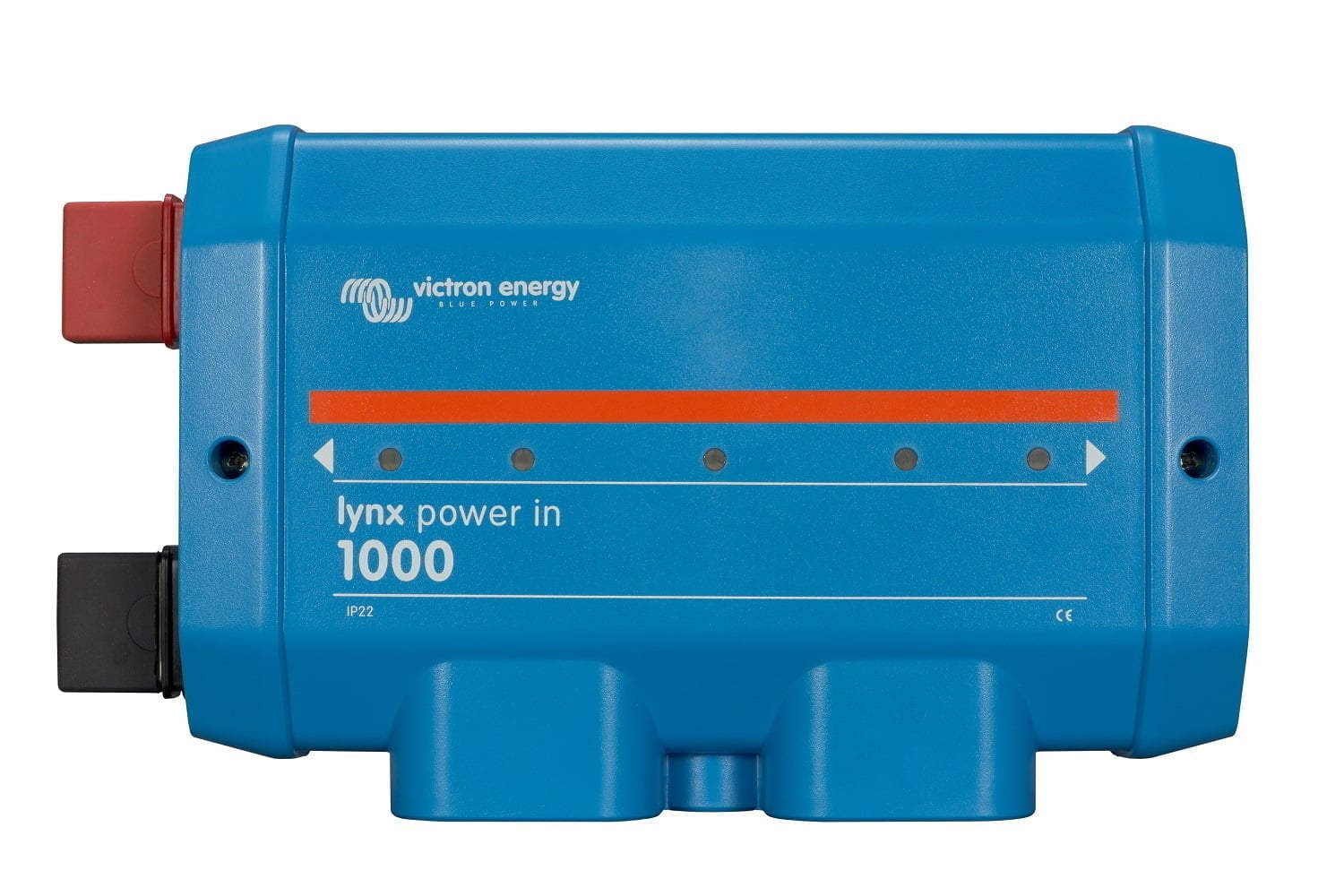

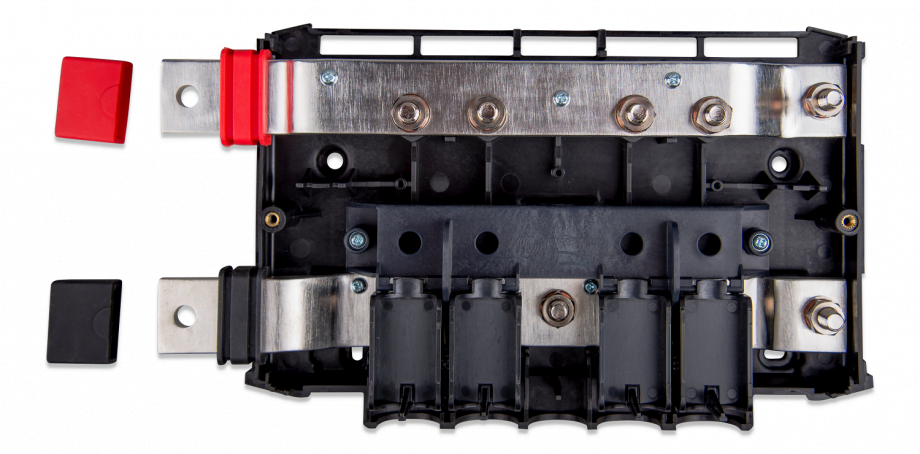

This is the M8 version of the Lynx Power In that has a maximum current rating of 1000 amps (up to 60 volts) – there is also an M10 version. The difference is the size of the holes/connections on the main bus bars (M8/5/16″ or M10 /3/8″) where you connect (bolt-on) additional Lynx system products such as Lynx Distributors or a Lynx Smart BMS. The terminals inside the Distributor are M8 (5/16″) on both versions to accept standard hole-size mega fuses.
We offer fast, FREE shipping on most Victron Energy products - including batteries and inverters! FREE shipping on Victron batteries. Small cables/adapters ship for a flat-rate of $5. These promotional shipping rates are for customers in the continental USA only.
8 in stock (can be backordered)
The Lynx Power In is part of the modular Lynx Distribution system. For instance it can be paired with a Lynx Distributor and a Lynx Smart BMS as shown in the diagram below.
Weight | 2.1 oz |
---|---|
Dimensions | 12 × 6 × 3 in |
