Fiamma F45S Awning LED Light Kit


  • Great way to add a light source that attaches to your Fiamma awning!
  • Compatible with F45s awnings for Sprinter, Transit and Ram Promaster vans.
  • Low power consumption – only 1 amp at 12 volt DC.
  • Neutral white (5000k).
  • Sold in various lengths to fit the length of your Fiamma awning (see options below).
  • $15 flat-rate ground shipping to the lower 48 states.
SKU: 98655-914 Category:
buy with confidence, secure checkout, world-class support, free shipping

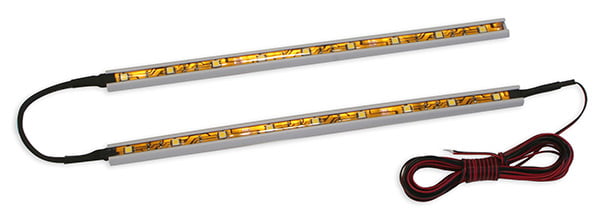

Fiamma F45S Awning LED Light Kit for the Fiamma F45S & Fiamma F65 awnings, consisting of a 5m LED strip. Supplied as standard with 10 PVC 20″ (50cm) lenses to fit inside the internal profile of the lead bar (for both F80S and F65 awnings) and inside the case (for F45S).

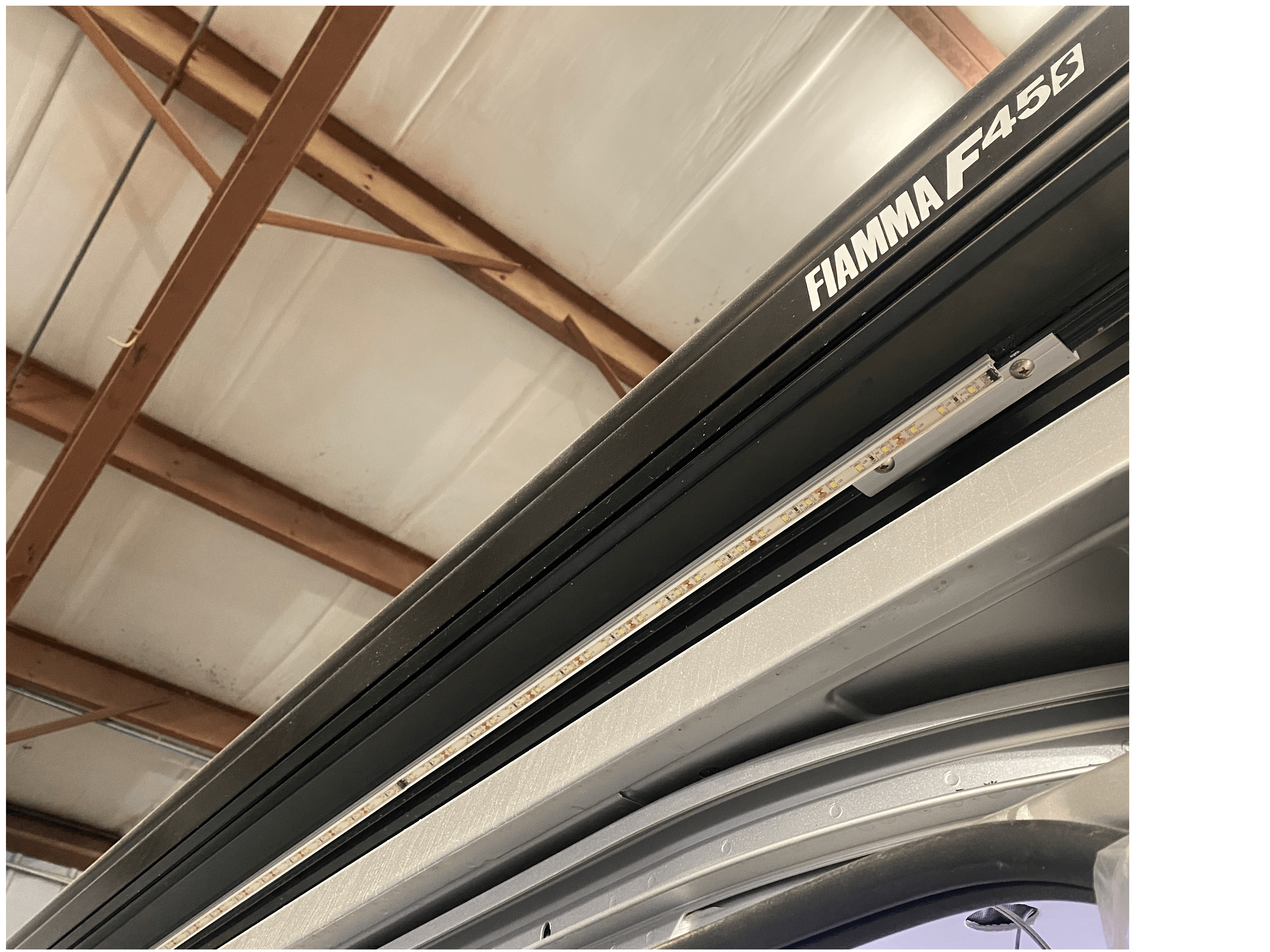

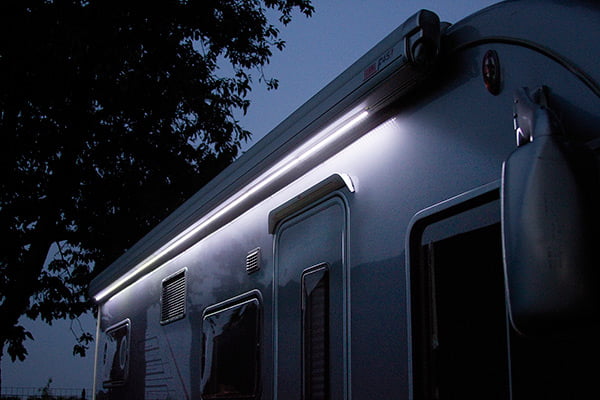

This is a very convenient form of lighting for external use on the F45S and F45L awnings. This Fiamma F45S Awning LED Light Kit consists of 6 individual strips that slide together below the awning in to the rear channel. This means that you don’t have to have the awning open in order to enjoy the illumination. It’s also possible to travel with the LED installed on the awning case.

Fiamma F45S Awning LED Light Kit is a lighting system composed of 4 LED light kits mounted into sturdy supports and easily attached to the awning arms. The compact dimensions allow them to stay mounted, even when the awning is closed. Complete with 5 meters of cable for a quick connection to your electrical system. Each group of lights contains 9 LEDs, which are equipped for external use. Low consumption, no overheating.

Delivered as standard in the length of 2.5 m. (for awnings 3.0 m long) composed of :

  • 1x bar with wiring for the 12 V electrical connection
  • 4x additional bars.

An optional 50cm kit is available to make longer lengths.


F45S LED Kit 98655-914 (for 10 foot Awnings)

F45S LED Kit 98655-914 + 20 inch LED Extension 98655-915 (for 11 foot Awnings)

F45S LED Kit 98655-914 + 2x 20 inch LED Extensions 98655-915 (for 13 foot Awnings)

For longer awnings just add the optional 20″ (50cm) kit (98655-915), as many as required!

Additonal Specs

LED Color: Neutral White
Tone: 5000 ° K
Light Cone Angle: 120 °
Lux/1M: 150
N° LED: 150
Tension: 12 V
Absorbtion: 1 A
Absorbed Power: 12 W
Weight: 0.3kg

Installation Video

Additional information


300 – For F45S 10' 1" -OR- F80S 10' 6" Awning Length, 350 – For F45S 11' 6" -OR- F80S 12' 2" Awning Length, 400 – For F45S 13' 1" -OR- F80S 13' 2" Awning Length
