Vanlife Outfitters Basic Install Kit for Nomadic Cooling – X2

$160.00$185.00

We designed this installation kit as a less expensive alternative to the “official” Nomadic Cooling X2 air conditioner “DIY Installation Kit”. You can compare what our kit includes vs. what their “DIY” kit includes. Both kits are great options. Our kit is designed to provide the only the essentials for installation and nothing more at a value price.

There are three versions of the kit: 12-volt, 24-volt and 48-volt. The 12-volt kits include 4 AWG wire with 80 amp amp mega fuse, the 24-volt kit includes 6 AWG wire with a 40 amp mega fuse and the 48-volt kit comes with 10 AWG duplex wire and a 30A MIDI fuse. Please scroll down to the description below for photos and details.

Note: wire gauge included in the kit is based on a relatively short wire run installed into a small vehicle like a van. Please use an ampacity calculator such as the “Blue Sea Circuit Wizardwhen sizing your wire for your particular situation.

$10 flat-rate shipping to the continental USA!

SKU: Nomadic Cooling X2 Basic Install Kit Category:
buy with confidence, secure checkout, world-class support, free shipping


Description

Our Basic Installation Kit Includes

Links to the individual components sold in our store in case you want to purchase the items separately outside of the kit.

3M 540 Sealant (White)

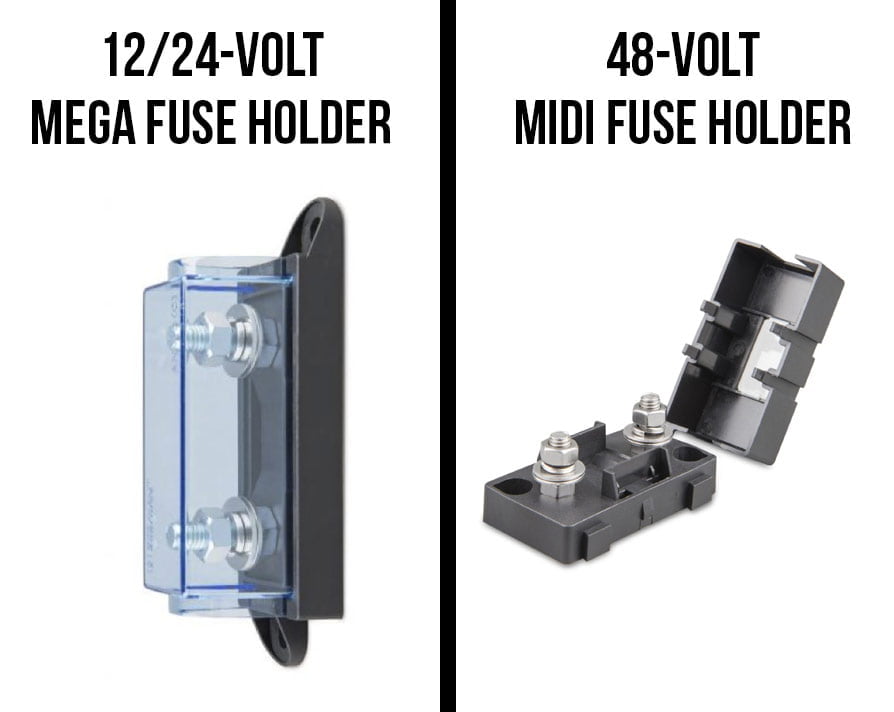

Fuse Holder

The 12/24-volt version of the kit comes with a Victron Energy mega fuse holder while the 48-volt version comes with a Victron Energy MIDI fuse holder that is rated up to 58-volts.

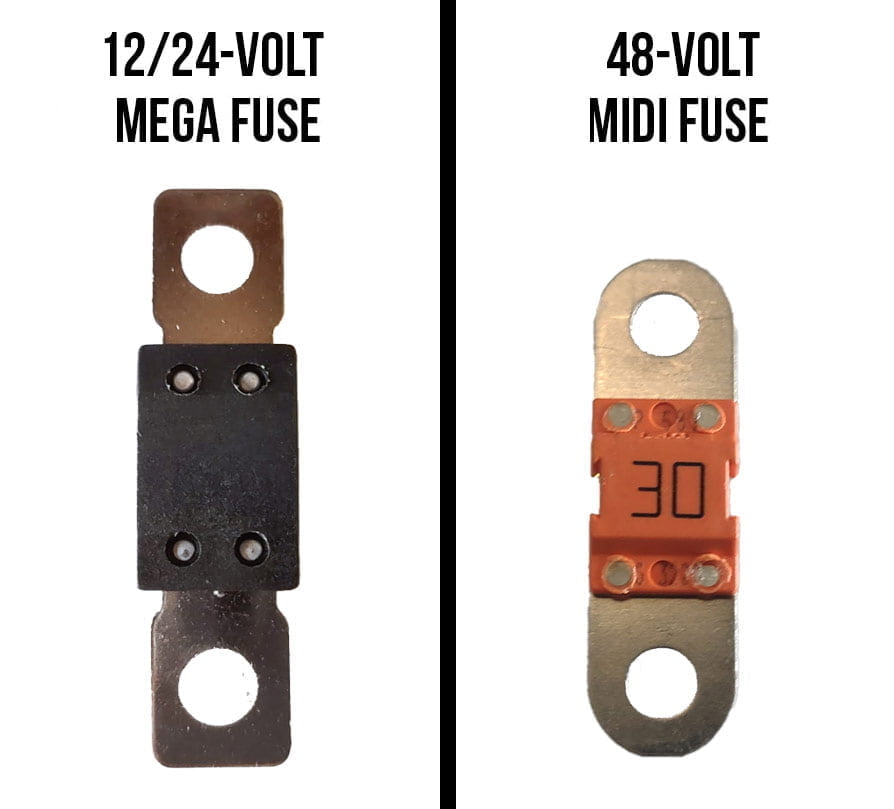

Fuse

The 12-volt version of the kit comes with a Victron Energy 80 amp mega fuse, the 24-volt version comes with a 40 amp mega fuse and the 48-volt version comes with a Victron Energy 30 amp MIDI fuse that is rated up to 58-volts.

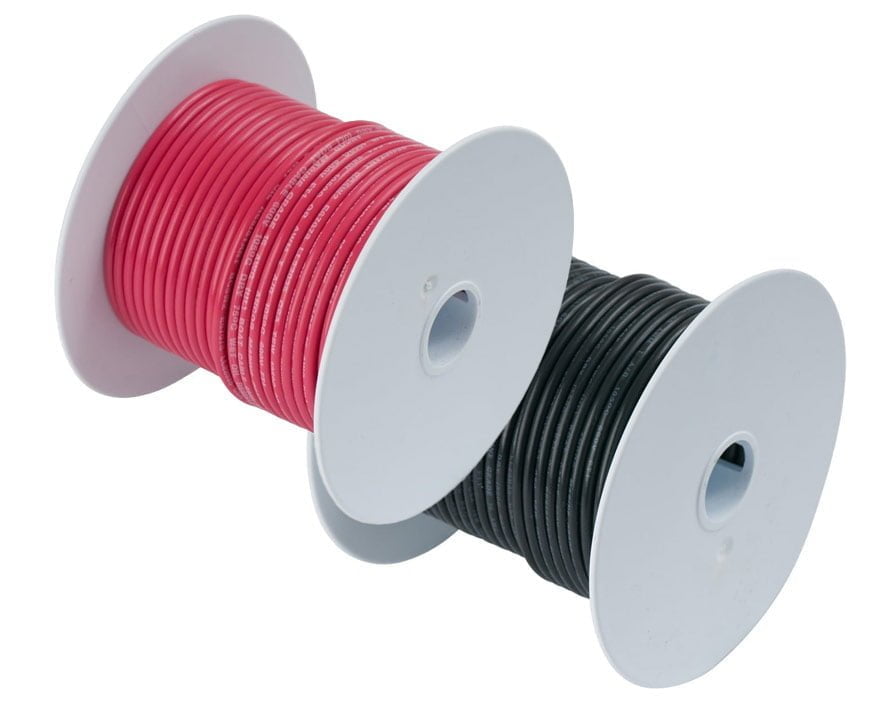

Wire

The 12-volt version of the kit comes with 25′ of red and black 4 AWG wire, the 24-volt kit comes with 25′ of red and black 6 AWG wire, and the 48-volt version comes with 25′ of 10 AWG duplex wire (red and black).  For comparison, the Nomadic Cooling “DIY Install Kit” includes approximately 15′ of wire in their 12/24-volt kit and approximately 11′ of wire in their 48-volt kit.

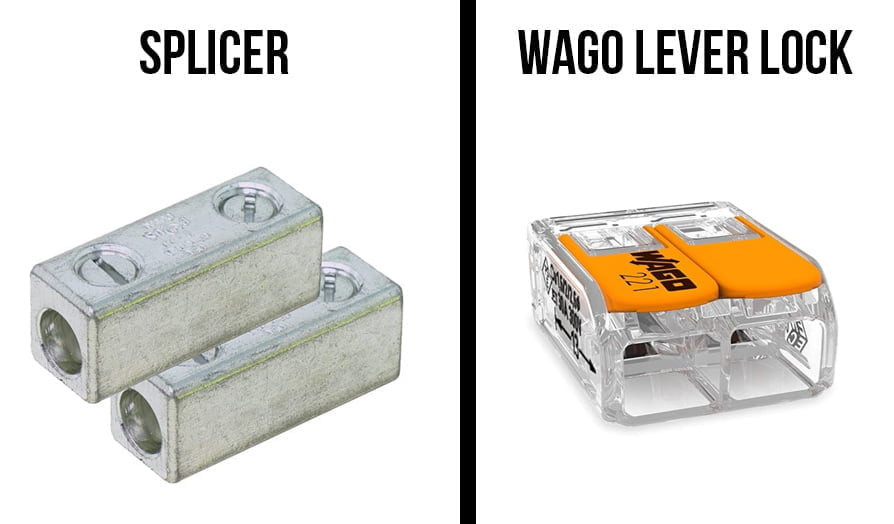

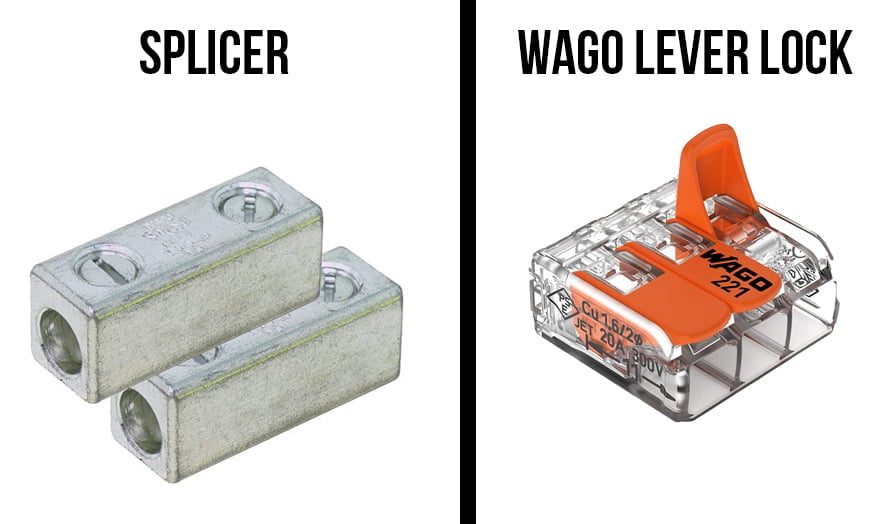

Splicers

The 12/24-volt kits come with 2x appropriately sized splicers. The 48-volt kit comes with 2x WAGO lever lock connectors. There are short, power supply wires that come off the Nomadic AC unit with connectors (large Anderson-style connector on the 12/24-volt units and ring terminals on the 48-volt units) that you’ll cut off and then use these splicers to bridge your branch circuit wiring to the supply wires on the AC itself. When using the splicers, they should be covered with heat shrink which is also provided to secure and protect the splice. The WAGO connectors are insulated.

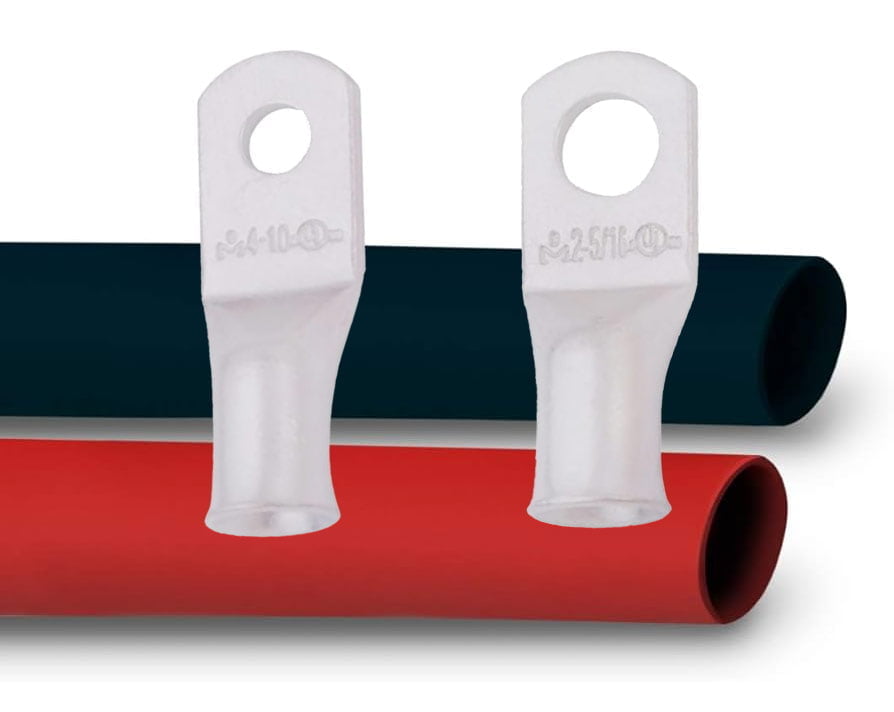

Lugs & Heat Shrink

12-volt kit

  • 1x – 4 AWG, 5/16″ lug – positive bus bar connection
  • 1x – 4 AWG, 5/16″ lug – negative bus bar connection
  • 1x – 4 AWG, 5/16″ lug – positive input side of mega fuse holder
  • 1x – 4 AWG, 5/16″ lug – positive output side of mega fuse holder
  • Heat shrink for the 2x splicers, heat shrink for each lug

24-volt kit

  • 1x – 6 AWG, 5/16″ lug – positive bus bar connection
  • 1x – 6 AWG, 5/16″ lug – negative bus bar connection
  • 1x – 6 AWG, 5/16″ lug – positive input side of mega fuse holder
  • 1x – 6 AWG, 5/16″ lug – positive output side of mega fuse holder
  • Heat shrink for the 2x splicers, heat shrink for each lug

48-volt kit

  • 1x – 10 AWG, 5/16″ lug – positive bus bar connection
  • 1x – 10 AWG, 5/16″ lug – negative bus bar connection
  • 1x – 10 AWG, #10 lug – positive input side of MIDI fuse holder
  • 1x – 10 AWG, #10 lug – positive output side of MIDI fuse holder
  • Heat shrink for the 2x splicers, heat shrink for each lug

Nomadic Cooling’s “DIY Installation Kit” Includes

Price $299.

12-Volt X2 Nomadic Cooling DIY Installation Kit Includes:

  • Power Bundle (4AWG) with Anderson Style Connector
  • Pre-installed Fuse Holder and 70A Fuse on Bundle
  • Pre-installed Stainless Steel Terminals on Bundle
  • Trim Ring (Optional for install)
  • 14″ x 14″ Cardboard Cutout Template
  • Zip Ties with Sticky (Mounting) Plates
  • Polyurethane Adhesive Sealer with Application Nozzle
  • Wide Thermo Tape (5 ft.)
  • Heat Shrink Wraps 3/4″ (3 Red and 1 Black)
  • Tube of Threadlocker

24-Volt X2 Nomadic Cooling DIY Installation Kit Includes:

  • Power Bundle (8AWG) with Anderson Style Connector
  • Pre-installed Fuse Holder and 50A Fuse on Bundle
  • Pre-installed Stainless Steel Terminals on Bundle
  • Trim Ring (Optional for install)
  • 14″ x 14″ Cardboard Cutout Template
  • Zip Ties with Sticky (Mounting) Plates
  • Polyurethane Adhesive Sealer with Application Nozzle
  • Wide Thermo Tape (5 ft.)
  • Heat Shrink Wraps 3/4″ (3 Red and 1 Black)
  • Tube of Threadlocker

48-Volt X2 Nomadic Cooling DIY Installation Kit Includes:

  • Power Bundle (10AWG) with Anderson Style Connector
  • Pre-installed Fuse Holder and 30A Fuse on Bundle
  • Pre-installed Stainless Steel Terminals on Bundle
  • Trim Ring (Optional for install)
  • 14″ x 14″ Cardboard Cutout Template
  • Zip Ties with Sticky (Mounting) Plates
  • Polyurethane Adhesive Sealer with Application Nozzle
  • Wide Thermo Tape (5 ft.)
  • Heat Shrink Wraps 3/4″ (3 Red and 1 Black)
  • Tube of Threadlocker

Additional information

Weight 250 oz
Dimensions 20 × 20 × 20 in
AC Unit Voltage

12-Volt, 24-Volt, 48-Volt
