Modern Times Recessed Stainless Steel Shower Pan

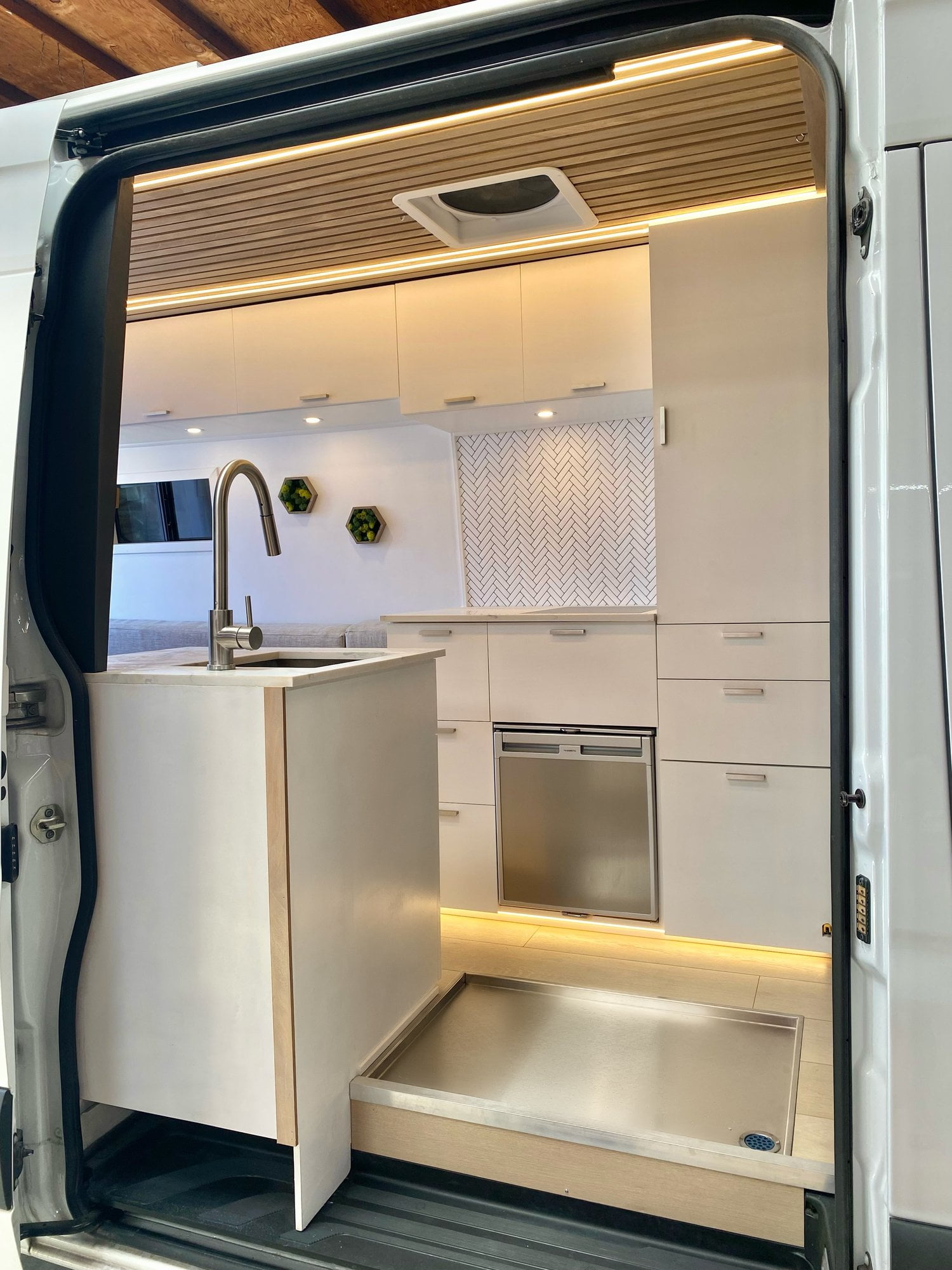

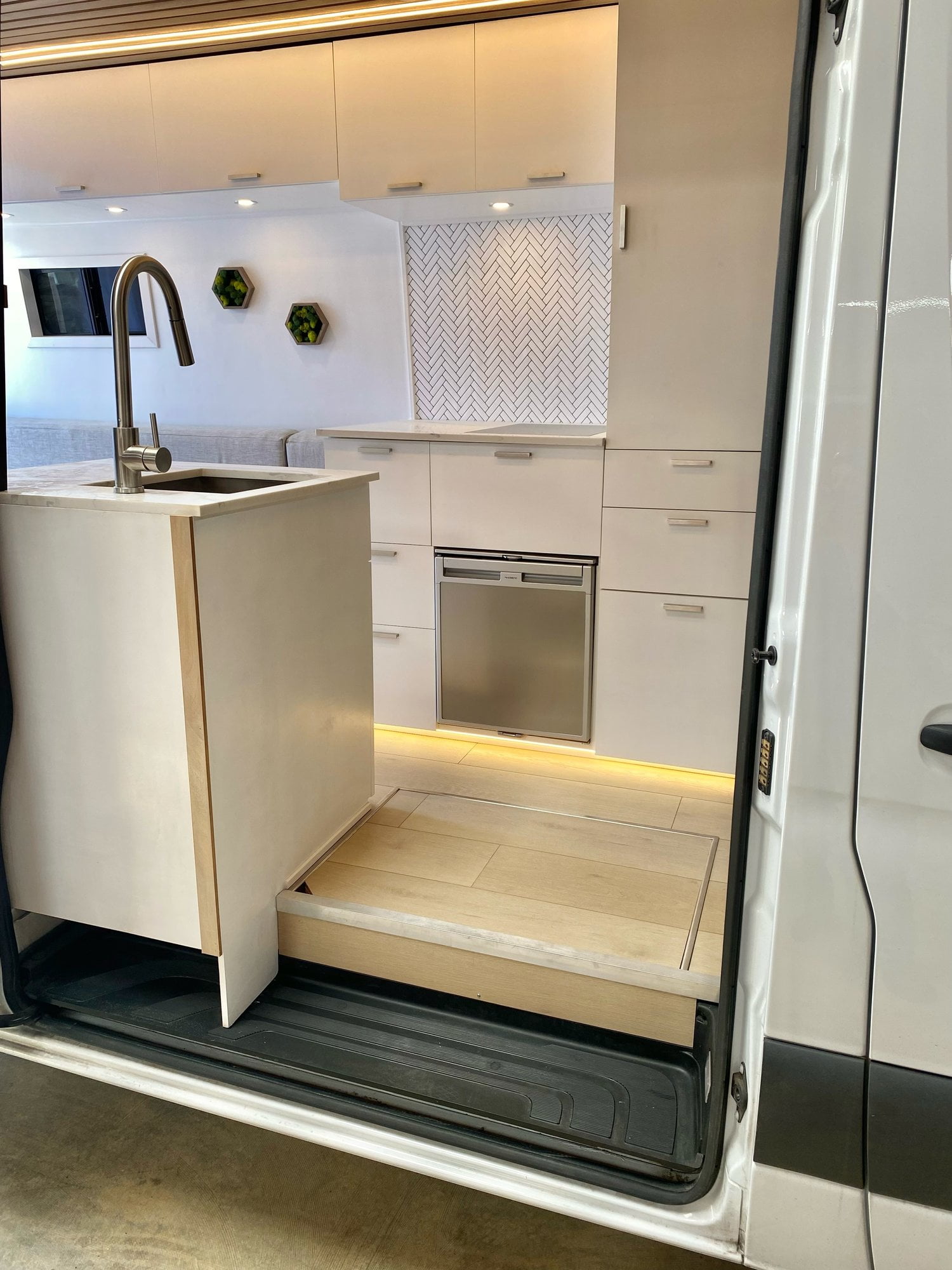

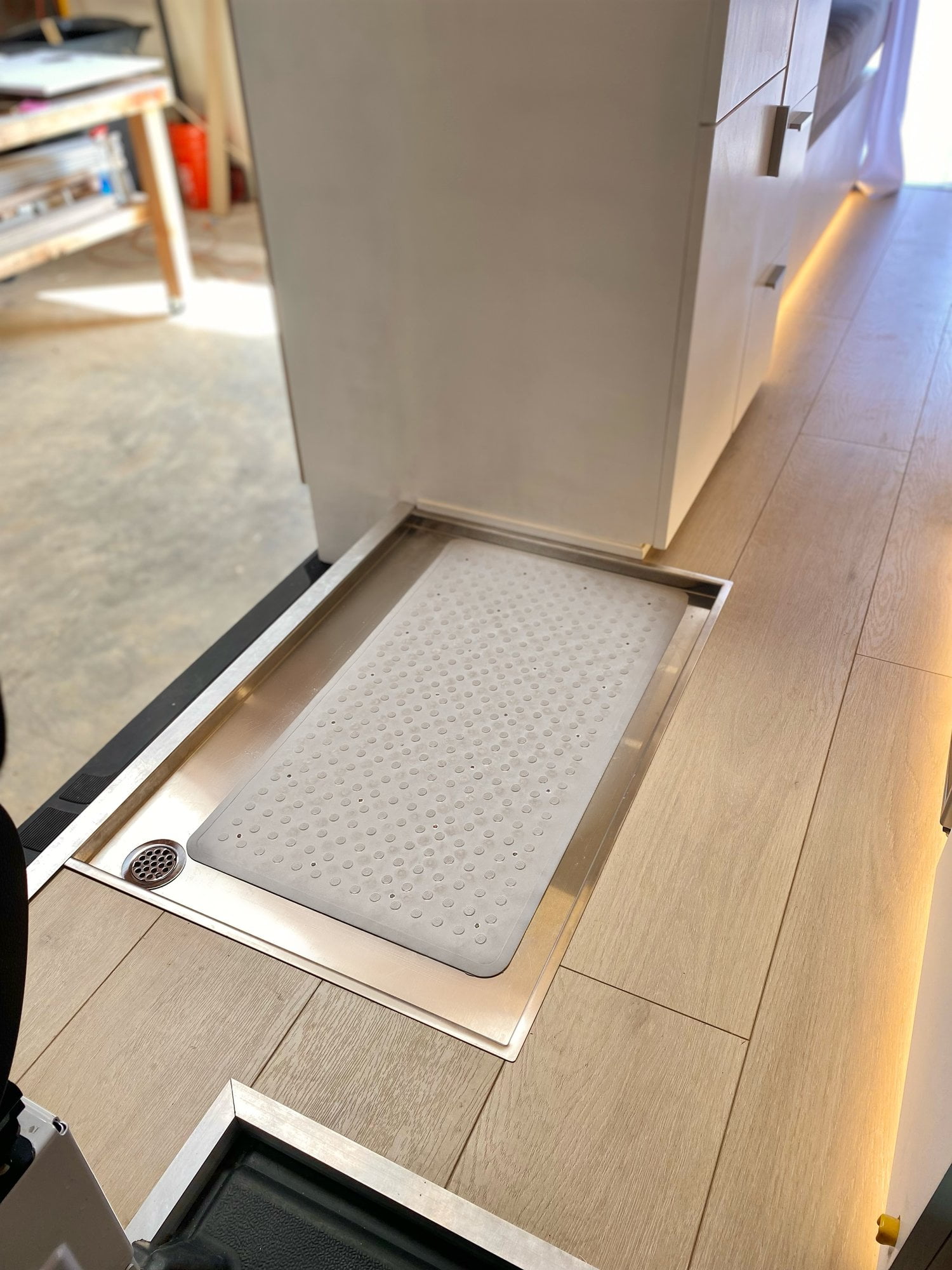

This custom-fabricated shower pan allows you the freedom to place your shower anywhere you please without needing to sacrifice any room in your van or RV. The unique (recessed) design allows you to place it directly into your existing floor /subfloor. The 1/2” overlay on each side supports the shower pan in this orientation.


  • Depth of pan: 1″
  • Overall depth including top lip: 1 1/16″
  • Overall size with lip: 22″x32″
  • Bottom of pan (size of hole for drop in): 21″x31″
  • Size of lip (overhang): 1/2″

$70 flat-rate ground shipping to the Continental


Please allow 48 hours for drain customization prior to shipping.   Ships directly from manufacturer in Florida.

PDF Installation Guide

SKU: MTVC-001-32x24 Categories: ,
buy with confidence, secure checkout, world-class support, free shipping


What’s included
16 gauge stainless steel shower pan (32” long x 22” wide x 1″ deep)
2” drain

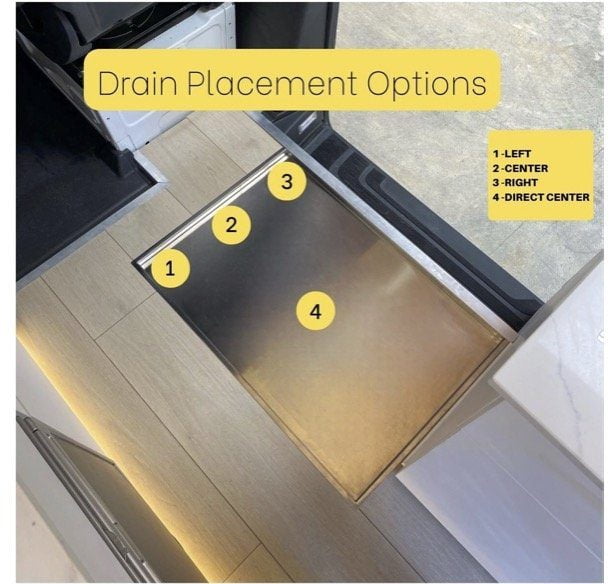

Application will vary by vehicle, so we offer four different drain hole placements as shown below.

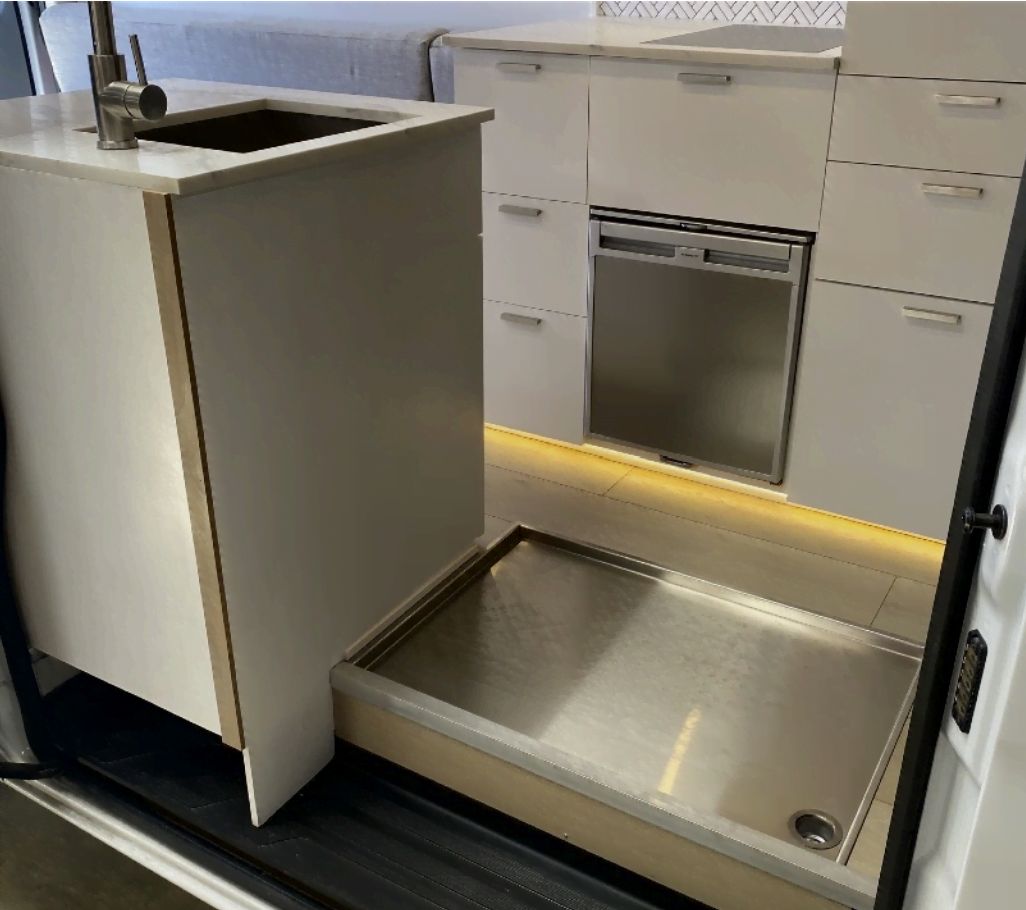

There is slope in the shower pan toward the “front”. The photo below shows a “front, passenger side” drain placement and you can see the walls of the shower pan are shorter (floor height is taller) in the rear than in the front.

Regarding curtains: the shower pan is not compatible with magnets. Instead, you could attach small suction cups to the corners of your shower curtain to create a seal or install magnets under the pan which would allow it to act magnetic.

Additional information

Weight 50 oz
Dimensions 40 × 30 × 5 in
