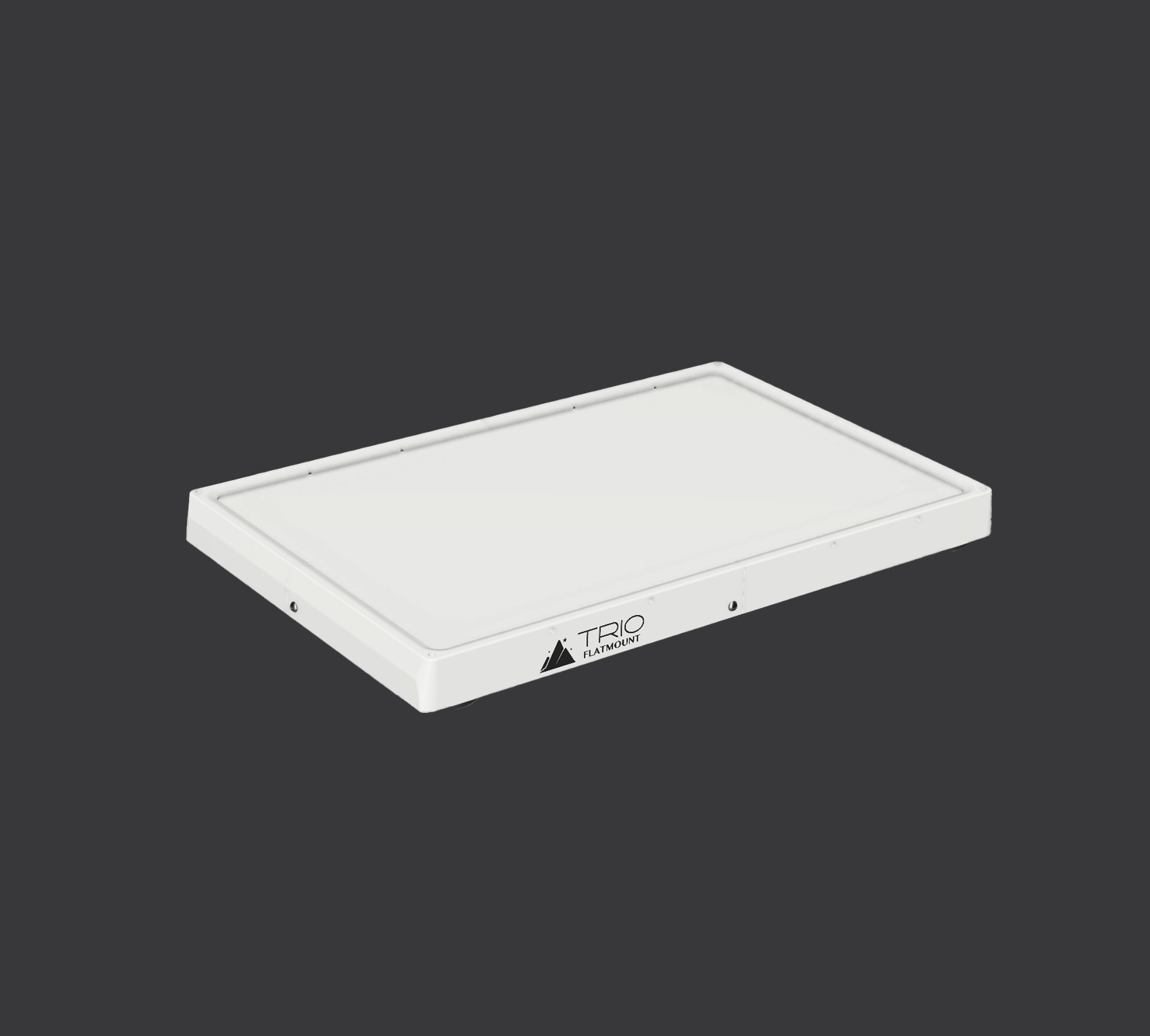

Starlink Flat Roof Mount – Speedmount

$285.00$355.00

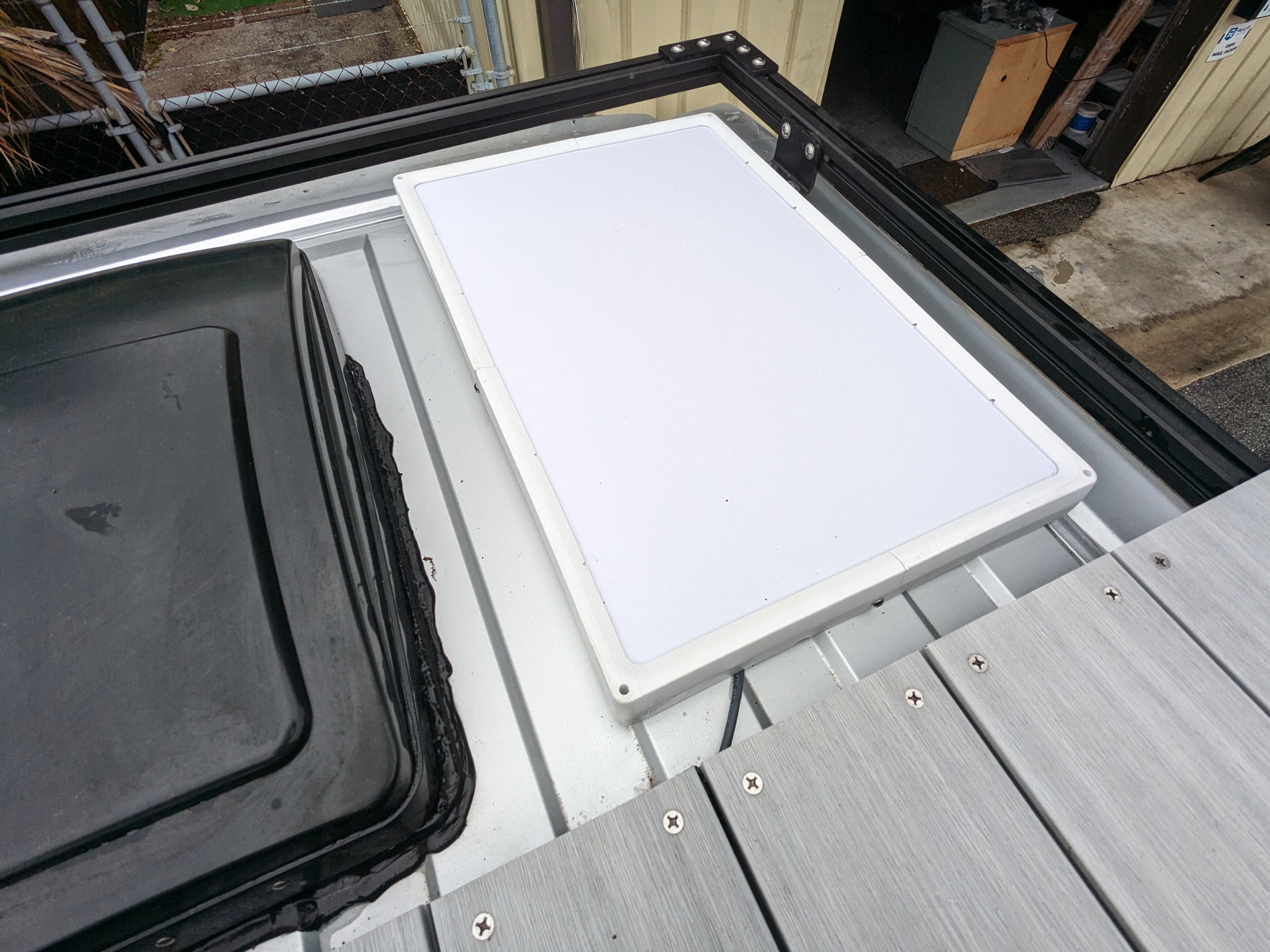

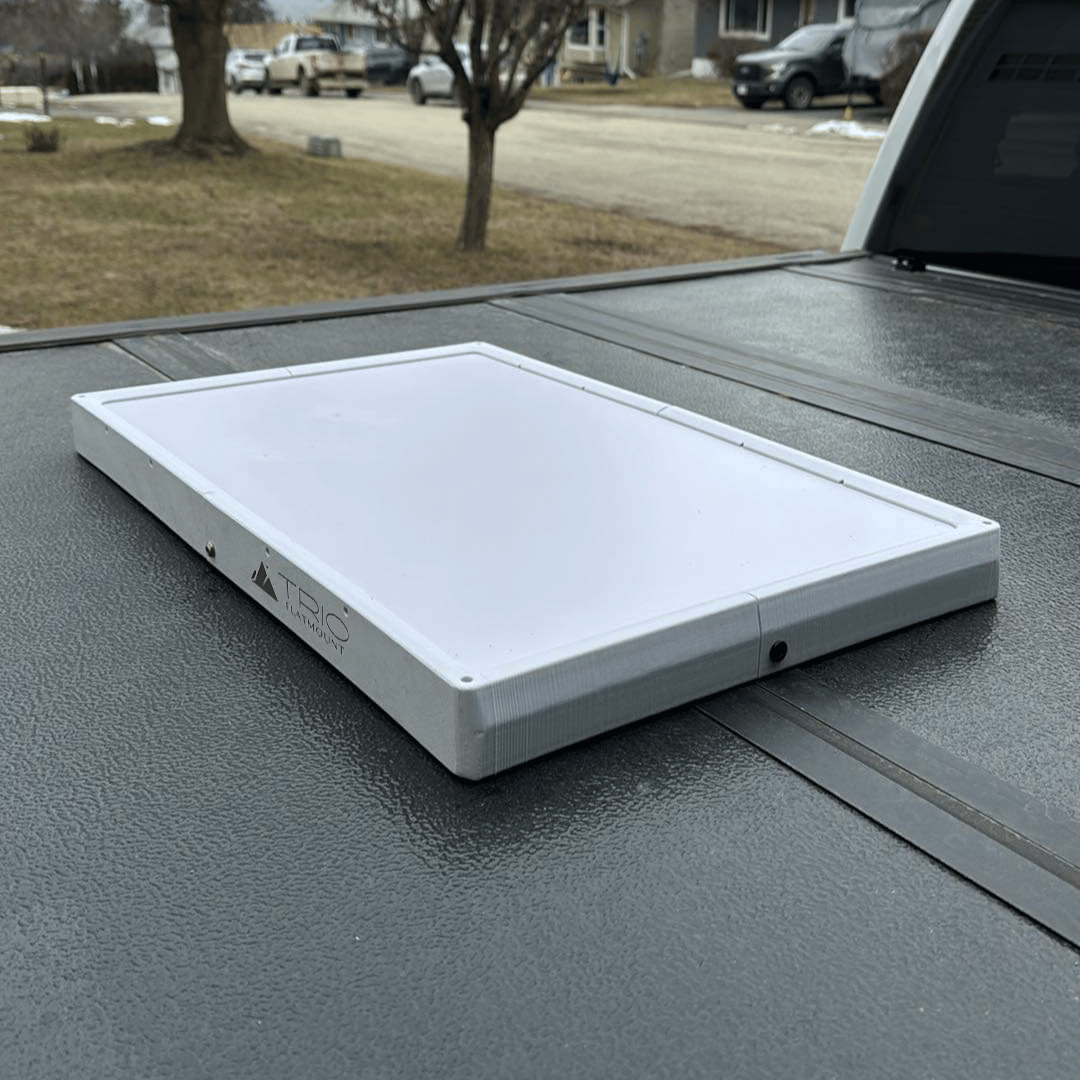

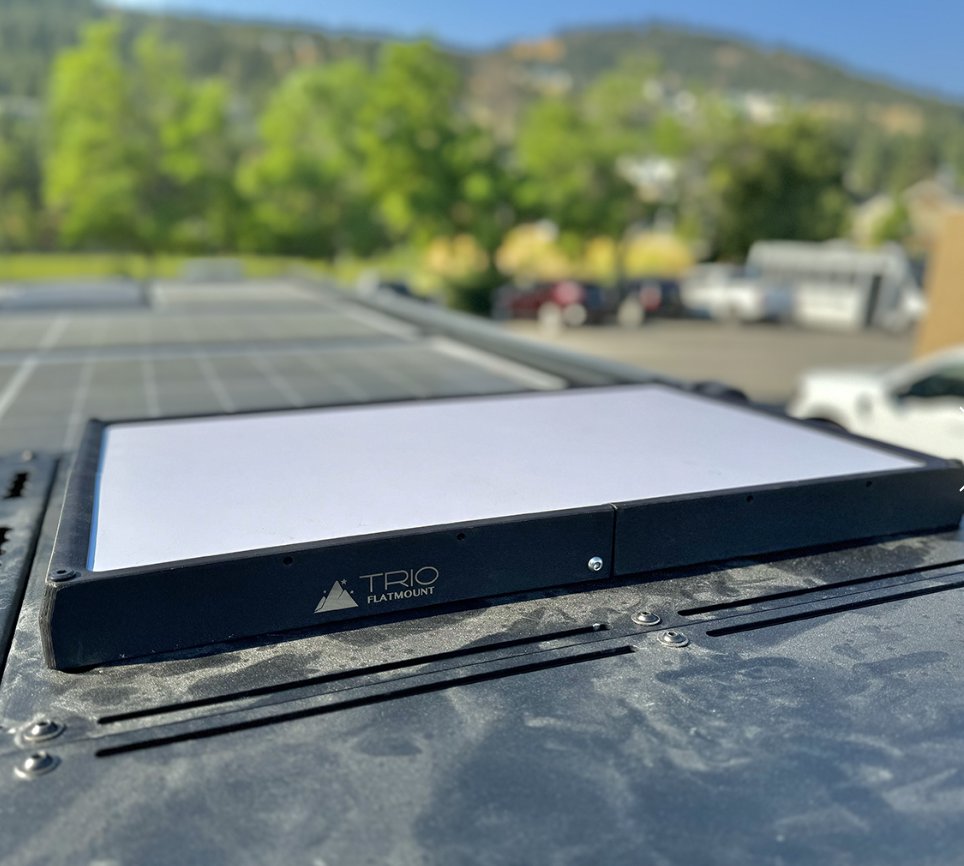

  • Easy and affordable way to permanently mount a Starlink Gen 3 dish to your rig’s roof.
    • This is for the “standard” Gen 3 Starlink dish, not the larger and more expensive “Flat High Performance” dish.
  • Check out our blog post featuring this mount here.
  • We offer 3x mounting options. Below are some details on each option to help you choose.
    • Speedmount w/ 65mm bolts –  this option includes 4x, 65mm stainless steel bolts that can be used to through-bolt the Speedmount to your roof.

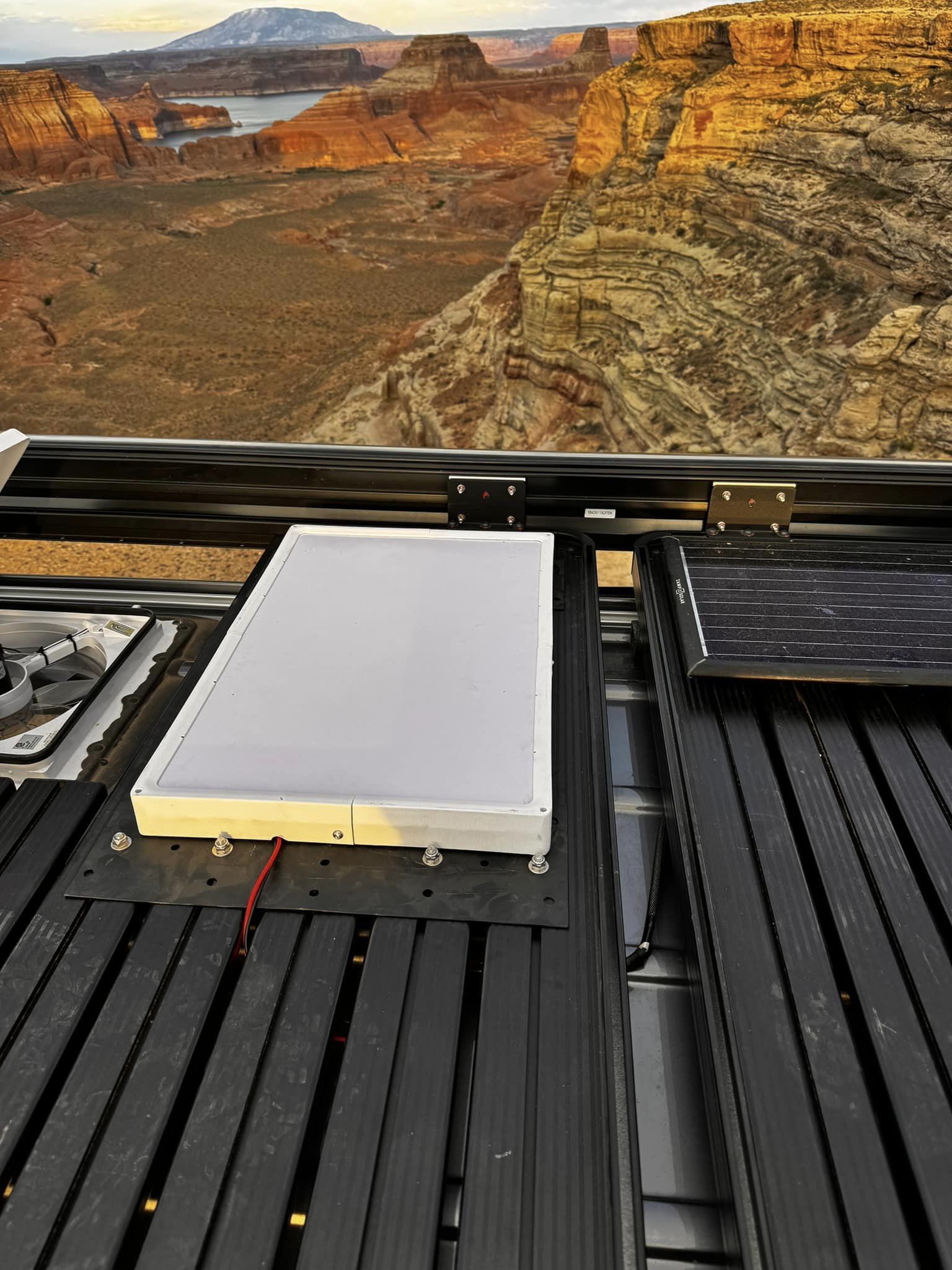

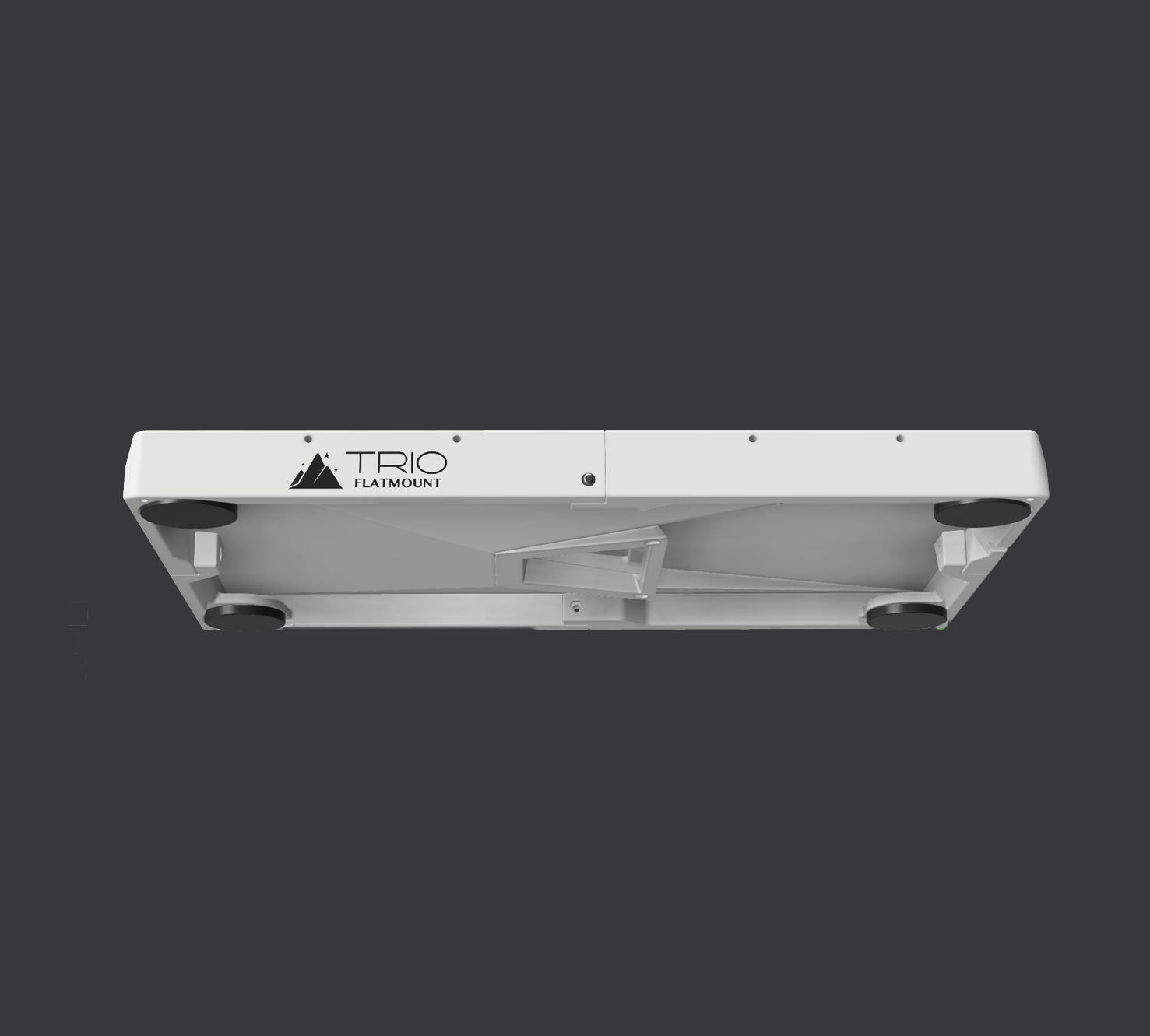

    • Speedmount w/ rubber coated magnet “feet” – this option includes strong magnets that attach to the bottom of the Speedmount so that if you have a metal surface you can easily remove the dish when needed.
    • Speedmount w/ rubber coated magnet “feet” + attachment discs – this includes the magnetic feet plus powder-coated metal discs that can serve as magnetic attachment points on a non-metallic surface. The discs include VHB tape to adhere them to the surface.
  • You do not have to remove the “kickstand” that comes with the Gen 3 dish for positioning, so if you remove the Speedmount, you can use the kickstand in the normal way.
  • Provides protection to the edges of the dish.
  • Extremely low profile at only 1.85” in height (1.9” with magnets).

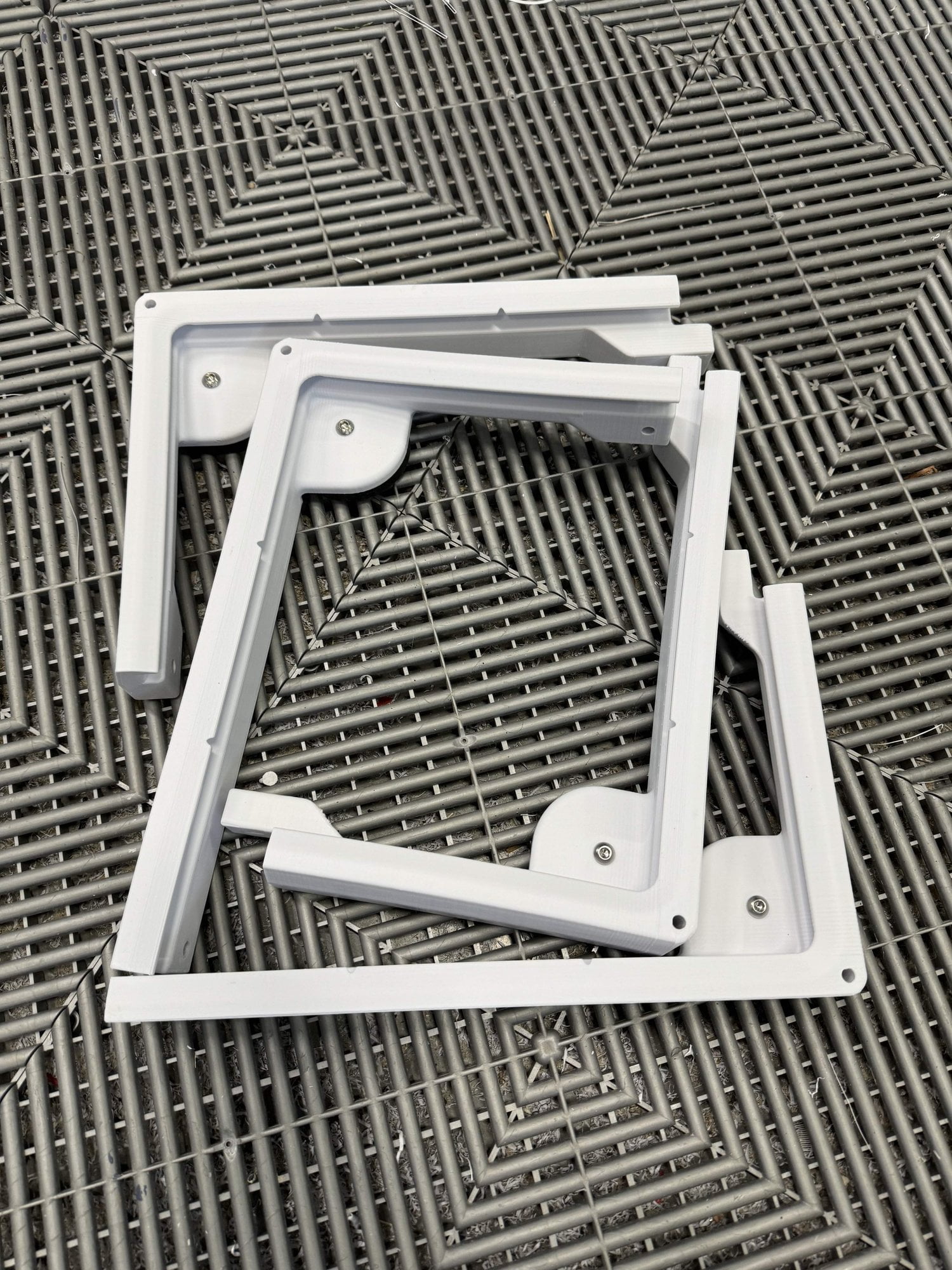

  • Simply slide the 4 pieces into place around the Starlink Gen 3 dish and tighten the 4x stainless steel screws into the nylon locknuts and then mount to your roof.
  • Manufactured from waterproof and UV thermoplastic that will not warp.
  • We also sell an adapter to power a Starlink Gen 3 from a 12/24-volt DC supply so you don’t have to run your inverter when using Starlink.
  • Check out the videos in the description toward the bottom of the page.

$10 flat-rate shipping to the continental USA!

SKU: Trio-Speedmount Categories: , ,
buy with confidence, secure checkout, world-class support, free shipping


Description

This mount has been designed to be used (and has been tested) at high speeds. It is ultimately up to the installer to ensure the antenna mount is secured appropriately.

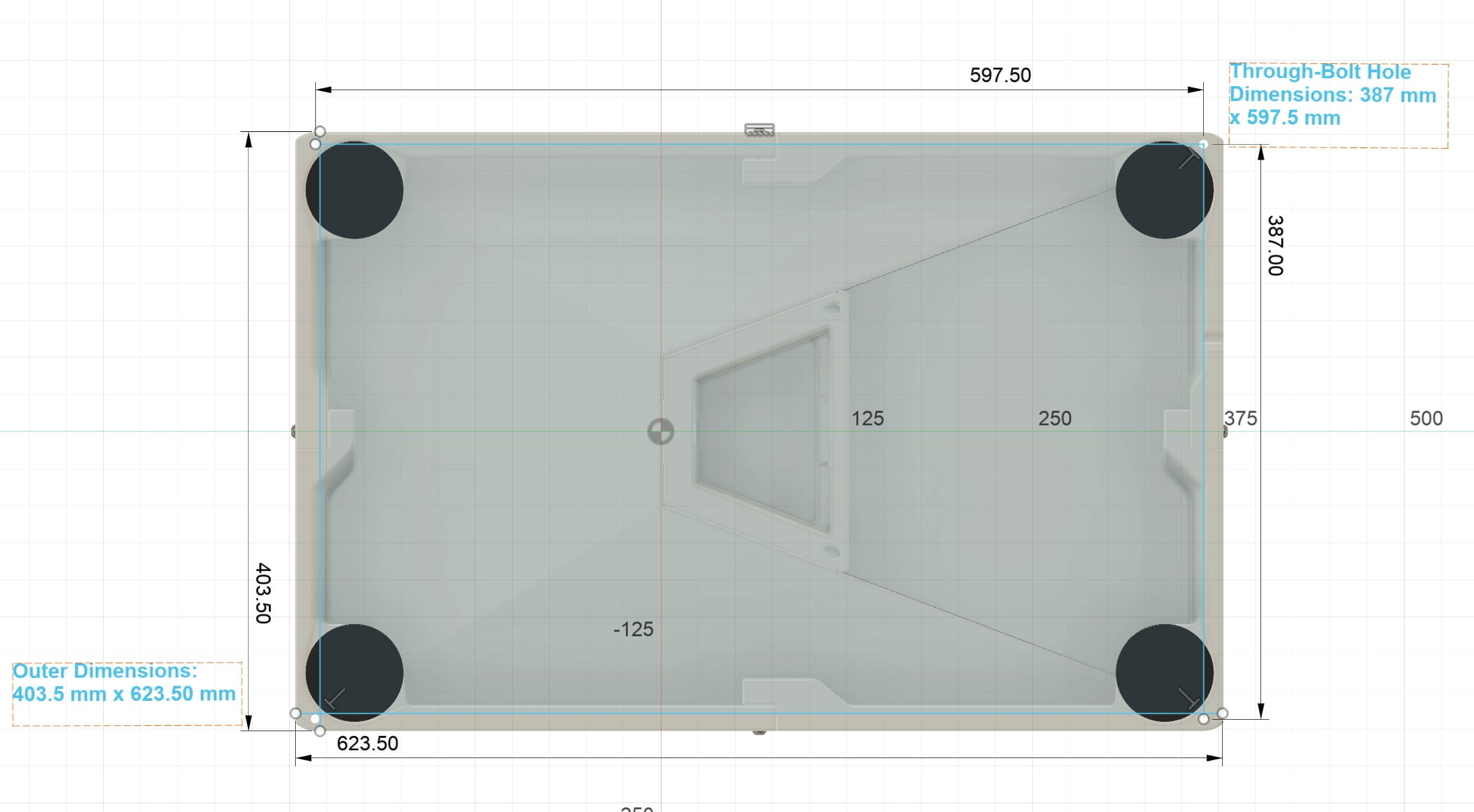

Assembled Dimensions

  • Length: 624.5 mm (24.6”)
  • Width: 403 mm (15.86”)
  • Height: 47mm (1.85”)
  • Weight (~4 lbs)

Using Starlink in motion may violate your Terms of Service depending on your service location. Consult your Terms of Service to determine if this applies to you.

By purchasing and using this product, you agree to waive any claims that you may have against TRIO Flatmount,  and included entities, from any and all liability for any loss, damage, expense or injury, including death, that may suffer as a result of the use of the product, due to any cause whatsoever.

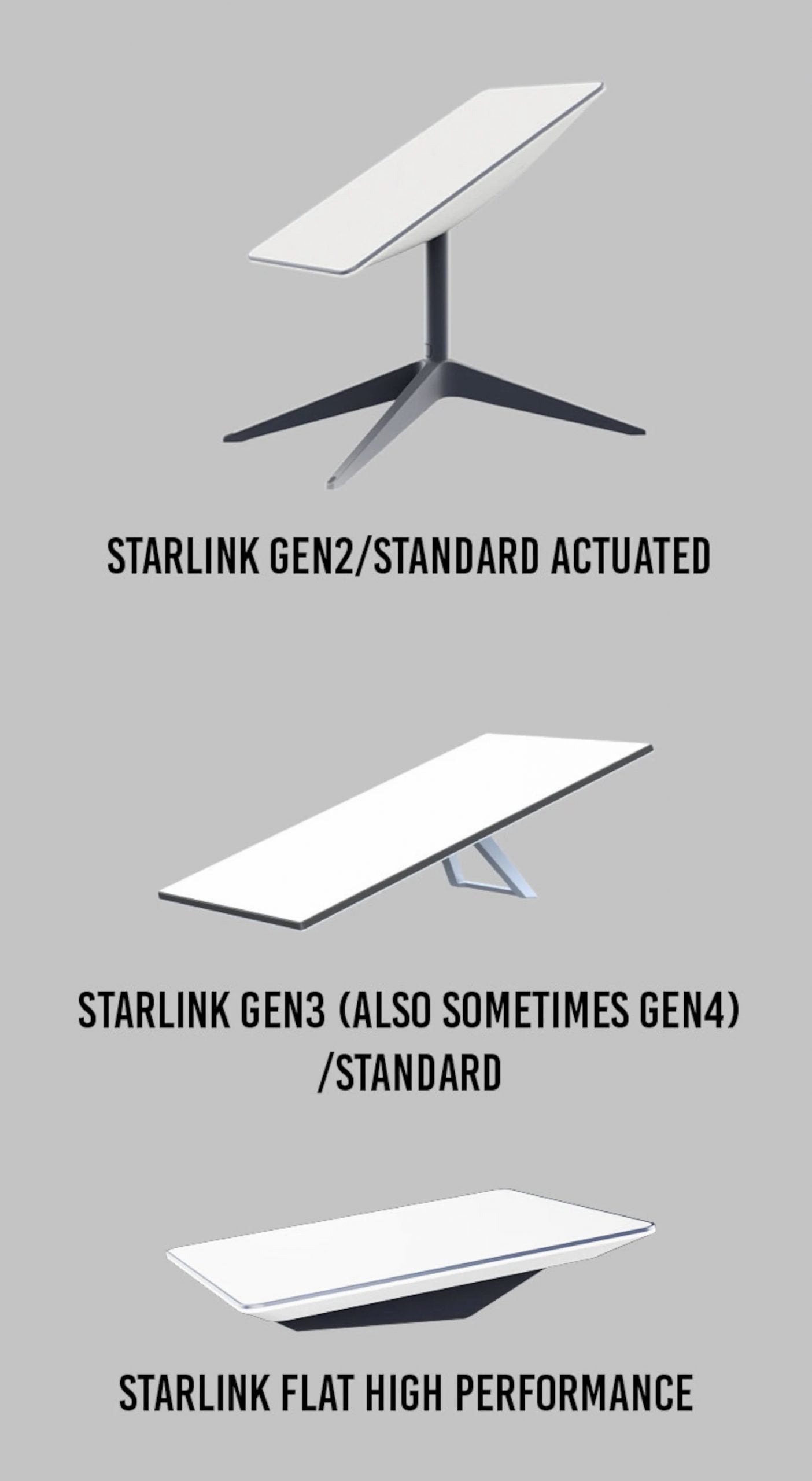

This mount is designed for the Starlink Gen 3 standard dish. The illustration below details the differences between the various Starlink dishes available on the market.

Additional information

Weight 200 oz
Dimensions 20 × 20 × 25 in
Mounting Option

Speedmount only, Speedmount w/ 65mm bolts, Speedmount w/ rubber coated magnet "feet", Speedmount w/ rubber coated magnet "feet" + with attachment discs
