Victron Energy Cerbo GX (MK2)

$317.05

The Cerbo GX (MK2) is Victron’s communication center that allows you to always have perfect control over your system from wherever you are and maximizes its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch 50 (5″) or GX Touch 70 (7″), an MFD or our VictronConnect App thanks to its added Bluetooth capability.

Note: this “MK2” version of the Cerbo GX is basically the newer model that will eventually replace the standard Cerbo GX.

Manual

Cerbo GX Versions There are 3x versions of the Cerbo GX. The original Cerbo GX, a less-expensive Cerbo-S GX that removes the analog temperature sensor inputs, the resistive tank monitoring inputs, and the BMS.Can port. This PDF datasheet compares the Cerbo GX and the Cerbo-S GX models. If you use a digital temp sensor like the Bluetooth Ruuvitags we sell or a digital tank monitoring solution like the SeeLevel system the removed ports on the Cerbo-S GX are not needed. The newest model is called the Cerbo GX MK2. You can read about the changes in the MK2 version of the Cerbo GX on this Victron Community post. The reason for the slight price difference between MK1 and MK2, and no big announcement, is to ensure that the limited initial stock of the MK2 only goes to those users who really need two full compatibility VE.Can interfaces. Victron Energy also offers the Ekrano GX which is similar but has an integrated touch screen. We also recommend reading our blog post about configuring a Cerbo GX device in a mobile power system like a camper van or RV. Check out our video in the description below to learn more.

We offer fast, FREE shipping on most Victron Energy products - including batteries and inverters! FREE shipping on Victron batteries. Small cables/adapters ship for a flat-rate of $5. These promotional shipping rates are for customers in the continental USA only.

49 in stock (can be backordered)

buy with confidence, secure checkout, world-class support, free shipping


Description

Perfect monitoring & control

Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or change any setting to optimize the system. Follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.

Maximise your system performance

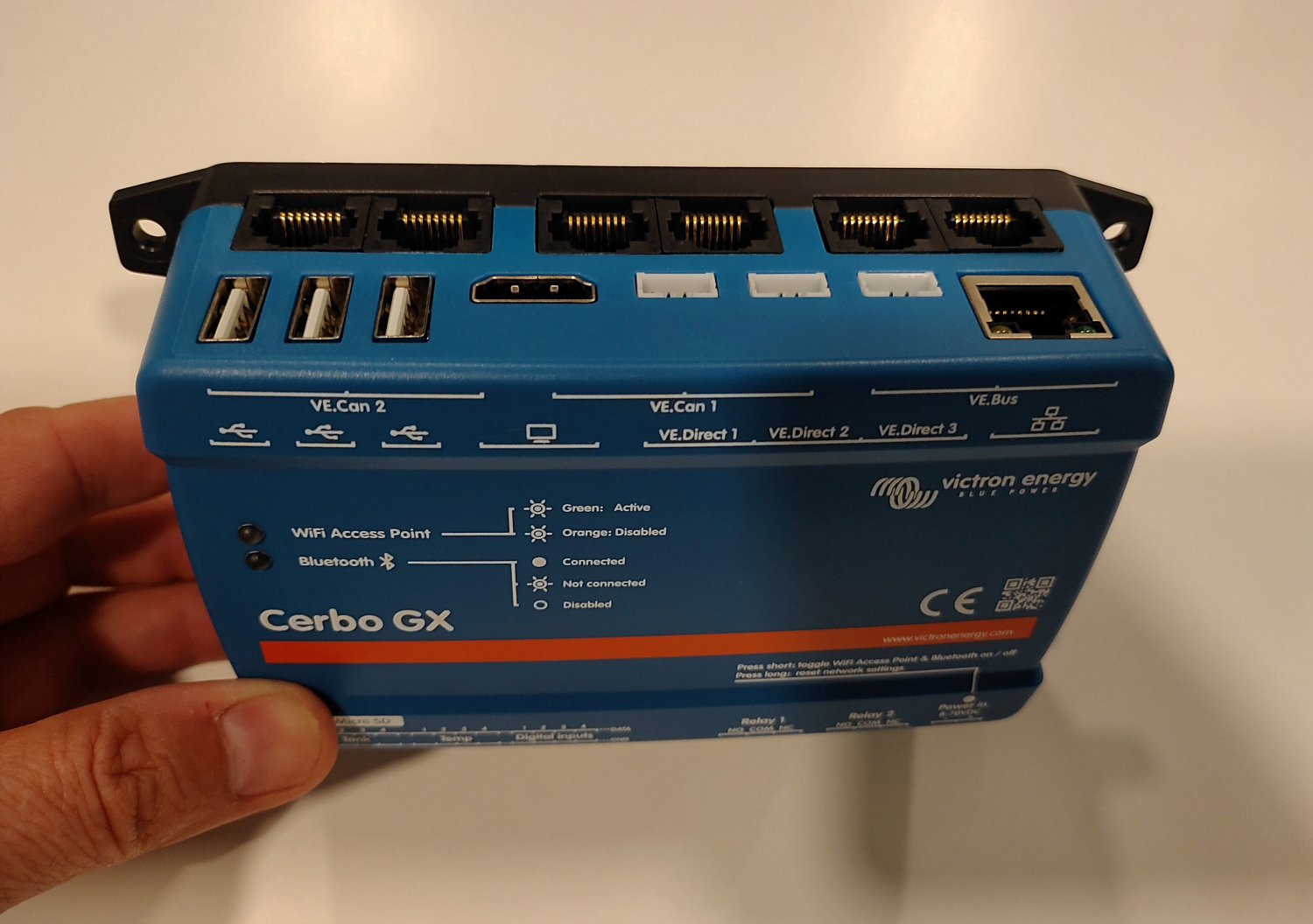

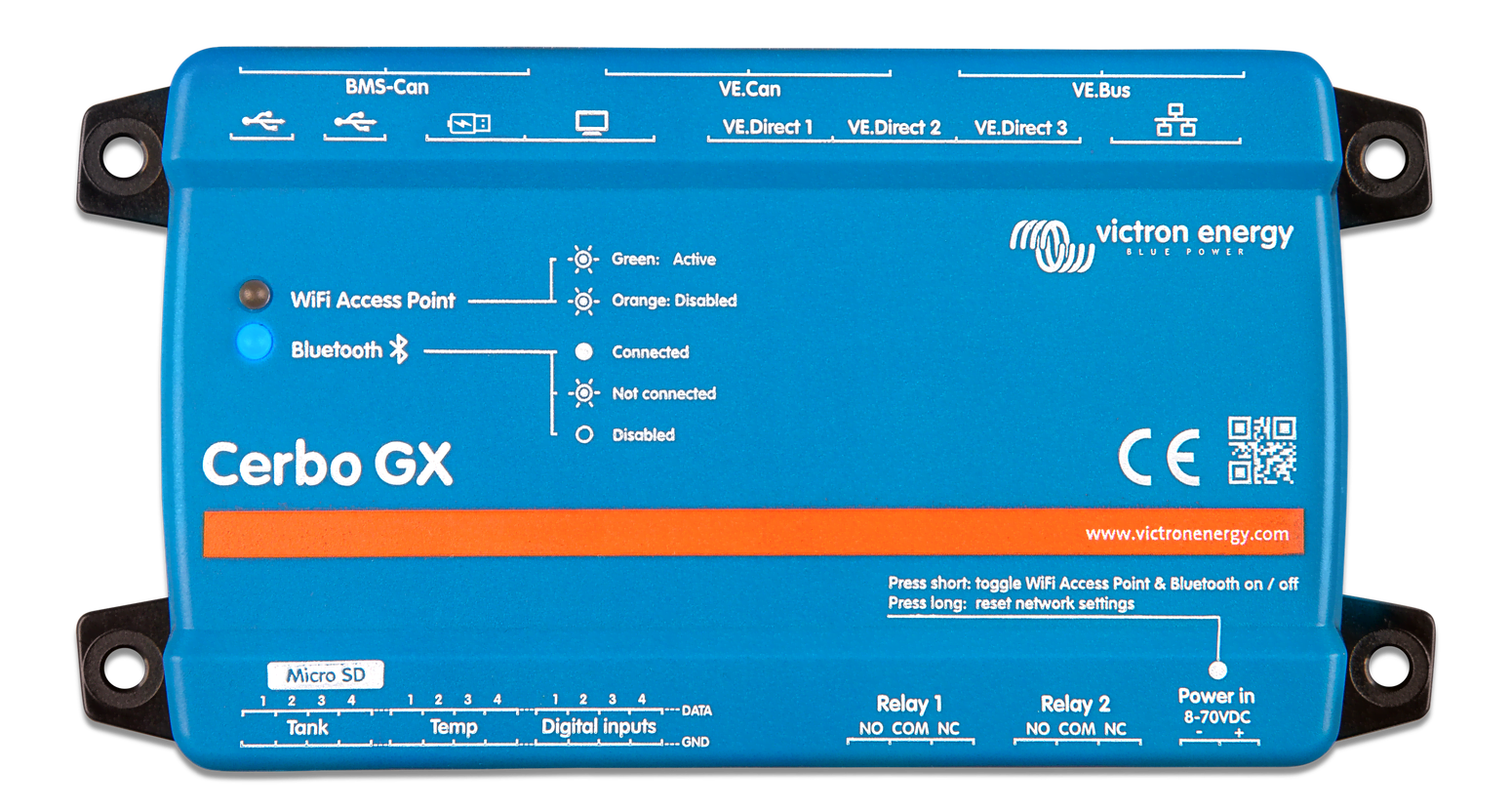

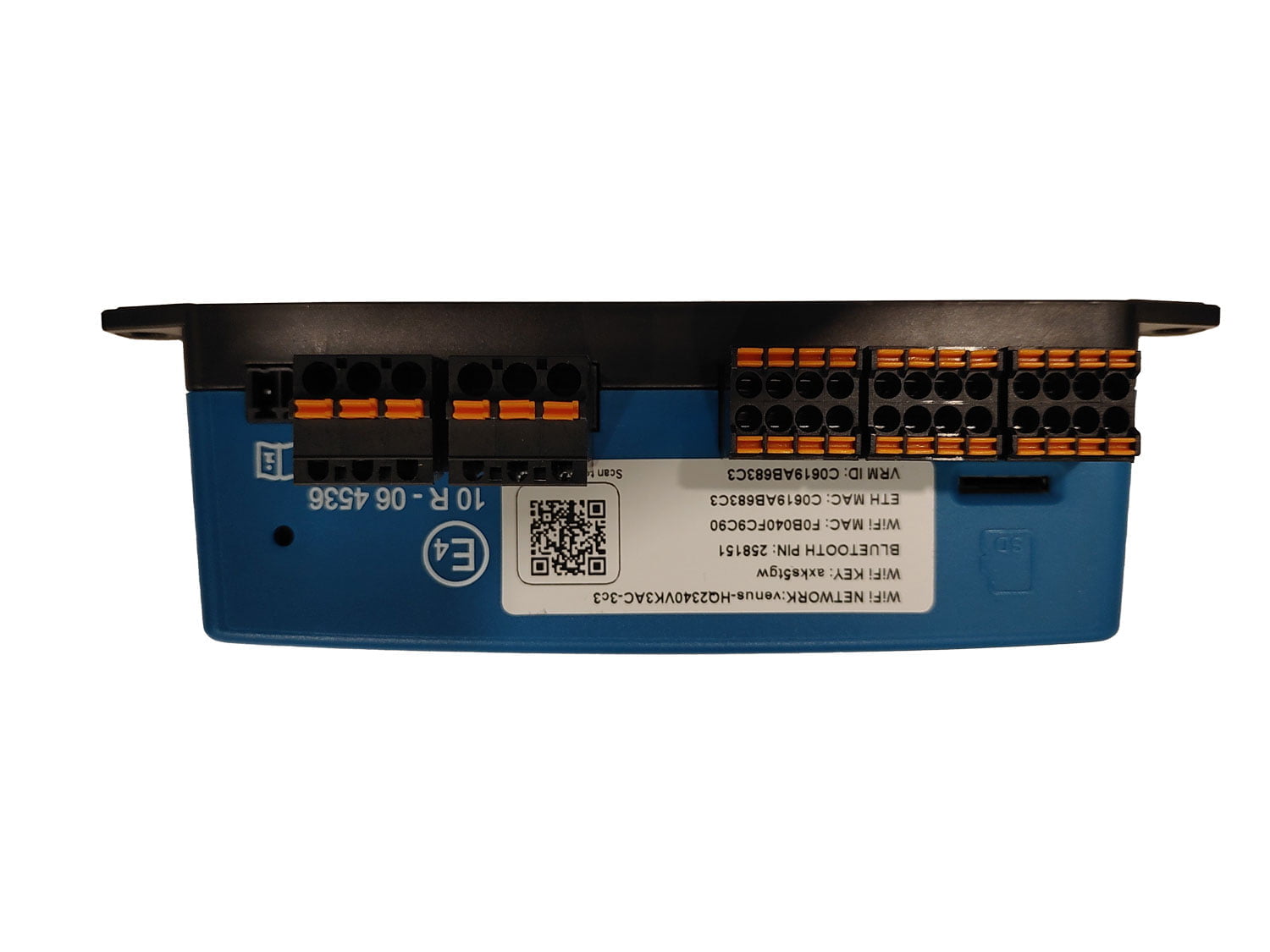

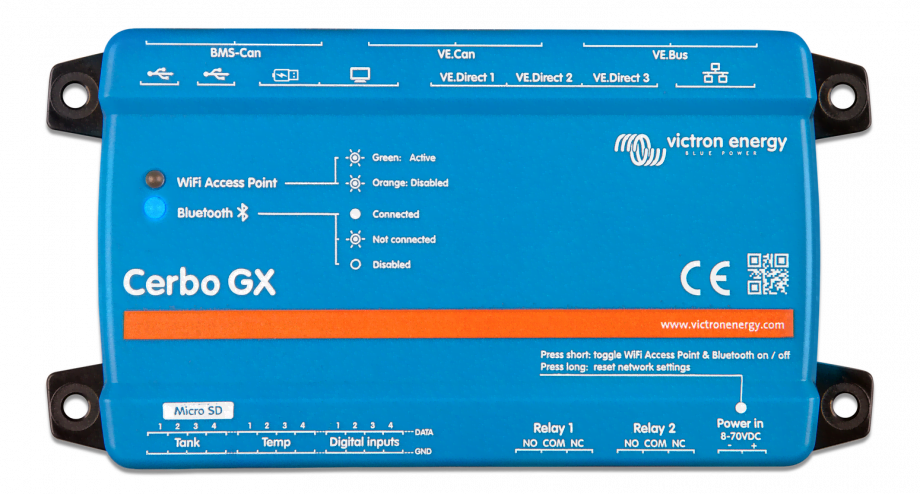

The Cerbo GX maximizes the performance of your systems components in real-time and keeps them in perfect tune. With its Dual Core Processor and the addition of an extra CAN-bus port you can now support even bigger systems; closely follow managed (lithium) batteries while the second port can support up to 25 simultaneously connected VE.Can solar chargers. The new NMEA 2000-out support has the GX easily integrated into any boats network. Four tank- and four temperature ports as well as 3 VE.Direct ports, 3 USB ports, 4 digital inputs and 2 relays allow you to expand control to a new level. Maximising systems performance was never this easy.

Expand your view

The  GX Touch displays allows you to have an instant overview of your system and adjust settings in the blink of an eye. Its super slim 5 or 7 inch waterproof design, top-mountable setup, and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.

Comparing the Various GX Devices

Additional information

Weight 10.6 oz
Dimensions 8 × 8 × 4 in
