Description

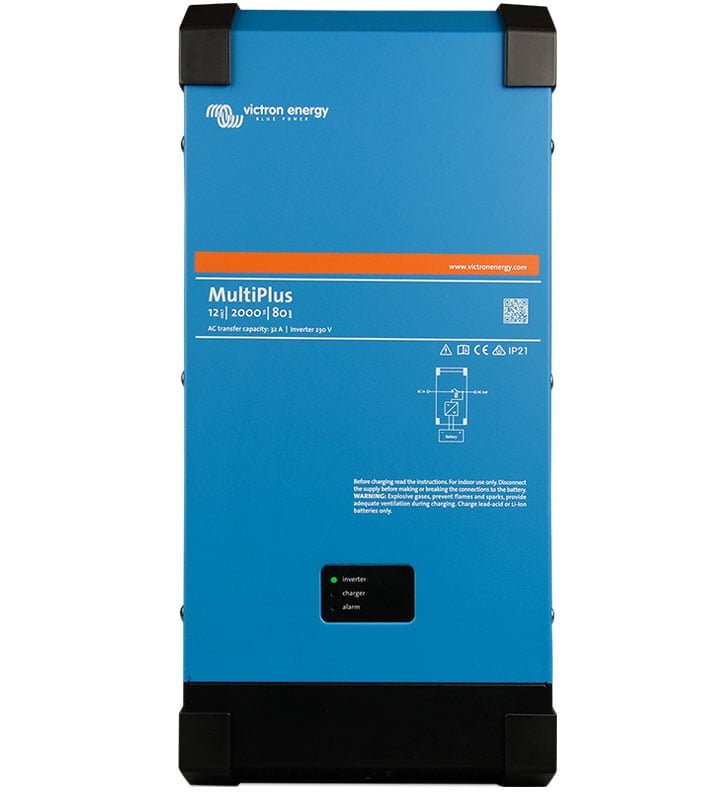

As the Multiplus name suggests, this unit combines both a sine wave inverter and battery charger in one compact enclosure. Programmable for use with all battery types including Lithium Ion This new model is more compact in size and features a 50 amp transfer switch. 5 Year manufacturers warranty.
Victron Energy inverters are considered some of the best for camper van conversions.
Dimensions: 19.9″ tall x 9.3″ wide x 5.8″ deep (dimensional drawing PDF)
Weight: 35lbs
Unique PowerAssist Feature
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
Uninterrupted AC power (UPS function)
In the event of a grid failure when connected to shore power, the inverter is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.

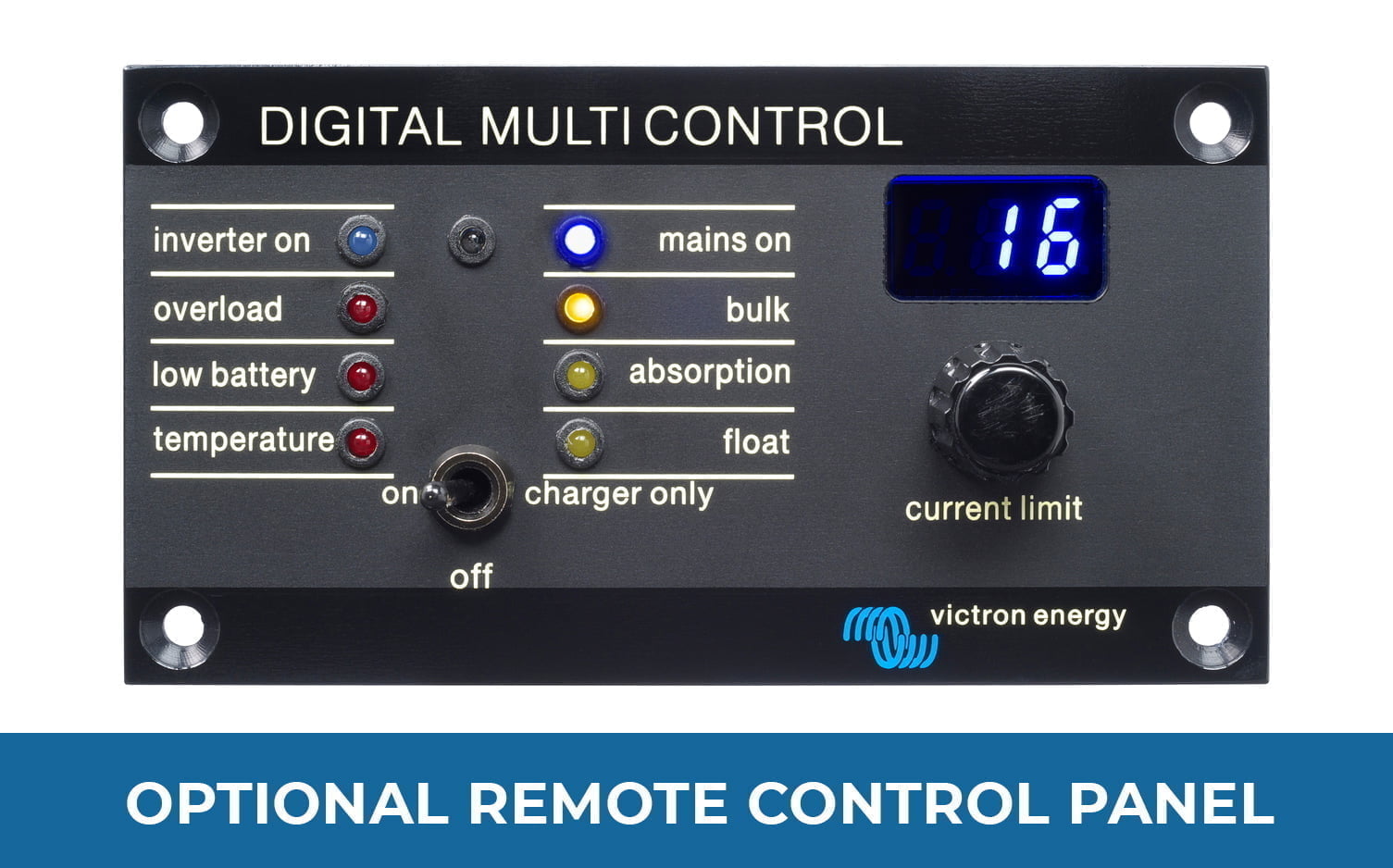

Optional Remote Control Panel
The Digital Multi Control is used to remotely view and adjust AC input currents, and turn on and off the Multi or Quattro inverter/charger. It is designed to integrate cleanly with your boat, vehicle or house system control panel. Connecting the control panel to your system is simple, in most cases just connecting it with a RJ45 Ethernet type cable.
Add Bluetooth Monitoring With The VE.Bus Smart Dongle
You can add a VE.Bus Smart Dongle which connects to the VE.Bus on the inverter/charger to add bluetooth monitoring. It also adds additional voltage and temperature sensing for enhanced charging of your batteries from the inverter/charger.
Programming/Configuration
We have a blog post on how to configure/program this MultiPlus inverter/charger that might be helpful for you.
